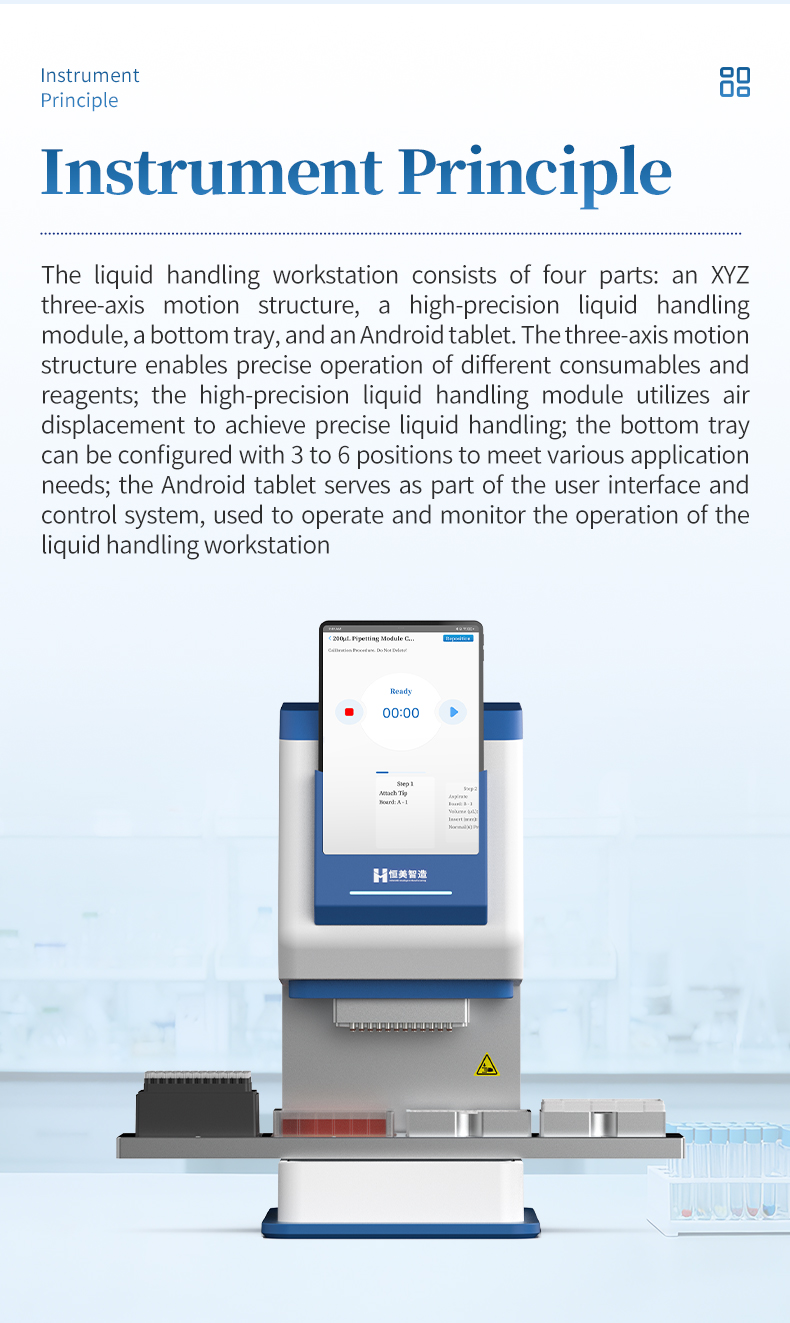

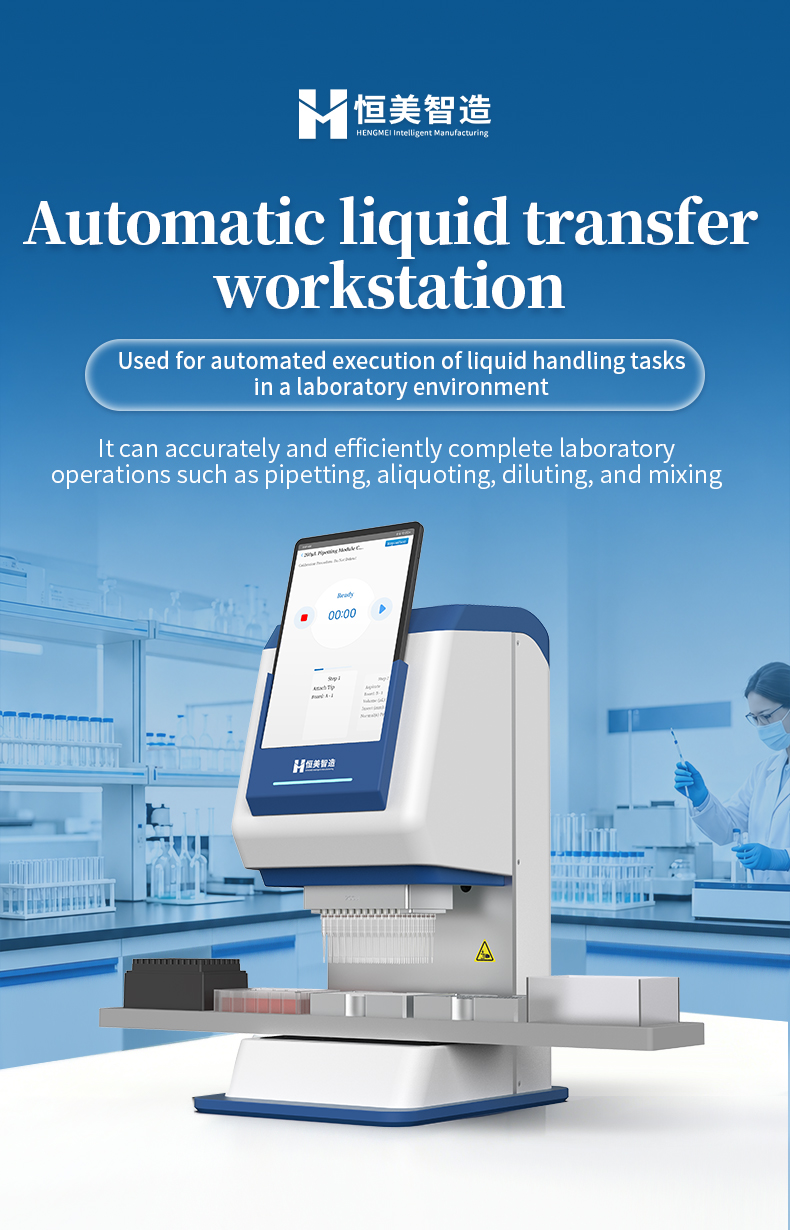

The YA50-3 is the entry-level model in the HM Instruments YA series of 96-channel automated pipetting workstations. Built on an air-displacement principle with a fixed 96-channel head, it processes standard SBS-format 96-well plates simultaneously, completing a full-plate dispense in under 90 seconds. The 2–50 μL volume range is optimized for molecular biology workflows including PCR/qPCR reaction setup, ELISA reagent addition, and NGS library preparation. With 3 deck positions, the YA50-3 accommodates a source plate, tip box, and reagent reservoir — the essential configuration for single-plate transfer protocols.
Measuring 580 × 350 × 580 mm and weighing 26.6 kg, the YA50-3 fits inside standard Class II biosafety cabinets, enabling aseptic liquid handling for cell-based assays and biohazardous sample processing. The Android tablet control interface provides intuitive drag-and-drop protocol programming, real-time run monitoring, and pre-built templates for common applications.
Applications
PCR and qPCR reaction setup (master mix + template dispensing)
ELISA reagent addition (conjugate, substrate, stop solution)
NGS library preparation (fragmentation, end-repair, ligation)
Reagent addition for compound screening assays
Plate reformatting (96-to-96 sample transfer)

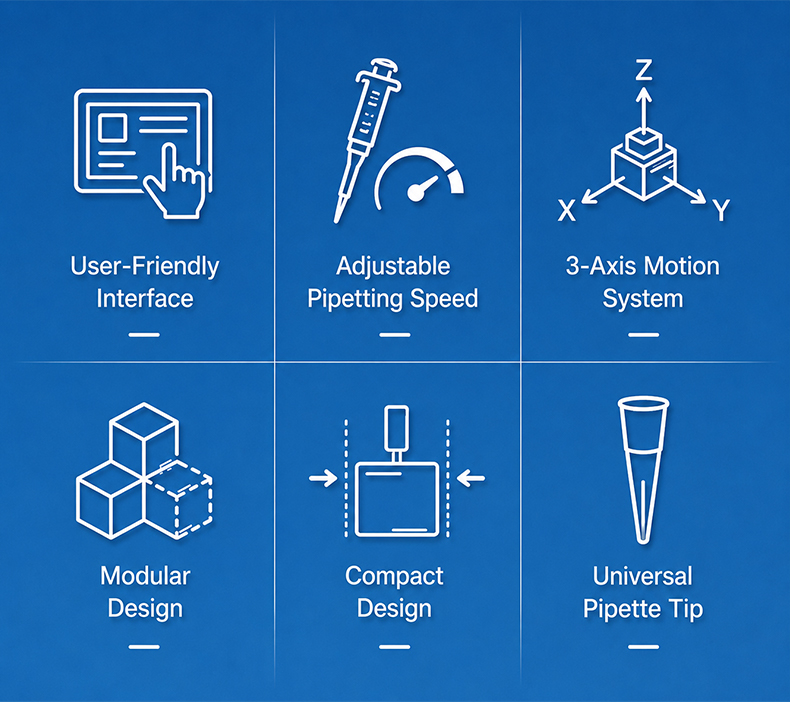

Functional Performance
96-channel fixed pipetting head processes entire plate in one pass
2–50 μL volume range with ≤1.5% accuracy at 20 μL and ≤1% CV
3 SBS deck positions for source plate, tip box, and reagent reservoir
Compact 580 × 350 × 580 mm footprint fits inside biosafety cabinets

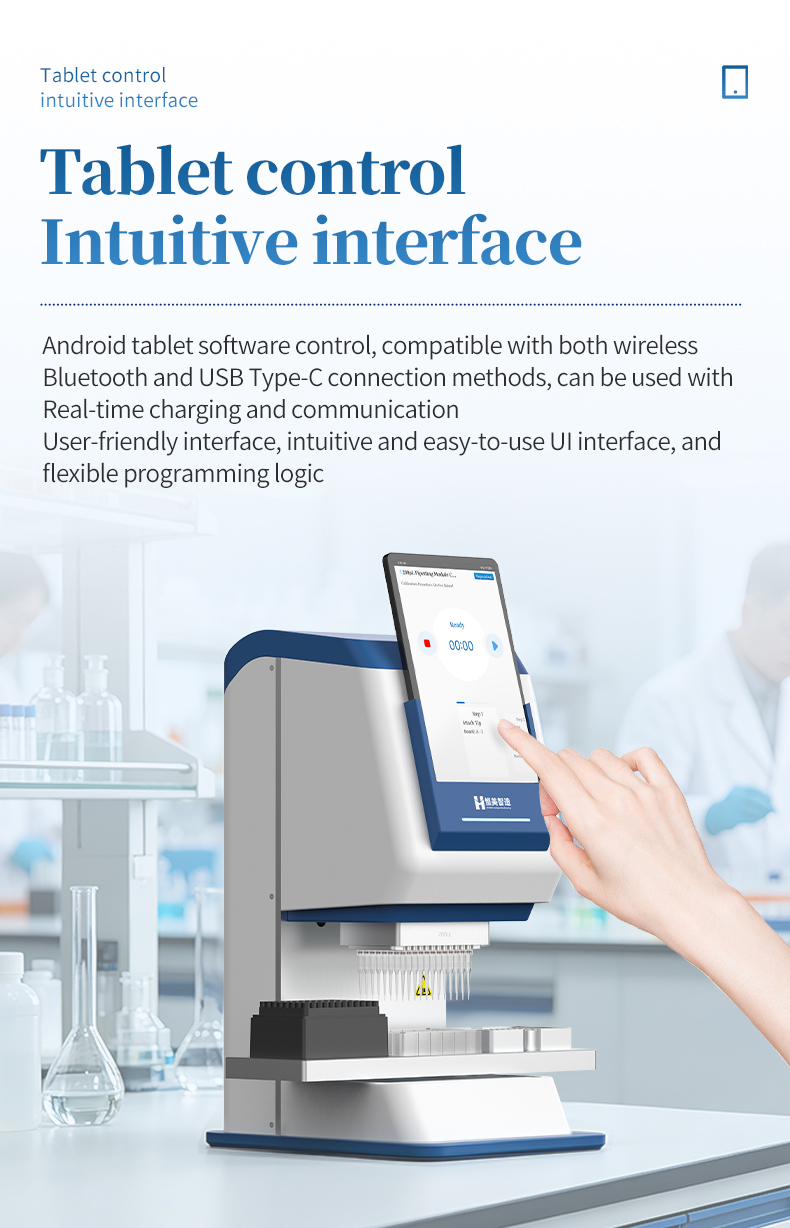

Android tablet control via Bluetooth or USB Type-C (PD protocol)

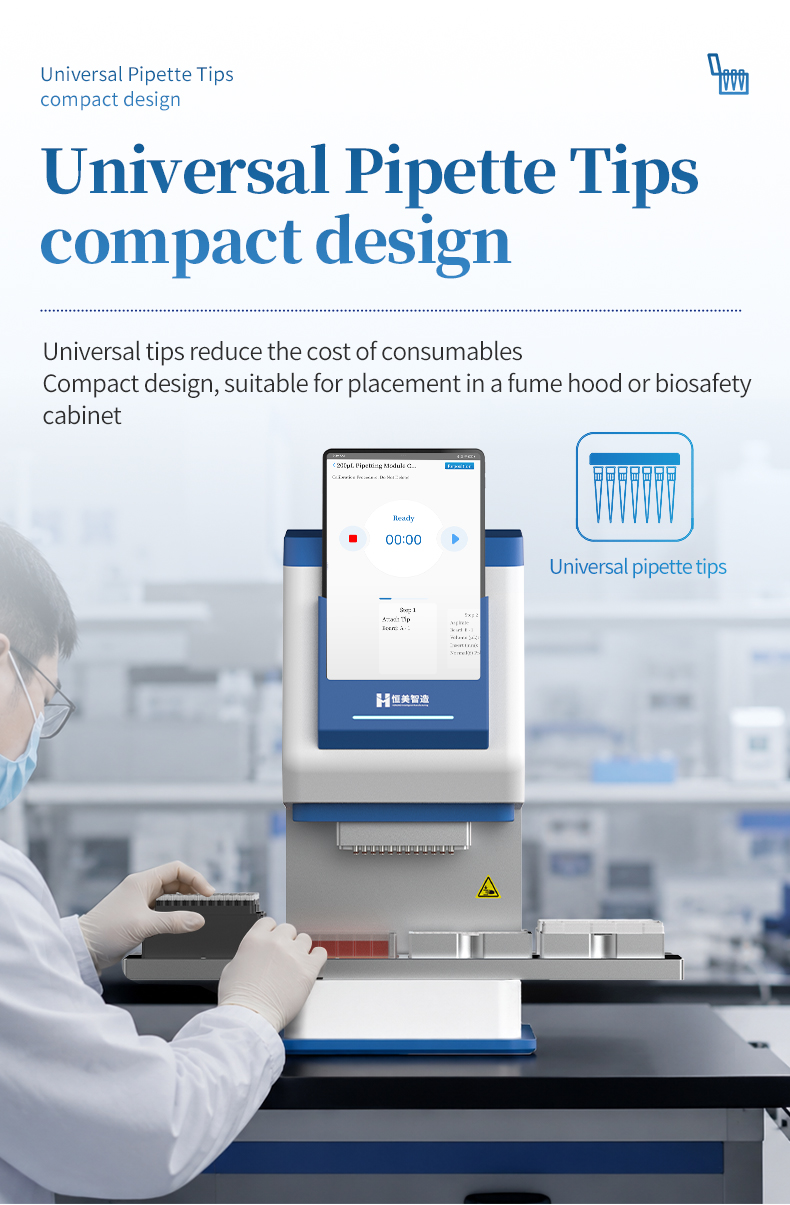

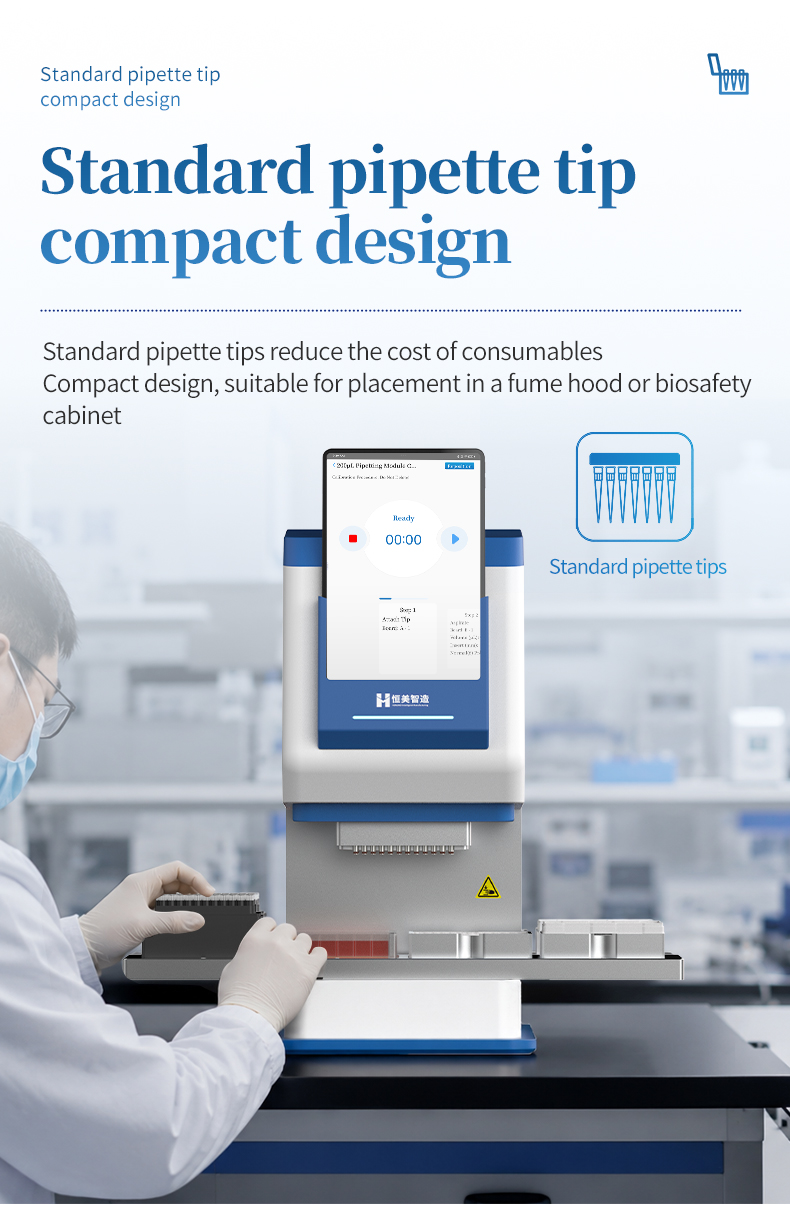

Universal tip compatibility — no proprietary consumables required

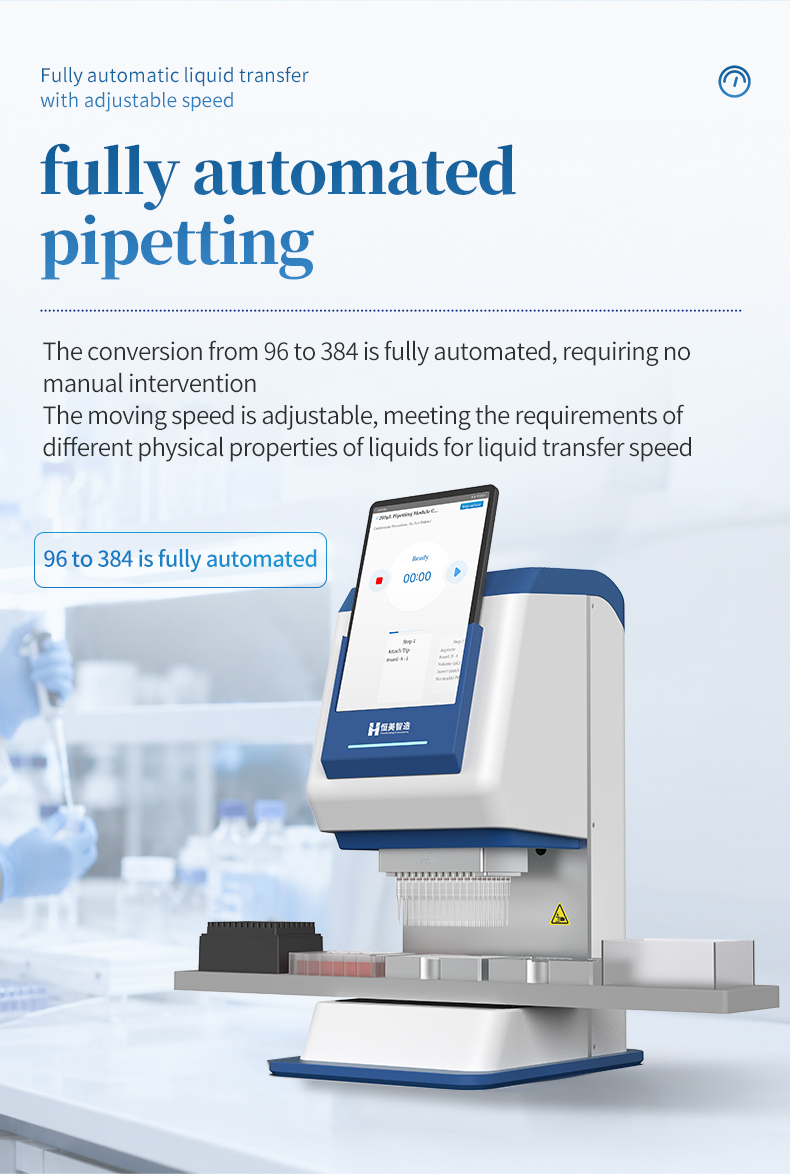

Adjustable aspiration and dispense speed for different liquid types

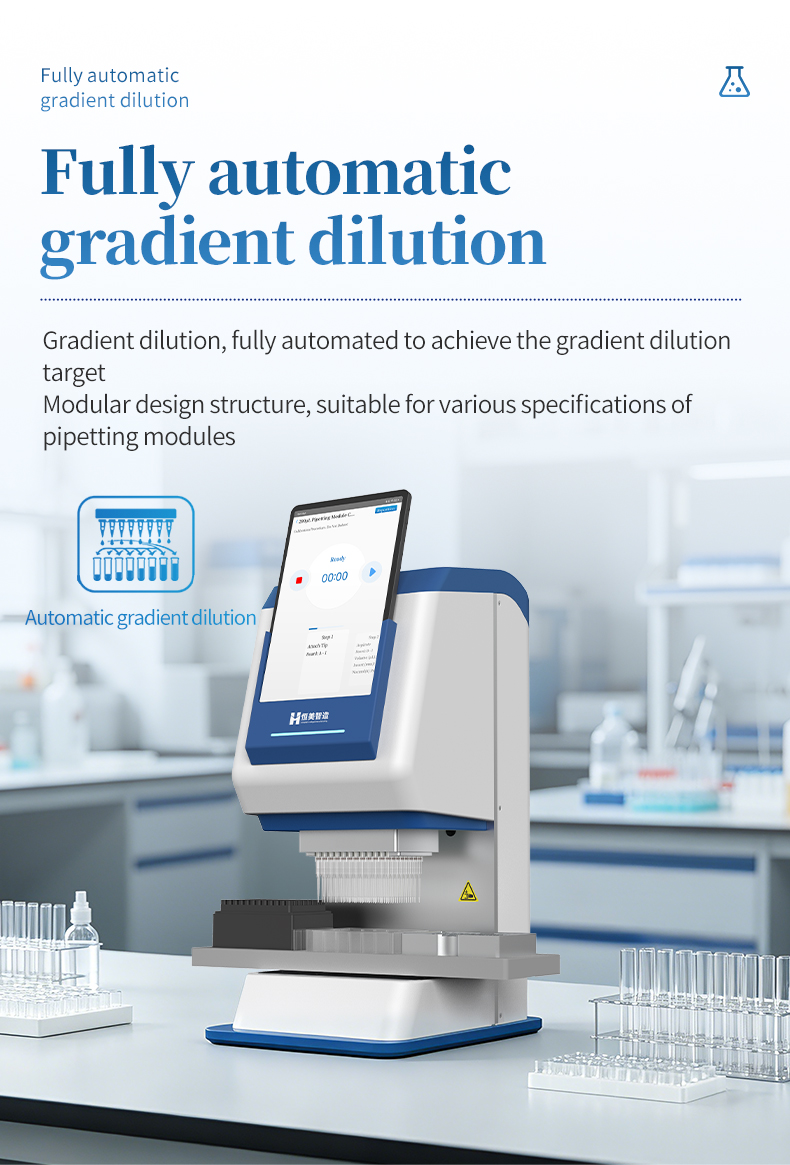

Pre-built protocol templates for PCR, ELISA, and dilution workflows
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YA50-3 |
| Pipetting principle | Air displacement |
| Channels | 96 (fixed) |
| Volume range | 2–50 μL |
| Accuracy at 20 μL | ≤1.5% |
| Precision (CV) at 20 μL | ≤1% |
| Deck positions | 3 |
| Plate format | Standard SBS |
Technical Parameters
| Parameter | Value |
|---|---|
| Pipetting principle | Air displacement |
| Number of channels | 96 (fixed) |
| Volume range | 2–50 μL |
| Accuracy | ≤1.5% at 20 μL |
| Precision (CV) | ≤1% at 20 μL |
| Deck positions | 3 |
| Plate format | Standard SBS |
| Control interface | Android tablet |
| Connectivity | Bluetooth, USB Type-C (PD) |
| Power supply | 180–264 VAC, 47–63 Hz, 220W |
| Dimensions | 580 × 350 × 580 mm |
| Weight | 26.6 kg |

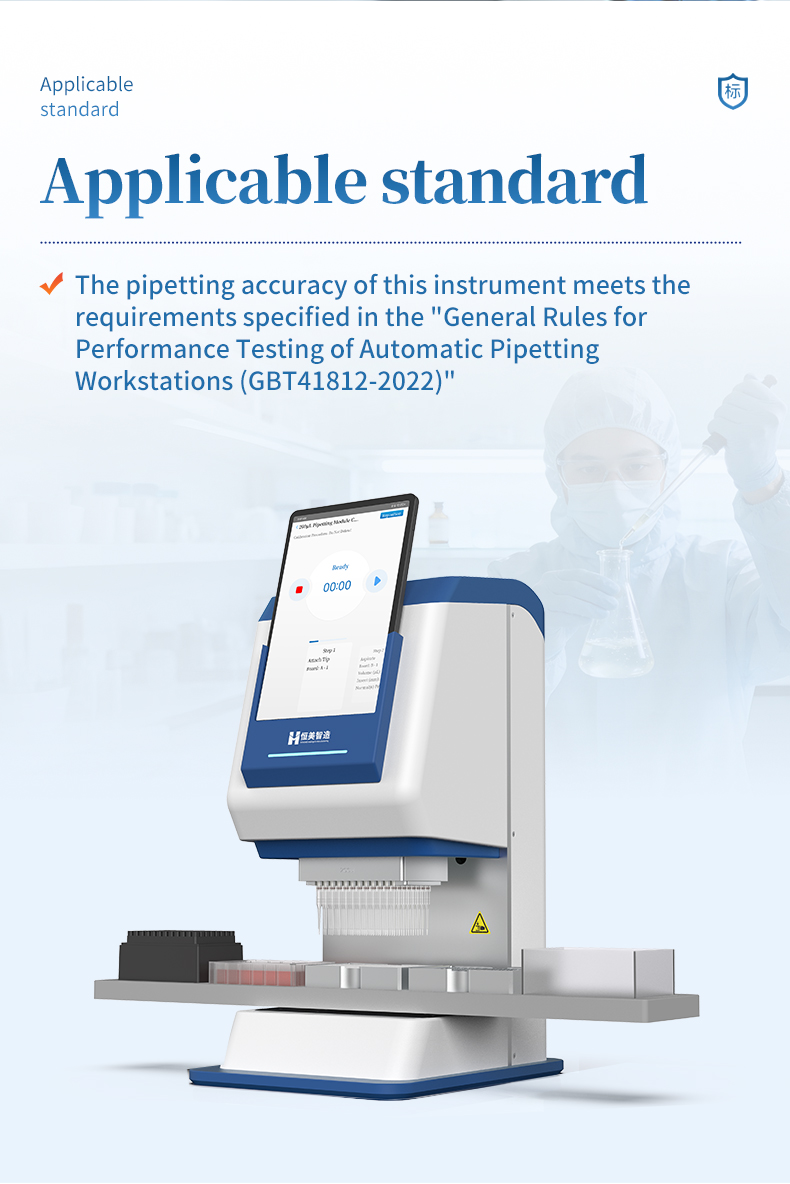

| Compliance standard | GBT 41812-2022 |
