Product Introduction

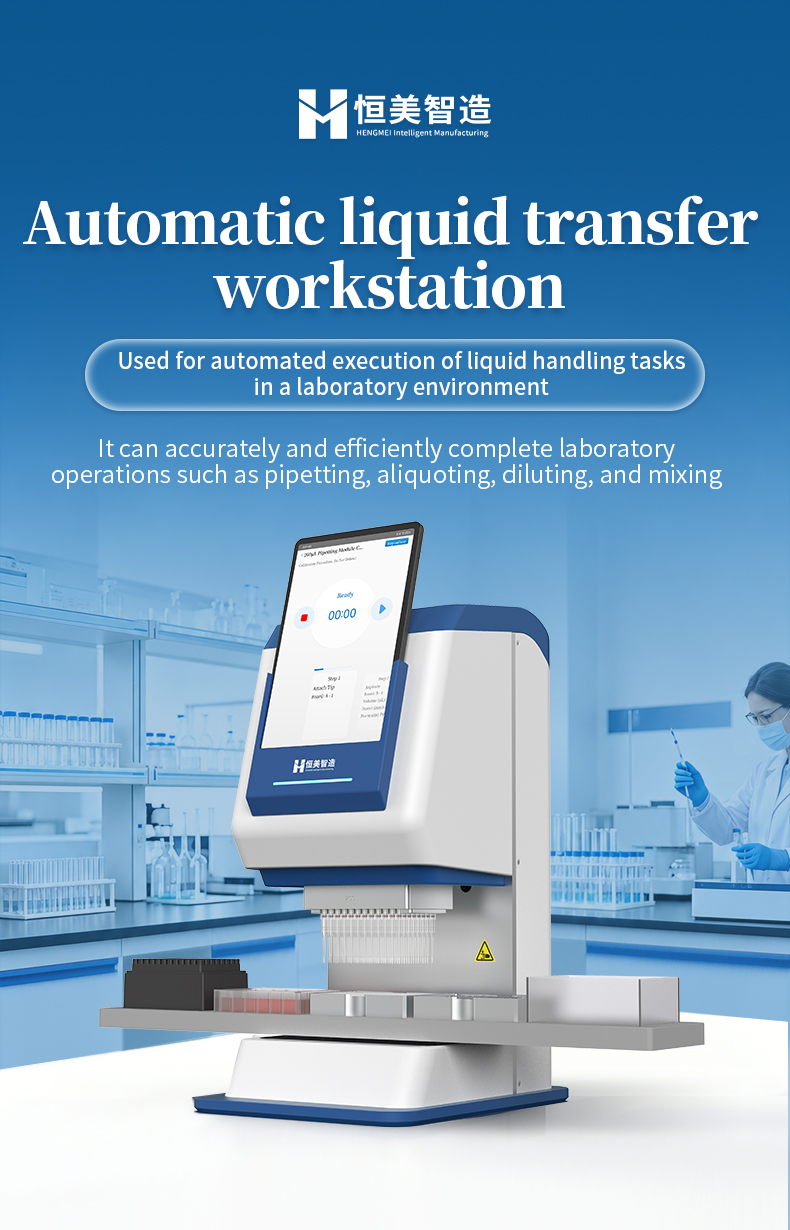

The YA200-6 represents the maximum deck capacity configuration of the HM Instruments 96-channel automated pipetting platform, with 6 SBS deck positions and a 5–200 μL volume range. This top-tier configuration supports the most complex high-throughput screening (HTS) protocols: multiple compound source plates, serial dilution stations, secondary and tertiary reagent additions, destination assay plates, and tip boxes can all be loaded simultaneously.
With 6 deck positions, the YA200-6 eliminates all plate-swapping interruptions for protocols requiring up to 6 sequential liquid handling steps. This includes compound dispensing → primary dilution → secondary dilution → detection reagent addition → stop solution → plate reformatting, all executed in a continuous unattended cycle.
Accuracy of ≤0.8% at 200 μL and ≤0.5% CV ensures data quality through every step of complex multi-step protocols. The Android tablet control with Bluetooth connectivity provides intuitive operation, while the compact 580 × 350 × 580 mm footprint maintains compatibility with bench space and Class II biosafety cabinets.
Applications
Full HTS protocol suites: compound → dilution → detection → stop → reformat
Multi-plate compound screening with multiple source and destination plates
Comprehensive diagnostic panels with 5+ sequential reagent additions
Complex NGS library preparation with multiple enzymatic and cleanup steps
96-to-384 format reformatting for primary and secondary screening campaigns
Functional Performance
5–200 μL wide volume range for complete HTS protocol coverage
6 SBS deck positions — maximum capacity for the most complex protocols
96-channel fixed head with ≤0.8% accuracy at 200 μL and ≤0.5% CV
Continuous 6-step protocol execution without plate swapping

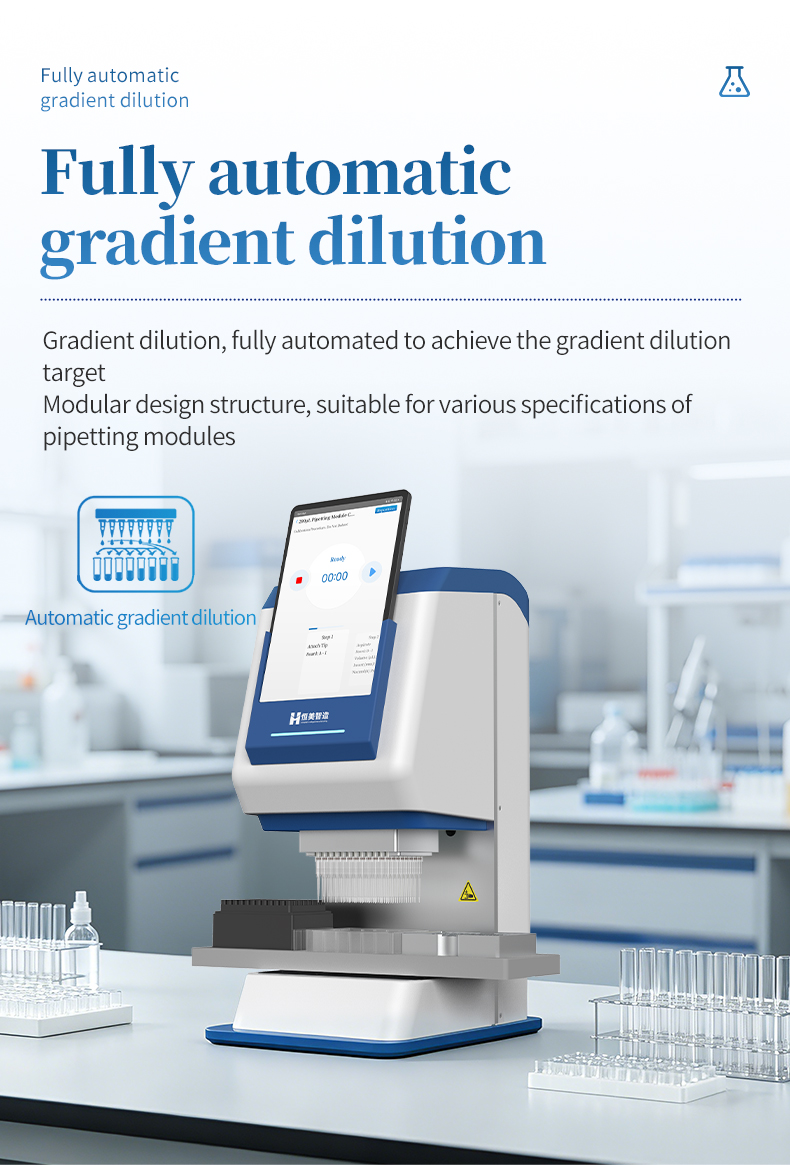

Built-in gradient dilution for multi-point concentration series

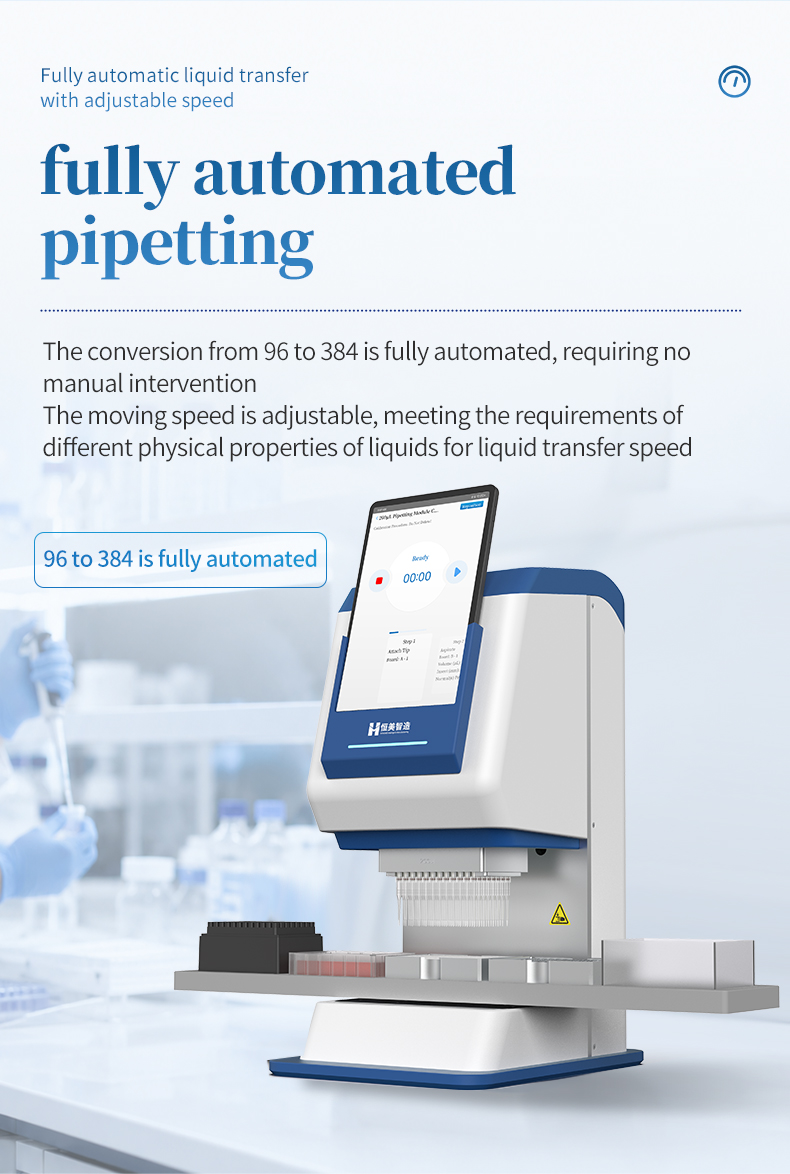

Automated 96-to-384 format reformatting for screening miniaturization
Multi-source capability: load 3+ compound or reagent sources simultaneously
Adjustable dispensing speed for DMSO, glycerol and cell suspensions

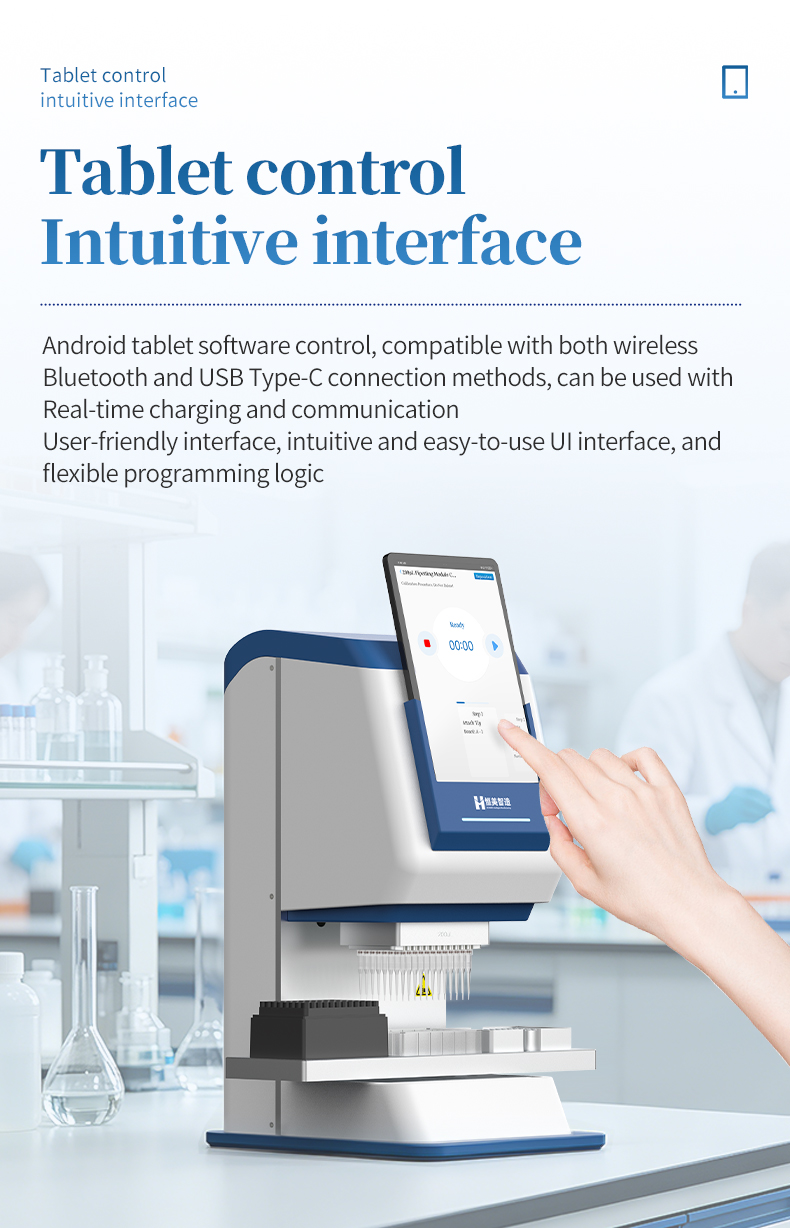

Android tablet control via Bluetooth or USB Type-C (PD)

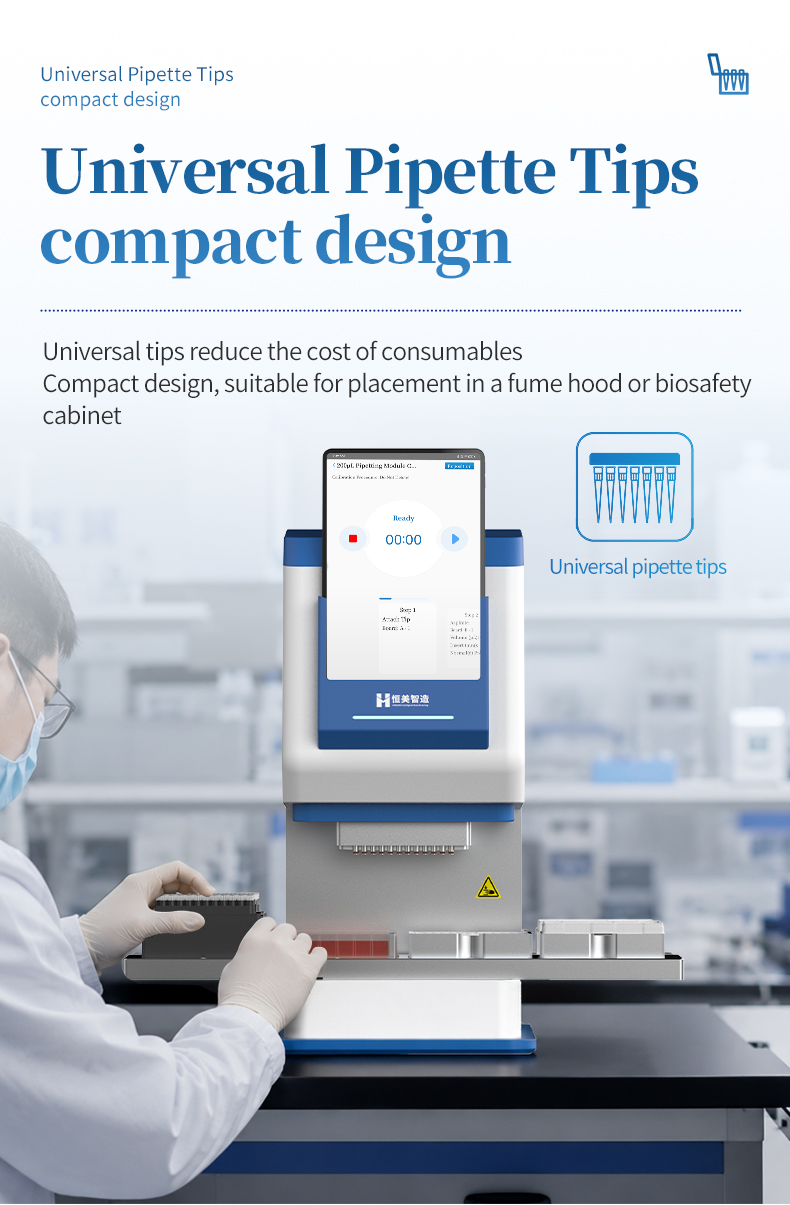

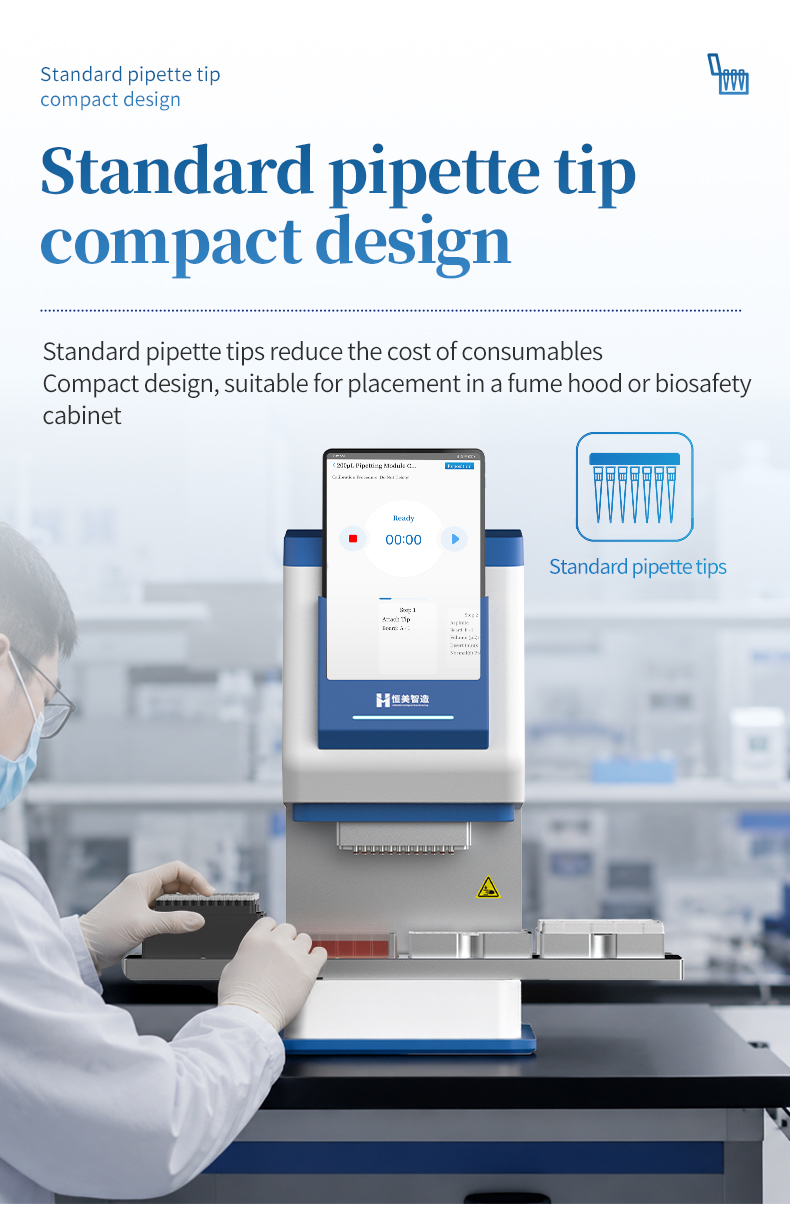

Compact 580 × 350 × 580 mm footprint for BSC installation
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YA200-6 |
| Pipetting principle | Air displacement |
| Channels | 96 (fixed) |
| Volume range | 5–200 μL |
| Accuracy at 100 μL | ≤1% |
| Accuracy at 200 μL | ≤0.8% |
| Precision (CV) at 100 μL | ≤0.8% |
| Precision (CV) at 200 μL | ≤0.5% |
| Deck positions | 6 |
| Plate format | Standard SBS |

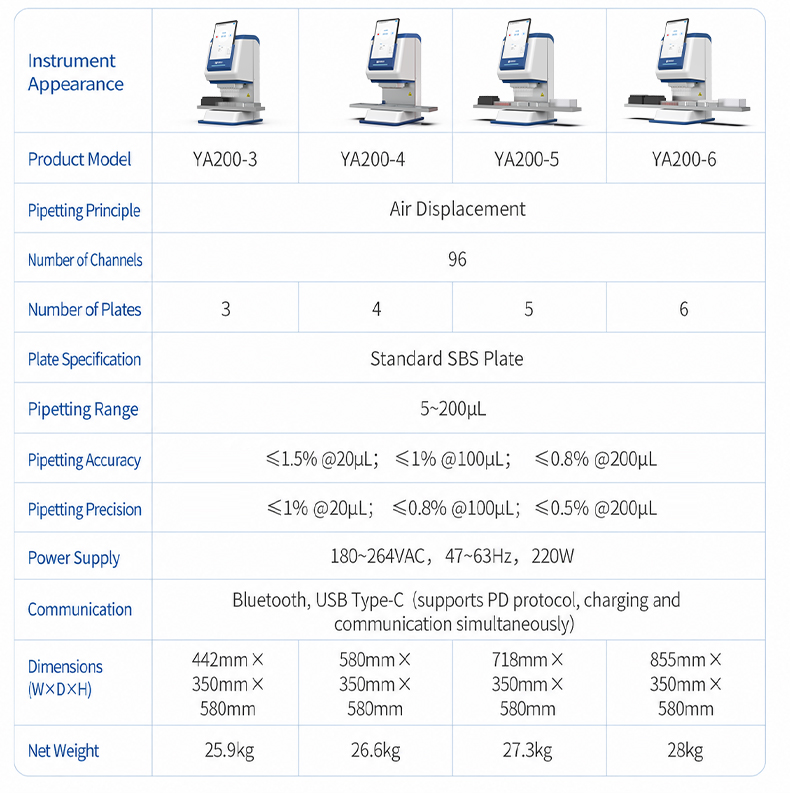

Technical Parameters
| Parameter | Value |
|---|---|
| Pipetting principle | Air displacement |
| Number of channels | 96 (fixed) |
| Volume range | 5–200 μL |
| Accuracy | ≤1.5% at 20 μL; ≤1% at 100 μL; ≤0.8% at 200 μL |
| Precision (CV) | ≤1% at 20 μL; ≤0.8% at 100 μL; ≤0.5% at 200 μL |
| Deck positions | 6 |
| Plate format | Standard SBS |
| Control interface | Android tablet |
| Connectivity | Bluetooth, USB Type-C (PD) |
| Power supply | 180–264 VAC, 47–63 Hz, 220W |
| Dimensions | 580 × 350 × 580 mm |
| Weight | 26.6 kg |

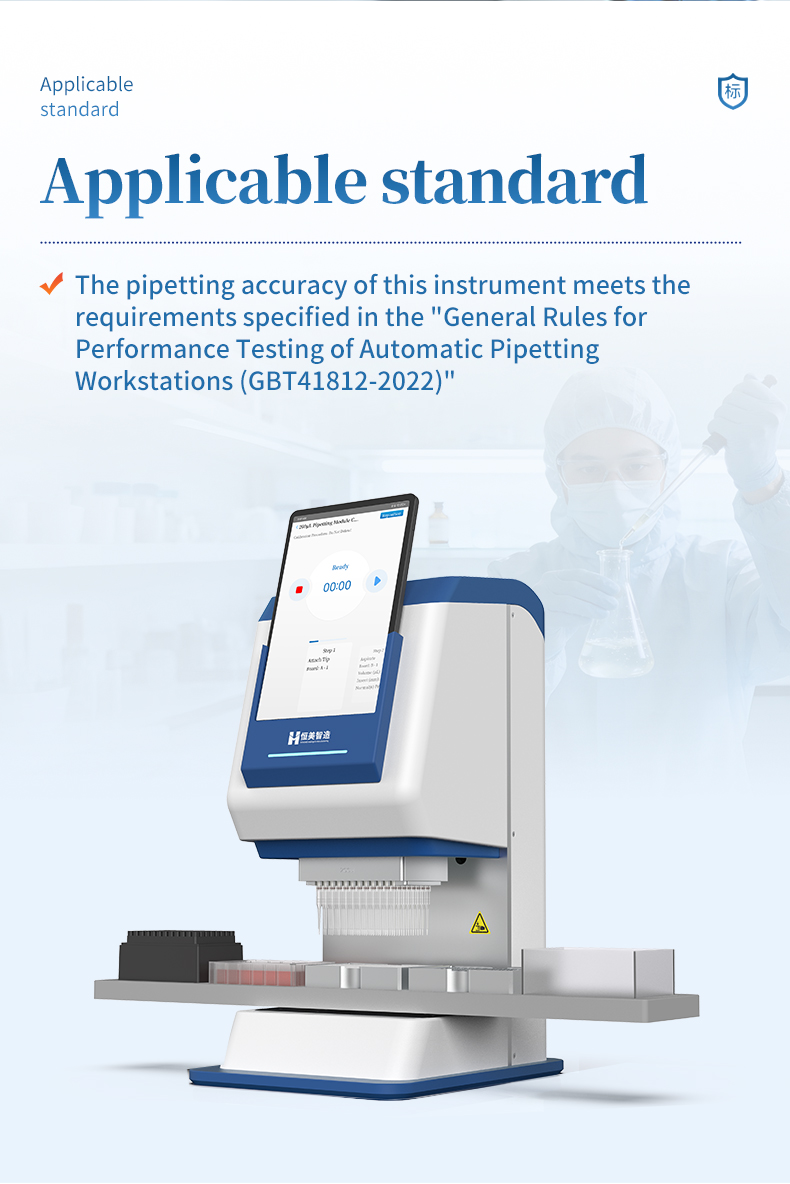

| Compliance standard | GBT 41812-2022 |
