Product Introduction

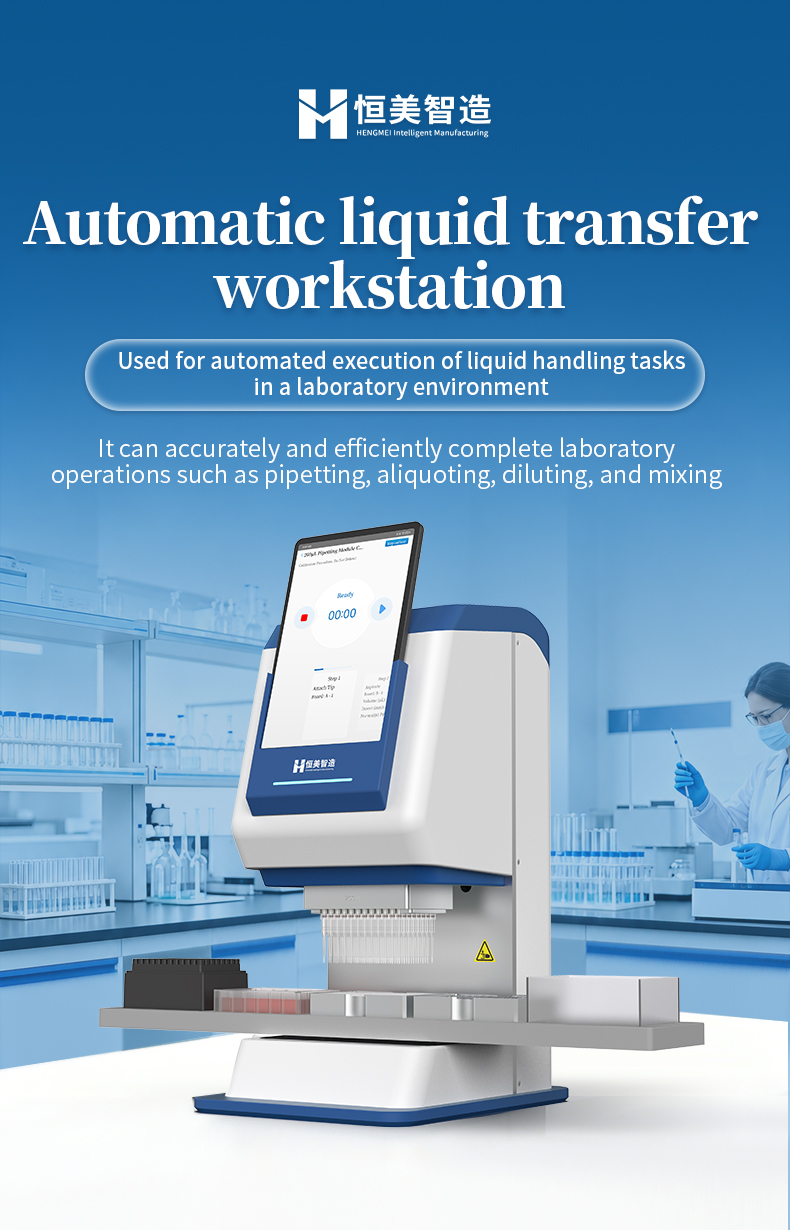

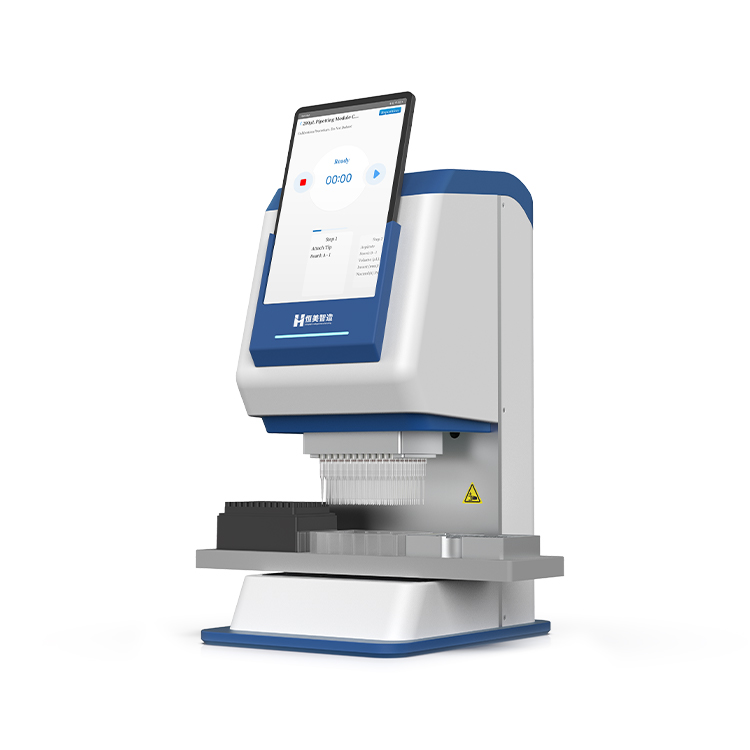

The YA50-5 expands the YA50 platform to 5 SBS deck positions, enabling high-throughput laboratory workflows that require multiple source plates, reagent reservoirs, and tip boxes loaded simultaneously. This configuration is particularly effective for sample normalization protocols where multiple 96-well source plates are consolidated into a single destination plate, and for complex multi-reagent protocols where three or more different reagents are dispensed in sequence.
With 5 deck positions, the YA50-5 can load two source plates, a reagent reservoir, a destination plate, and a tip box — supporting continuous plate-to-plate transfer without pausing for deck reconfiguration. For laboratories processing 100+ plates daily, the reduction in manual intervention translates directly to higher throughput and lower operator fatigue.
Like all YA50 models, the 2–50 μL volume range delivers accuracy of ≤1.5% at 20 μL and precision of ≤1% CV. The compact 580 × 350 × 580 mm footprint remains BSC-compatible, and the Android tablet interface provides intuitive protocol programming with real-time monitoring.
Applications
-
High-throughput sample normalization across multiple source plates
-
Multi-source plate consolidation into single destination plates
-
Complex NGS workflows requiring 3+ reagent types
-
Diagnostic PCR with separate control and template reservoirs
-
Automated gradient dilution series for assay calibration
Functional Performance
-
5 SBS deck positions for simultaneous multi-source plate processing
-
96-channel fixed head completes full-plate transfer in under 90 seconds
-
2–50 μL range with ≤1.5% accuracy and ≤1% CV at 20 μL
-
Parallel reagent reservoir loading eliminates mid-protocol reagent swaps
-
Automated 96-to-384 format transfer with built-in quadrant protocol
-

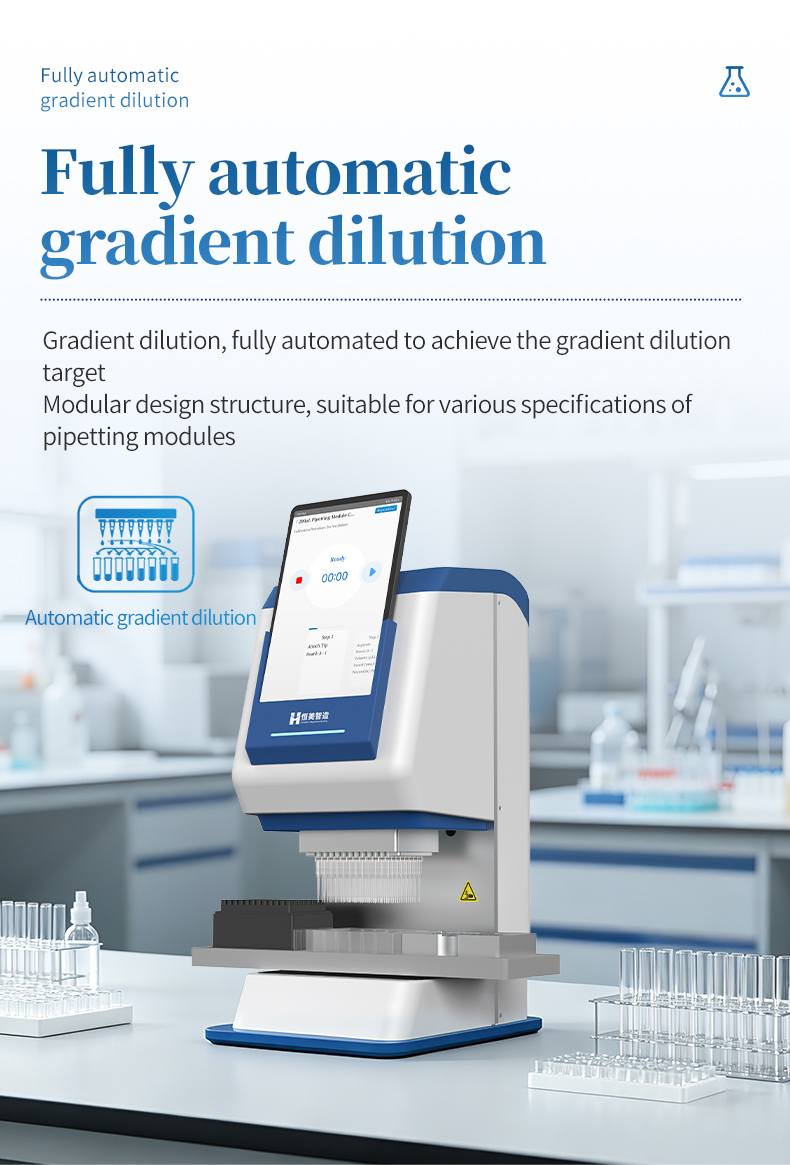

Built-in gradient dilution for concentration series and standard curves
-
Compact BSC-compatible footprint (580 × 350 × 580 mm)
-
Android tablet control via Bluetooth or USB Type-C (PD)
-
Universal tip compatibility with standard SBS-format consumables
-
Protocol export/import for multi-site standardization
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YA50-5 |
| Pipetting principle | Air displacement |
| Channels | 96 (fixed) |
| Volume range | 2–50 μL |
| Accuracy at 20 μL | ≤1.5% |
| Precision (CV) at 20 μL | ≤1% |
| Deck positions | 5 |
| Plate format | Standard SBS |
Technical Parameters
| Parameter | Value |
|---|---|
| Pipetting principle | Air displacement |
| Number of channels | 96 (fixed) |
| Volume range | 2–50 μL |
| Accuracy | ≤1.5% at 20 μL |
| Precision (CV) | ≤1% at 20 μL |
| Deck positions | 5 |
| Plate format | Standard SBS |
| Control interface | Android tablet |
| Connectivity | Bluetooth, USB Type-C (PD) |
| Power supply | 180–264 VAC, 47–63 Hz, 220W |
| Dimensions | 580 × 350 × 580 mm |
| Weight | 26.6 kg |
| Compliance standard | GBT 41812-2022 |
