Product Details
Product Introduction

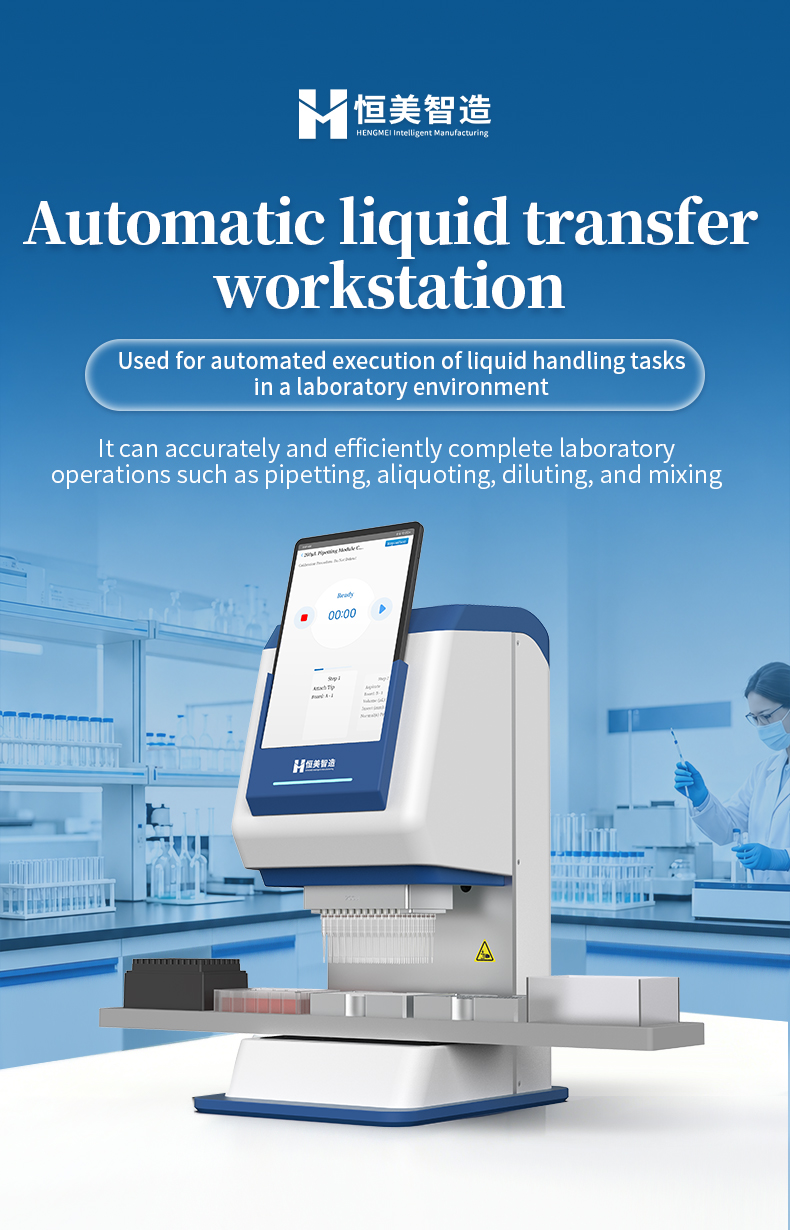

The YA200-3 is the entry-level model in the HM Instruments YA200 series, extending the 96-channel pipetting platform to a 5–200 μL volume range. This wider range accommodates laboratory workflows that require volumes beyond the 50 μL limit of the YA50 series — including ELISA reagent addition (typically 50–100 μL), cell culture media dispensing (100–200 μL), and compound addition for screening assays (20–200 μL).
With accuracy of ≤1% at 100 μL and ≤0.8% at 200 μL, the YA200-3 delivers the precision required for quantitative assays. The ≤0.5% CV at 200 μL ensures consistent optical density readings across 96-well ELISA plates, reducing control well variance from typical 5–8% (manual) to below 2%.
The 3-deck configuration supports basic transfer protocols: source plate, tip box, and reagent reservoir. The compact 580 × 350 × 580 mm footprint fits inside Class II BSCs for aseptic cell culture dispensing, and the adjustable speed feature enables gentle dispensing for shear-sensitive cell lines.
Applications
ELISA reagent addition (conjugate, substrate, stop solution)
Cell culture media dispensing and reagent addition
Compound addition for screening assays
Gradient dilution for dose-response curves
96-to-384 format transfer for assay miniaturization
Functional Performance
5–200 μL volume range covers ELISA, cell culture, and screening volumes
96-channel fixed head with ≤0.8% accuracy at 200 μL and ≤0.5% CV
3 SBS deck positions for basic transfer protocols

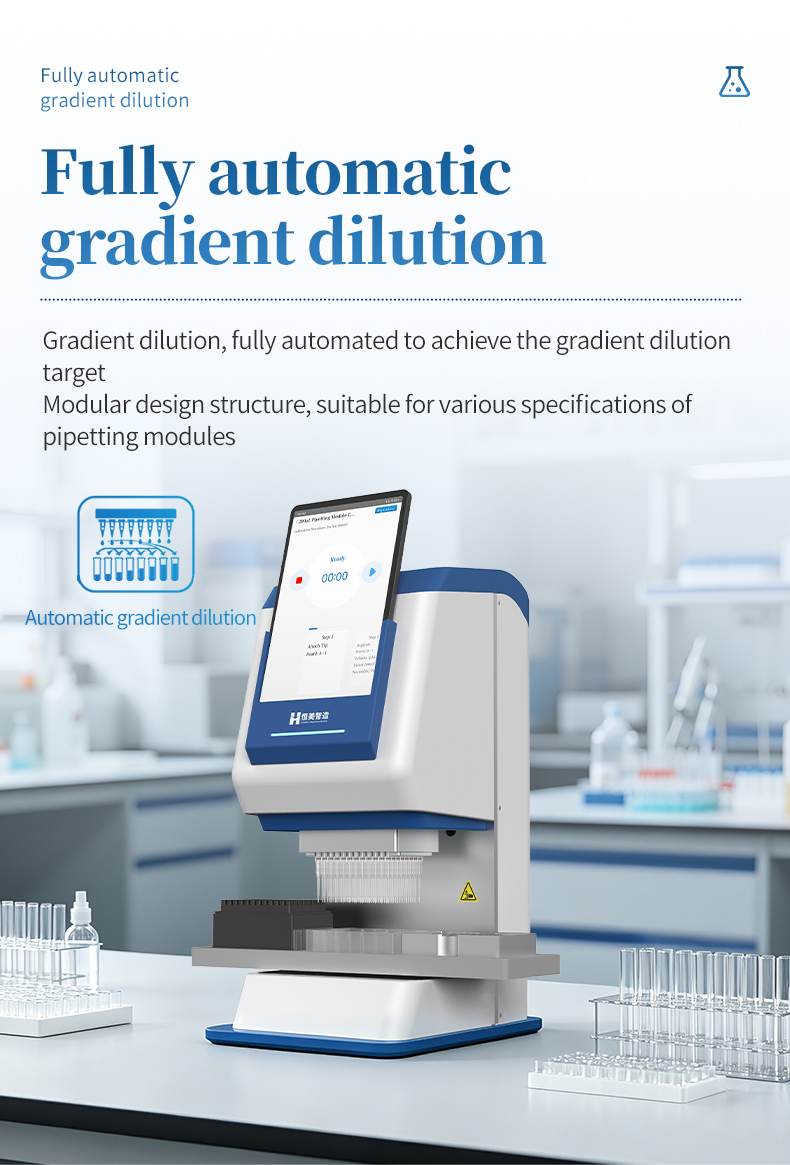

Built-in gradient dilution for dose-response concentration series

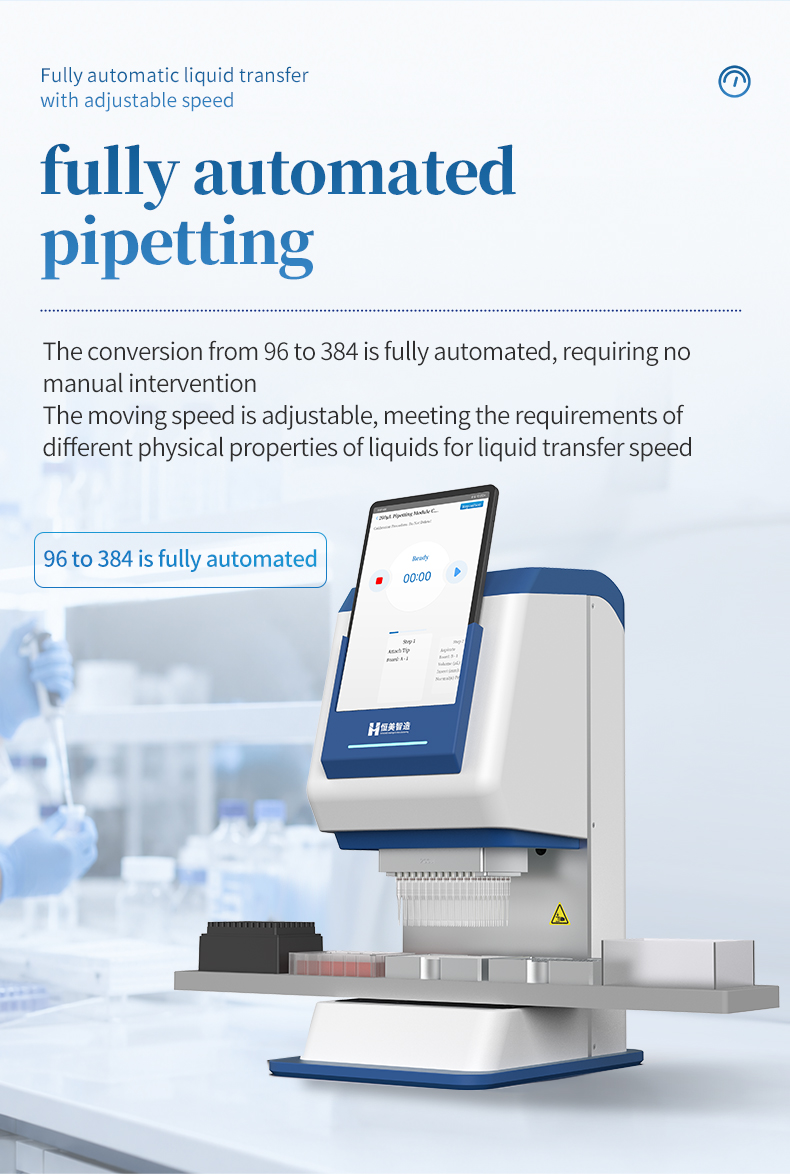

Automated 96-to-384 format transfer
Adjustable speed for gentle cell dispensing and rapid buffer delivery

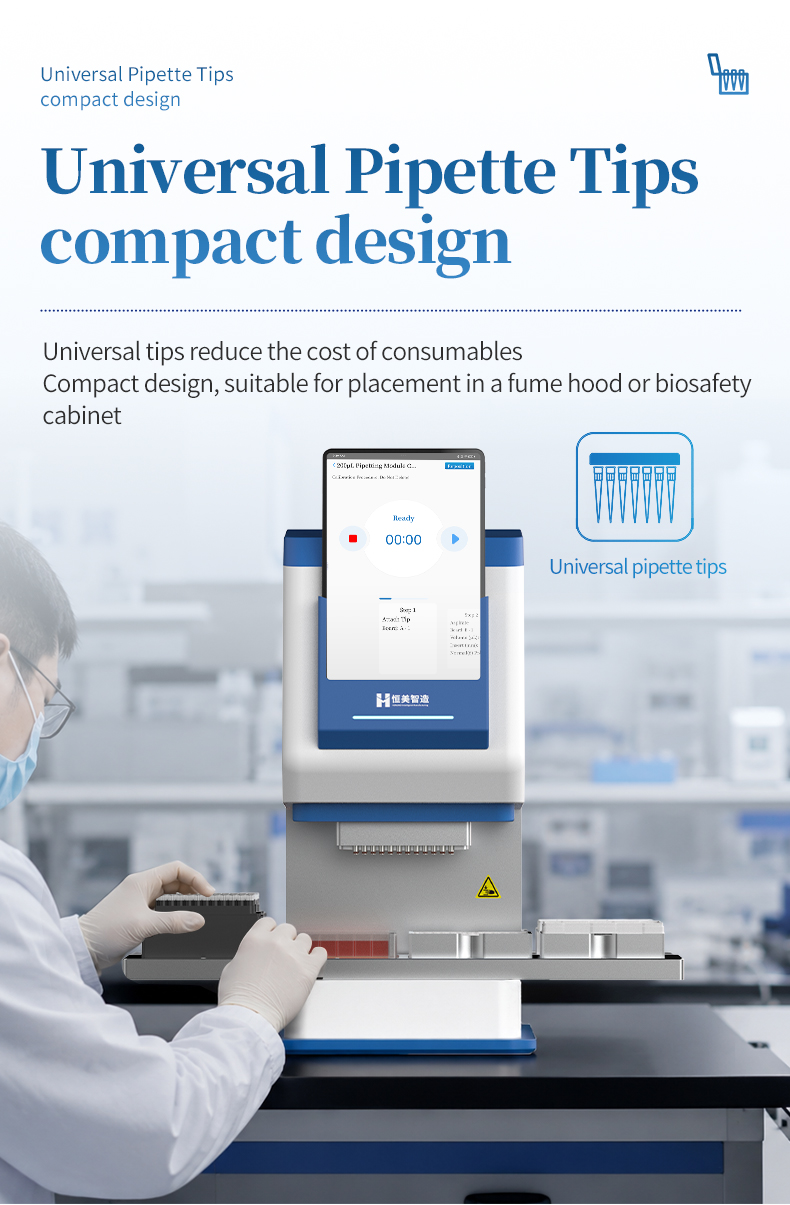

Compact 580 × 350 × 580 mm footprint fits inside BSC

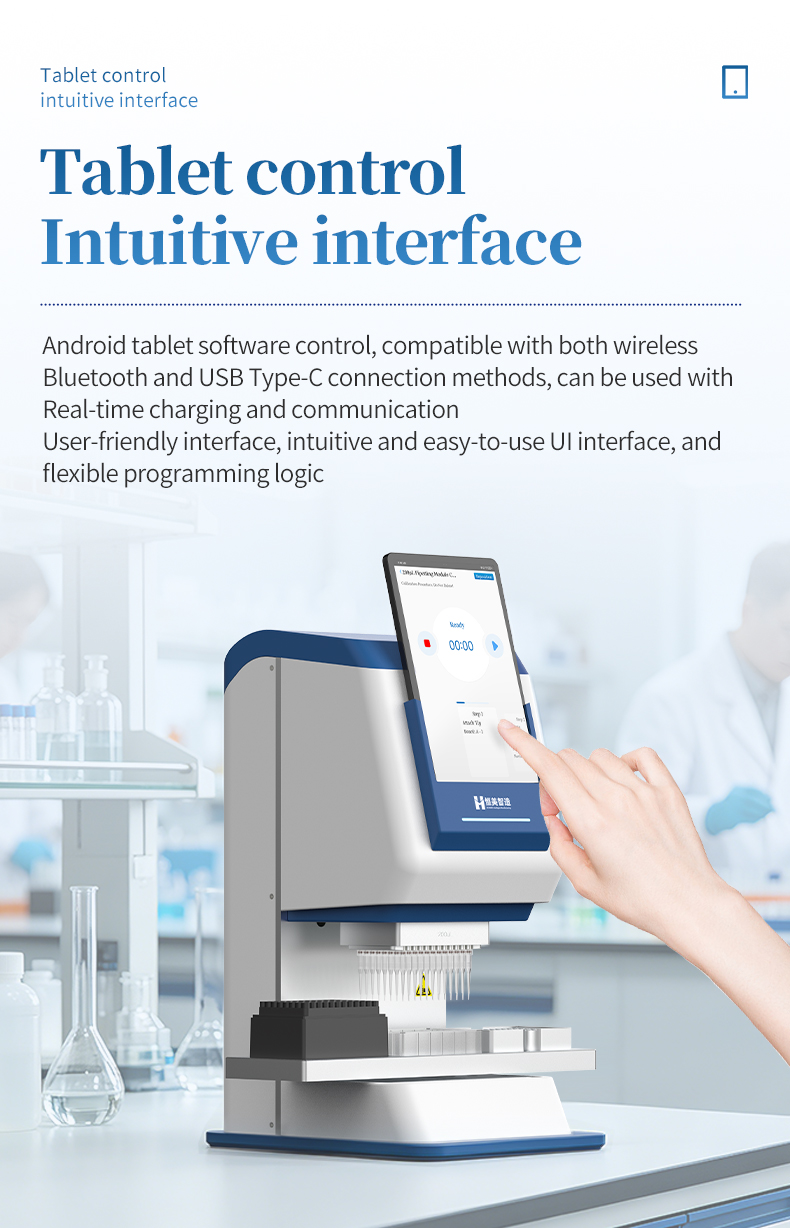

Android tablet control via Bluetooth or USB Type-C (PD)

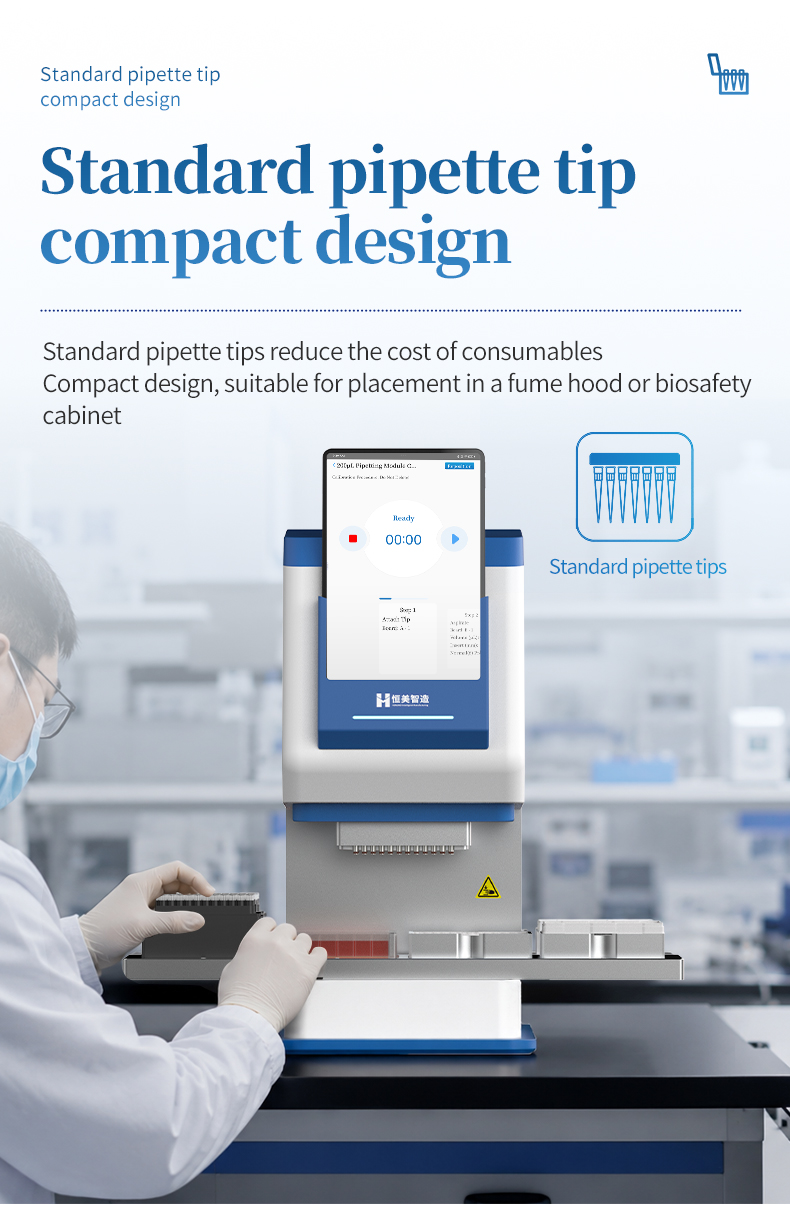

Universal tip compatibility with standard SBS-format tips
BSC-compatible for aseptic cell culture workflows
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YA200-3 |
| Pipetting principle | Air displacement |
| Channels | 96 (fixed) |
| Volume range | 5–200 μL |
| Accuracy at 100 μL | ≤1% |
| Accuracy at 200 μL | ≤0.8% |
| Precision (CV) at 100 μL | ≤0.8% |
| Precision (CV) at 200 μL | ≤0.5% |
| Deck positions | 3 |
| Plate format | Standard SBS |

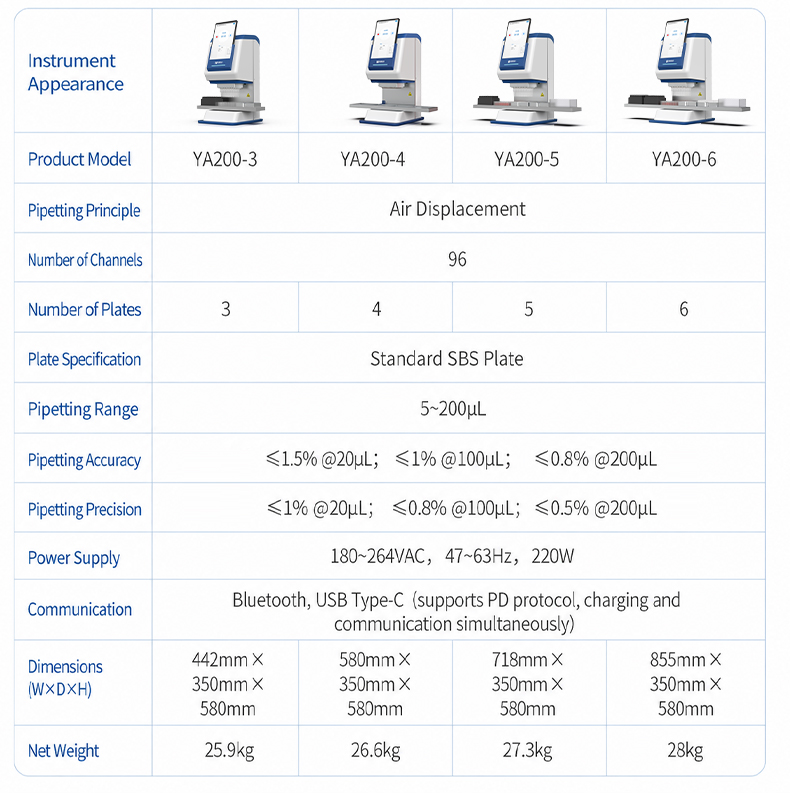

Technical Parameters
| Parameter | Value |
|---|---|
| Pipetting principle | Air displacement |
| Number of channels | 96 (fixed) |
| Volume range | 5–200 μL |
| Accuracy | ≤1.5% at 20 μL; ≤1% at 100 μL; ≤0.8% at 200 μL |
| Precision (CV) | ≤1% at 20 μL; ≤0.8% at 100 μL; ≤0.5% at 200 μL |
| Deck positions | 3 |
| Plate format | Standard SBS |
| Control interface | Android tablet |
| Connectivity | Bluetooth, USB Type-C (PD) |
| Power supply | 180–264 VAC, 47–63 Hz, 220W |
| Dimensions | 580 × 350 × 580 mm |
| Weight | 26.6 kg |

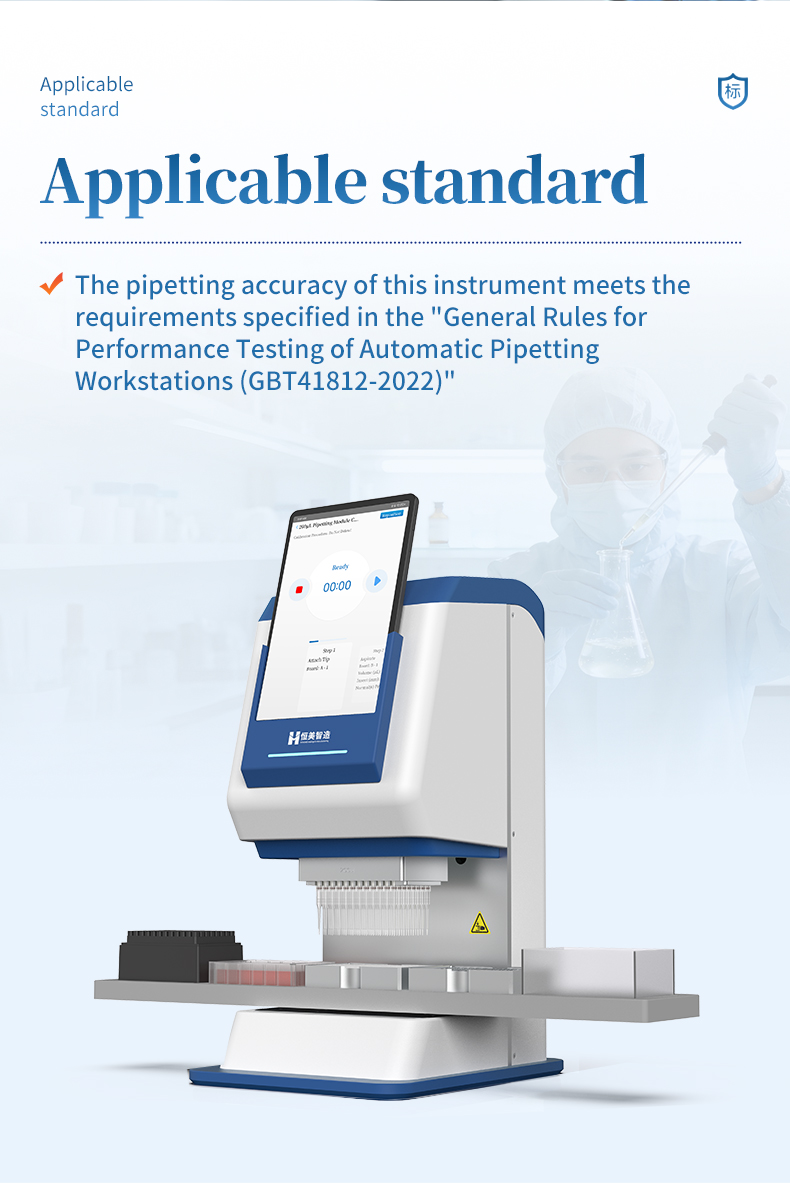

| Compliance standard | GBT 41812-2022 |
