Product Introduction

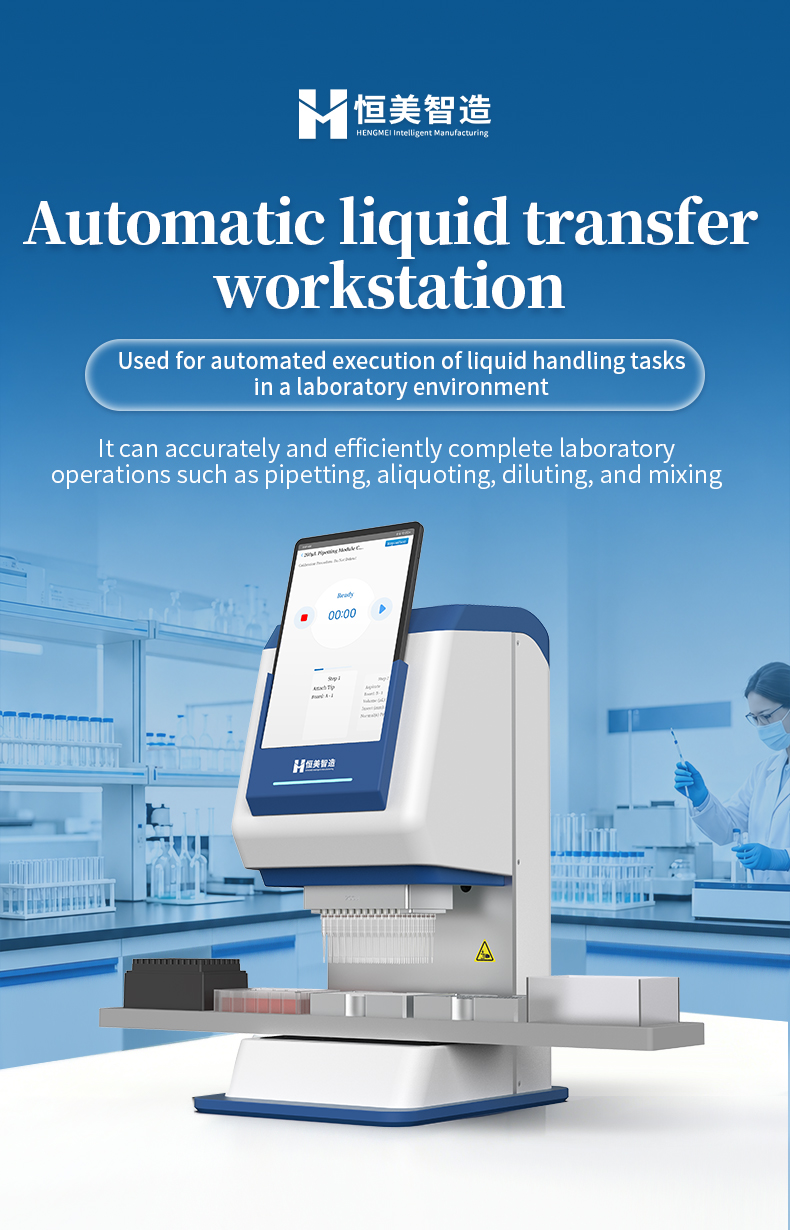

The YA200-5 delivers 5 SBS deck positions on the 96-channel, 5–200 μL air-displacement pipetting platform, providing the deck capacity required for comprehensive multi-step assay workflows. With 5 positions, laboratories can load compound source plates, diluent reservoirs, intermediate dilution plates, destination assay plates and tip boxes simultaneously — enabling protocols such as compound addition → serial dilution → reagent addition → plate reformatting in a single unattended run.
Accuracy of ≤1% at 100 μL and ≤0.8% at 200 μL with ≤0.5% CV ensures data quality across quantitative assays. The 5-deck configuration supports up to 5 sequential liquid handling operations without plate swapping, making it suitable for laboratories that have outgrown 3–4 deck configurations and need the additional deck capacity for multi-source reagent protocols.

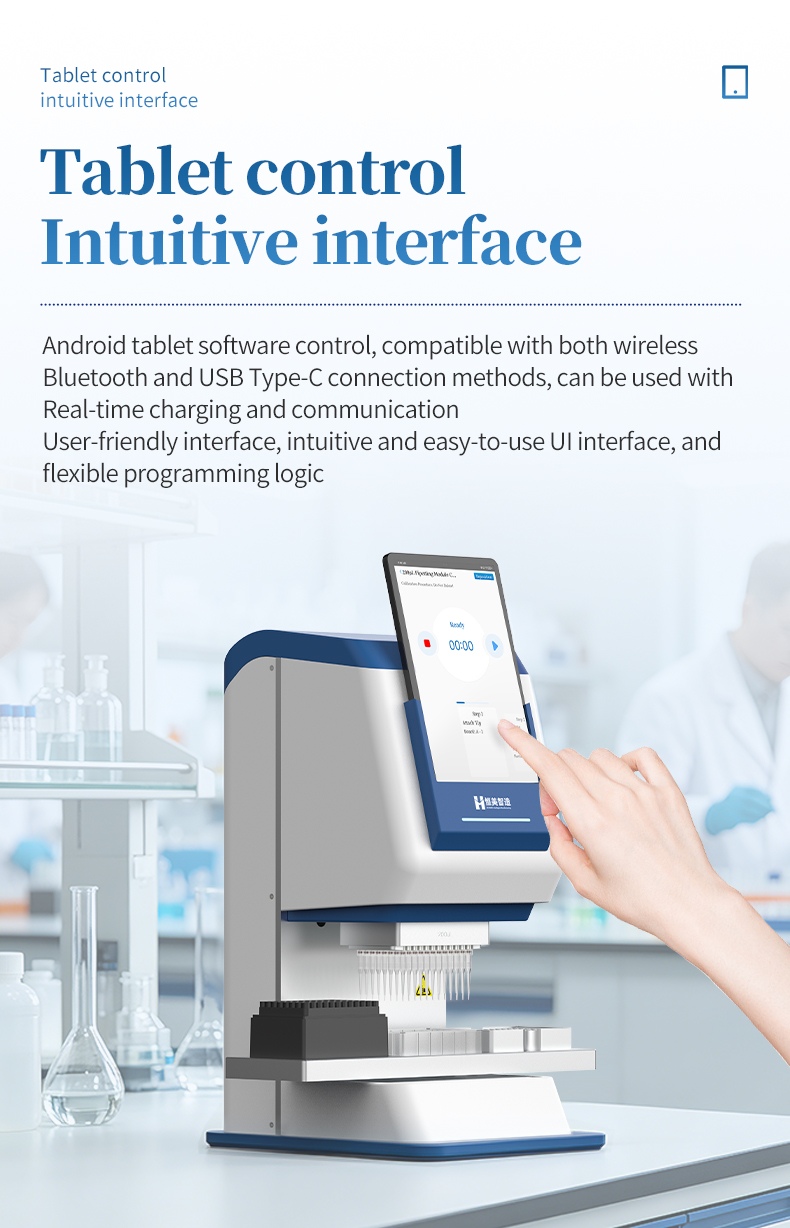

The Android tablet interface with Bluetooth and USB Type-C connectivity enables flexible laboratory layout, while the 580 × 350 × 580 mm footprint fits standard bench space and Class II biosafety cabinets.
Applications
Multi-source compound screening with serial dilution and reagent addition
Comprehensive ELISA workflows: sample + conjugate + substrate + stop
NGS library preparation with bead cleanup steps
96-to-384 format reformatting for assay miniaturization
Cell-based assay setup with media exchange and compound addition
Functional Performance
5–200 μL volume range for comprehensive assay volumes
5 SBS deck positions support 4–5 step protocols without plate swapping
96-channel fixed head with ≤0.8% accuracy at 200 μL and ≤0.5% CV
Multi-source reagent capability: load 2+ reagent sources simultaneously

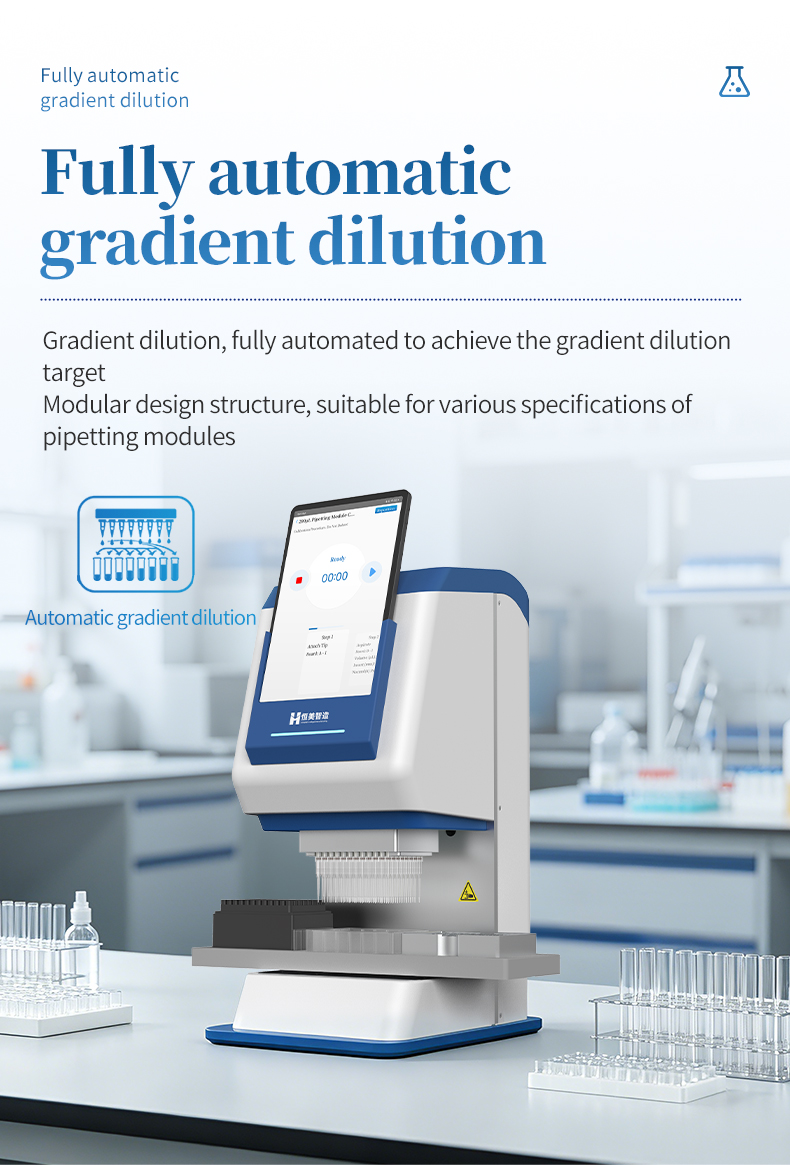

Built-in gradient dilution for multi-point concentration series

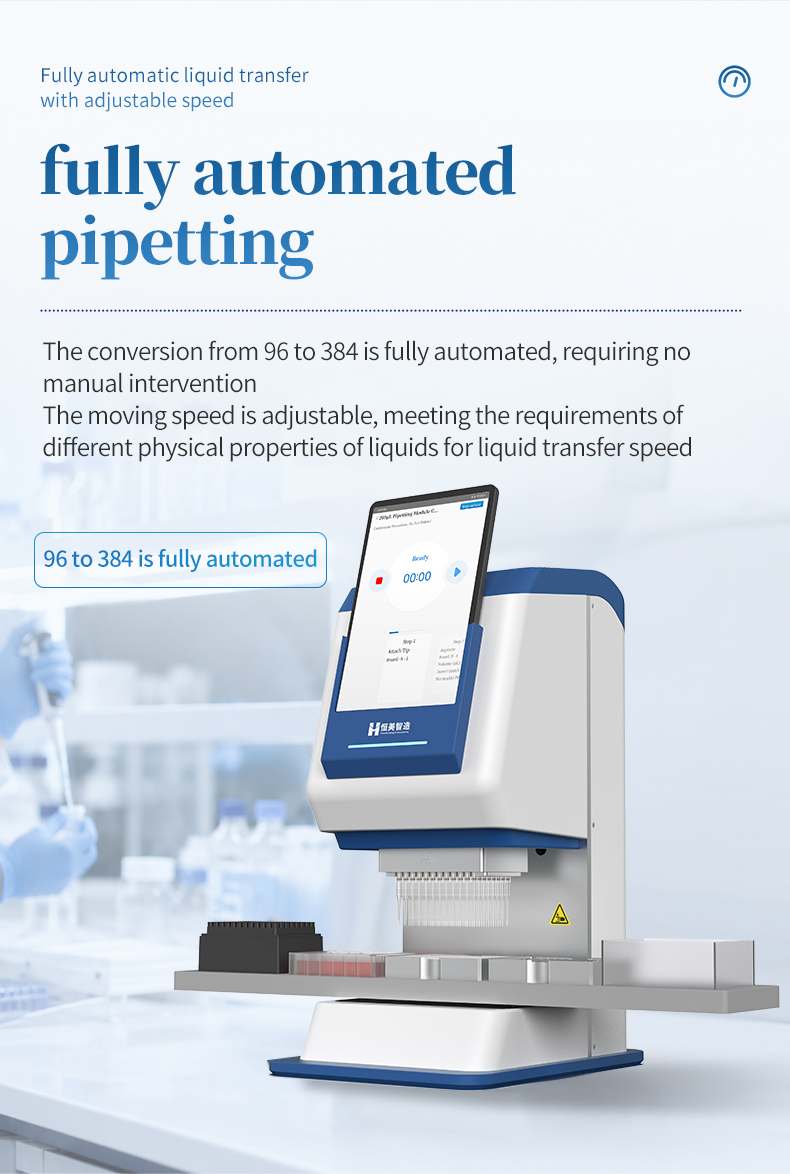

Automated 96-to-384 format reformatting
Adjustable dispensing speed for DMSO and cell suspension handling
Android tablet control via Bluetooth or USB Type-C (PD)
Compact 580 × 350 × 580 mm footprint fits BSCs

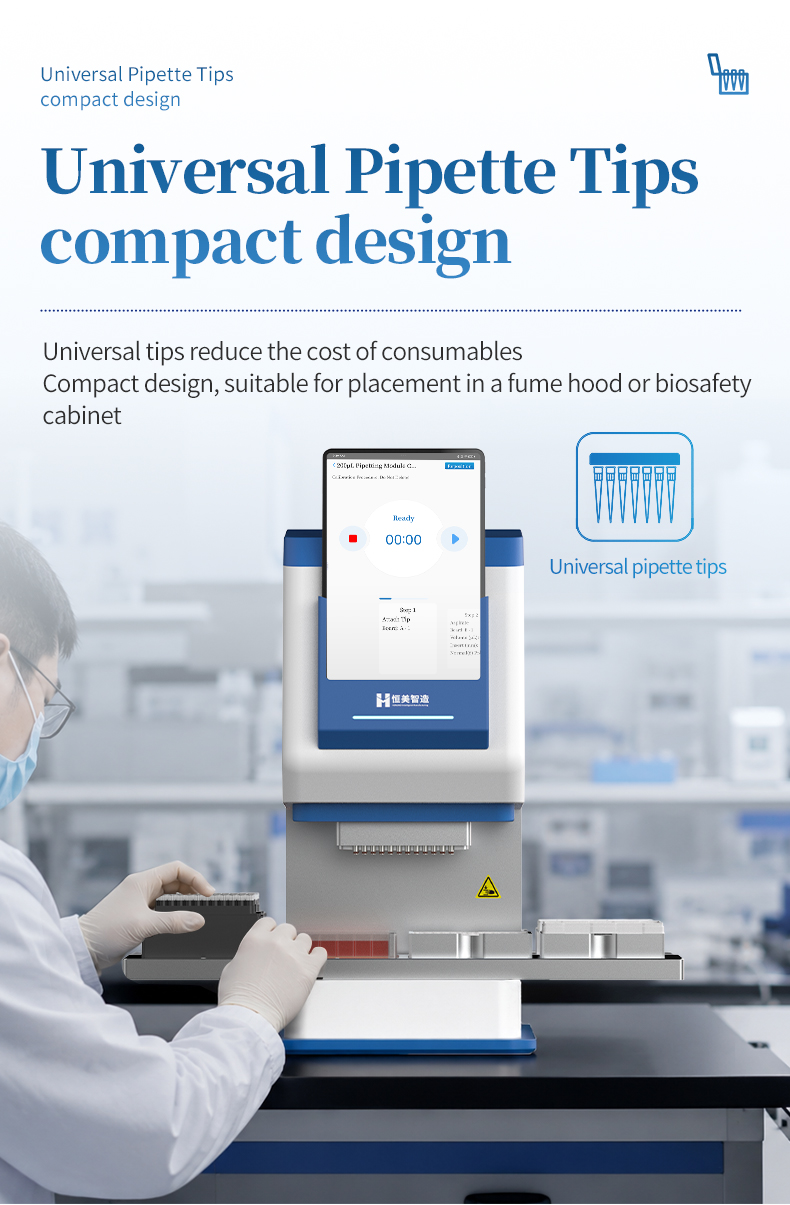

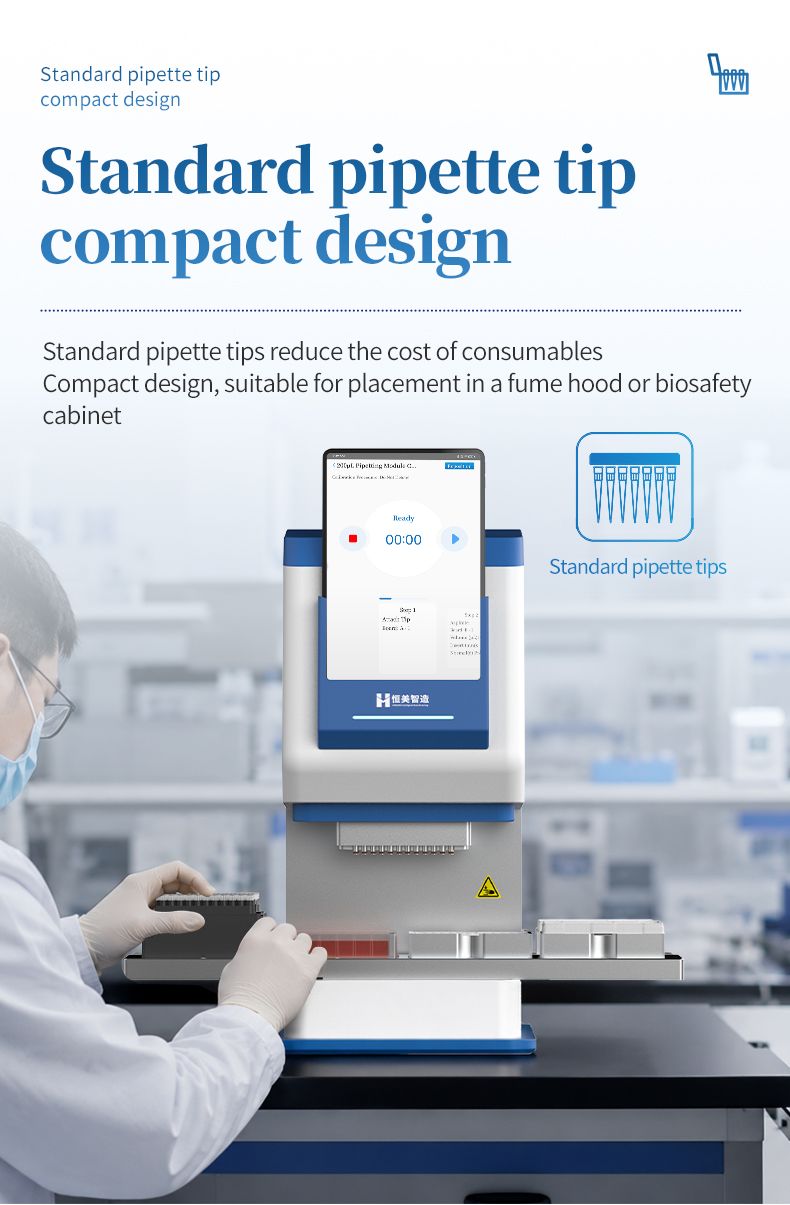

Universal tip compatibility for cost-effective operation
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YA200-5 |
| Pipetting principle | Air displacement |
| Channels | 96 (fixed) |
| Volume range | 5–200 μL |
| Accuracy at 100 μL | ≤1% |
| Accuracy at 200 μL | ≤0.8% |
| Precision (CV) at 100 μL | ≤0.8% |
| Precision (CV) at 200 μL | ≤0.5% |
| Deck positions | 5 |
| Plate format | Standard SBS |

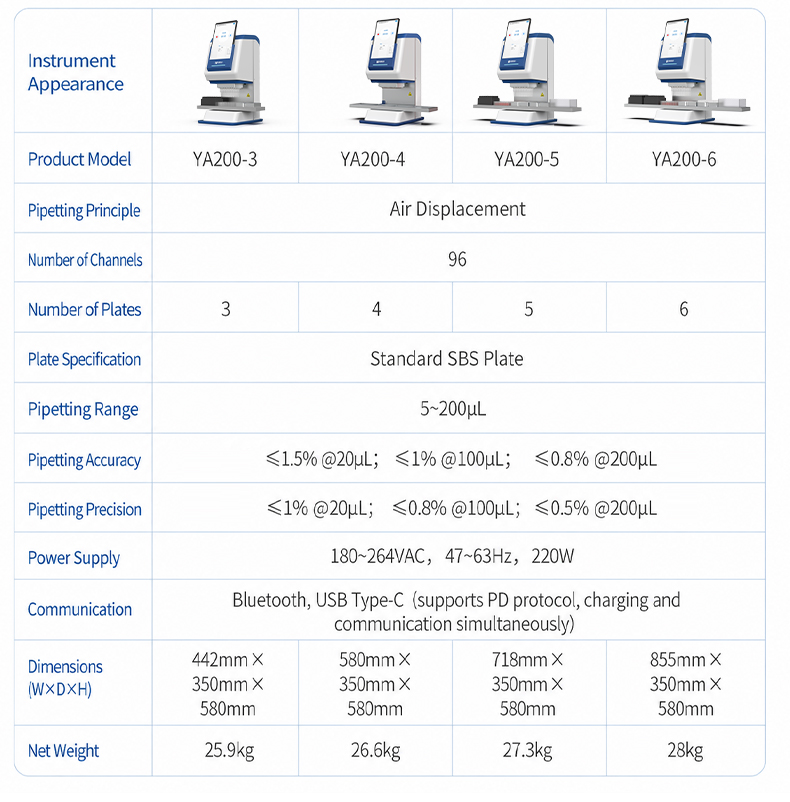

Technical Parameters
| Parameter | Value |
|---|---|
| Pipetting principle | Air displacement |
| Number of channels | 96 (fixed) |
| Volume range | 5–200 μL |
| Accuracy | ≤1.5% at 20 μL; ≤1% at 100 μL; ≤0.8% at 200 μL |
| Precision (CV) | ≤1% at 20 μL; ≤0.8% at 100 μL; ≤0.5% at 200 μL |
| Deck positions | 5 |
| Plate format | Standard SBS |
| Control interface | Android tablet |
| Connectivity | Bluetooth, USB Type-C (PD) |
| Power supply | 180–264 VAC, 47–63 Hz, 220W |
| Dimensions | 580 × 350 × 580 mm |
| Weight | 26.6 kg |

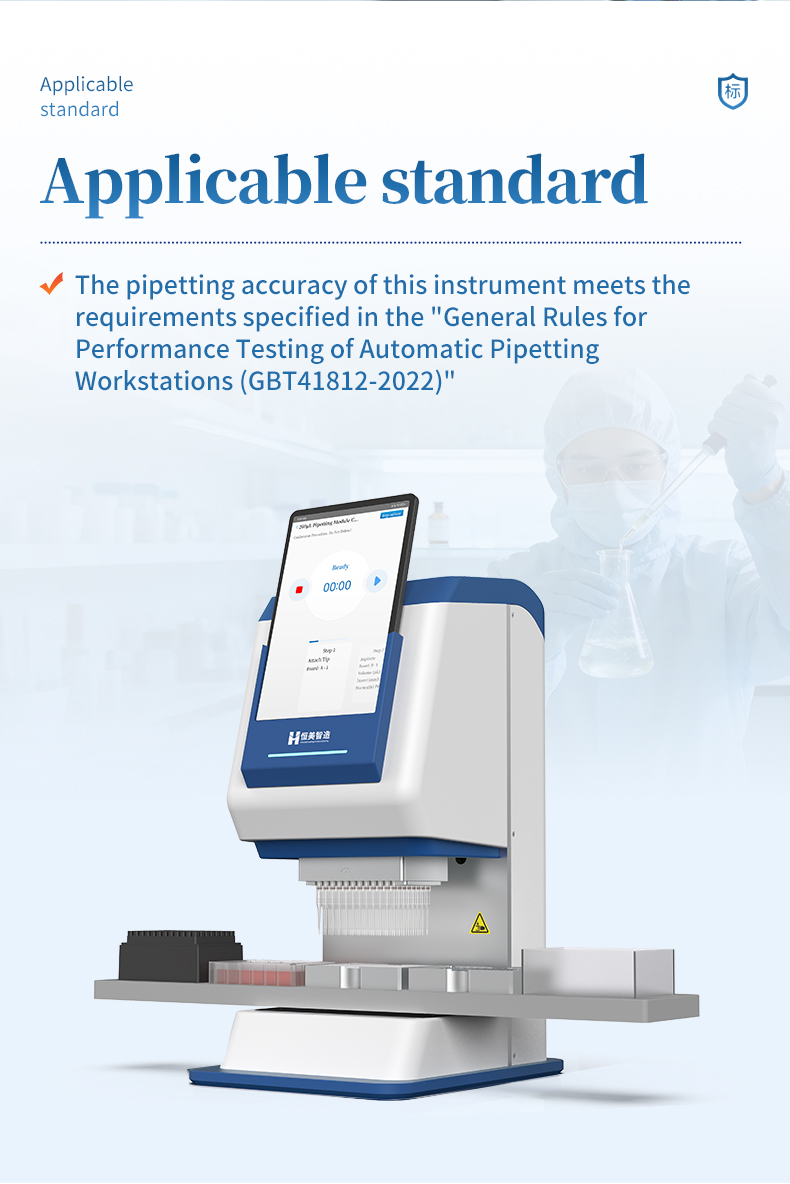

| Compliance standard | GBT 41812-2022 |
