YA200-4 96-Channel Automated Pipetting Workstation

Product Number：

YA200-4

Product Difference：

Equipped with 4 SBS deck positions and a 5–200 μL volume range, the YA200-4 is the standard workhorse for biochemical and diagnostic assays. It supports simultaneous loading of sample plates, target plates, tip racks, and bulk reagent reservoirs with ≤0.8% accuracy at 200 μL.

+86 17853698681 Consultation icon

Product Details

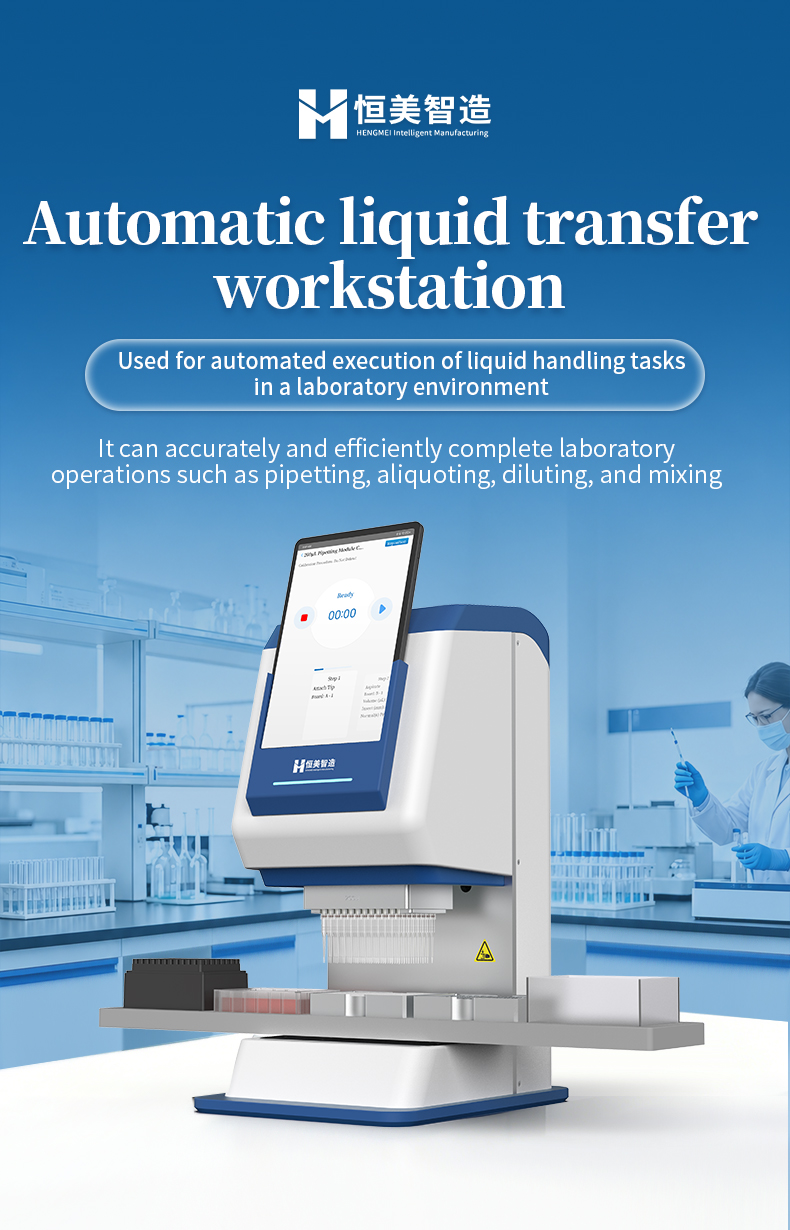

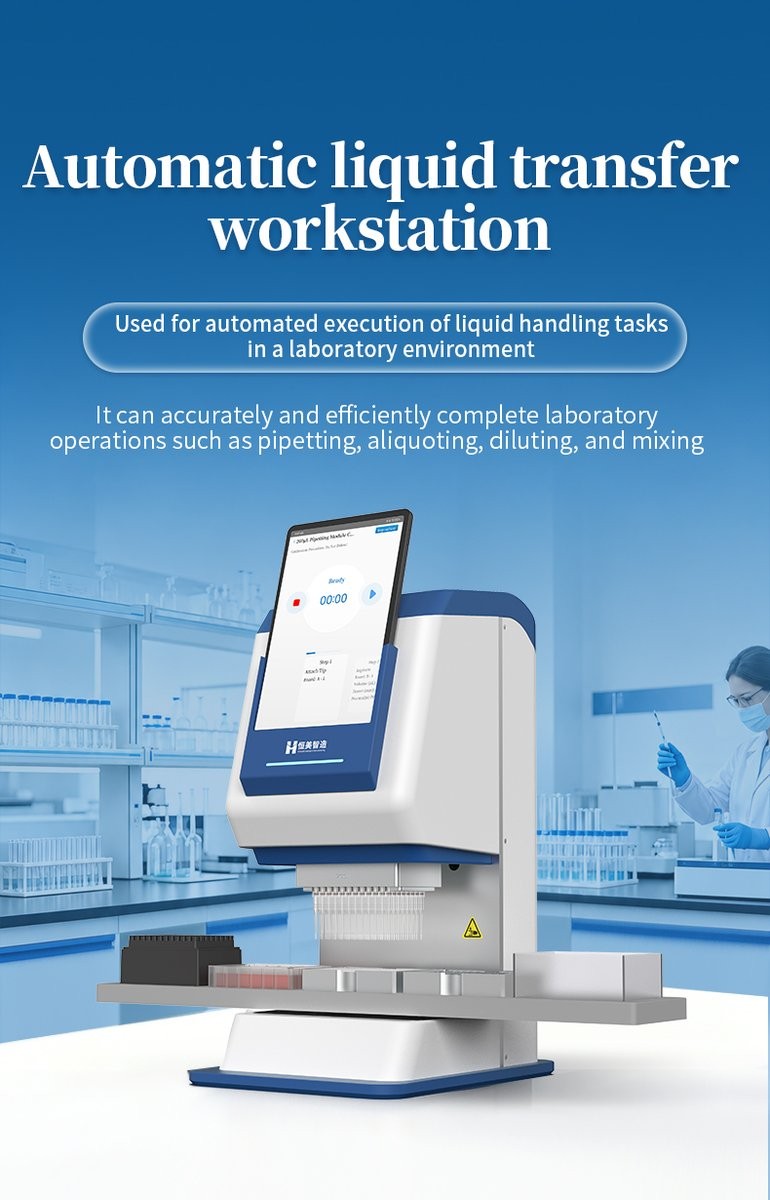

HM Instruments automated pipetting workstation with 96-channel head and tablet interface

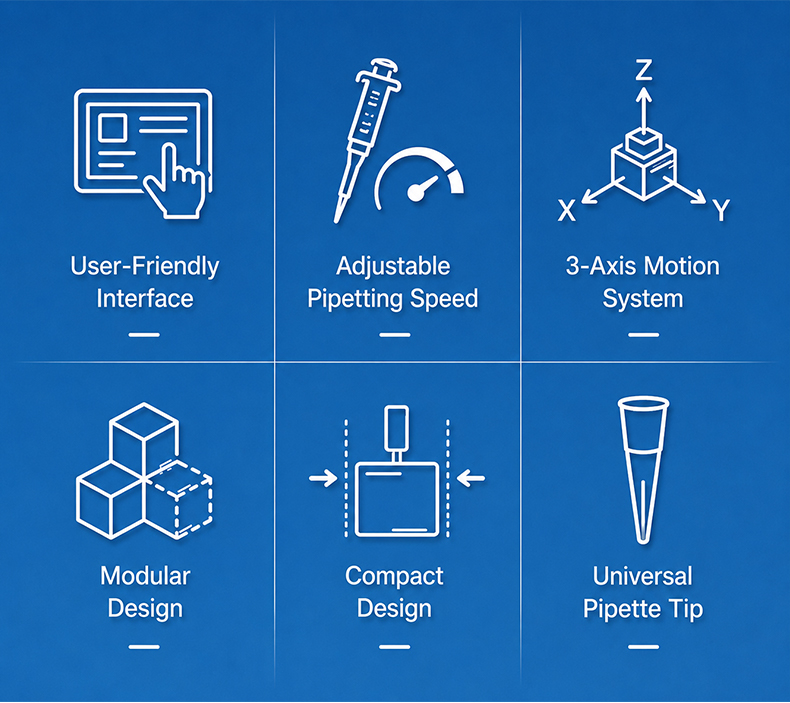

Six core features overview including tablet control, multi-mode liquid handling, and speed settings

Scope of application in molecular biology, genomics, proteomics, and drug discovery

Liquid handling applications including clinical diagnostics, chemical analysis, and PCR setup

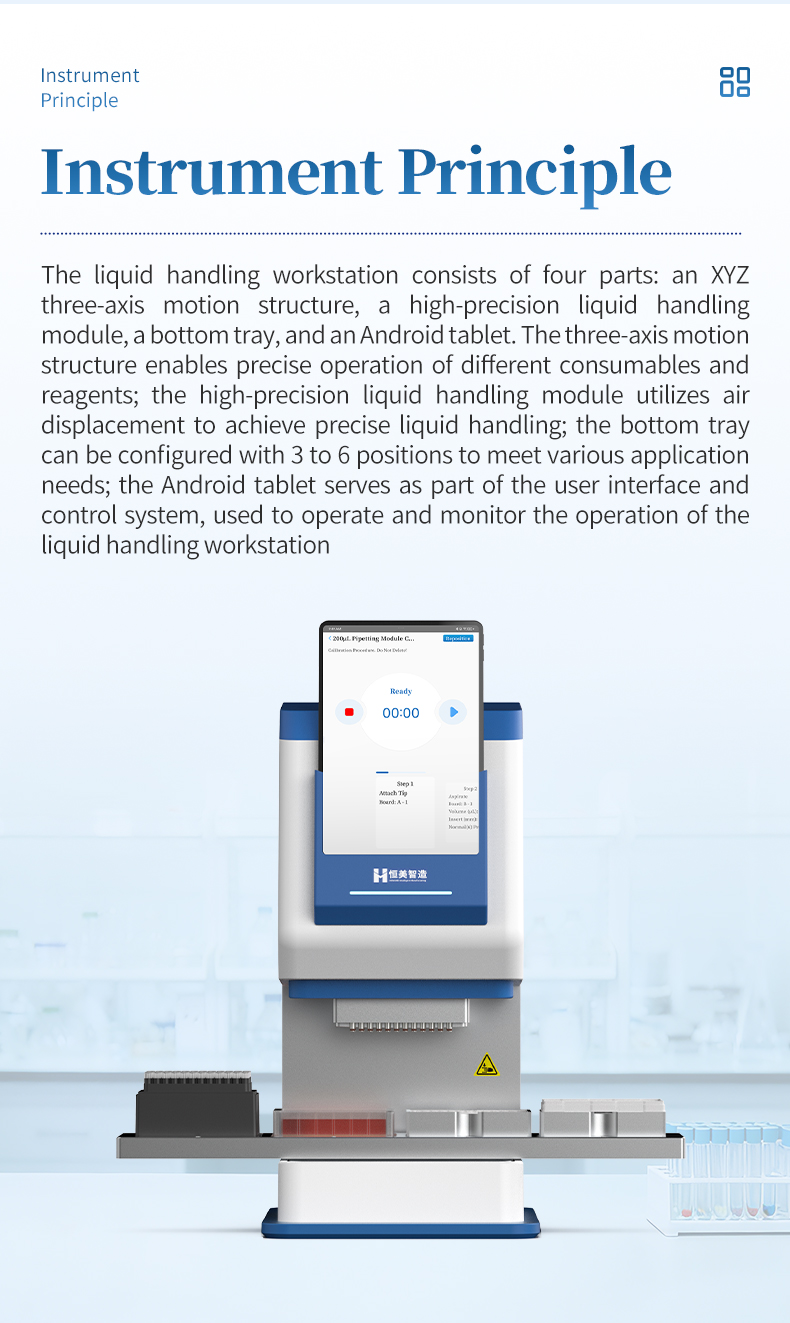

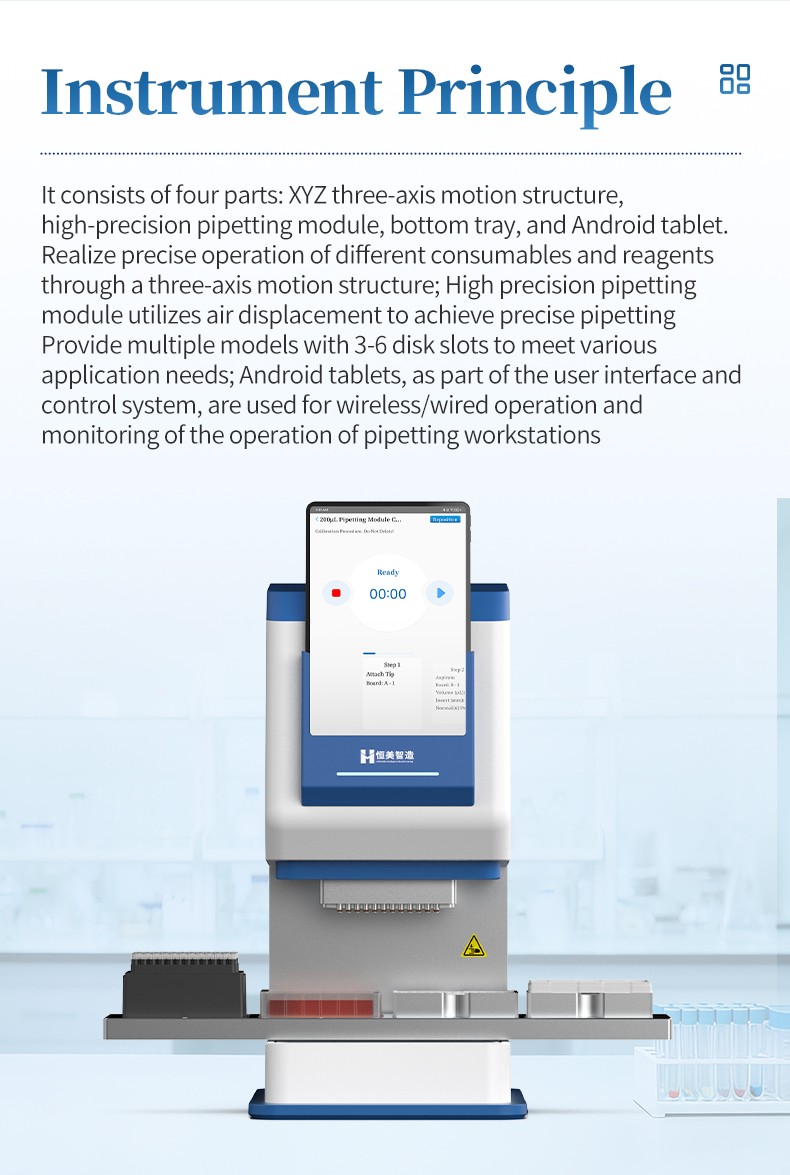

Instrument structural principle diagram showing XYZ three-axis motion and pipetting module

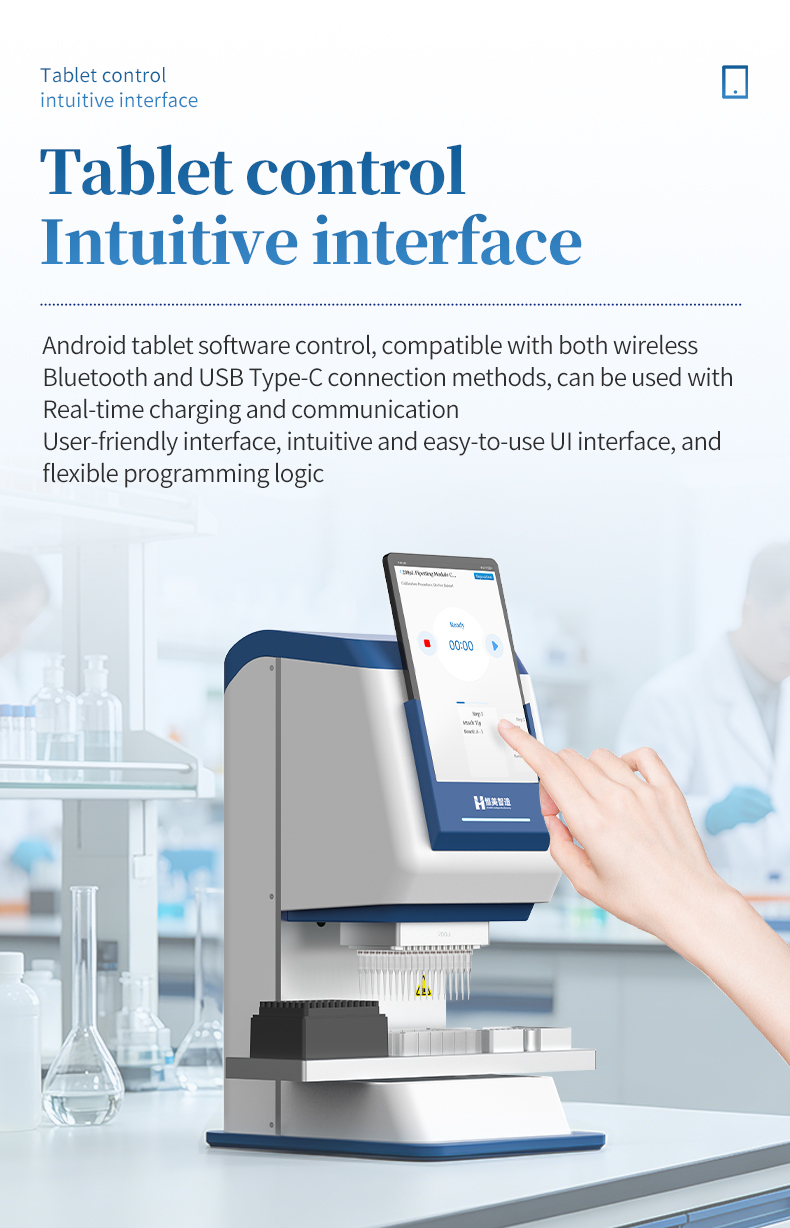

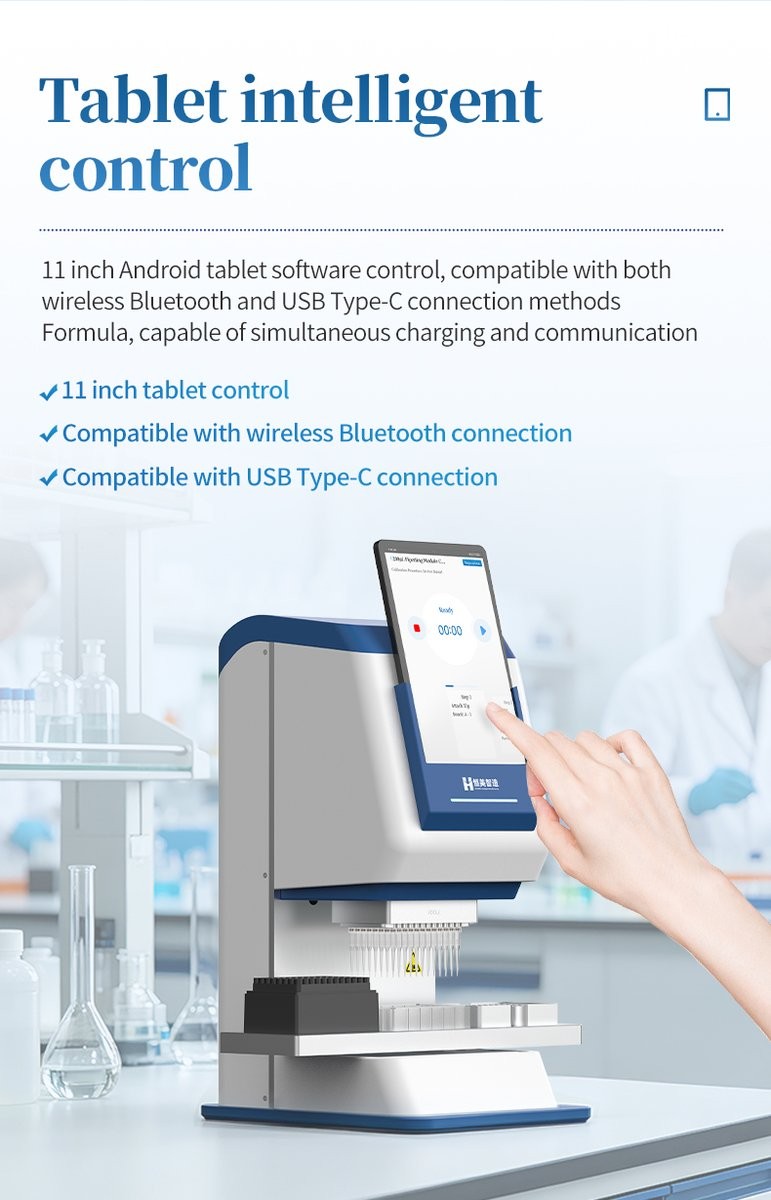

11-inch Android tablet touchscreen software interface for intuitive pipetting protocol programming

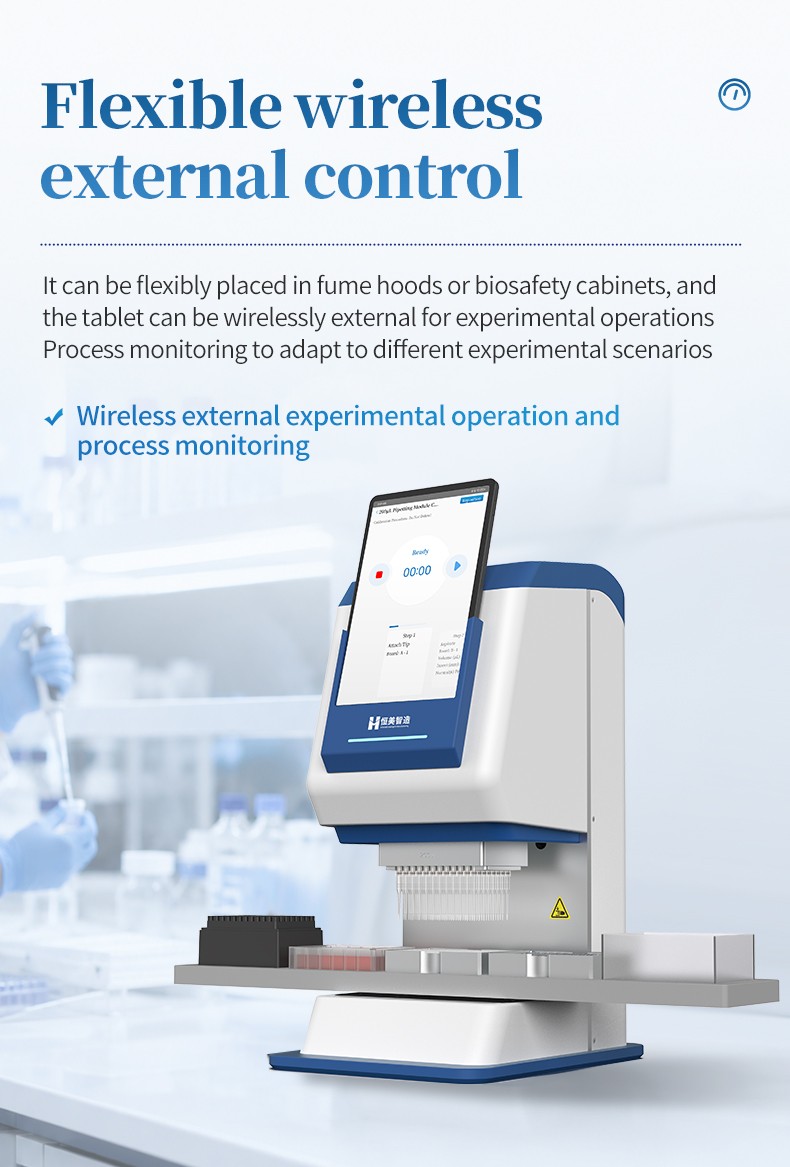

Workstation placed inside biosafety cabinet with external wireless tablet control

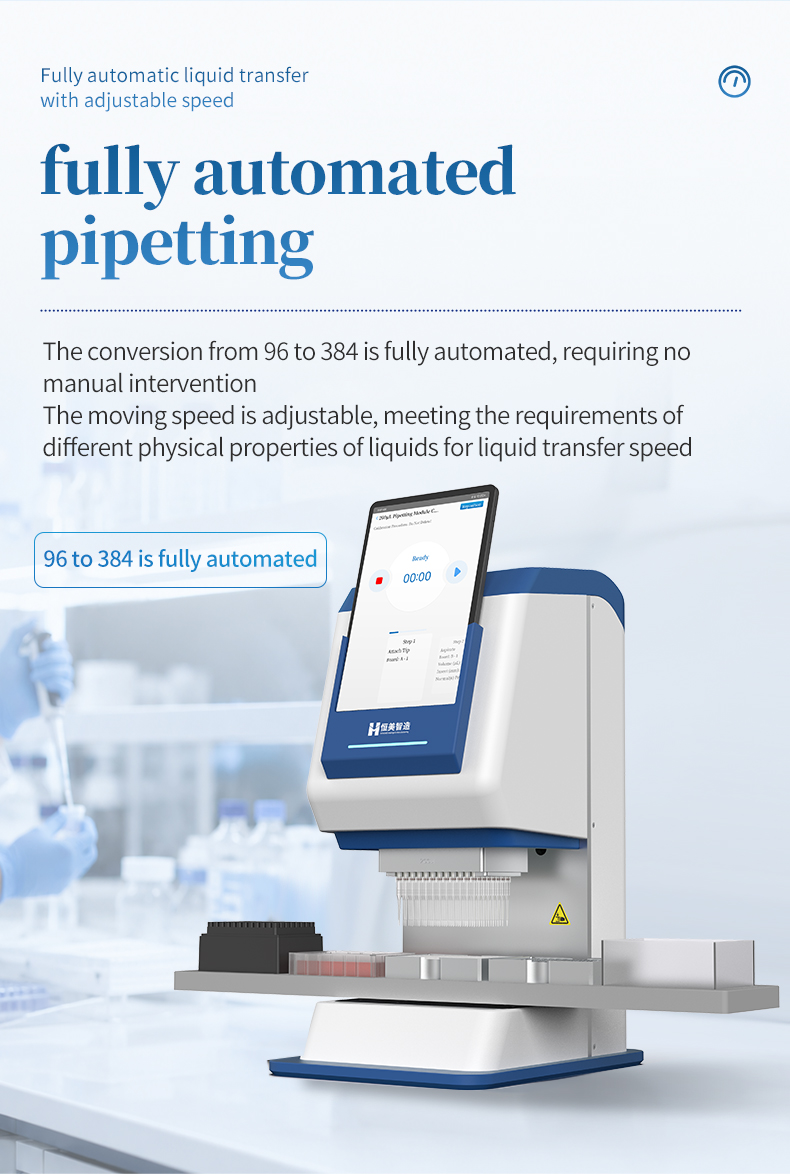

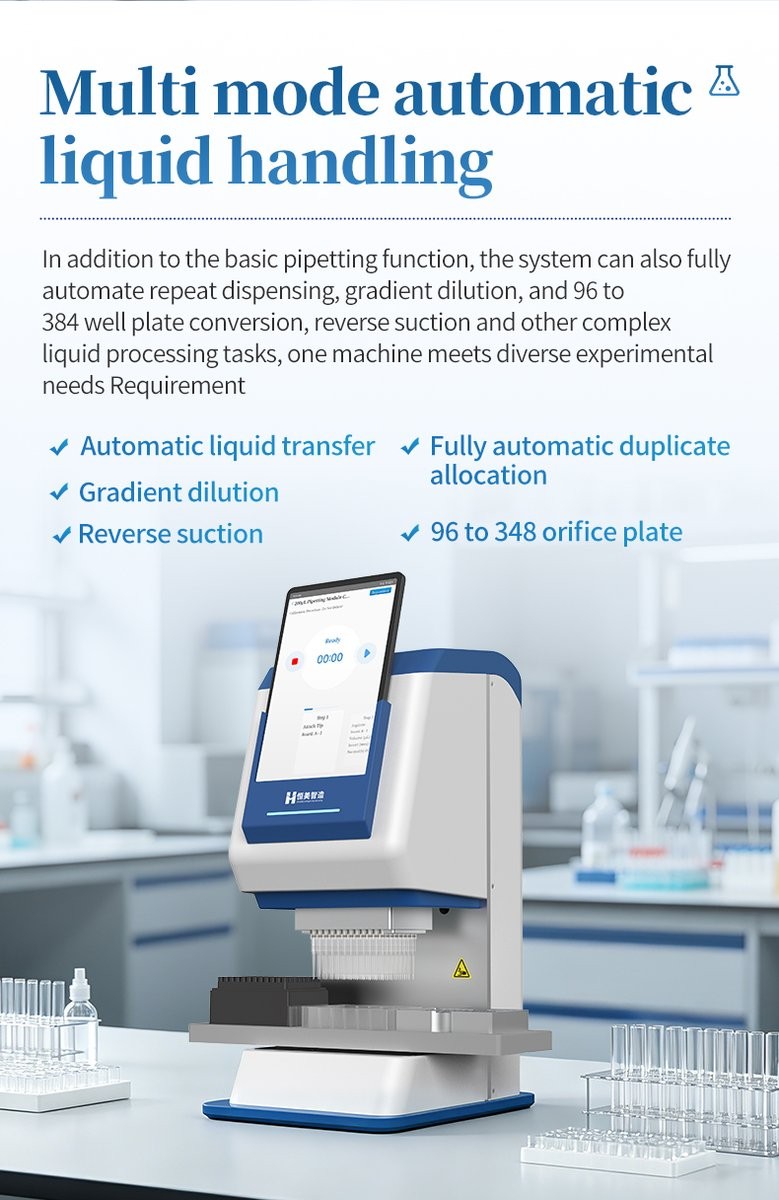

Multi-mode liquid handling functions including repeat dispensing and 96 to 384 plate reformatting

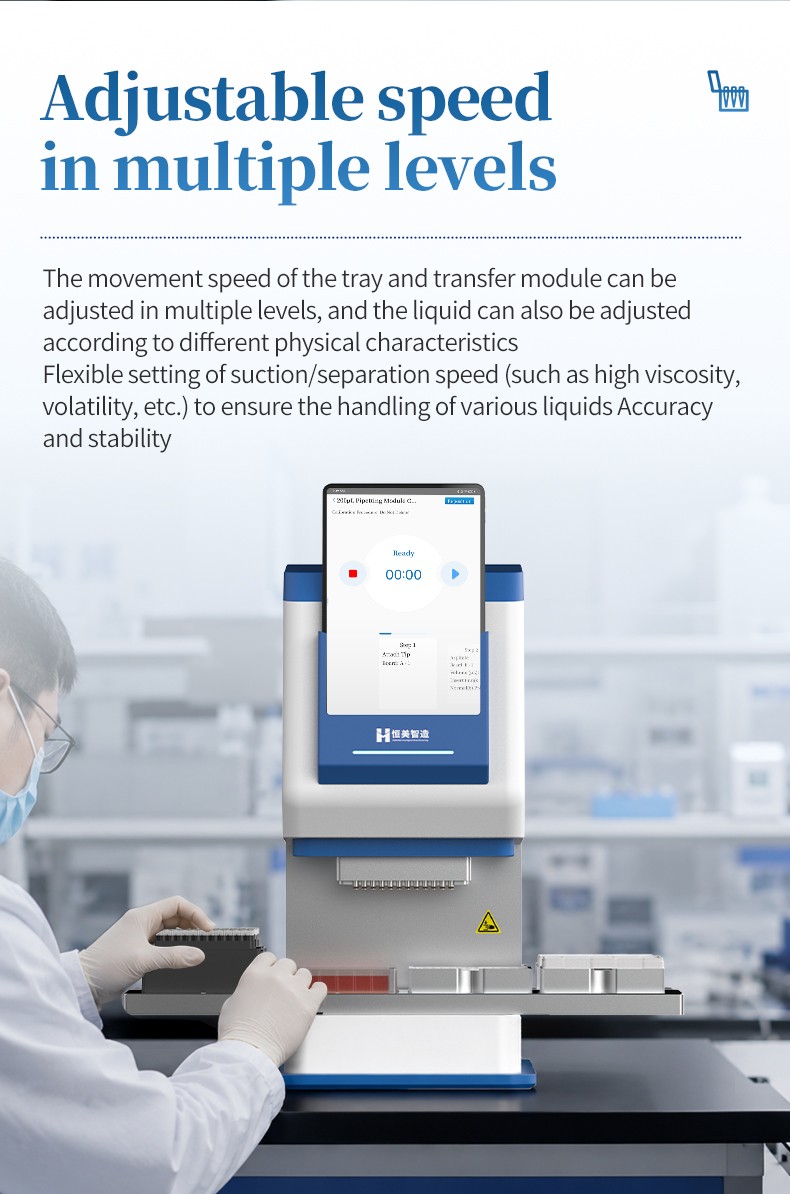

Multi-level speed adjustment for tray movement and liquid aspiration of viscous reagents

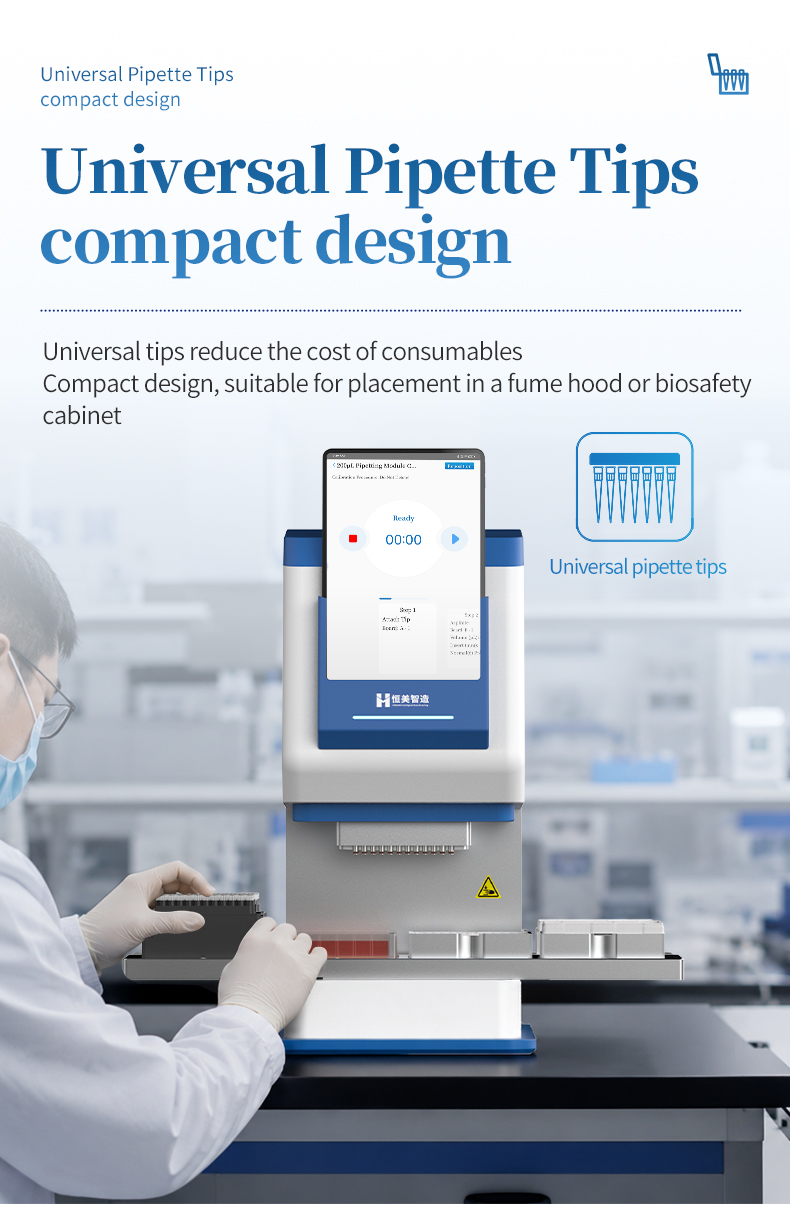

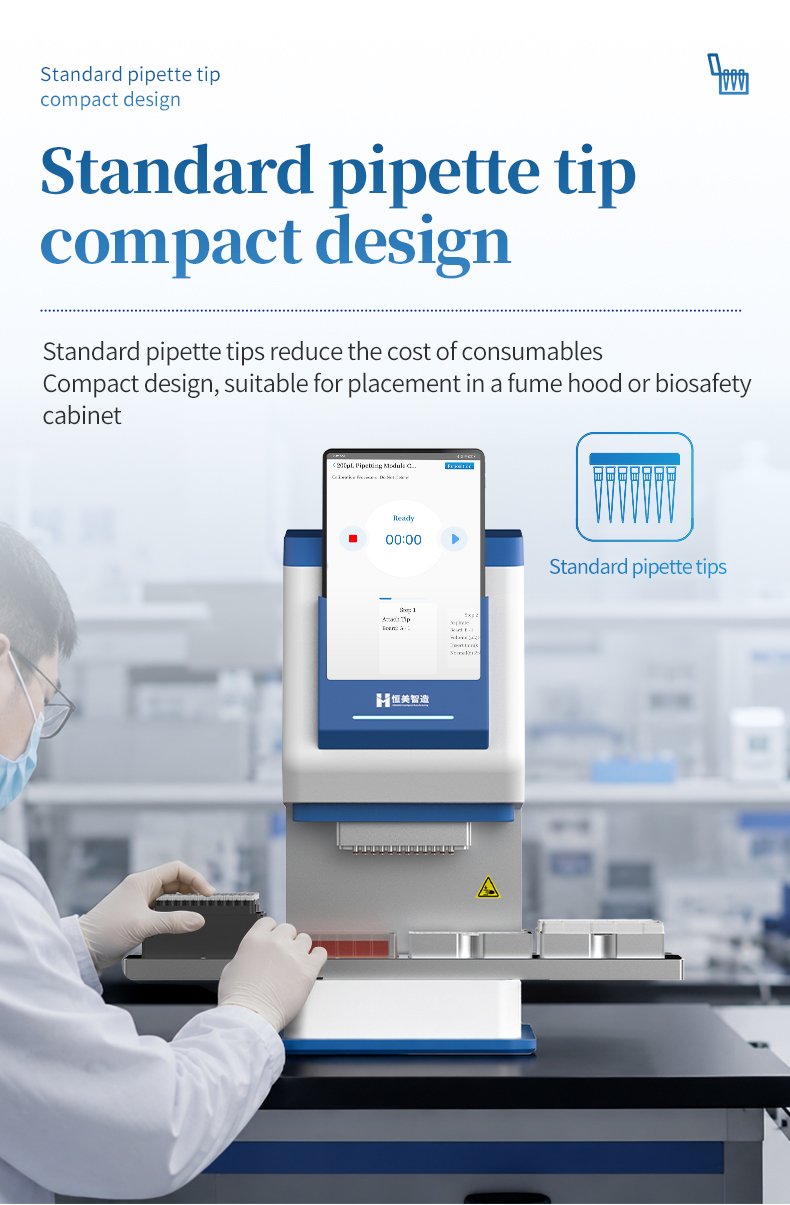

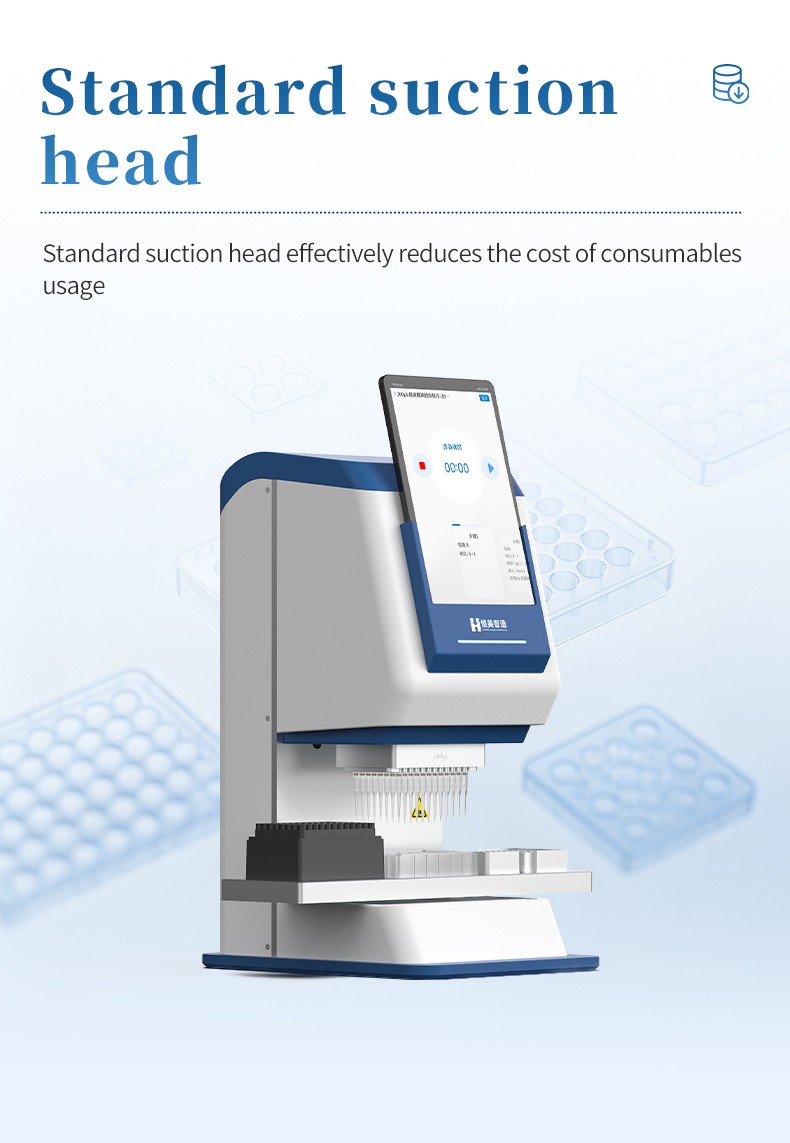

Standard universal pipette tip cone compatibility reducing laboratory consumable costs

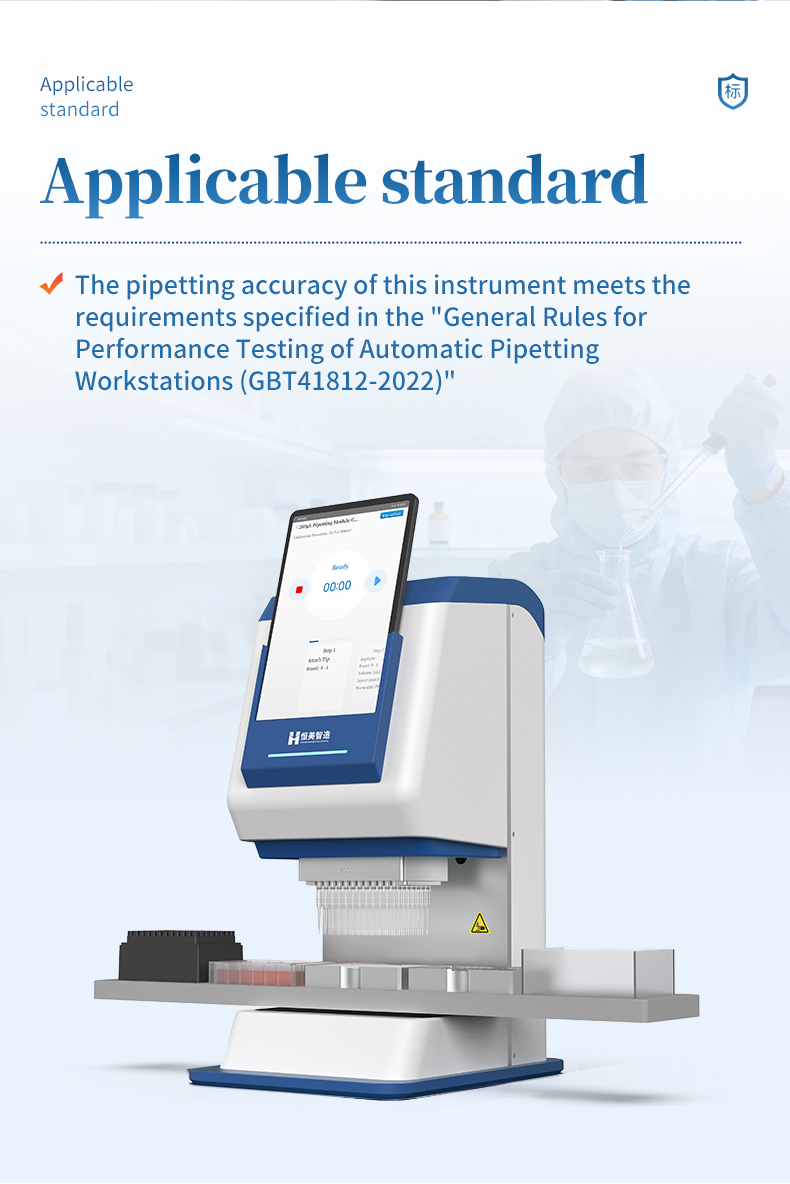

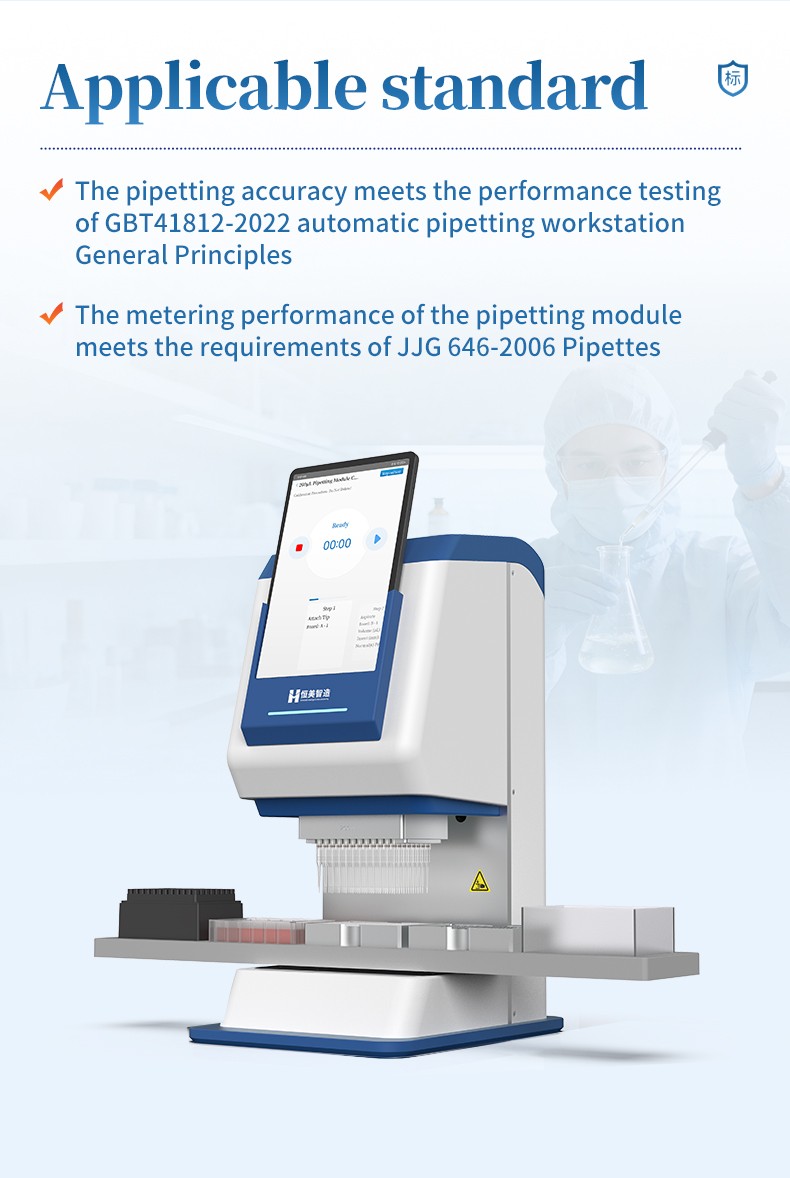

Compliance with GBT 41812-2022 automatic pipetting workstation and JJG 646-2006 standards

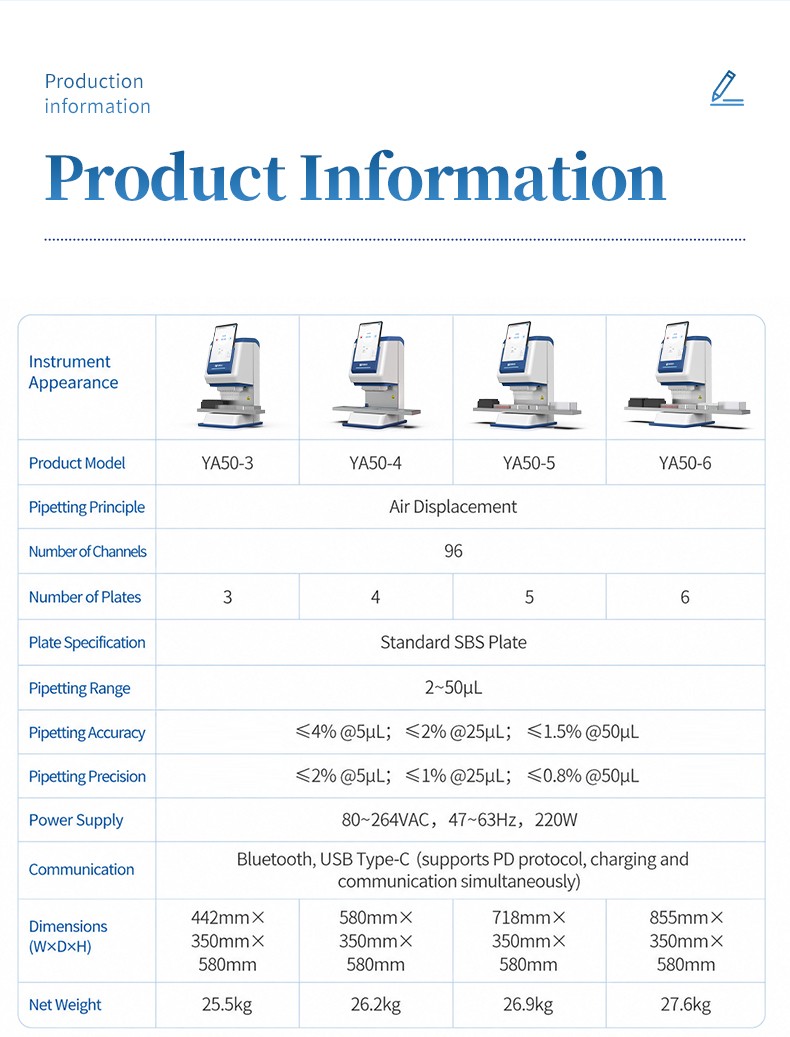

YA50 series product specifications table showing YA50-3, YA50-4, YA50-5, and YA50-6 models

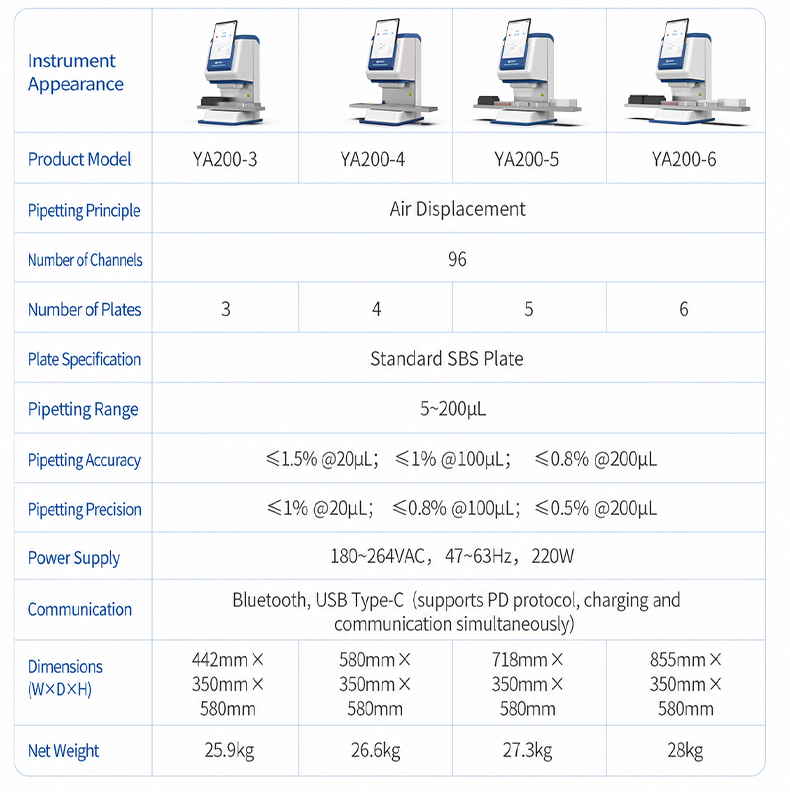

YA200 series product specifications table showing YA200-3, YA200-4, YA200-5, and YA200-6 models

Shandong Hengmei Electronic Technology Co., Ltd. headquarters engineering team and company profile

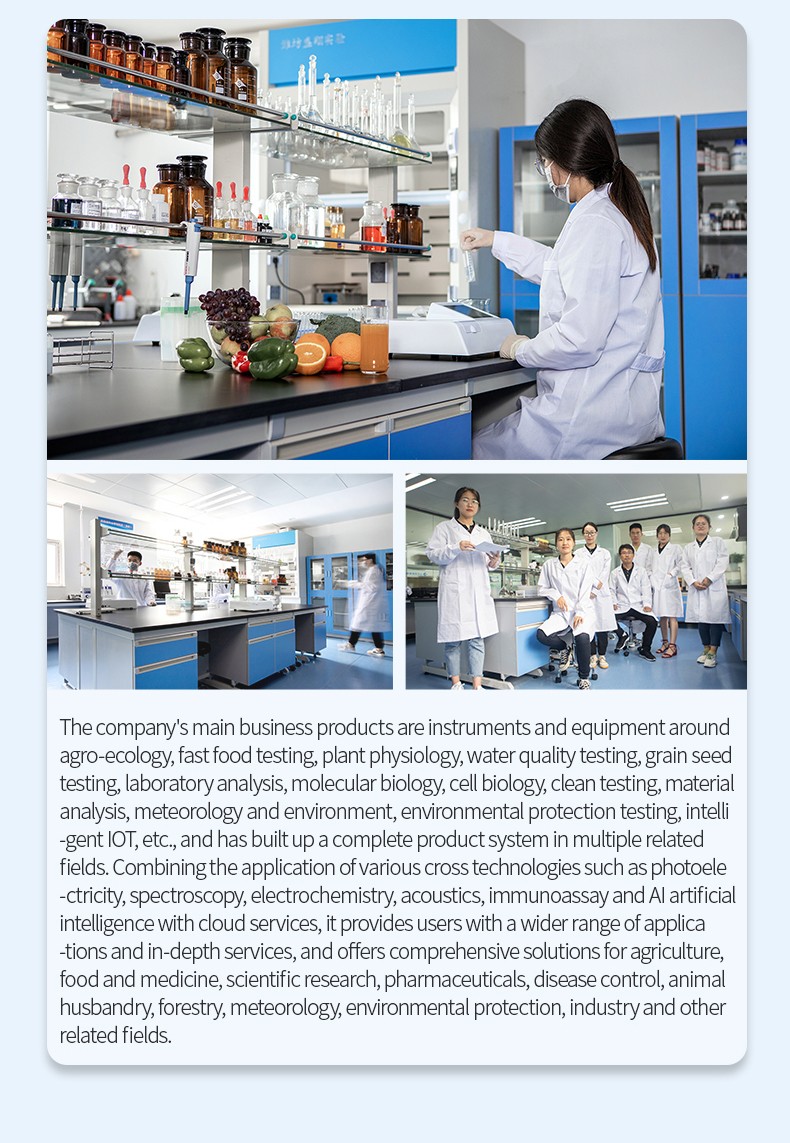

HM Instruments state-of-the-art laboratory testing facility and application specialists

Product Introduction

The YA200-4 is an advanced 96-channel automated pipetting workstation engineered by HM Instruments for modern life science and analytical laboratories. Operating on a high-precision air-displacement mechanism with a fixed 96-channel pipetting core, the system aspirates and dispenses across standard SBS-format 96-well microplates in a single synchronous stroke. Featuring a 5–200 μL pipetting range and 4 motorized SBS deck positions, the YA200-4 provides the ideal balance between automation capability and laboratory bench footprint.

Designed with dimensions of 580mm × 350mm × 580mm and an overall net weight of 26.6 kg, the YA200-4 easily fits inside standard laminar flow hoods and Class II biosafety cabinets. Complete instrument control is handled via an intuitive 11-inch Android touchscreen tablet supporting both wireless Bluetooth operation and USB Type-C connectivity with USB-PD fast charging. The automated multi-axis deck drive allows flexible tray movement, enabling rapid 96-to-384 well plate reformatting, gradient serial dilutions, and repeat dispensing without operator intervention.

Applications

PCR and qPCR reaction setup and master mix aliquoting
ELISA reagent addition, sample loading, and serial plate washing prep
Next-generation sequencing (NGS) enzymatic library preparation steps
Cell culture media exchange, drug addition, and cellular screening

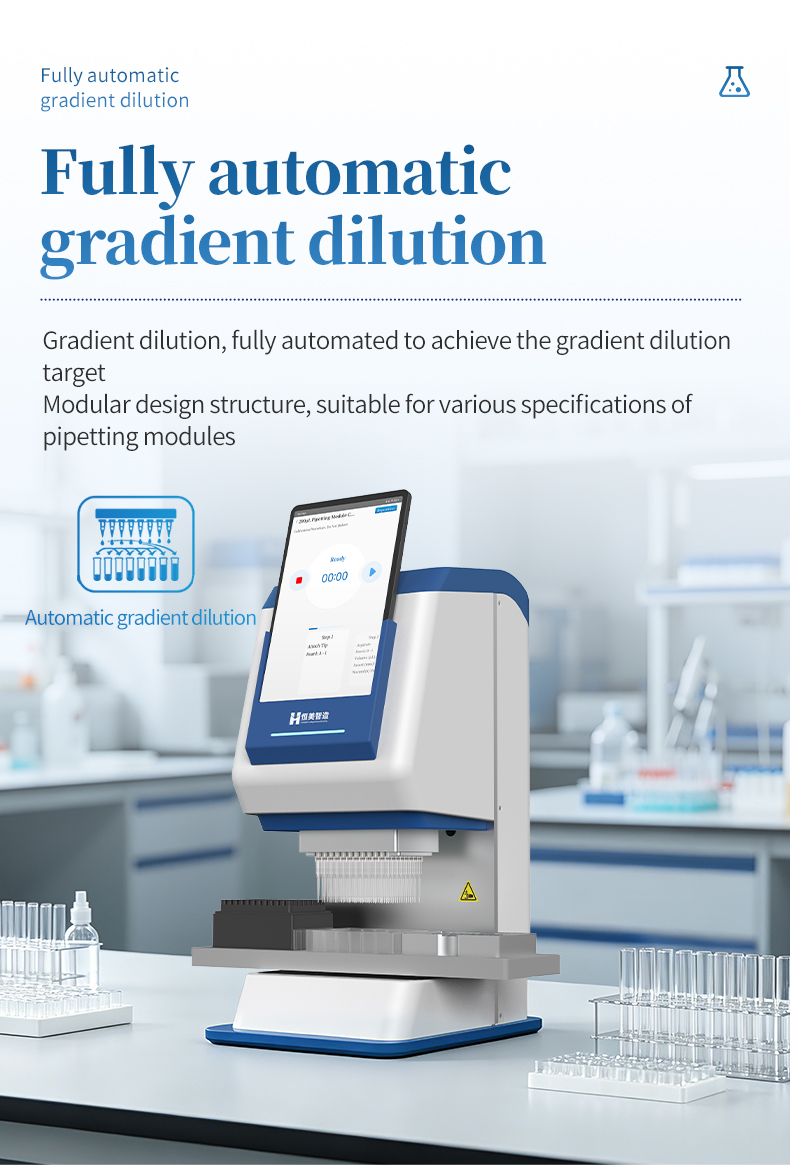

Gradient serial dilution across rows or columns and 96-to-384 microplate reformatting
High-throughput biochemical assays and routine clinical diagnostic liquid dispensing

Functional Performance

96-channel fixed pipetting core processes entire microplates simultaneously, eliminating well-to-well timing variations
5–200 μL operational volume range engineered with high-precision air-displacement pistons
4 standard SBS deck positions accommodating source plates, destination plates, tip boxes, and reagent troughs
Compact footprint (580mm × 350mm × 580mm) perfectly configured for placement within Class II biosafety cabinets
11-inch Android tablet touchscreen interface featuring drag-and-drop protocol creation and wireless Bluetooth control
USB Type-C connectivity with Power Delivery (PD) protocol for simultaneous data communication and charging
Standard universal tip cone design compatible with widely available robotic and standard tips to minimize consumable overhead
Multi-level speed regulation for tray and pipetting drives, optimizing handling of volatile, viscous, or foaming liquids
Comprehensive pipetting modes including multi-dispensing, gradient dilution, reverse pipetting, and 96-to-384 format conversion
Full compliance with GBT 41812-2022 performance requirements and JJG 646-2006 pipette metrological standards

Main Parameters

Parameter	Specification
Model	YA200-4
Pipetting Principle	Air displacement
Number of Channels	96 (fixed)
Volume Range	5~200μL
Pipetting Accuracy	≤1.5% @20μL; ≤1% @100μL; ≤0.8% @200μL
Pipetting Precision (CV)	≤1% @20μL; ≤0.8% @100μL; ≤0.5% @200μL
Deck Positions	4 SBS positions
Plate Format	Standard SBS microplate

Technical Parameters

Technical Parameter	Specification Detail
Model Designation	YA200-4
Pipetting Technology	Air-displacement piston mechanism
Channel Configuration	96 fixed channels
Dispensing Volume Range	5~200μL
Accuracy Specification	≤1.5% @20μL; ≤1% @100μL; ≤0.8% @200μL
Precision Specification (CV)	≤1% @20μL; ≤0.8% @100μL; ≤0.5% @200μL
Deck Capacity	4 SBS microplate positions
Compatible Labware	Standard SBS 96-well, 384-well plates, deep-well blocks, reagent reservoirs
Control Hardware	11-inch Android touchscreen tablet
Communication Protocols	Wireless Bluetooth, USB Type-C (USB-PD simultaneous power and data)
Power Requirement	180–264 VAC, 47–63 Hz, 220W
Dimensions (W×D×H)	580mm × 350mm × 580mm
Net Weight	26.6 kg
Metrological Standards	GBT 41812-2022, JJG 646-2006
