Product Introduction

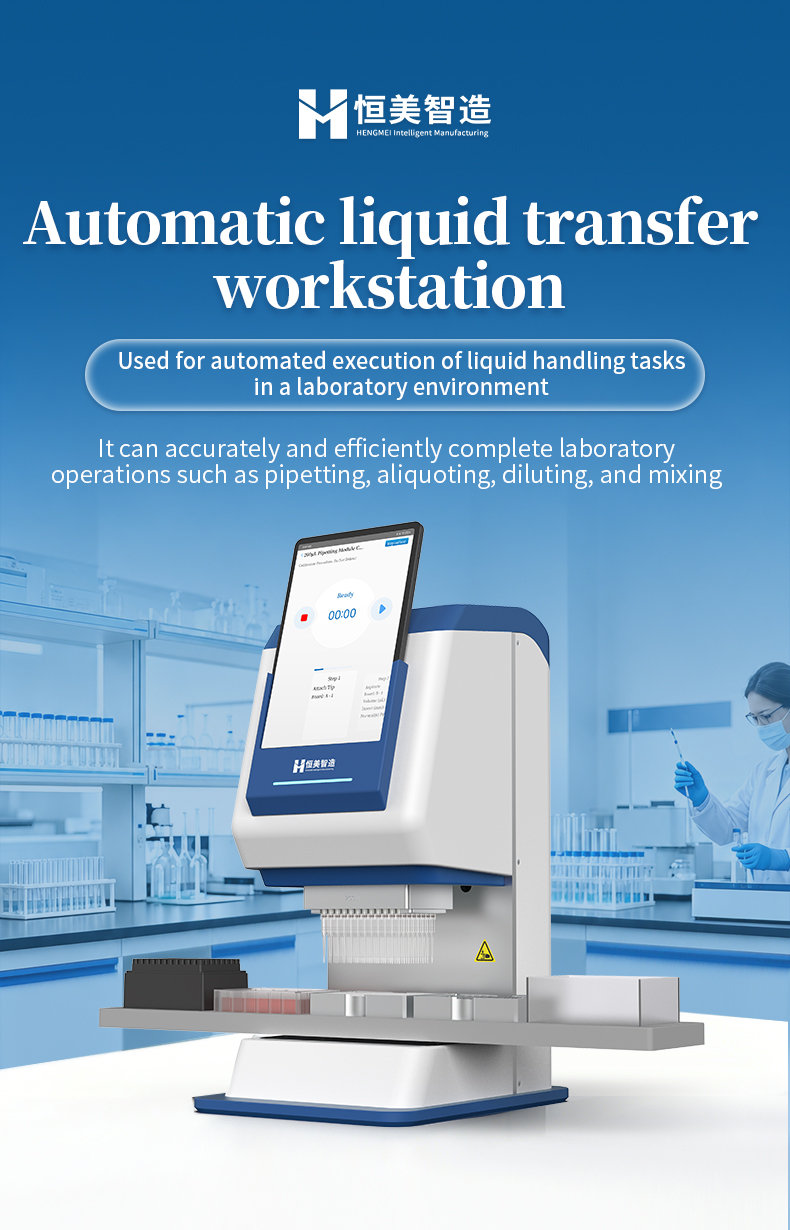

The YA50-6 is the maximum-capacity configuration of the HM Instruments YA50 platform, providing 6 SBS deck positions for the most demanding low-volume liquid handling protocols. With capacity for multiple source plates, several reagent reservoirs, a destination plate, and multiple tip boxes loaded simultaneously, it supports complex multi-step workflows without any manual deck reconfiguration.
This configuration is designed for laboratories running the most complex 96-well processing protocols — such as multi-source NGS library consolidation, high-complexity PCR with multiple control sets, and multi-reagent assay workflows requiring 4+ sequential additions. The 6-deck layout eliminates the last source of manual intervention: when all plates, reservoirs, and tip boxes are pre-loaded, the instrument runs continuously through the entire protocol.
The 2–50 μL volume range delivers accuracy of ≤1.5% at 20 μL and precision of ≤1% CV. The 580 × 350 × 580 mm footprint remains BSC-compatible, and the Android tablet provides full protocol programming and monitoring capabilities.
Applications
Multi-source NGS library consolidation from 3+ source plates
Complex diagnostic PCR with multiple control sets
Multi-reagent assay protocols requiring 4+ sequential additions
High-throughput sample normalization with intermediate plates
Automated 96-to-384 format transfer with intermediate processing
Functional Performance
6 SBS deck positions for maximum protocol complexity
96-channel fixed head with simultaneous full-plate processing
2–50 μL range, ≤1.5% accuracy and ≤1% CV at 20 μL
Pre-loaded deck eliminates all manual protocol intervention

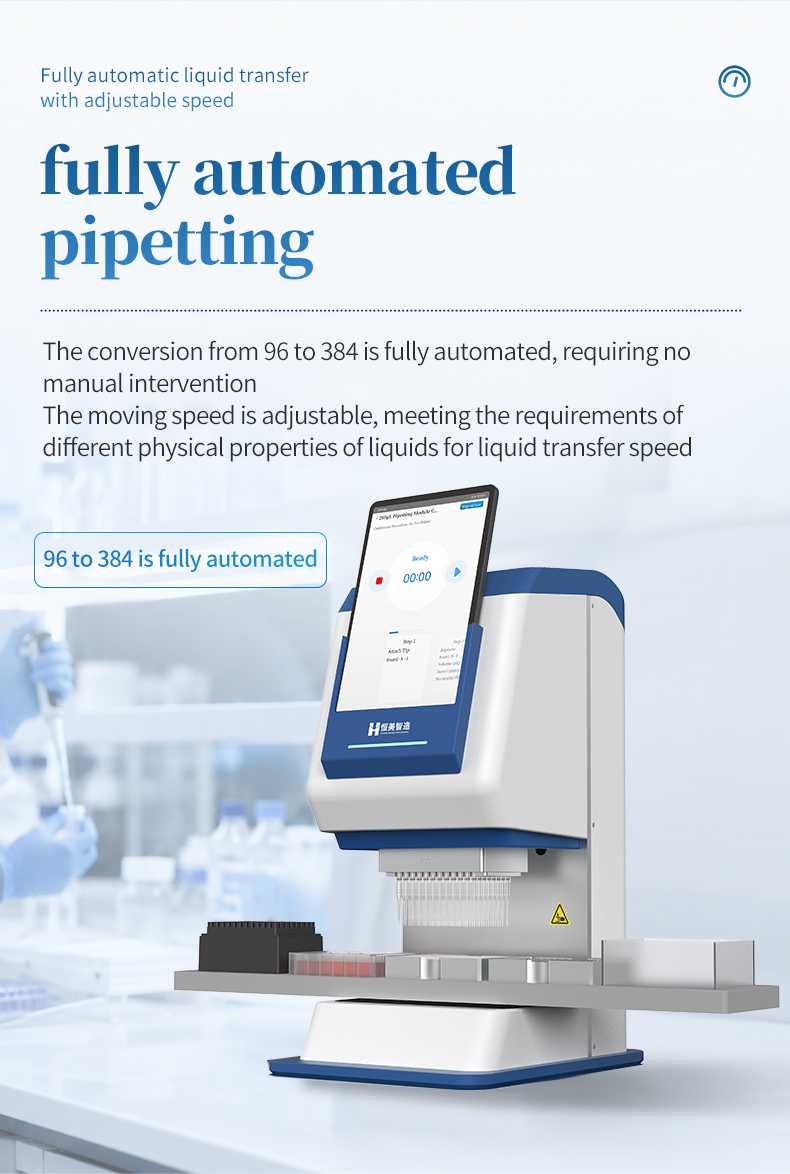

Automated 96-to-384 format transfer with built-in quadrant protocol

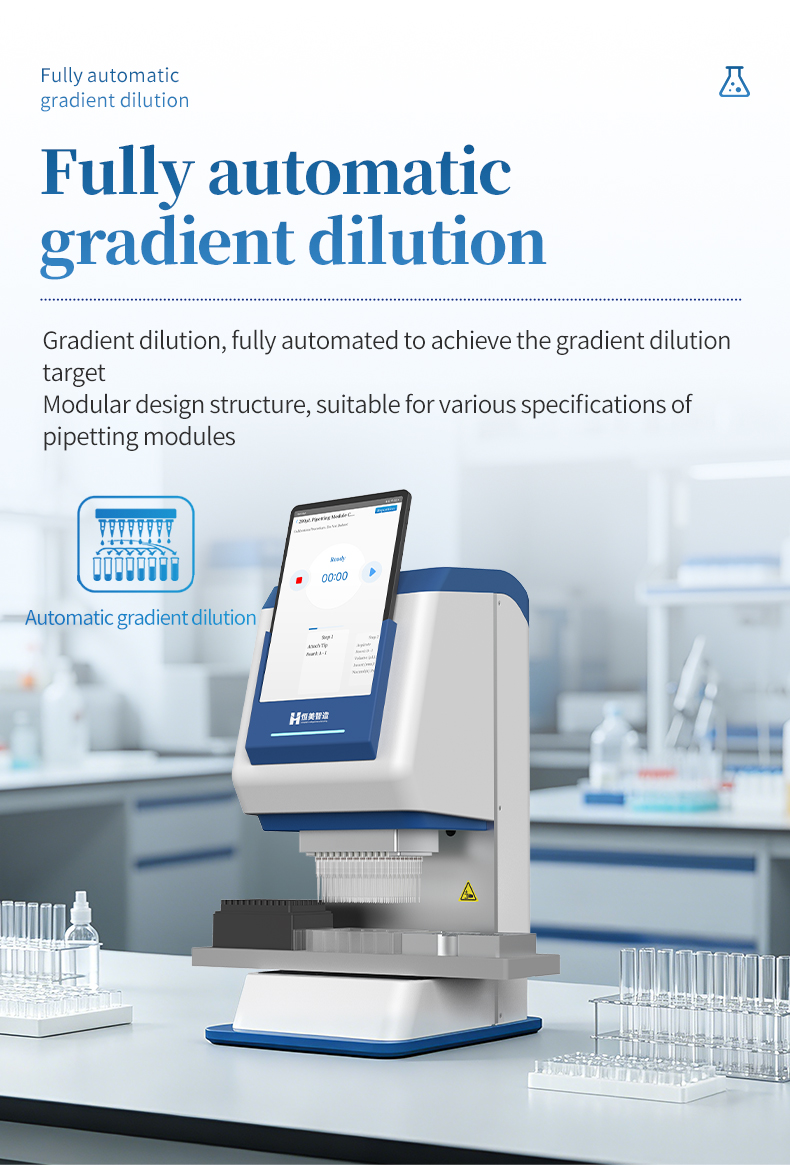

Built-in gradient dilution for concentration series
BSC-compatible 580 × 350 × 580 mm footprint

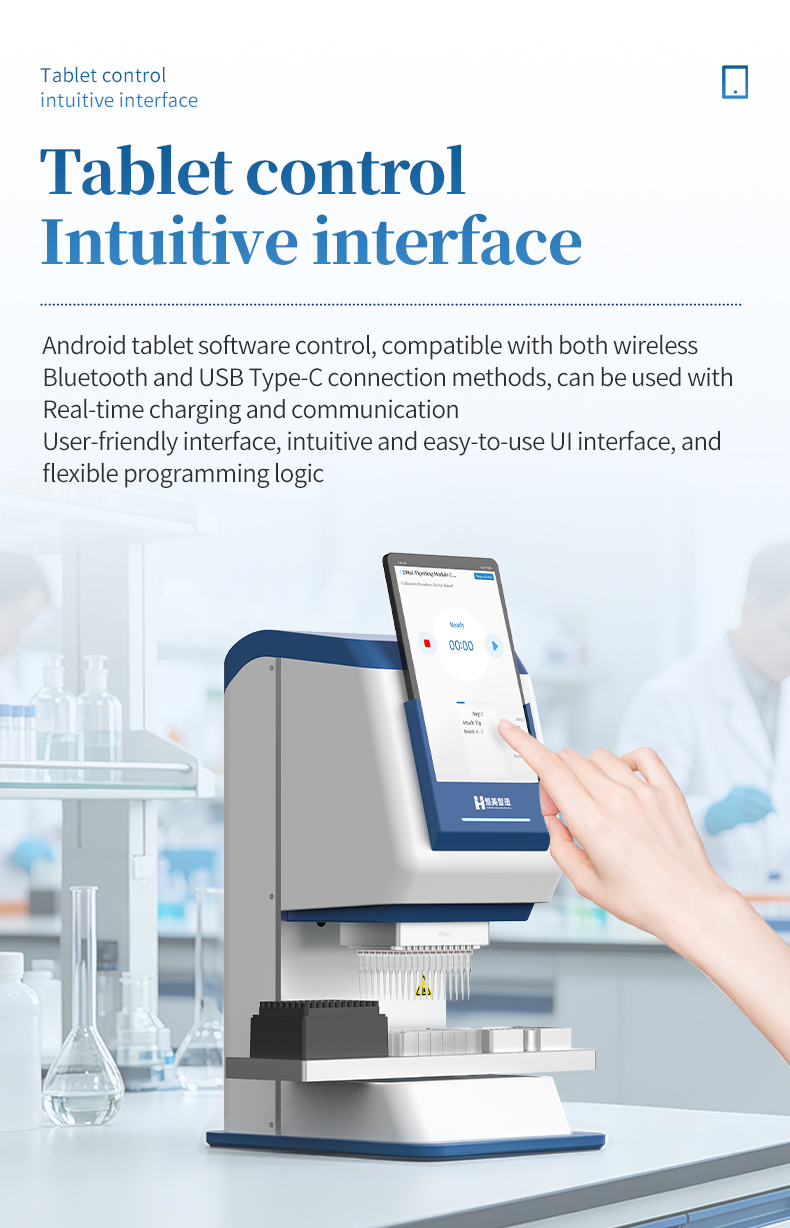

Android tablet control via Bluetooth or USB Type-C (PD)

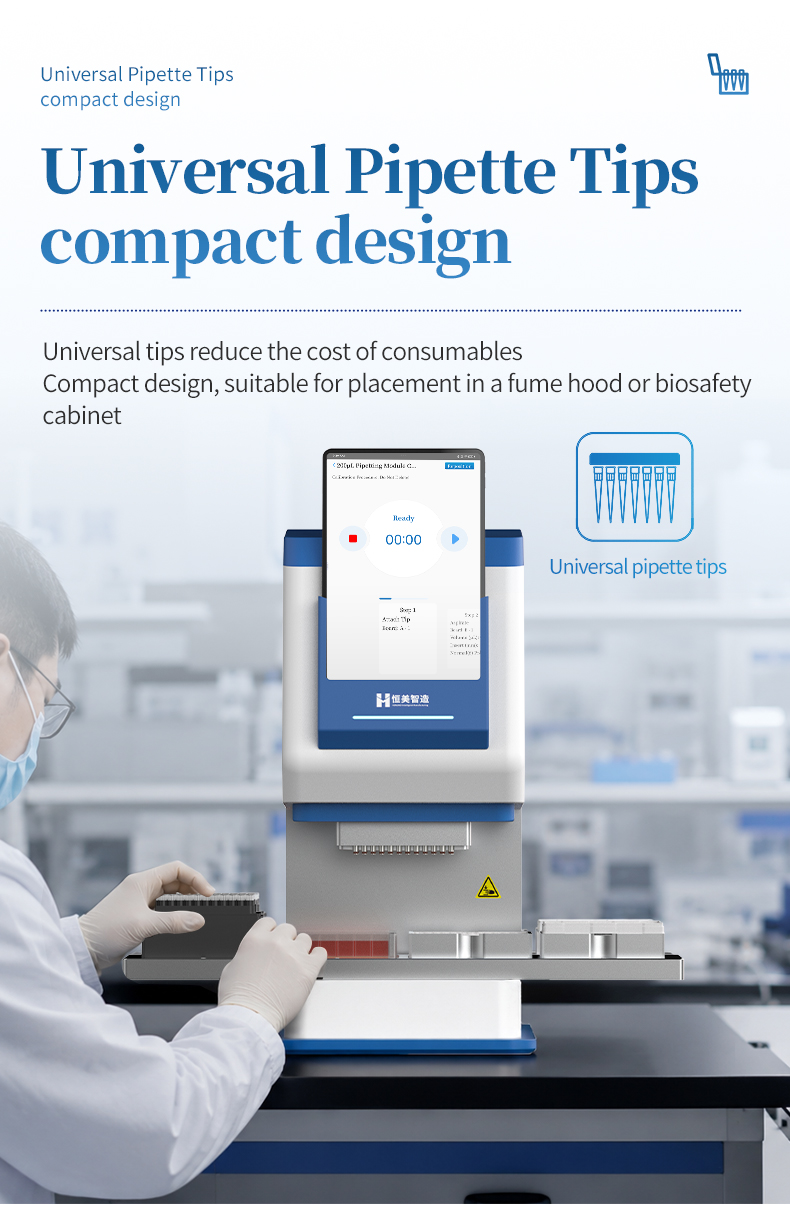

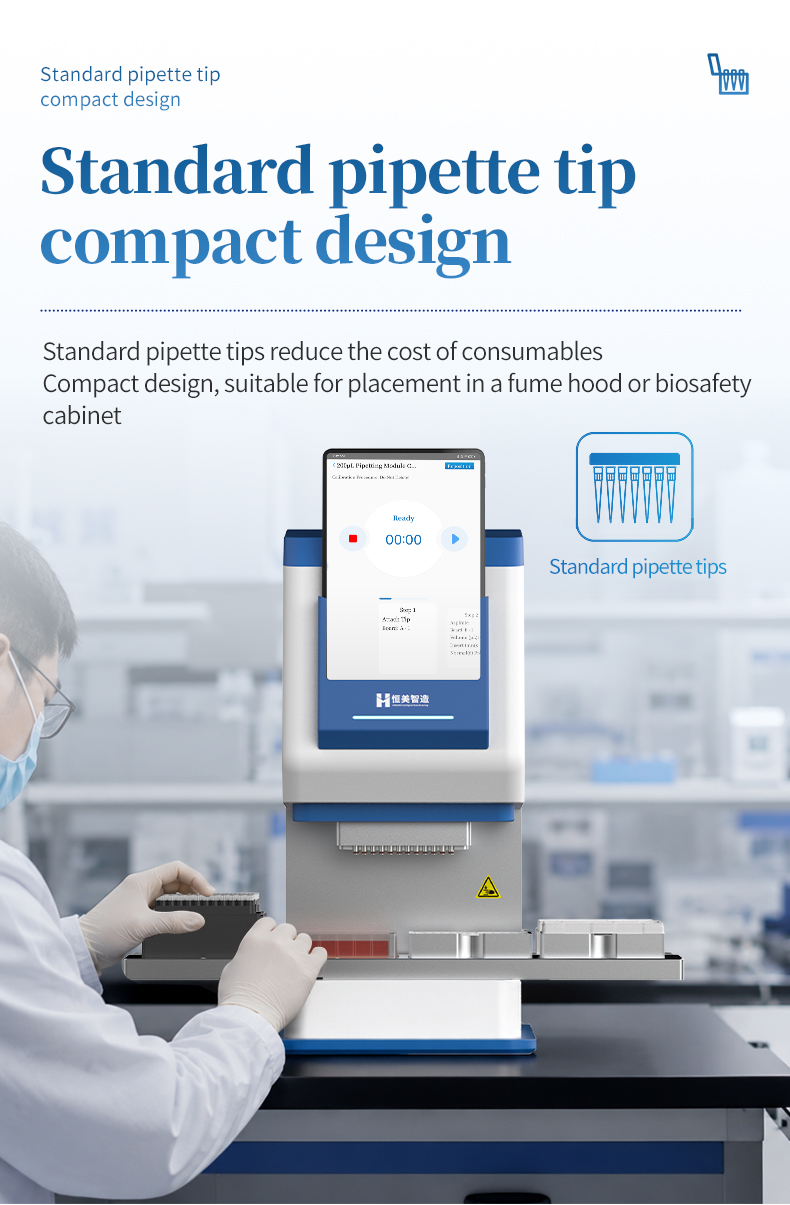

Universal tip compatibility — no proprietary consumables
Protocol export/import for multi-site standardization
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YA50-6 |
| Pipetting principle | Air displacement |
| Channels | 96 (fixed) |
| Volume range | 2–50 μL |
| Accuracy at 20 μL | ≤1.5% |
| Precision (CV) at 20 μL | ≤1% |
| Deck positions | 6 |
| Plate format | Standard SBS |

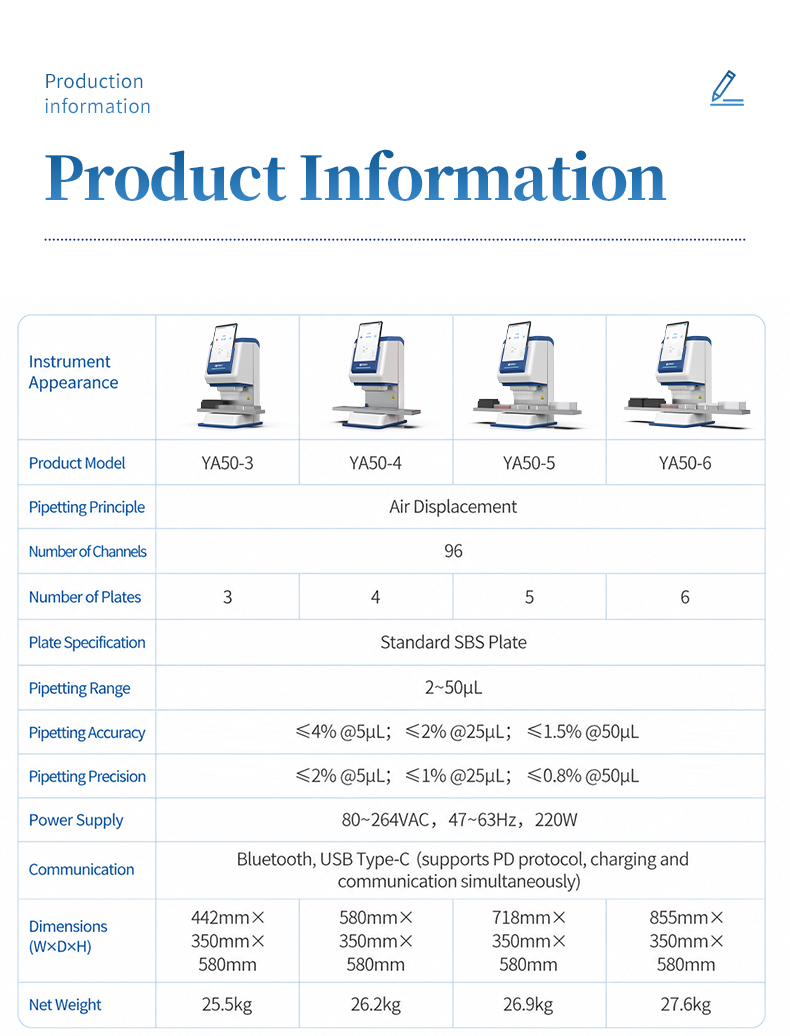

Technical Parameters
| Parameter | Value |
|---|---|
| Pipetting principle | Air displacement |
| Number of channels | 96 (fixed) |
| Volume range | 2–50 μL |
| Accuracy | ≤1.5% at 20 μL |
| Precision (CV) | ≤1% at 20 μL |
| Deck positions | 6 |
| Plate format | Standard SBS |
| Control interface | Android tablet |
| Connectivity | Bluetooth, USB Type-C (PD) |
| Power supply | 180–264 VAC, 47–63 Hz, 220W |
| Dimensions | 580 × 350 × 580 mm |
| Weight | 26.6 kg |

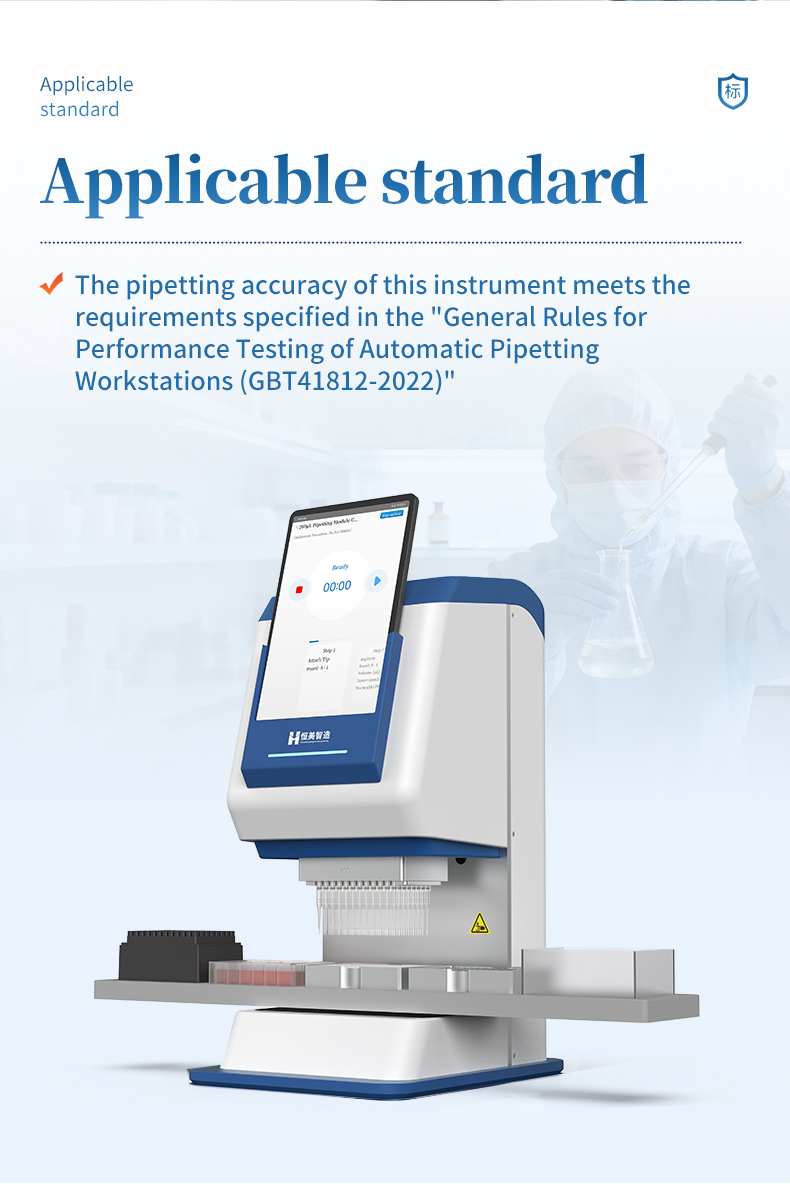

| Compliance standard | GBT 41812-2022 |
