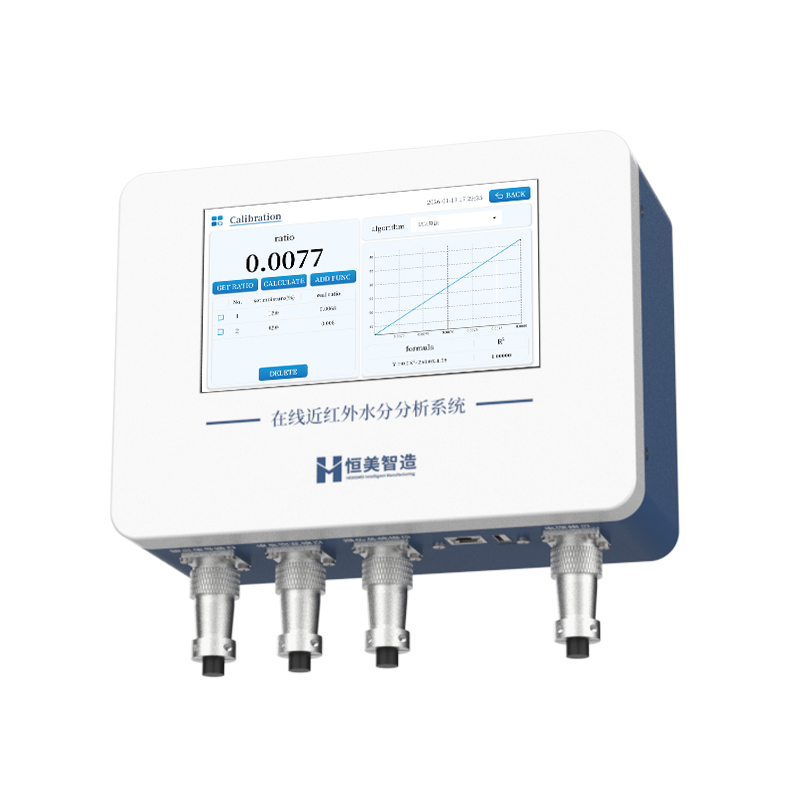

HM-ZHS Online Near-Infrared Moisture Analyzer

Product Introduction

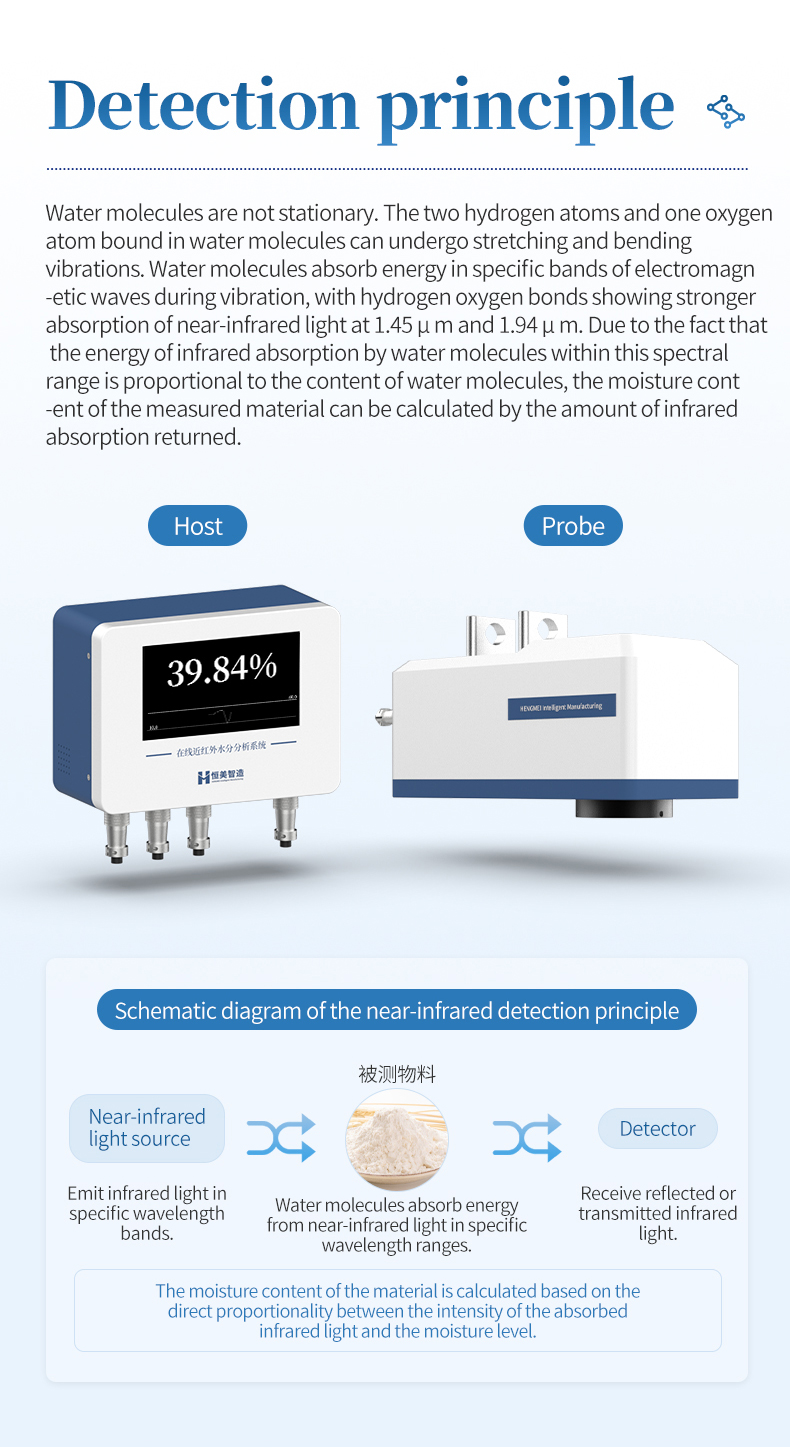

The HM-ZHS is an online near-infrared moisture analyzer designed for real-time, non-contact, and non-destructive moisture measurement on industrial production lines. Utilizing the near-infrared absorption spectroscopy principle — where water molecules absorb infrared light at 1.45 μm and 1.94 μm wavelengths — the instrument converts optical signals into moisture percentage readings through photoelectric sensors and spectral data processing. It is suitable for continuous monitoring of moisture content in bulk materials on conveyor belts and process lines.

The system runs on an Android 10 operating system with a 7-inch 1024 × 600 touchscreen, providing intuitive operation and data visualization. With dual detectors, 7 spectral bands, and 14 optical paths, the HM-ZHS delivers stable and accurate measurements even under varying surface conditions. Data can be uploaded via Wi-Fi or Ethernet to a cloud management platform, supporting quality control and process optimization. Learn more about how NIR moisture analysis improves production efficiency in our industry application guide for NIR moisture analyzers.

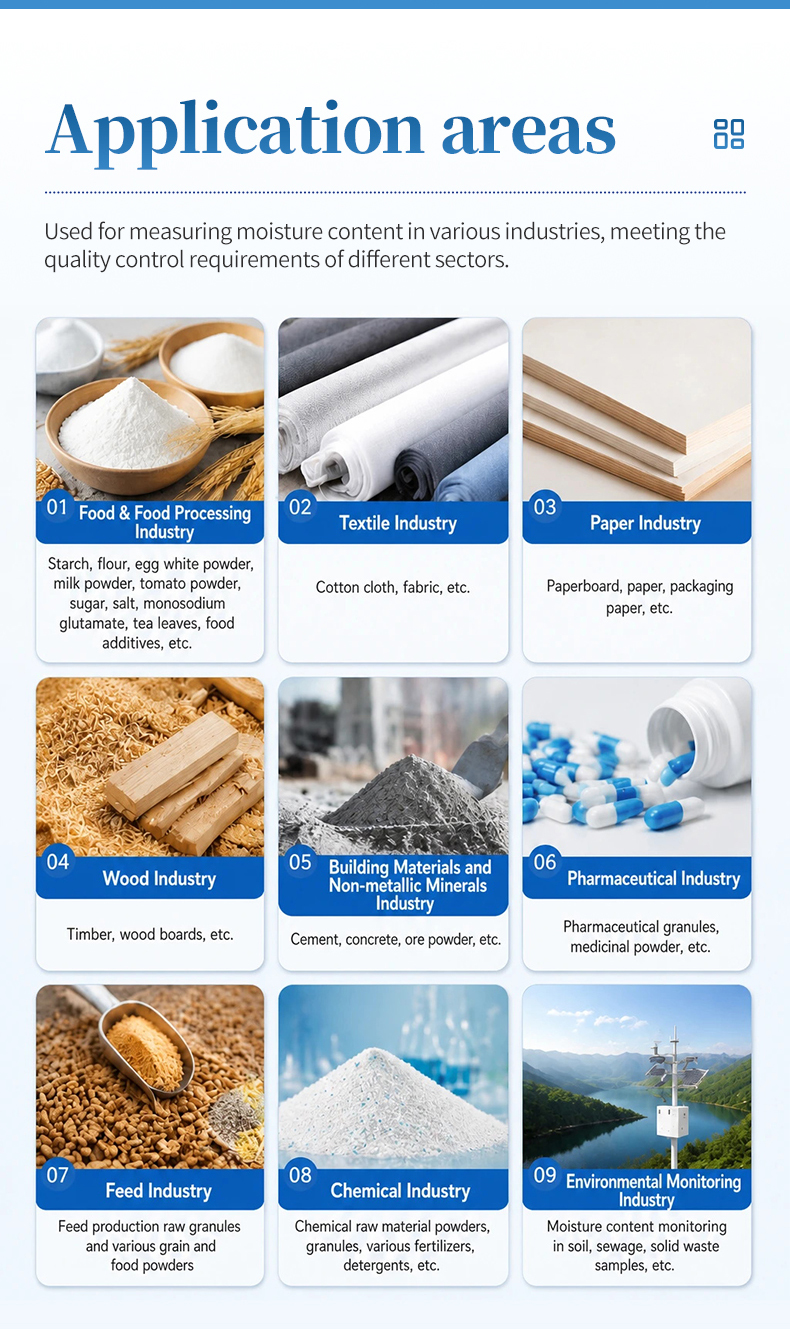

Applications

• Food and food processing: starch, flour, protein powder, milk powder, tomato powder, sugar, salt, MSG, tea, food additives

• Textile industry: fabric and cloth moisture measurement

• Paper industry: paperboard, paper, packaging paper

• Wood industry: sawdust, wooden boards

• Building materials and minerals: cement, concrete, mineral sand

• Pharmaceutical industry: pharmaceutical granules and powders

• Animal feed industry: feed pellets and grain powders

• Chemical industry: chemical raw material powders, granules, fertilizers, detergent powder

Functional Performance / Features

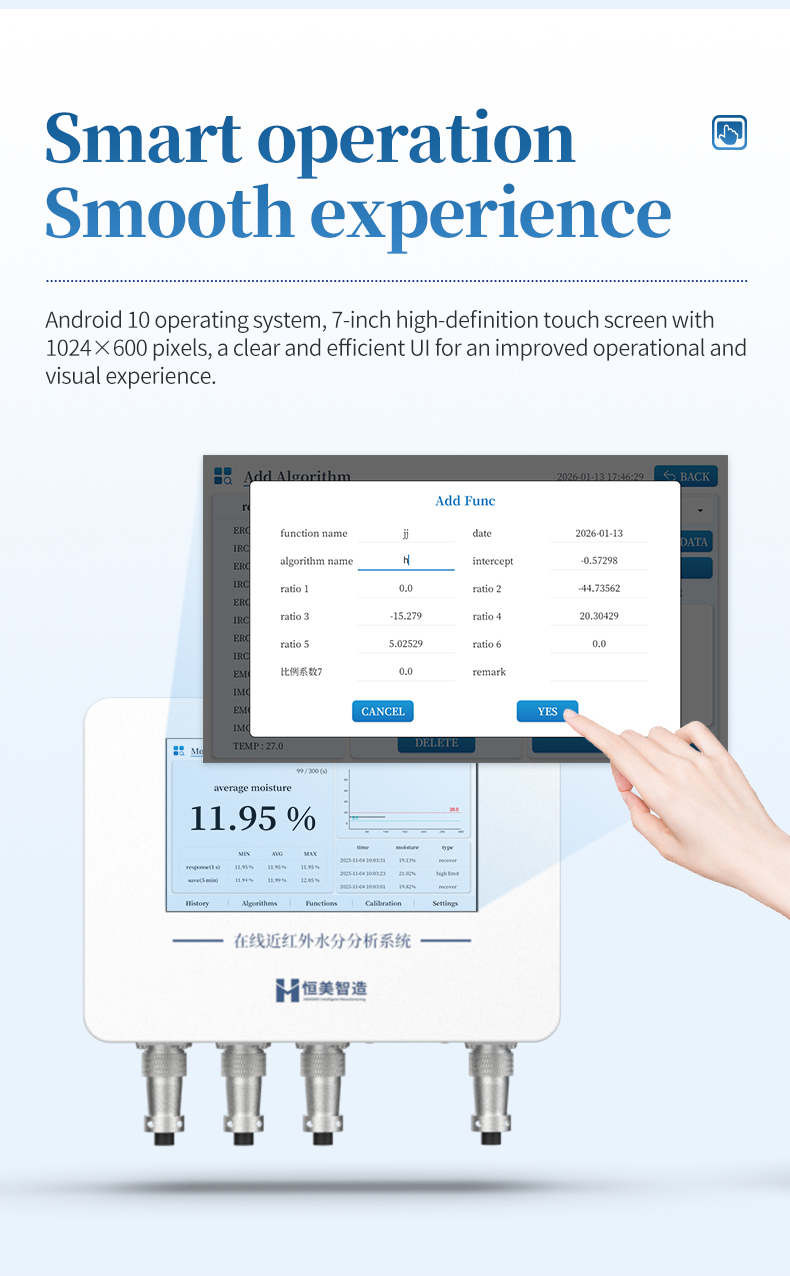

1. Android 10 operating system with 7-inch 1024 × 600 high-definition touchscreen for intuitive interaction

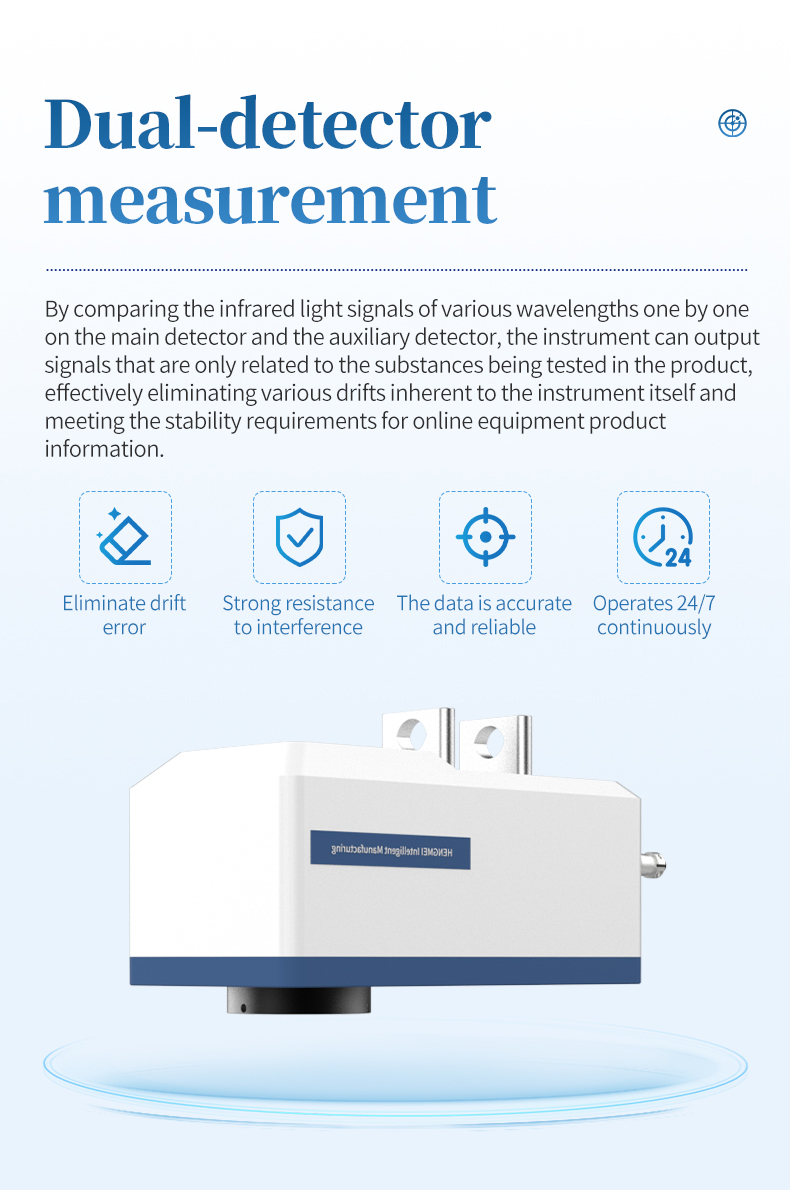

2. Dual-detector measurement scheme that eliminates instrument drift by comparing infrared signals between primary and secondary detectors

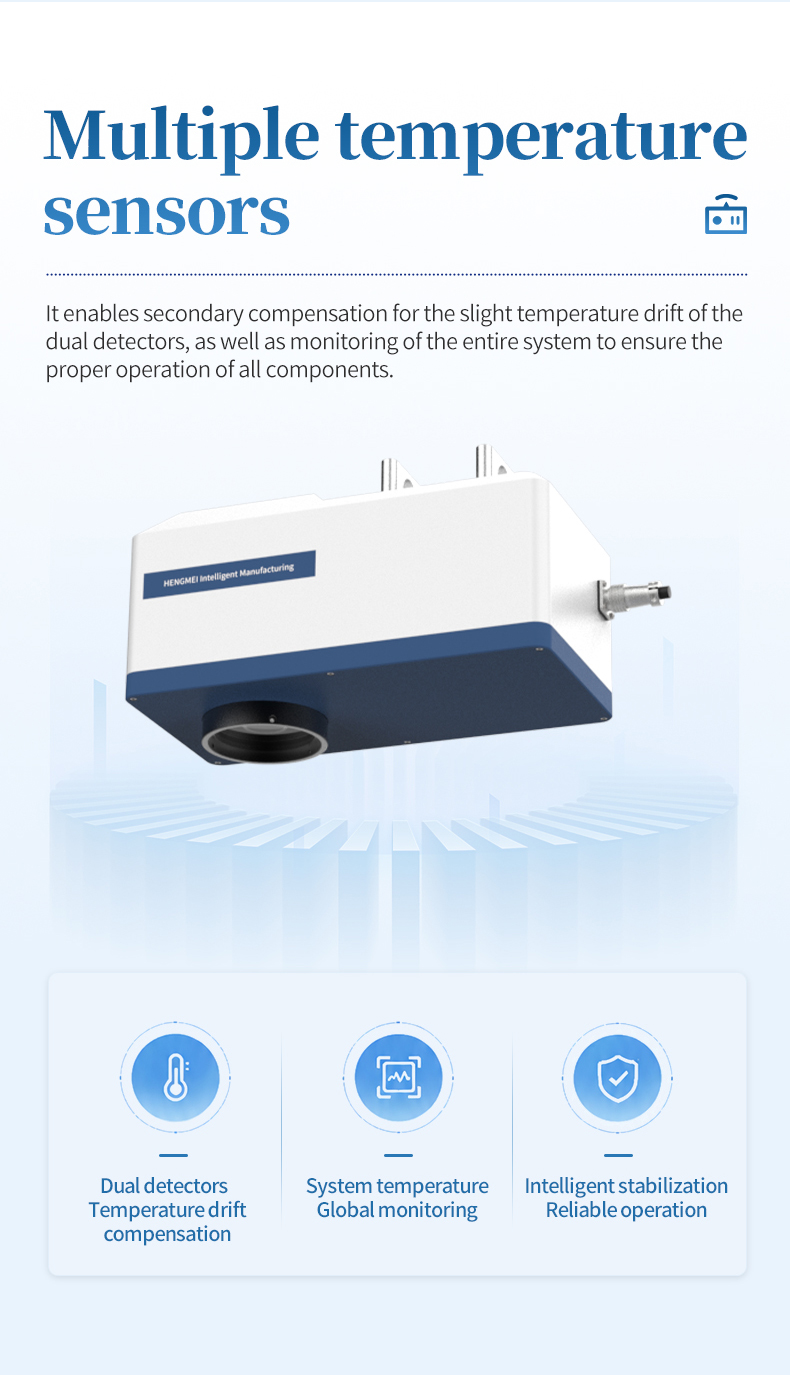

3. Multiple onboard temperature sensors providing dual-detector thermal drift compensation and system-wide monitoring

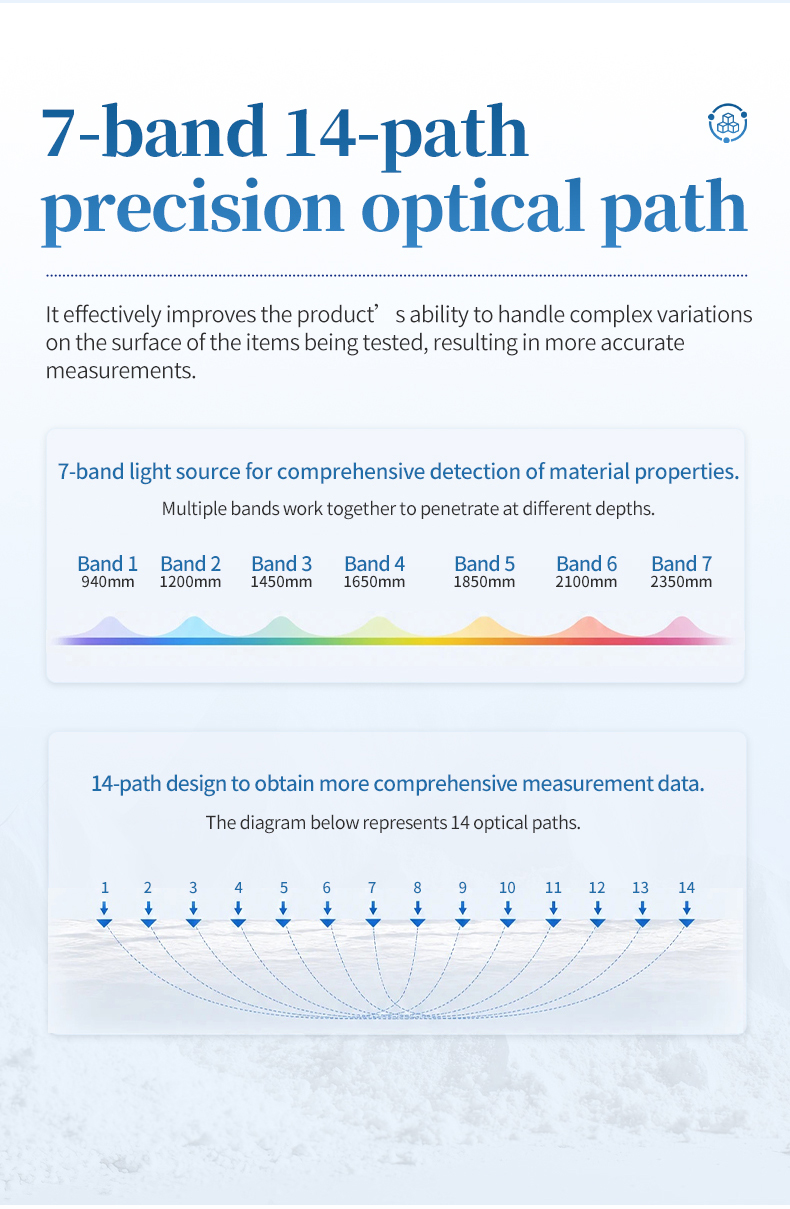

4. 7-band 14-optical-path design improving measurement tolerance for complex surface variations on target materials

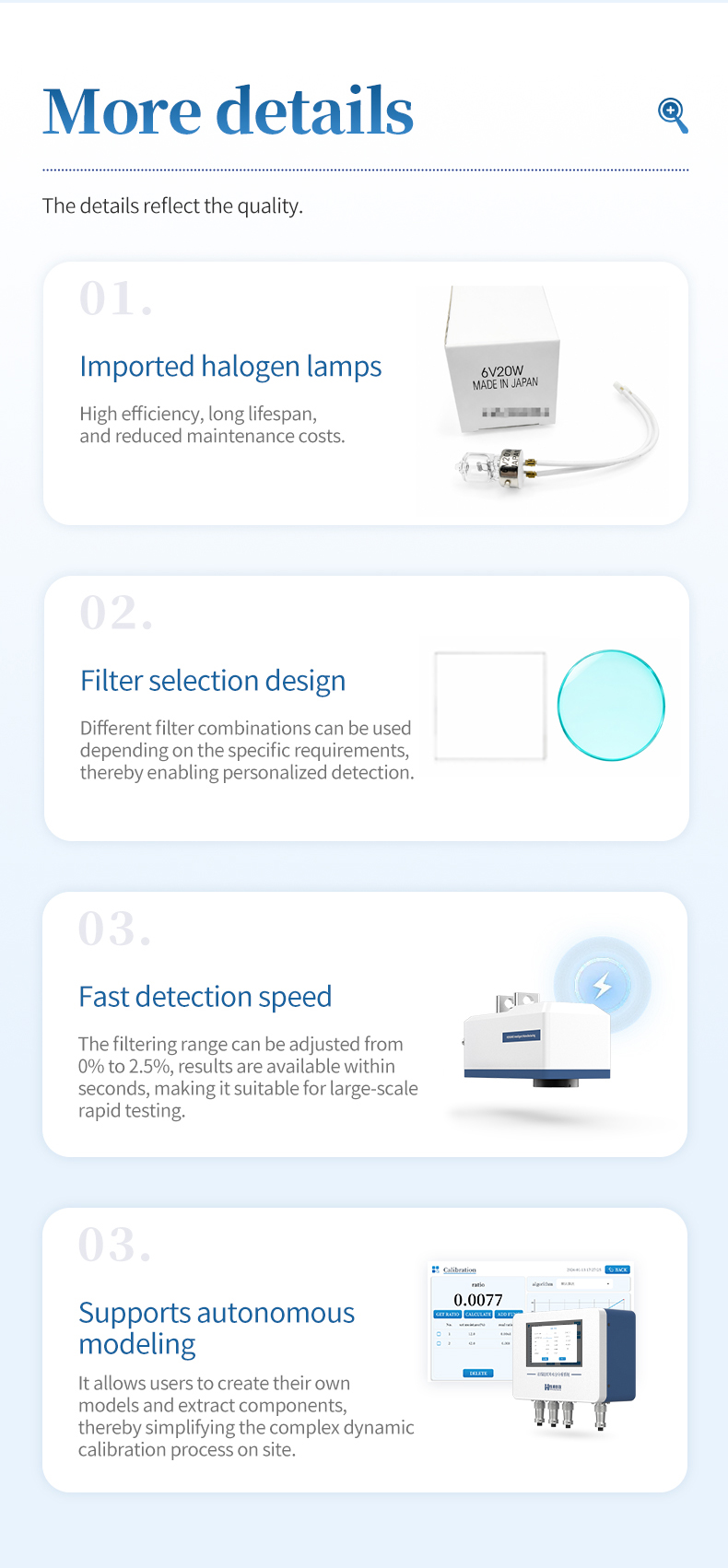

5. High-quality imported halogen light source with high efficiency and extended service life

6. Interchangeable filter design allowing customized wavelength combinations for specific material requirements

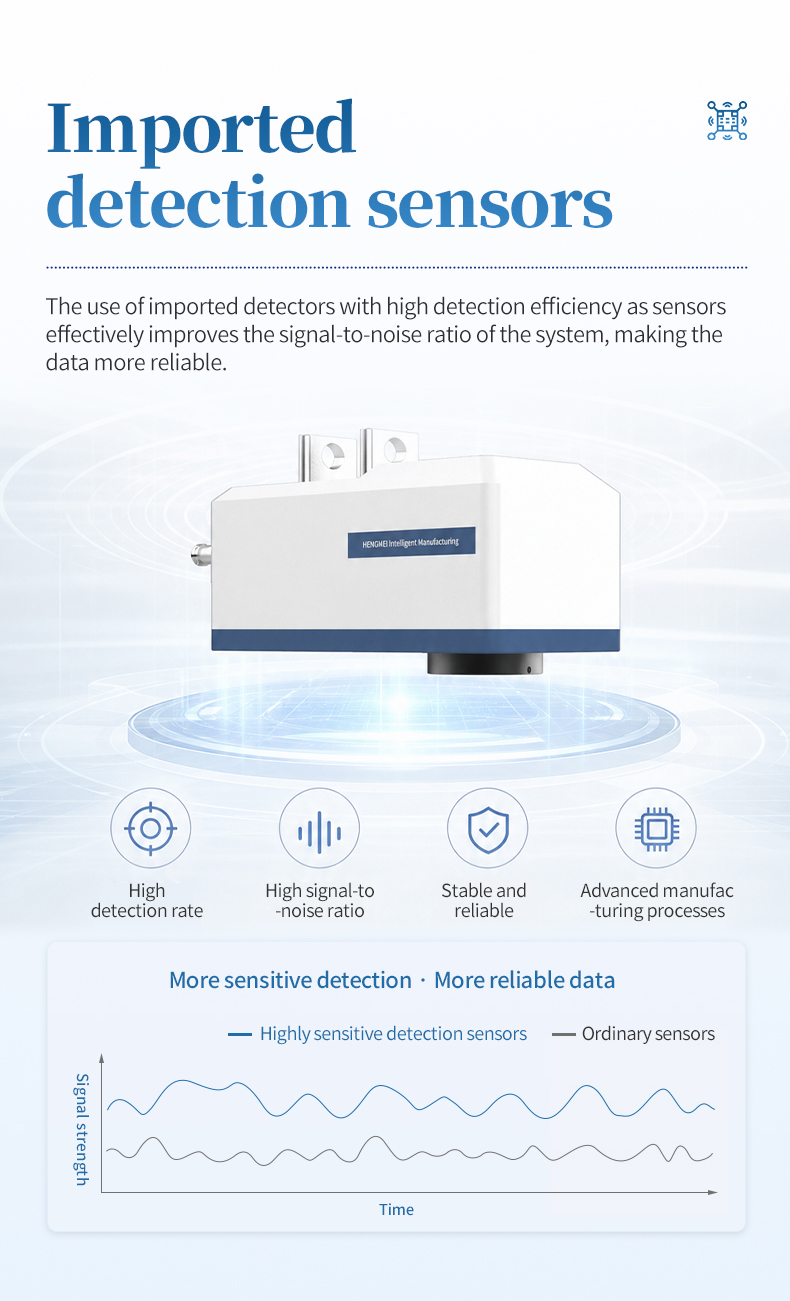

7. Imported high-detectivity sensor with improved signal-to-noise ratio for confident measurement results

8. Rapid detection response with configurable filter range from 0% to 2.5%, completing single measurements within seconds

9. User-defined modeling and component extraction functions simplifying on-site dynamic calibration

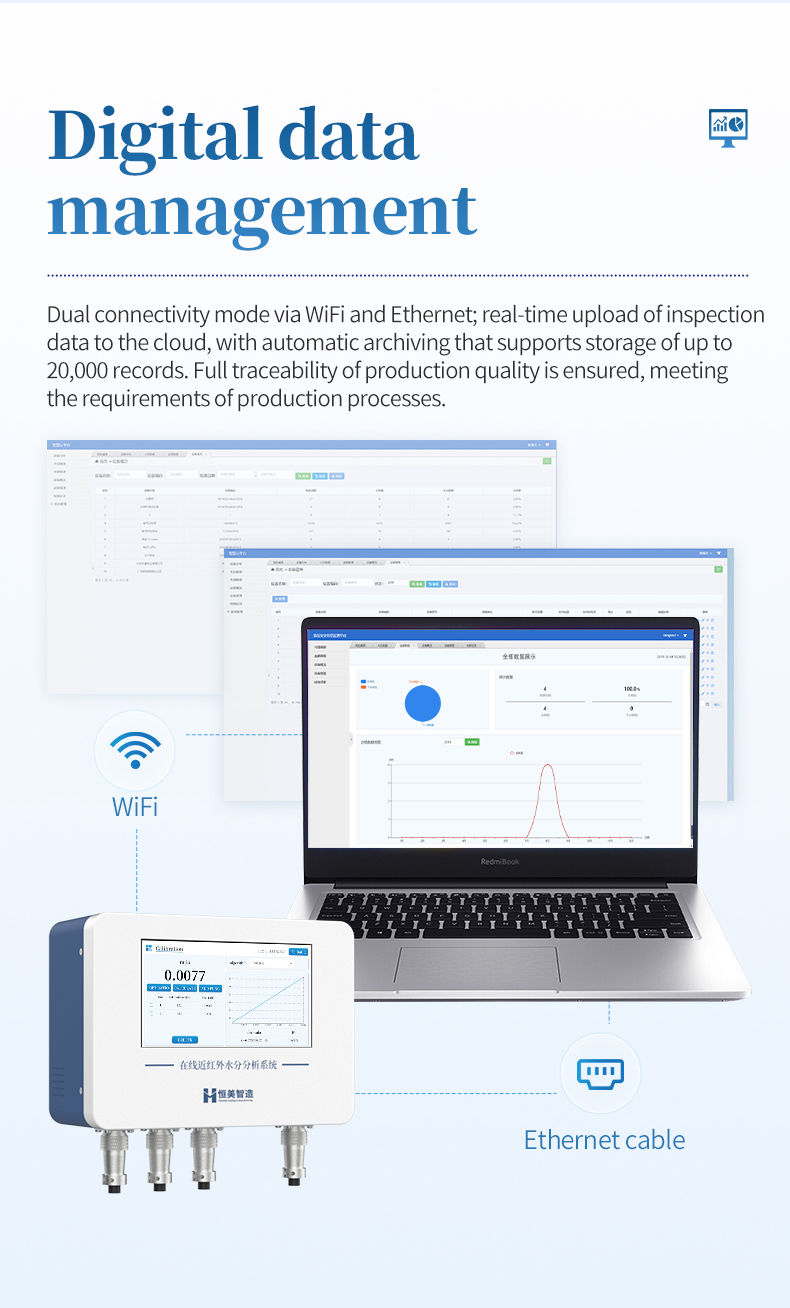

10. Wi-Fi and Ethernet connectivity for data upload to cloud management platform

11. 16 GB storage capacity with up to 20,000 measurement records

12. IP65-rated probe with high-boron quartz glass material for harsh industrial environments

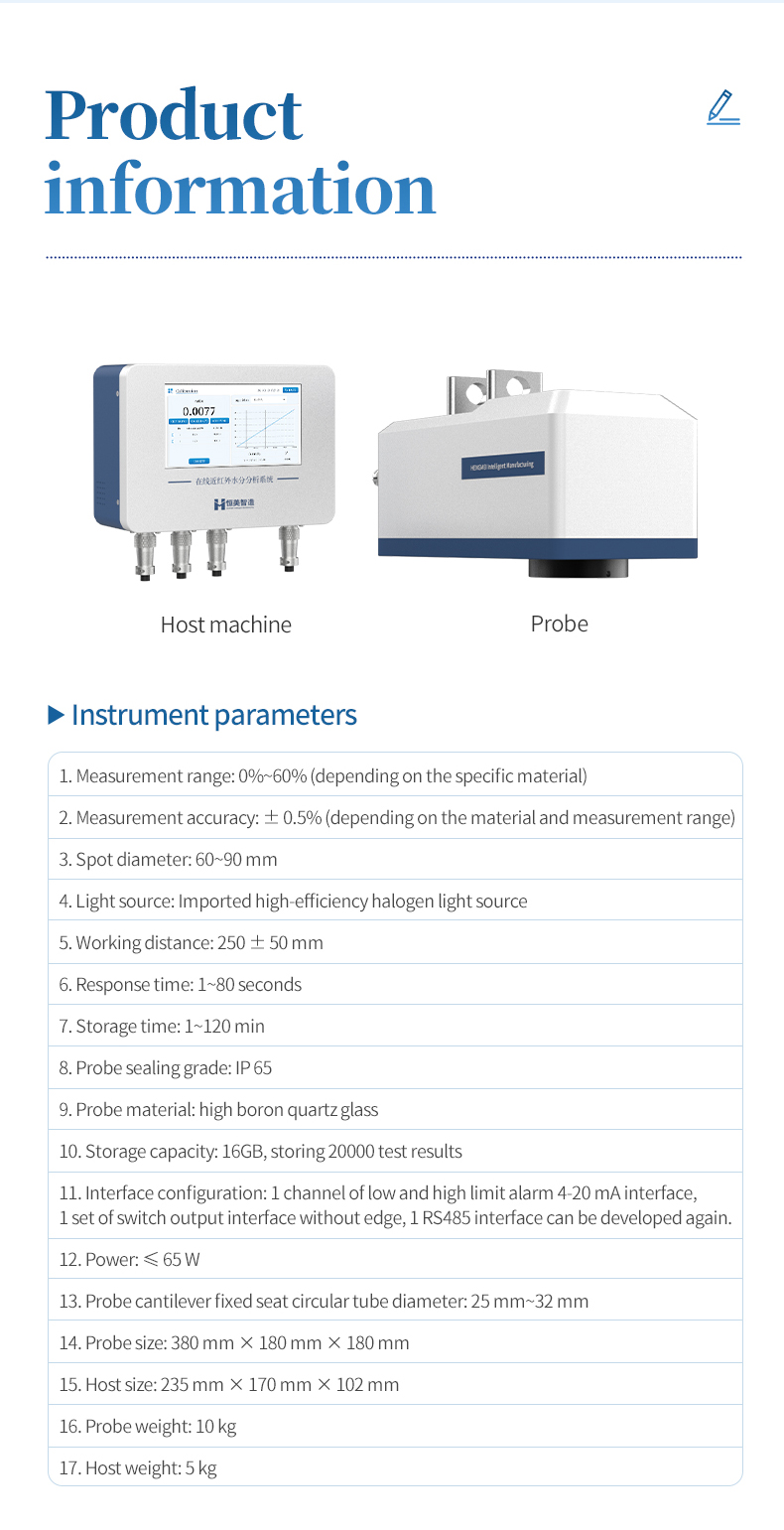

Main Parameters

Technical Parameters

Reviewed by HM Instruments Engineering Team
