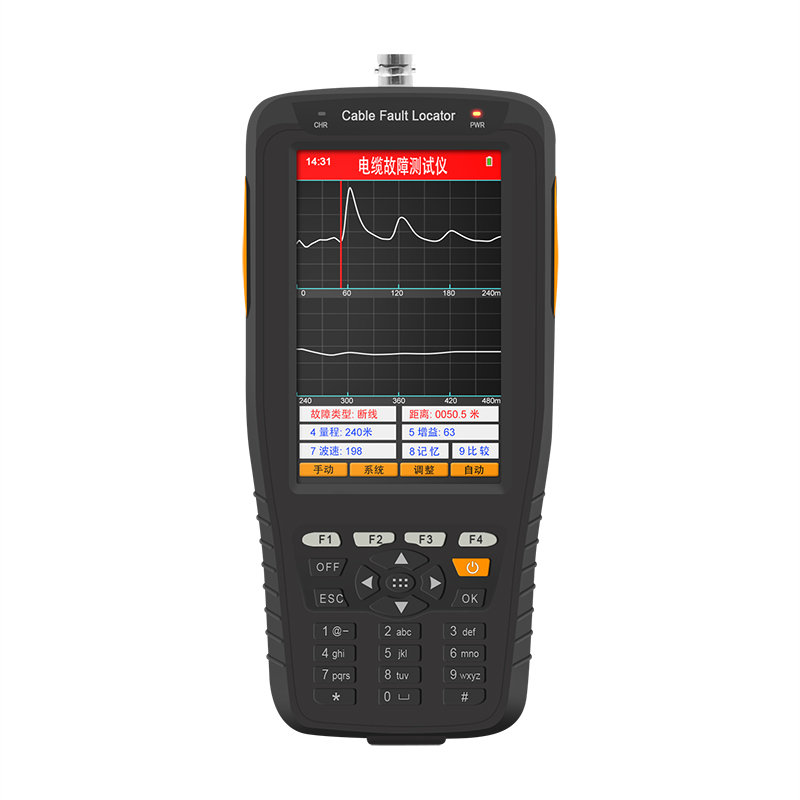

Handheld Cable Fault Tester

Cable obstacle intelligent rangefinder is suitable for automatic measurement of power cables, communication cables, broken lines, mixed lines, ground gas and other core line obstacles in the precise location.

The biggest feature of the instrument is that it can automatically test many typical faults, the specific features are as follows:

1) DAGC (digital gain automatic control) system: digital gain adjustment. Eliminate the original instrument of the same type due to potentiometer knob causes waveform distortion. It can also do pure linear adjustment, which is conducive to manual testing.

2) Digital waveform automatic identification technology: rely on the machine to automatically identify the waveforms that are difficult to judge manually.

3) Adopting ARM CPU with FPGA technology, it can quickly carry out various complex operations and accurately judge the faulty waveforms.

4) Waveform comparison function, easy to compare the test waveforms of faulty lines and normal lines, and clearly locate the fault point.

5) Large screen color LCD, humanized interface menu design, fast digital keys, easy to use personnel operation.

6) High-energy lithium battery, the use of time up to ten hours (with a special charger charging).

Technical indicators:

Maximum measuring range of manual test: 8Km
Intelligent test maximum measuring range: 4Km
Maximum resolution: 0.5m
Blind zone: 0m
Power consumption ：1W
Mass ：0.38KG
Volume ：190×84×52mm³
Ambient temperature ： -15℃ ~ +45℃
Storage temperature ：-20℃ ~ +55℃

Product List:

Cable fault tester ..... .1

Test cable X ..... .1

Charger ..... .1

Strap ..... .1

Gauge bag ..... .1

Certificate of Conformity ..... .1

Warranty card ..... .1

User manual ..... .1

Box ..... .1
