HM-JDSY Egg Drug Residue Detector

Product Introduction

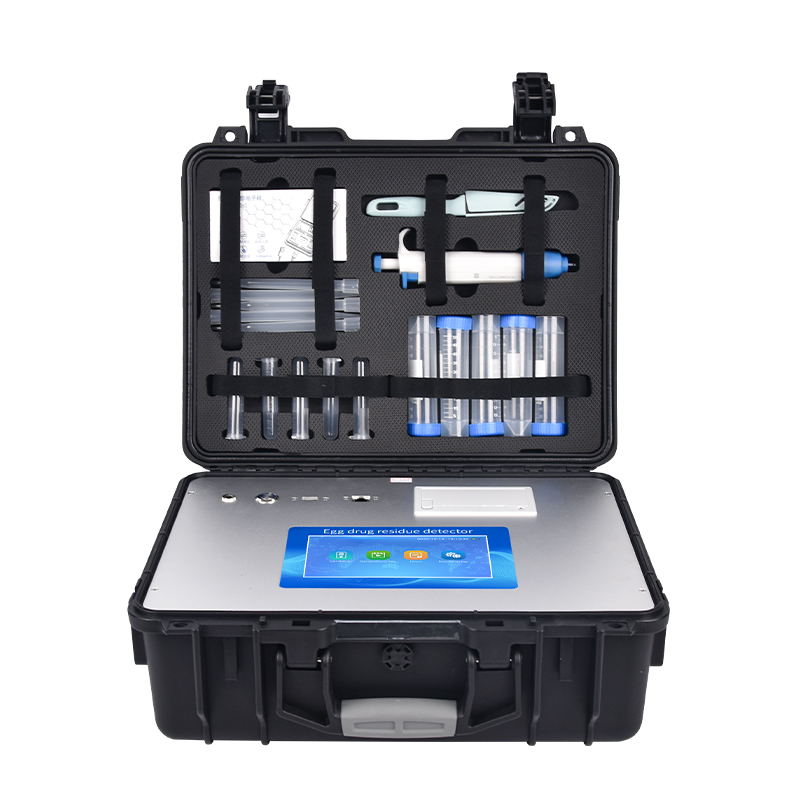

The HM-JDSY egg drug residue detector by HM Instruments is a portable, Android-powered rapid testing instrument designed for detecting antibiotic residues in eggs and poultry products. Utilizing colloidal gold immunochromatography with automatic track scanning, the instrument delivers accurate results for over 20 drug categories including tetracyclines, macrolides, quinolones, sulfonamides, and chloramphenicol.

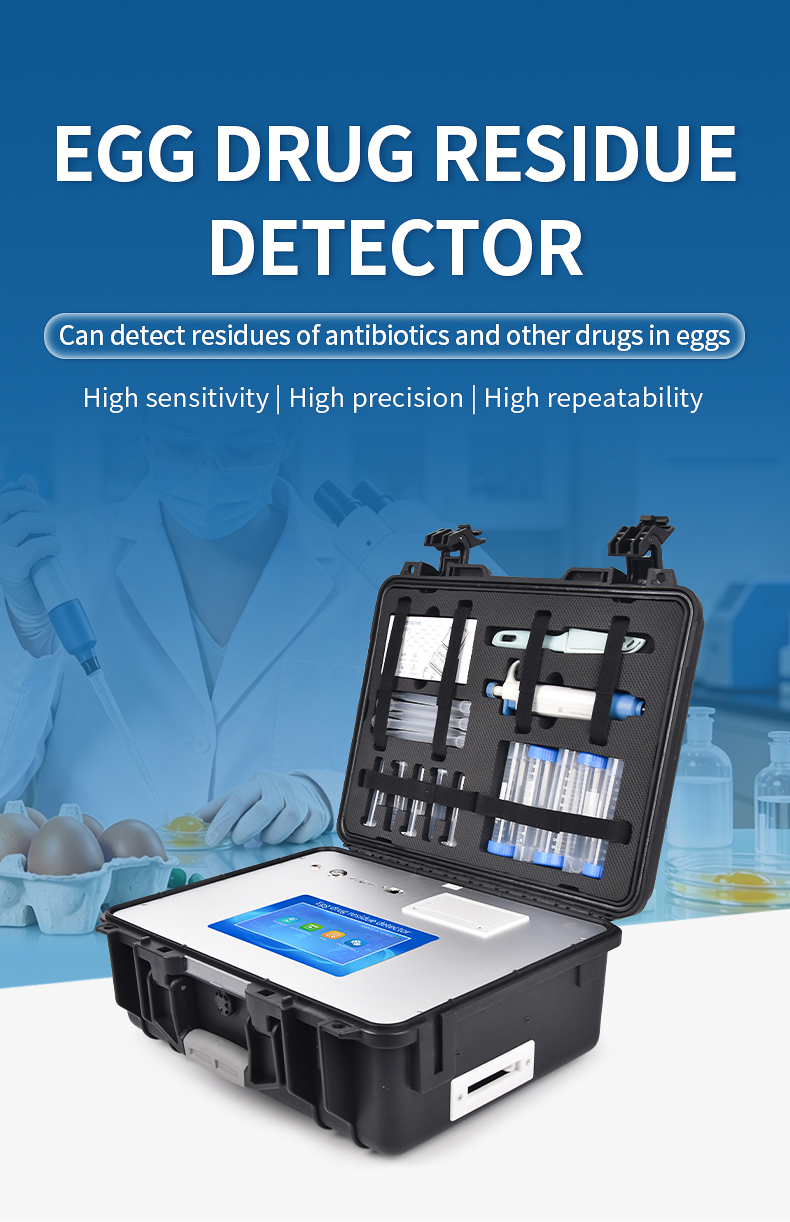

The integrated portable design weighs only 6.7kg with a built-in 6Ah lithium battery, enabling field testing in farms, slaughterhouses, food processing facilities, and regulatory inspection stations. Data can be uploaded in real-time via Ethernet, WiFi, or GPRS to food safety monitoring platforms for regional analysis and early warning.

For in-depth technical comparisons, see our cost-effectiveness deep review.

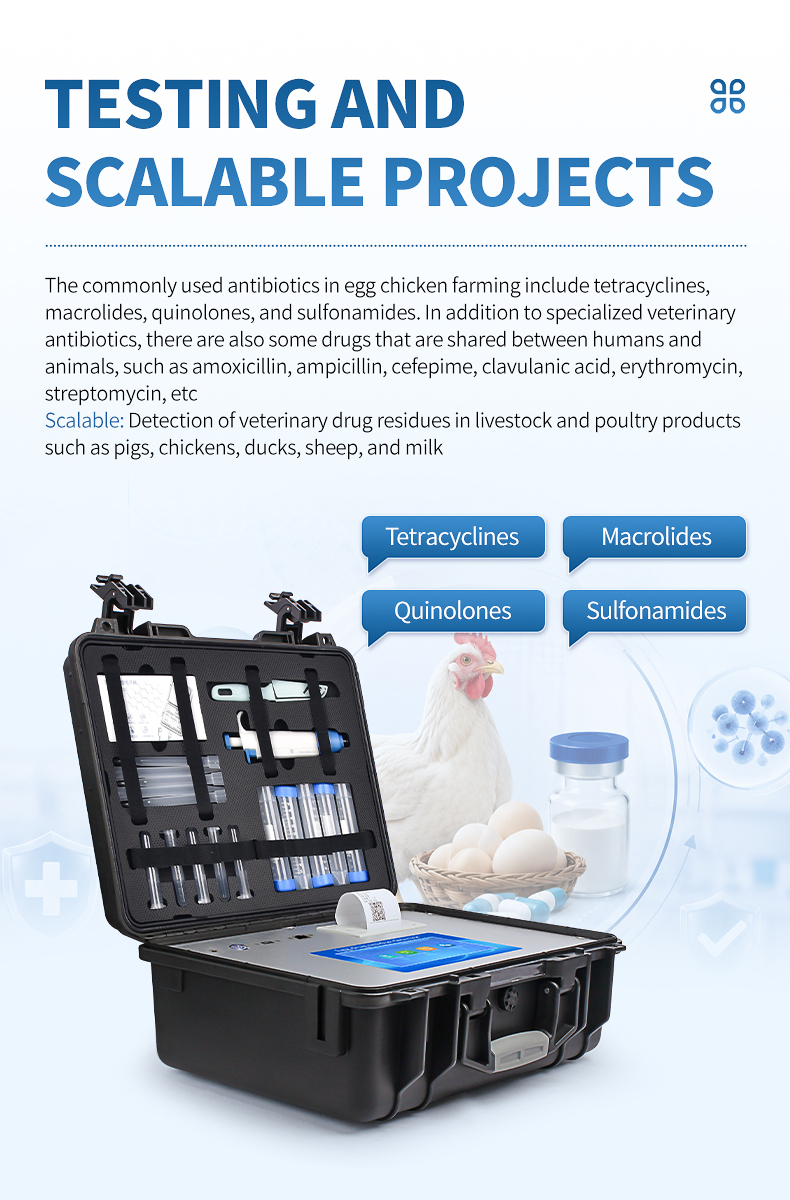

Applications / Testing Items

• Tetracycline residues in eggs
• Macrolide antibiotics (erythromycin, spiramycin)
• Quinolone residues (enrofloxacin, ciprofloxacin)
• Sulfonamide drug screening
• Chloramphenicol detection
• Streptomycin and gentamicin residues
• Melamine contamination
• Malachite green detection
• Aflatoxin (B1, B2, G1, G2, M1, M2)
• Ractopamine and salbutamol screening
• Extendable to poultry meat, milk, and aquatic products

Functional Performance / Features

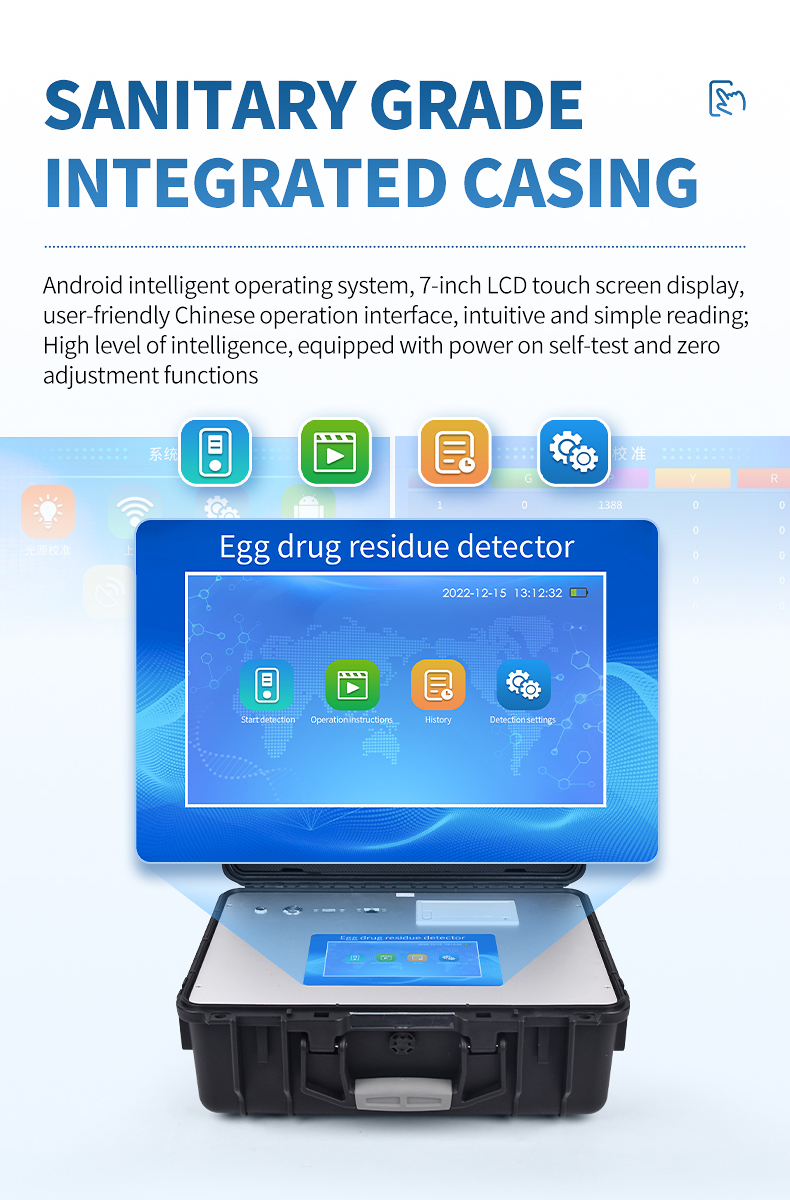

1. Android smart operating system with intuitive touchscreen interface

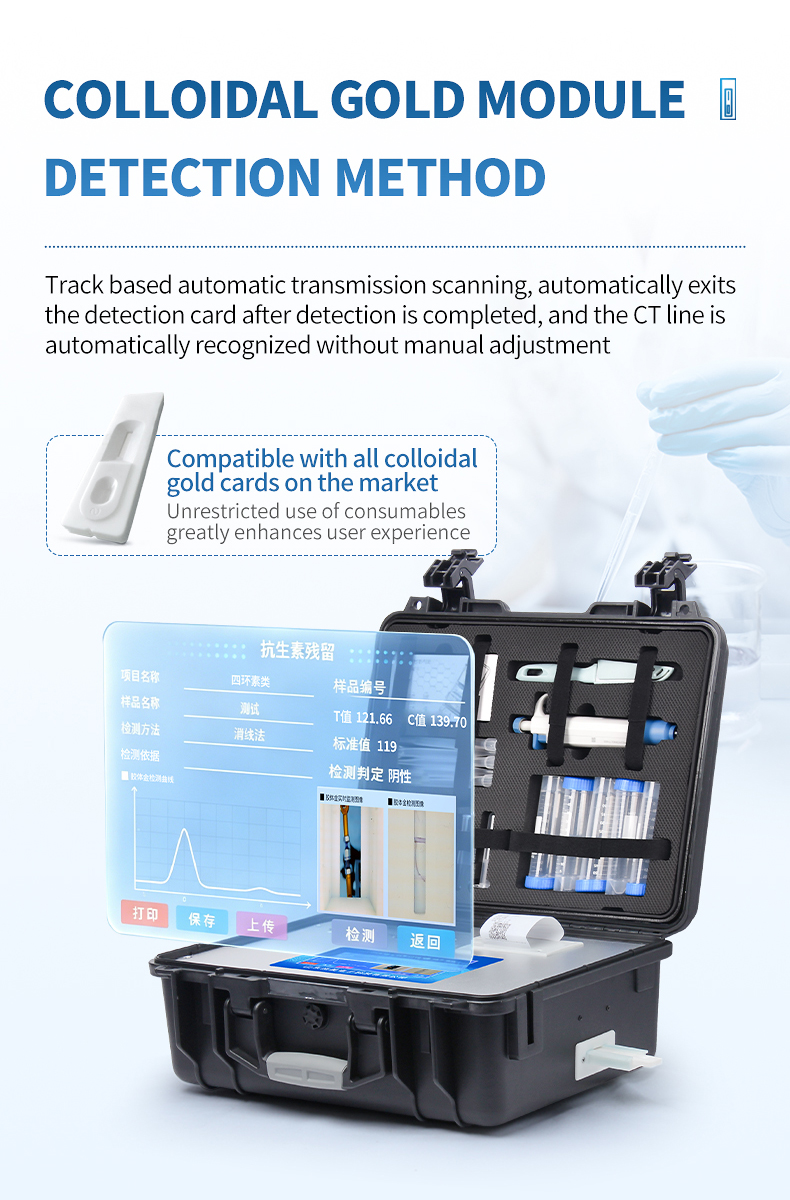

2. Colloidal gold module with automatic track scanning and CT line recognition
3. Compatible with all market colloidal gold cards — open consumable ecosystem
4. 7-inch LCD touchscreen with ARM Cortex-A7 RK3288 quad-core 1.88GHz processor
5. Multi-wavelength light source: 410/520/590/630nm, expandable to 64 wavelengths

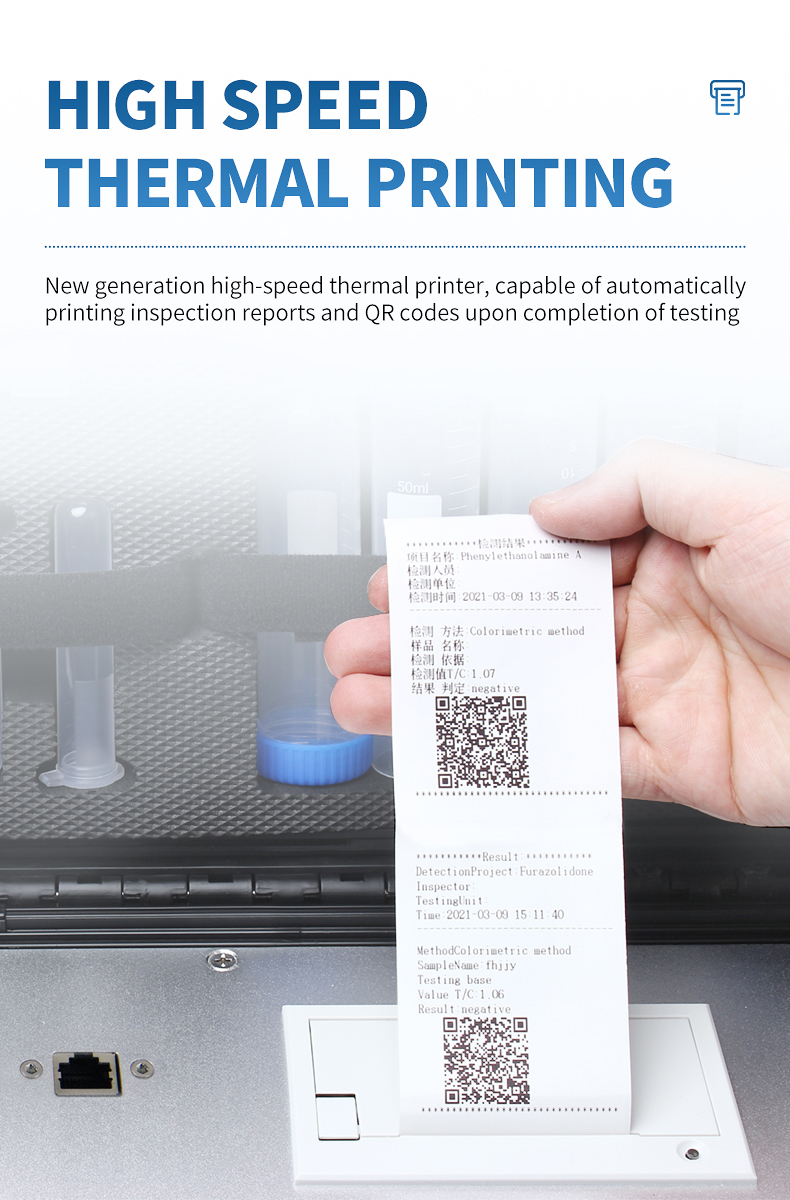

6. Built-in high-speed thermal printer for reports and QR codes

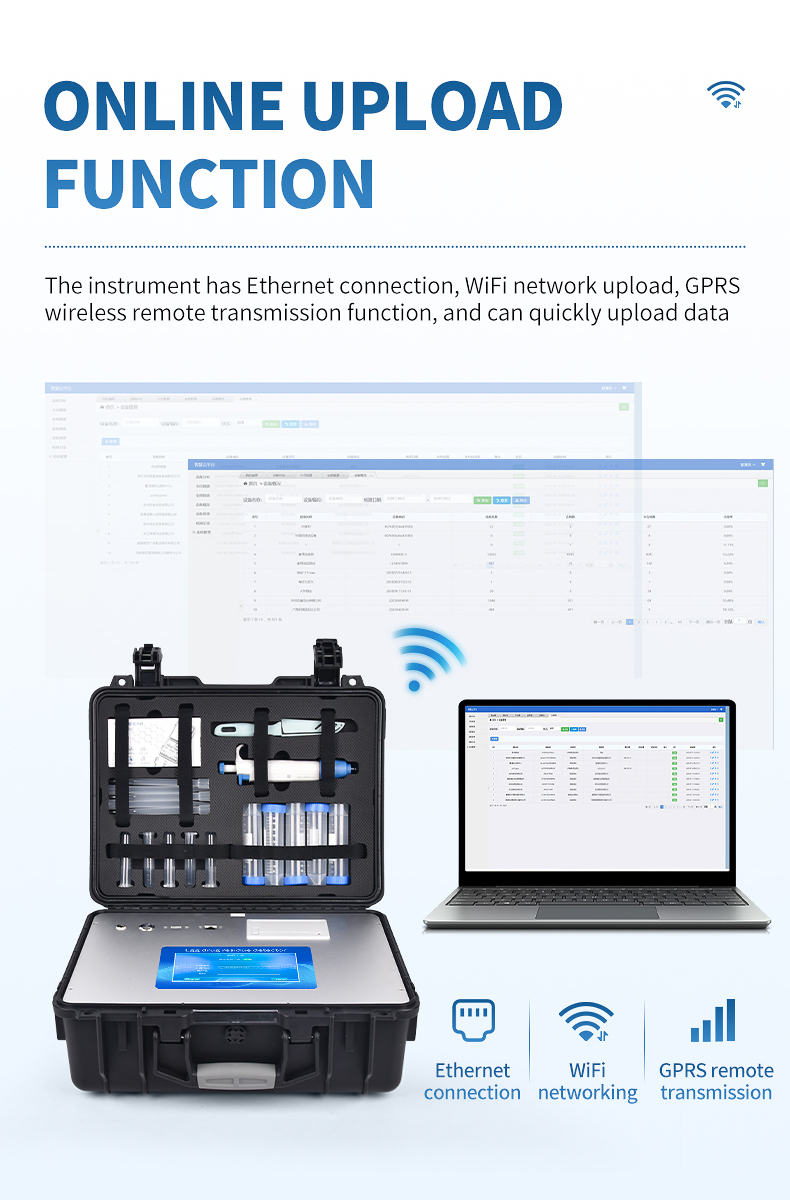

7. Data upload via Ethernet, WiFi, and GPRS to regulatory platforms
8. 200,000 record storage capacity with USB export
9. DC 12V power supply with 6Ah lithium battery for field use

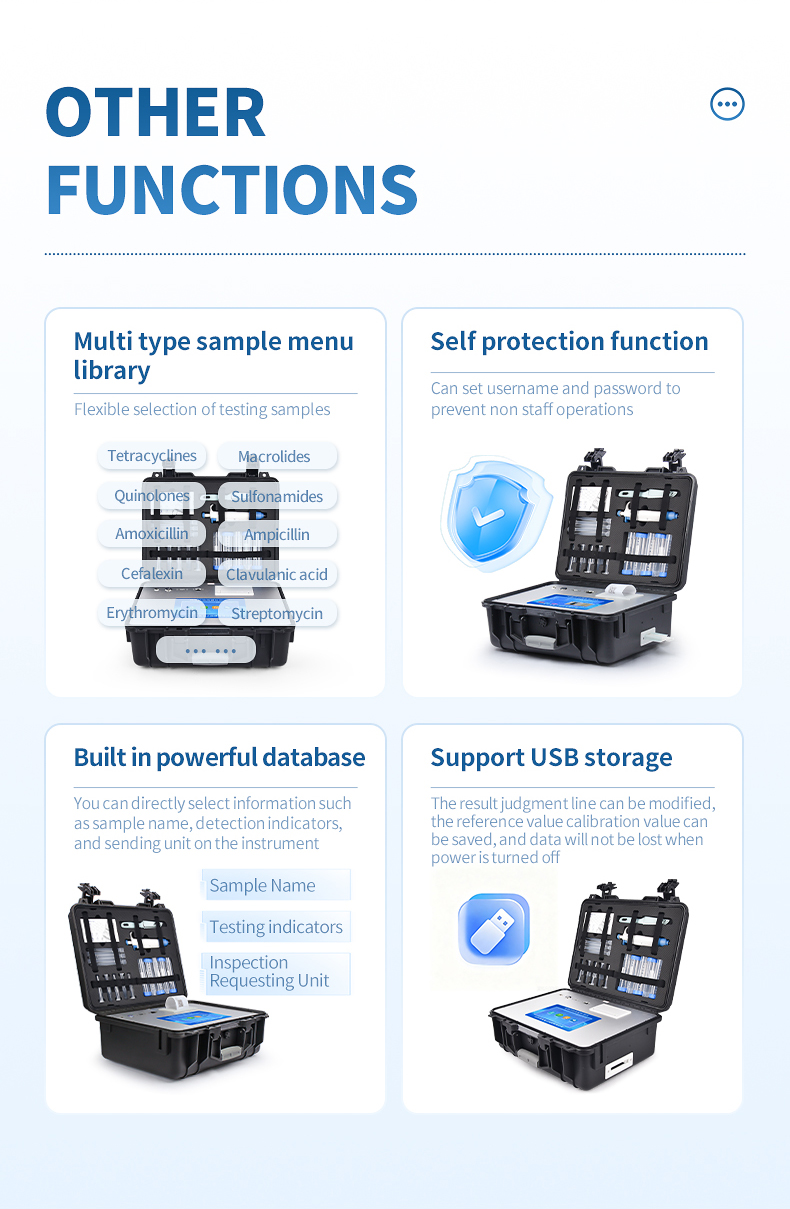

10. Self-protection function with username and password settings
11. Multiple sample menu database with flexible testing selection
12. Firmware upgradeable for future functionality expansion

Main Parameters

Parameter	Specification
Model	HM-JDSY
Detection Module	Colloidal gold immunochromatography
Light Source	410/520/590/630nm, expandable to 64 wavelengths
Display	7-inch LCD touchscreen
Processor	ARM Cortex-A7, RK3288 quad-core, 1.88GHz
Operating System	Android
Storage Capacity	200,000 records
Connectivity	USB, Ethernet, WiFi, GPRS
Power Supply	DC 12V, 6Ah lithium battery
Weight	6.7kg

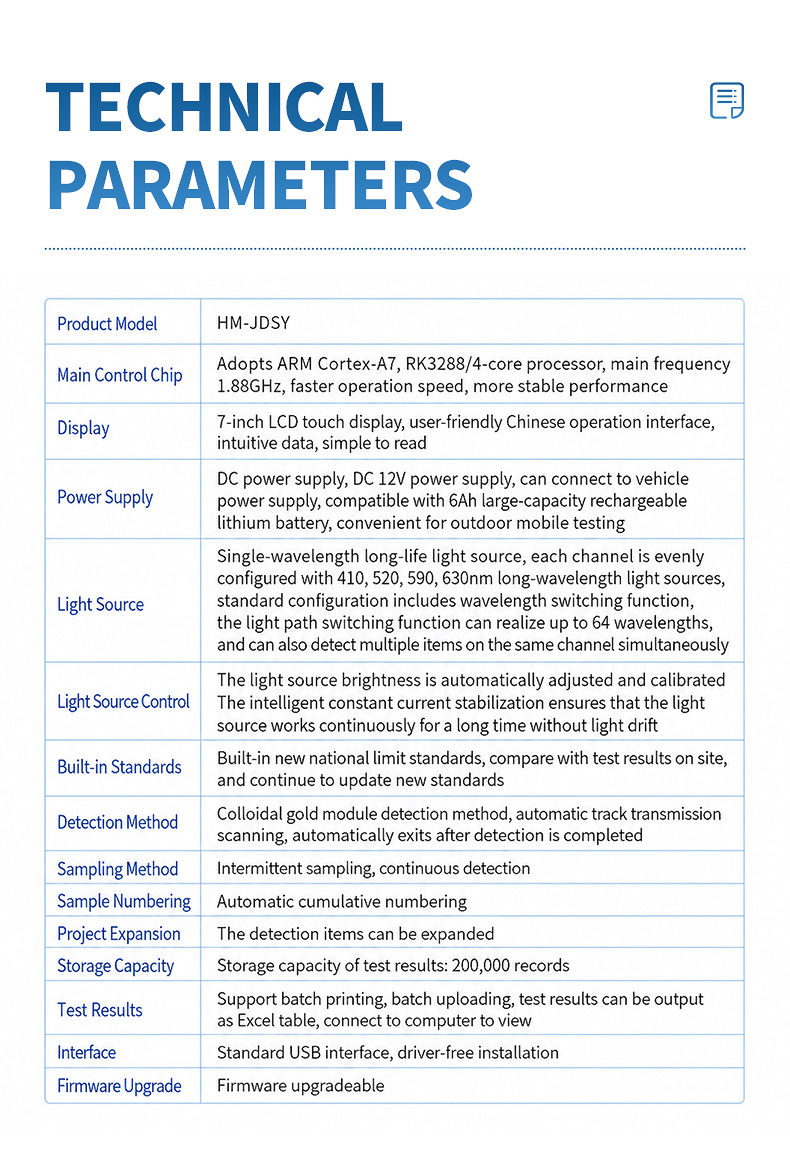

Technical Parameters

Item	Detail
Scanning Method	Automatic track scanning with CT line auto-recognition
Light Intensity	Intelligent constant current, auto-calibration, no thermal drift
Printer	High-speed thermal printer
Sample Database	Built-in multi-category sample menu, editable on device
Data Export	USB flash drive, Excel format
Network Upload	Ethernet LAN, WiFi, GPRS wireless
Self-Protection	Username/password lock, factory reset capability
Calibration	Auto zero-check, recalibration support
Continuous Testing	Uninterrupted sample feeding, batch printing and upload
Firmware	Upgradeable via USB or network

Expert Review
