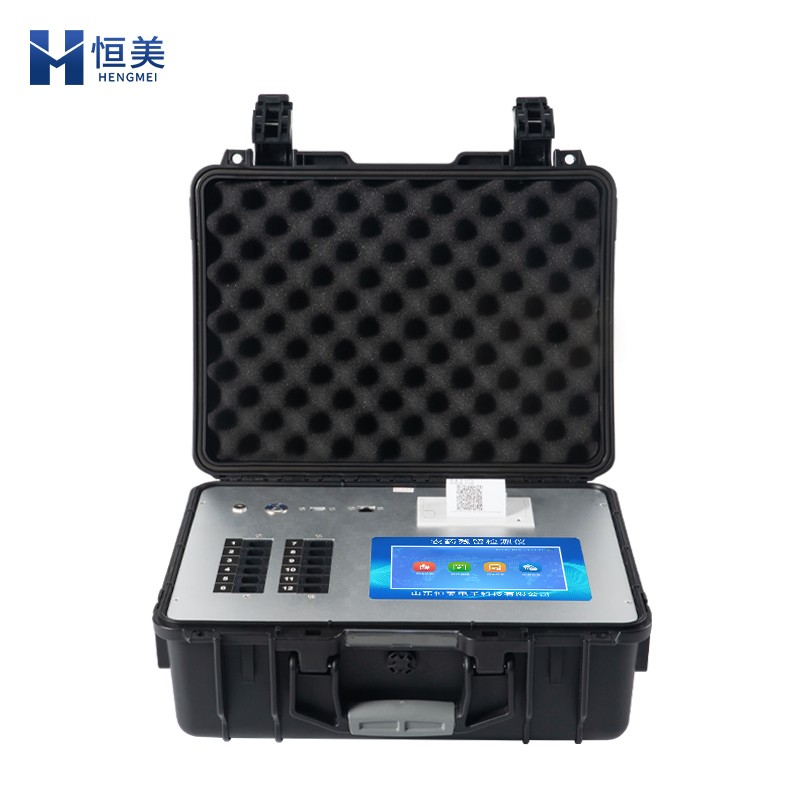

Pesticide and Veterinary Drug Residue Detector

Product Overview

The HM-NSY Pesticide and Veterinary Drug Residue Detector is an integrated food safety rapid screening instrument developed by HM Instruments. Designed for laboratory and on-site testing environments, the instrument integrates multi-channel spectrophotometry and automated colloidal gold immunochromatography within a unified software and hardware platform. It enables rapid qualitative and quantitative determination of agricultural pesticide residues in fruits and vegetables, veterinary drug residues and hormones in fresh meat, and chemical contaminants in aquatic products.

Equipped with an ARM Cortex-A7 quad-core processor (1.88 GHz) running an intelligent Android operating system, HM-NSY delivers automated instrument self-inspection, multi-wavelength optical switching, and real-time result evaluation against national food safety limits. The instrument supports simultaneous detection across multiple independent channels, continuous sample introduction, automatic test card ejection, built-in high-speed thermal printing, and multi-mode wireless data synchronization with food safety supervision platforms.

Key Features

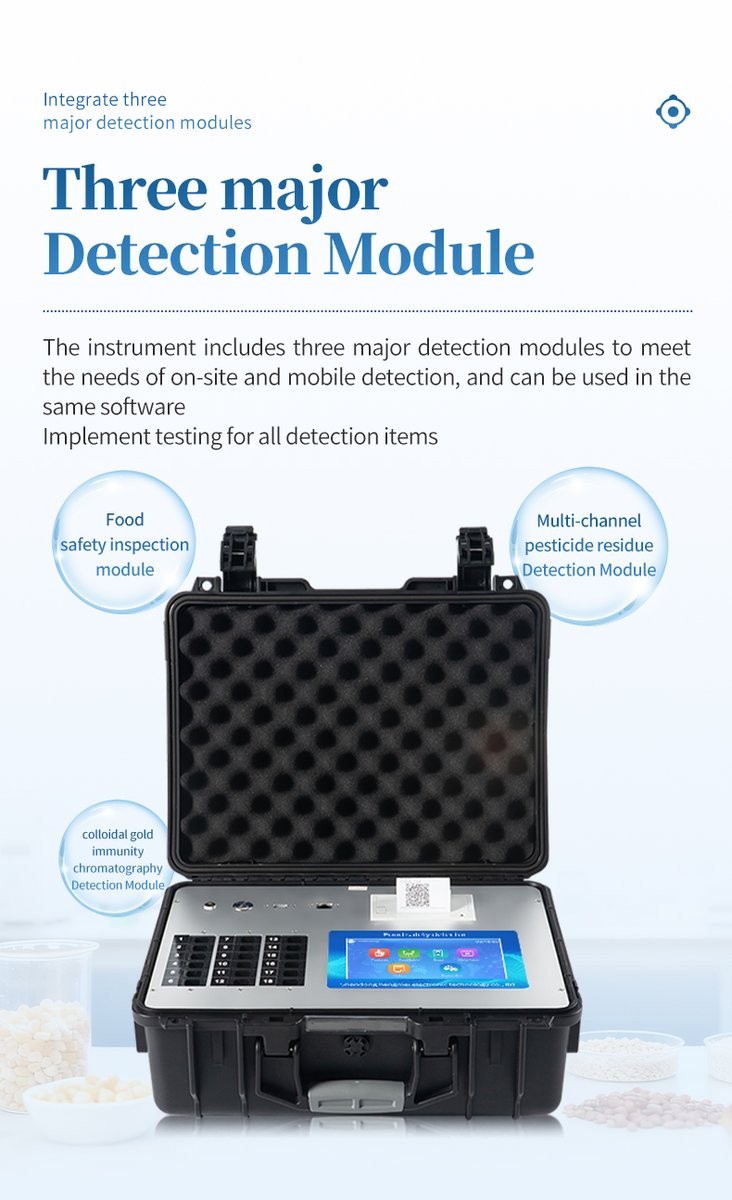

• Dual-Technology Integration: Houses both a 12-channel spectrophotometric detection module for enzyme-inhibition pesticide testing and an automated track-scanning colloidal gold immunochromatography module for rapid test strip reading.

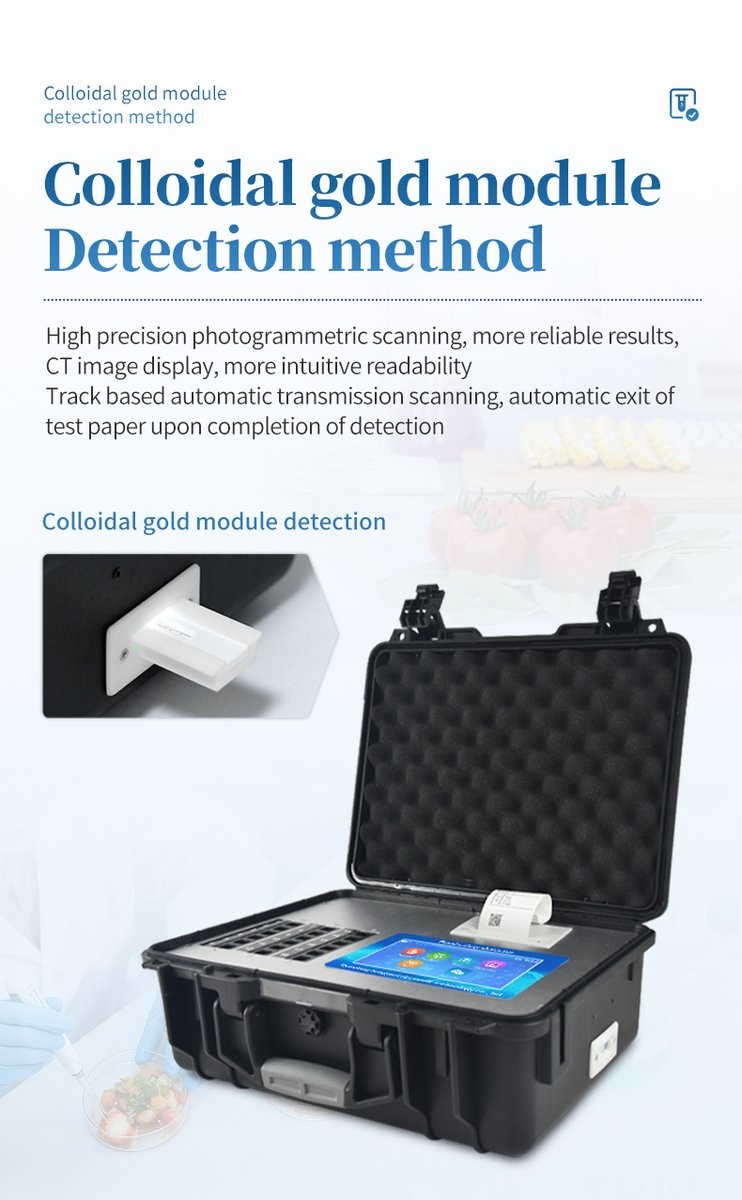

• Automated Colloidal Gold Card Handling: Features motorized track transmission that automatically pulls in the test strip, scans the CT line with high-precision optical photogrammetry, automatically recognizes the CT line without manual intervention, and automatically ejects the card upon completion.

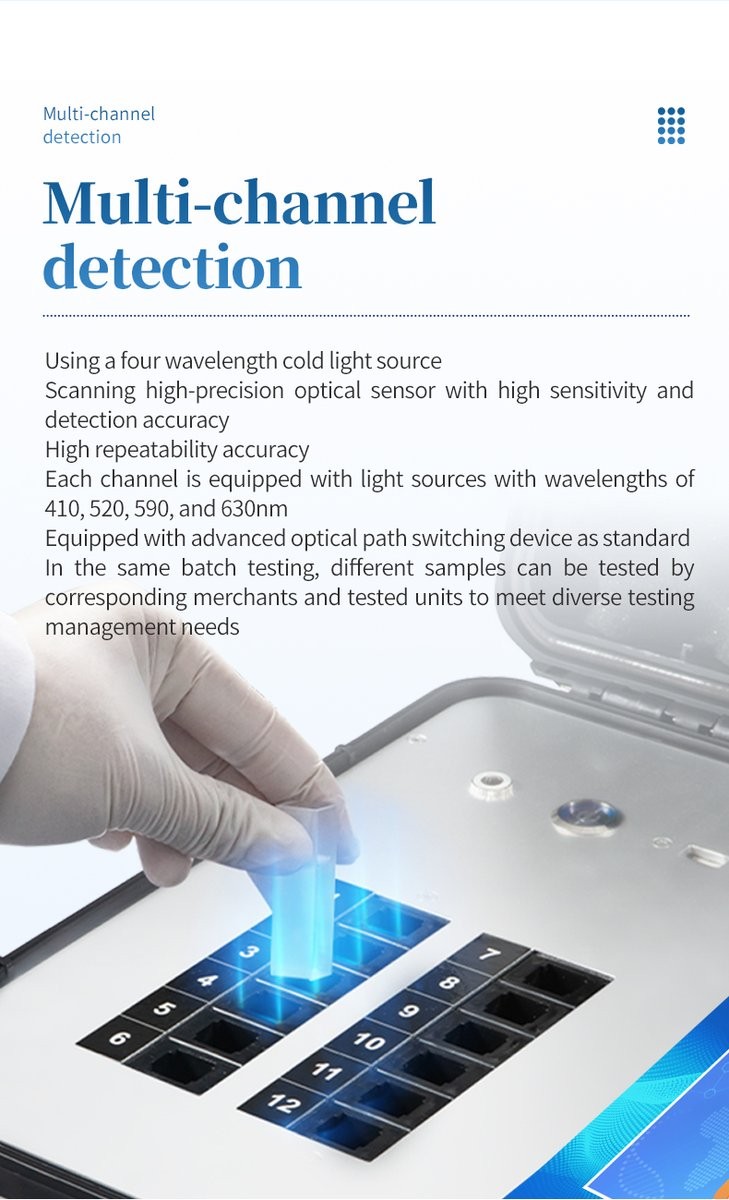

• 12-Channel Four-Wavelength Optical System: Each of the 12 optical channels is configured with four cold light source wavelengths (410, 520, 590, and 630 nm) and standard optical path switching mechanisms capable of expanding up to 64 wavelengths, supporting simultaneous independent sample analysis.
• Intelligent Constant-Current Stabilization: Features automatic light source intensity calibration, auto brightness adjustment, and constant-current voltage stabilization to eliminate thermal drift during extended continuous testing.

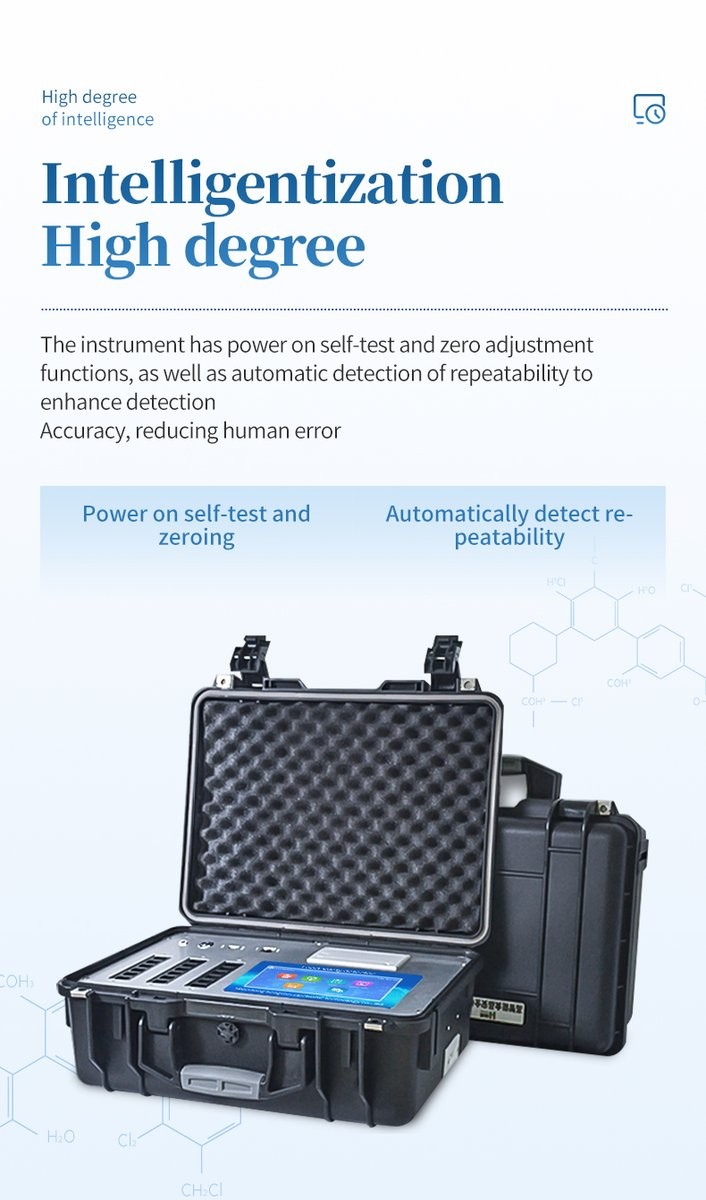

• Self-Diagnosis and Repeatability Verification: Built-in power-on self-test, automated zero calibration, and automated repeatability testing ensure measurement consistency and minimize operator errors.

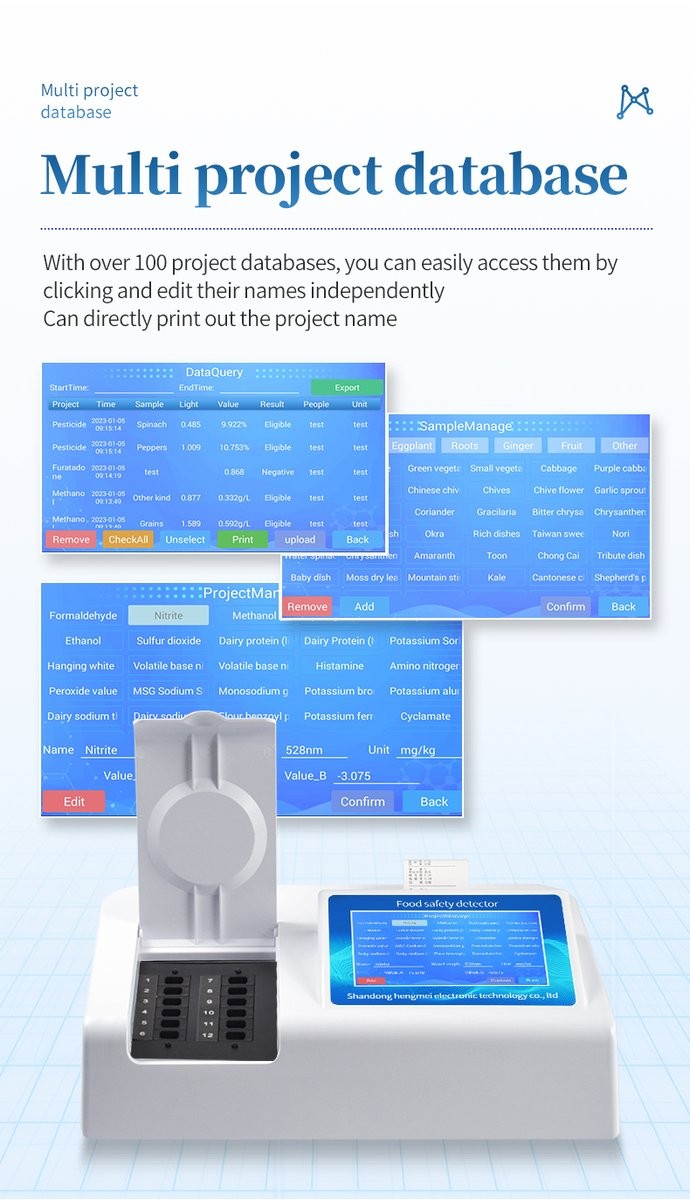

• Android System with Responsive Touchscreen: Operated via a 7-inch color LCD touchscreen with intuitive UI, preset database containing over 100 testing projects, and support for editing custom sample names, inspection items, and submitter units.

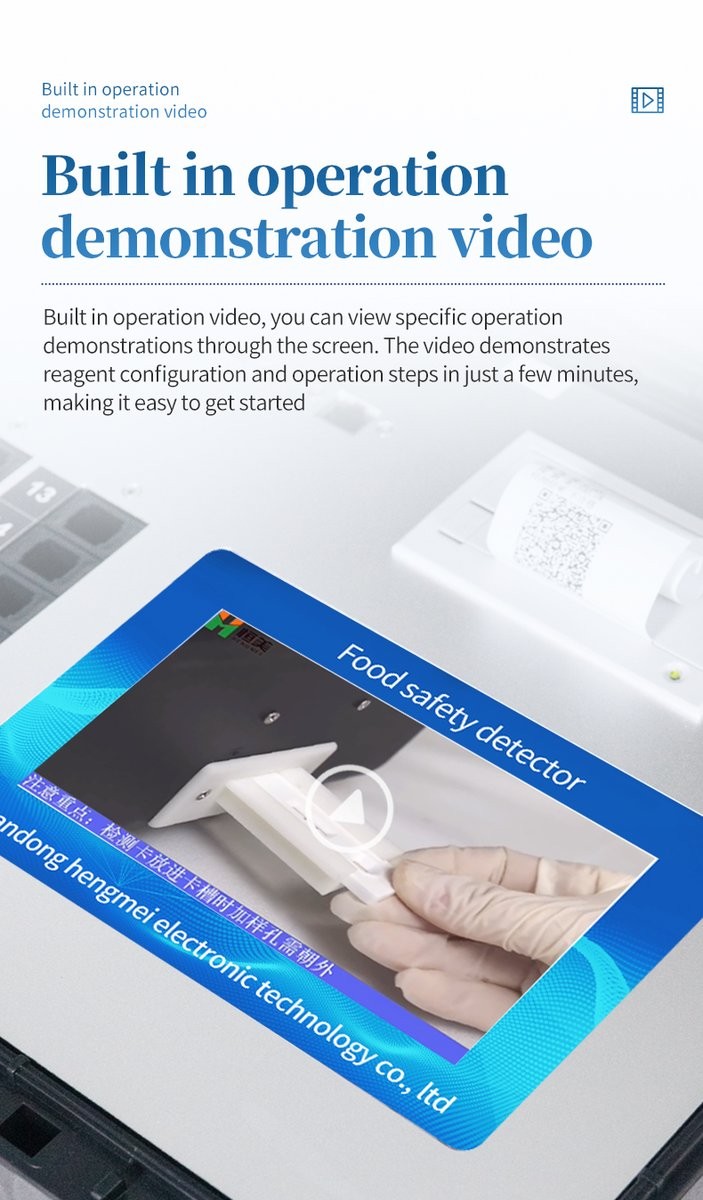

• Built-in Multimedia Guidance: Features embedded step-by-step instructional operation videos accessible directly on the screen to guide operators through reagent preparation and testing workflows.

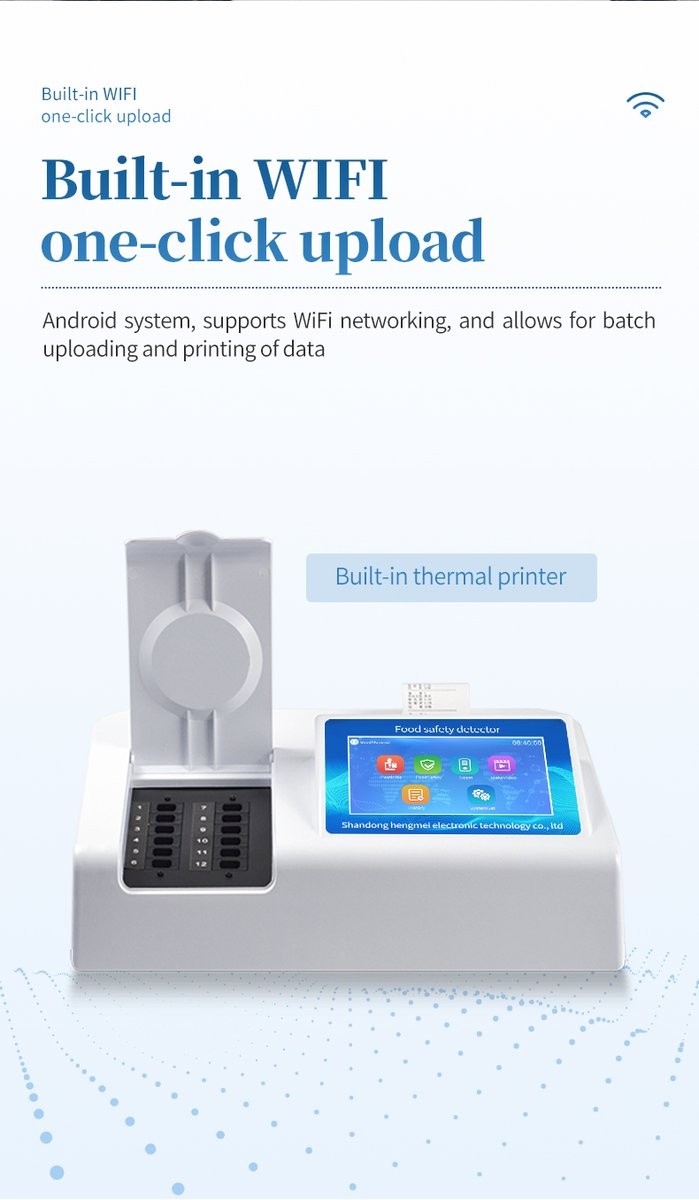

• Data Storage and Connectivity: Stores up to 200,000 test records, exports data to Excel format via standard driver-free USB interface, and provides Wi-Fi, 4G, GPRS, and Ethernet connectivity for real-time reporting to regulatory cloud platforms.
• Dual AC/DC Power Supply: Operates on standard 12V DC power, supports vehicle power connection, and accommodates an optional 6 Ah high-capacity rechargeable lithium battery for mobile field testing.

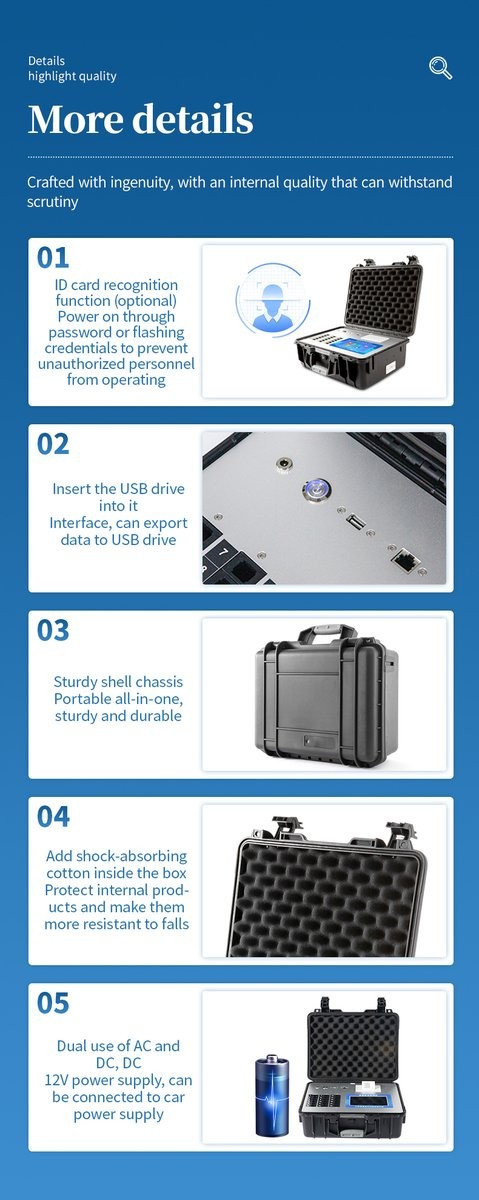

• Rugged Field Chassis: Enclosed in a portable, heavy-duty suitcase chassis with shock-absorbing internal foam, providing reliable protection during mobile transportation and field deployment.

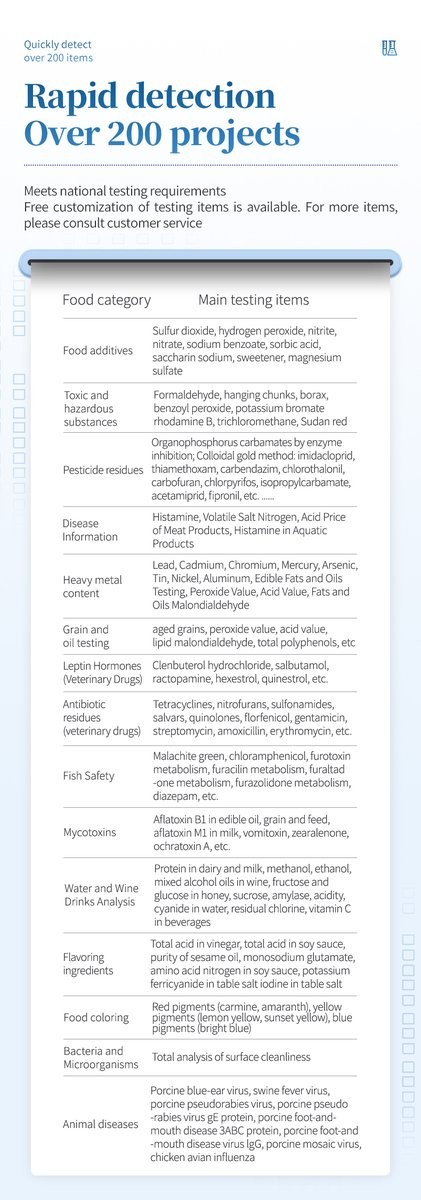

Testing Items

The HM-NSY detector provides broad screening coverage across agricultural produce, animal products, and aquaculture:

• Fruit and Vegetable Pesticide Residues: Organophosphorus and carbamate pesticide residues evaluated via enzyme inhibition spectrophotometry; targeted pesticide screening via colloidal gold test strips (including imidacloprid, thiamethoxam, carbendazim, chlorothalonil, carbofuran, chlorpyrifos, acetamiprid, fipronil, and related compounds).
• Veterinary Drug Residues (Lean Meat Hormones / Beta-Agonists): Clenbuterol hydrochloride, salbutamol, ractopamine, hexestrol, quinestrol, and related synthetic hormone residues in animal tissues.
• Veterinary Drug Residues (Antibiotic Residues): Tetracyclines, sulfonamides, nitrofurans, quinolones/fluoroquinolones, florfenicol, gentamicin, streptomycin, amoxicillin, and erythromycin residues.
• Aquatic Product Safety: Malachite green, chloramphenicol, and nitrofuran metabolites (furazolidone metabolite AOZ, furaltadone metabolite AMOZ, nitrofurantoin metabolite AHD, nitrofurazone metabolite SEM).
• Meat Freshness and Quality Indicators: Volatile basic nitrogen (TVB-N), meat freshness, and histamine in meat and aquatic products.

Technical Specifications

Parameter Category	Technical Specification
Instrument Model	HM-NSY
Main Processor	ARM Cortex-A7, RK3288 quad-core processor, 1.88 GHz
Operating System	Android intelligent operating system with customized UI
Display Screen	7-inch color LCD touchscreen
Optical Channels	12 independent detection channels
Light Source Wavelengths	Four cold light source wavelengths per channel: 410 nm, 520 nm, 590 nm, 630 nm
Optical Path Switching	Standard precision optical path switching mechanism, expandable up to 64 wavelengths
Light Source Stability	Intelligent constant-current voltage stabilization, auto brightness adjustment and auto calibration, zero thermal drift during continuous operation
Colloidal Gold Detection	Track-based automatic transmission and scanning, automatic CT line recognition, automatic card ejection upon completion
Consumable Compatibility	Compatible with standard commercial colloidal gold test cards without proprietary consumable lock-in
Self-Inspection Capabilities	Power-on self-test, automated zero adjustment, automated repeatability verification
Testing Performance	High-sensitivity scanning optical sensor, high precision, high repeatability, non-stop sample introduction
Data Storage Capacity	200,000 test records, stored in non-volatile memory (no data loss upon power outage)
Data Export Interface	Standard USB host interface, driver-free USB flash drive export in Excel format
Network Communications	Wi-Fi, 4G, GPRS wireless transmission, RJ45 Ethernet LAN connection
Platform Integration	Supports data upload to regional food safety supervision and big data monitoring platforms

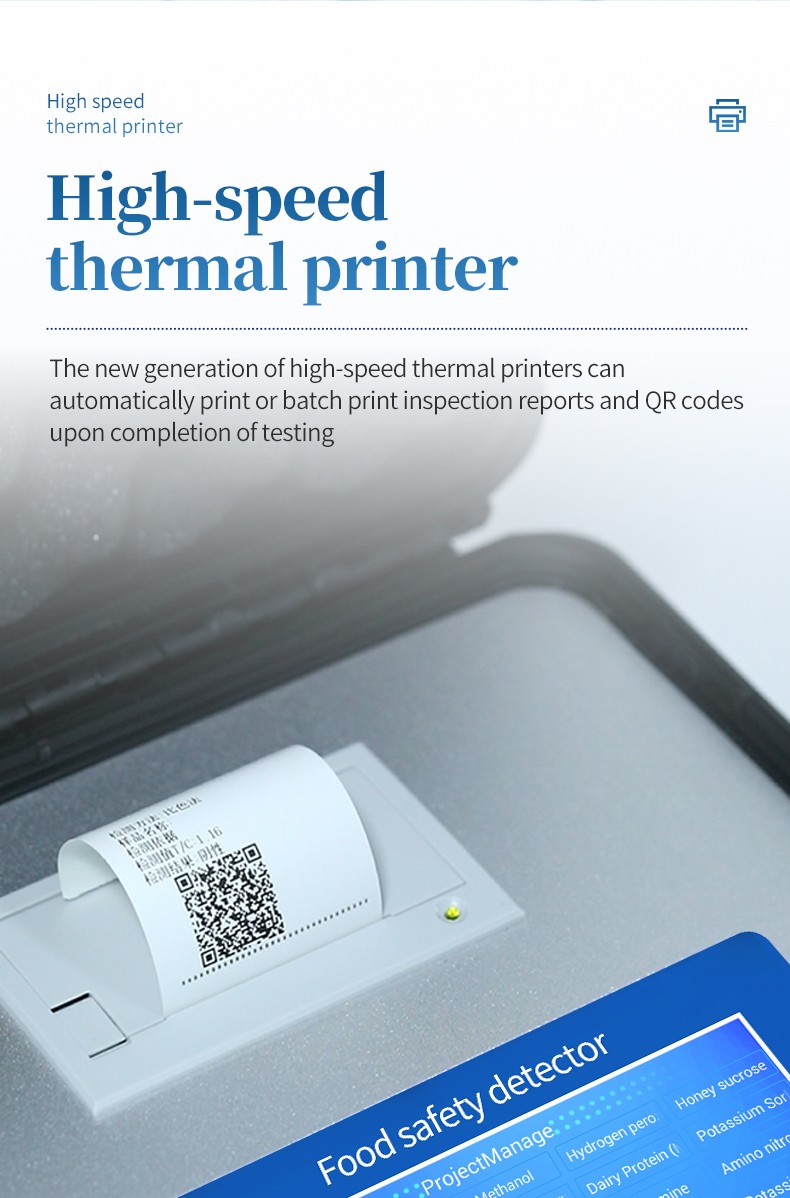

Built-in Printer	Next-generation high-speed thermal printer; automatic or batch printing of inspection reports and QR codes
Power Supply	Dual AC/DC; DC 12V power adapter; supports 12V vehicle cigarette lighter power; optional 6 Ah rechargeable lithium battery
Security Management	User account and password protection to prevent unauthorized access and parameter modification
Regulatory Standards	Pre-loaded national food safety maximum residue limits (MRLs), real-time on-site result comparison, upgradable standard library
Instrument Dimensions	430 × 350 × 200 mm
Main Unit Net Weight	5.2 kg
Packaging Dimensions	510 × 390 × 375 mm
Total Package Weight	8.5 kg

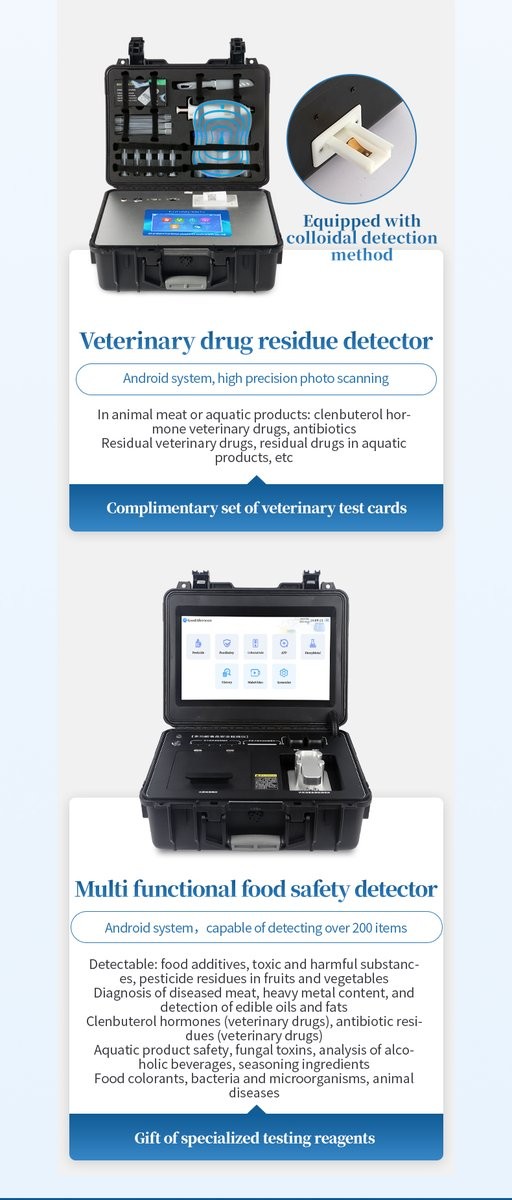

Related Models

HM Instruments offers a series of specialized and multi-functional food safety testing instruments to suit diverse operational scopes and channel requirements:

• HM-NSY (This Model): Integrated 12-channel spectrophotometric and automated colloidal gold testing analyzer for concurrent pesticide and veterinary drug residue screening ($870).
• HM-G1200 Full-Project Food Safety Detector: 12-channel comprehensive food safety analyzer for broad physical, chemical, additive, and adulterant testing ($1,100).
• HM-SYJC Dedicated Veterinary Drug Residue Detector: Specialized analyzer dedicated to veterinary drug and antibiotic residue screening in meat and dairy products ($860).
• HM-NC06 Multi-Channel Pesticide Residue Detector: Compact 6-channel rapid enzyme-inhibition pesticide screening instrument for agricultural markets ($400).

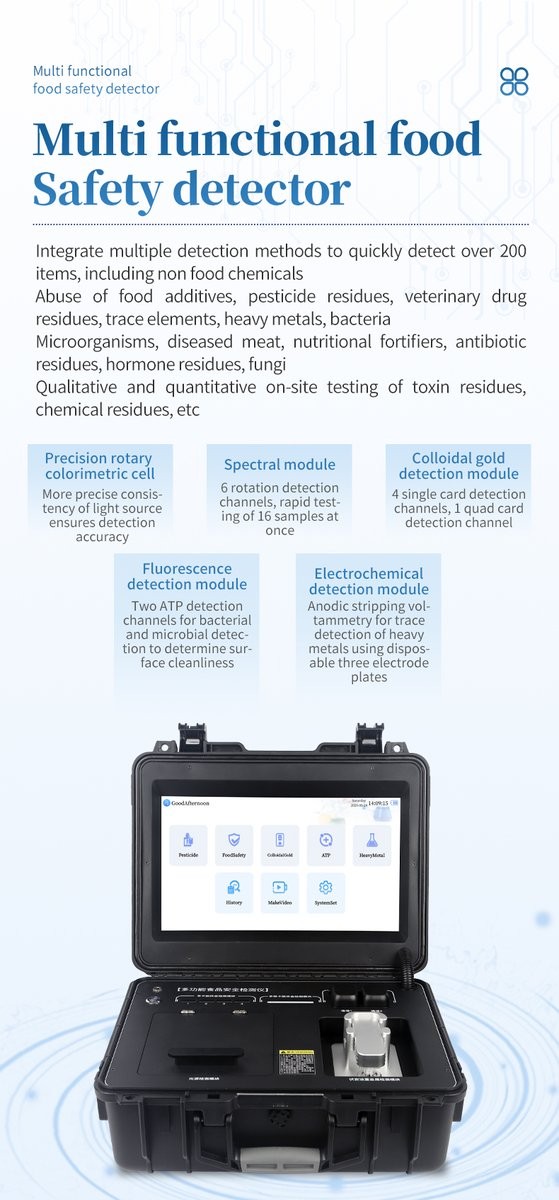

• HM-GS800 Multi-Functional Food Safety Detector: Flagship testing station equipped with a 15.6-inch screen, precision rotary colorimetric cell, 16 spectrophotometric channels, 5 colloidal gold channels, 2 fluorescence channels, and an electrochemical trace heavy metal module.

Operation and Data Management

The HM-NSY is structured for efficient field and laboratory workflows:

• Sample Preparation: Straightforward extraction protocols for produce, meat, and aquatic samples with minimal reagent consumption.
• Sample Library Selection: Select sample matrices and target contaminants directly from the pre-programmed library of over 100 items, or add new sample identifiers and test thresholds via the touchscreen.
• Automated Reading: Spectrophotometric samples are measured across the 12 optical channels simultaneously, while colloidal gold strips are automatically scanned via motorized track insertion and CT line detection.
• Traceable Documentation: Test reports displaying numeric values, evaluation criteria, timestamps, and traceable QR codes can be printed immediately or uploaded automatically to regional food safety supervision platforms via Wi-Fi or 4G.
