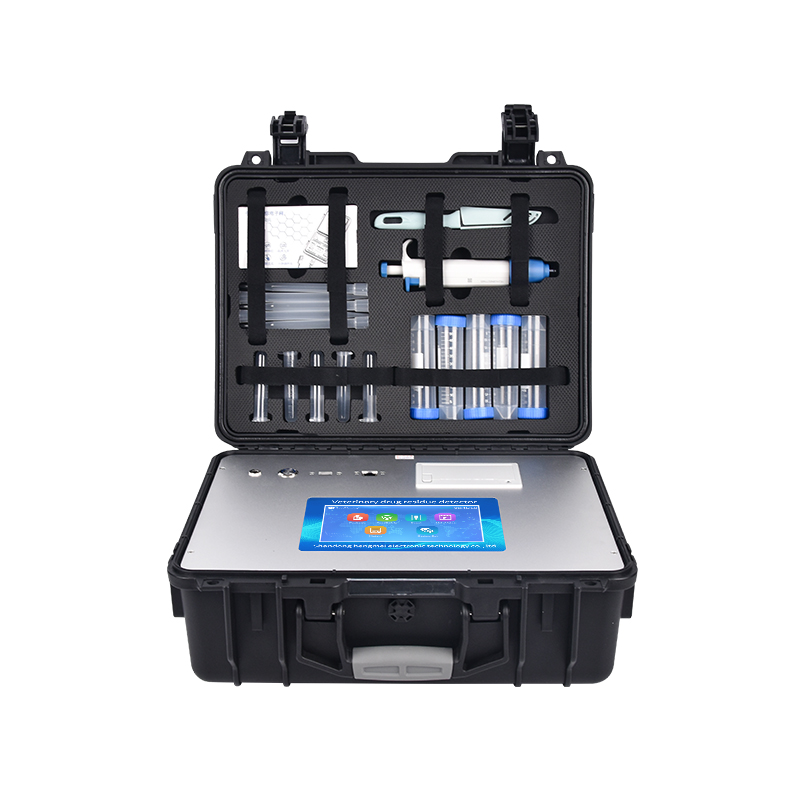

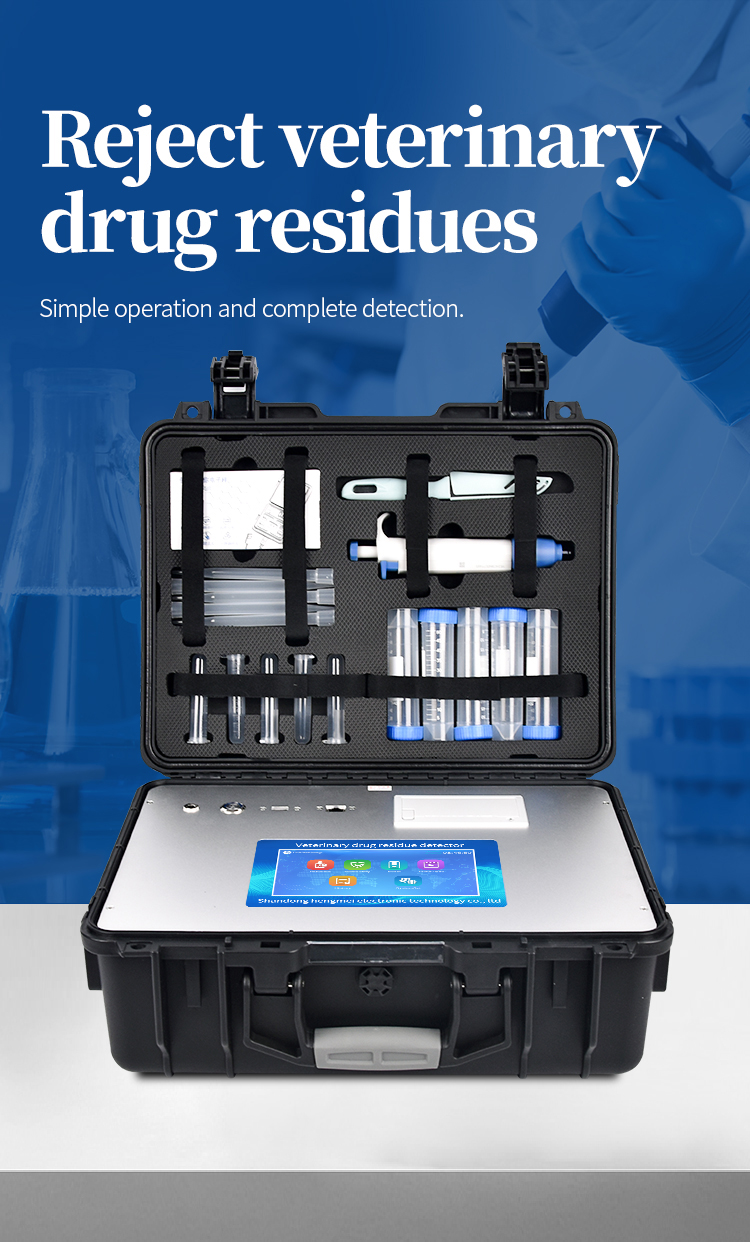

HM-SYJC Veterinary Drug Residue Detector

Product Introduction

The HM-SYJC veterinary drug residue detector is a purpose-built rapid screening instrument for animal-derived food safety monitoring. Developed by HM Instruments (恆美智造), this device employs colloidal gold immunochromatography as its core detection principle, enabling fast qualitative and semi-quantitative analysis of veterinary drug residues directly from sample extracts. The system is engineered to address the growing regulatory demand for comprehensive veterinary drug surveillance across the entire animal food supply chain.

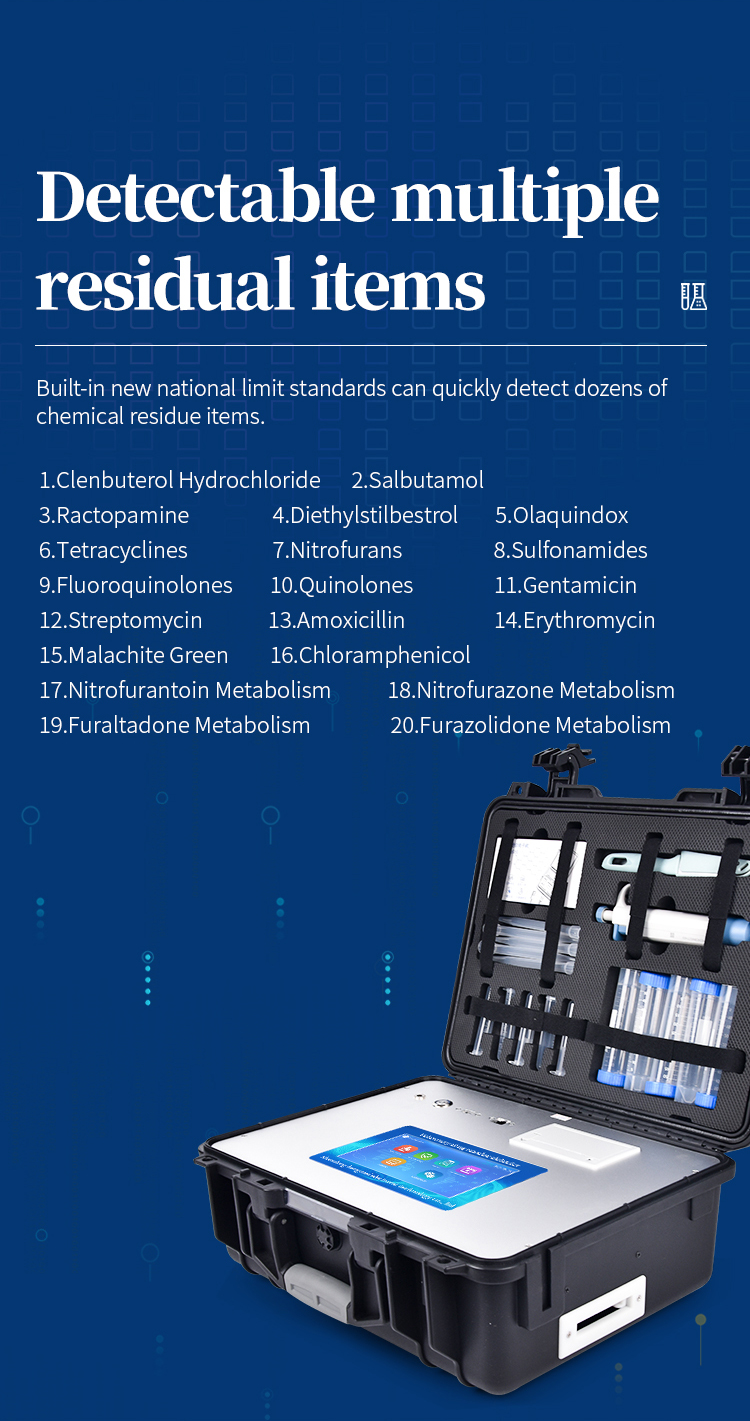

Powered by the ARM Cortex-A7 RK3288 processor at 1.88 GHz with a 7-inch color touchscreen, the HM-SYJC provides an intuitive operator experience suitable for users with varying technical backgrounds. Its detection scope spans four major residue categories: beta-agonists (clenbuterol, salbutamol, ractopamine), antibiotics (tetracyclines, nitrofurans, sulfonamides, quinolones, florfenicol, gentamicin, streptomycin, amoxicillin, erythromycin), aquatic product safety markers (malachite green, chloramphenicol, nitrofuran metabolites, diazepam), and hormones (diethylstilbestrol, olaquindox). With 200,000 onboard test records, dual AC/DC power with a 6 Ah lithium battery, and a rugged 5.2 kg portable chassis, it is equally effective in stationary lab settings and field inspection deployments. For more information on veterinary drug screening methodologies, see our veterinary drug residue screening guide.

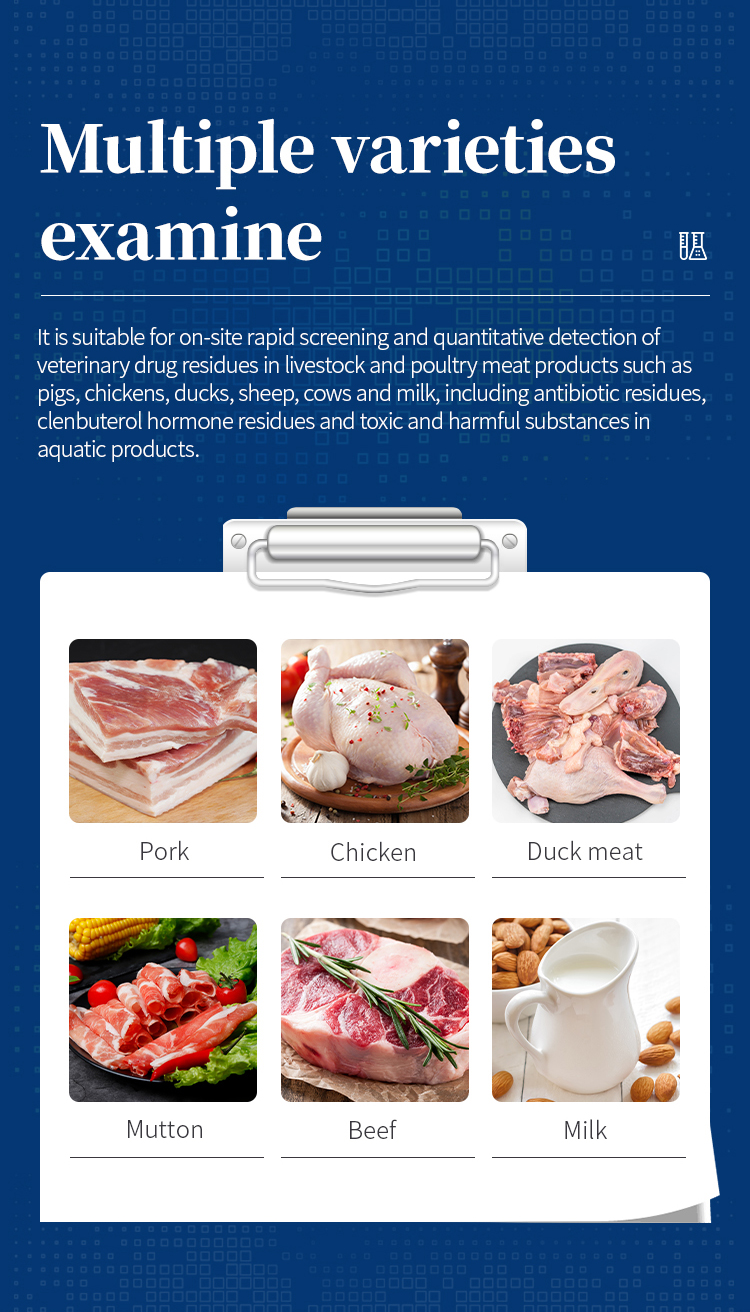

Applications

• Livestock farms and feedlots: pre-slaughter screening for beta-agonists and antibiotic residues
• Slaughterhouses and meat processing plants: incoming carcass inspection and batch release testing
• Dairy operations: milk safety monitoring for antibiotic contamination
• Aquaculture facilities: detection of malachite green, chloramphenicol, and other prohibited aquatic drug residues
• Food and drug administration inspection teams: mobile regulatory enforcement and random sampling
• Entry-exit inspection and quarantine bureaus: imported animal product border screening
• Third-party food testing laboratories: routine contract analysis for meat, egg, and dairy products

Functional Performance / Features

1. Colloidal gold immunochromatography technology delivering results within 15-30 minutes per test card
2. Comprehensive analyte coverage across 4 residue categories: beta-agonists, antibiotics, aquatic contaminants, and hormones

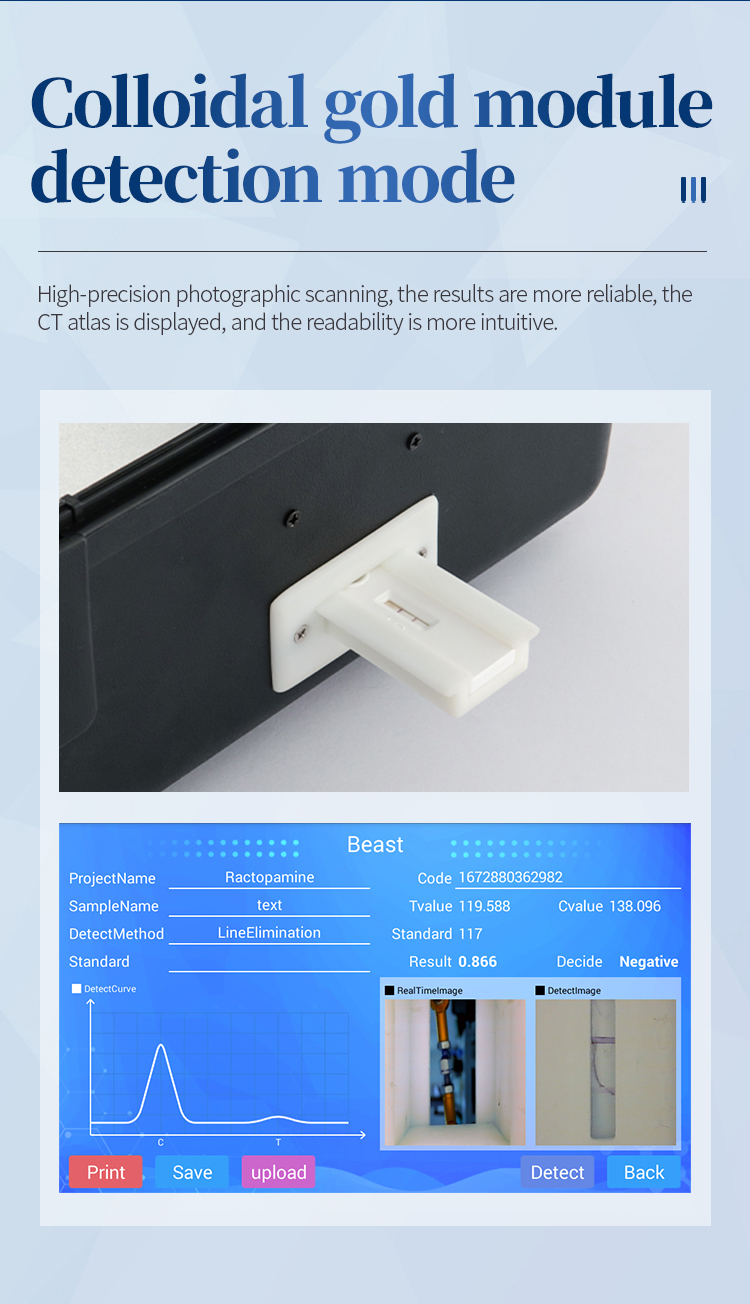

3. High-sensitivity test card recognition with automated image capture and quantitative grayscale analysis

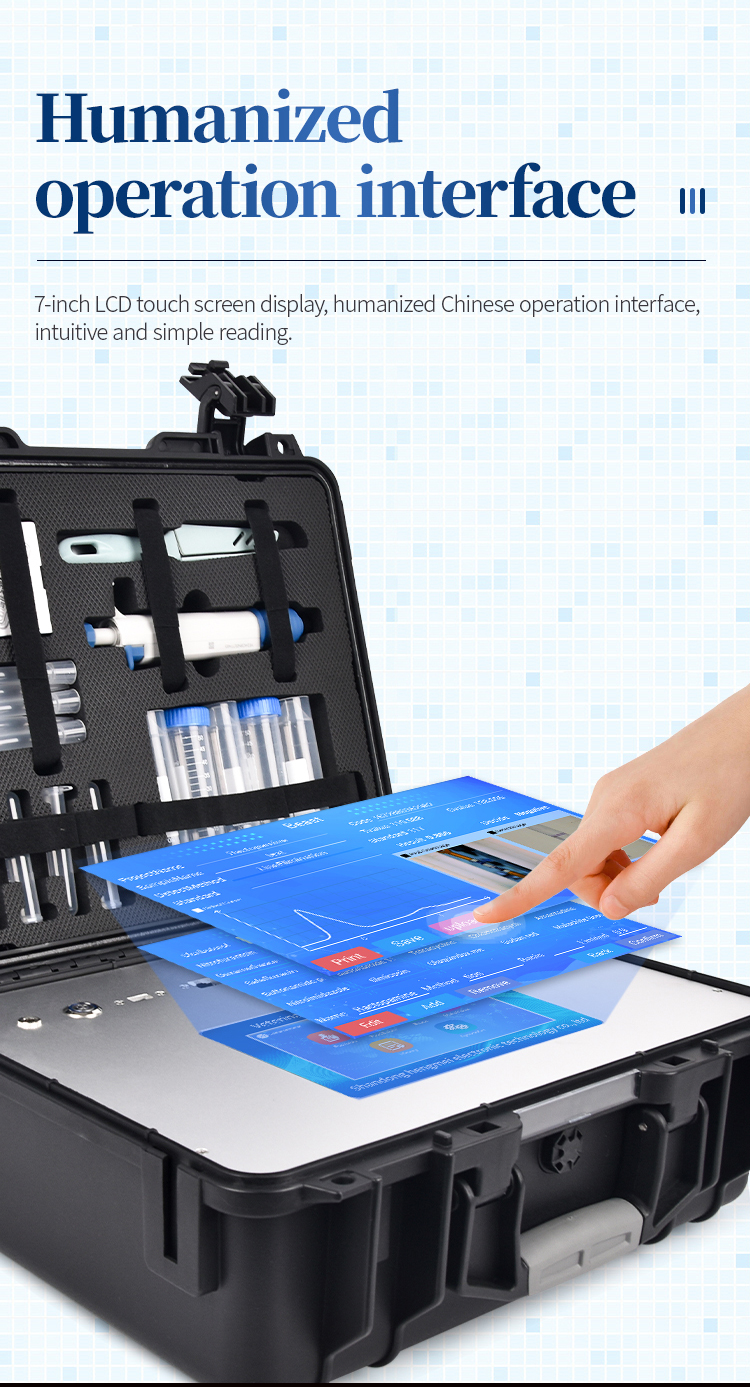

4. 7-inch color touchscreen with one-tap test initiation and graphical result display
5. ARM Cortex-A7 RK3288 quad-core processor (1.88 GHz) for rapid image processing and data computation
6. 200,000 record onboard database with sample ID traceability and batch-level data management

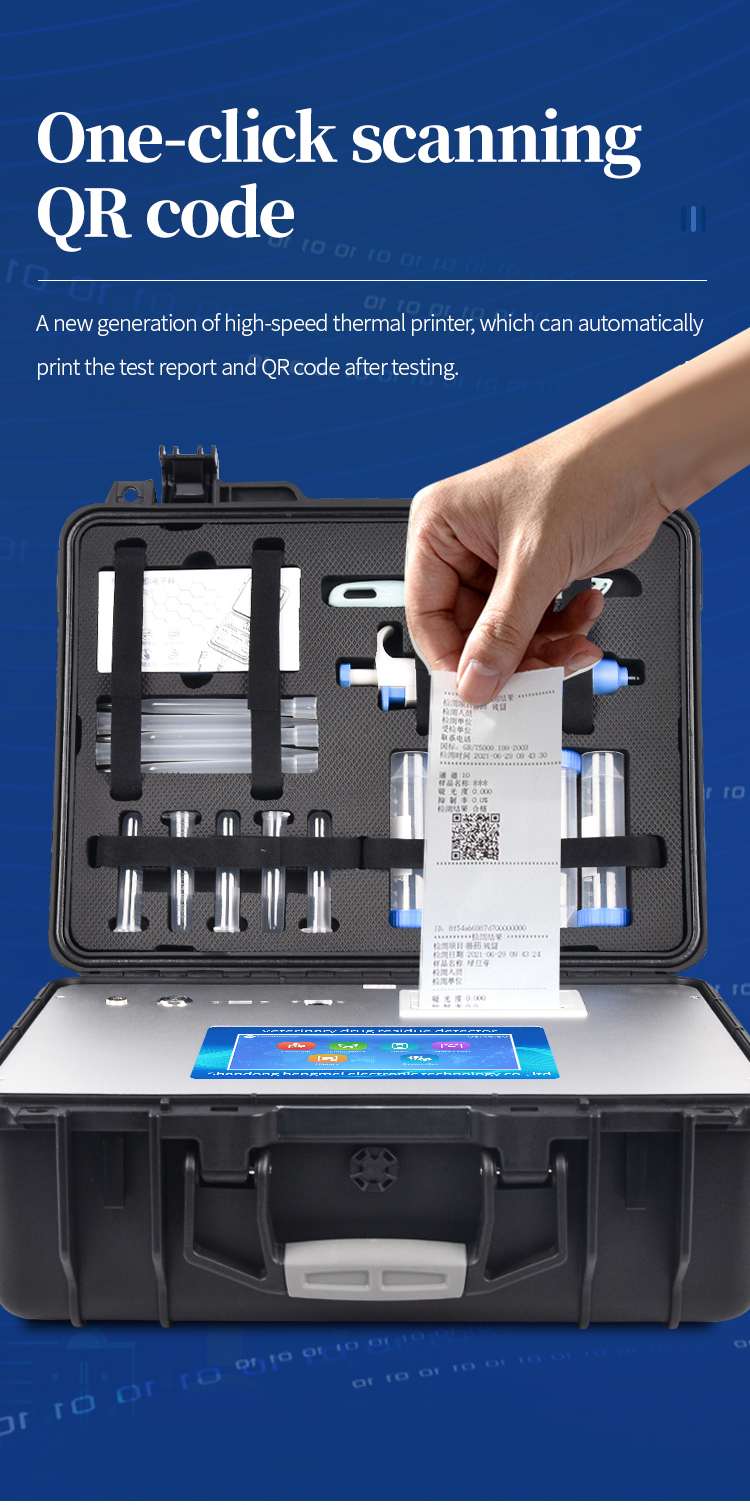

7. Built-in thermal printer for immediate on-site report generation with test parameters and results
8. Dual power architecture: AC mains operation plus 6 Ah lithium battery supporting extended field use
9. USB data export enabling integration with laboratory information management systems
10. Customizable test item library allowing operators to add new analyte profiles as detection needs evolve

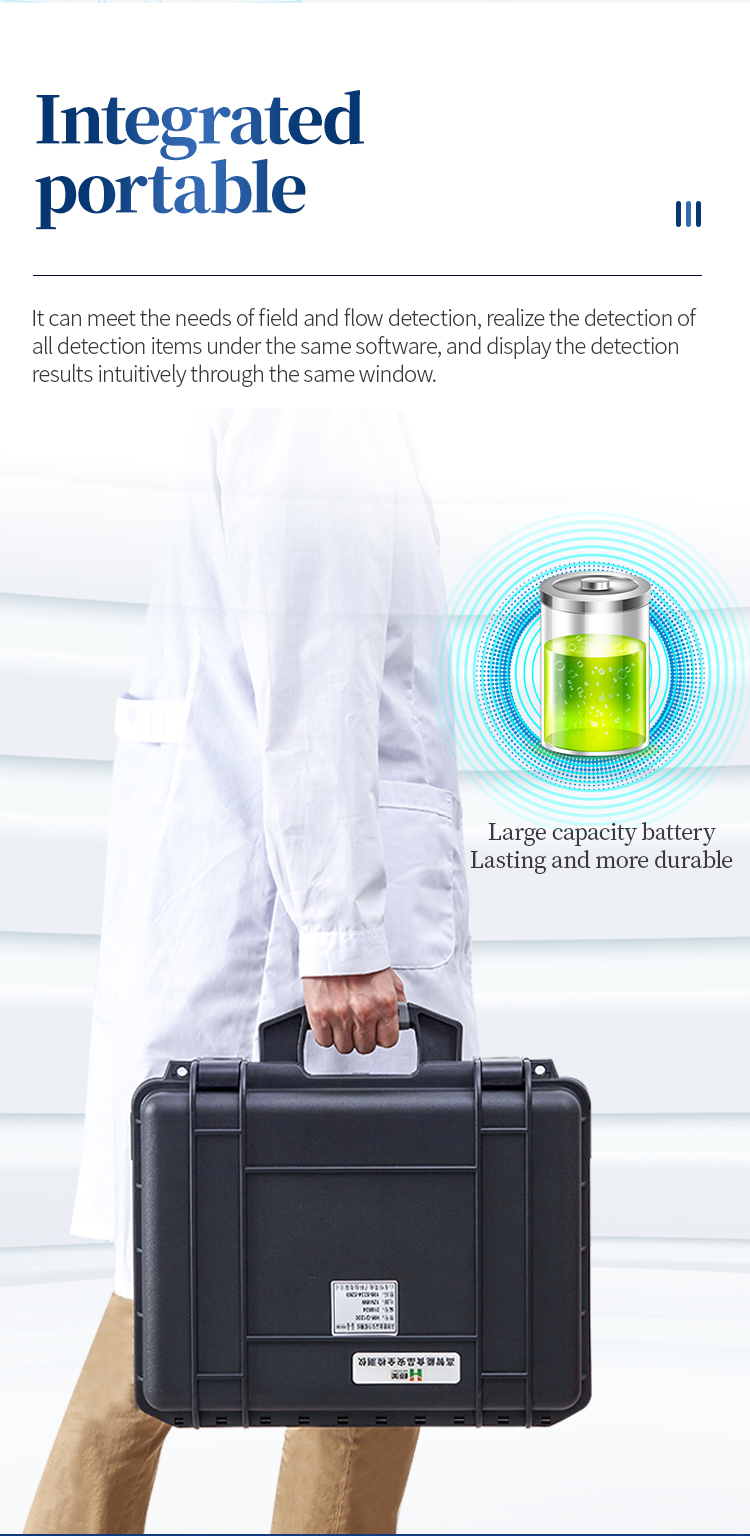

11. Compact and lightweight design (5.2 kg net) with integrated handle for easy transport between inspection sites
12. Multi-level user access control separating routine operation from system configuration functions

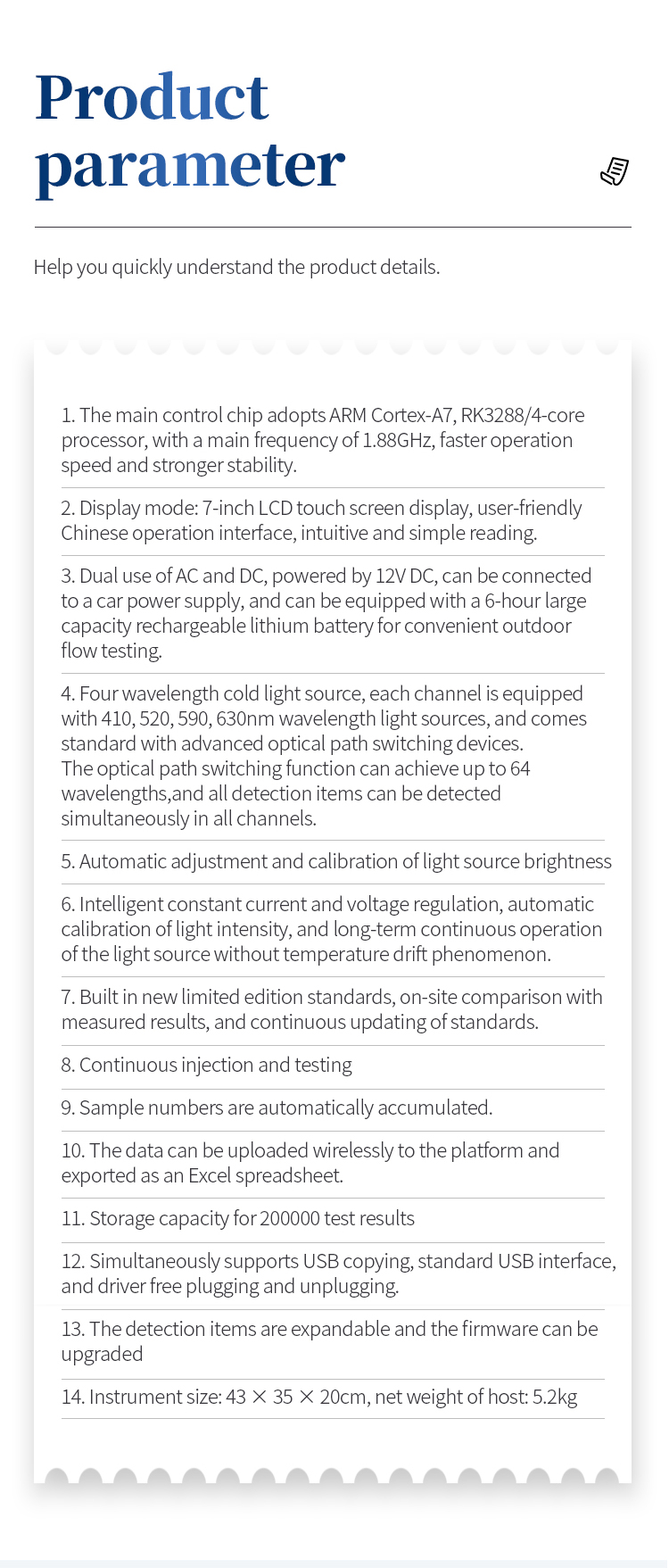

Main Parameters

Parameter	Specification
Display	7-inch color touchscreen
Detection Principle	Colloidal gold immunochromatography
Residue Categories Detected	Beta-agonists, antibiotics, aquatic product contaminants, hormones
Processor	ARM Cortex-A7 RK3288, 1.88 GHz
Data Storage	200,000 records
Power Supply	AC/DC with 6 Ah rechargeable lithium battery
Dimensions	43 × 35 × 20 cm
Net Weight	5.2 kg
Packaged Weight	6.7 kg

Technical Parameters

Parameter	Specification
Display Type	7-inch TFT-LCD color touchscreen
Detection Principle	Colloidal gold immunochromatography with reflectance photometry
Detection Targets
Beta-agonists	Clenbuterol, salbutamol, ractopamine
Antibiotics	Tetracyclines, nitrofurans, sulfonamides, quinolones, florfenicol, gentamicin, streptomycin, amoxicillin, erythromycin
Aquatic Product Safety	Malachite green, chloramphenicol, nitrofuran metabolites (AOZ, AMOZ, AHD, SEM), diazepam
Hormones	Diethylstilbestrol, olaquindox
CPU	ARM Cortex-A7 RK3288 quad-core, 1.88 GHz
Data Storage Capacity	200,000 records
Display Resolution	1024 × 600 pixels
Printer	Built-in 58 mm thermal printer
Data Export	USB 2.0 (supports external flash drive)
Power Supply	AC 100-240V 50/60Hz + DC with 6 Ah built-in lithium battery
Battery Runtime	Approximately 6 hours continuous field operation
Detection Time per Card	15-30 minutes (varies by test item)
Image Capture	Built-in CCD camera with automated test line identification
Dimensions (L × W × H)	43 × 35 × 20 cm
Net Weight	5.2 kg
Packaged Weight	6.7 kg
Operating Temperature	5 ℃ to 40 ℃
Operating Humidity	15% to 80% RH (non-condensing)
Language Support	Chinese, English
