Product Details
Product introduction:

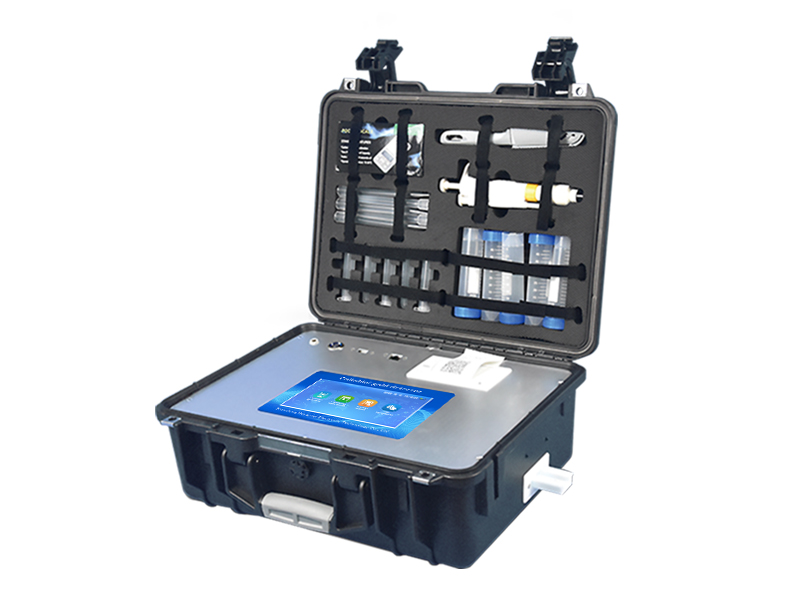

The aquatic product safety detector can quickly detect chloramphenicol, malachite green, tetracyclines, nitrofurans, sulfonamides, quinolone floxacins, florfenicol, oxytetracycline, chlortetracycline, thiamphenicol, diazepam and other rapid tests in aquatic products such as fish and shrimp. For example, the entire detection process of the chloramphenicol rapid test card only takes about 30 minutes, with a sensitivity of 0.3 μg/kg (ppb). This rapid detection system equipment is an integrated food safety rapid detection and analysis equipment, which is widely used in farmers' markets, seafood markets, food and meat product deep processing enterprises, food and drug administration, health departments, aquaculture farms, inspection and quarantine departments, agricultural departments, third-party institutions and other units.
Detection principle:
The aquatic product safety detector uses the principle of inhibiting immunochromatography. For example, the chloramphenicol in the sample binds to the specific monoclonal antibody labeled with colloidal gold during the lateral movement, inhibiting the binding of the antibody and the chloramphenicol-BSA conjugate on the NC membrane detection line, and quickly judging the chloramphenicol residue.
Features:
1. Android smart system, adopts a more efficient UI interactive interface, with better interactive operation experience and more convenient use.
2. The instrument has wifi, Bluetooth, 4G network transmission, data can be uploaded wirelessly, and it also has network cable connection function.
3. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection repeatability function.
4.★The instrument has a supervision platform, data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning
5. Integrated portable rapid testing equipment, meet the needs of on-site and mobile testing, can realize the detection of all test items under the same software, and can intuitively display the test results through the same window.
6. Colloidal gold module detection method: orbital automatic transmission scanning, automatically exit the test card after the test is completed.
7.★The instrument has a built-in camera to take pictures, which can display the real-time image of the gold label card. The system automatically analyzes and presents the CT coordinate curve graph, and the CT line is automatically identified without manual adjustment.
8. Built-in powerful database, with multi-category and multi-type sample menu function, flexible selection of test samples, different test channels can detect different sample items at the same time. You can also directly edit and enter sample name, test index, test unit and other information on the instrument and save them in the sample database.
9. ★ The instrument has built-in operation video. Click the video module to learn quickly. It is a laboratory guidance expert around you.
10. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.
11. A new generation of high-speed thermal printer, which can automatically print or batch print test reports and QR codes after the test is completed.
12. ★ The instrument can be configured with identity recognition function, and the machine can be turned on by password or ID card to prevent non-staff operation.
13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.
14. The result judgment line can be modified, the control value calibration value can be saved, and the power is off without losing data.
15. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, and the user experience is greatly enhanced.
16. The instrument has the functions of recalibration, locking, and restoring factory settings.
Main parameters:
1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, main frequency 1.88Ghz, faster operation speed and stronger stability.
2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.
3. AC and DC dual-use, DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.
4. Intelligent constant current voltage regulation, automatic adjustment and calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.
5. ★ Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.
6. Uninterrupted sampling, continuous detection
7. Sample numbers are automatically accumulated.
8. Data is wirelessly uploaded to the platform, and can be exported from the platform as Excel tables.
9. The storage capacity of test results is 200,000.
10. ★Supports USB copying, standard USB interface, no need for driver plugging and unplugging.
11. Test items can be expanded, firmware can be upgraded
12. Instrument size: 43×35×19cm, main unit net weight: 5.2kg
★Manufacturers must have food safety testing intellectual property management system certification
★Manufacturers have high-tech enterprise certification
★Instruments have food safety transfer copyright
★Instruments have metrology reports issued by national metrology institutes
★Reagents have reagent test reports issued by national metrology institutes
★With ISO9001 quality management system certification
★Manufacturers must have independent trademark intellectual property rights
