Veterinary drug residue quantitative detector

Testing items:

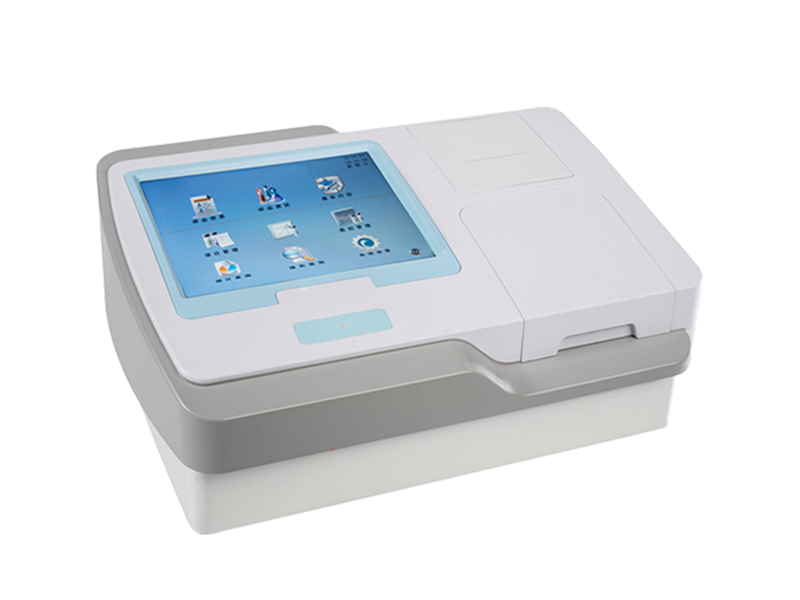

HM-SY96S animal disease diagnostic instrument is a new testing instrument newly launched by our company. The system uses enzyme-linked immunosorbent assay and corresponding reagents to conduct qualitative or quantitative rapid diagnosis of animal diseases. Such as: porcine blue ear virus, classical swine fever virus, pseudorabies virus, pseudorabies virus gE protein, porcine circovirus, porcine encephalitis virus, swine foot-and-mouth disease 3ABC protein, swine foot-and-mouth disease virus IgG, porcine parvovirus, chicken avian influenza, blue tongue disease, white spot syndrome, bovine contagious pleuropneumonia, rinderpest, sheep pox and goat pox, etc. Disease detection, and can be customized according to customer needs.

Product Features：

*10.4-inch color LCD touch screen input, large screen display, fast operation;

*Full-screen display of 96-well visual layout operation interface;

Automatically store standard curve, users can modify standard curve;

Built-in embedded system, can be operated, stored and printed without external computer;

Automatic zeroing can be performed in single wavelength and dual wavelength test mode;

Optional external PC software, network support, cater to the direction of digital development, customizable upload;

*Can store at least 1 million plates (96) test data and 500 programming projects, and support data backup, recovery and merging;

*24 different projects can be performed on the same plate and can be distinguished by display, and qualitative and quantitative projects can be tested on the same plate;

*Template function, fixed detection work, greatly simplifying the workload of operators;

Intelligent calculation of test results to ensure the accuracy and effectiveness of test results, and automatic alarm;

New Windows color graphical interface, full Chinese operating system, supports mouse, keyboard, and multiple input methods;

Intelligent switch of light source to extend its life;

* Comprehensive and complete quality control functions, including Westguard multi-rule quality control, instant quality control and other quality control charts and quality control parameter calculations, with quality control alarm function;

Provide multiple printing methods and various forms of Chinese reports, and can customize various reports;

*Layout and save import functions, greatly improve the test efficiency of common items;

* Calculation methods such as absorbance, Cut-Off qualitative calculation, single-point calibration, broken line regression, linear regression, exponential regression, logarithmic regression, double logarithmic regression, log-logit, power regression, four-parameter regression, enzyme inhibition rate, etc. can be selected;

Special system maintenance menu, automatically judge the current status and performance indicators of the instrument, and can print relevant data;

Technical parameters：

Wavelength range: 330-1100nm

*Filter configuration: 10 filter positions, standard 405nm, 450nm, 492nm, 630nm, optional 6 custom wavelengths

Absorbance range: 0.000-4.000A

*Number of optical channels: 8-channel optical path detection, with an independent reference channel

*Indication stability: ≤±0.002A or ≤0.5%T/10min

*Indication error (accuracy): ≤±0.005A or ±0.2%T

*Repeatability: ≤0.2% or ≤0.2%T

Sensitivity: ≥0.01(L/mg)

Channel difference: ≤0.01A

Wavelength indication error: ±1nm

Half width: ≤8nm

Peak transmittance: ≥35%

Resolution: 0.001A (display), 0.0001A (internal calculation)

*Reading speed: single wavelength ≤3 seconds/96 wells, dual wavelength ≤6 seconds/96 wells

Vibration plate function: adjustable speed and time

Light source type: halogen tungsten lamp

Strip type: standard 96-well or other types of ELISA plates, strips

Applicable well types: flat bottom, U-shaped and V-shaped

*Display mode: 10.4-inch color LCD display

Input mode: touch screen input, optional mouse and keyboard

Printing: built-in thermal printer, external printer can be connected

Connect Ports: DVI port, VGA port, network port, USB port, audio port, RS232 serial port

Usage environment: temperature 5-40℃; humidity 15%-80%

Power supply voltage: 220V±10%, 50/60Hz

Volume: 470mm×350mm×210mm (length×width×height)

Weight: 11.5Kg
