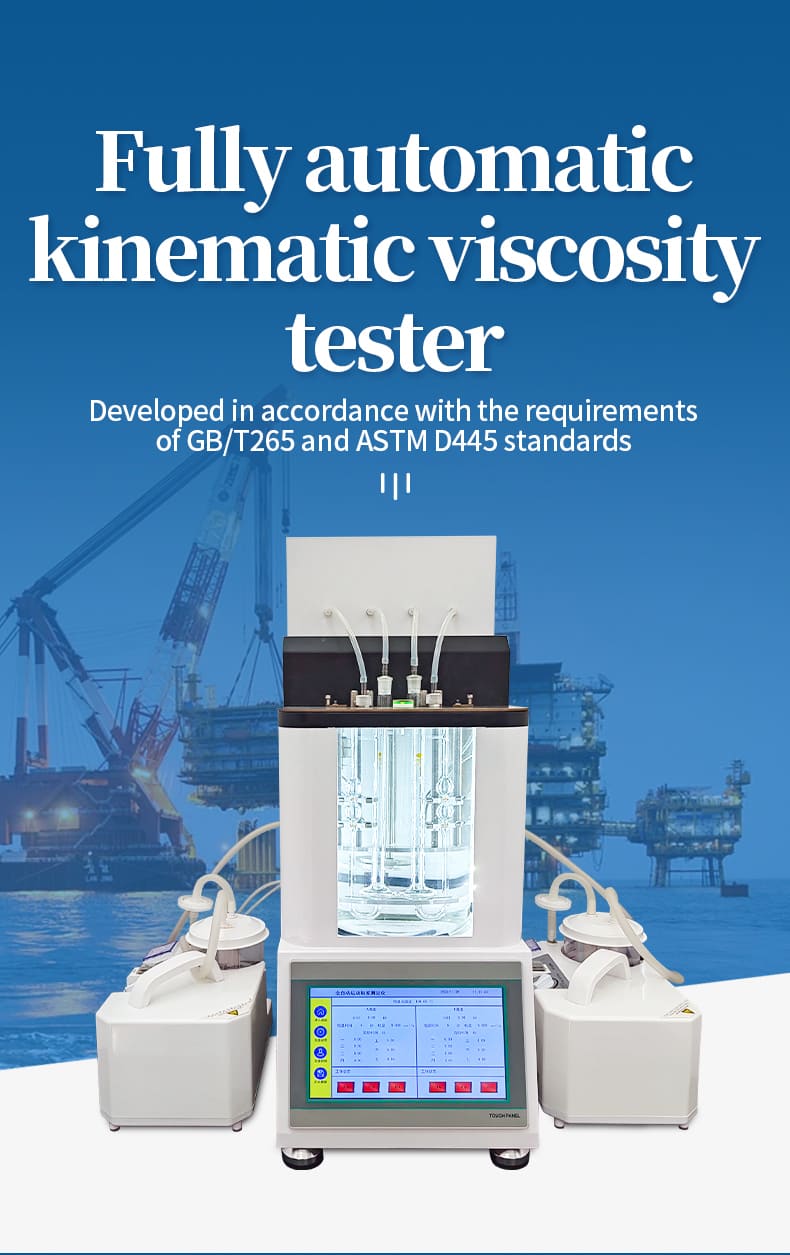

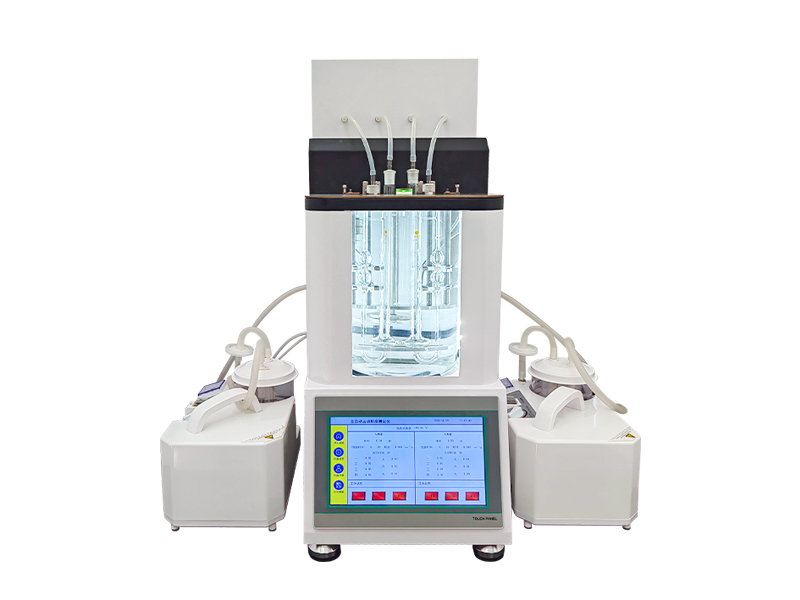

Full-automatic kinematic viscosity tester

The automatic kinematic viscosity tester is developed in accordance with GB/T265 and ASTM D445 standards, and is used to measure the kinematic viscosity of liquids and petroleum products. The structure design is exquisite, beautiful, practical and comfortable. One-key fast constant temperature, oil sample upward suction, viscosity detection, viscosity value calculation, printing, viscosity tube cleaning, drying of viscosity tube, no manual operation, automatic completion of the instrument, two samples at a time can be tested to improve work efficiency; Widely used in pharmacopoeia, petroleum, chemical industry, scientific research, measurement, commodity inspection, power and other departments.

Main features

The controller adopts high-speed dual CPU, with high reliability and measurement accuracy

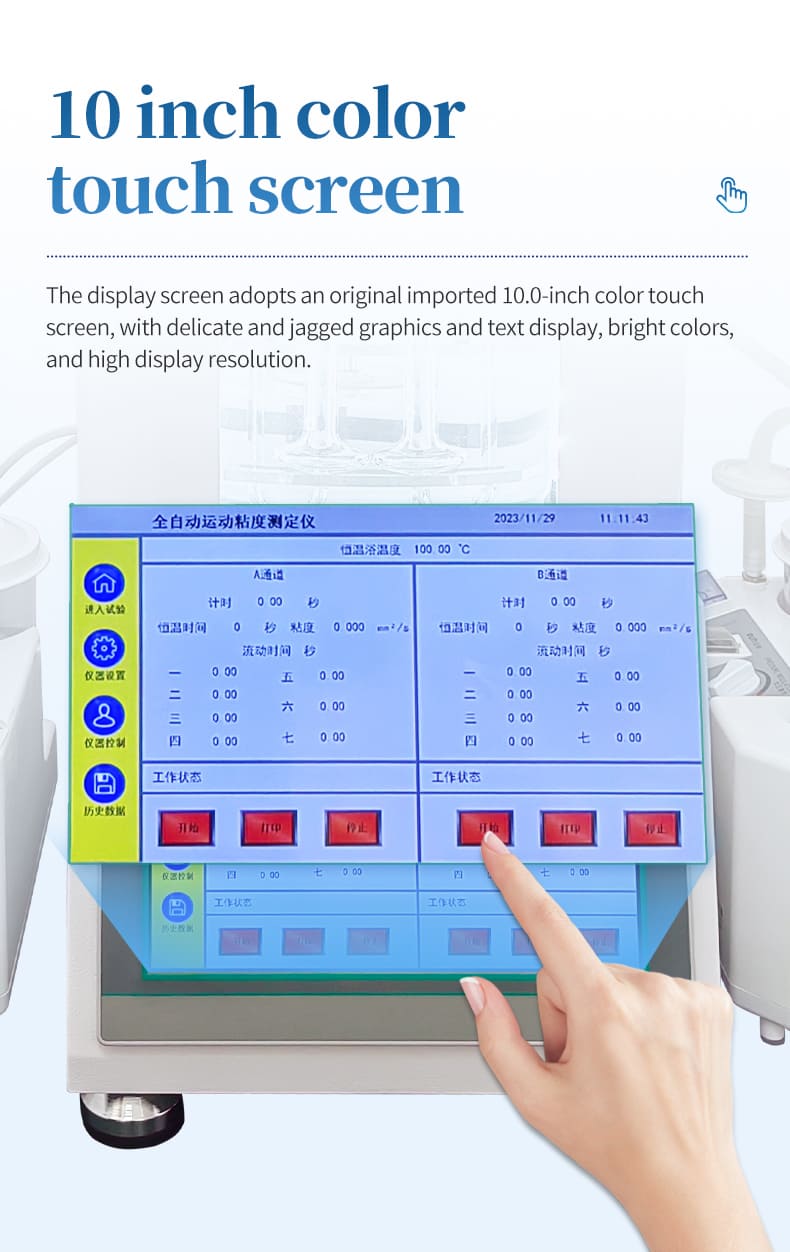

The original imported 10.0-inch color touch screen is adopted for the display screen, with fine graphic and text display without sawtooth, bright color and high display resolution.

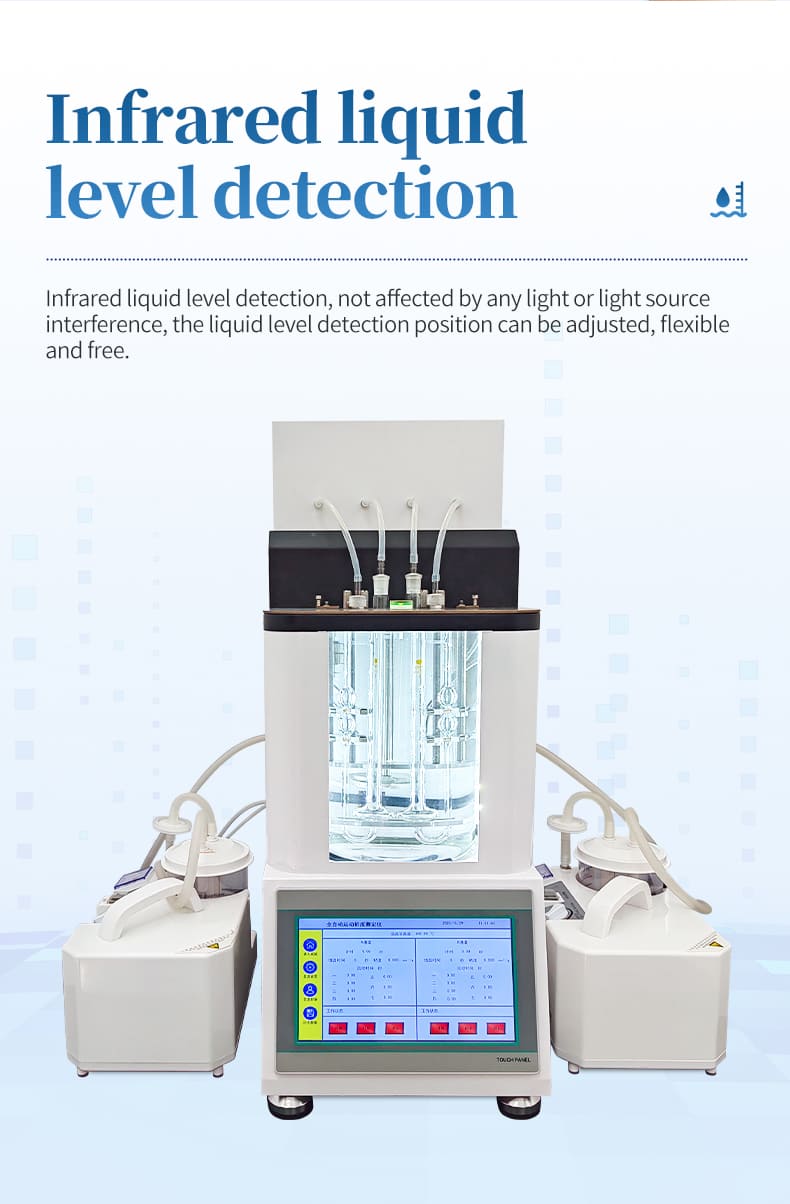

Infrared liquid level detection is free from interference of any light and light source. The liquid level detection position is adjustable and flexible.

The imported detection module is used to detect the circuit, which can quickly and accurately detect and completely avoid false detection and missing detection.

The temperature sensor imported from Germany is sensitive and has higher temperature control accuracy.

Full-automatic thermostatic, oil sample aspirating, viscosity detection, calculation, printing, viscosity tube cleaning, drying of viscosity tube, no manual operation is required, the instrument automatically completes all processes, and the results are automatically saved.

Two groups of viscosity tubes can be detected at the same time, greatly improving the working efficiency and saving the experimental time.

Users can select refrigeration equipment for low temperature viscosity measurement.

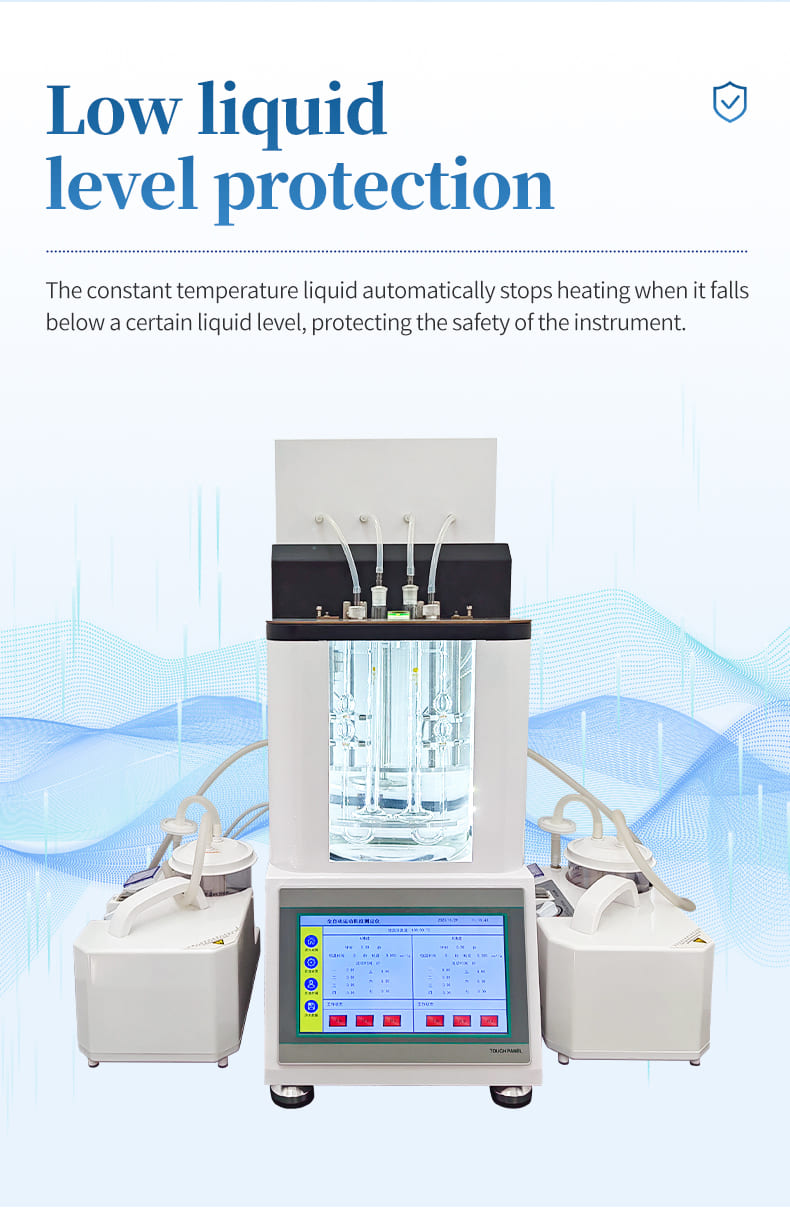

With low liquid level protection function, the thermostatic liquid will automatically stop heating when it is lower than a certain liquid level to protect the instrument.

Built-in thermal printer for automatic printing of test results.

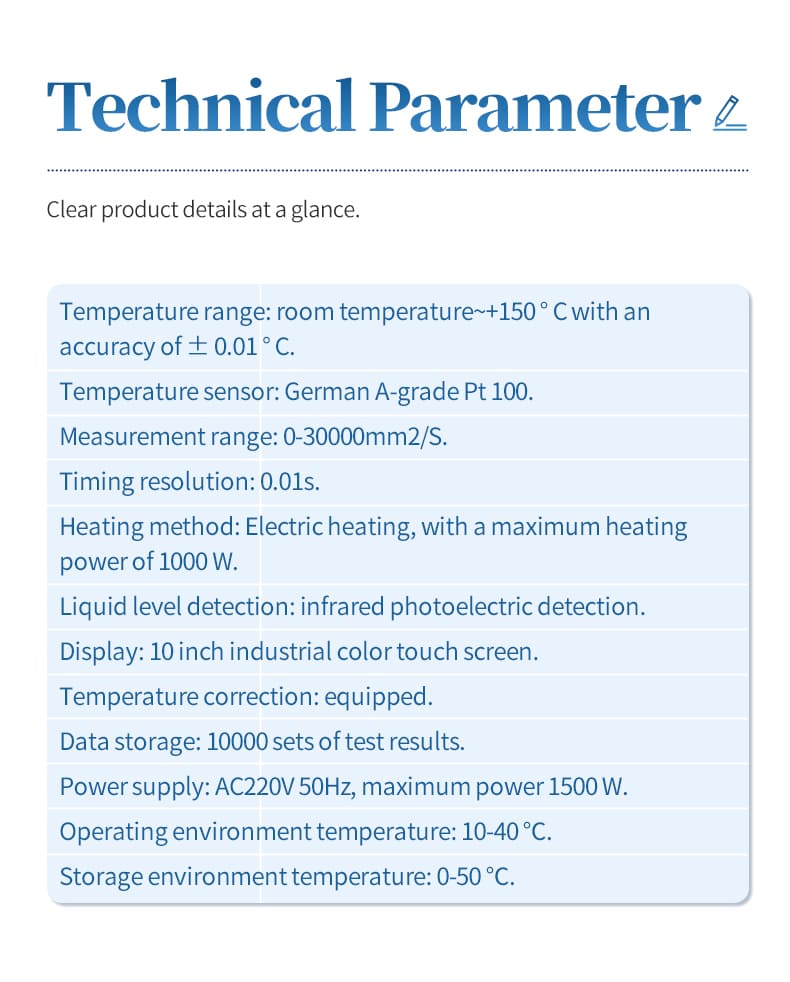

Technical parameter

Temperature range: room temperature ～+150 ° C Accuracy ± 0.01 ° C.

Temperature sensor: German Class A Pt 100.

Measuring range: 0 ～ 30000mm2/S.

Timing resolution: 0.01s.

Heating mode: electric heating, * large heating power 1000 W.

Liquid level detection: infrared photoelectric detection.

Display: 10-inch industrial color touch screen.

Temperature correction: Yes.

Data storage: 10000 sets of test results.

Power supply: AC220V 50Hz * high power 1500 W.

Service ambient temperature: 10-40 ℃.

Storage ambient temperature: 0 ～ 50 ℃.

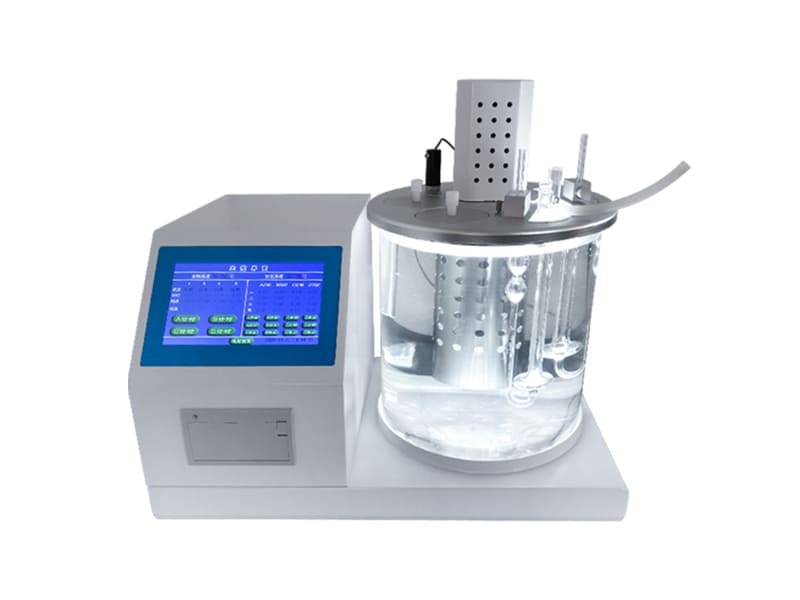

• Previous: Kinematic viscosity tester
