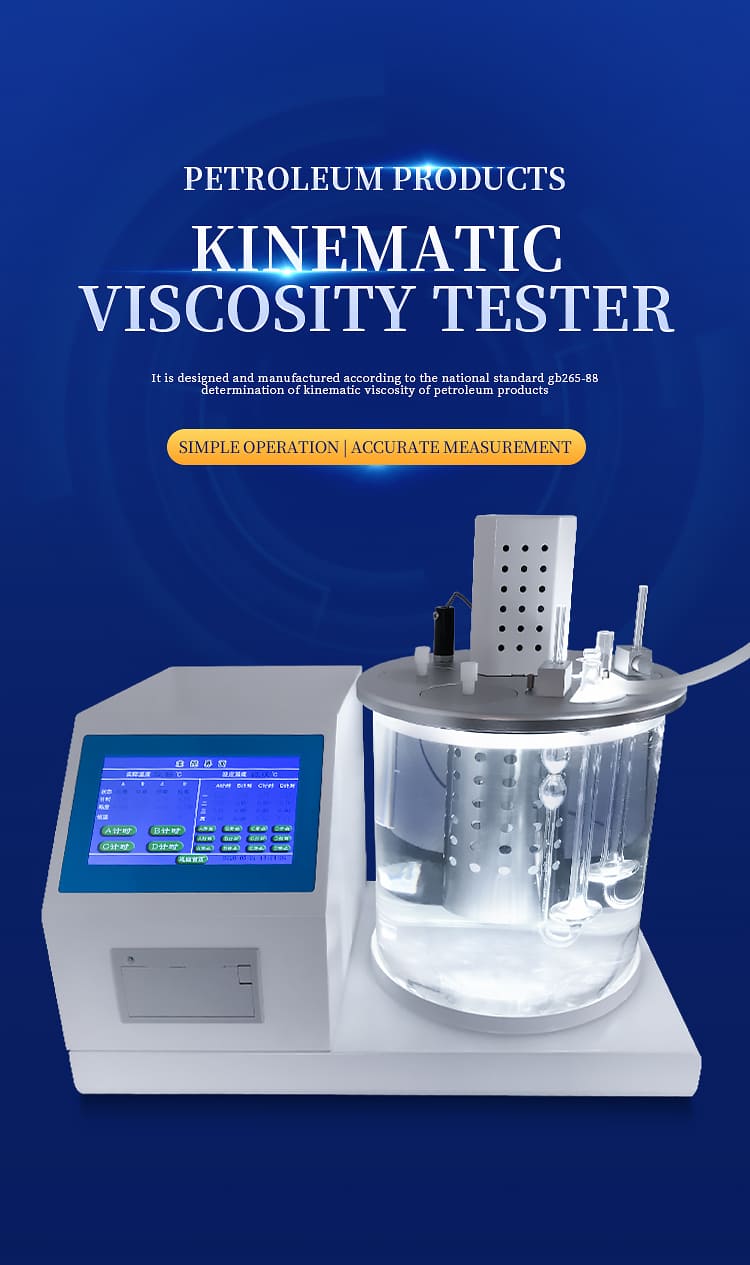

Kinematic viscosity tester

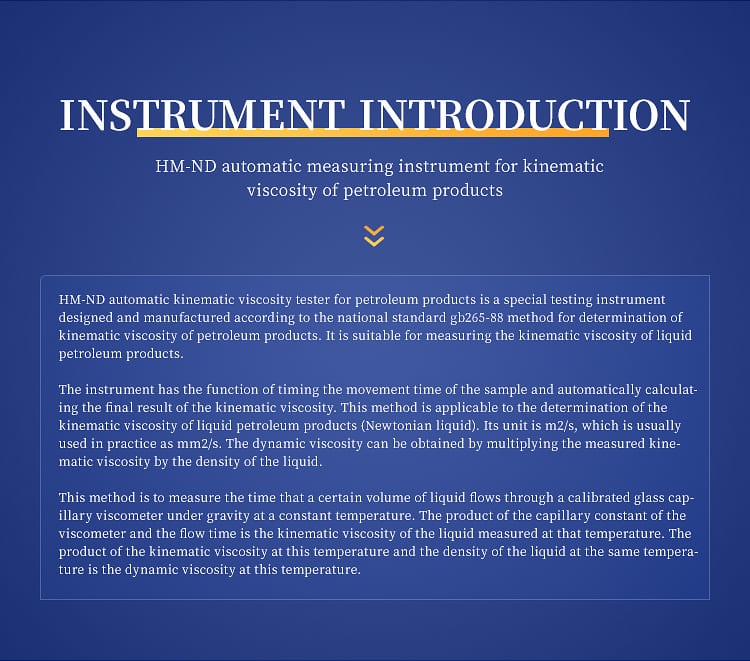

Introduction:

HM-ND automatic tester for dynamic viscosity of petroleum products is a special testing instrument designed and manufactured according to the national standard Determination Method for Dynamic Viscosity of Petroleum Products (GB265-88), which is applicable to measuring the dynamic viscosity of liquid petroleum products. This instrument has the function of timing the movement time of the sample and automatically calculating the final result of the kinematic viscosity. This method is applicable to the determination of the kinematic viscosity of liquid petroleum products (refer to Newtonian liquid). Its unit is m2/s, which is usually used in practice as mm2/s. The dynamic viscosity can be obtained by multiplying the measured kinematic viscosity with the density of the liquid. This method is to measure the time of a certain volume of liquid flowing through a calibrated glass capillary viscometer under gravity at a constant temperature. The product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid measured at this temperature. The product of the kinematic viscosity at this temperature and the density of the liquid at the same temperature is the dynamic viscosity at this temperature.

Major function

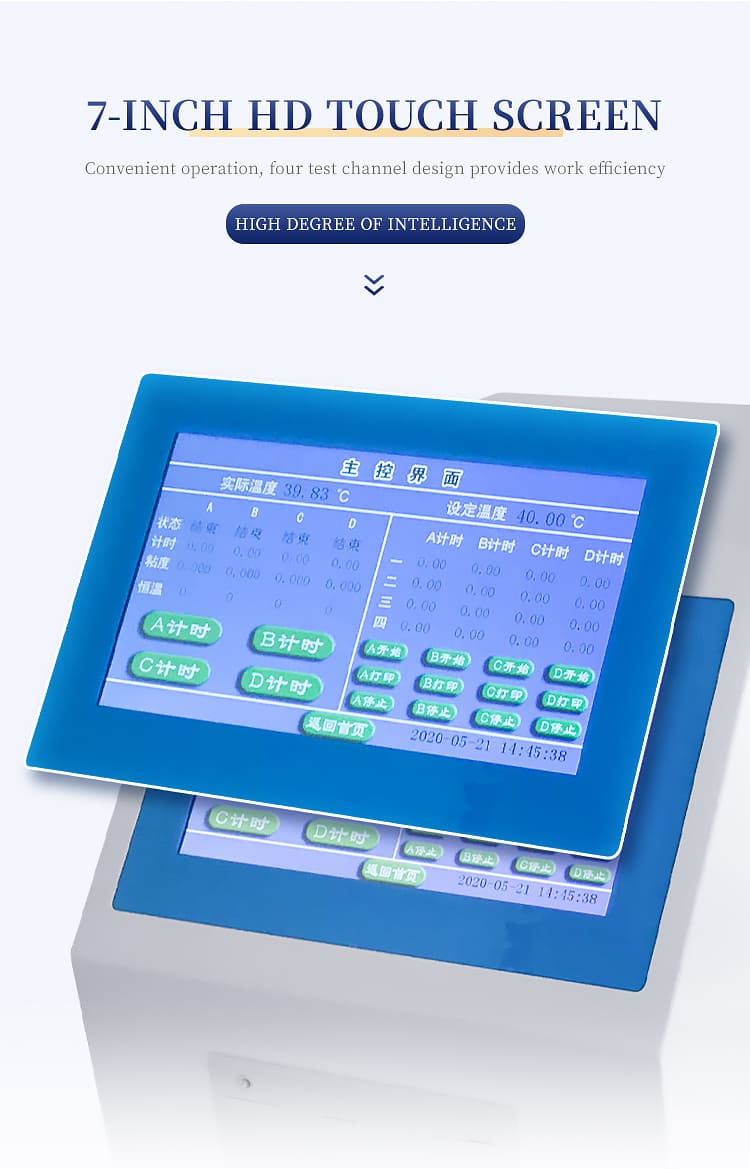

Inch HD touch screen operation, convenient operation, four test channel design provides work efficiency

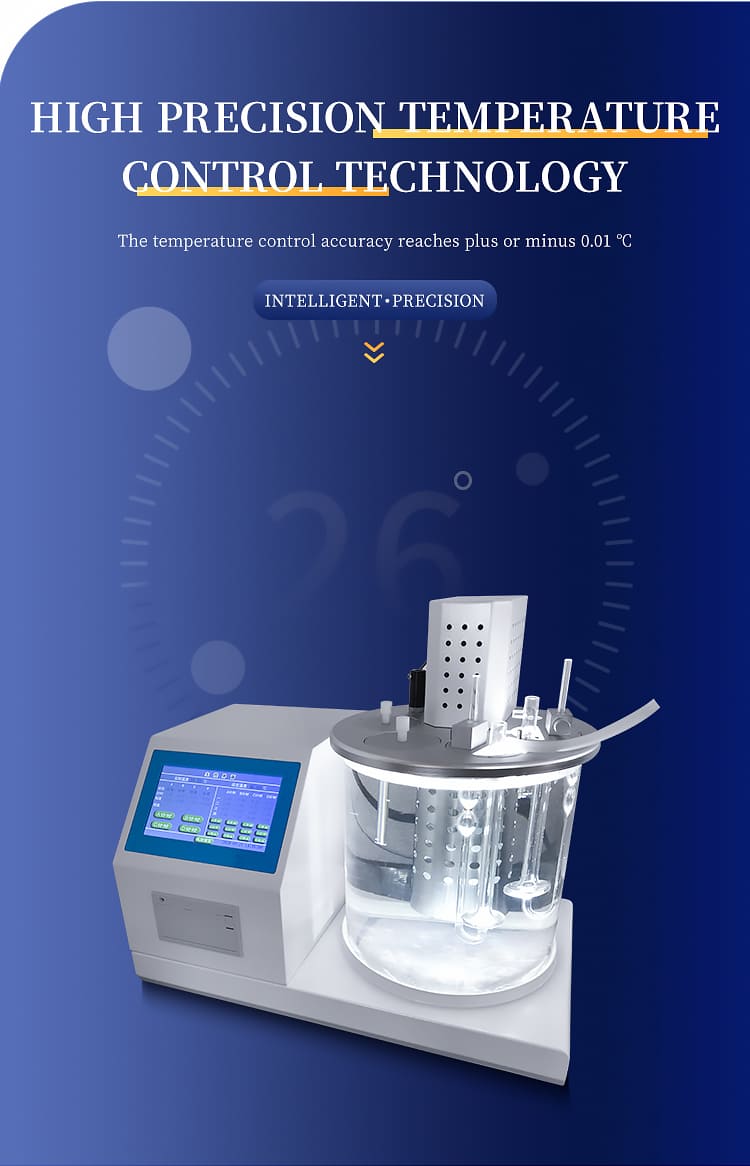

High-precision temperature control technology is adopted, and the temperature control accuracy is up to plus or minus 0.01 ℃

All high-performance MCU control, high stability and reliability

Fully automatic storage of test results and viewing at any time

Long-term continuous operation with extremely low failure rate

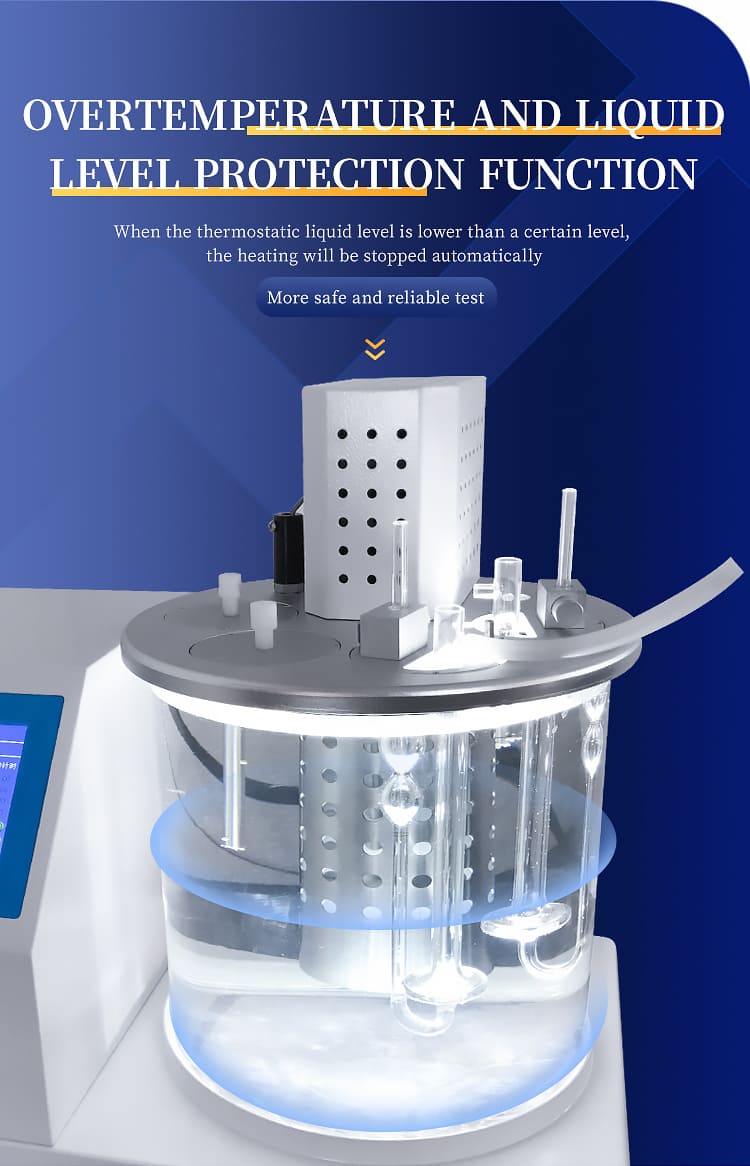

With over-temperature protection function, the test is more safe and reliable

With liquid level protection function, the thermostatic liquid automatically stops heating when it is lower than a certain liquid level to protect the instrument

Built-in thermal printer for automatic printing of test results

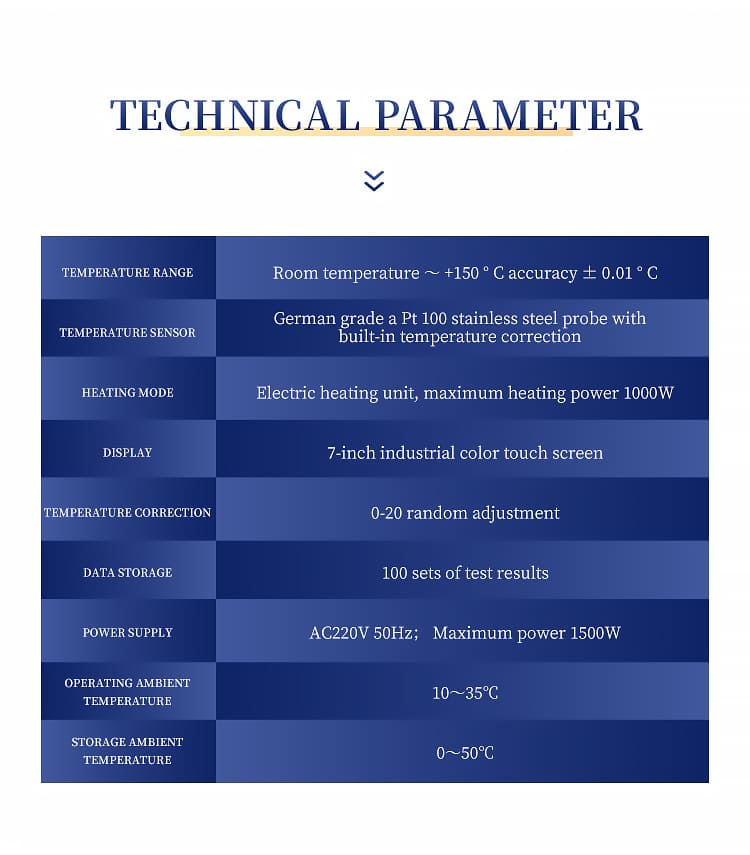

Technical parameter

Temperature range: room temperature ～+150 ° C Accuracy ± 0.01 ° C.

Temperature sensor: German Class A Pt 100 stainless steel probe, built-in temperature correction, reliable detection results.

Heating mode: electric heating unit, * large heating power 1000 W.

Display: 7-inch industrial color touch screen.

Temperature correction: 0-20 adjust randomly.

Data storage: 100 groups of test results.

Power supply: AC220V 50Hz* High power 1500 W.

a) Operating ambient temperature: 10-35 ℃

b) Storage ambient temperature: 0 ～ 50 ℃
