Product Details
Product Introduction

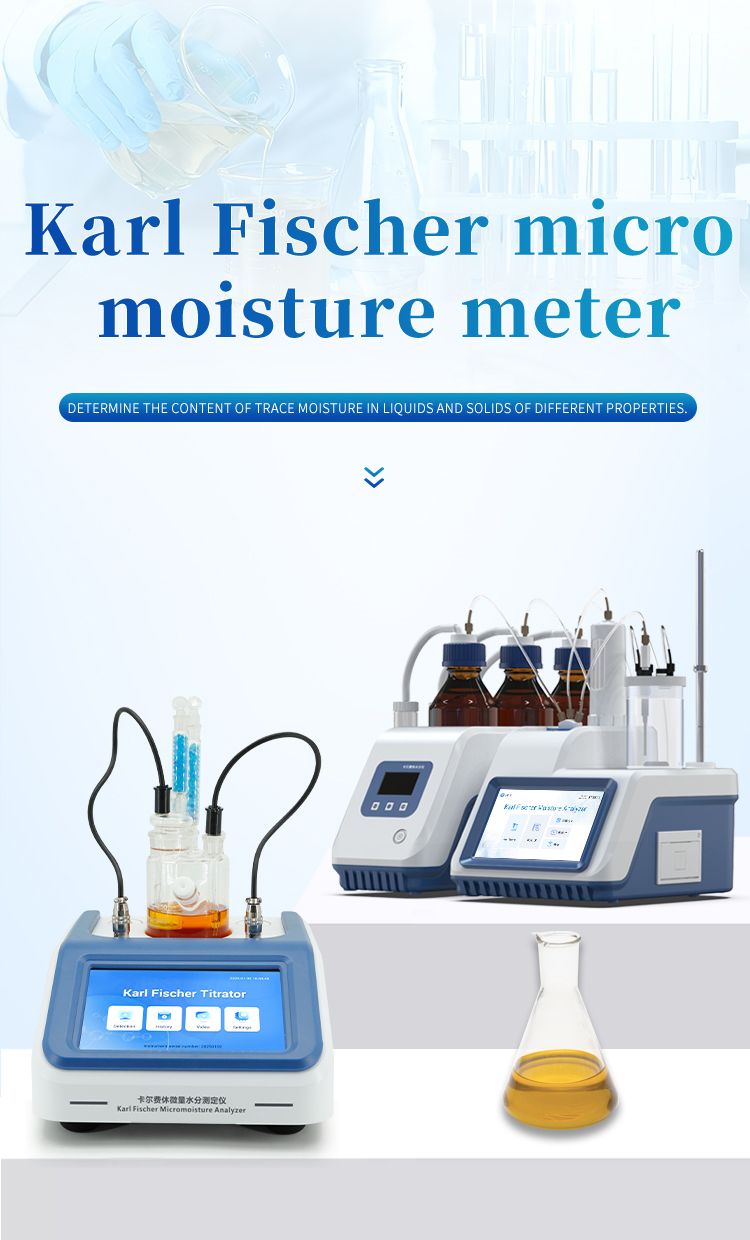

The HM-WS3 is a lightweight Karl Fischer coulometric moisture analyzer running the Android operating system on an ARM Cortex-A7 quad-core processor (RK3288, 1.88 GHz). Weighing only 2 kg, it is designed for both on-site and laboratory water content measurement across petrochemical, pharmaceutical, and food industries. The 7-inch LCD touchscreen provides an intuitive interface for sample configuration, detection control, and data review.
Equipped with a fully sealed titration cell, the instrument completes detection in approximately 60 seconds with automatic endpoint determination. Sample information — including name, batch number, unit, and operator — can be freely edited before each test. Detection parameters such as electrolysis current, voltage, water content threshold, and maximum analysis time are user-configurable. Both volumetric and gravimetric sample introduction methods are supported, providing flexibility for different sample types and testing protocols.
Data management capabilities include a built-in thermal printer with QR code output, historical record search, and standard USB interface for data storage exceeding 200,000 records. Wi-Fi connectivity enables cloud upload and remote query, while directed remote firmware updates eliminate the need to return the instrument for software maintenance.
Applications
-
Moisture content in petroleum and chemical products
-
Water determination in pharmaceutical raw materials and intermediates
-
Moisture analysis in food ingredients and additives
-
Water content testing in solvents and reagents
-
Moisture measurement in coatings, adhesives, and polymer materials
Features
-

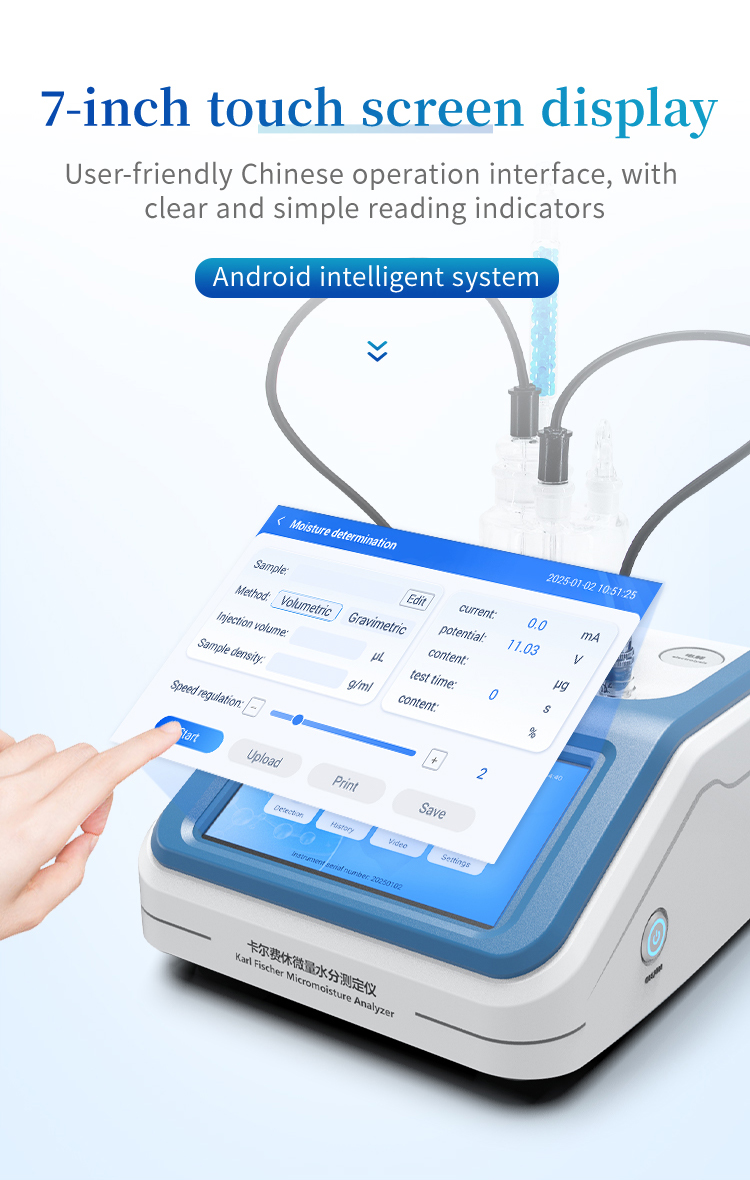

Android operating system with 7-inch LCD touchscreen for intuitive operation
-
ARM Cortex-A7, RK3288 quad-core processor at 1.88 GHz for responsive performance
-

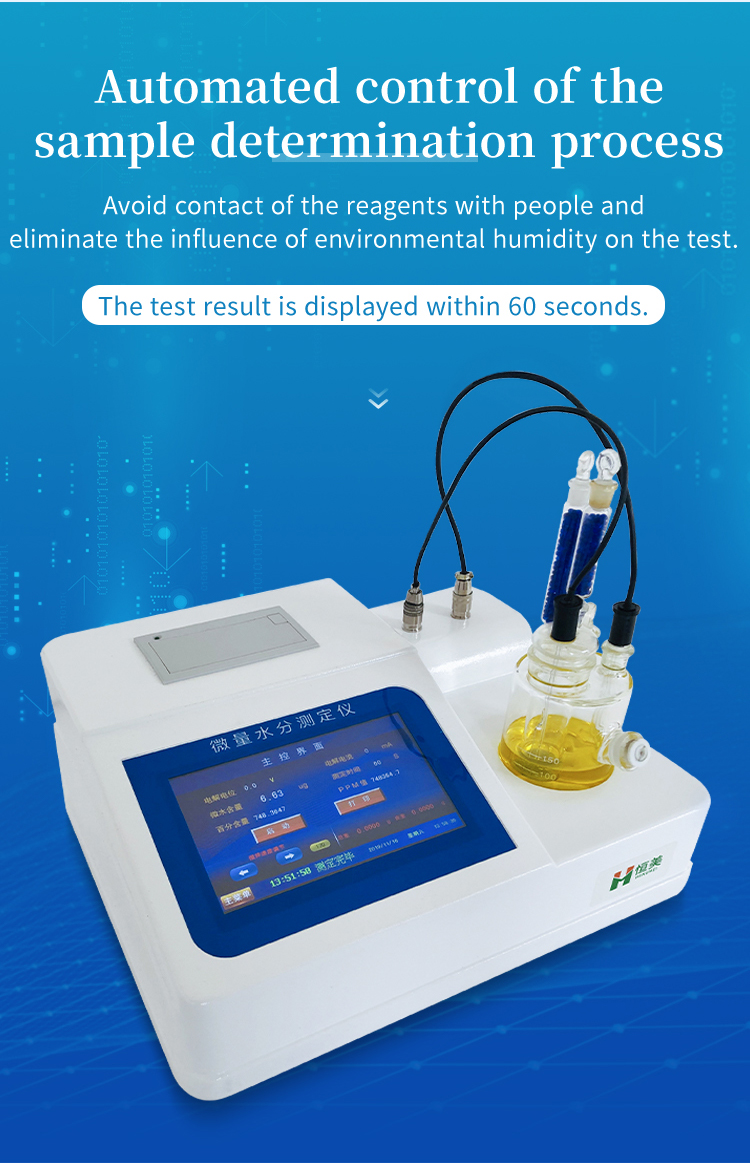

Fully sealed titration cell with automatic detection completion in approximately 60 seconds
-
Flexible sample introduction: selectable volumetric or gravimetric method
-
Customizable sample information fields (name, batch number, unit, operator)
-

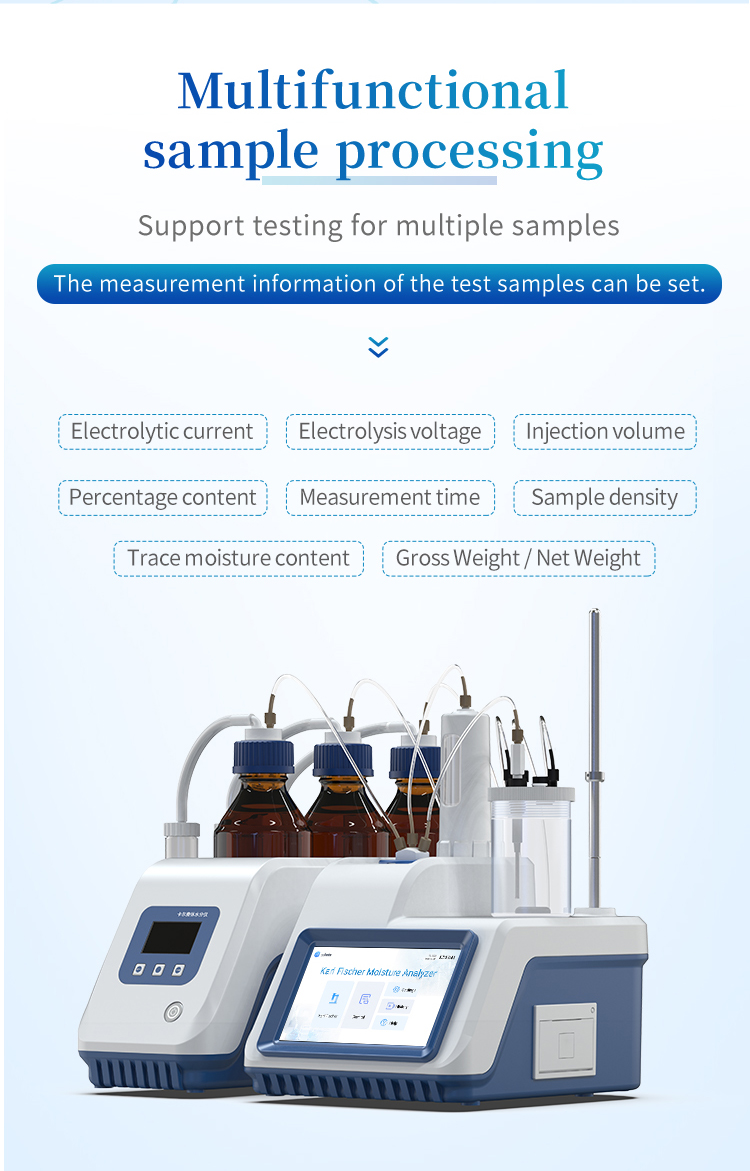

Configurable detection parameters (electrolysis current, voltage, content threshold, time limit)
-
Built-in thermal printer supporting QR code and detailed result printing
-
QR code scanning for instant result retrieval on mobile devices
-

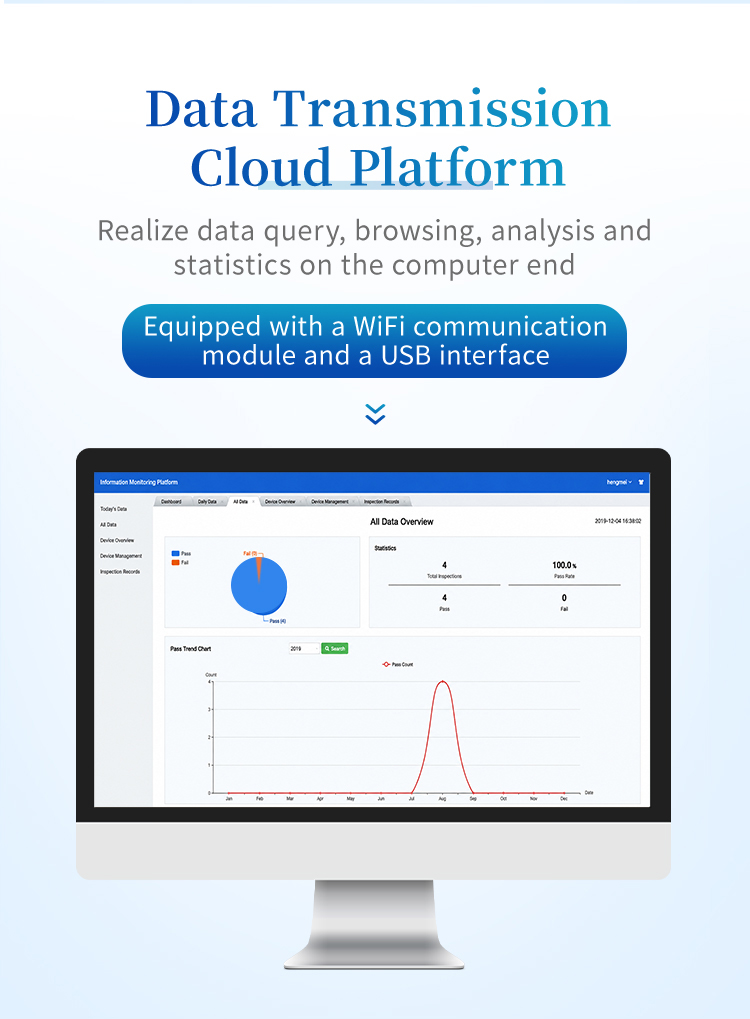

Wi-Fi module for cloud data upload and remote query
-
Directed remote firmware update without factory return
-
Historical record search and standard USB interface with 200,000+ record storage
-
Compliance with 19+ national standards for Karl Fischer moisture determination
Main Parameters
| Parameter | Specification |
|---|---|
| Detection Principle | Karl Fischer coulometric method |
| Measurement Range | 0.01% to 100% |
| Sensitivity Threshold | 0.01 μg |
| Processor | ARM Cortex-A7, RK3288 quad-core, 1.88 GHz |
| Display | 7-inch LCD touchscreen |
| Sample Introduction | Volumetric or gravimetric method (selectable) |
| Storage Capacity | 200,000+ records via USB |
| Connectivity | Wi-Fi, USB |
| Weight | 2 kg |

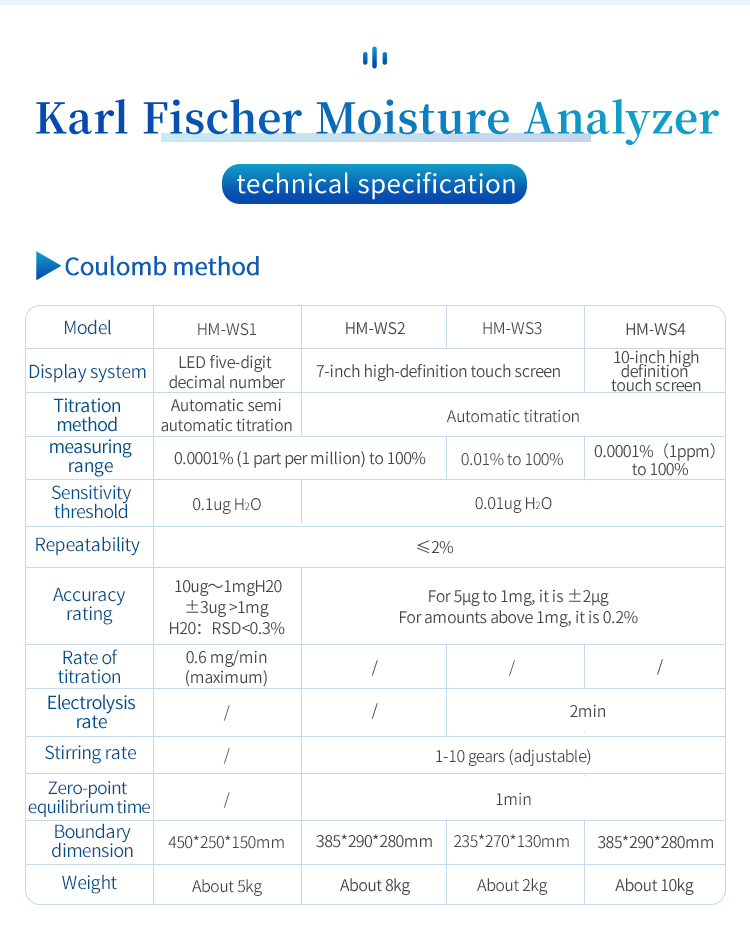

Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HM-WS3 |
| Measurement Range | 0.01%–100% |
| Sensitivity Threshold | 0.01 μg |
| Accuracy (5 μg–1 mg) | ±2 μg |
| Accuracy (>1 mg) | 0.2% |
| Repeatability | ≤2% |
| Electrolysis Speed | 2 min |
| Stirring Speed | 1–10 levels adjustable |
| Zero Balance Time | 1 min |
| Instrument Power | 36 W |
| Operating Temperature | 5°C–40°C |
| Operating Humidity | <85% |
| Dimensions | 235 × 270 × 130 mm |
| Power Supply | 12 V / 3 A |
| Weight | 2 kg |
| Compliant Standards | 19+ national standards |
