Product Details
Product Introduction

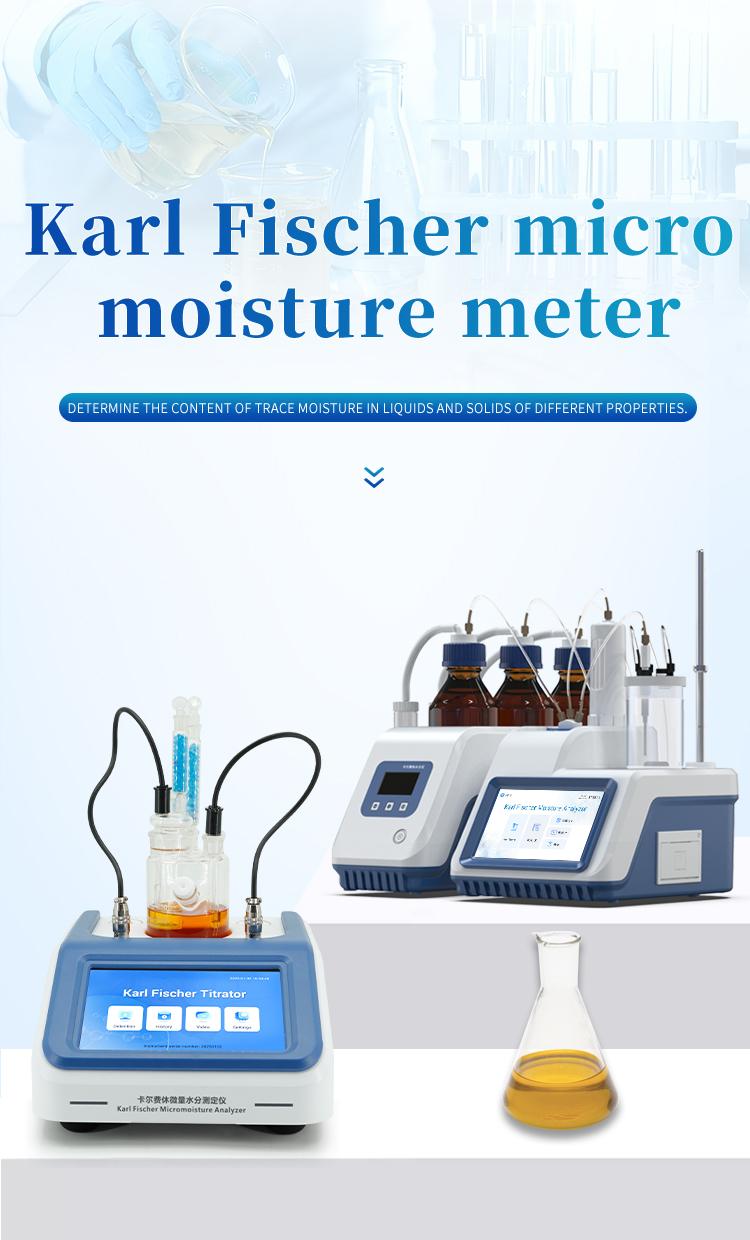

The HM-WS2 is a fully automatic Karl Fischer coulometric titrator equipped with a 7.0-inch 800×480 pixel true-color TFT-LCD touchscreen and a capacitive human-sensing keyboard, providing an intuitive all-Chinese operating interface for daily laboratory moisture analysis. Powered by a TI AM3354 processor (Cortex-A8 core, 1 GHz) running the Windows Embedded Compact 7 real-time industrial control system, the instrument delivers stable and responsive operation.
The HM-WS2 measures moisture content from 0.0001% (1 ppm) to 100% with a sensitivity threshold of 0.01 μg H₂O — an order of magnitude more sensitive than basic LED-display models. Accuracy specifications include errors below 2 μg for water content under 10 μg, within 2 μg for 10–1000 μg, and within 0.2% for content above 1000 μg. The instrument automatically completes determination in approximately 60 seconds and provides direct result display, automatic calculation of percentage content, and printing of sample number, operator, and date.

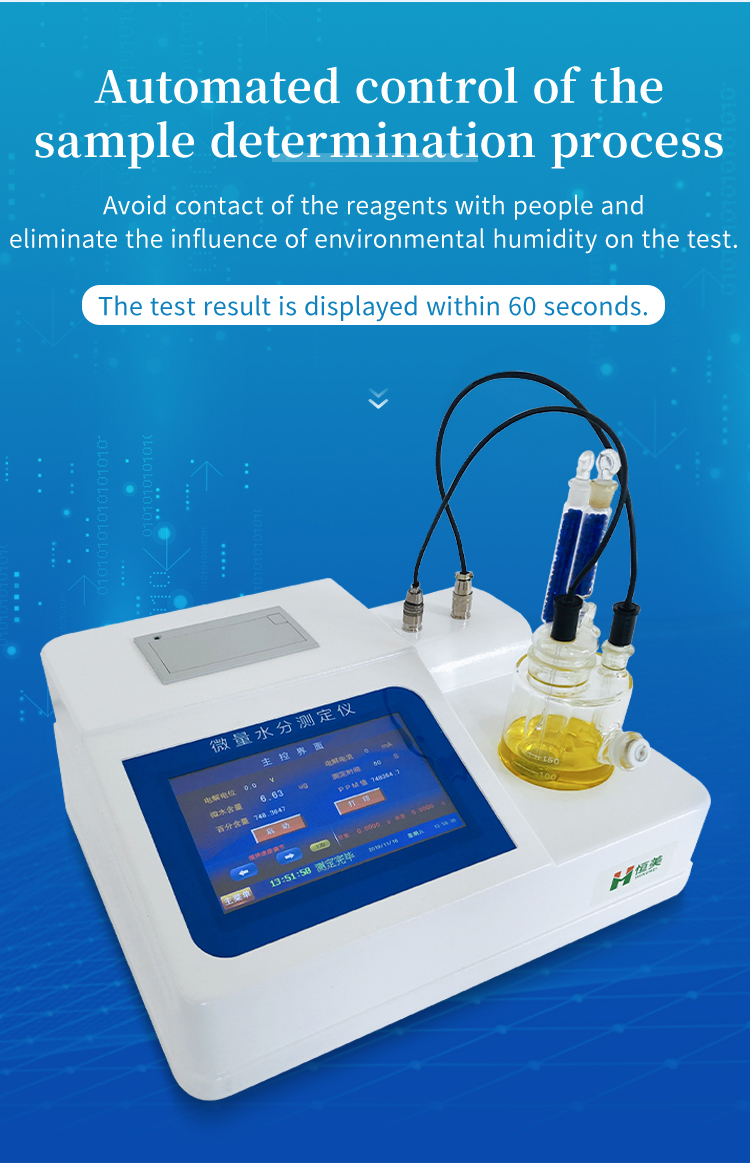

A sealed titration cell bottle ensures operator safety during routine use. Compliant with 23 national and industry standards (GB/T and SH/T series), the HM-WS2 is suitable for moisture determination in petroleum, chemical, pharmaceutical, food, and electric power industries.
Applications / Testing Items
Petroleum and petrochemical products moisture analysis
Pharmaceutical water content determination
Food industry moisture testing
Chemical raw materials trace water measurement
Electric power insulation oil testing
Laboratory standardized moisture determination
Solid and liquid sample indirect moisture measurement
Features
Fully automatic Karl Fischer coulometric titration with one-touch operation

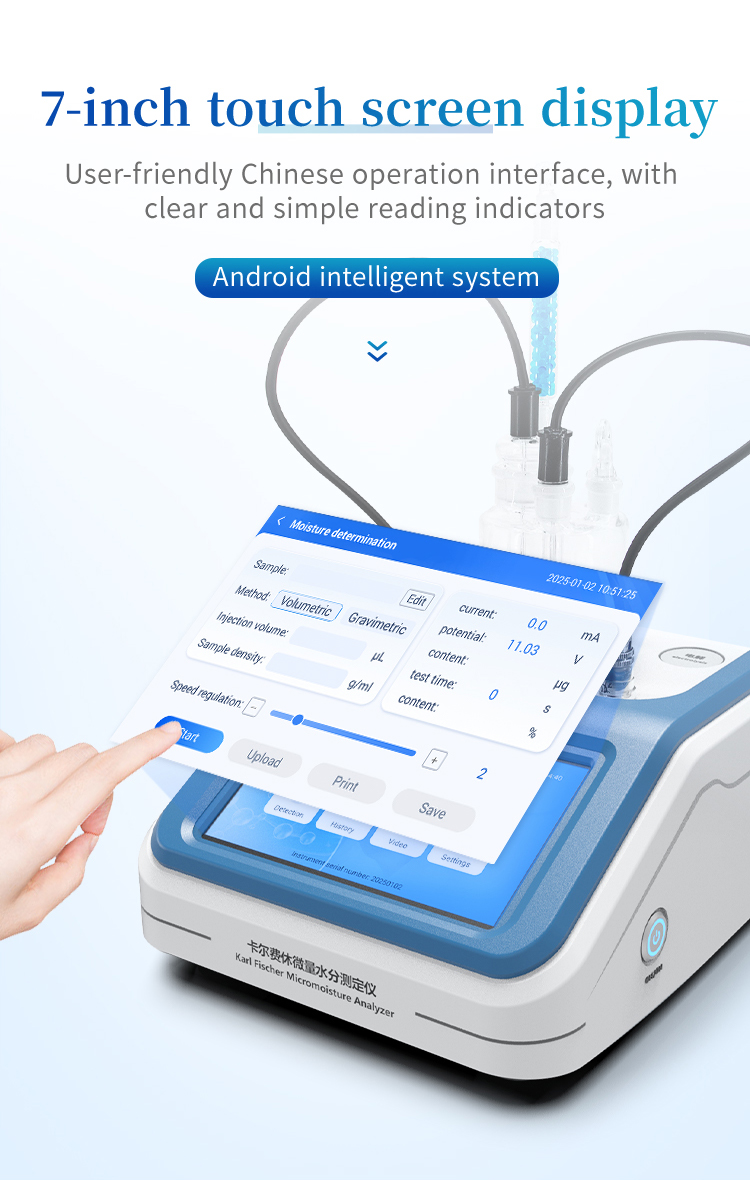

7.0-inch 800×480 true-color TFT-LCD touchscreen with capacitive human-sensing keyboard
All-Chinese operating interface for straightforward daily use
TI AM3354 processor (ARM Cortex-A8, 1 GHz) for responsive instrument control
Windows Embedded Compact 7 real-time industrial control operating system
Measurement range from 0.0001% (1 ppm) to 100% with 0.01 μg H₂O sensitivity
Automatic calculation and printing of percentage content, sample number, operator, and date
Result storage function for retrieval and review of historical measurements
Sealed titration cell bottle preventing reagent-operator contact
Accuracy: error <2 μg below 10 μg water, ≤2 μg for 10–1000 μg, ≤0.2% above 1000 μg
Compliance with 23 national and industry standards (GB/T, SH/T series)
Power consumption below 60W with operating temperature range of 5–40°C
Main Parameters
| Parameter | Specification |
|---|---|
| Display | 7.0-inch 800×480 TFT-LCD touchscreen |
| Measurement Range | 0.0001% (1 ppm) to 100% |
| Sensitivity Threshold | 0.01 μg H₂O |
| Determination Time | ~60 seconds (automatic) |
| Processor | TI AM3354, Cortex-A8, 1 GHz |
| Operating System | Windows Embedded Compact 7 |
| Power Consumption | <60W |
| Power Supply | AC 220V ±10%, 50Hz ±5% |
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HM-WS2 |
| Display | 7.0-inch LCD color touchscreen |
| Measurement Range | 0.0001% (1 ppm) to 100% |
| Sensitivity Threshold | 0.01 μg H₂O |
| Accuracy (water <10 μg) | Error <2 μg |
| Accuracy (10–1000 μg) | Error ≤2 μg |
| Accuracy (>1000 μg) | Error ≤0.2% |
| Power Consumption | <60W |
| Operating Temperature | 5–40°C |
| Humidity | <85% |
| Dimensions | 385 × 290 × 280 mm |
| Power Supply | AC 220V ±10%, 50Hz ±5% |
| Weight | ~8 kg |
| Applicable Standards | 23 national and industry standards (GB/T, SH/T) |
