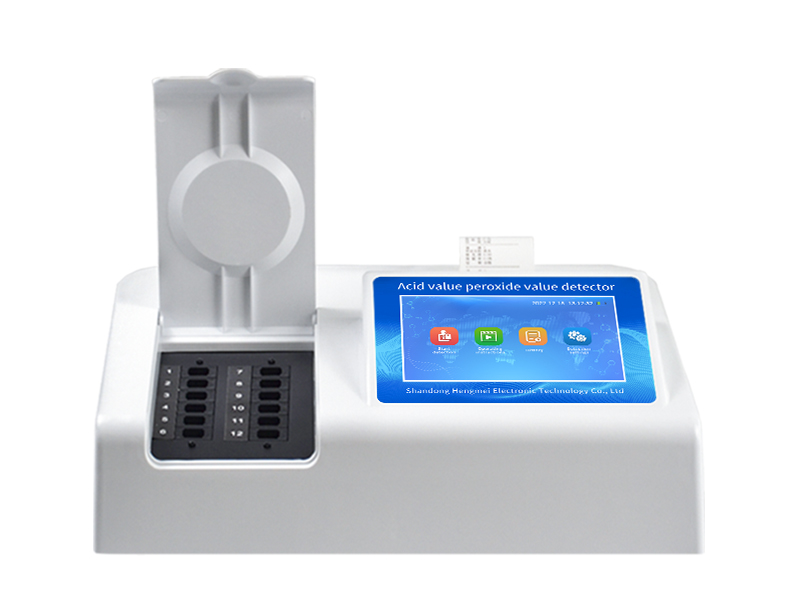

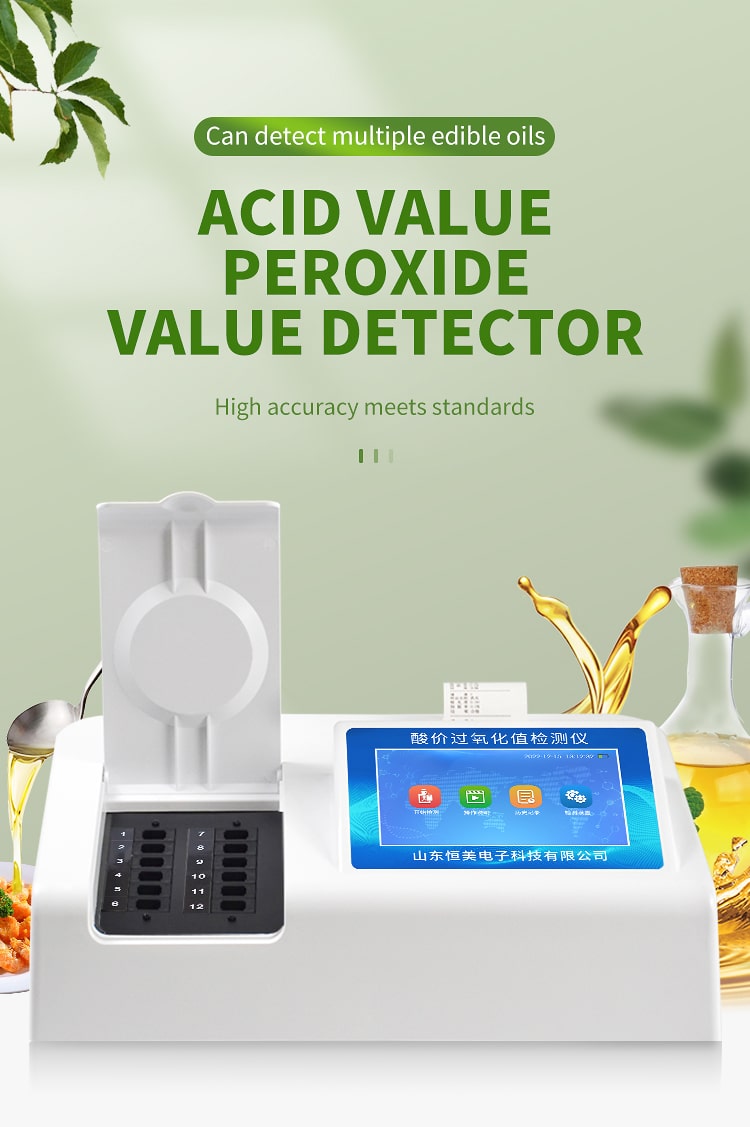

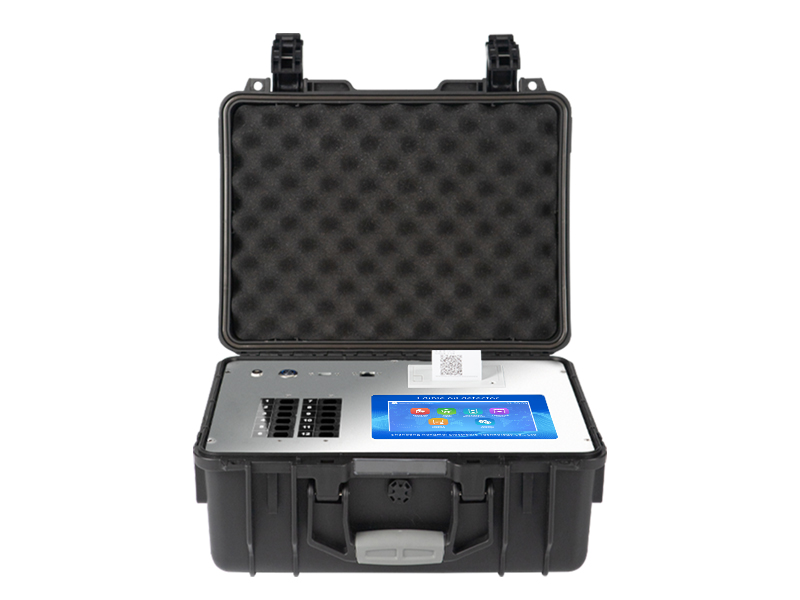

Oil acid value detector

Product use:

Oil acid value detector is an integrated oil rapid detection and analysis equipment, which can quickly detect the acid value content in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food, and meat products; through detection, it can be determined whether the vegetable oil meets the national standards or whether it is inferior oil, gutter oil, etc. The instrument reserves other project detection procedures and ports, and can easily add detection items according to future needs. It can be upgraded to a comprehensive type of instrument for detecting aquatic products and noodle products in the future.

Instrument application:

Widely used in quality supervision and inspection, industrial and commercial management, fried food production bases, food and drug administration, health departments, meat products and food deep processing enterprises, shopping malls and supermarkets, major food safety monitoring systems and other units.

Function introduction:

1. Android intelligent operating system, using more efficient and user-friendly operation, the instrument has network cable connection, wifi network upload, GPRS wireless remote transmission function, and fast data upload.

2. The integrated portable rapid testing equipment meets the needs of on-site and mobile testing. It can realize the testing of all test items under the same software, and can intuitively display the test results through the same window.

3. The instrument has a high degree of intelligence and has a self-test function: it has power-on self-test and zero adjustment functions, and has an automatic detection repeatability function.

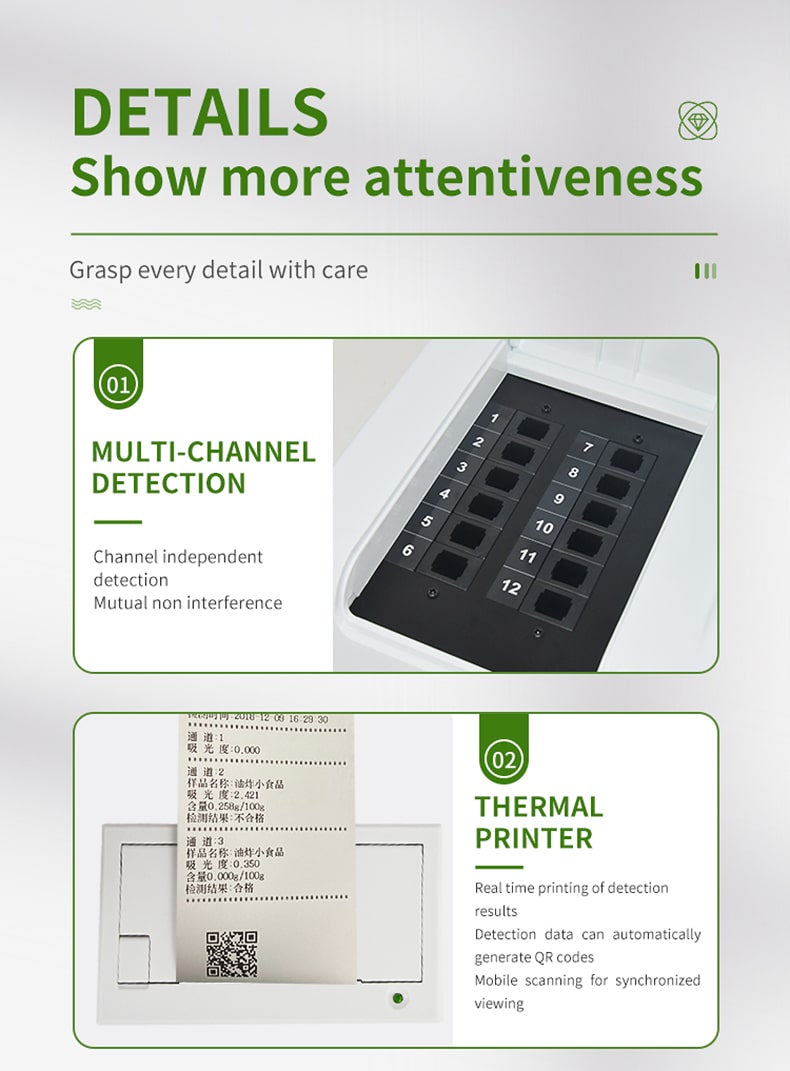

4. Detection channel: ≥12 detection channels, multiple samples can be tested at the same time, and each sample is controlled by the program to work independently without interfering with each other.

5. Equipped with a new generation of embedded thermal printer, you can choose manual printing or automatic printing, and the test report and QR code can be automatically printed after the test is completed.

6. The light source adopts imported ultra-bright light-emitting diodes, which are high-precision, stable, controllable, can turn off unused light sources, and have lower power consumption.

7. It adopts a standard USB2.0 interface design, supports U disk storage, driver-free installation, convenient data storage and movement, and can be directly connected to the computer at any time, and the instrument can be controlled by a computer. Realize data query, browsing, analysis, statistics, printing, etc.

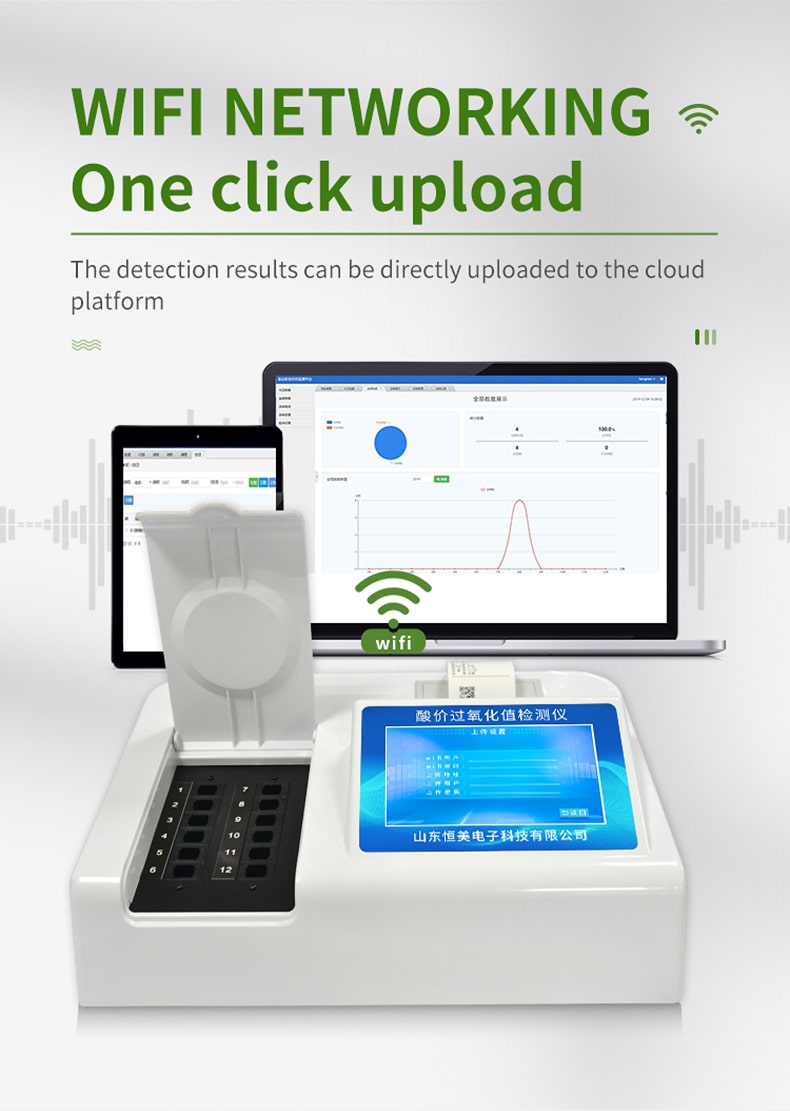

8. The instrument has a supervision platform. Data can be uploaded to the local area network and the Internet, and the test results can be uploaded directly wirelessly. Data analysis and processing are carried out to detect the long-term and short-term dynamics of food safety such as oil products, so as to achieve problem prediction and early warning.

9. The instrument has a menu library of various types of samples, which can flexibly select test samples, and different test channels can detect different sample items at the same time.

10. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

11. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operations.

12. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

13. Built-in powerful database, you can directly select sample name, detection index, inspection unit and other information on the instrument, or directly edit and enter sample name, detection index, inspection unit and other information on the instrument and save it in the sample database.

14. The instrument has the functions of recalibration, locking, and restoring factory settings.

15. The result judgment line can be modified, the reference value calibration value can be saved, and the data will not be lost when the power is off.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, with a main frequency of 1.88Ghz, faster operation speed and stronger stability.

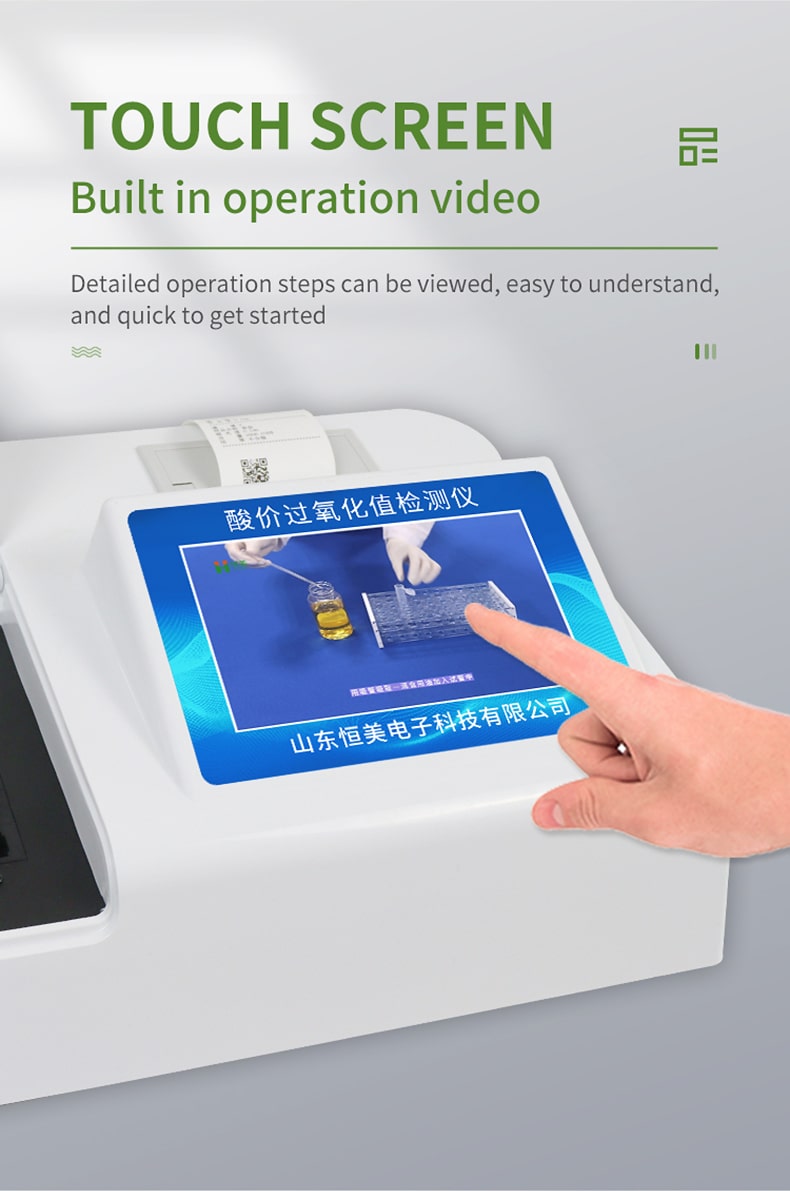

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to the vehicle power supply, and can be equipped with 6ah large-capacity rechargeable lithium battery, which is convenient for outdoor flow testing.

4. Automatic adjustment and calibration of light source brightness

5. Intelligent constant current voltage regulation, automatic calibration of light intensity, and no temperature drift of light source for long-term continuous operation.

6. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

7. Uninterrupted sampling and continuous detection

8. Sample numbers are automatically accumulated.

9. The detection items can be expanded.

10. The test results can be printed and uploaded in batches.

11. The test results are Excel tables, which can be copied by connecting to a computer.

12. Large-capacity lithium battery can be configured, and the firmware can be upgraded

Technical parameters:

☆ Accuracy error: ±3%

☆ Linear error: ±5‰

☆ Stability: ±0.001A/hr

☆ Wavelength accuracy: <2.0nm

☆ Transmittance repeatability: ±1%

☆ Edible oil detection limit: 0.2mg KOH/g

☆ Meat products, food detection limit: 0.5mg KOH/g

☆ Linear range: 0.2~10 mg KOH/g

☆ Data storage 200,000

☆ Colorimetric dish: 10×10mm standard sample pool

☆ Appearance size: 415X310X150(mm)
