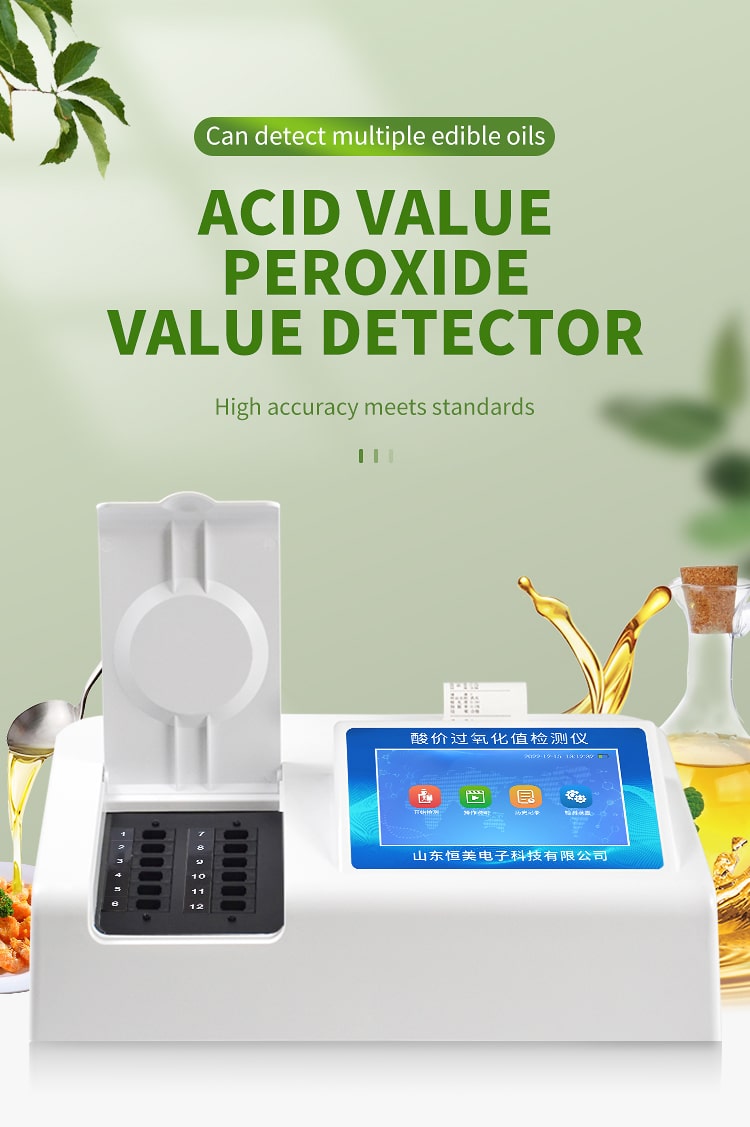

Peroxide value detector

Product use:

The peroxide value detector is an integrated oil rapid detection and analysis equipment, which can quickly detect the peroxide value content in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food, and meat products; through detection, it can be determined whether the vegetable oil meets the national standards or whether it is inferior oil, gutter oil, etc. The instrument reserves other project detection procedures and ports, and can easily add detection items according to future needs. It can be upgraded to a comprehensive type of instrument for detecting aquatic products and noodle products in the future.

Instrument application:

It is widely used in quality supervision and inspection, industrial and commercial management, fried food production bases, food and drug administration, health departments, meat products and food deep processing enterprises, shopping malls and supermarkets, major food safety monitoring systems and other units.

Function introduction:

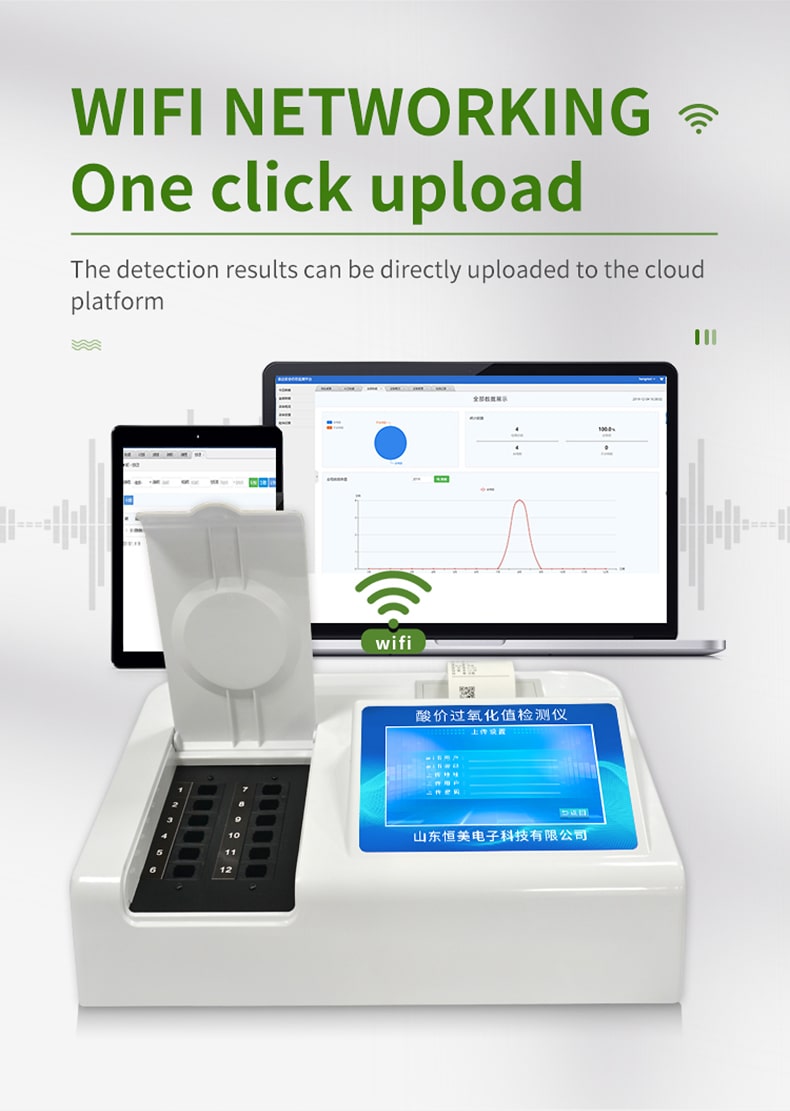

1. Android smart operating system, using more efficient and humanized operation, the instrument has network cable connection, wifi network upload, GPRS wireless remote transmission function, and fast data upload.

2. Integrated portable rapid detection equipment, meeting the needs of on-site and mobile detection, can realize the detection of all detection items under the same software, and can intuitively display the test results through the same window.

3. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection repeatability function.

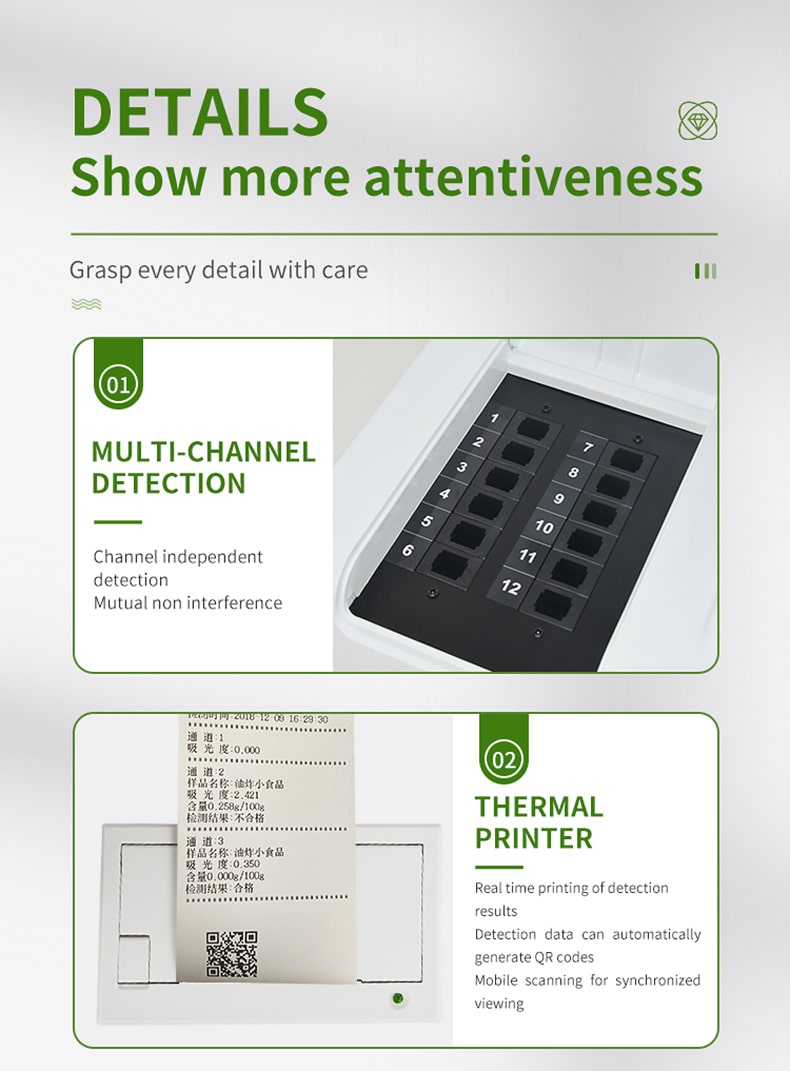

4. Detection channel: ≥12 detection channels, multiple samples can be tested at the same time, each sample is controlled by the program and works independently without interfering with each other.

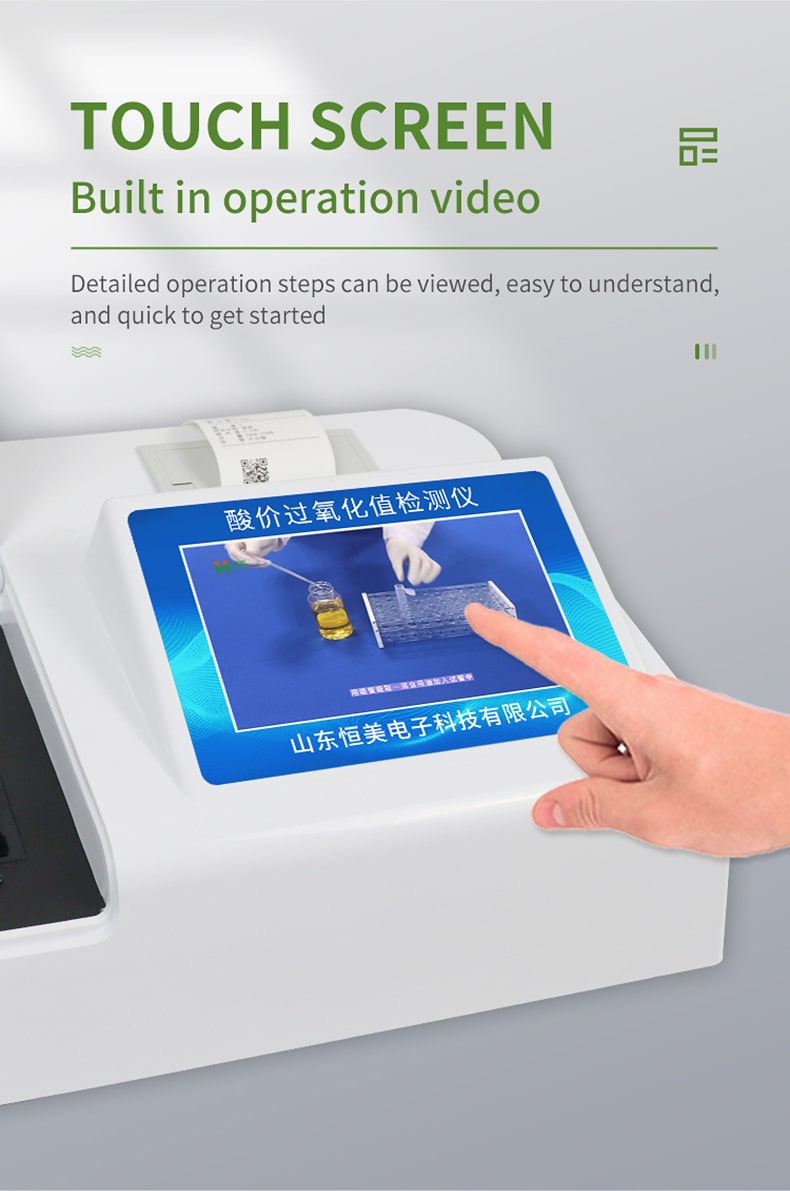

5. Display mode: ≥8-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

6. Equipped with a new generation of embedded thermal printer, you can choose manual printing or automatic printing, and the detection report and QR code can be automatically printed after the detection is completed.

7. The light source adopts imported ultra-bright light-emitting diodes, which are high-precision, stable, controllable, can turn off unused light sources, and have lower power consumption.

8. The USB2.0 interface design is adopted to facilitate data storage and movement, and can be directly connected to the computer at any time, and the instrument can be controlled by the computer. Realize data query, browsing, analysis, statistics, printing, etc.

9. The instrument has a variety of sample menu libraries, which can flexibly select detection samples, and different detection channels can detect different sample items at the same time.

10. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

11. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operation, etc.

12. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

13. The instrument has the functions of recalibration, locking, and restoring factory settings.

14. The result judgment line can be modified, the reference value calibration value can be saved, and the power is not lost when the power is off.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster, and the stability is stronger.

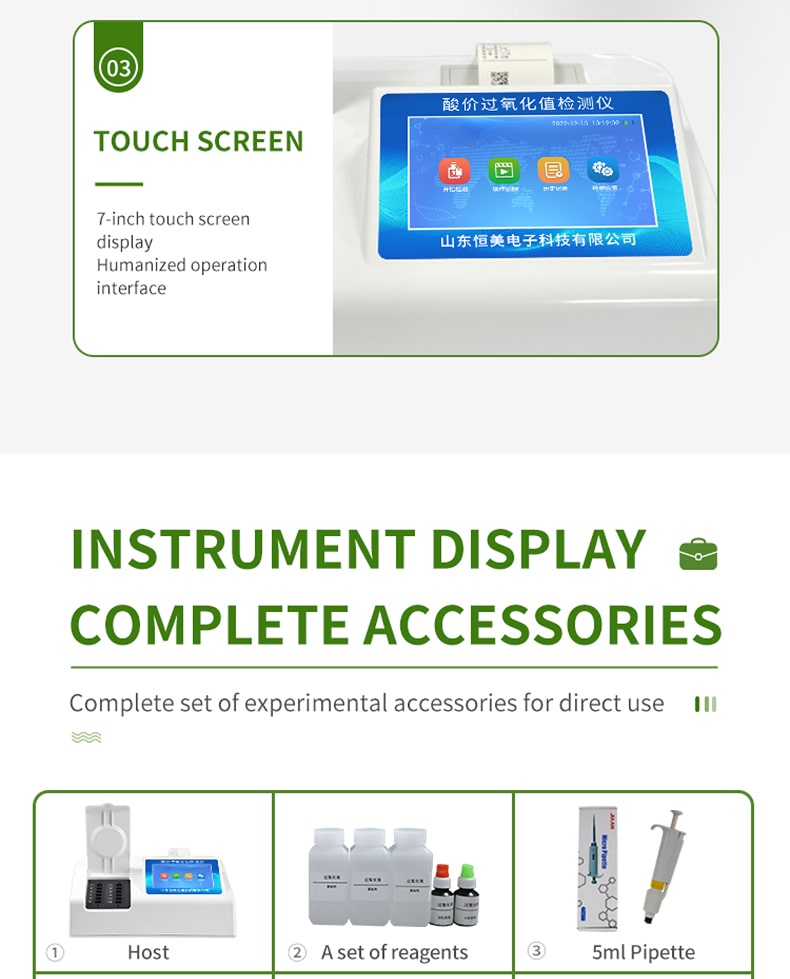

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Dual-wavelength cold light source, each channel is equipped with 405 and 528nm wavelength light sources, and advanced optical path switching device is standard. The patented optical path switching function can achieve up to 64 wavelengths, and all test items can achieve simultaneous detection of all channels.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, and no temperature drift of the light source during long-term continuous operation.

7. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

8. Uninterrupted sampling and continuous detection

9. Automatic accumulation of sample numbers.

10. The test items can be expanded.

11. The test results can be printed and uploaded in batches.

12. The test results are Excel tables, which can be copied by connecting to a computer.

13. Support U disk storage, standard USB interface, and driver-free installation.

14. Large-capacity lithium battery can be configured, and the firmware can be upgraded

Technical parameters:

☆ Accuracy error: ±3%

☆ Linear error: ±5‰

☆ Stability: ±0.001A/hr

☆ Wavelength accuracy: <2.0nm

☆ Transmittance repeatability: ±1%

☆ Edible oil detection limit: 0.2mg KOH/g

☆ Meat products, food detection limit: 0.5mg KOH/g

☆ Linear range: 0.2~10 mg KOH/g

☆ Data storage 200,000

☆ Colorimetric dish: 10×10mm standard sample pool

☆ Appearance size: 415X310X150(mm)
