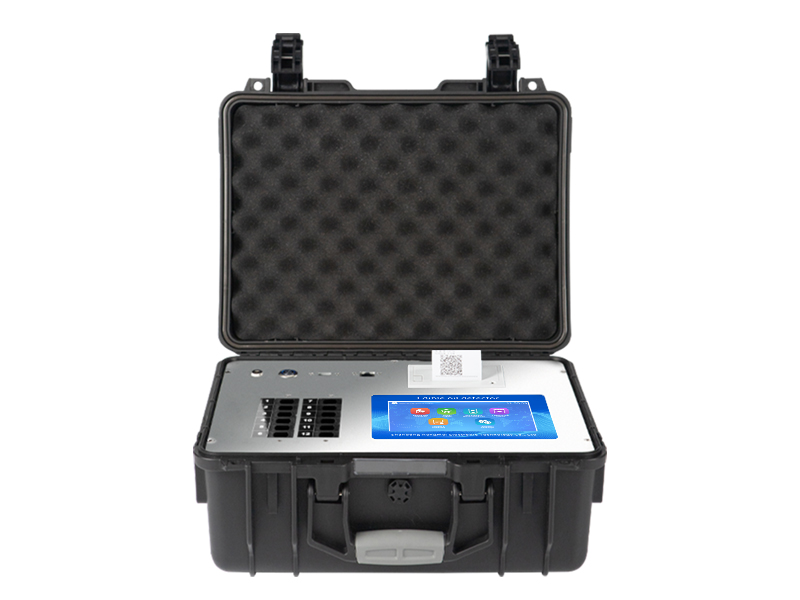

Edible Oil Comprehensive Detector

Product use:

The edible oil comprehensive detector is an integrated oil rapid detection and analysis equipment, which can quickly detect the acid value, peroxide value, aflatoxin and other contents in edible vegetable oil, edible lard, peanut oil, sunflower oil, rice bran oil, food, and meat products; through detection, it can be determined whether the vegetable oil meets the national standards or whether it is rancid oil, inferior oil, gutter oil, etc. The instrument reserves other project detection procedures and ports, and can easily add detection items according to future needs. It can be upgraded to a comprehensive type of instrument for detecting aquatic products and noodle products in the future.

Instrument application:

It is widely used in quality supervision and inspection, industrial and commercial management, fried food production bases, food and drug administration, health departments, meat products and food deep processing enterprises, agricultural departments, inspection and quarantine departments, shopping malls and supermarkets, major food safety monitoring systems and other units.

Features:

1. Android smart operating system, using a more efficient UI interactive interface, the instrument has wifi network upload, 4G network transmission, GPRS wireless remote transmission, network cable connection functions, fast batch upload data.

2. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection and repetition functions.

3. A new generation of high-speed thermal printer, which can automatically print and batch print test reports and QR codes after the test is completed.

4. The instrument has a supervision platform, data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning

5. Integrated host, including photoelectric colorimetric measurement module and colloidal gold immunochromatography detection module.

6. Integrated portable rapid detection equipment, which meets the needs of on-site and mobile detection, can realize the detection of all test items under the same software, and can intuitively display the test results through the same window.

7. Colloidal gold module detection method: track-type automatic transmission scanning, and automatically exit the test card after the test is completed.

8. The food safety detector automatically identifies the CT line, without manual adjustment. The CT coordinate curve is automatically displayed after the test is completed.

9. It has a built-in powerful database with a multi-category and multi-type sample menu function, which can flexibly select test samples. Different test channels can detect different sample items at the same time. You can also directly edit and enter sample names, test indicators, test units and other information on the instrument and save them in the sample database.

10. The instrument has a built-in operation demonstration video, which is a laboratory guidance expert around you.

11. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

12. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operations.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The result judgment line can be modified, the control value calibration value can be saved, and the power is off without losing data.

15. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, and the user experience is greatly enhanced.

16. The instrument has the functions of recalibration, locking, and restoring factory settings.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, main frequency 1.88Ghz, faster operation speed and stronger stability.

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. AC and DC dual-purpose, DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Four-wavelength cold light source, 12 detection channels, each channel is equipped with 410, 520, 590, 630nm wavelength light source, standard advanced optical path switching device, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve simultaneous detection of all channels.

5. Intelligent constant current voltage stabilization, automatic adjustment and calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.

6. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

7. Uninterrupted sampling and continuous testing

8. Automatic accumulation of sample numbers.

9. Data can be wirelessly uploaded to the platform and exported from the platform as Excel tables.

10. Storage capacity of 200,000 test results

11. Supports USB copying, standard USB interface, and driver plug-in and unplug-free.

12. The detection items can be expanded and the firmware can be upgraded

13. Instrument size: 43×35×19cm, main unit net weight: 5.1kg

Technical parameters:

☆ Accuracy error: ±3%

☆ Linear error: ±5‰

☆ Stability: ±0.001A/hr

☆ Wavelength accuracy: <2.0nm

☆ Transmittance repeatability: ±1%

☆ Edible oil detection limit: 0.2mg KOH/g

☆ Meat products, food detection limit: 0.5mg KOH/g

☆ Linear range: 0.2~10 mg KOH/g

☆ Data storage 200,000 records

☆ Colorimetric dish: 10×10mm standard sample pool

☆ Appearance size: 415X310X150(mm)
