Chlorophyll blue-green algae analyzer

Product Introduction:

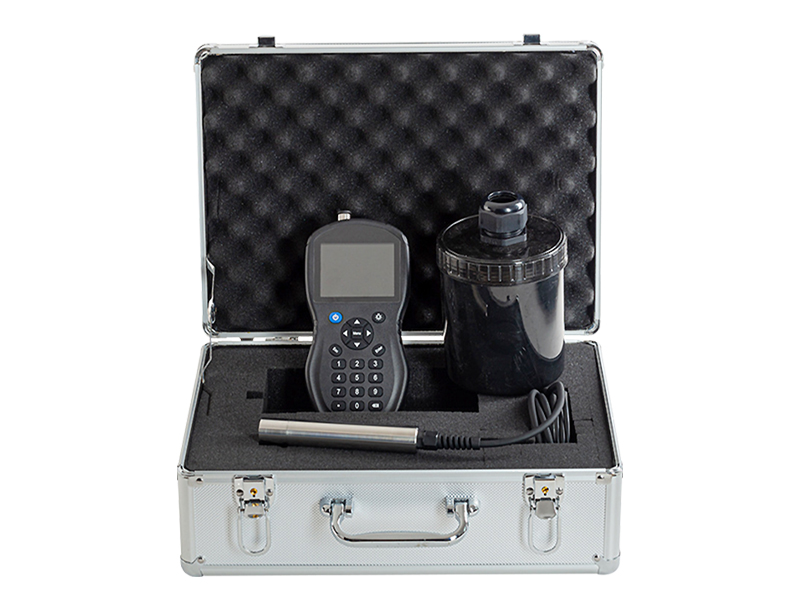

The chlorophyll blue-green algae analyzer consists of a portable handheld operator and a portable sensor. It uses the characteristics of cyanobacteria/chlorophyll in the spectrum that there are absorption peaks and emission peaks. It emits monochromatic light of a specific wavelength into the water. The cyanobacteria/chlorophyll in the water absorbs the energy of the monochromatic light and releases monochromatic light of another wavelength. The light intensity emitted by the cyanobacteria/chlorophyll is proportional to the content of cyanobacteria in the water.

Main features:

1. The host has IP67 protection grade;

2. 3.5-inch color screen display, beautiful interface menu design, simple and convenient operation;

3. Ergonomic curve design, suitable for hand holding, with rubber non-slip hand strap, not easy to slip in humid environment;

4. With data storage function, and data export can be realized through USB interface;

5. Built-in rechargeable battery, and directly charged through USB, no need to remove the battery;

6. Automatically identify the type of connected sensor, and the reading interface automatically adapts;

7. The sensor can be parameterized and calibrated;

Typical applications:

Widely used in on-site portable monitoring of blue-green algae/chlorophyll in water in industries and fields such as aquaculture, surface water, scientific research universities, etc.

Technical parameters:

Chlorophyll a:

Measurement range: 0-500 ug/L;

Measurement accuracy: ±5% of the corresponding value of the signal level of 1ppb Rhodamine B dye;

Resolution: 0.01 ug/L value;

Cyanobacteria:

Measurement range: 200-300,000cells/mL (range can be customized);

Measurement accuracy: ±10% of the corresponding value of the signal level of 1ppb Rhodamine B dye

Resolution: 20 cells/mL

Linearity: R2 >0.999

Shell material: Sensor: SUS316L, portable host: ABS+PC;

Storage temperature: -15 to 60℃;

Working temperature: 0~50℃ (no freezing);

Dimensions/weight:

Sensor size: diameter 24mm*length 145mm Weight: <0.25KG;

Size of portable host: 203*100*43mm, weight: 0.5KG

Protection level: portable host IP67, chlorophyll sensor IP68;

Cable length: standard 3-meter cable (extendable);

Display: 3.5-inch color display screen, adjustable backlight;

Data storage: more than 100,000 data;
