Blue-green algae analyzer in water

Product introduction:

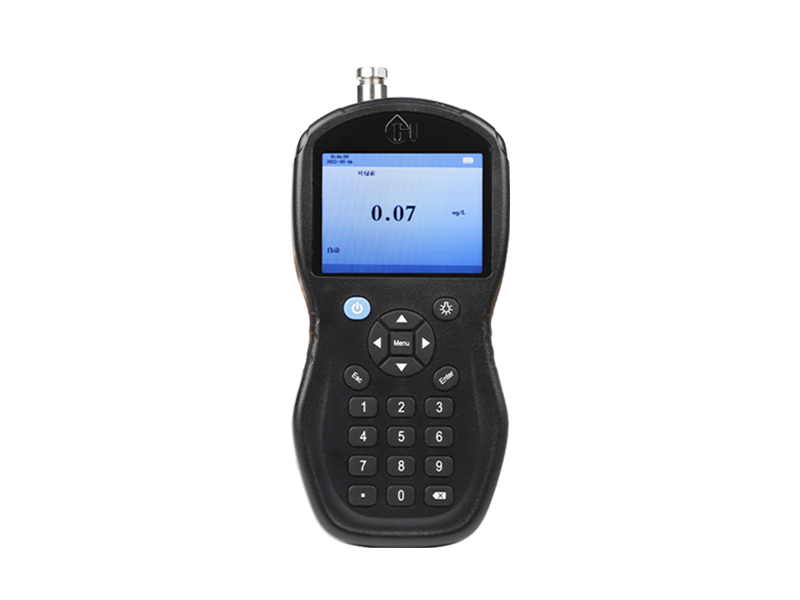

The blue-green algae analyzer in water consists of a portable host and a blue-green algae sensor. It uses the characteristics of blue algae in the spectrum that there are absorption peaks and emission peaks. It emits monochromatic light of a specific wavelength into the water. The blue algae in the water absorb the energy of the monochromatic light and releases monochromatic light of another wavelength. The light intensity emitted by the blue-green algae is proportional to the content of blue algae in the water.

Main features:

1. The host has IP67 protection level;

2. 3.5-inch color screen display, beautiful interface menu design, simple and convenient operation;

3. Ergonomic curve design, suitable for hand holding, with rubber non-slip hand strap, not easy to slip in humid environment;

4. With data storage function, and data export can be realized through USB interface;

5. Built-in rechargeable battery, and directly charged through USB, no need to remove the battery;

6. Automatically identify the type of connected sensor, and the reading interface automatically adapts;

7. Parameters of the sensor can be set and calibrated;

Typical applications:

Widely used in on-site portable monitoring of chlorophyll in water in industries and fields such as aquaculture, surface water, scientific research universities, etc.

Technical parameters:

Measurement range: 200-300,000 cells/mL (range can be customized);

Measurement accuracy: ±10% of the corresponding value of the signal level of 1ppb Rhodamine B dye;

Resolution: 20 cells/mL;

Linearity: R2 >0.999;

Shell material: Blue-green algae sensor: SUS316L, portable host: ABS+PC;

Storage temperature: -15 to 60℃;

Working temperature: 0~50℃ (no freezing);

Dimensions/weight:

Blue-green algae sensor size: diameter 24mm*length 145mm weight: <0.25KG;

Portable host size: 203*100*43mm, weight: 0.5KG;

Protection level: portable host IP67, chlorophyll sensor IP68;

Cable length: standard 3-meter cable (extendable);

Display: 3.5-inch color display screen, adjustable backlight;

Data storage: more than 100,000 data;
