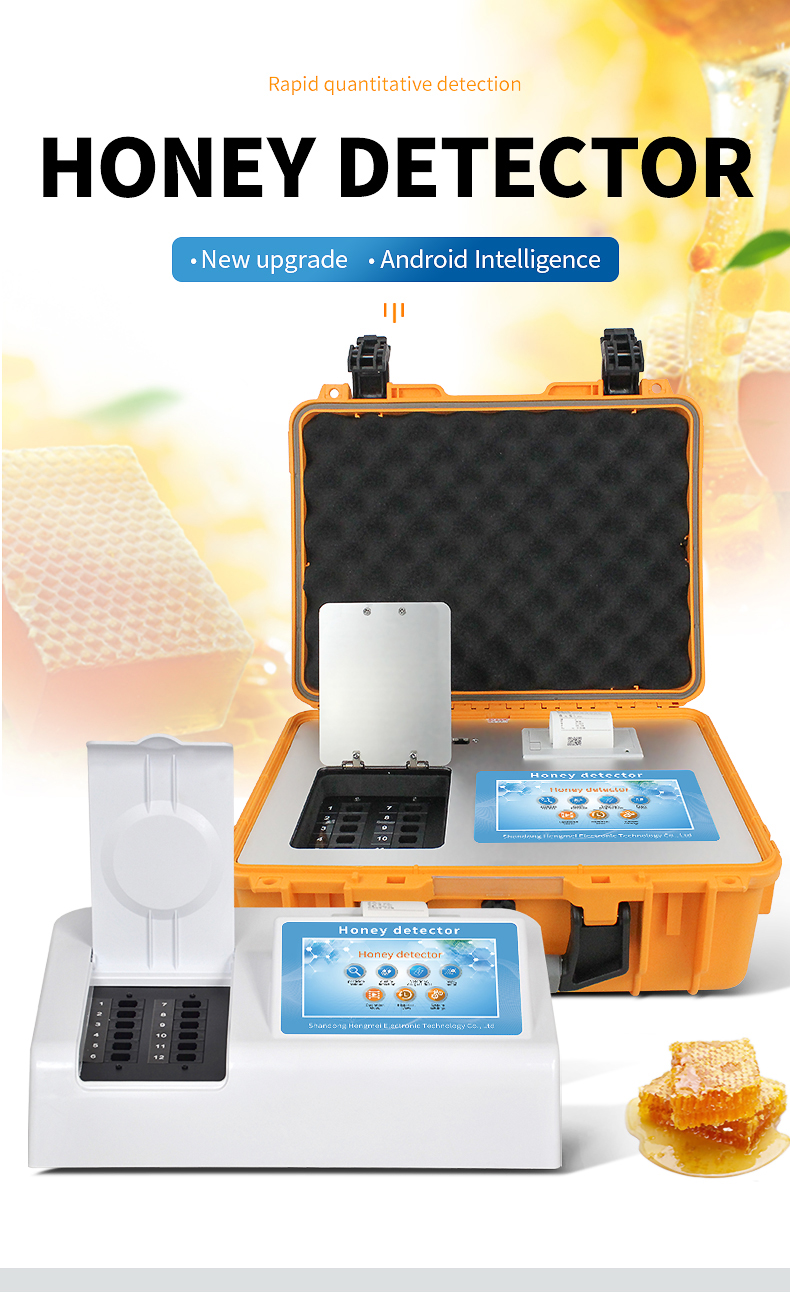

HM-FM1 Honey Quality Analyzer

Product Introduction

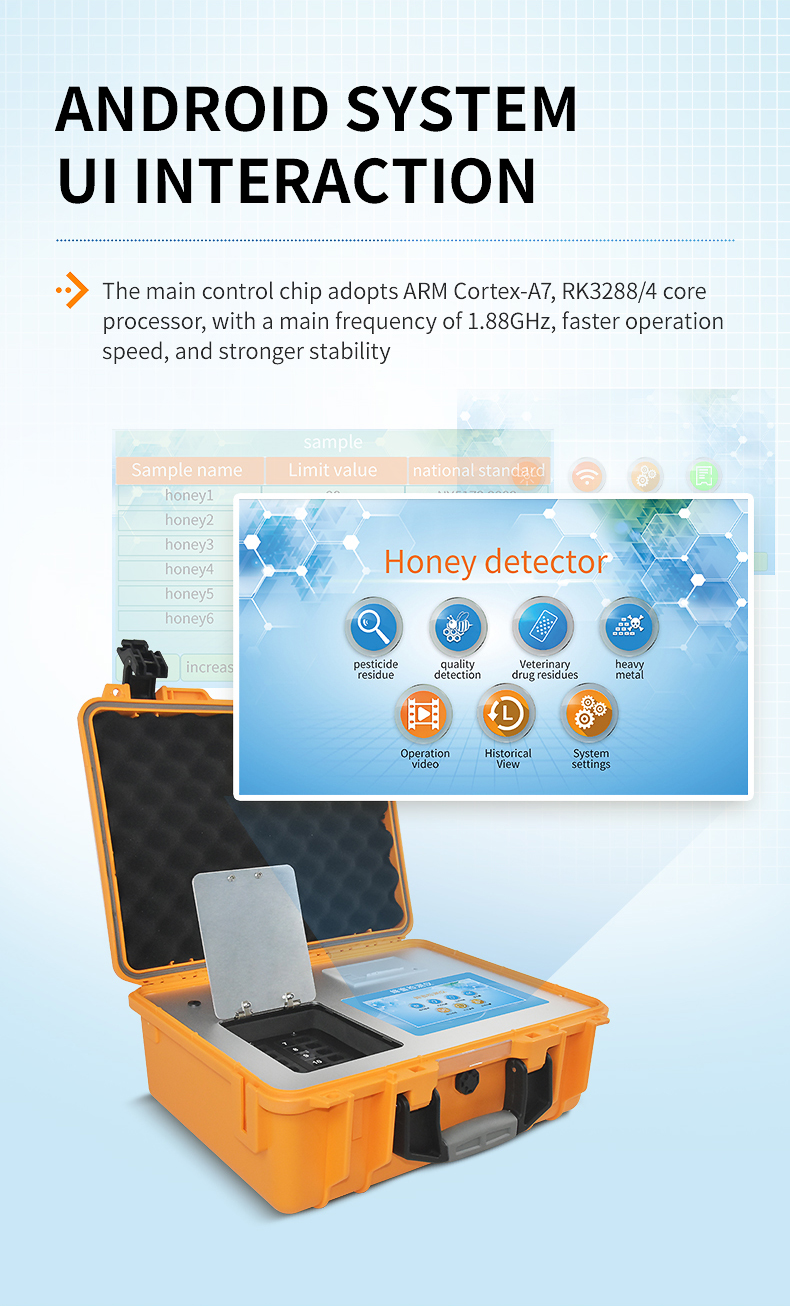

The HM-FM1 is a multi-channel honey quality analyzer engineered for rapid on-site quantitative detection of 10 critical honey parameters. Powered by an ARM Cortex-A7 quad-core processor (RK3288, 1.88 GHz) running the Android operating system, the instrument provides an intuitive 7-inch LCD touchscreen with a Chinese-language interface for straightforward operation.

The analyzer employs photoelectric colorimetric detection with single-wavelength cold light sources at 410, 528, 590, and 620 nm — expandable to 64 wavelengths — distributed across 12 independent detection channels that operate simultaneously without cross-interference. Each channel incorporates constant-current voltage regulation and automatic light intensity calibration for consistent measurement stability and repeatability.

Equipped with a built-in thermal printer for on-demand report and QR code generation, the HM-FM1 supports GPRS wireless remote transmission and Wi-Fi connectivity for uploading data to food safety regulatory platforms. Storage capacity reaches 200,000 records, with USB 2.0 and U-disk support for data export and backup, ensuring complete traceability throughout the honey quality control process.

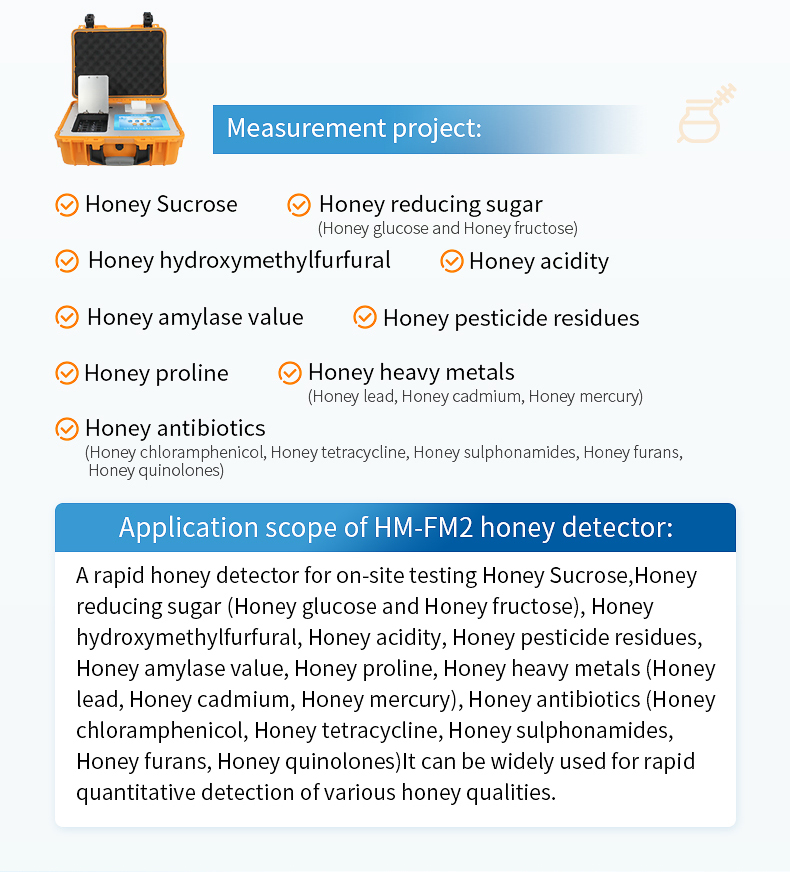

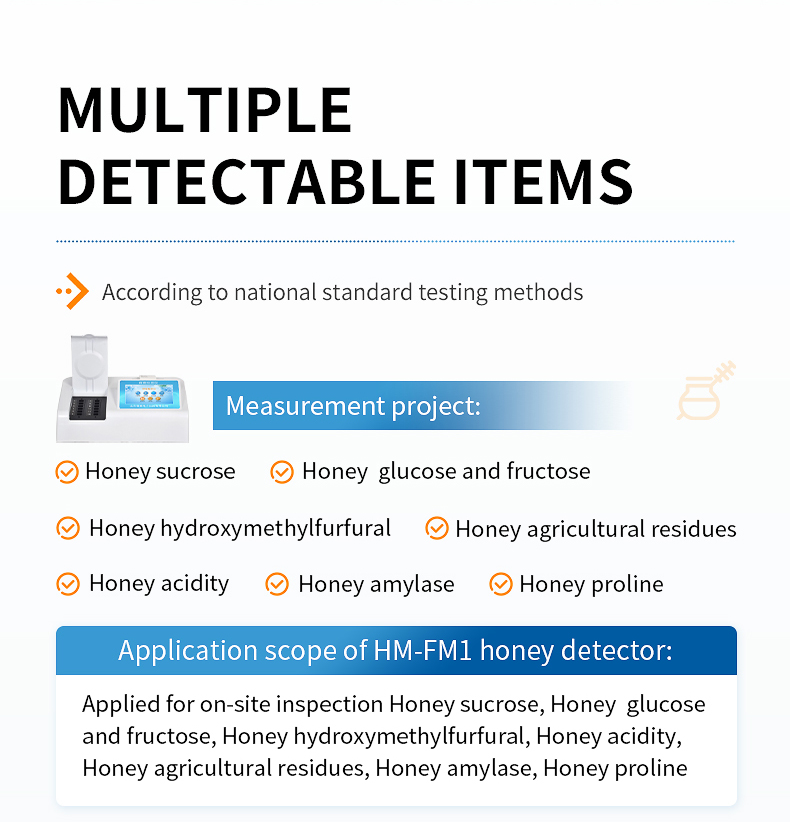

Applications / Testing Items

• Honey sucrose content

• Honey reducing sugars (glucose and fructose)

• Honey hydroxymethylfurfural (HMF)

• Honey acidity

• Pesticide residues in honey

• Honey diastase number

• Honey proline content

• Honey moisture content

• Honey sugar content

• Honey ash content

Functional Performance

1. Android intelligent operating system with Ethernet, Wi-Fi upload, and GPRS wireless remote transmission

2. Automatic self-check and zero calibration on startup with automatic repeatability detection

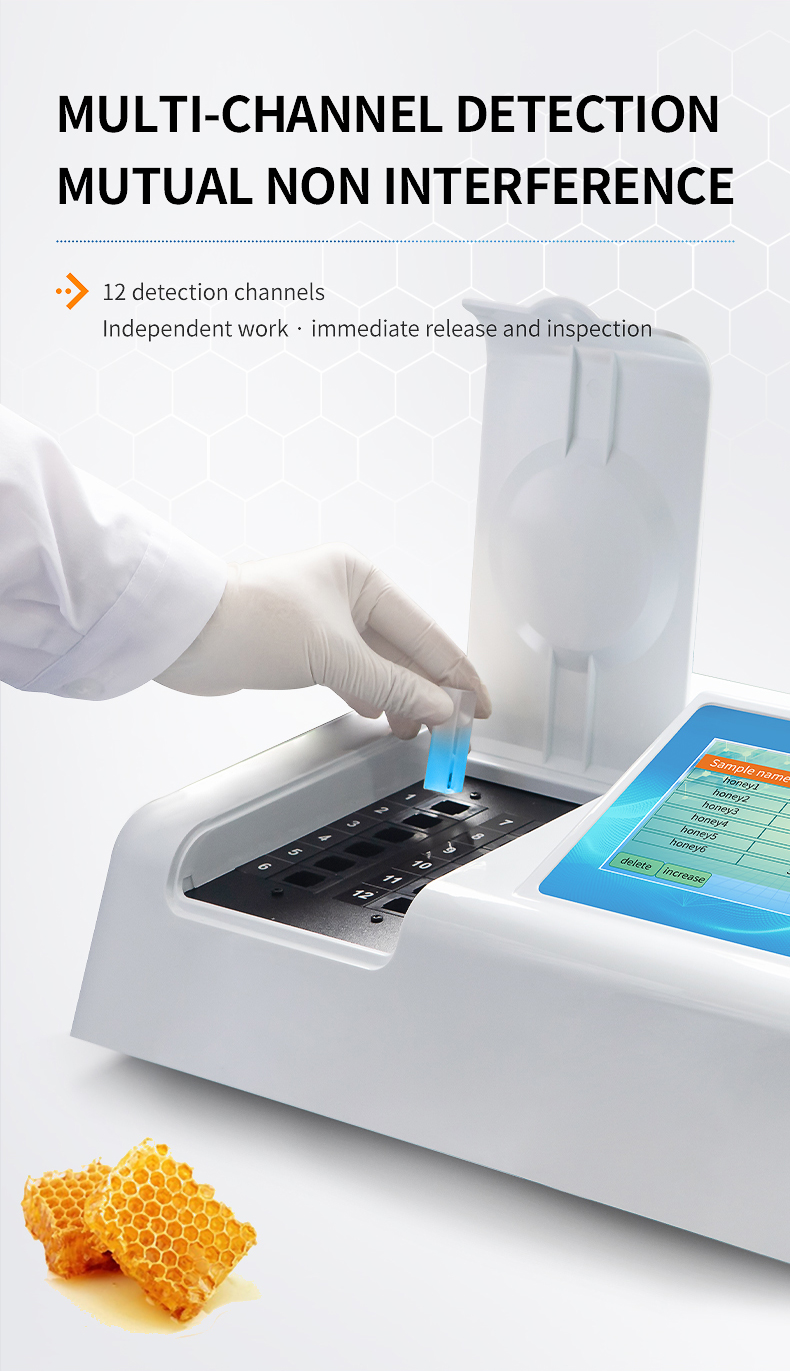

3. ≥12 independent detection channels for simultaneous multi-sample testing without cross-interference

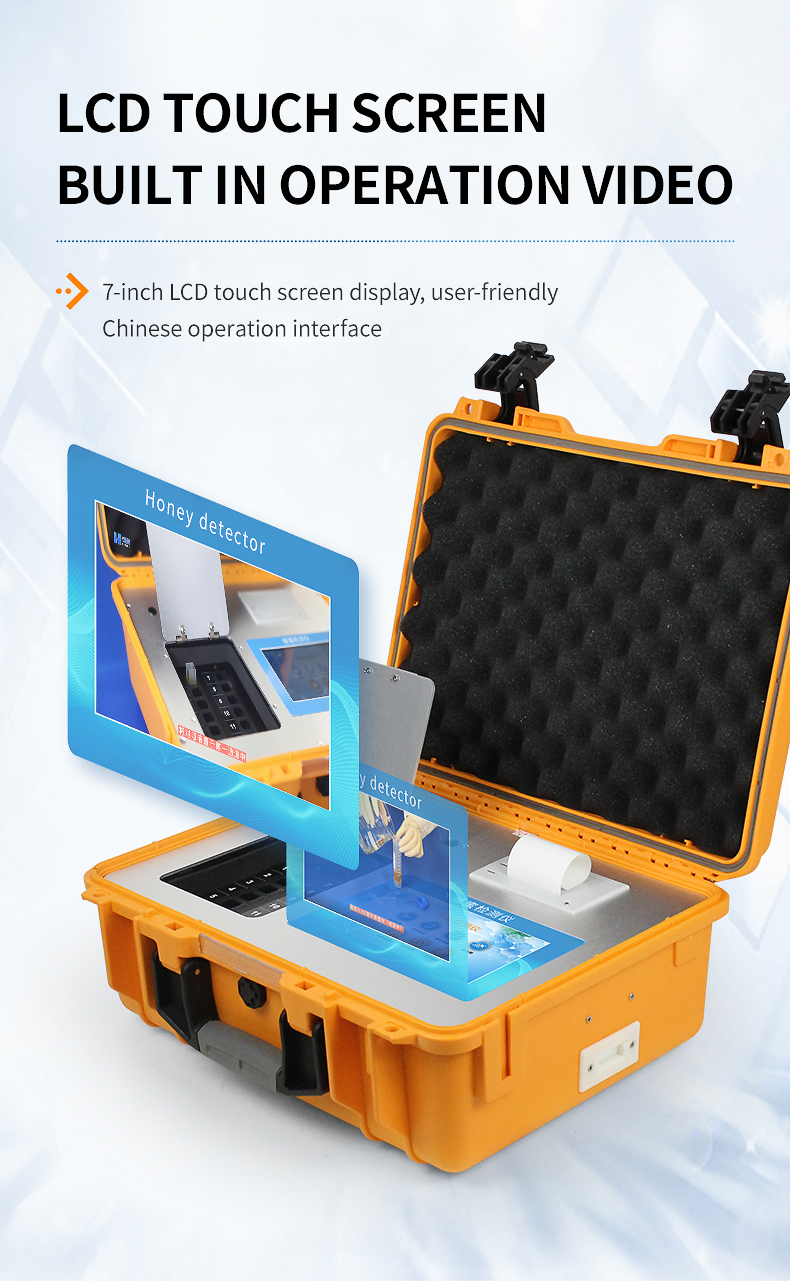

4. ≥7-inch LCD touchscreen display with Chinese-language operating interface

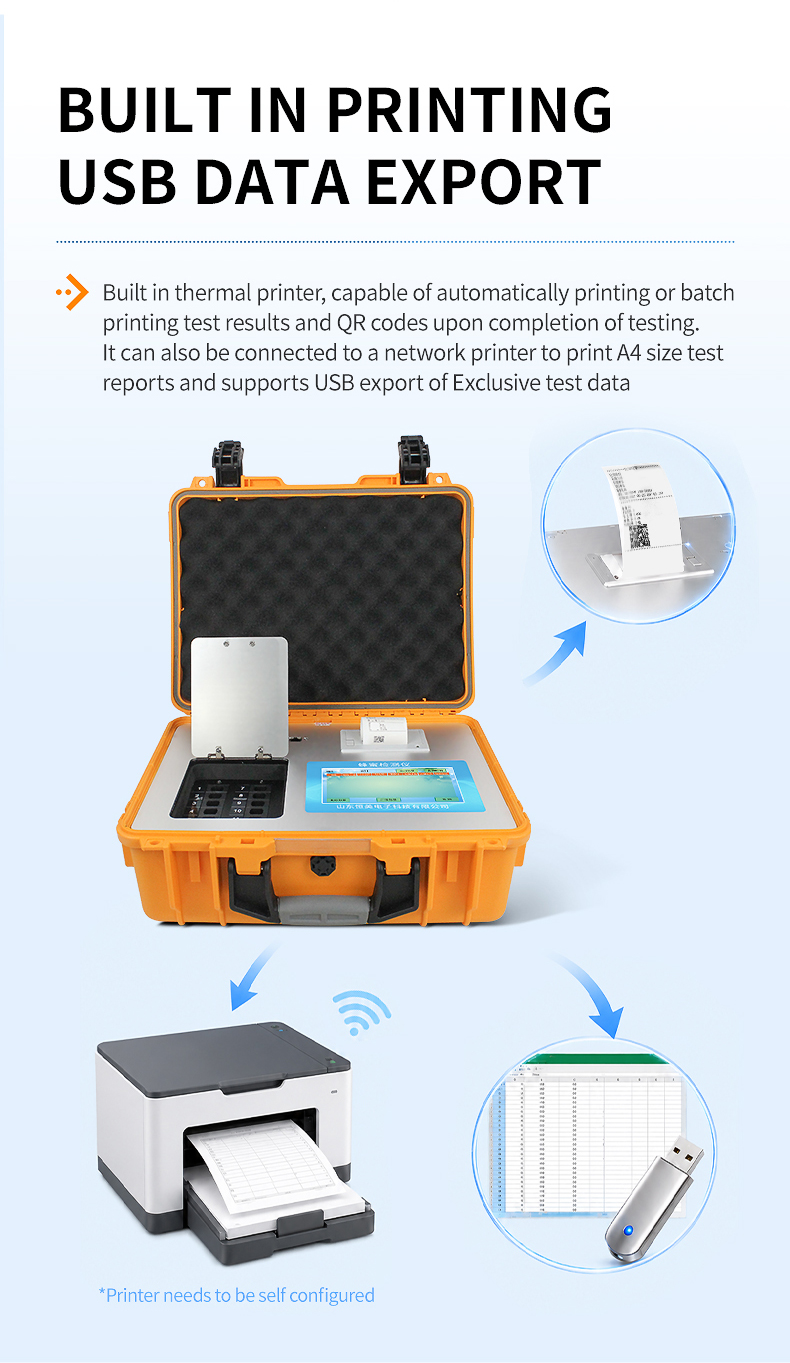

5. Built-in thermal printer for automatic detection report and QR code generation

6. Imported ultra-bright LED cold light sources with low power consumption and controlled illumination

7. USB 2.0 interface for convenient data storage and transfer

8. Integrated food safety regulatory platform for data upload and remote monitoring

9. Unified software interface supporting all detection project operations

10. Multi-category sample menu library with flexible selection options

11. User authentication with configurable username and password protection

12. 200,000-record storage with recalibration, locking, and factory reset functions

Main Parameters

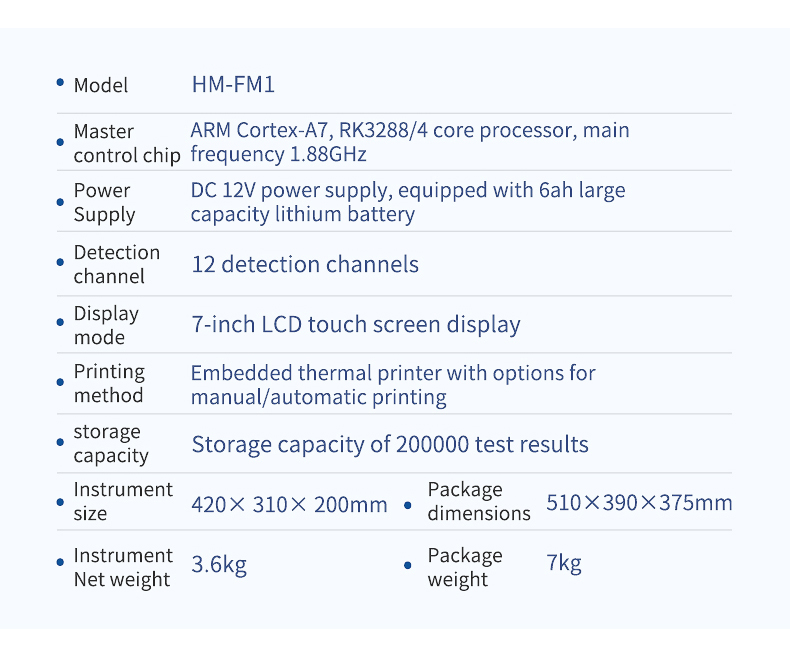

Technical Parameters
