HM-FM2 Dual-Module Honey Analyzer

Product Introduction

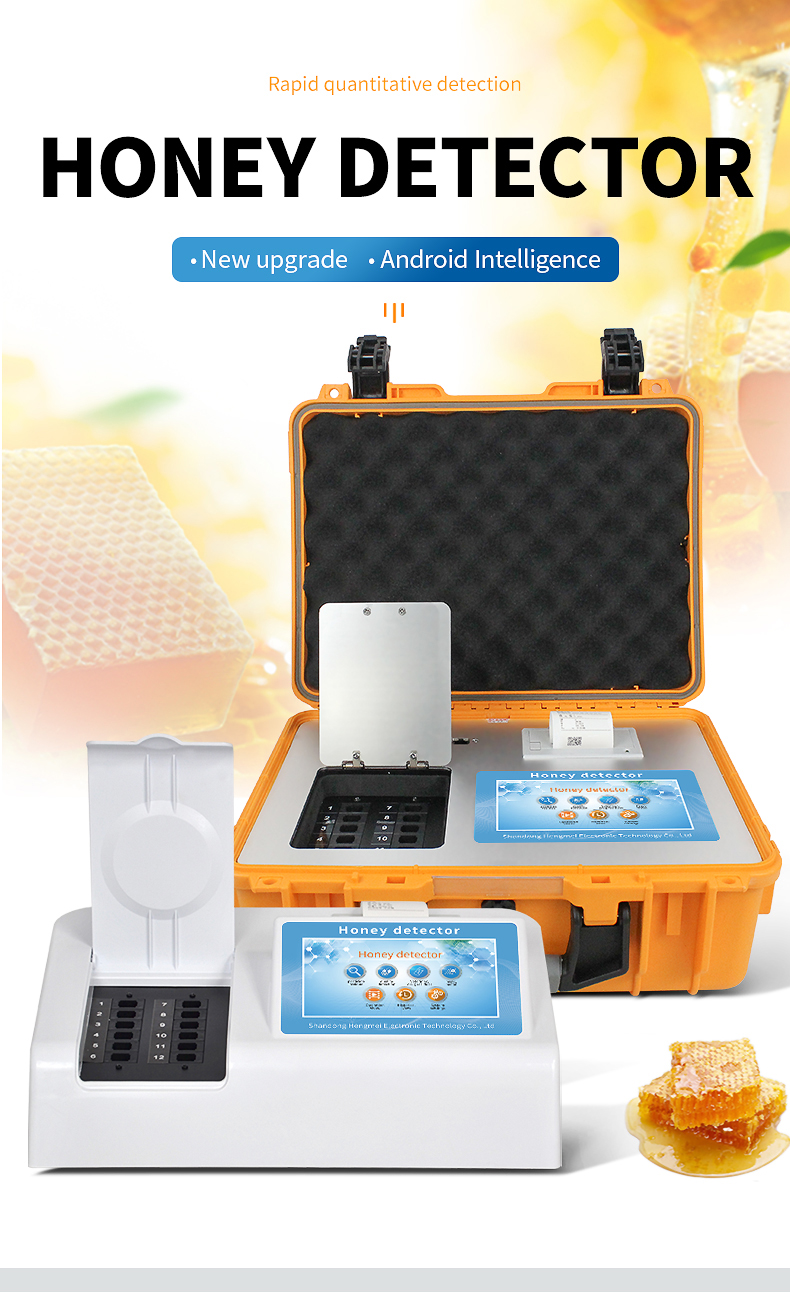

The HM-FM2 is a portable dual-module honey analyzer that integrates photoelectric colorimetric and lateral flow immunochromatographic detection in a single instrument, enabling both quantitative and qualitative analysis of honey safety parameters. This dual-module architecture allows the instrument to detect not only conventional quality indicators through colorimetry but also heavy metals (lead, cadmium, mercury) and antibiotics (chloramphenicol, tetracyclines, sulfonamides, nitrofurans, quinolones) via immunochromatographic strips.

The photoelectric colorimetric module provides 12 detection channels with four-wavelength cold light sources, supporting simultaneous multi-sample quantitative analysis with an absorbance range of 0–3.5 OD and sensitivity of 0.01 OD. The lateral flow immunochromatographic module features automatic card scanning, C/T line recognition, and automatic card ejection, and is compatible with commercially available non-original colloidal gold test cards for flexible qualitative screening.

Running Android on a 7-inch color touchscreen, the HM-FM2 supports AC/DC dual power supply with a built-in lithium battery and vehicle power adapter for field deployment. Wi-Fi cloud-based remote software upgrade keeps detection methods current, while the built-in thermal printer and USB data export to Excel ensure immediate and archived documentation.

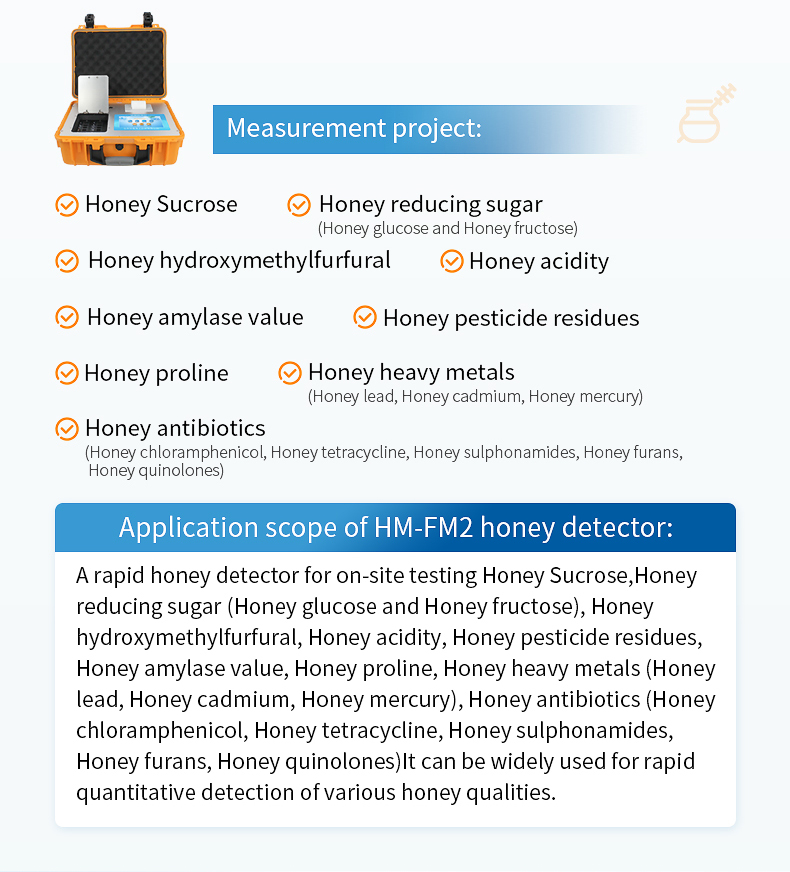

Applications / Testing Items

Quantitative Detection (9 Items)

• Honey sucrose

• Honey reducing sugars (glucose and fructose)

• Honey hydroxymethylfurfural (HMF)

• Honey diastase number

• Honey proline

• Honey acidity

• Honey moisture

• Honey sugar content

• Honey ash content

Qualitative Detection (3 Categories)

• Pesticide residues in honey

• Heavy metals in honey (lead, cadmium, mercury)

• Antibiotics in honey (chloramphenicol, tetracyclines, sulfonamides, nitrofurans, quinolones)

Functional Performance

1. Dual detection modules: photoelectric colorimetry and lateral flow immunochromatography integrated in one instrument

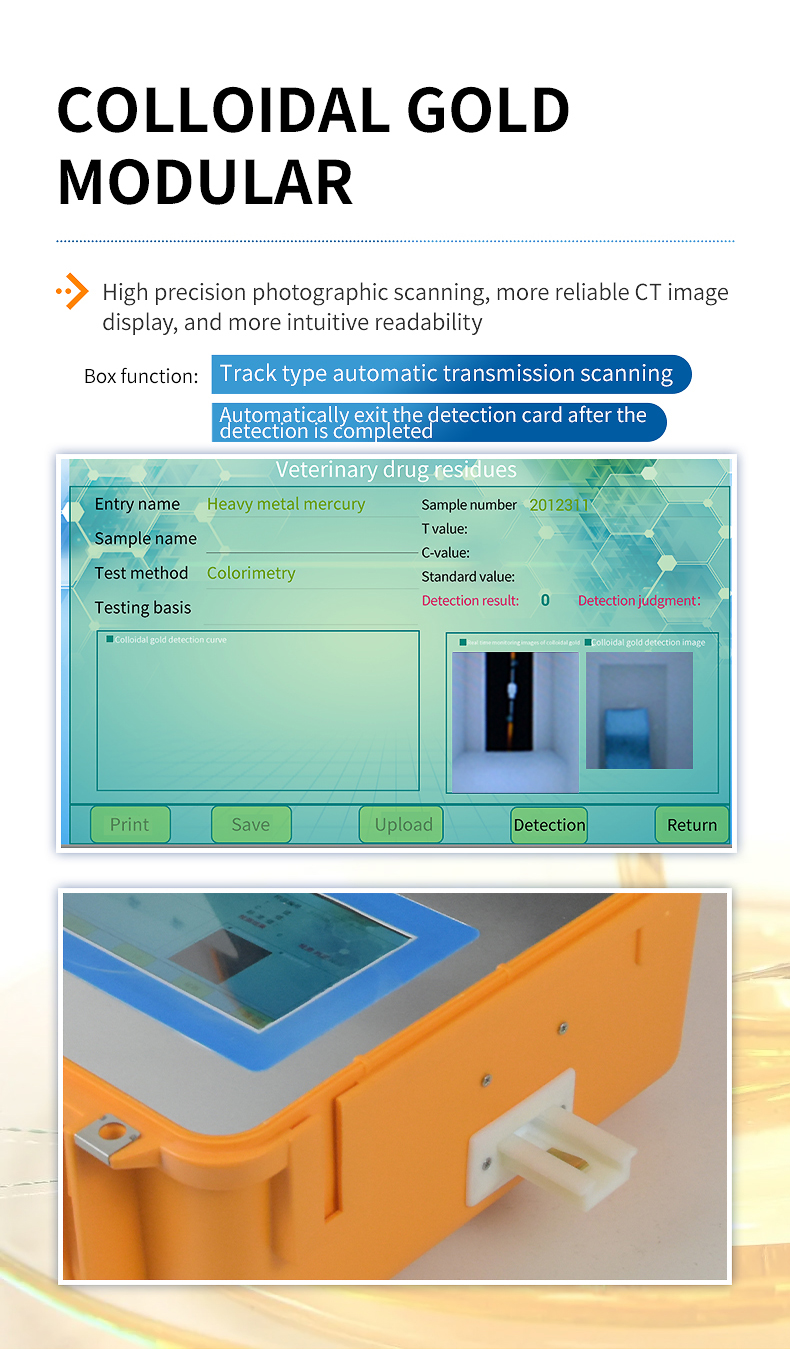

2. Lateral flow module with automatic scanning, C/T line recognition, automatic card ejection, and compatibility with non-original colloidal gold cards

3. AC/DC dual power supply with built-in lithium battery and vehicle power adapter capability

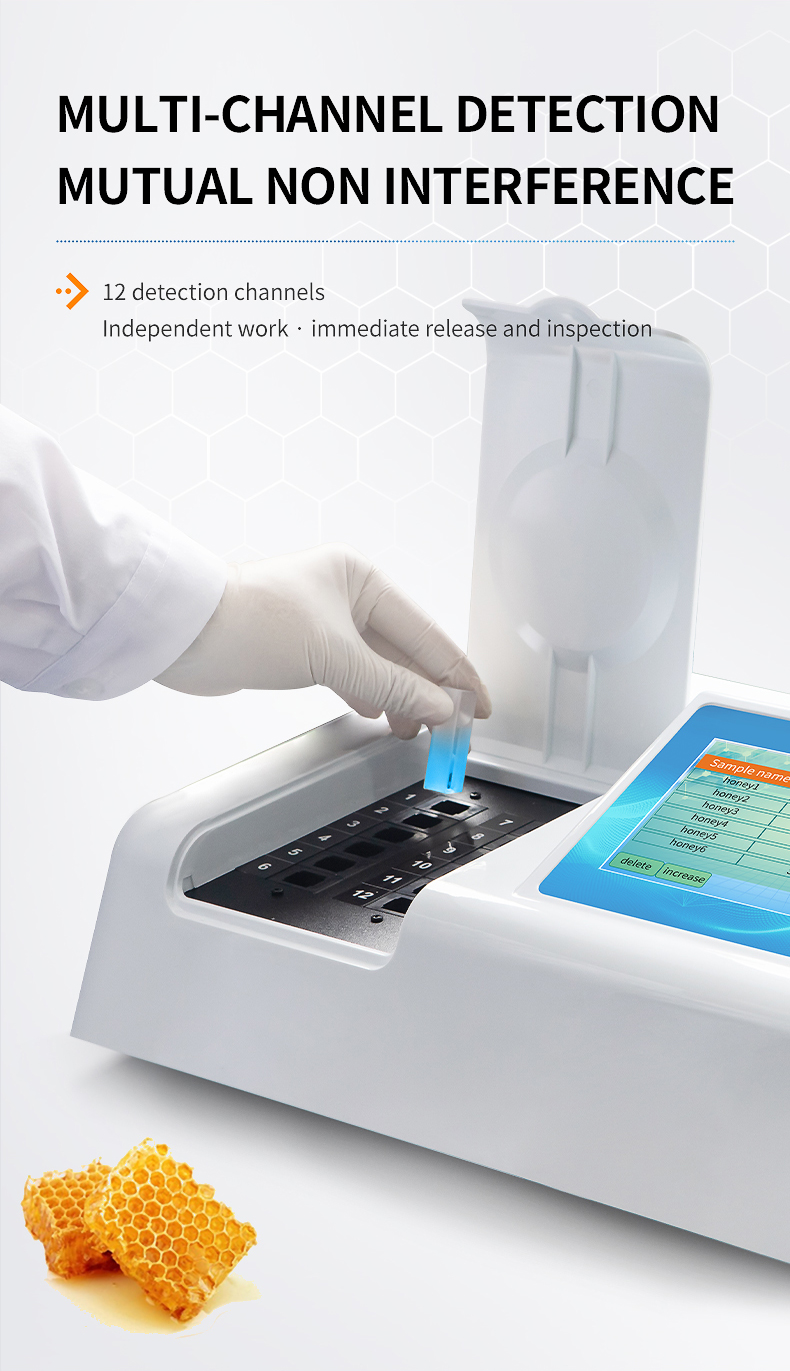

4. 12 detection channels with four-wavelength cold light sources, all channels simultaneously operational for all detection projects

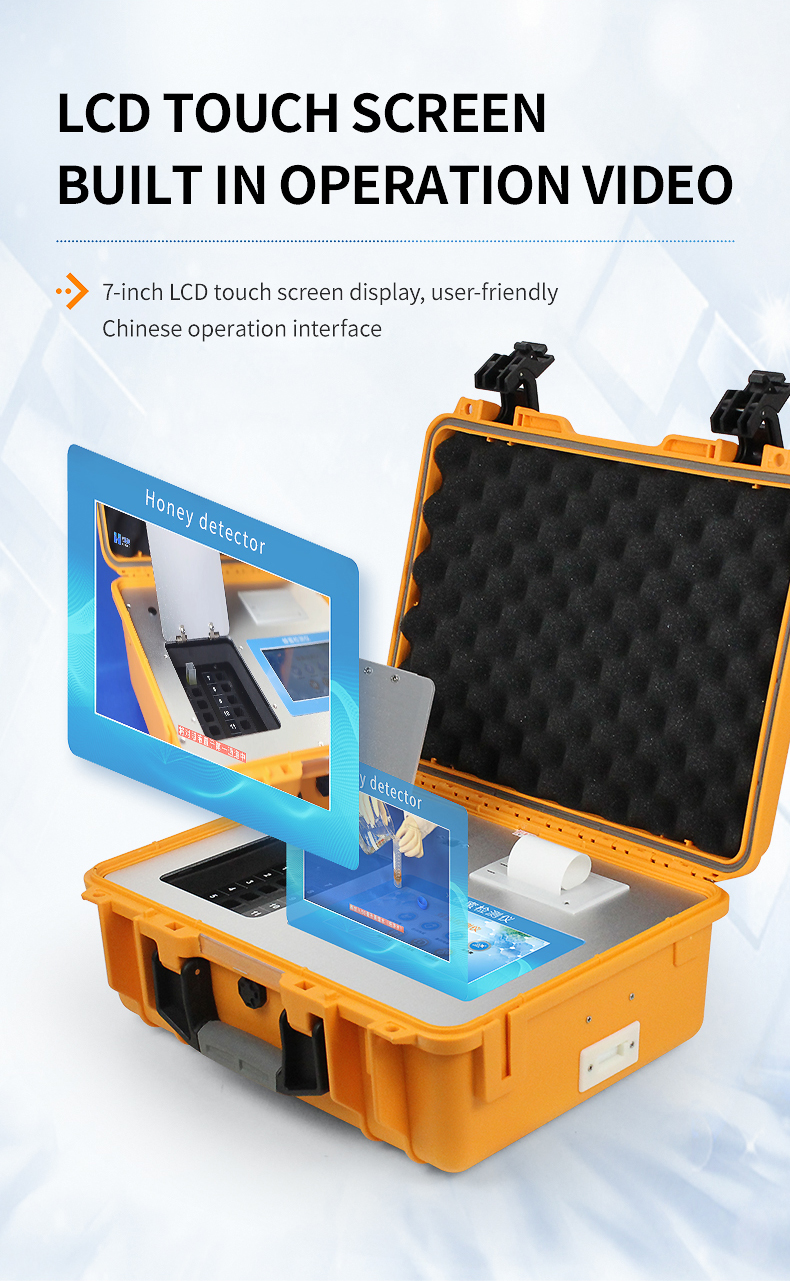

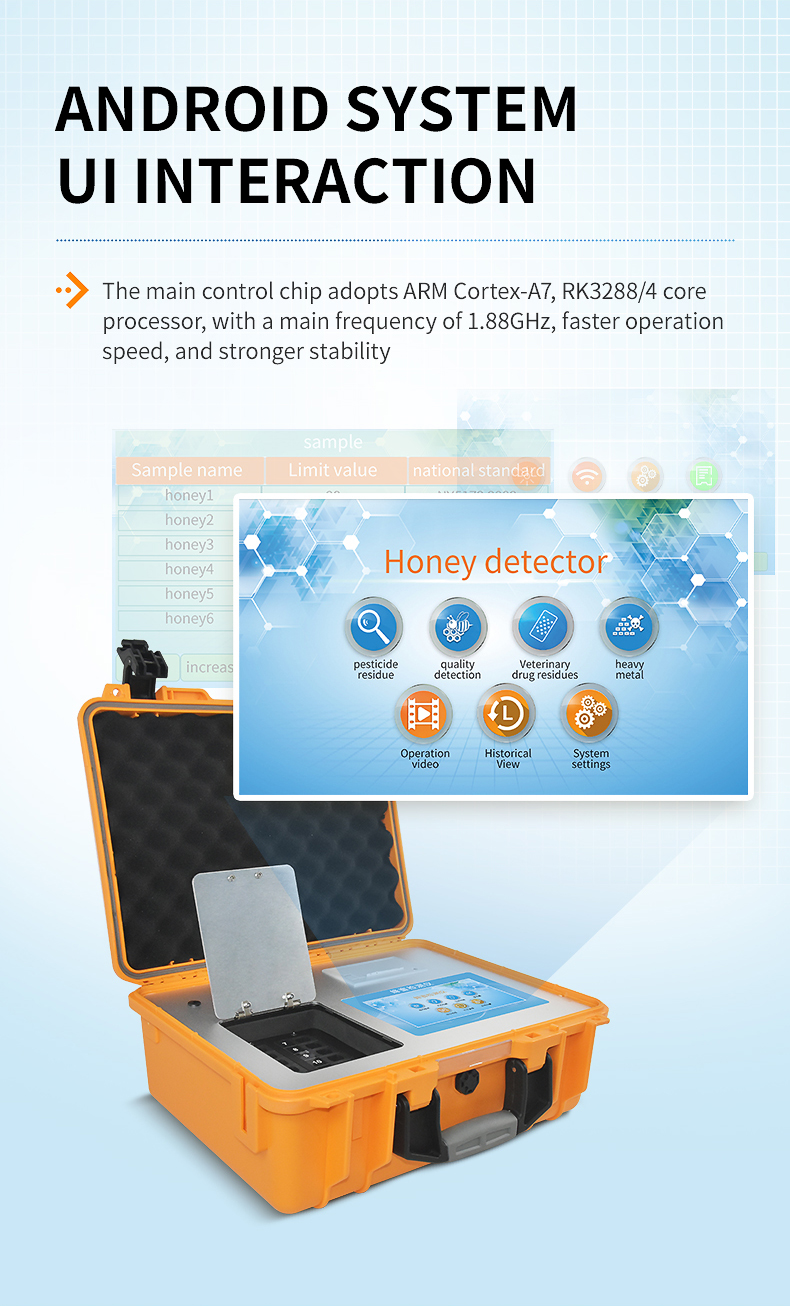

5. Android system with 7-inch color touchscreen for integrated dual-module operation

6. Automatic self-check, zero calibration, and automatic brightness adjustment with repeatability detection

7. Colorimetric result threshold lines modifiable, reference and calibration values retainable after power loss

8. Built-in multi-category sample menu library with customizable database entries

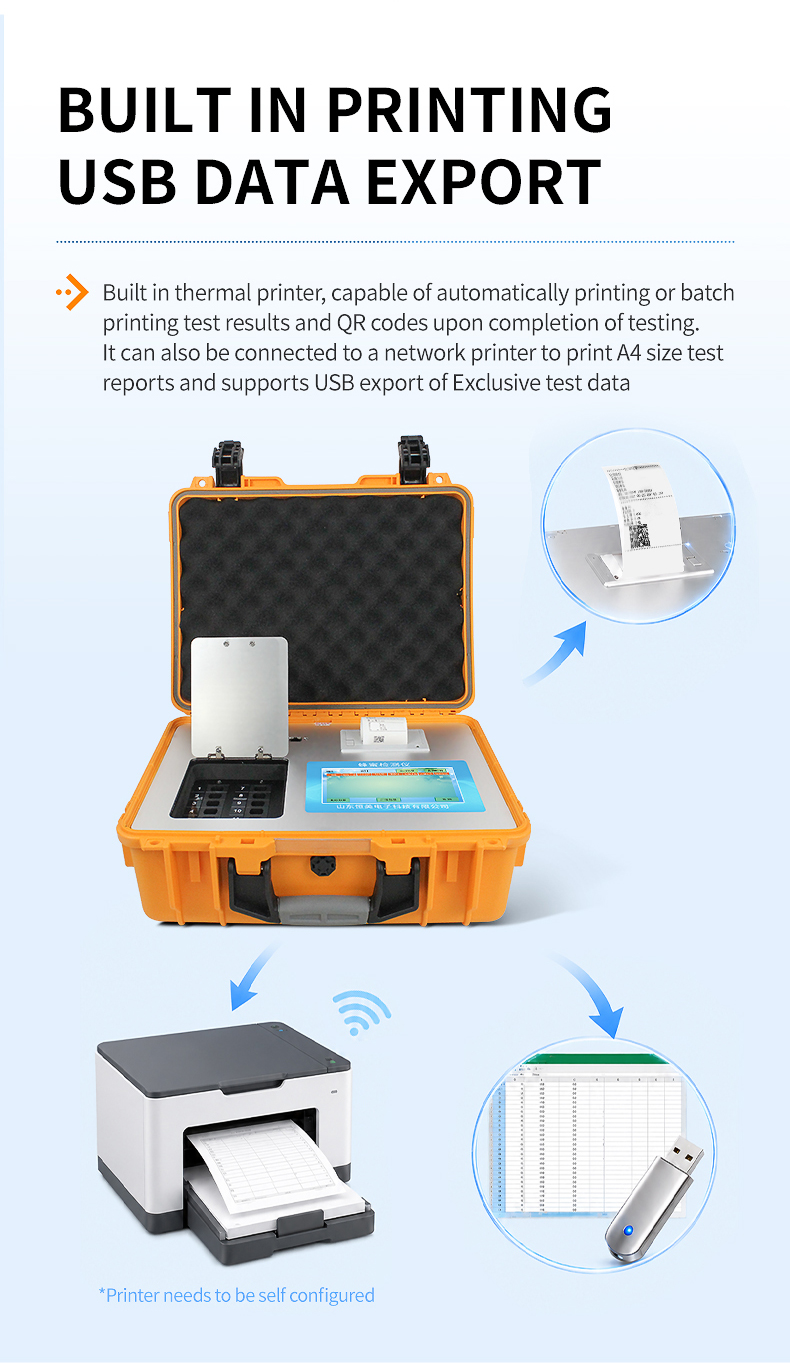

9. Built-in thermal printer for on-site report generation

10. USB data export to Excel for structured result management

11. Wi-Fi cloud-based remote software upgrade and wireless data upload

Main Parameters

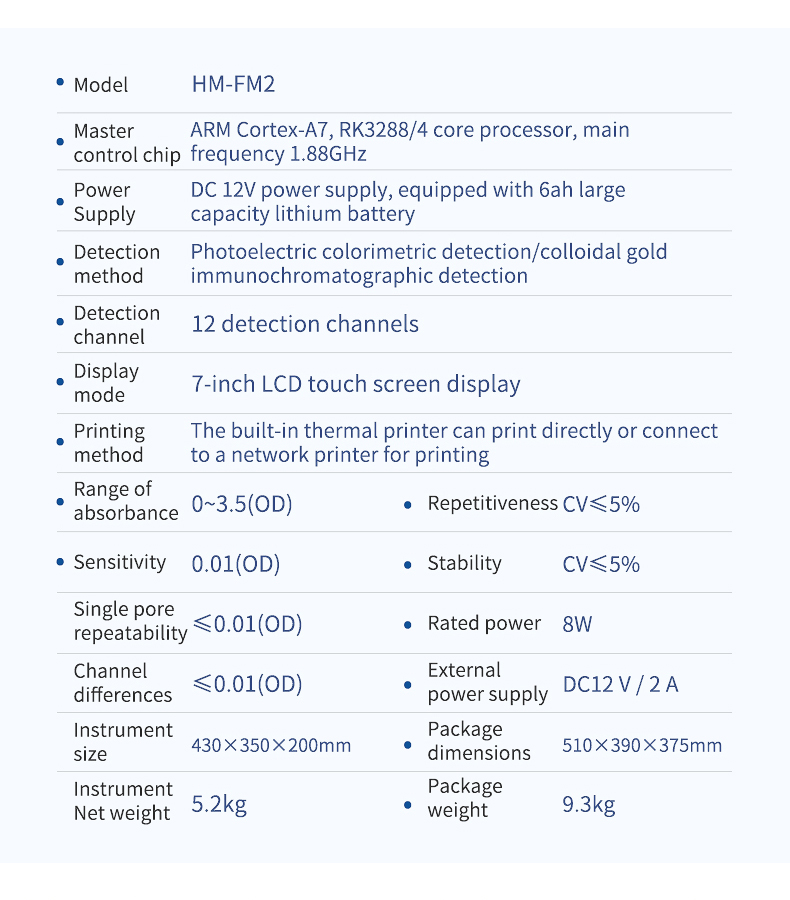

Technical Parameters
