Product Details
HM-RF1 measures nine milk-quality parameters. HM-RF2 and HM-RF3 add pH and conductivity measurement; HM-RF3 also provides a dual-pump configuration.
Product Overview

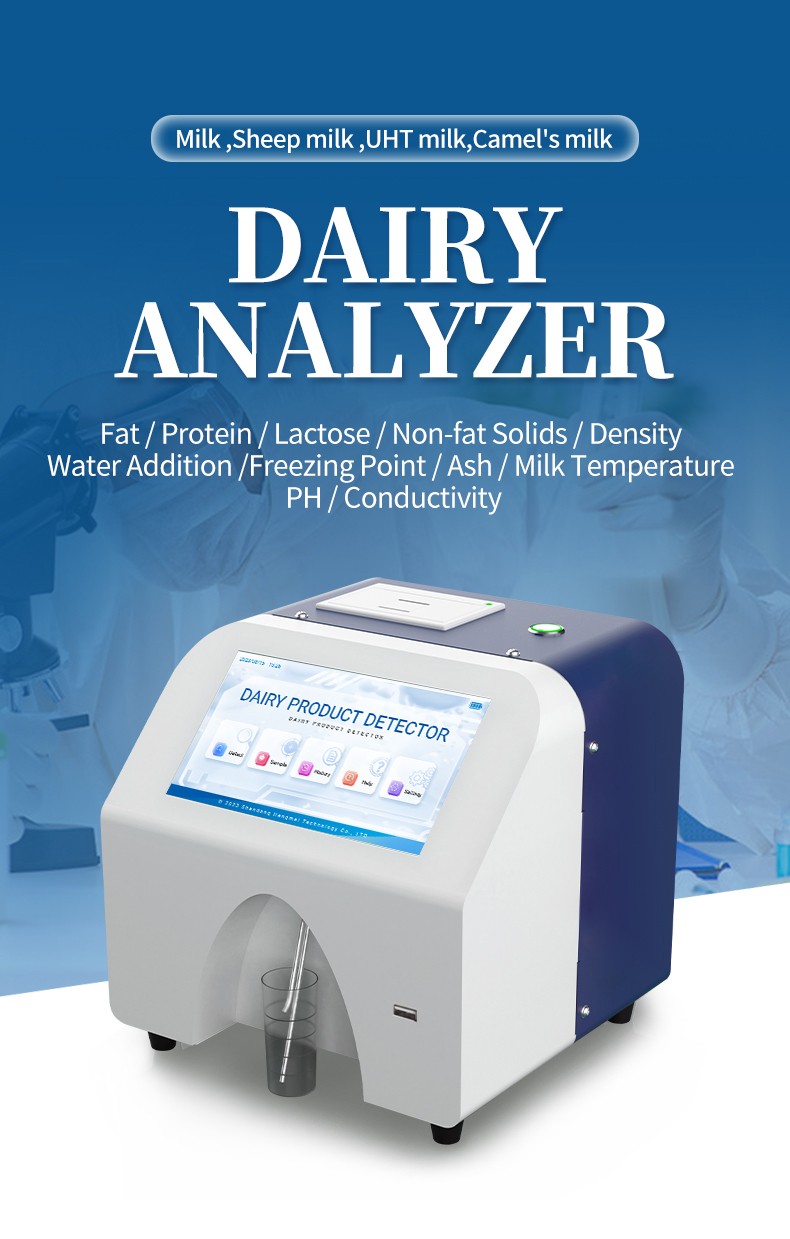

The HM Instruments HM-RF1 is a 9-parameter milk analyzer for routine composition and physical-property testing of liquid dairy products. It measures fat, protein, lactose, solids-not-fat, density, added water, freezing point, ash and milk temperature. An ultrasonic sensor, Android touchscreen and integrated printer combine sample measurement, result review and report output in a compact instrument.
It is intended for dairy farms, fresh milk collection stations and small to medium-sized dairy businesses. Documented sample types include cow milk, sheep milk, UHT milk and camel milk. Select the appropriate sample calibration and follow the supplied instructions for the milk type being tested.
Key Features
- Ultrasonic sensor with automatic correction for acidity and temperature influences.

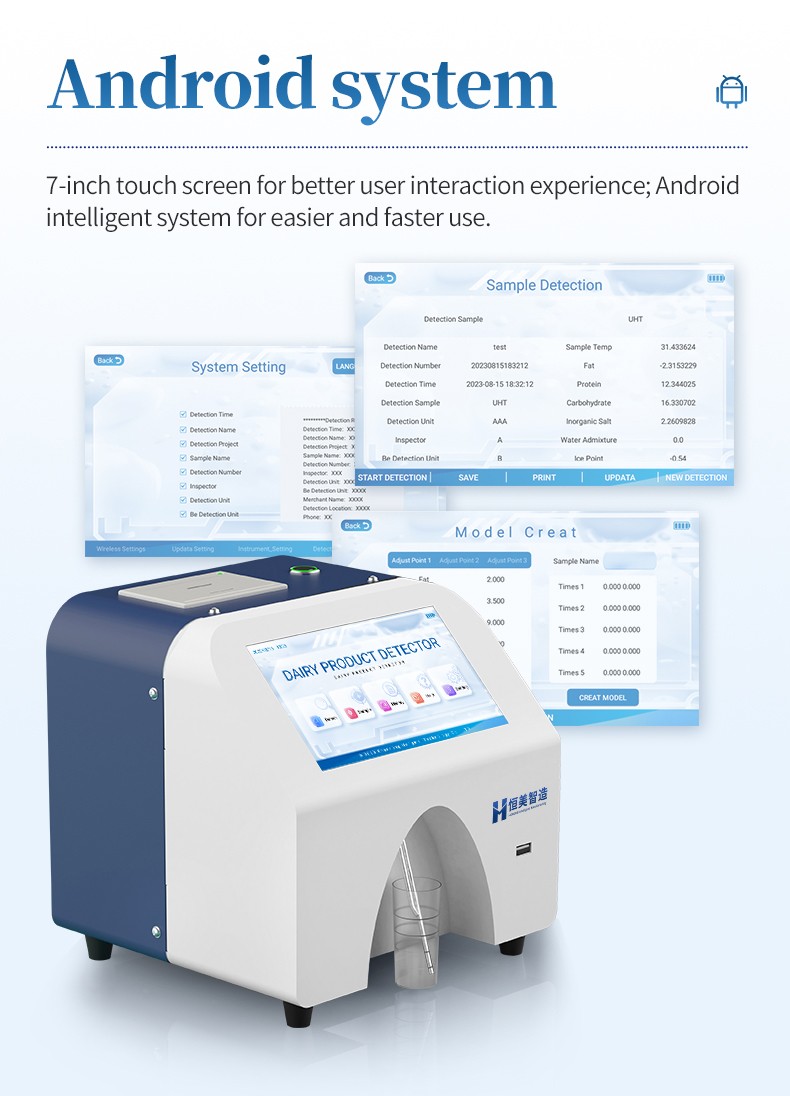

- Android operating system and a 7-inch touchscreen for setup and result review.

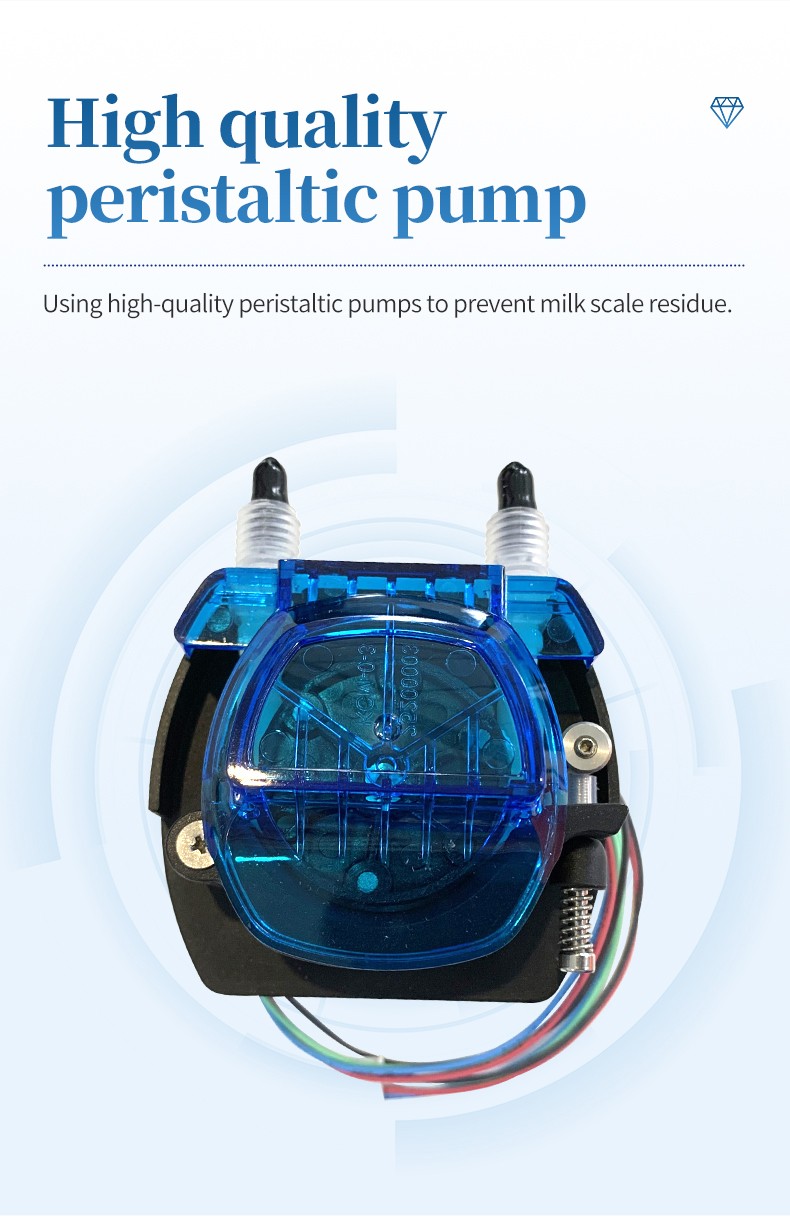

- Simplified internal tubing and a peristaltic pump for sample handling.

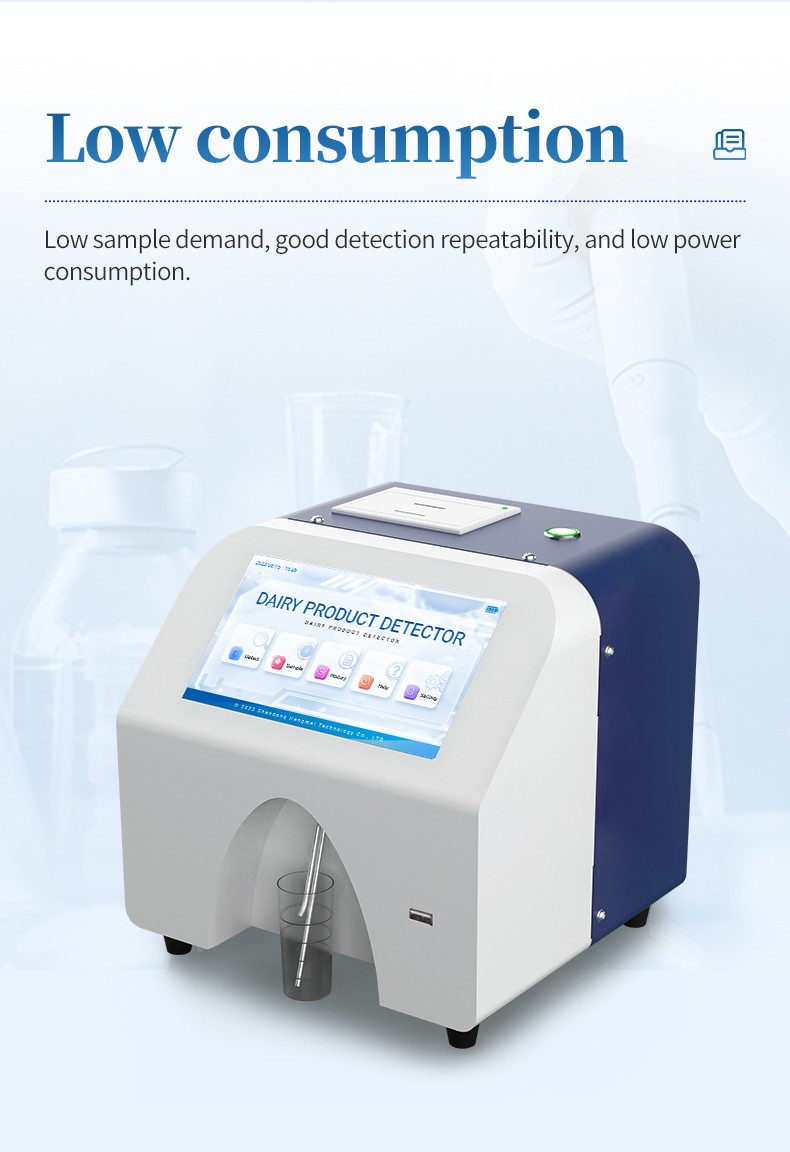

- Low sample demand and low power consumption.

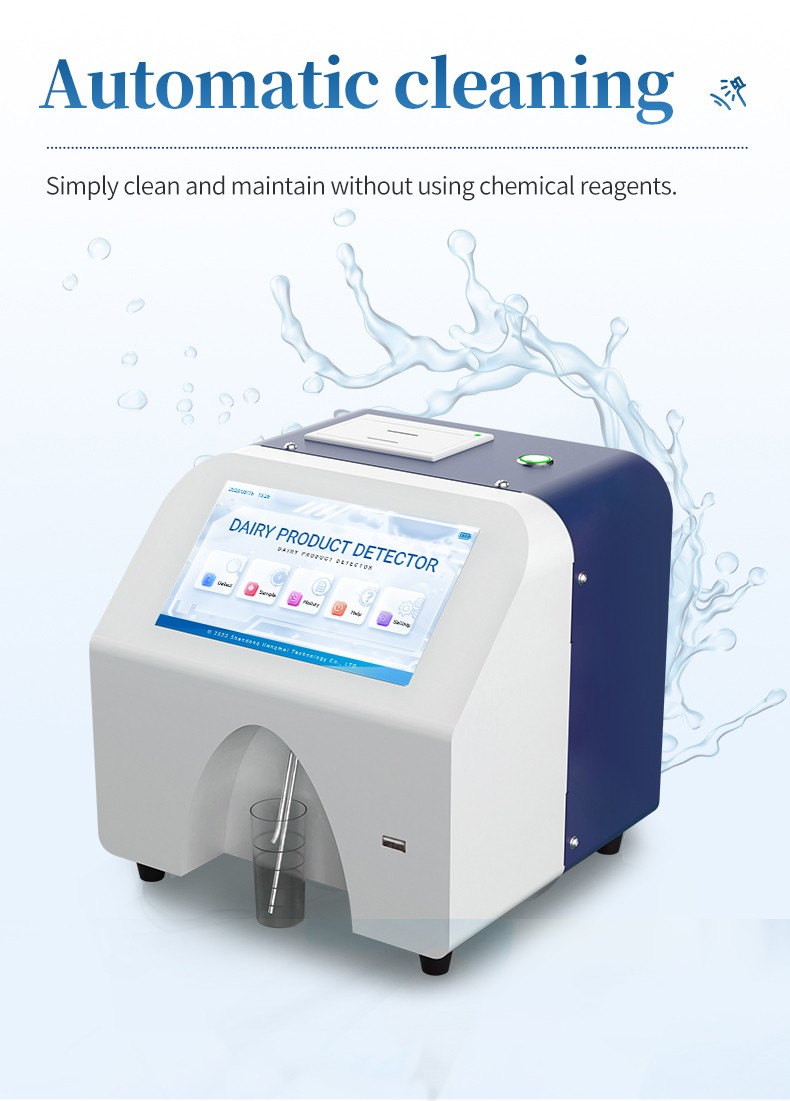

- Built-in automatic cleaning function for routine instrument care.

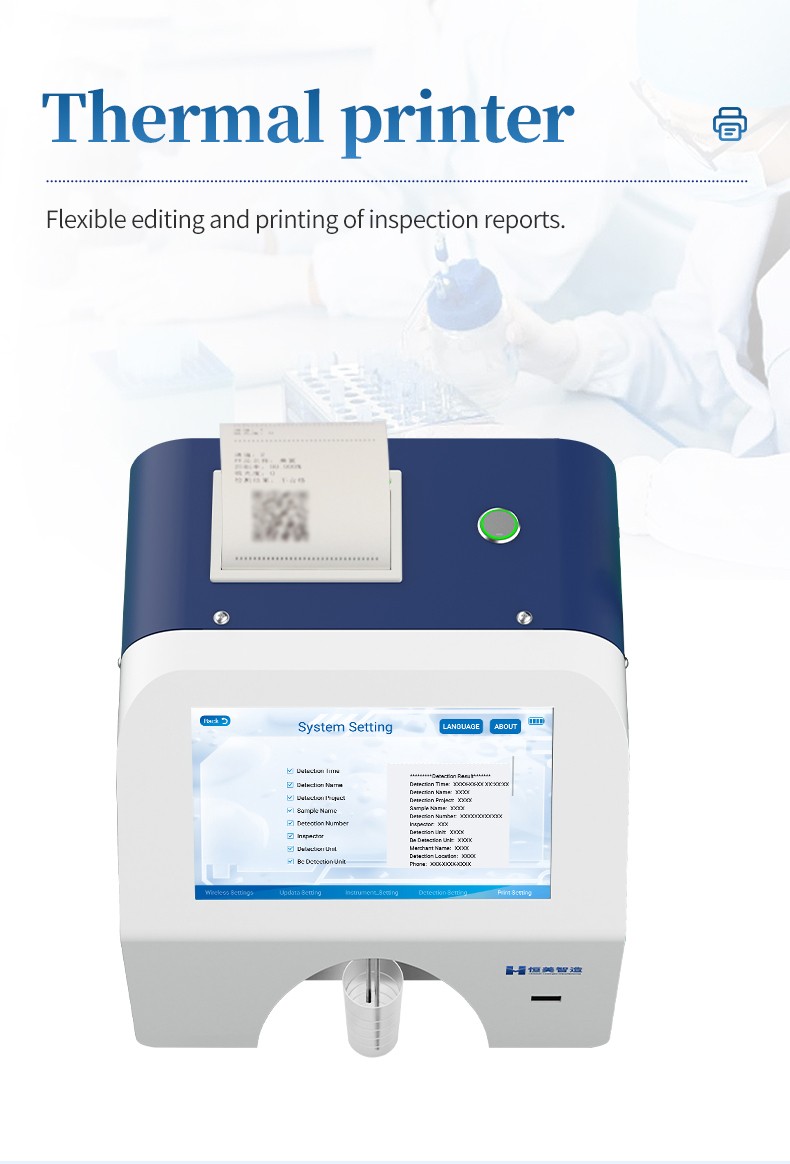

- Integrated thermal printer with editable inspection reports.
- Wi-Fi connection for transferring results to a platform or PC.
- Data management platform for storing uploaded records and reviewing trends.
Technical Specifications
The following ranges and accuracy values are manufacturer specifications for the nine-parameter configuration.
| Parameter | Measurement range | Stated accuracy |
|---|---|---|
| Fat | 0.01–45% | ±0.06% |
| Protein | 2–15% | ±0.15% |
| Lactose | 0.01–20% | ±0.2% |
| Solids-not-fat (SNF) | 3–15% | ±0.15% |
| Density | 1000–1160 kg/m³ | ±0.3 kg/m³ |
| Added water | 0–70% | ±3% |
| Freezing point | −0.700 to −0.400°C | ±0.005°C |
| Ash | 0.4–4% | ±0.05% |
| Milk temperature | 5–40°C | ±1°C |
| Instrument information | Specification |
|---|---|
| Model | HM-RF1 |
| Measured parameters | 9 |
| Display | 7-inch touchscreen |
| Operating system | Android |
| Dual-pump configuration | Not included |
| pH and conductivity | Not included |
| Instrument dimensions | 220 × 205 × 218 mm |
| Package dimensions | 355 × 290 × 300 mm |
| Packed weight | 3.8 kg |
Standard Configuration
| Item | Quantity | Specification |
|---|---|---|
| Main instrument | 1 | HM-RF1 |
| Power adapter | 1 | 12 V / 3 A |
| Sampling cups | 3 | 20 mL each |
| Acidic cleaning agent | 1 bottle | 125 mL container; food-grade citric acid, solid |
| Alkaline cleaning agent | 1 bottle | 125 mL container; multi-enzyme cleaner, liquid |
| Thermal printer paper | 2 rolls | |
| Warranty card | 1 | |
| Certificate of conformity | 1 | |
| Instruction manual | 1 |
Operation and Maintenance
Use the sampling cups and suitable instrument settings for the milk sample. Review the displayed results and print or transfer records as required. Follow the supplied instruction manual for sampling, calibration and routine cleaning; the standard configuration includes acidic and alkaline cleaning agents. The automatic cleaning function does not remove the need to follow the documented maintenance procedure.

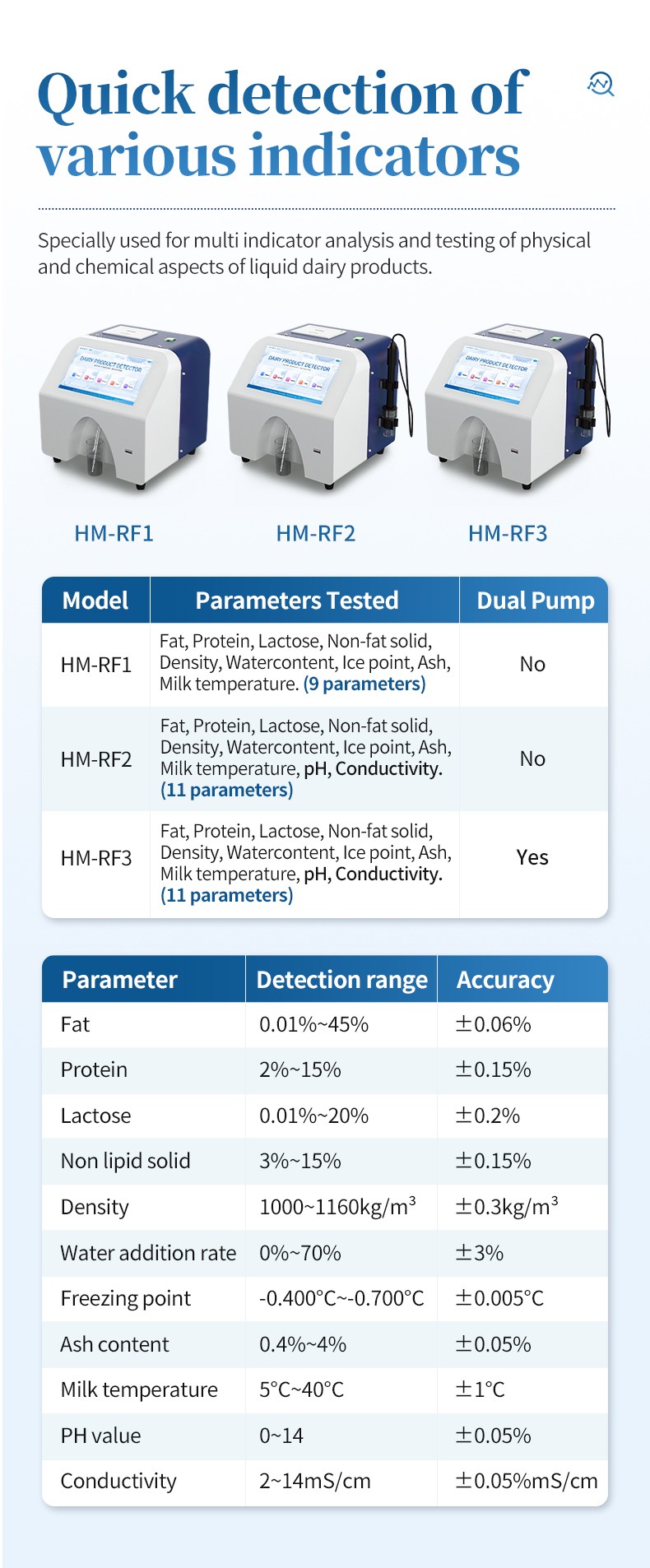

Model Selection
| Model | Measured parameters | pH / conductivity | Dual pump |
|---|---|---|---|
| HM-RF1 | 9 | Not included | No |
| HM-RF2 | 11 | Included | No |
| HM-RF3 | 11 | Included | Yes |
Frequently Asked Questions
Does HM-RF1 measure pH and conductivity?
No. These two measurements belong to the 11-parameter RF2/RF3 configurations. HM-RF1 is the nine-parameter model.
Which milk types are documented?
The manufacturer lists cow milk, sheep milk, UHT milk and camel milk. Use the appropriate calibration and sample preparation instructions.
How are results recorded?
The instrument has a built-in thermal printer and Wi-Fi connectivity for transferring results to a platform or PC.
