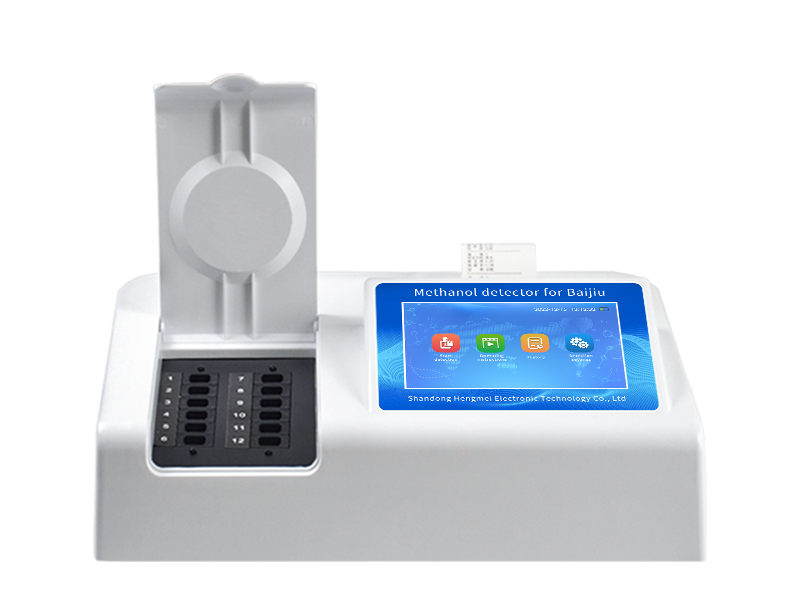

Liquor Methanol and Ethanol Detector

Product introduction：

Detection items: can quickly and quantitatively detect the content of methanol and ethanol in various types of liquor. The instrument reserves other project detection programs and ports, and can easily add detection items according to future needs. It can be upgraded to a comprehensive instrument for detecting aquatic products, meat products, and flour products in the future.

Application range: used for quantitative determination of methanol concentration and ethanol concentration in distilled liquor, blended liquor and fermented liquor.

Instrument features:

1. Detection method: The methanol detection method complies with the "Analysis method of GB/T5009.48 Sanitary standards for distilled liquor and blended liquor"

2. Instrument composition: It consists of a host, sample pretreatment equipment and reagent packs, etc., suitable for field and laboratory use

3. Optical path system: imported ultra-bright light-emitting diodes are used, and the light source and detector adopt a fully solid-state structure, with high accuracy and precision, strong stability, and controllable light source; the light source adopts an automatic switch energy-saving design, and the light source has a service life of more than 100,000 hours.

4. Built-in curve: The instrument has a built-in working curve. There is no need to prepare a standard solution. It only needs to use the matching reagents for zero point correction to achieve rapid quantitative determination of the sample.

5. Measurement method: The sample color development and measurement are standard 1cm cuvettes, no transfer is required, and the detection precision is improved.

6. Consumable accessories: Provide complete special pre-treatment equipment and consumables, one-stop service.

7. Special reagent kit: Equipped with special pre-made reagents, shorten the reagent preparation time, simple operation and convenient use.

Function introduction:

1. Android smart operating system, using more efficient and humanized operation, the instrument has network cable connection, wifi network upload, GPRS wireless remote transmission function, and fast data upload.

2. High degree of intelligence, the instrument has self-test function: it has power-on self-test and zero adjustment functions, and has automatic detection repeatability function.

3. Detection channel: ≥12 detection channels, multiple samples can be tested at the same time, each sample is controlled by the program to work independently and will not interfere with each other.

4. Equipped with a new generation of embedded thermal printer, you can choose manual printing or automatic printing. After the test is completed, the test report and QR code can be automatically printed.

5. It adopts the standard USB2.0 interface design, supports U disk storage, driver-free installation, convenient data storage and movement, and can be directly connected to the computer at any time, and the instrument can be controlled by the computer. Realize data query, browsing, analysis, statistics, printing, etc.

6. The instrument has a supervision platform. The test results can be uploaded directly wirelessly. Perform data analysis and processing, detect long-term and short-term dynamics such as wine, and achieve problem estimation and early warning.

7. The instrument has a variety of sample menu libraries, which can flexibly select test samples, and different test channels can detect different sample items at the same time.

8. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

9. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operations.

10. The instrument has the functions of recalibration, locking, and restoring factory settings.

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, main frequency 1.88Ghz, faster operation speed and stronger stability.

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. DC 12V power supply, can be connected to the vehicle power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

4. Intelligent constant current voltage regulation, automatic calibration of light intensity, no temperature drift phenomenon of light source for long-term continuous work.

5. Uninterrupted sampling and continuous detection

6. Sample number is automatically accumulated.

7. The detection items can be expanded.

8. The test results can be printed and uploaded in batches.

9. The test results are Excel tables, which can be copied by connecting to a computer.

10. Configurable large-capacity lithium battery, firmware upgradeable

Technical parameters:

1. Detection limit: 0.02 g/100mL

2. Detection range: 0.00～0.20 g/100mL

3. Absorbance value range: 0.000-4.000A

4. Repeatability: ±0.1% (A)

5. Repeatability error: absorbance (A) ≤0.003

6. Stability: photoelectric drift (A) ±0.002 (3 minutes)

7. Absorbance accuracy: ±2.0%

8. Linear error: ±1.0%
