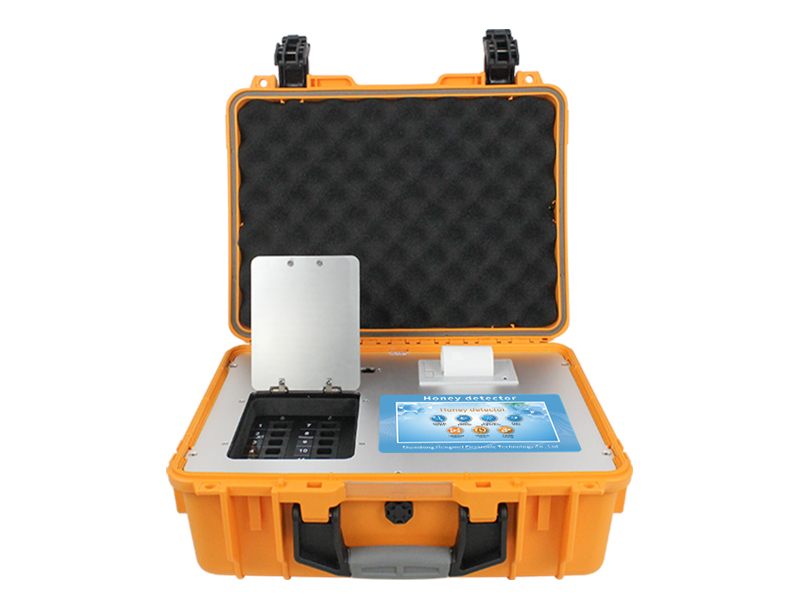

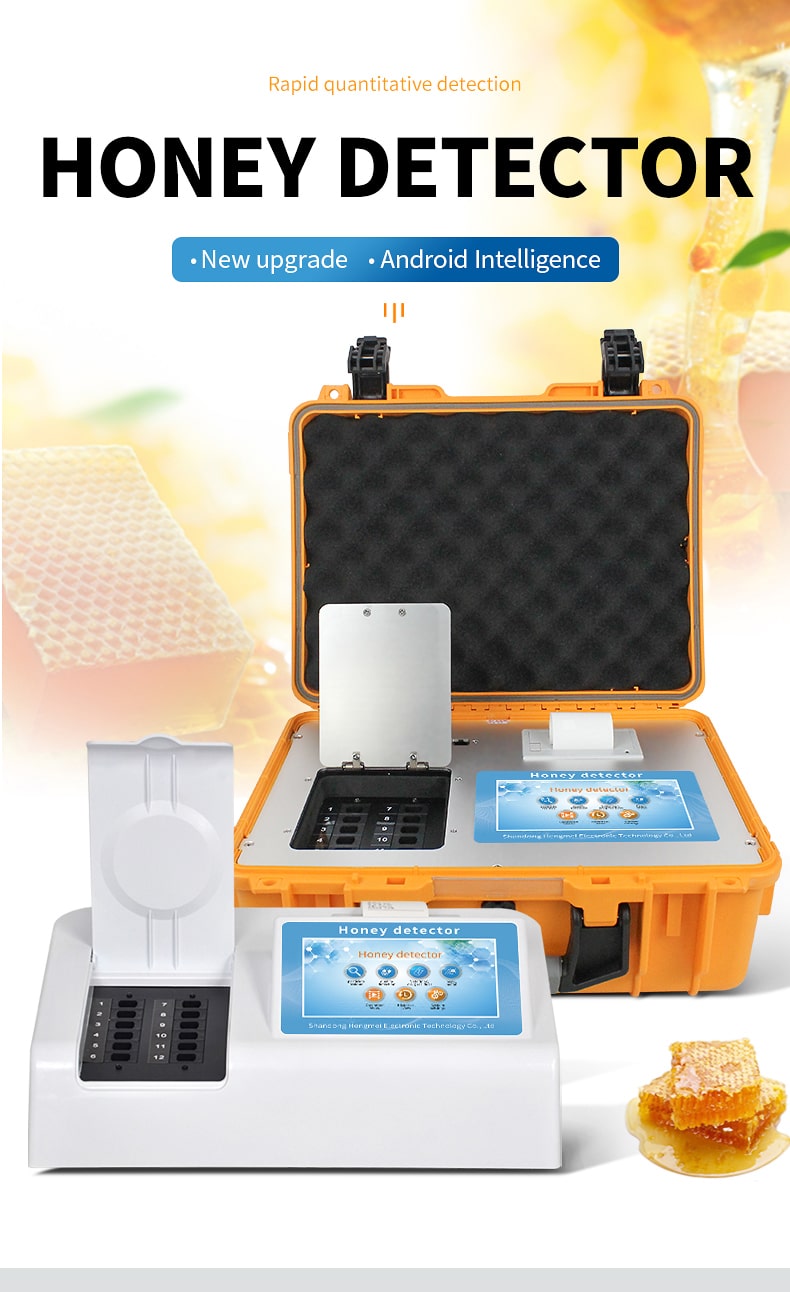

Multifunctional honey testing instrument

Product introduction:

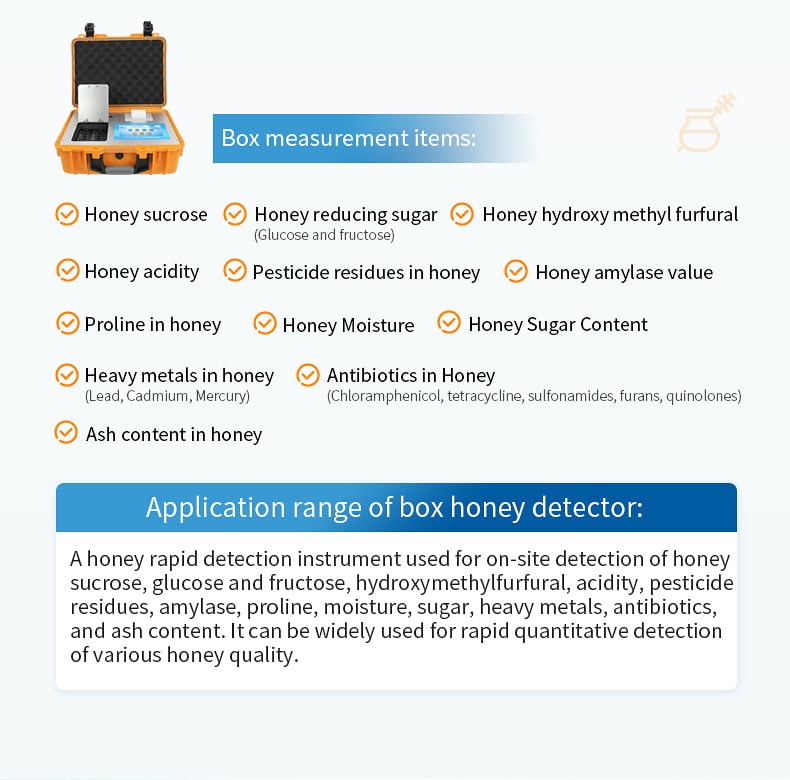

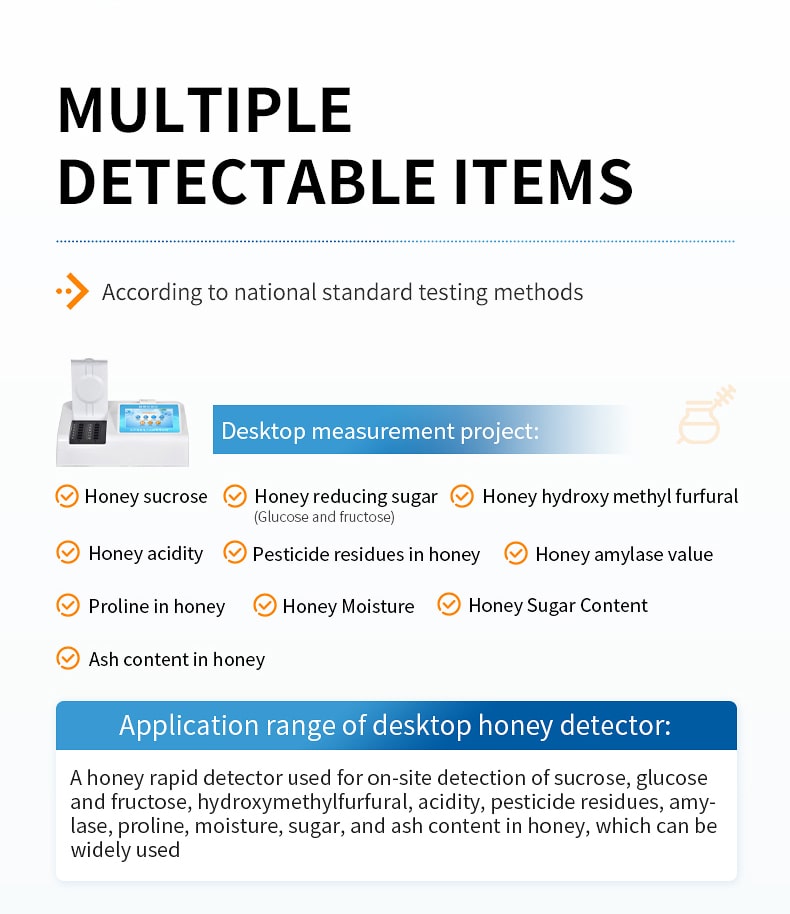

Test items: honey sucrose, honey reducing sugar (glucose and fructose), honey hydroxymethylfurfural, honey acidity, pesticide residues in honey, honey amylase value, proline in honey, honey moisture, honey sugar, heavy metals in honey (lead, cadmium, mercury), antibiotics in honey (chloramphenicol, tetracycline, sulfonamides, furans, quinolones), honey ash, application range: used for on-site detection of honey sucrose, glucose and fructose, hydroxymethylfurfural, acidity, pesticide residues, amylase, proline, moisture, sugar, heavy metals, antibiotics, ash content of honey rapid detector, can be widely used in the rapid quantitative detection of various types of honey quality.

Product performance:

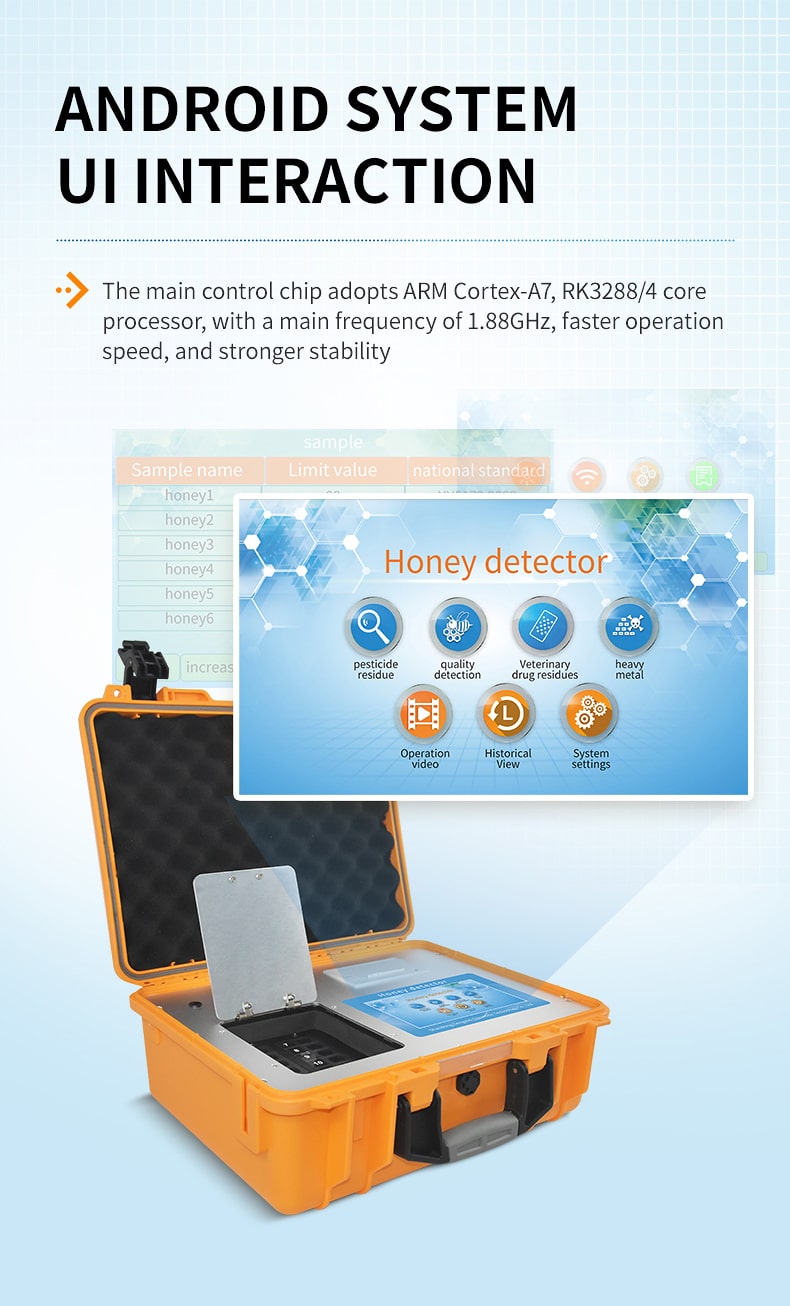

1. Android intelligent operating system, using a more efficient UI interactive interface, the instrument has wifi network upload, 4G network transmission, GPRS wireless remote transmission, network cable connection functions, fast batch upload data.

2. The instrument has a self-test function: it has power-on self-test and zeroing functions, and has an automatic detection repeatability function.

3. A new generation of high-speed thermal printer, which can automatically print or batch print test reports and QR codes after the test is completed.

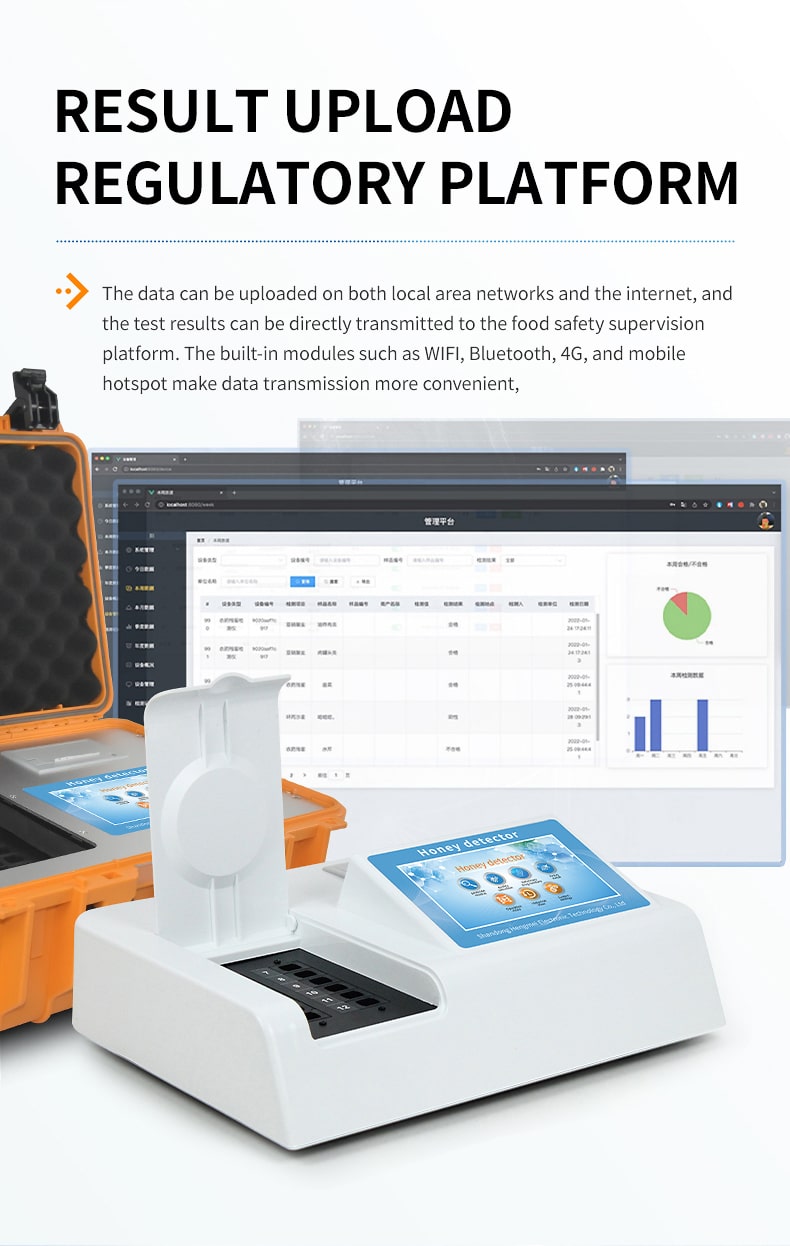

4. The instrument has a supervision platform, and data can be uploaded to the local area network and the Internet, and the test results are directly transmitted to the food safety supervision platform. Carry out regional food safety supervision and big data analysis and processing and data statistics, detect the long-term and short-term dynamics of regional food safety, and achieve food safety problem estimation and early warning.

5. Integrated host, including photoelectric colorimetric detection module and colloidal gold immunochromatography detection module.

6. Integrated portable rapid detection equipment, which meets the needs of on-site and mobile detection, can realize the detection of all detection items under the same software, and can intuitively display the test results through the same window.

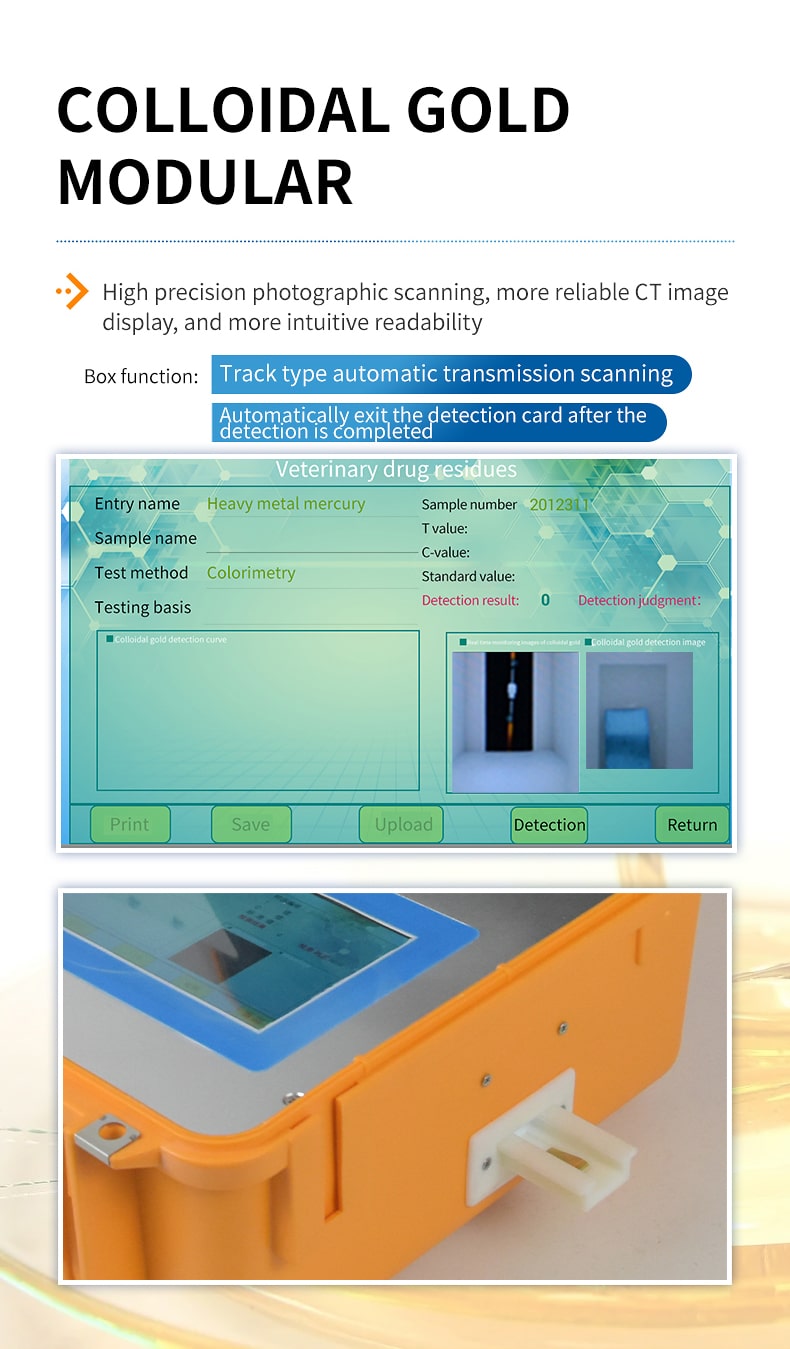

7. Colloidal gold module detection method: track-type automatic transmission scanning, and automatically exit the test card after the test is completed.

8. CT line automatic recognition, no manual adjustment required.

9. The instrument has a multi-category and multi-type sample menu library, which can flexibly select test samples, and different detection channels can detect different sample items at the same time. You can also directly edit and enter sample name, test index, inspection unit and other information on the instrument and save them in the sample database.

10. The instrument has built-in operation video, which is a laboratory guidance expert around you.

11. Sample processing is simple and labor-saving, and the overall operation is fast, safe and convenient.

12. The instrument has its own protection function, and the user name and password can be set to prevent non-staff operation.

13. High sensitivity, high detection accuracy, high repeatability accuracy, scanning high-precision optical sensor.

14. The instrument has the functions of recalibration, locking, and restoring factory settings.

15. The result judgment line can be modified, the reference value calibration value can be saved, and the data will not be lost when the power is off.

16. Compatible with all colloidal gold cards on the market, the use of consumables is not restricted, and the user experience is greatly enhanced.

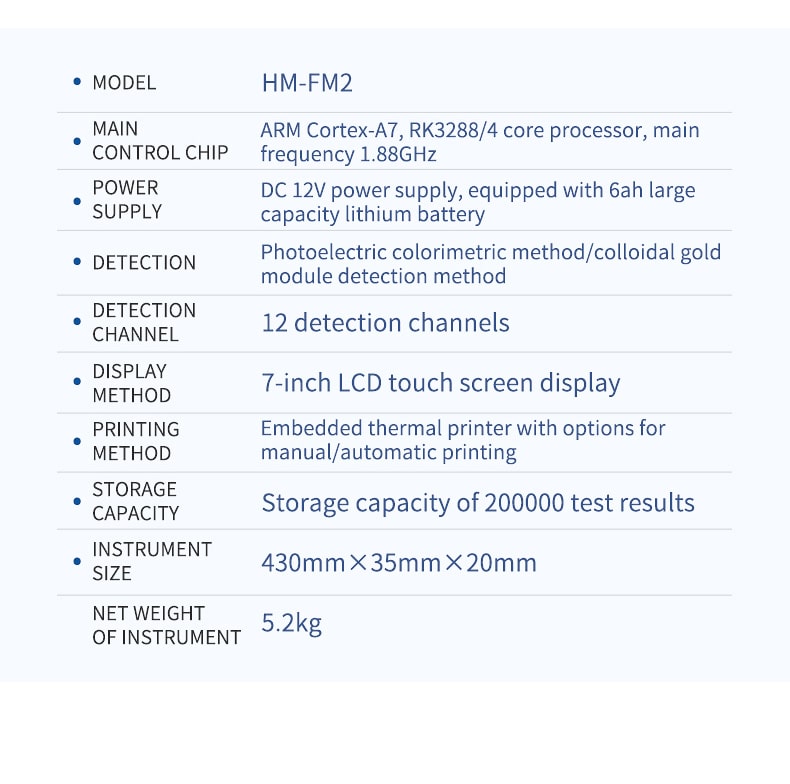

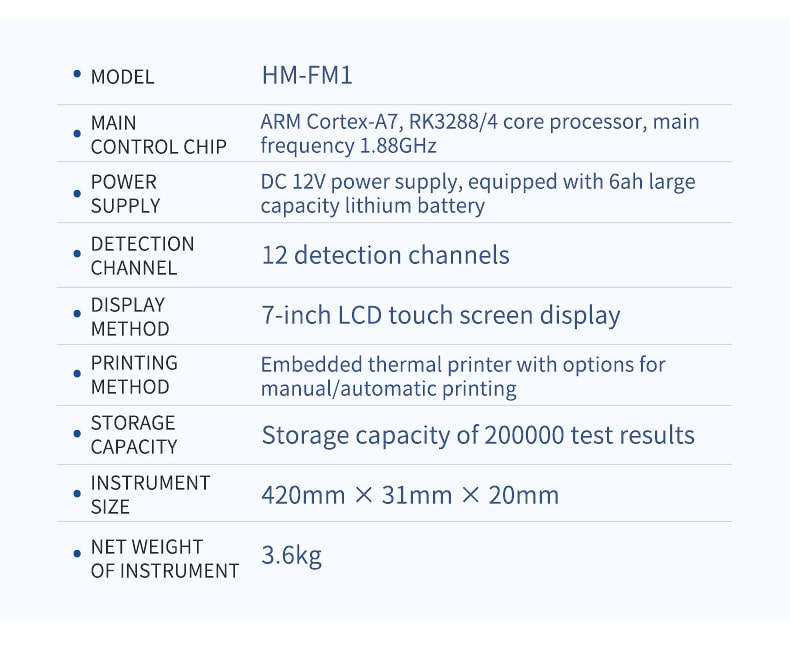

Main parameters:

1. The main control chip adopts ARM Cortex-A7, RK3288/4 core processor, the main frequency is 1.88Ghz, the operation speed is faster and the stability is stronger.

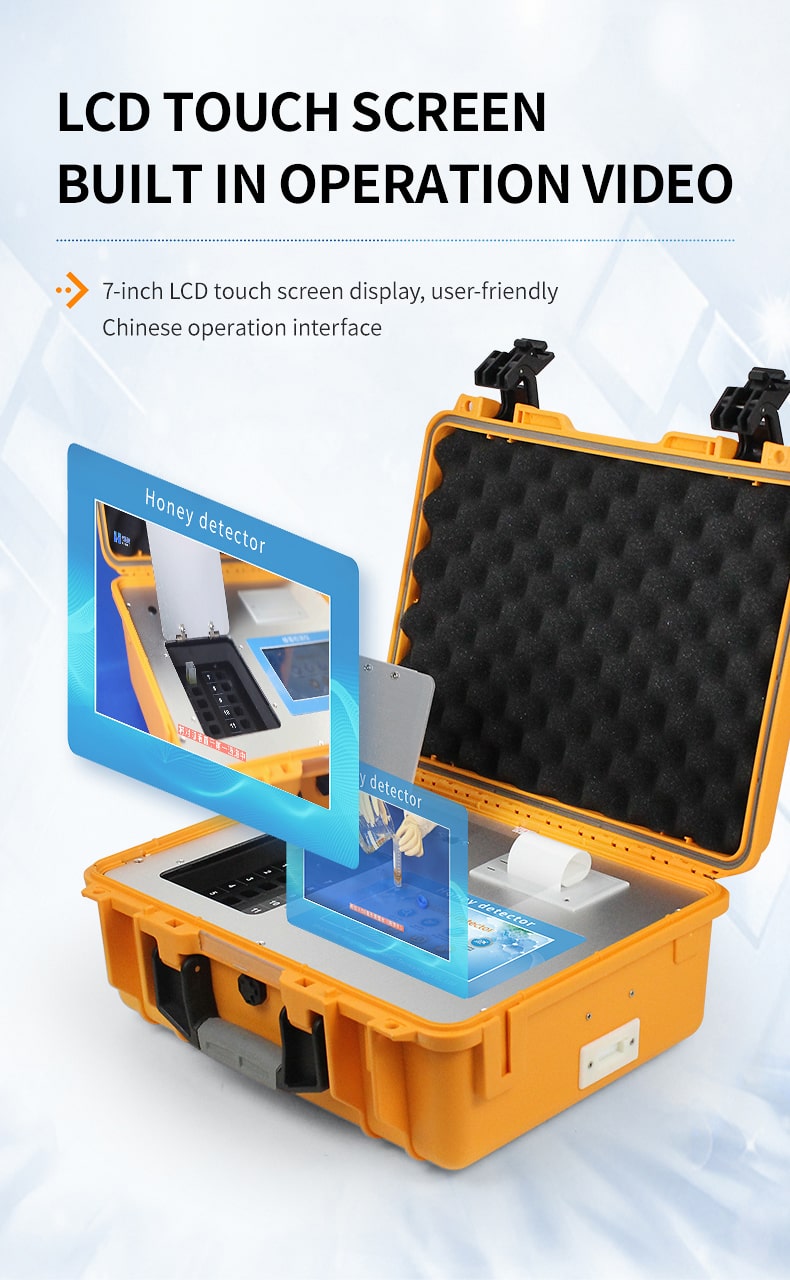

2. Display mode: 7-inch LCD touch screen display, humanized Chinese operation interface, intuitive and simple reading.

3. AC and DC dual-use, DC 12V power supply, can also be connected to the car power supply, can be equipped with 6ah large-capacity rechargeable lithium battery, convenient for outdoor flow testing.

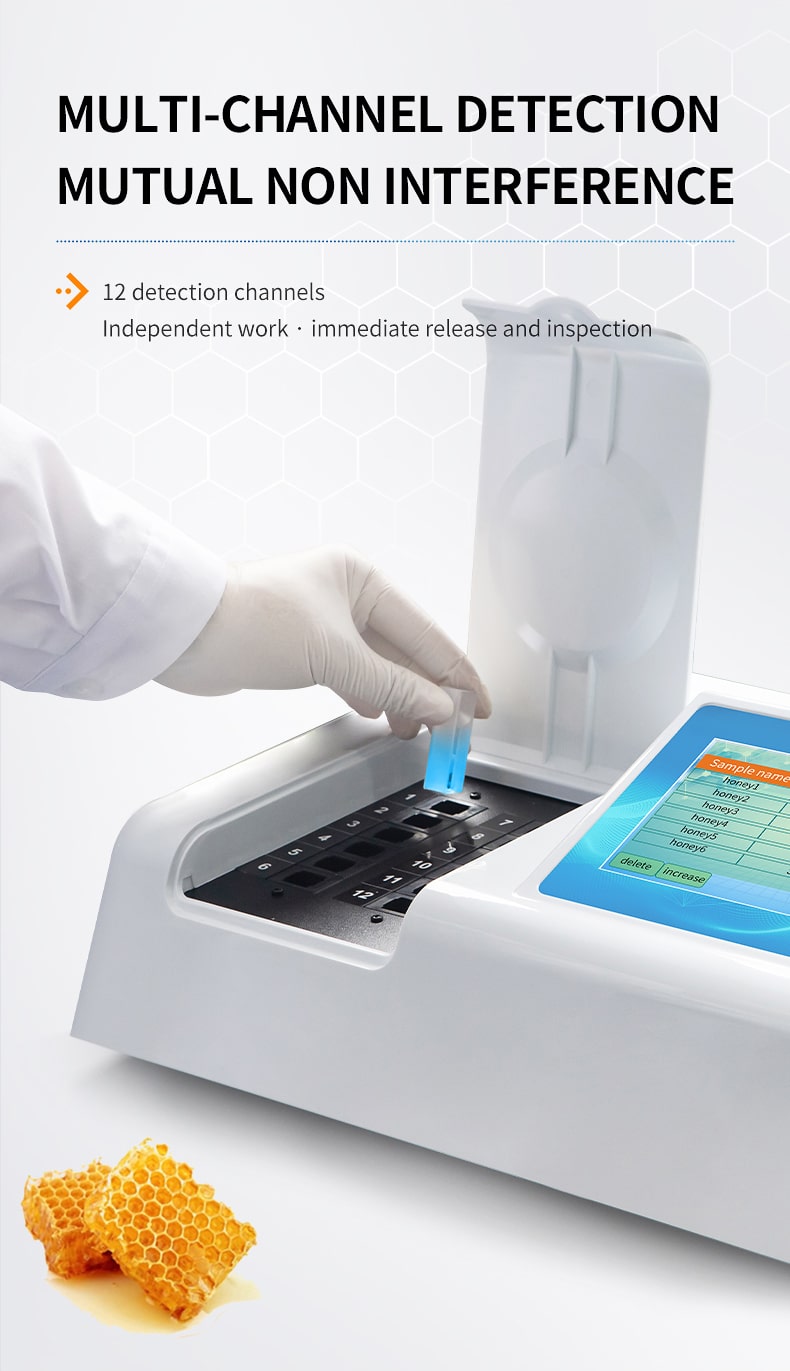

4. Four-wavelength cold light source, 12 detection channels, each channel is equipped with 410, 520, 590, 630nm wavelength light source, standard advanced optical path switching device, professional optical path switching function can achieve up to 64 wavelengths, and all detection items can achieve all channels at the same time.

5. Automatic adjustment and calibration of light source brightness

6. Intelligent constant current voltage regulation, automatic calibration of light intensity, long-term continuous working light source without temperature drift phenomenon.

7. Built-in new national limit standards, on-site comparison with the measured results, and continuous update of standards.

8. Uninterrupted sampling, continuous detection

9. Sample numbers are automatically accumulated.

10. The test results are Excel tables, which can be copied by connecting to a computer.

11. Storage capacity of 200,000 test results.

12. Supports USB storage, standard USB interface, driver-free installation.

13. Test items can be expanded, firmware can be upgraded.

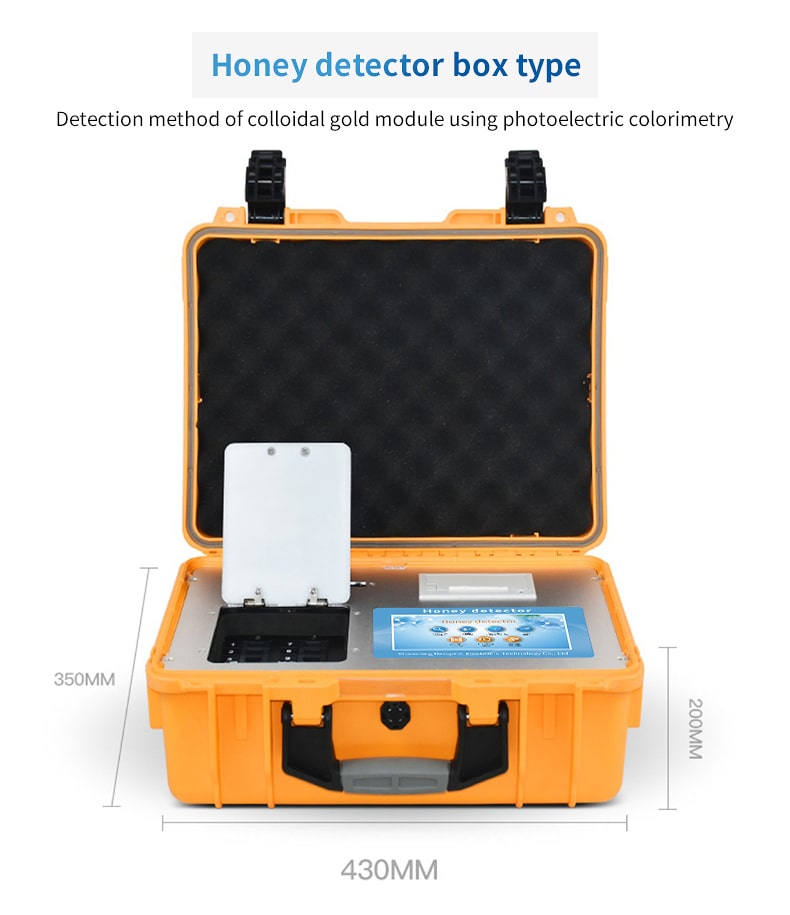

14. Instrument size: 43×35×20cm, main unit net weight: 5.2g.
