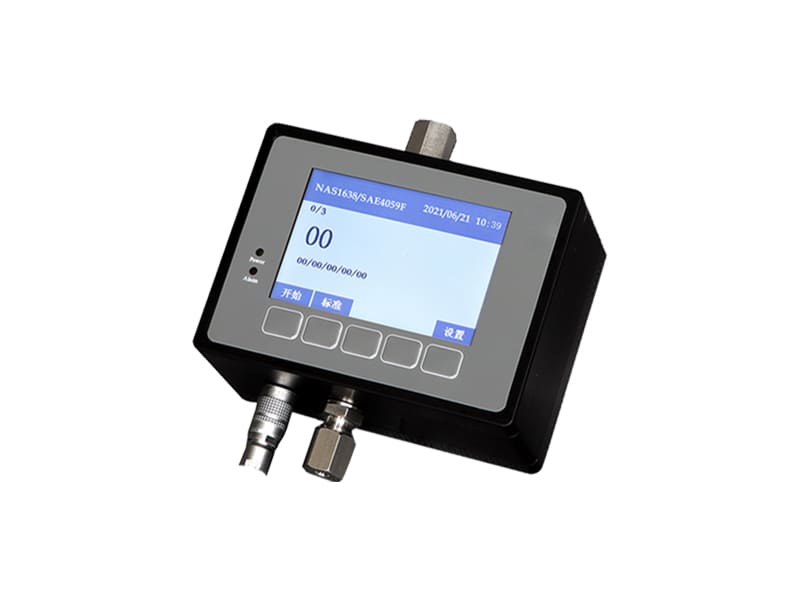

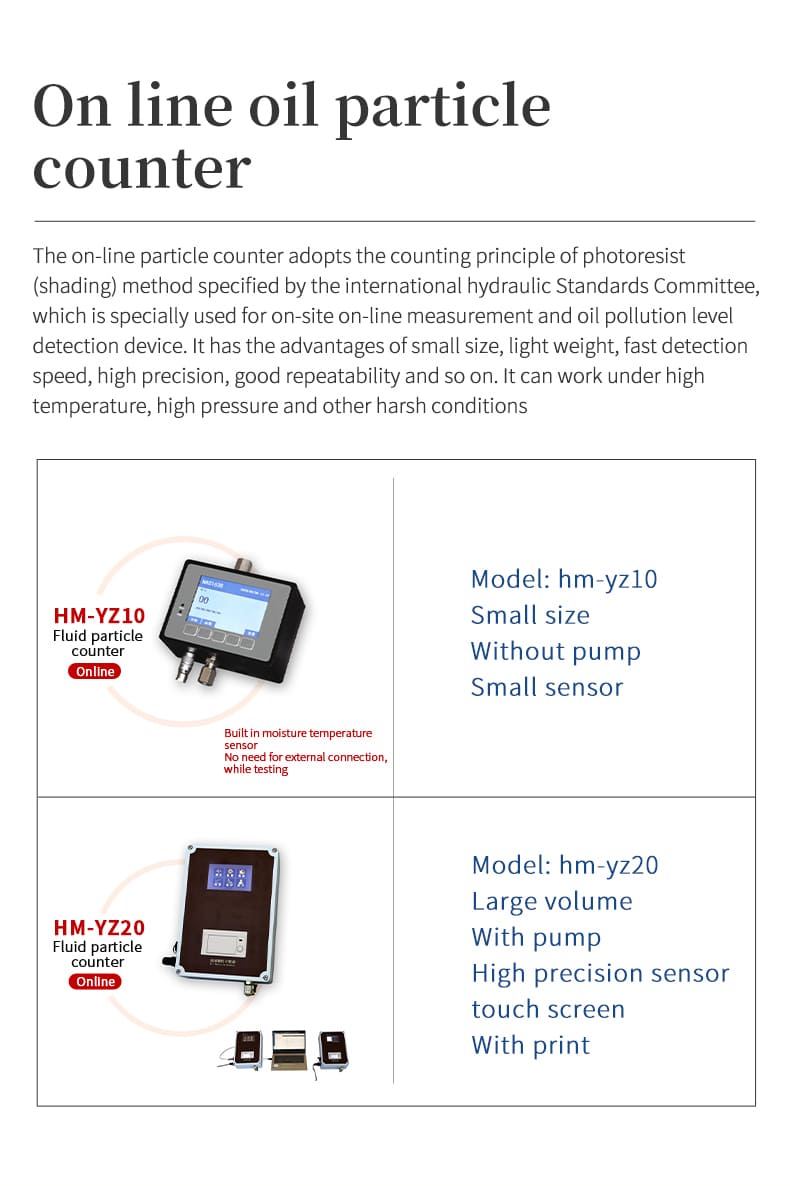

Online oil particle counter

The HM-YZ10 online oil particle counter is a device specifically designed for on-site online measurement and oil contamination level detection, using the light blocking (shading) counting principle specified by the International Hydraulic Standards Committee. It has the advantages of small size, light weight, fast detection speed, high accuracy, and good repeatability, and can work under harsh conditions such as high temperature and pressure. Suitable for all transparent solvents such as engine oil, gear oil, transformer oil (i.e. insulation oil), hydraulic oil, lubricating oil, synthetic oil, water-based (water-based hydraulic oil, water ethylene glycol, etc.), alcohols, ketones, etc. It can be widely used in fields such as power plants, aerospace, petrochemicals, transportation and ports, steel metallurgy, automobile manufacturing, etc.

Main features:

Adopting the principle of light obstruction (shading) and using high-precision laser sensors, it has a small volume, high accuracy, and stable performance

Suitable for on-site online detection, it can monitor the particle contamination level in the oil system in real time

Built in data analysis system, which can display the real data of particle size in each channel and automatically determine the sample grade

The standard model can directly withstand a pressure of 100 kilograms and can be equipped with a pressure reducing valve for online high-pressure measurement

L has volume flushing and duration flushing modes, making it convenient for users to use and maintain the equipment

Built in ISO4406, NAS1638, SAE4059, GJB420A, GJB420B Г Particle pollution level standards such as OCT17216 and GB/T14039

Built in calibration function, can be calibrated according to standards such as GB/T21540, ISO4402, ISO11171, GB/T18854, etc. A single test can provide all built-in standard results

L can independently set all standards and any alarm level to achieve pollution or cleanliness detection

RS232 or RS485 interface, supporting standard Modbus protocol, can connect to computers, upper computers, printers, PLC systems, or other devices for data monitoring and processing

Large storage capacity, can be selected to be stored inside the instrument or on external storage devices

Durable exterior structure, suitable for complex working environments

The bottom in and top out mode is beneficial for * * minimizing the interference of online bubbles on test results

L can be tested continuously or the testing time interval can be set arbitrarily

Dual Chinese and English systems, customers can freely switch, suitable for export

Touch screen or film button operation, can be freely switched, and the instrument interface can freely control the switch of the remote printer

Optional 4G/5G module, supporting remote data monitoring, historical data, and curve query on mobile phones or computers (optional)

Built in moisture and temperature sensor module, capable of outputting four types of parameter information simultaneously (optional)

Technical indicators:

Light source: semiconductor laser

Flow rate range: 5-500mL/min

Test sample viscosity: ≤ 650cSt

Online pressure detection: 0.1-10 Mpa (optional pressure reducing device * high pressure can reach 42Mpa)

Particle size range: 1~600 μ M

Interface: USB interface, RS232 interface, RS485 interface

Data storage: Provides 1000 sets of data storage space and supports USB storage

Sensitivity: 1 μ M or 4 μ M (c)

Limit overlap error: 40000 particles/ml

Count volume: 1-999ml

Count accuracy: ± 0.5 pollution levels

Protection level: IP56

Temperature (optional): Collection range: 1-100 ℃; Measurement accuracy: 1 ℃

Water activity (optional): Collection range: 1~* * * * RH; Measurement accuracy: 1% RH

Water content (optional): Collection range: 1-360ppm; Measurement accuracy: 1ppm

Test interval: 1 second~24 hours

Test sample temperature: 0-80 ℃

Working temperature: -20~60 ℃

Power supply: AC 220V ± 10%, 50/60Hz or DC12-40V

Weight: 1kg

Volume: 115 x 85 x 60mm
