Product Introduction

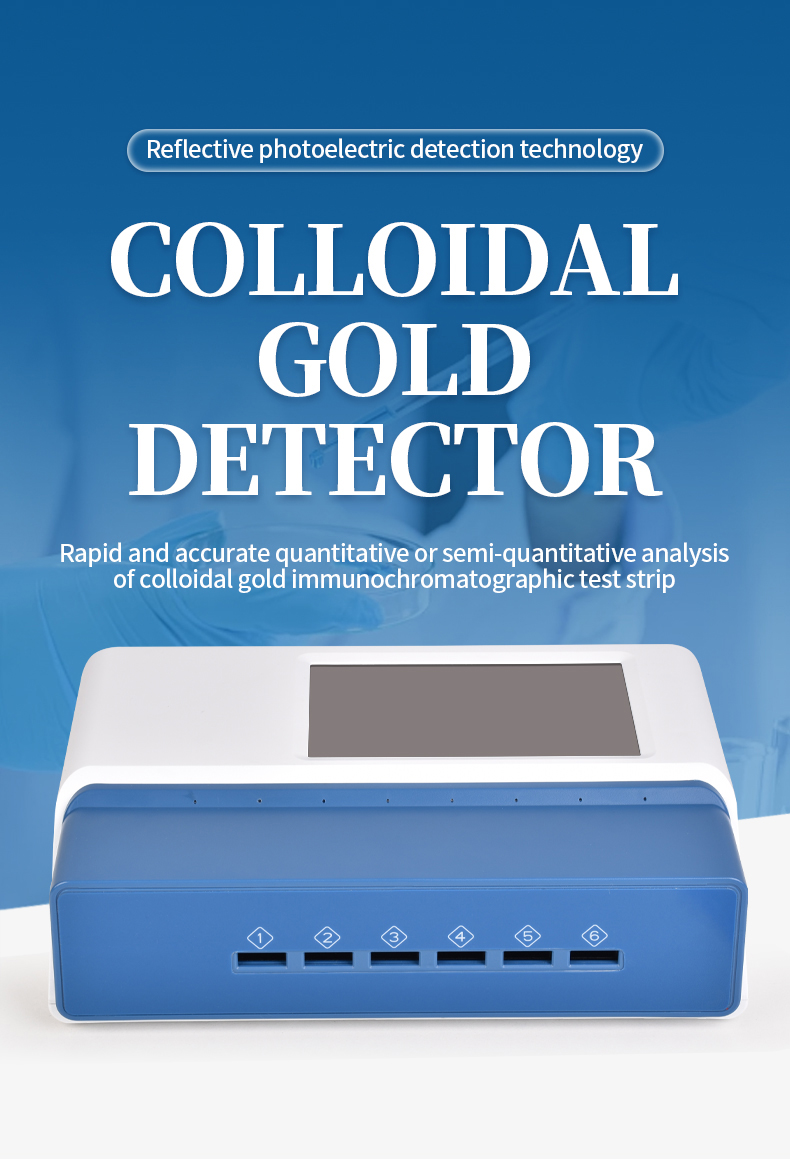

The HM-JD01 is a portable colloidal gold immunoassay analyzer engineered for rapid, precise quantitative and semi-quantitative analysis of colloidal gold immunochromatographic assay (GICA) test strips. Integrating advanced reflectance photometric detection with an Android 4.4 smart data processing platform, it delivers accurate results in under 5 seconds per test.
Weighing only 670g with a 6000mAh battery, the HM-JD01 is built for field deployment. The 4.3-inch touchscreen (800×480) provides intuitive navigation, while 8GB internal memory stores over 100,000 records with date-based query, preview, deletion, and report generation. A single detection channel with integrated incubation module (ambient +5°C to 60°C) supports both incubation and immediate detection modes. The built-in thermal printer enables on-site result documentation, and WiFi, Bluetooth, and Type-C connectivity ensure seamless data transfer to laboratory information systems.
Applications
Food safety: pathogenic microorganisms, pesticide and veterinary drug residues, biotoxins
Veterinary diagnostics: animal disease screening and surveillance
Environmental monitoring: water and soil contaminant detection
Research and biosafety: laboratory-based immunochromatographic analysis
Other GICA test strip applications
Functional Performance
Handheld design with battery power — compact and lightweight at 670g for true field portability

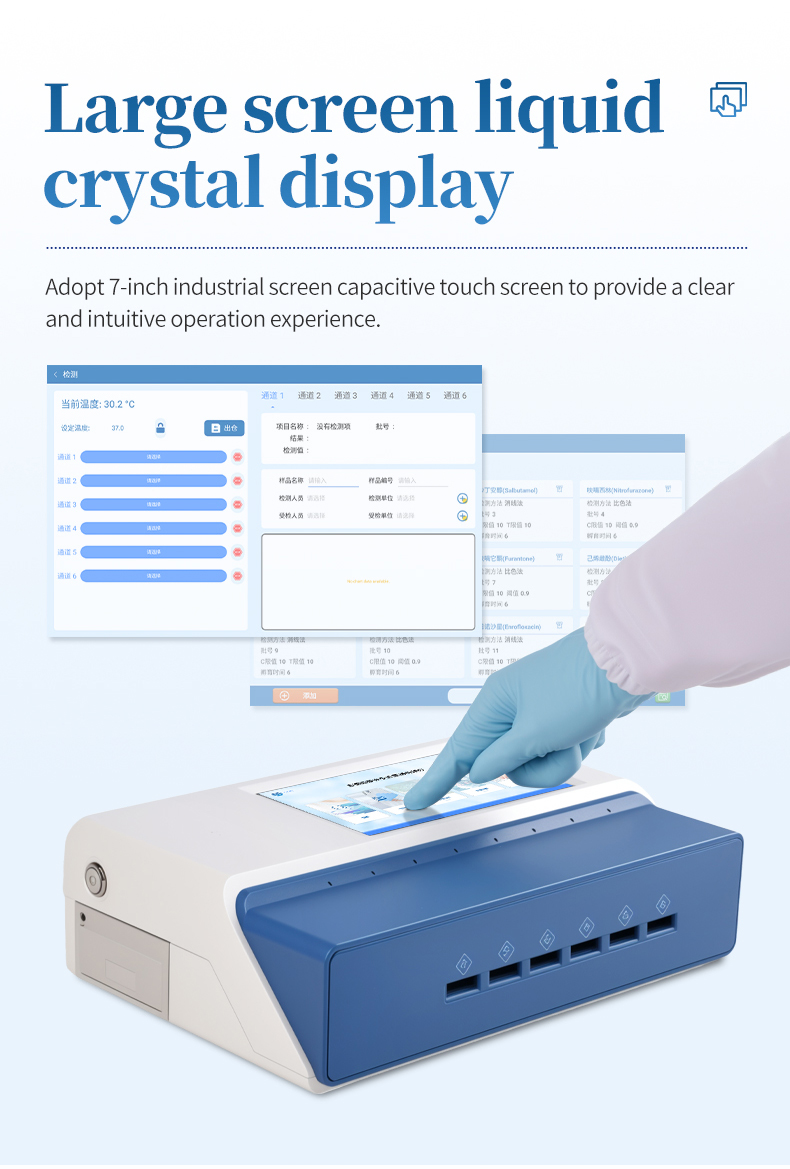

Android 4.4 operating system with user-friendly 4.3-inch touchscreen interface
8GB internal memory supporting 100,000+ records with date query, preview, deletion, and report generation
High-precision reflectance photometric system with specific wavelength source and photoelectric sensor, minimizing ambient light interference
QR code scanning for rapid sample information entry

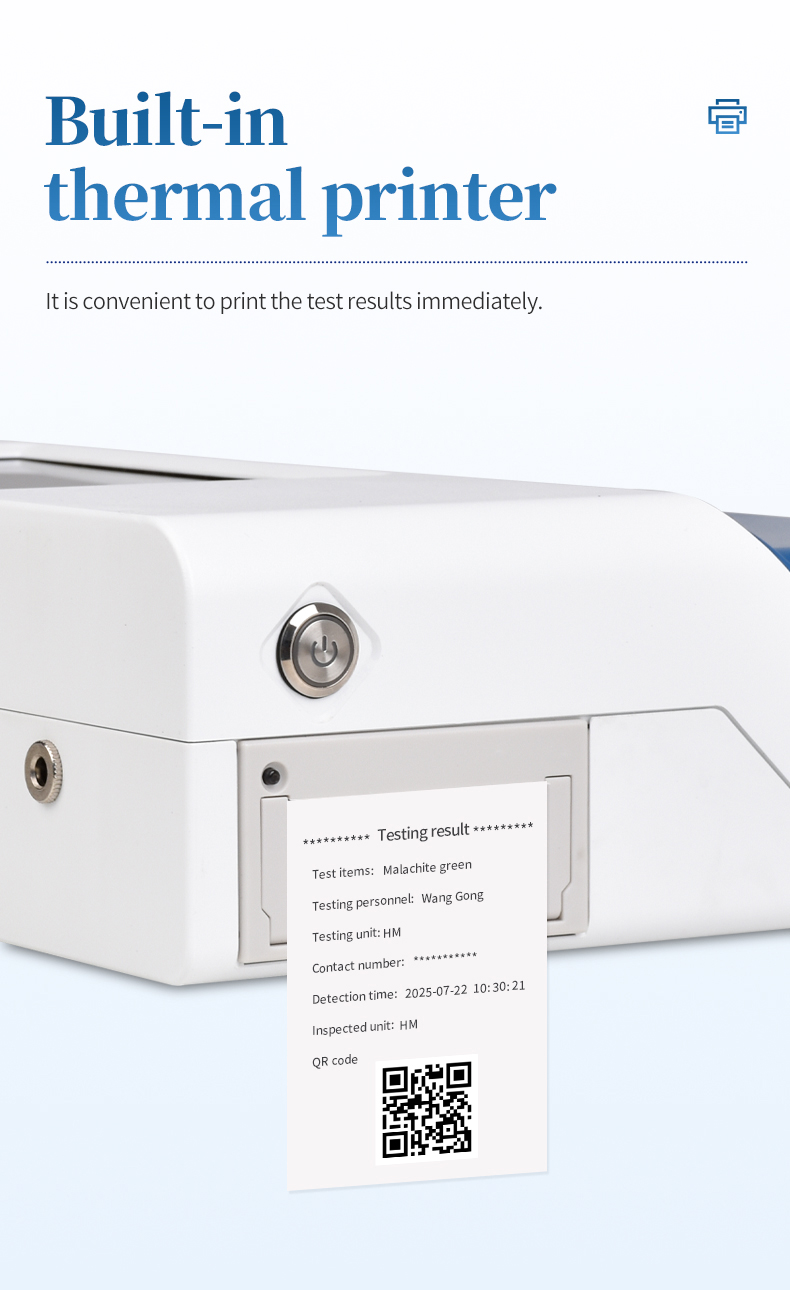

Built-in thermal printer (57×20mm) for immediate on-site result documentation
Real-time self-diagnosis of critical components for operational reliability
WiFi, Bluetooth, and Type-C connectivity for wireless and wired data transfer
Channel-integrated incubation module with temperature range from ambient +5°C to 60°C
Dual detection modes: incubation detection and immediate detection
Detection curve verification against test cards to prevent result misjudgment
Built-in quality control function ensuring result validity
Main Parameters
| Parameter | Specification |
|---|---|
| Detection Method | Reflectance photometric |
| Detection Channels | Single channel |
| Detection Time | <5 seconds |
| Accuracy | Error ≤5% |
| Repeatability | CV ≤3% |
| Resolution | 0.001 |
| Stability | SW ≤5% |
| Adapted Card Shell | 70mm × 20mm |

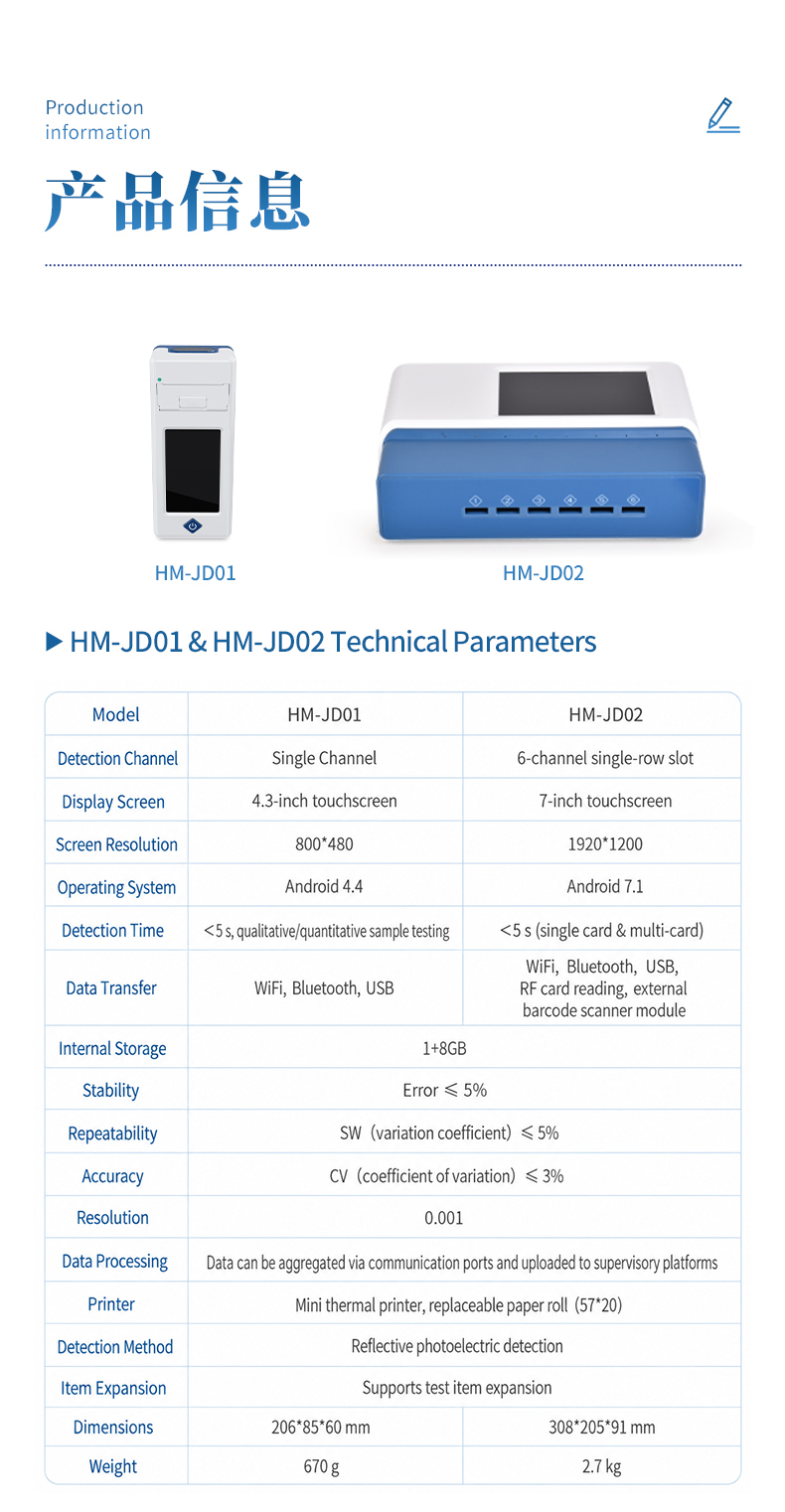

Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HM-JD01 |
| Screen | 4.3-inch touchscreen, 800×480 |
| Memory | 1+8GB |
| Operating System | Android 4.4 |
| Detection Method | Reflectance photometric |
| Adapted Card Shell | 70mm × 20mm |
| Language | Chinese / English |
| Storage Capacity | 100,000+ records |
| Accuracy | Error ≤5% |
| Stability | SW ≤5% |
| Repeatability | CV ≤3% |
| Resolution | 0.001 |
| Detection Channels | Single channel |
| Detection Time | <5 seconds |
| Data Transfer | WiFi, Bluetooth, Type-C |
| Incubation Temperature | Ambient +5°C ~ 60°C |
| Printer | Thermal (57×20mm) |
| Power Input | AC100V–240V / 0.3A 50Hz |
| Power Output | DC5V / 2A |
| Battery Capacity | 6000mAh |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 0% ~ 90% |
| Dimensions | 206mm × 85mm × 60mm |
| Weight | 670g |
- Previous: no more

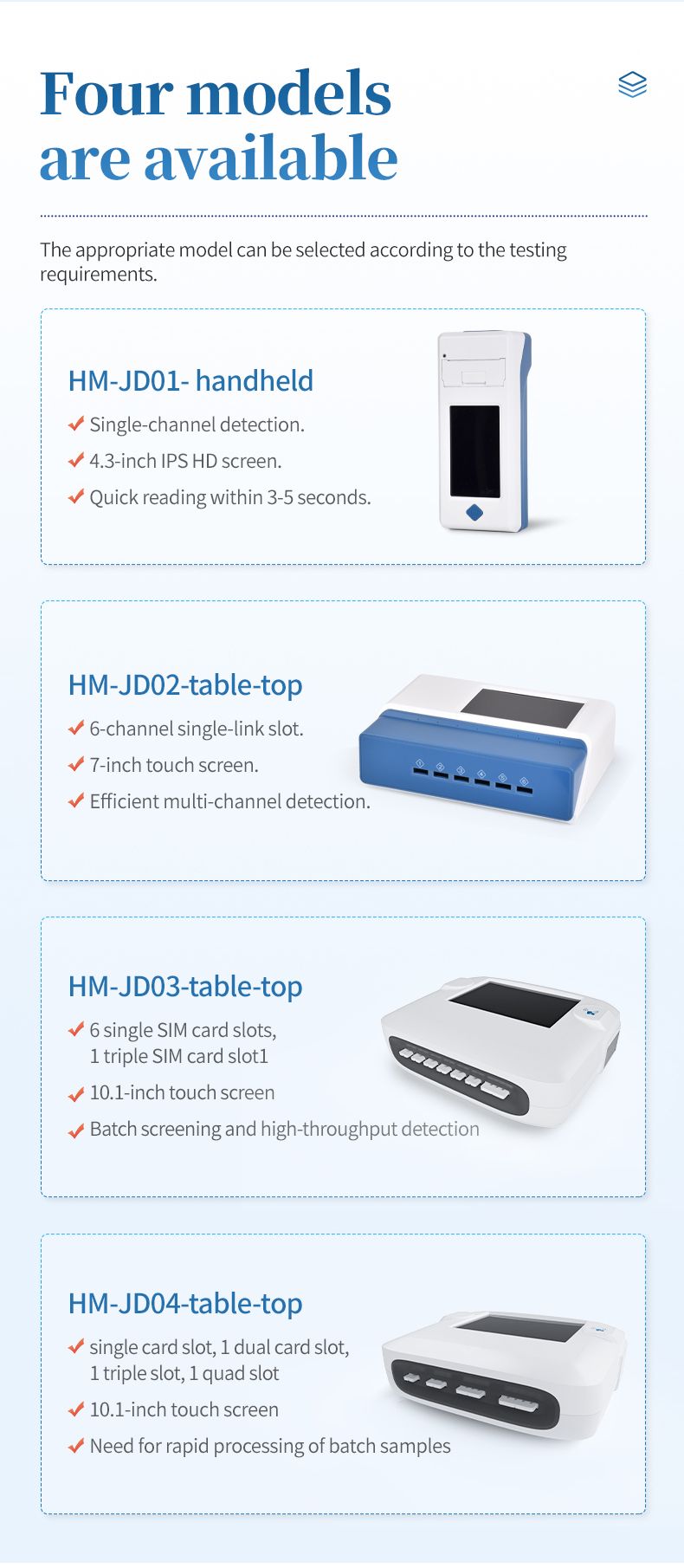

- Next: HM-JD02 Multi-Channel Colloidal Gold Immunoassay Analyzer
