Product Details
Product Introduction

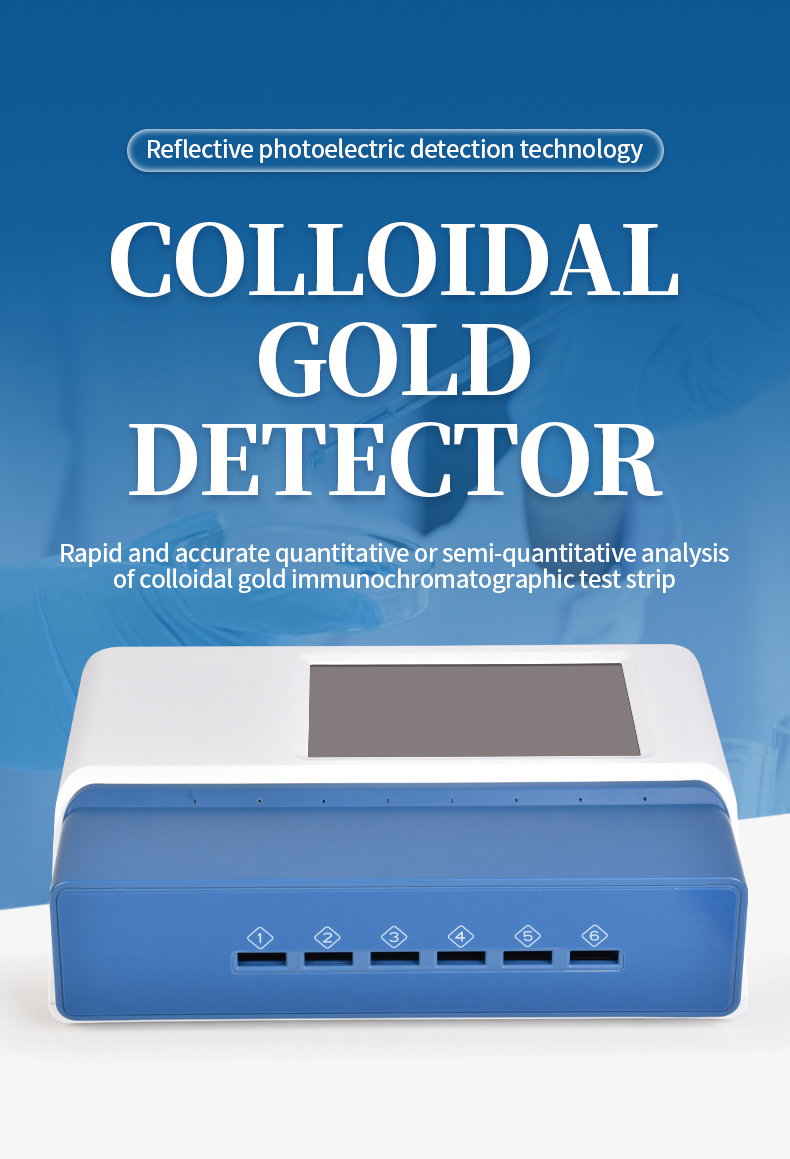

The HM-JD03 is a high-capacity desktop colloidal gold immunoassay analyzer designed for rapid, semi-quantitative analysis of colloidal gold immunochromatographic assay (GICA) test strips. It integrates advanced reflectance photometric detection with an intelligent data processing platform, high-throughput multi-slot architecture, and comprehensive network connectivity.
Distinguished by its 6+1 channel configuration — six single-card slots (70mm × 20mm × 5.6mm each) and one triple-strip card slot (70mm × 40mm × 5.6mm) — the HM-JD03 enables parallel batch processing of multiple samples, significantly improving throughput in high-volume laboratory environments. Each slot delivers results in under 5 seconds with reflectance photometric accuracy of error ≤5% and CV ≤3%.
The 10.1-inch capacitive touchscreen with 1280×800 resolution runs Android 7.1, providing a spacious interface for managing concurrent multi-slot operations. With 5 million record storage, a built-in thermal printer (57×30mm), incubation module (ambient +5°C to 60°C), and versatile connectivity including WiFi, Bluetooth, USB, LAN, and U-disk export, the HM-JD03 delivers a complete batch-testing solution for professional laboratory workflows.
Applications
Food safety: pathogenic microorganisms, pesticide and veterinary drug residues, biotoxins
Livestock and veterinary diagnostics: animal disease screening and surveillance
Environmental monitoring: water and soil contaminant detection
Research and biosafety: laboratory immunochromatographic analysis
Other GICA test strip applications
Functional Performance

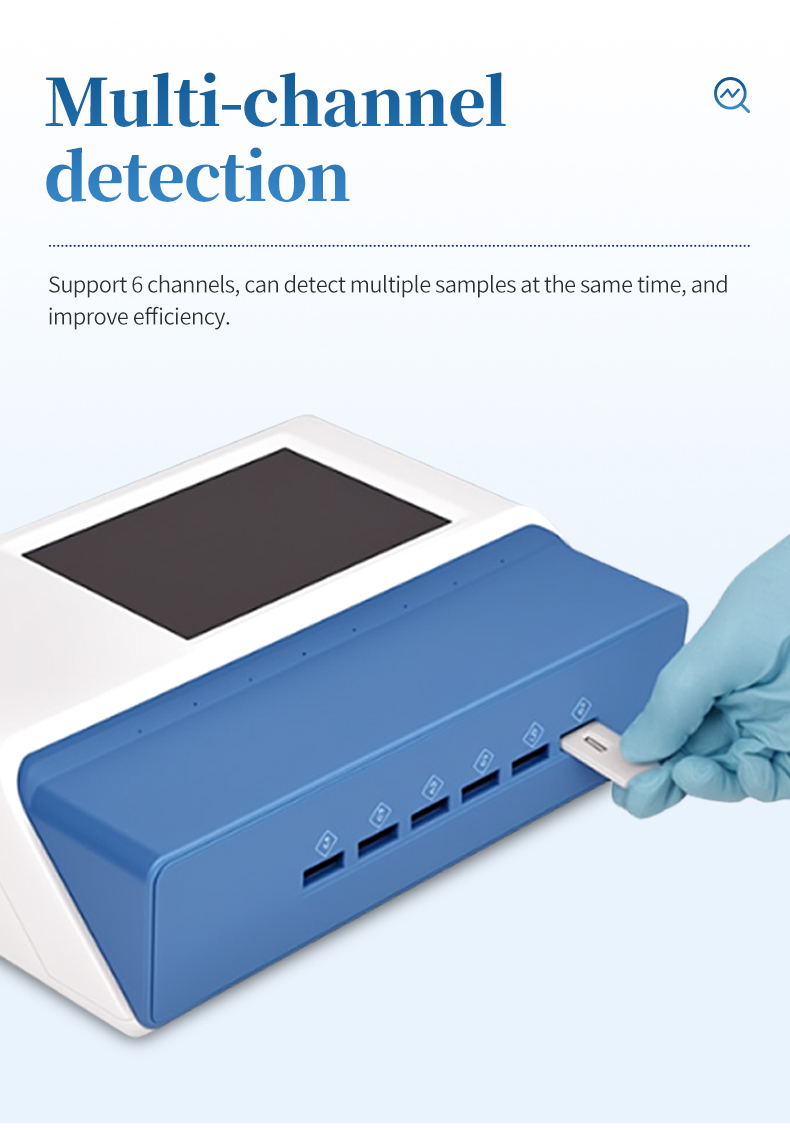

6 single-card slots + 1 triple-strip card slot, enabling simultaneous single-card and multi-strip batch detection for enhanced throughput

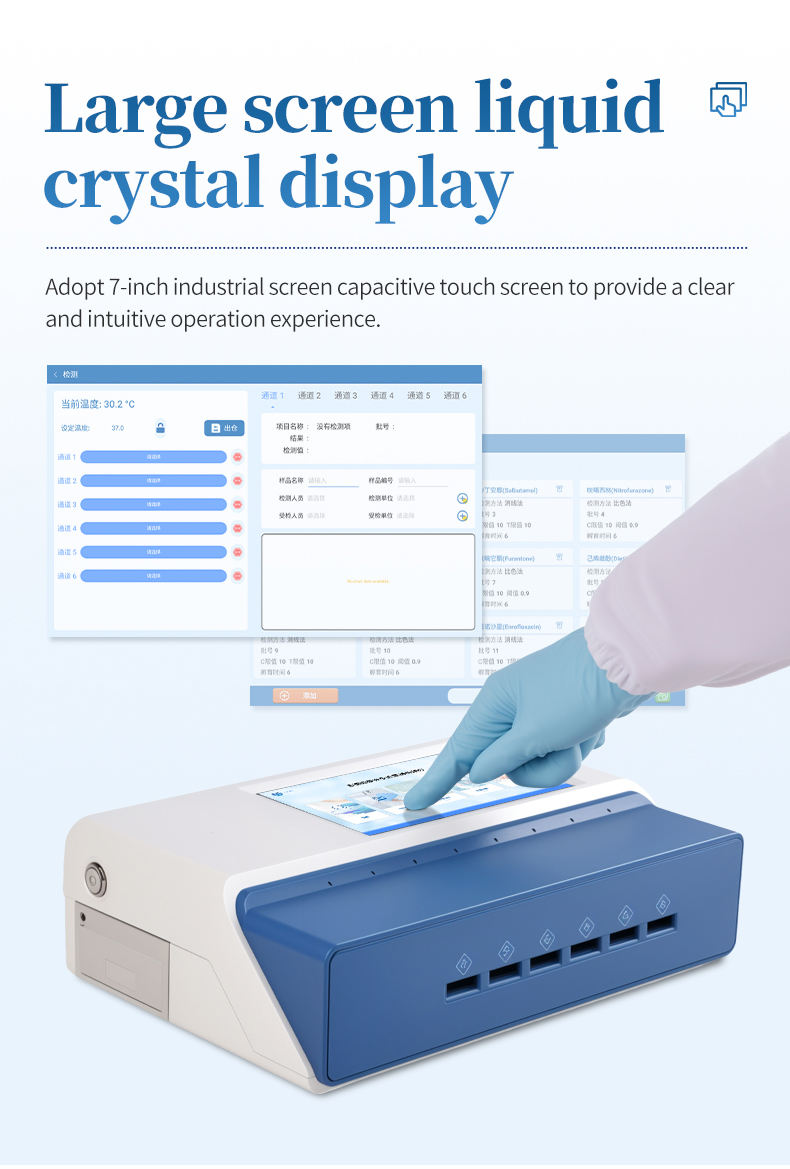

10.1-inch capacitive touchscreen (1280×800) with Android 7.1 for intuitive multi-slot operation management
5 million test record storage capacity for comprehensive long-term data management
Integrated incubation module with temperature range from ambient +5°C to 60°C

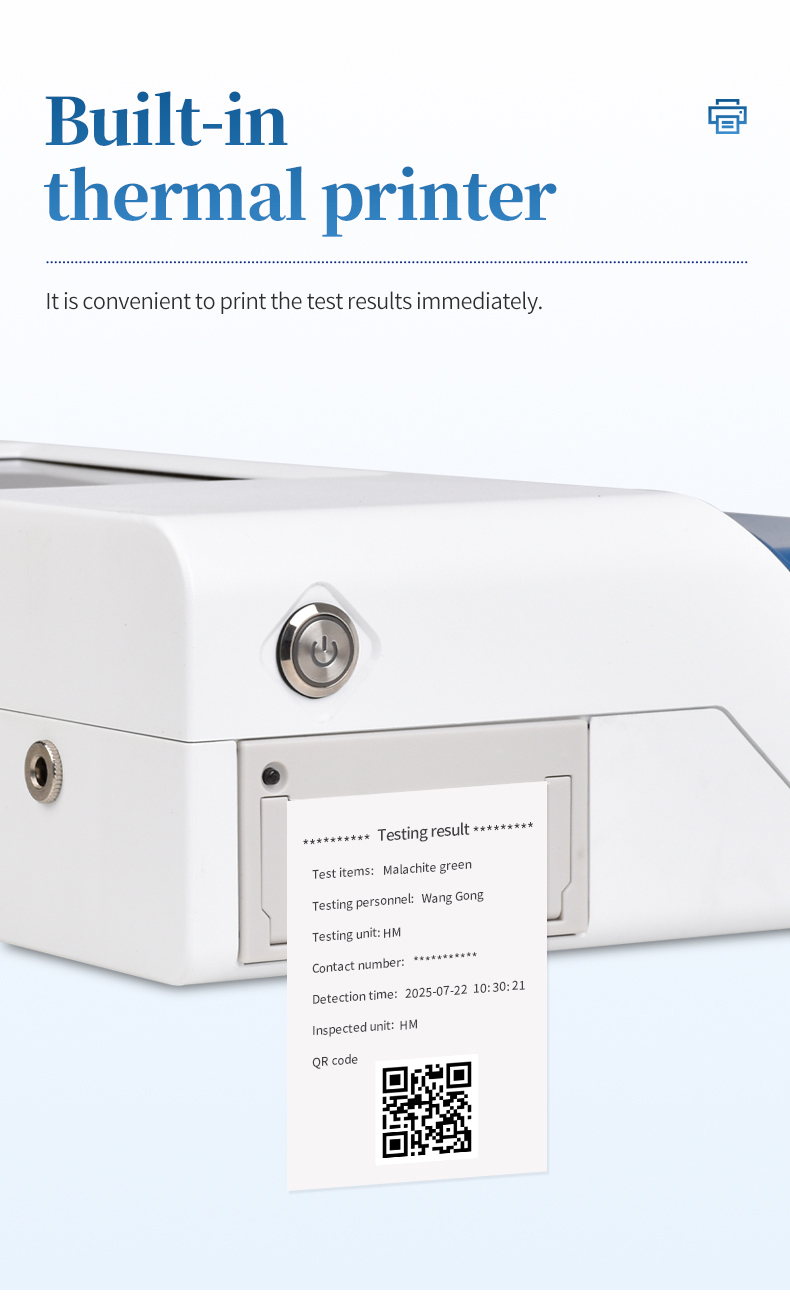

Built-in thermal printer (57×30mm) for immediate on-site result documentation
Card insertion judgment with built-in quality control function for automated result validation
Dual detection modes: incubation detection and immediate detection
Real-time self-diagnosis of critical components for operational assurance
High-speed wired and wireless networking: WiFi, Bluetooth, LAN, and USB data transfer
Comprehensive interface design: dual USB-A, USB-B, LAN, and U-disk data export
QR code scanning for rapid sample information entry
Detection curve verification and project management for assay expansion
Main Parameters
| Parameter | Specification |
|---|---|
| Detection Method | Reflectance photometric |
| Channels | 6 single-card slots (70mm × 20mm × 5.6mm) + 1 triple-strip slot (70mm × 40mm × 5.6mm) |
| Detection Time | <5 seconds (single and multi-strip cards) |
| Accuracy | Error ≤5% |
| Repeatability | CV ≤3% |
| Resolution | 0.001 |
| Stability | SW ≤5% |

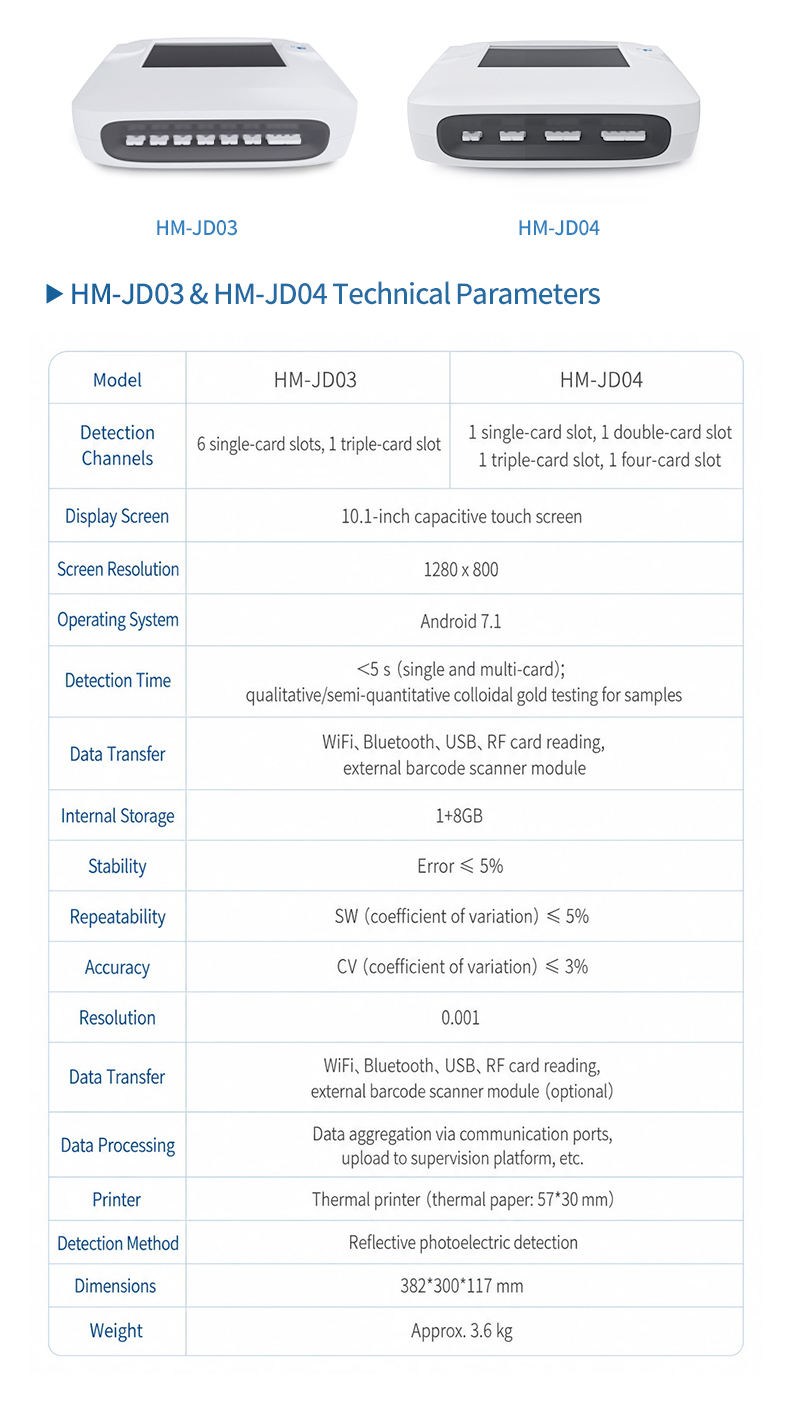

Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HM-JD03 |
| Screen | 10.1-inch capacitive touchscreen, 1280×800 |
| Memory | 1+8GB |
| Operating System | Android 7.1 |
| Detection Method | Reflectance photometric |
| Language | Chinese / English |
| Storage Capacity | 10万+ |
| Accuracy | Error ≤5% |
| Stability | SW ≤5% |
| Repeatability | CV ≤3% |
| Resolution | 0.001 |
| Channels | 6 single-card slots (70mm × 20mm × 5.6mm) + 1 triple-strip slot (70mm × 40mm × 5.6mm) |
| Detection Time | <5 seconds (single and multi-strip cards) |
| Printer | Thermal (57×30mm) |
| Data Transfer | WiFi, Bluetooth, USB, RFID reader, external barcode scanner (optional) |
| Incubation Temperature | Ambient +5°C ~ 60°C |
| Interfaces | USB ×2, USB-B ×1, LAN ×1, DC 5.5/2.1mm |
| Power Input | AC220V ±20V, 50Hz ±1Hz |
| Power Output | DC12V, 5A |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 0% ~ 90% |
| Dimensions | 382mm × 300mm × 117mm |
| Weight | Approx. 3.6kg |
