HM-JD04 Multi-Format Colloidal Gold Immunoassay Analyzer

Product Introduction

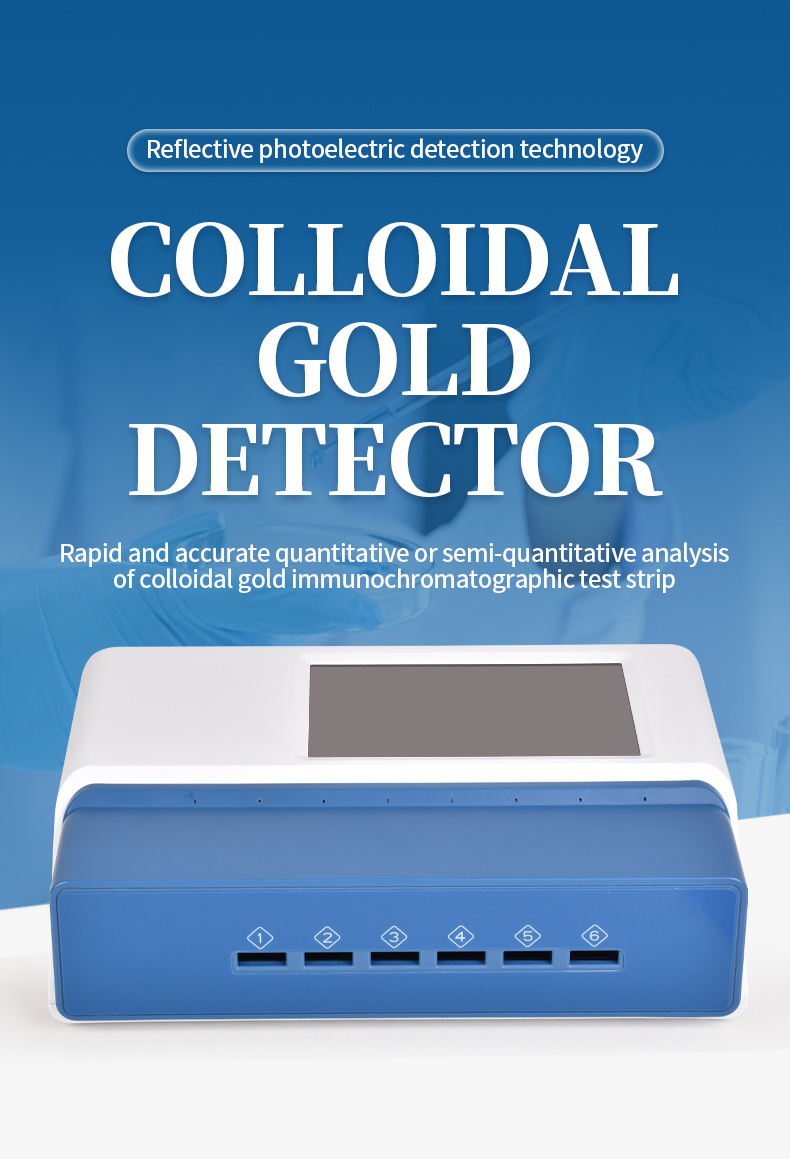

The HM-JD04 is a multi-format colloidal gold immunoassay analyzer engineered for laboratories that require flexibility across the full range of GICA test strip configurations. It integrates advanced reflectance photometric detection with an intelligent data processing platform, high-throughput design, and comprehensive networking capabilities.

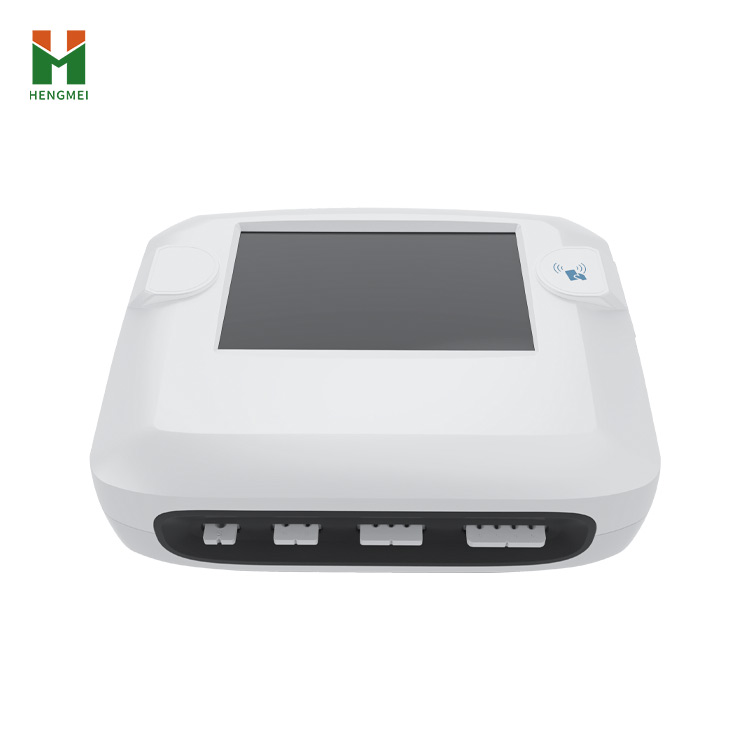

The instrument's defining feature is its four dedicated card slots, each sized for a different multi-strip format: one single-card slot (70mm × 20mm × 5.6mm), one dual-strip slot (70mm × 28mm × 5.6mm), one triple-strip slot (70mm × 40mm × 5.6mm), and one quad-strip slot (70mm × 50mm × 5.6mm). This comprehensive format coverage allows researchers to select the optimal card configuration for each assay protocol without hardware limitations, supporting experimental designs that transition between single-analyte validation and multi-analyte combination screening.

Powered by Android 7.1 on a 10.1-inch capacitive touchscreen (1280×800), the HM-JD04 provides a clear interface for format-specific test configuration, result display, and data export. With 5 million record storage, an incubation module (ambient +5°C to 60°C), built-in thermal printer (57×30mm), and connectivity including WiFi, Bluetooth, USB, LAN, and U-disk export, it serves as a versatile analytical platform for research-grade GICA applications.

Testing Items

• Food safety: pathogenic microorganisms, pesticide and veterinary drug residues, biotoxins

• Research and biosafety: laboratory immunochromatographic analysis with multi-format strip configurations

• Other GICA test strip applications

Features

1. Four dedicated card slots covering single, dual, triple, and quad-strip GICA formats for maximum card compatibility

2. 10.1-inch capacitive touchscreen with 1280×800 resolution and Android 7.1 operating system

3. 5 million test record storage capacity for comprehensive experimental data management

4. Card insertion judgment with built-in quality control function for automated result validation

5. Integrated incubation module maintaining temperature from ambient +5°C to 60°C

6. Dual detection modes: incubation detection and immediate detection

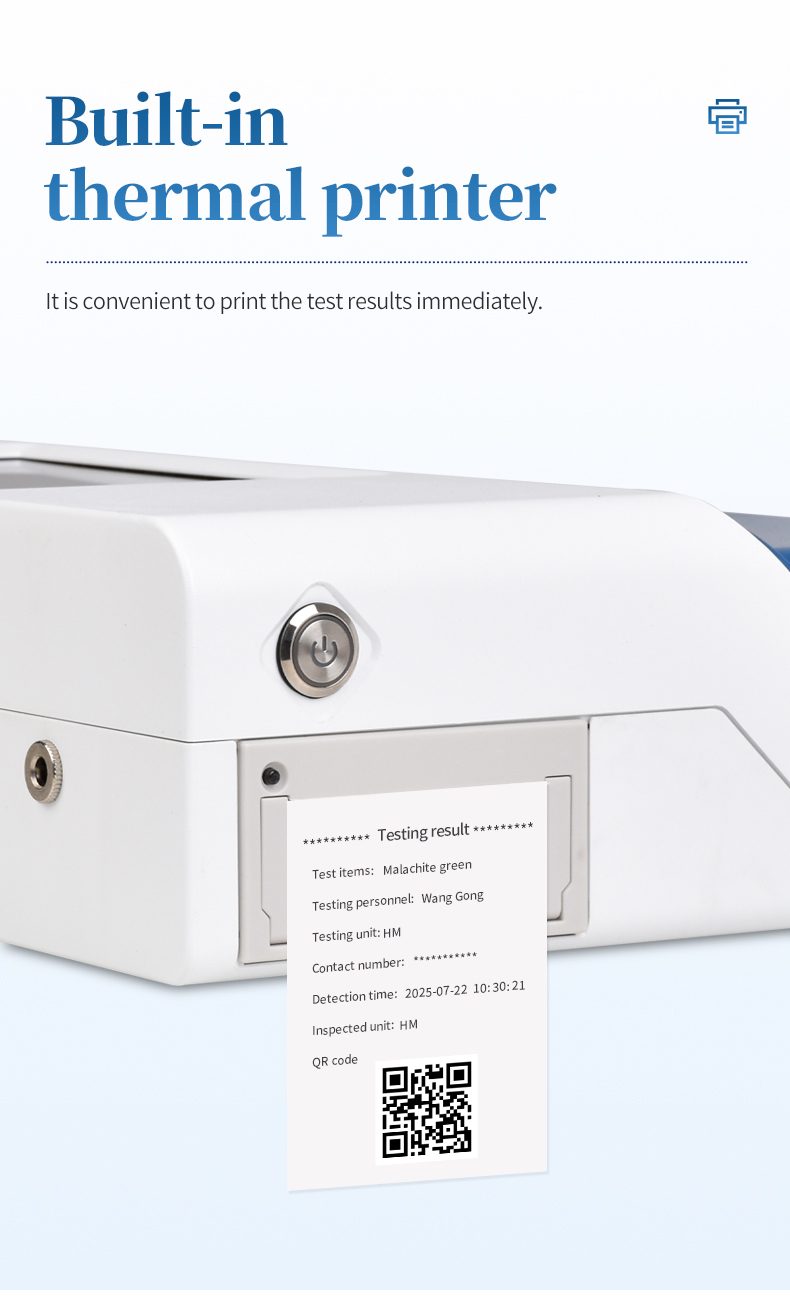

7. Detection result display and print via built-in thermal printer (57×30mm)

8. Comprehensive interface design: dual USB-A, USB-B, LAN, and U-disk data export

9. High-speed wired and wireless networking: WiFi, Bluetooth, and LAN connectivity

10. Real-time self-diagnosis of critical components for operational assurance

11. QR code scanning for rapid sample information entry

12. Detection curve verification and project management supporting assay expansion

Main Parameters

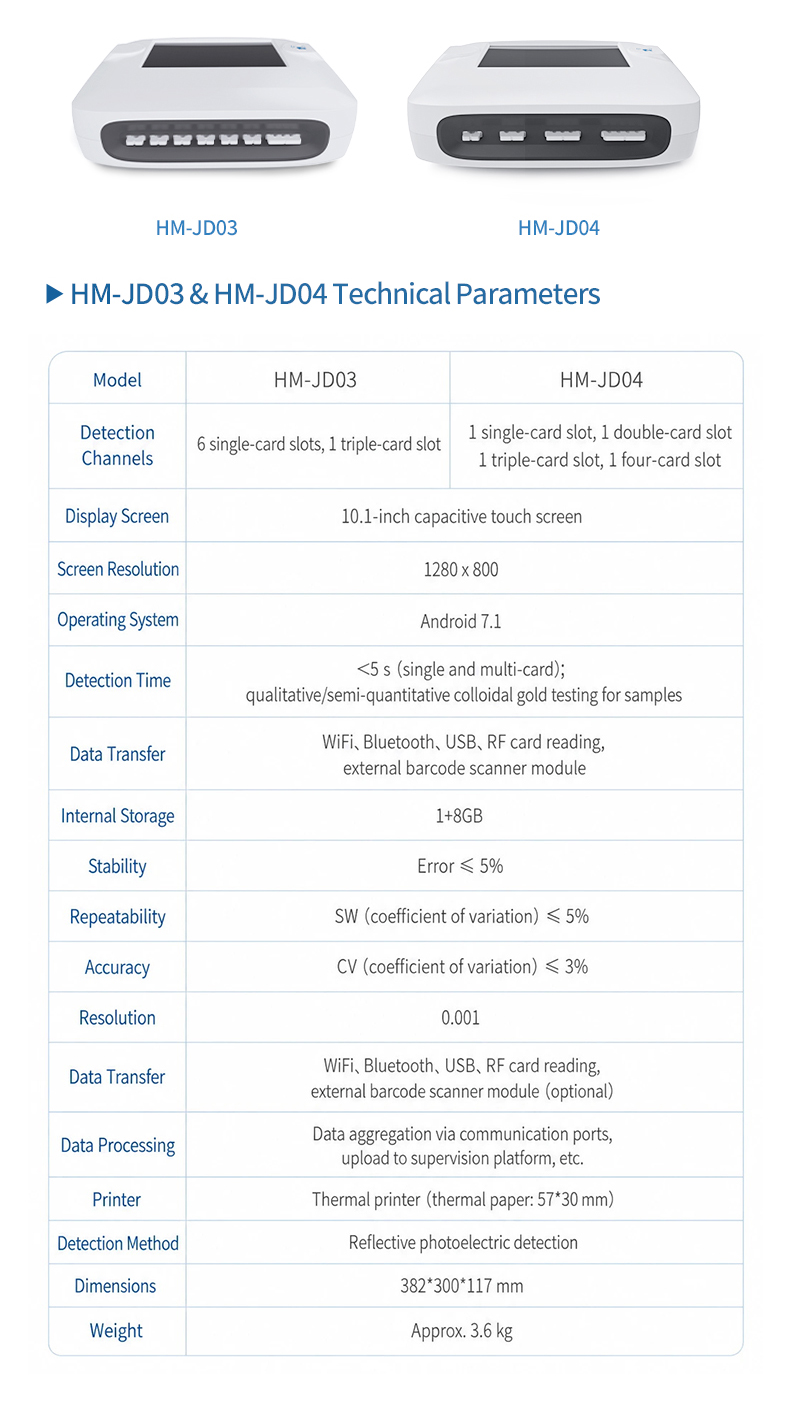

Technical Parameters

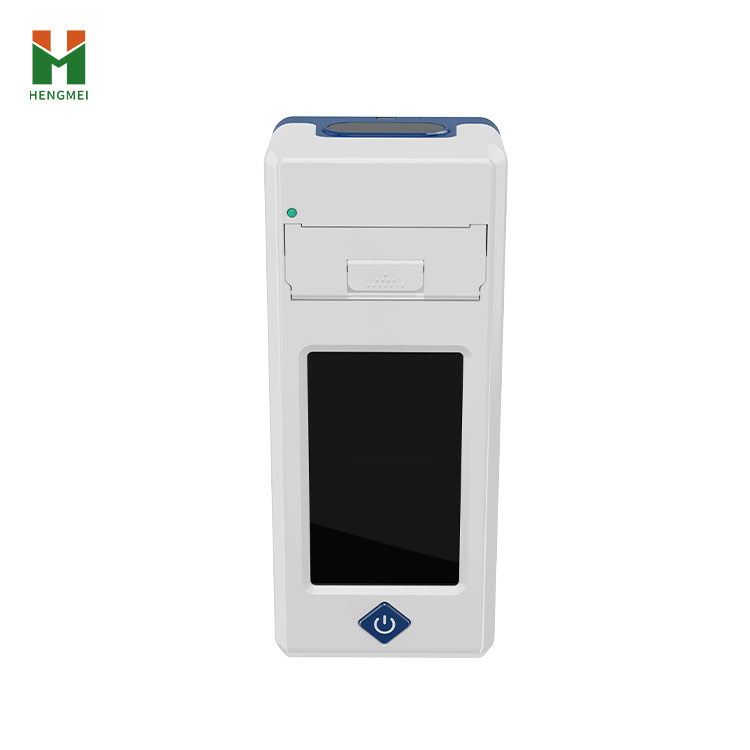

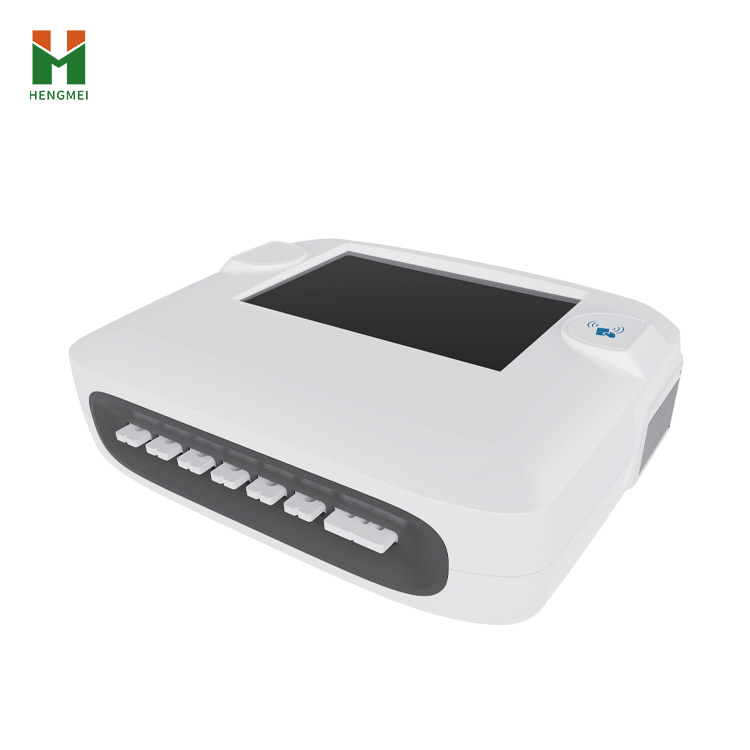

• Previous: HM-JD03 High-Capacity Colloidal Gold Immunoassay Analyzer
