Product Details
Product Introduction

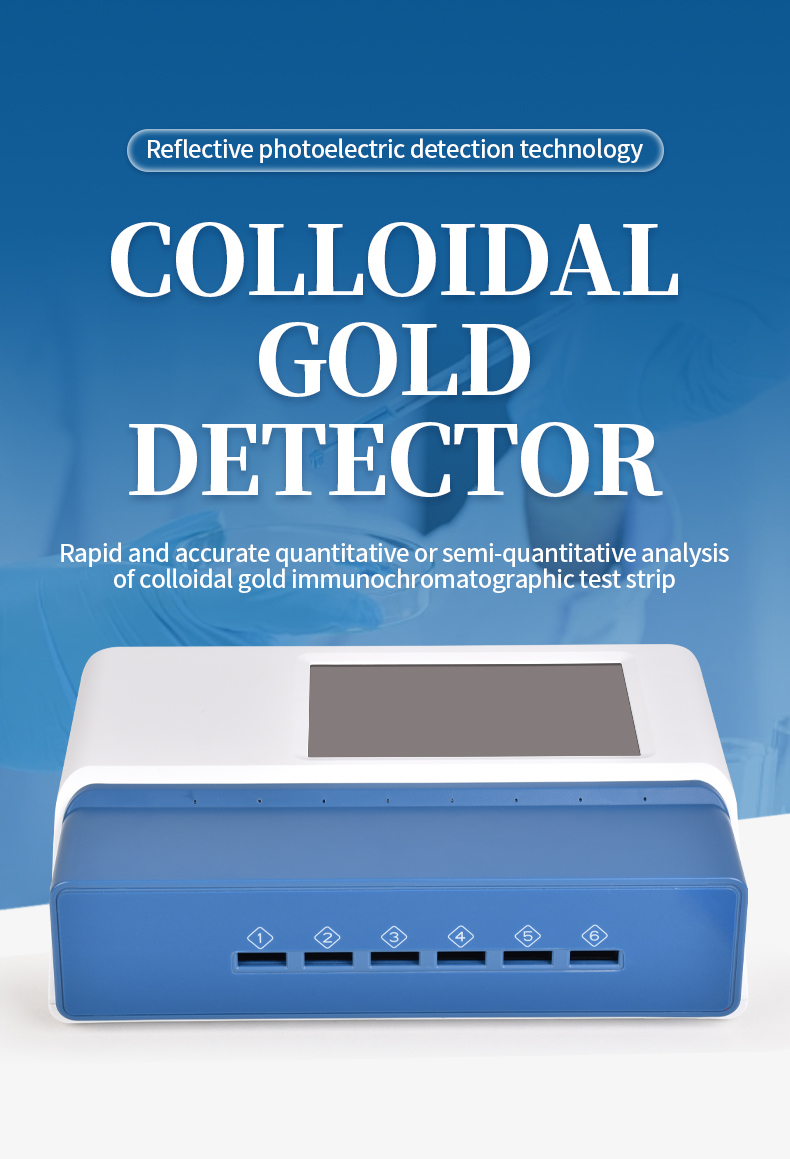

The HM-JD02 is a multi-channel desktop colloidal gold immunoassay analyzer designed for laboratories that require simultaneous multi-project screening of GICA test strips. Equipped with 6 independent detection channels, it processes different assay types concurrently, delivering results in under 5 seconds per card and dramatically improving laboratory throughput compared to single-channel instruments.
The 7-inch capacitive touchscreen with 1920×1200 resolution runs Android 7.1, providing a clear and responsive interface for test configuration, result review, and data management. A comprehensive set of connectivity options — dual USB-A ports, USB-B for PC connection, LAN for wired network integration, and optional RFID reader — supports diverse data workflows from direct U-disk export to LIMS integration via Ethernet.
The instrument maintains the same reflectance photometric detection accuracy (error ≤5%, CV ≤3%, resolution 0.001) across all 6 channels. Each channel includes an incubation function with temperature control from ambient +5°C to 60°C. The built-in thermal printer and 8GB internal memory (100,000+ records) provide on-site documentation and comprehensive data management, while QR code scanning streamlines sample information entry.
Testing Items
Food safety: pathogenic microorganisms, pesticide and veterinary drug residues, biotoxins
Veterinary diagnostics: animal disease detection and surveillance
Environmental monitoring: water quality and soil contaminant analysis
Research and biosafety: laboratory immunochromatographic analysis
Other GICA test strip applications
Features

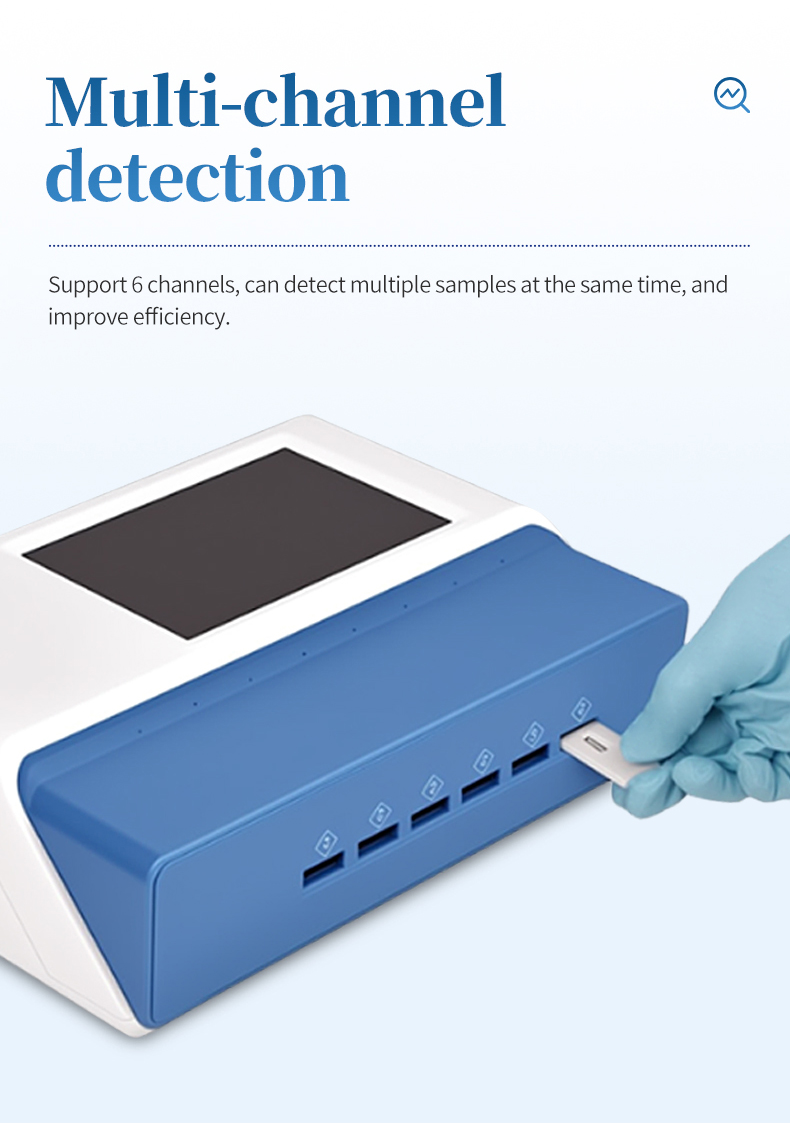

6 independent detection channels for simultaneous multi-project analysis, dramatically increasing throughput

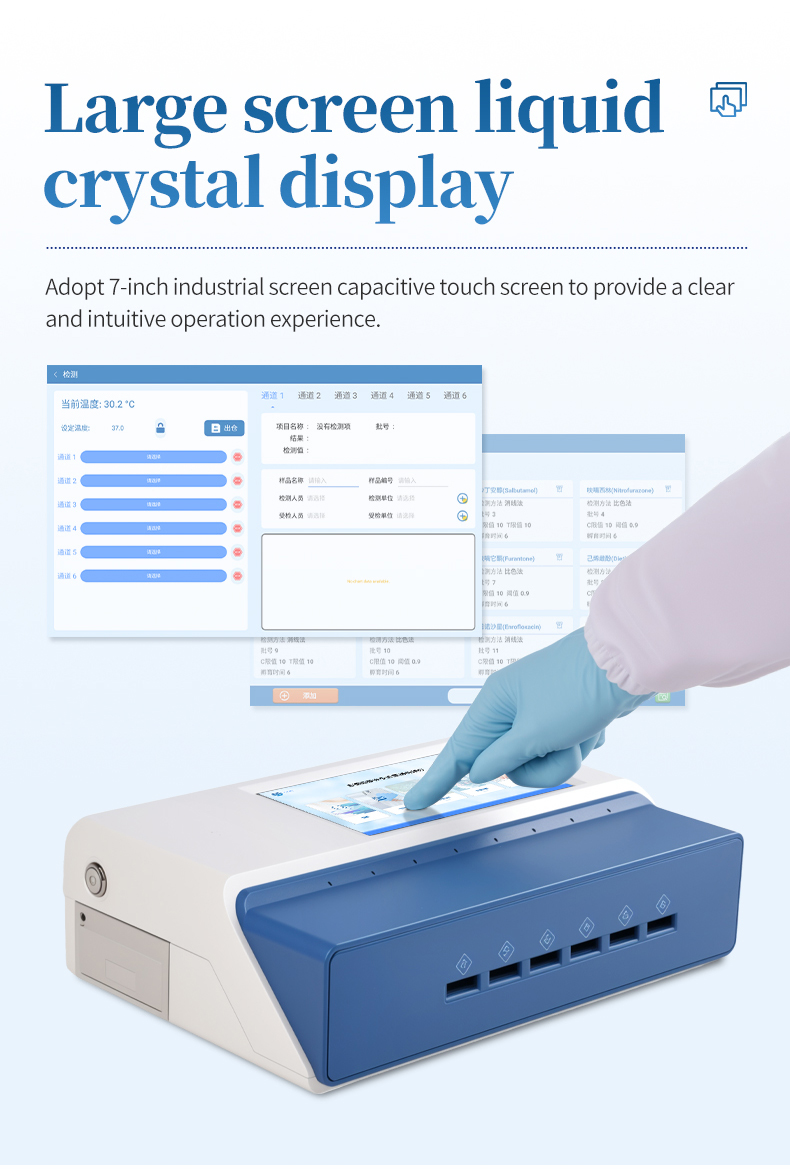

7-inch capacitive touchscreen with 1920×1200 resolution and Android 7.1 operating system
Card insertion judgment with built-in quality control for automated result validation
Comprehensive interface design: dual USB-A, USB-B, LAN, and DC power for versatile connectivity
U-disk data export for convenient offline data transfer without network dependency
8GB internal memory supporting 100,000+ records with query, preview, deletion, and report generation

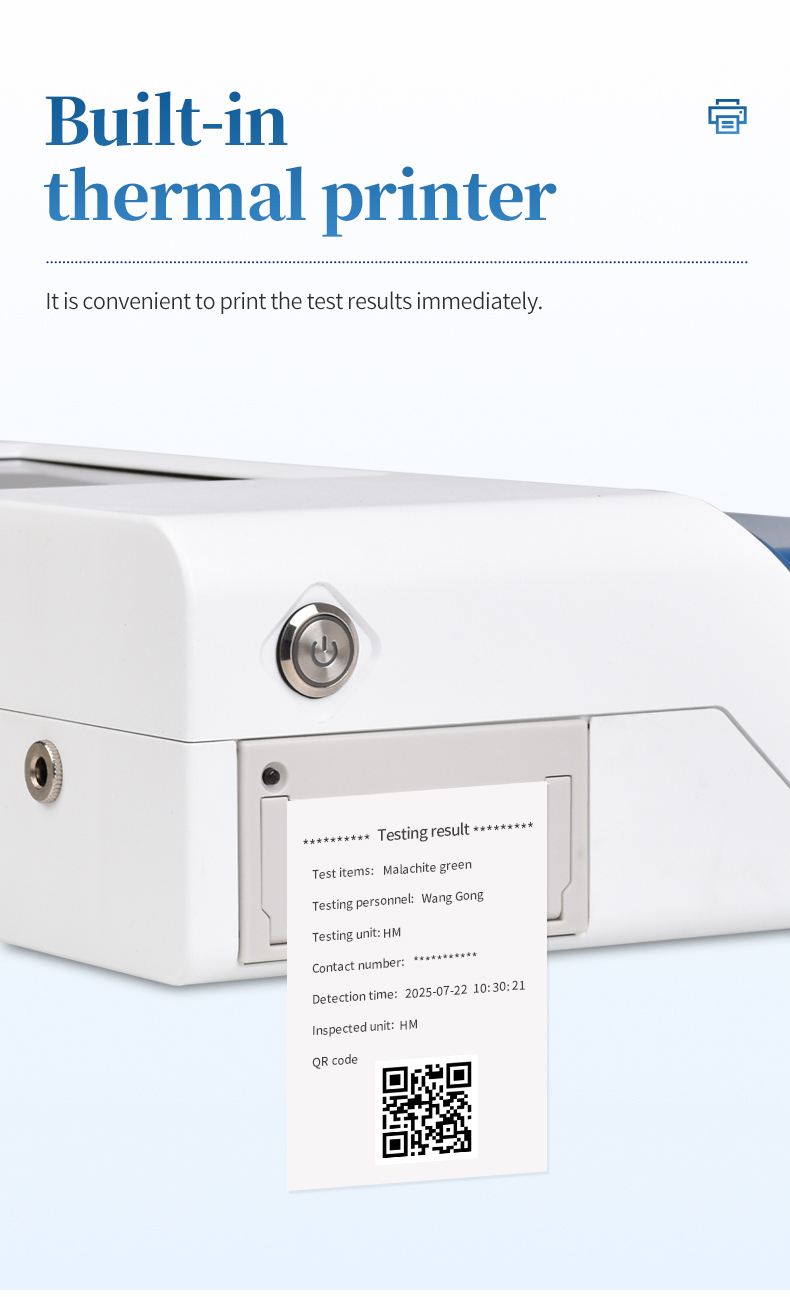

Built-in thermal printer (57×20mm) for immediate result documentation
Real-time self-diagnosis of critical components for operational assurance
High-speed wired and wireless networking (WiFi, Bluetooth) plus LAN for LIMS integration
Incubation module with temperature control from ambient +5°C to 60°C for each channel
QR code scanning for rapid and accurate sample information entry
Detection curve verification and project management for assay expansion
Main Parameters
| Parameter | Specification |
|---|---|
| Detection Method | Reflectance photometric |
| Detection Channels | 6 channels |
| Detection Time | <5 seconds (single and multi-strip cards) |
| Accuracy | Error ≤5% |
| Repeatability | CV ≤3% |
| Resolution | 0.001 |
| Stability | SW ≤5% |
| Adapted Card Shell | 70mm × 20mm |

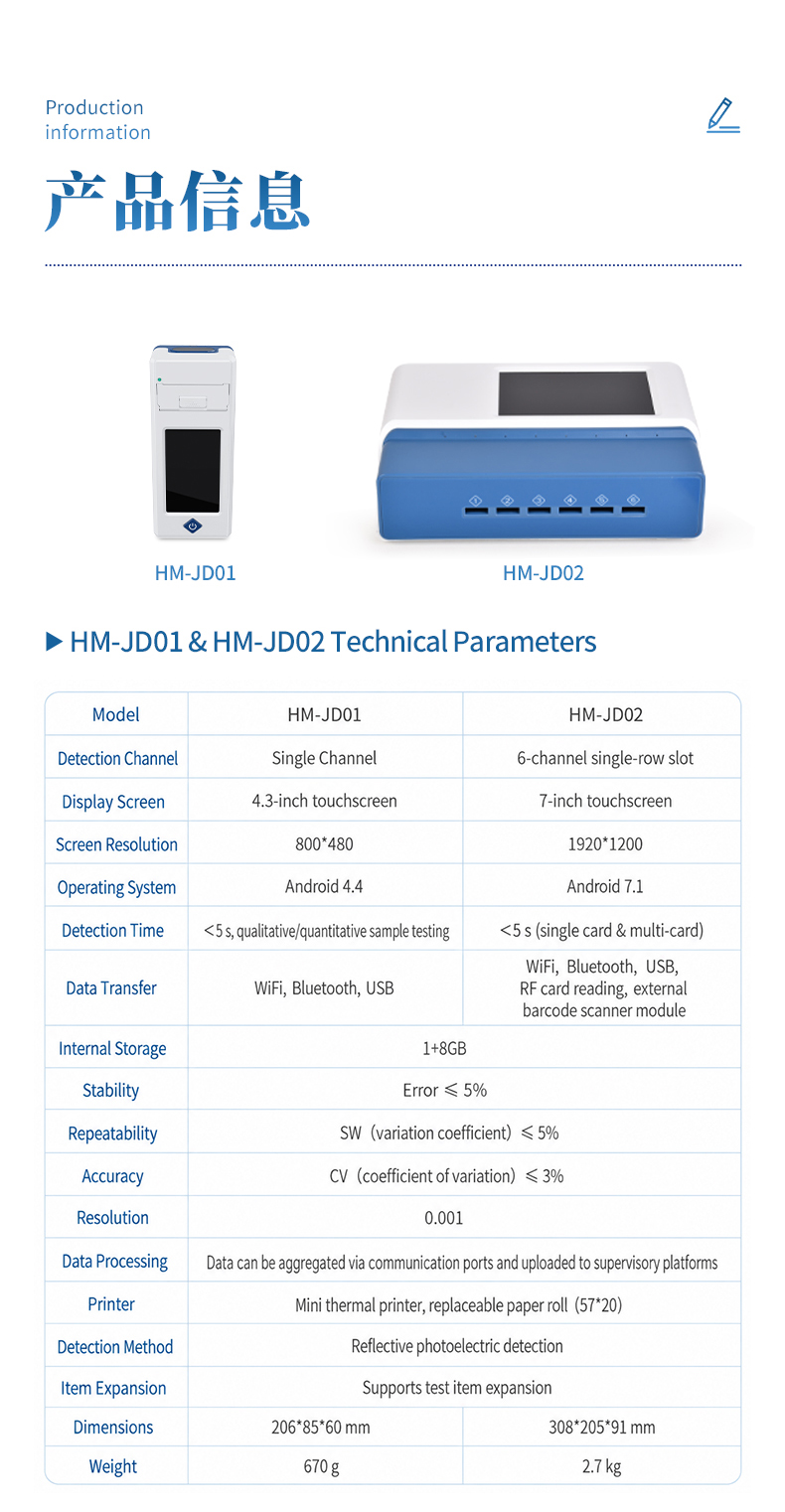

Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HM-JD02 |
| Screen | 7-inch capacitive touchscreen, 1920×1200 |
| Memory | 1+8GB |
| Operating System | Android 7.1 |
| Detection Method | Reflectance photometric |
| Adapted Card Shell | 70mm × 20mm |
| Language | Chinese / English |
| Storage Capacity | 100,000+ records |
| Accuracy | Error ≤5% |
| Stability | SW ≤5% |
| Repeatability | CV ≤3% |
| Resolution | 0.001 |
| Detection Channels | 6 channels |
| Detection Time | <5 seconds (single and multi-strip cards) |
| Data Transfer | WiFi, Bluetooth, USB, RFID reader, external barcode scanner (optional) |
| Incubation Temperature | Ambient +5°C ~ 60°C |
| Printer | Thermal (57×20mm) |
| Interfaces | USB ×2, USB-B ×1, LAN ×1, DC 5.5/2.1mm |
| Power Input | AC100V–240V / 1.3A 50Hz |
| Power Output | DC12V / 5A |
| Operating Temperature | 0°C ~ 50°C |
| Operating Humidity | 0% ~ 90% |
| Dimensions | 308mm × 205mm × 91mm |
| Weight | Approx. 2.7kg |
