SHJ-T1 Desktop Phthalate Detector

Product Number：

SHJ-T1

Product Difference：

SHJ-T1 combines fluorescence quantitative immunochromatographic screening with 10.1-inch interface and supplied 8-well incubator. It is specified for rapid screening of plasticizer content in peanut, soybean, rapeseed and blended oils, with a stated reagent range of 0.1–20.0 mg/kg (ppm).

+86 17853698681 Consultation icon

Product Details

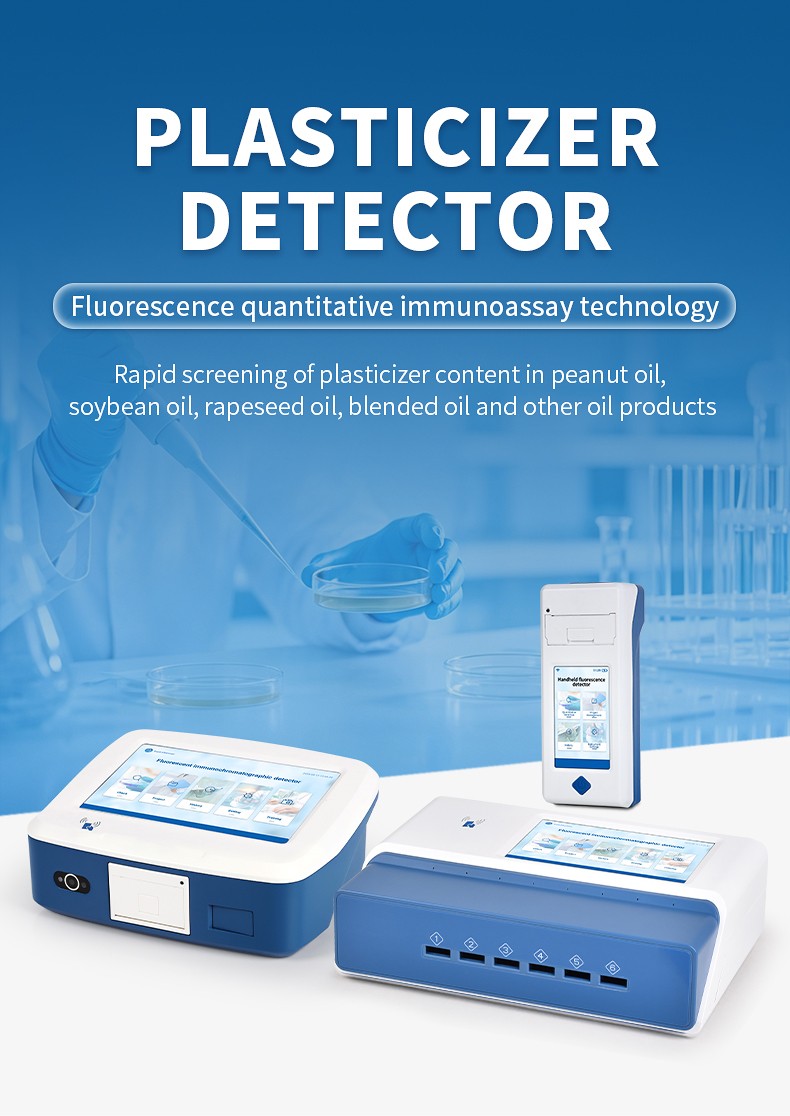

SHJ-T1 product configuration for edible oil plasticizer screening

Feature overview for touch operation and consumables management

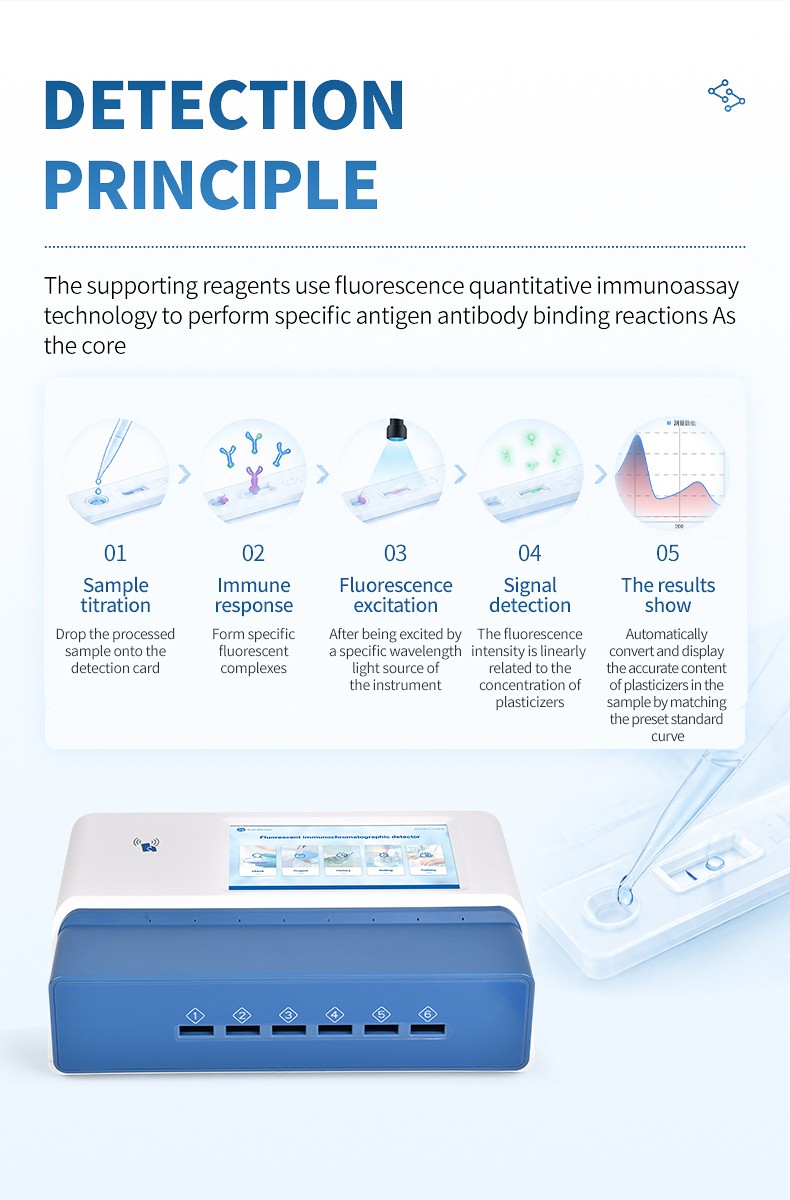

Fluorescence immunoassay detection principle and card workflow

Edible oil phthalate screening applications in inspection and quality control

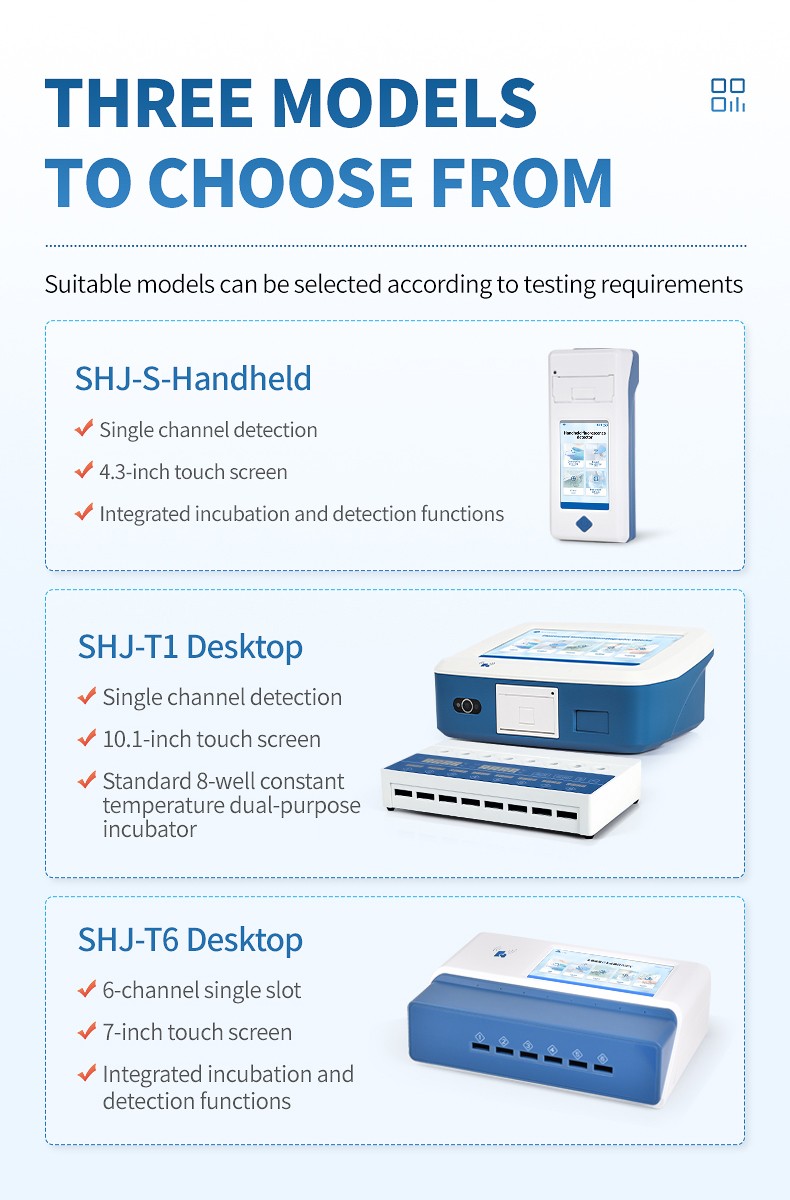

SHJ-S SHJ-T1 and SHJ-T6 model selection comparison

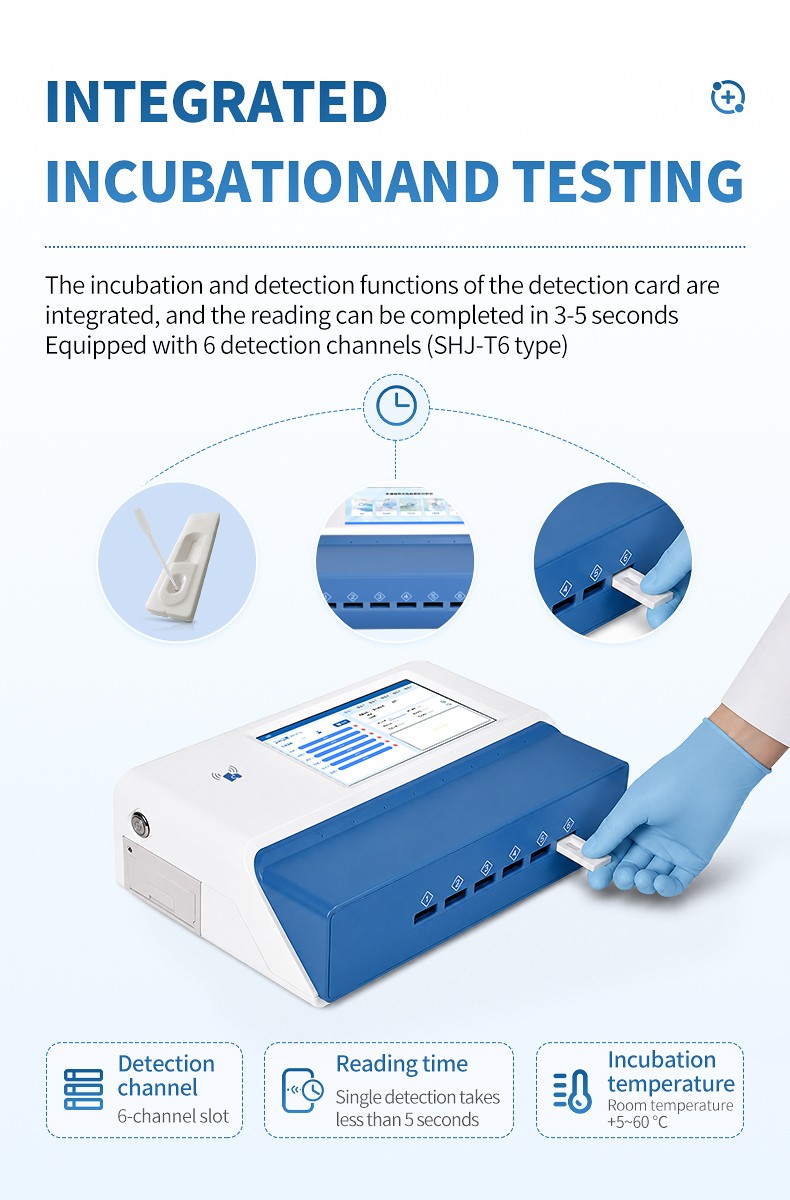

Integrated incubation and six-channel card reading workflow

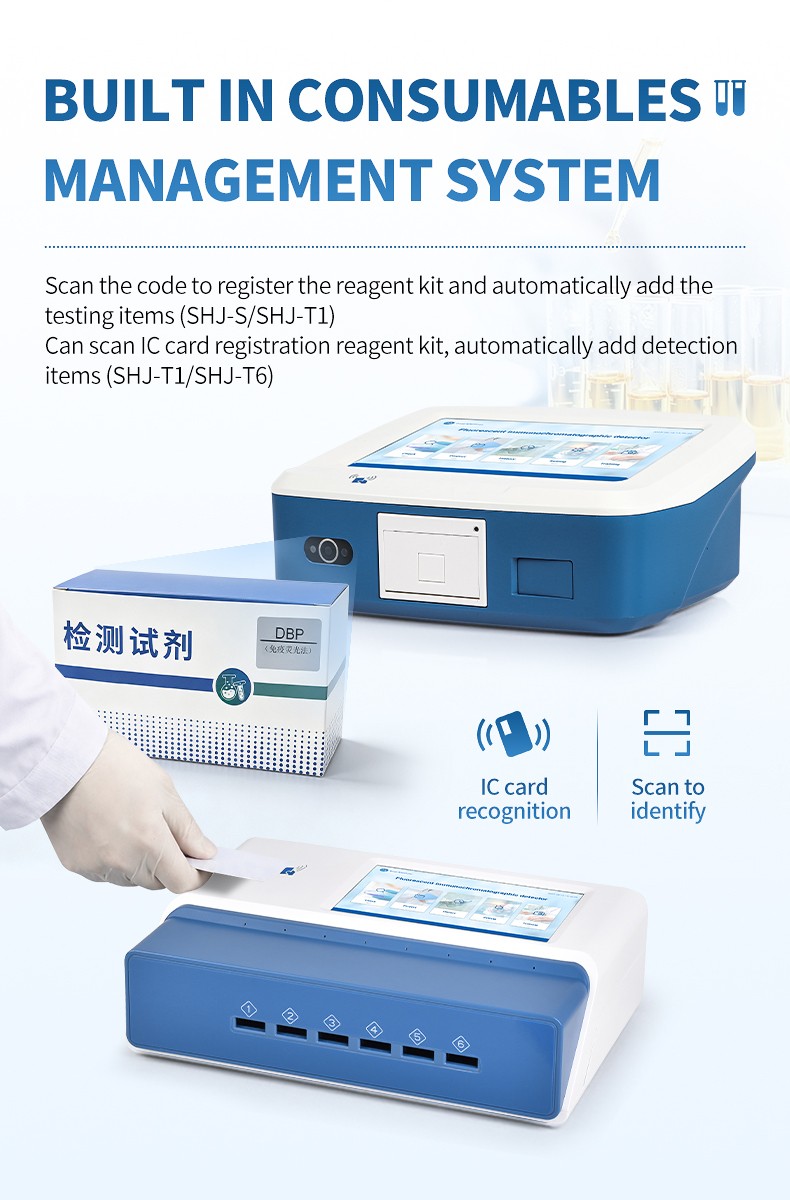

Reagent kit registration and consumables management workflow

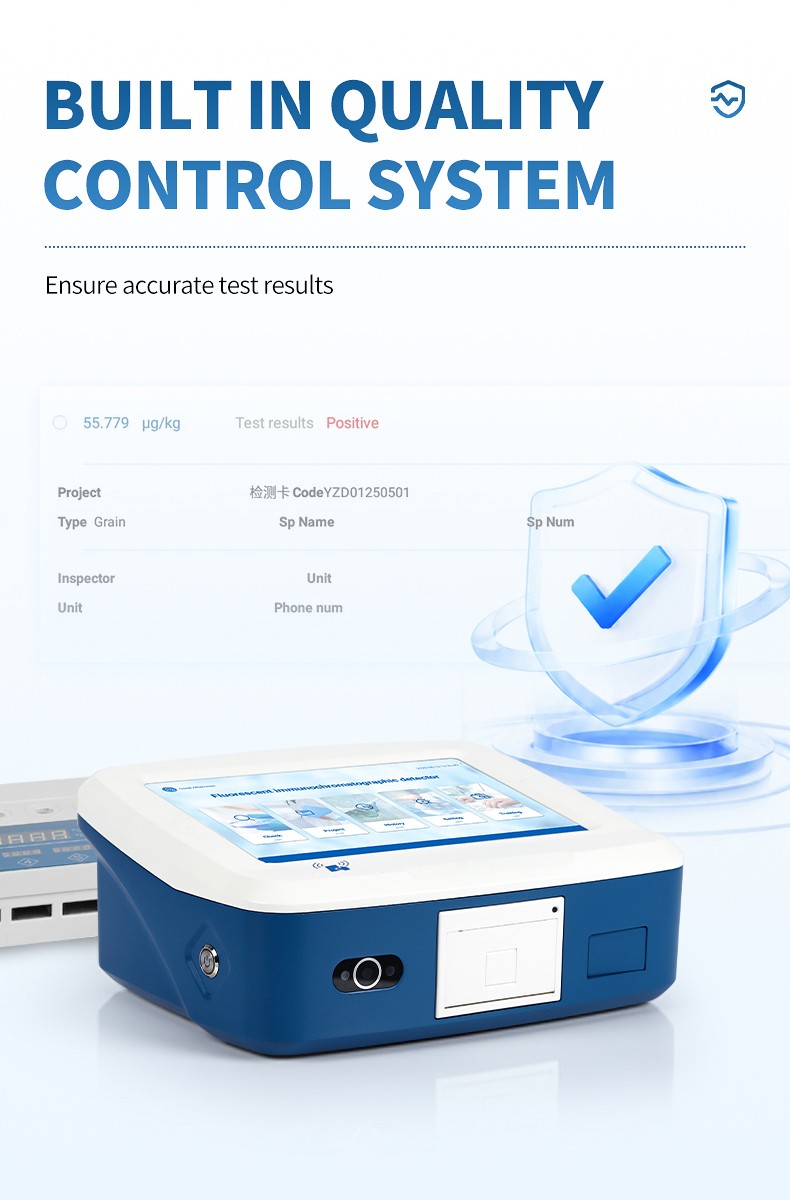

Quality control display and result verification interface

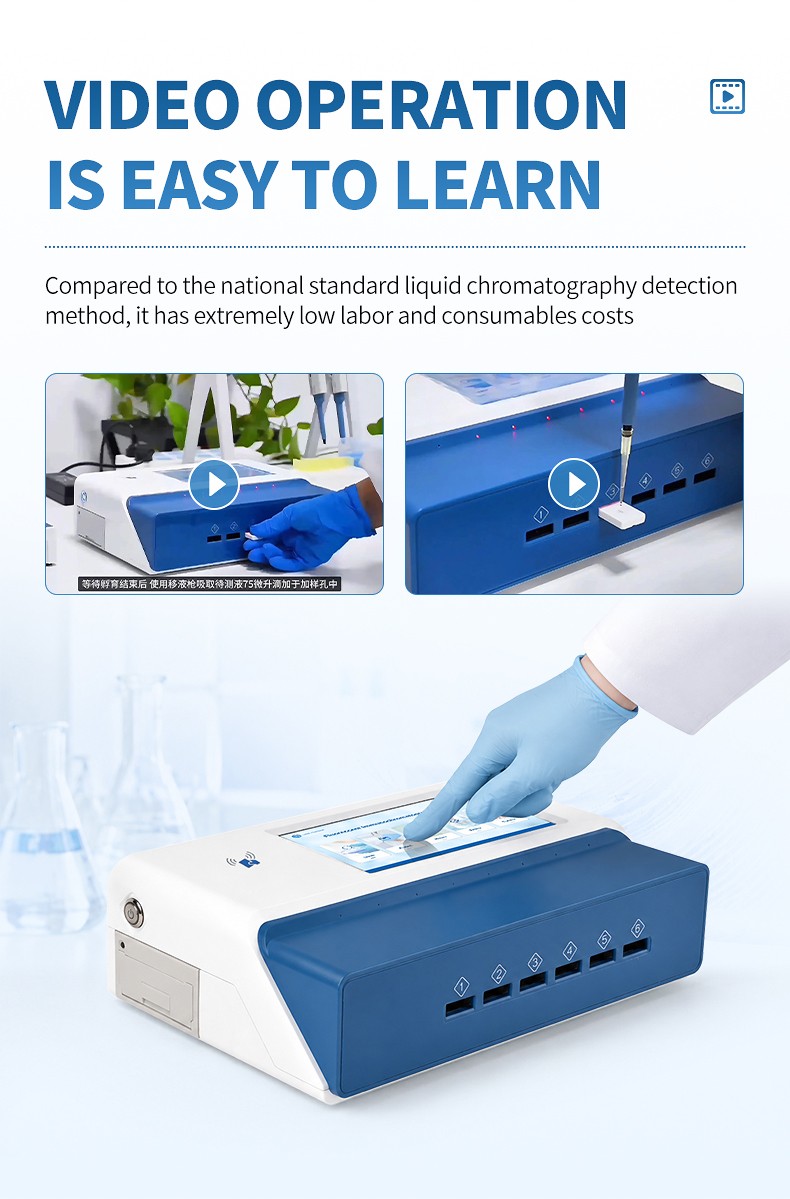

Video-guided card operation on desktop detector

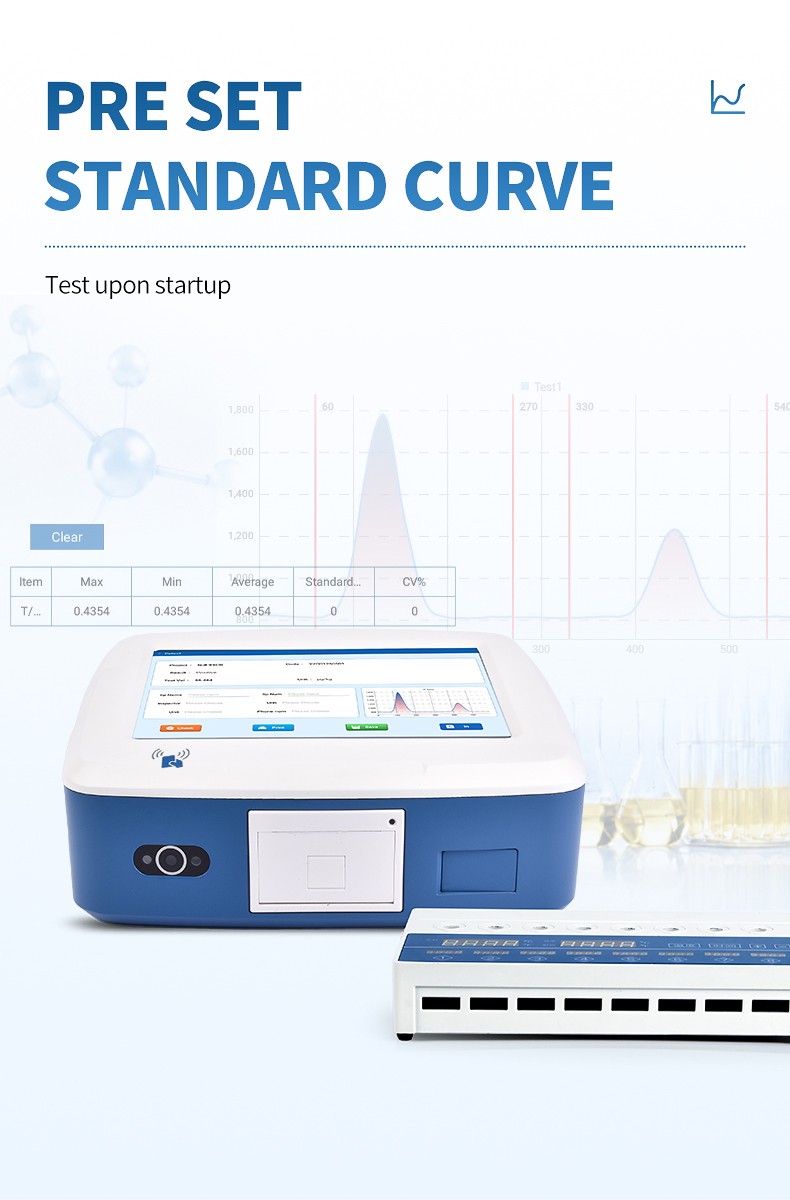

Preset standard curve display for quantitative screening

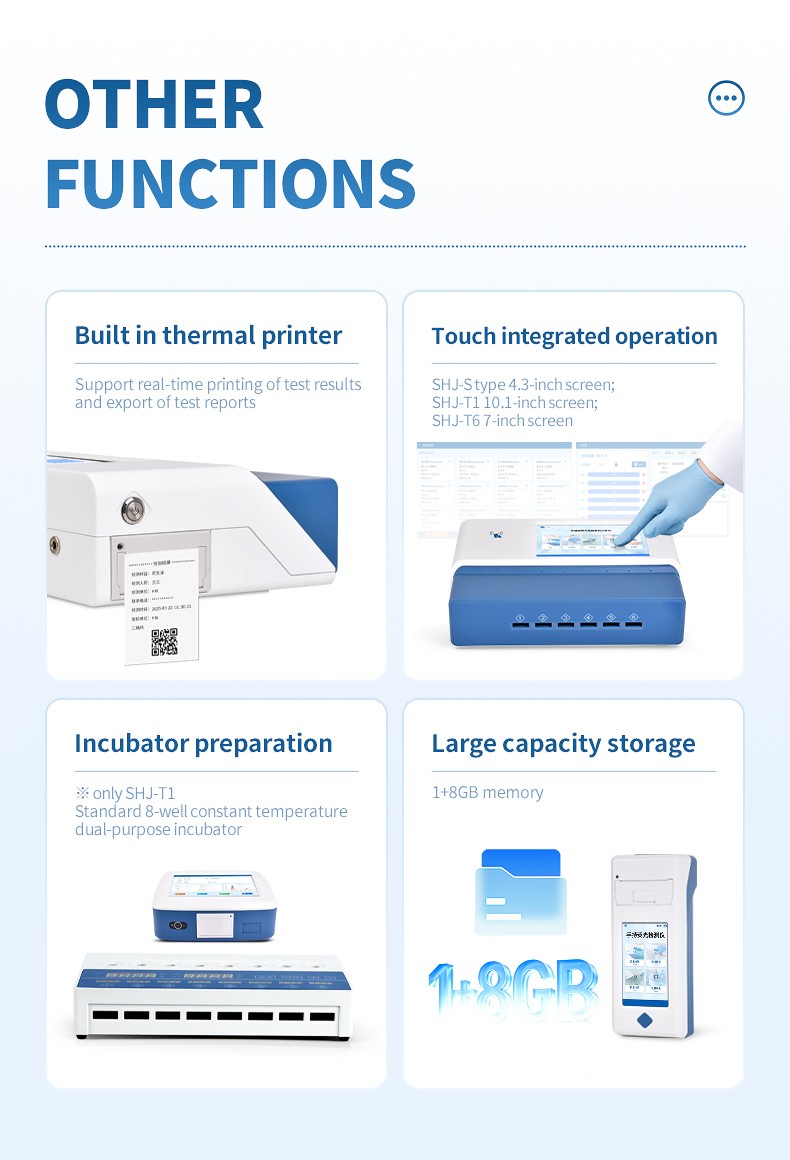

Thermal printing touch operation incubator and storage features

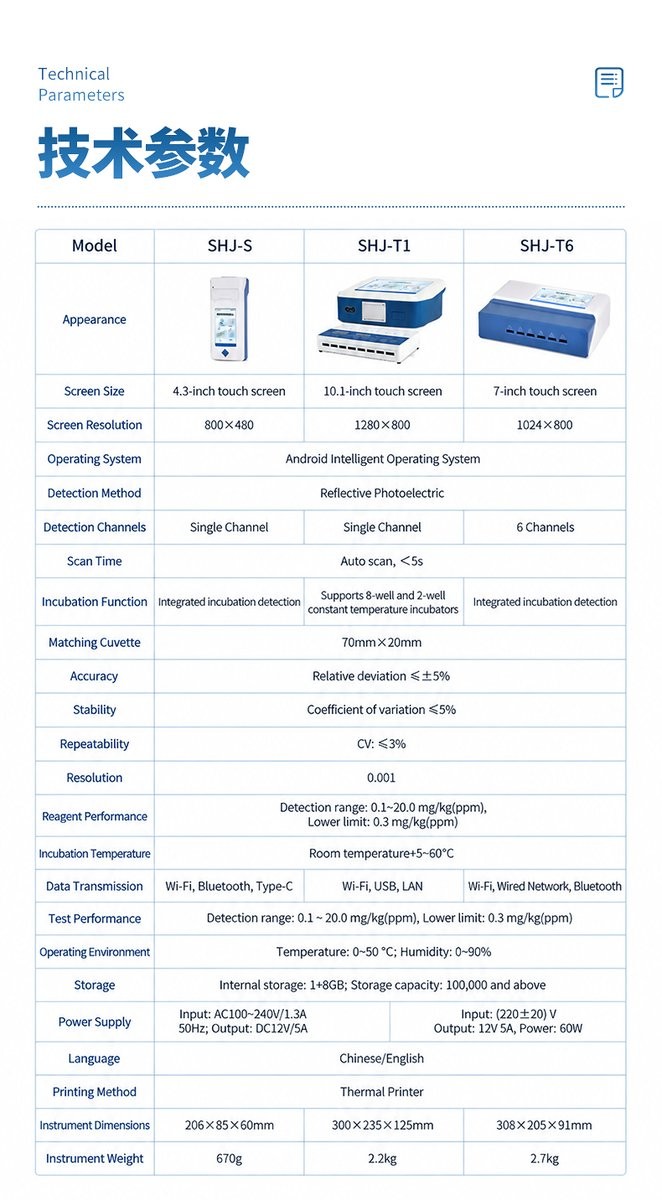

Technical parameter comparison for three phthalate detector models

HM Instruments engineering team and company profile

Food testing laboratory and application support environment

Product Introduction

SHJ-T1 is an HM Instruments Desktop Phthalate Detector for rapid edible-oil plasticizer screening. It works with supporting fluorescence quantitative immunochromatographic reagent cards for peanut, soybean, rapeseed and blended oils. The workflow uses specific antigen-antibody binding; fluorescence intensity is related linearly to plasticizer concentration, and a preset standard curve calculates the displayed result. It supports supervision, food-production quality control and third-party pre-screening. Confirmatory procedures should be defined separately when required.

Applications

Market supervision and food-safety risk monitoring
Oil raw-material acceptance and process checks
Factory outgoing-inspection support
Third-party laboratory pre-screening

Functional Performance / Features

Fluorescence quantitative immunochromatographic screening workflow.
Preset standard curve for result conversion and display.
Reflective photoelectric detection with 70 mm×20 mm card compatibility.
Stated reagent range of 0.1–20.0 mg/kg (ppm).
Quantification limit stated as 0.3 mg/kg (ppm).
Automatic card scanning and result storage.
Built-in quality-control function.
Thermal printing and report export capability.
Chinese and English language support.
10.1-inch interface and supplied 8-well incubator.

Main Parameters

Display	10.1-inch HD display, 1280×800
Operating system	Android 7.1
Detection method	Reflective photoelectric
Compatible card shell	70 mm×20 mm
Accuracy	Relative deviation ≤±5%
Stability	Coefficient of variation ≤5%
Repeatability	CV ≤3%
Resolution	0.001
Reagent performance	0.1–20.0 mg/kg (ppm); quantification limit 0.3 mg/kg (ppm)
Detection channels	Single channel
Card reading	Automatic scan; less than 5 s
Incubation	Standard 8-well constant-temperature dual-purpose incubator
Data transfer	Wi-Fi, USB, LAN
Power supply	AC 100–240 V/1.3 A 50 Hz input; DC 12 V/5 A output
Instrument dimensions	300 mm×235 mm×125 mm
Instrument weight	2.2 kg

Technical Parameters

For an application-focused comparison, see the related HM Instruments phthalate screening guide. Use only the supporting reagent kit and follow its documented preparation procedure.
