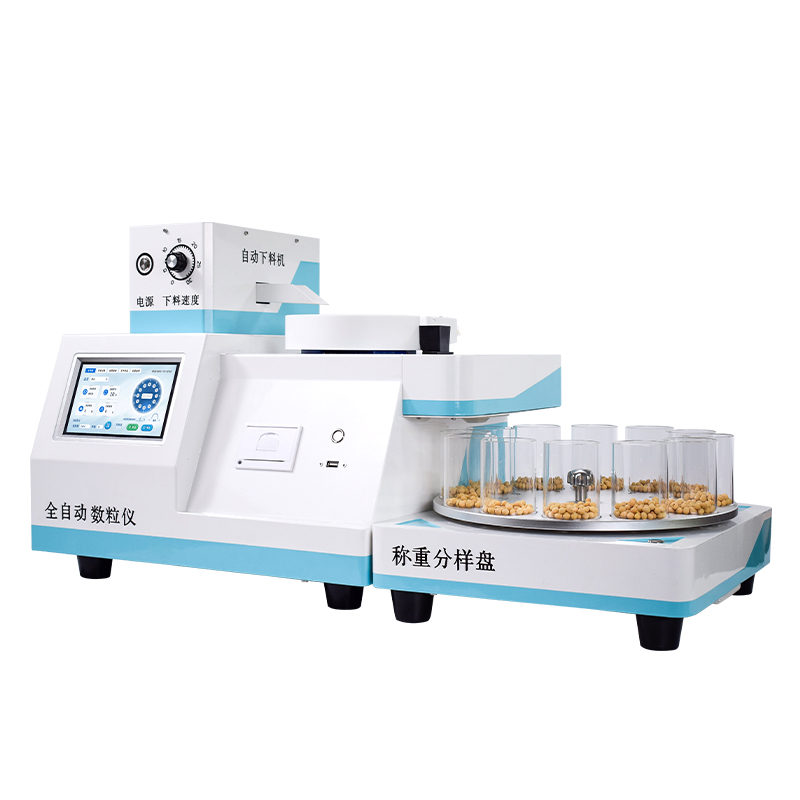

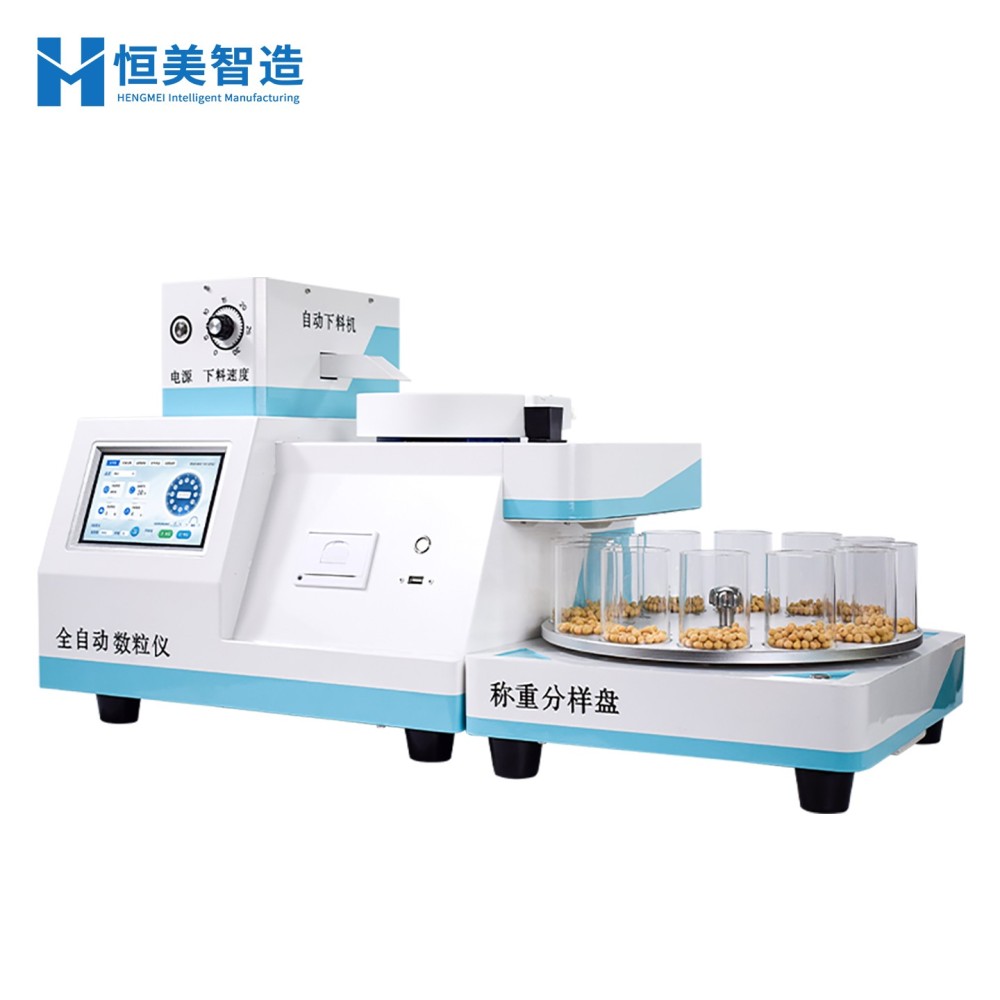

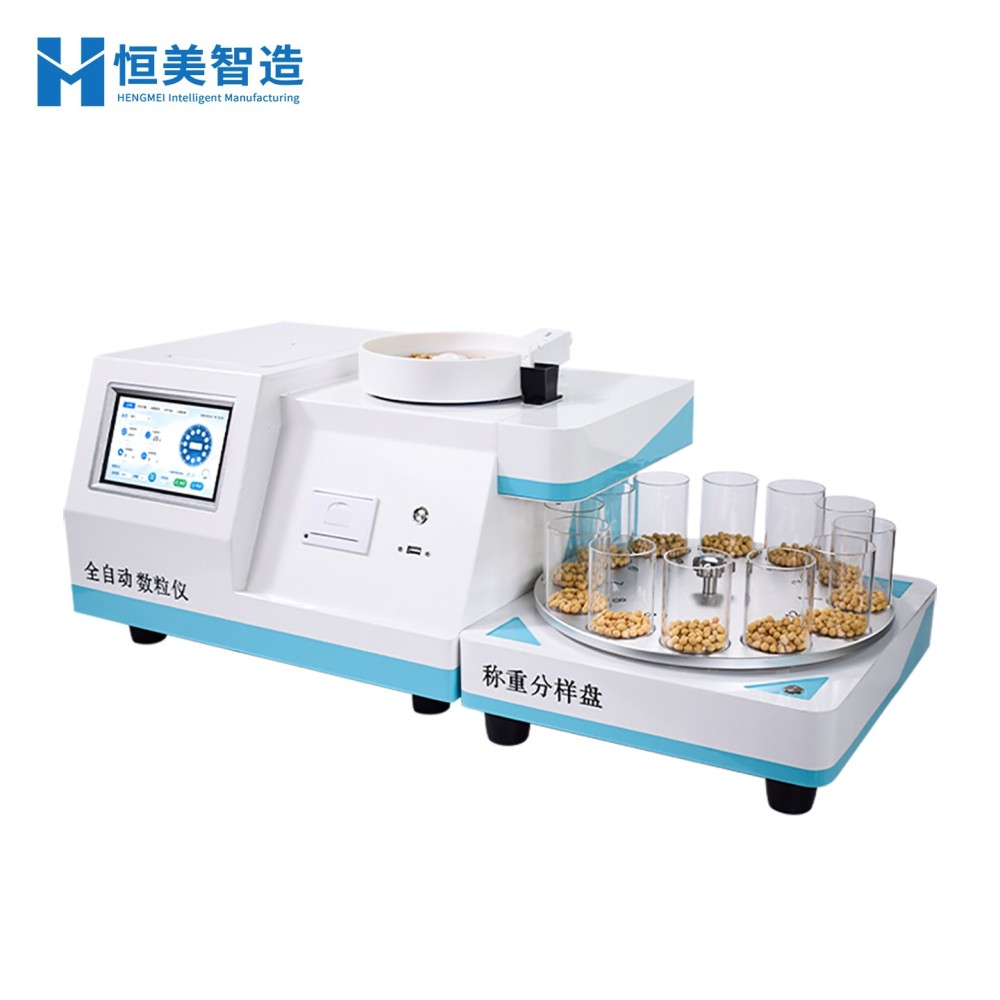

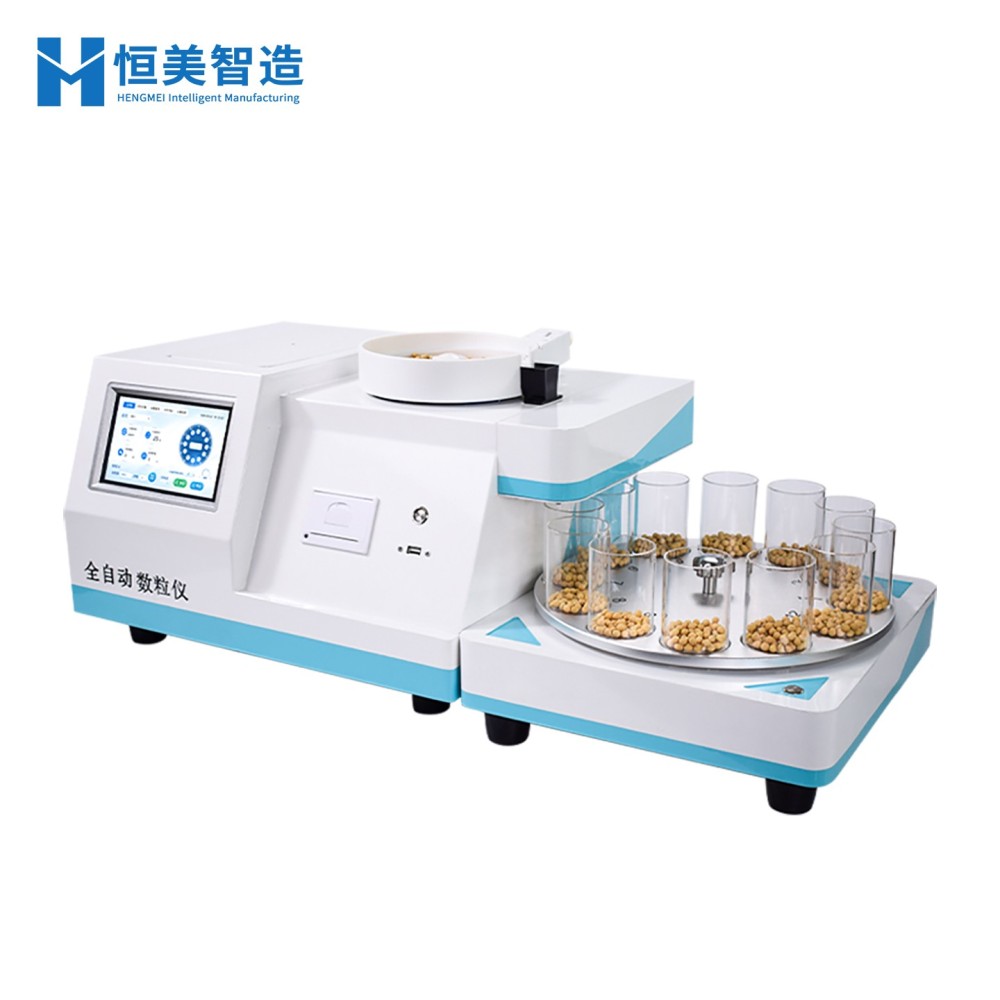

Automatic Rotary Sample Counting Tester

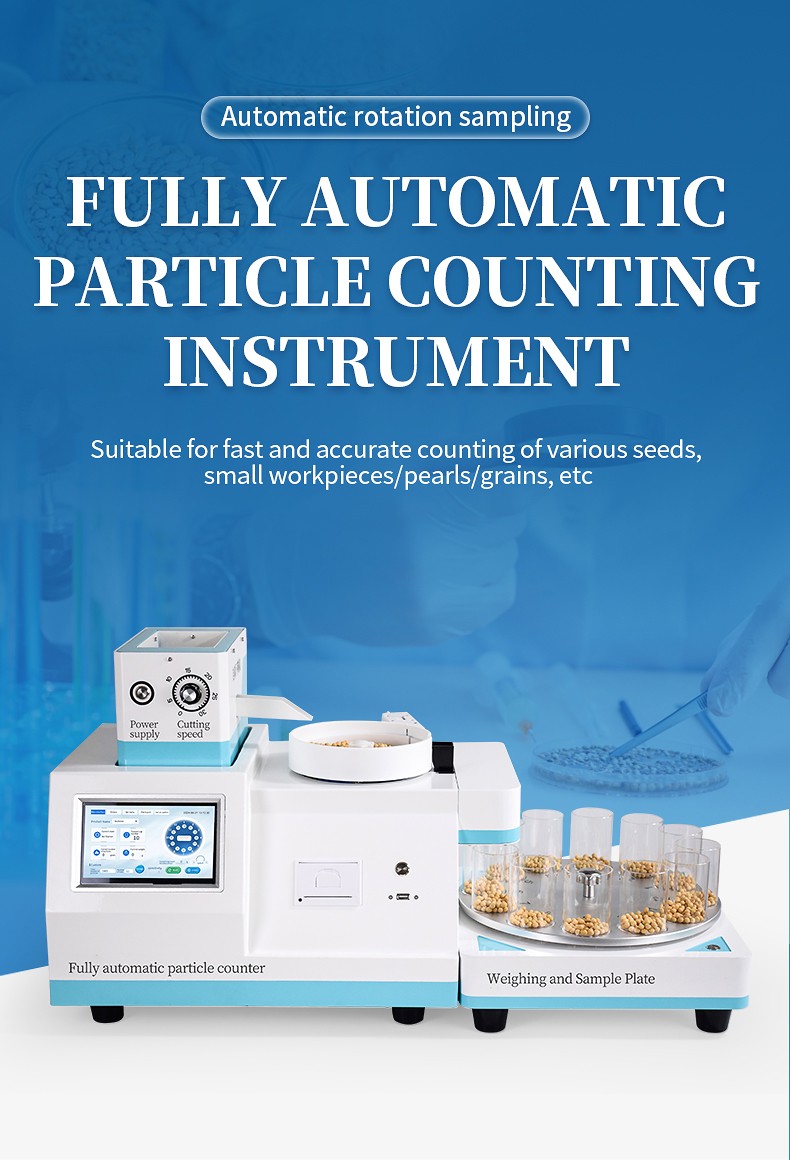

Full-automatic rotary sample counting instrument for corn, rice, wheat, soybeans, sesame, vegetables and other crops, seeds, melon seeds counting, but also can be used for tiny workpieces, pearls, medicinal grains and other items of fast and accurate counting. In addition to the traditional counting instrument with the number of grains in addition to automatic rotary sampling (12 rotary cup), automatic weighing, automatic printing and recording functions.

Functional characteristics：

1、Appearance design: blue-white color matching, simple and generous, the organization of the internal space layout is reasonable, can be read and operate the part of a more reasonable angle position to present to the user, human-computer interaction is reasonable.

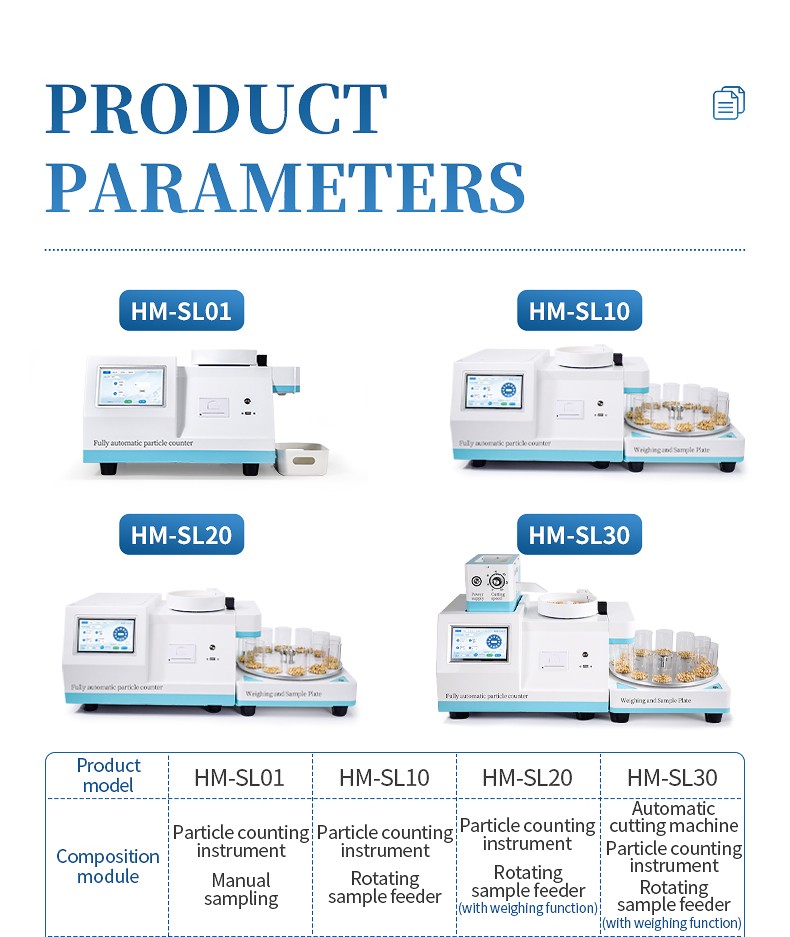

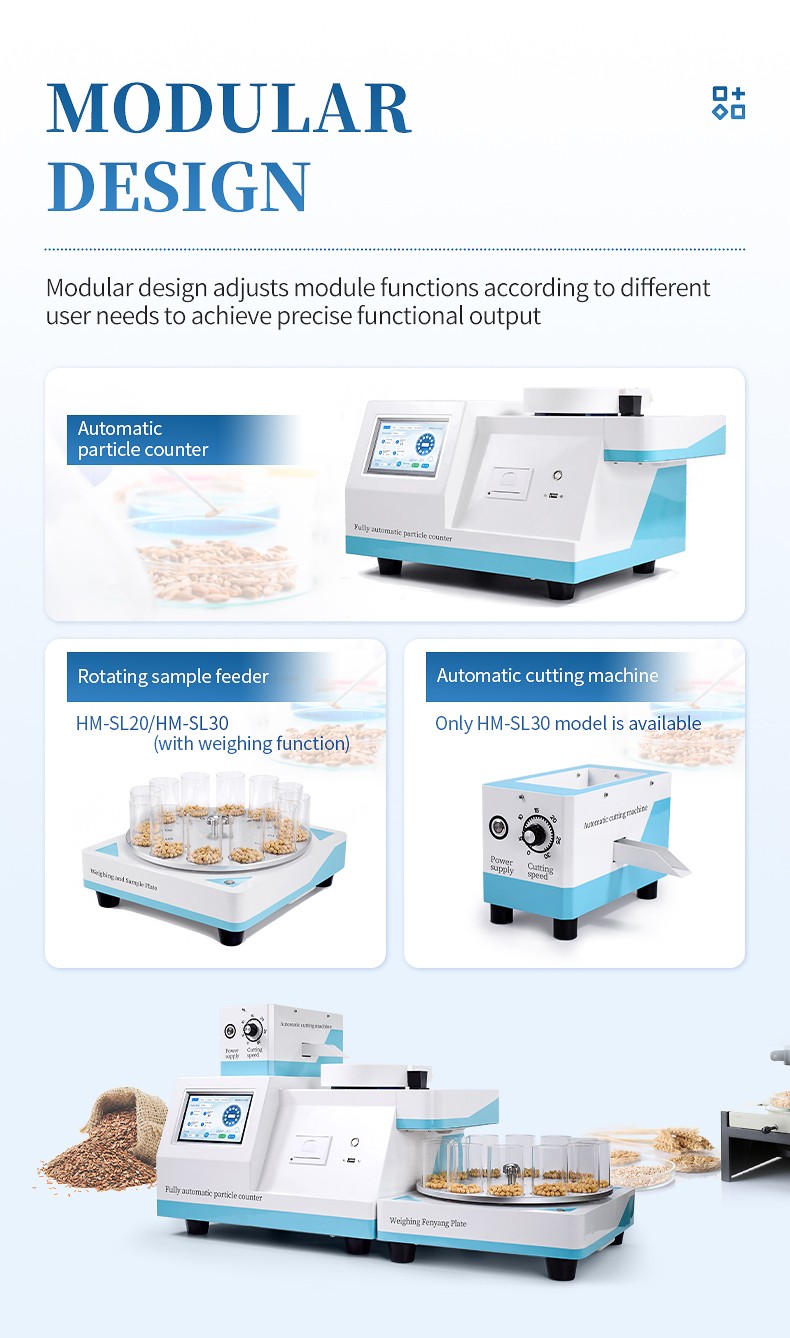

2, modular design: according to the user's different needs for different modular function adjustment, to achieve accurate functional output.
3、Intelligent program setting: the sample type automatic grain counting instrument takes grain counting as the core, with comprehensive function coverage, after program setting, it can automatically count grain samples in large quantities from the material bin to the turntable, and reduce the manual time.
4、No need to assemble: intelligent structure design, no need to assemble, wiring can be put into use.

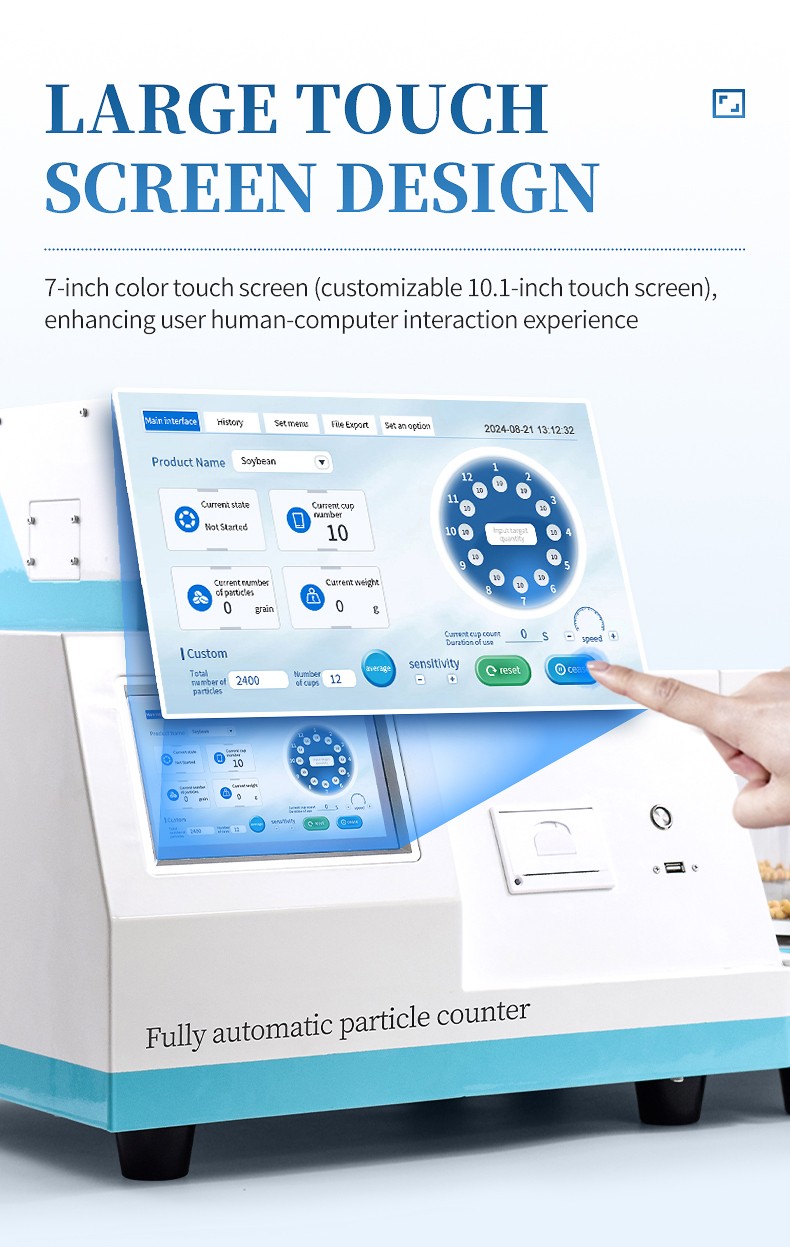

5, large touch screen design: 7-inch color touch screen (can be customized 10.1-inch touch screen), to enhance the user's human-computer interaction experience.
6, customized varieties: you can customize the name of the varieties that need to be counted in the setup page, vibration speed, deceleration speed, sensitivity and so on.

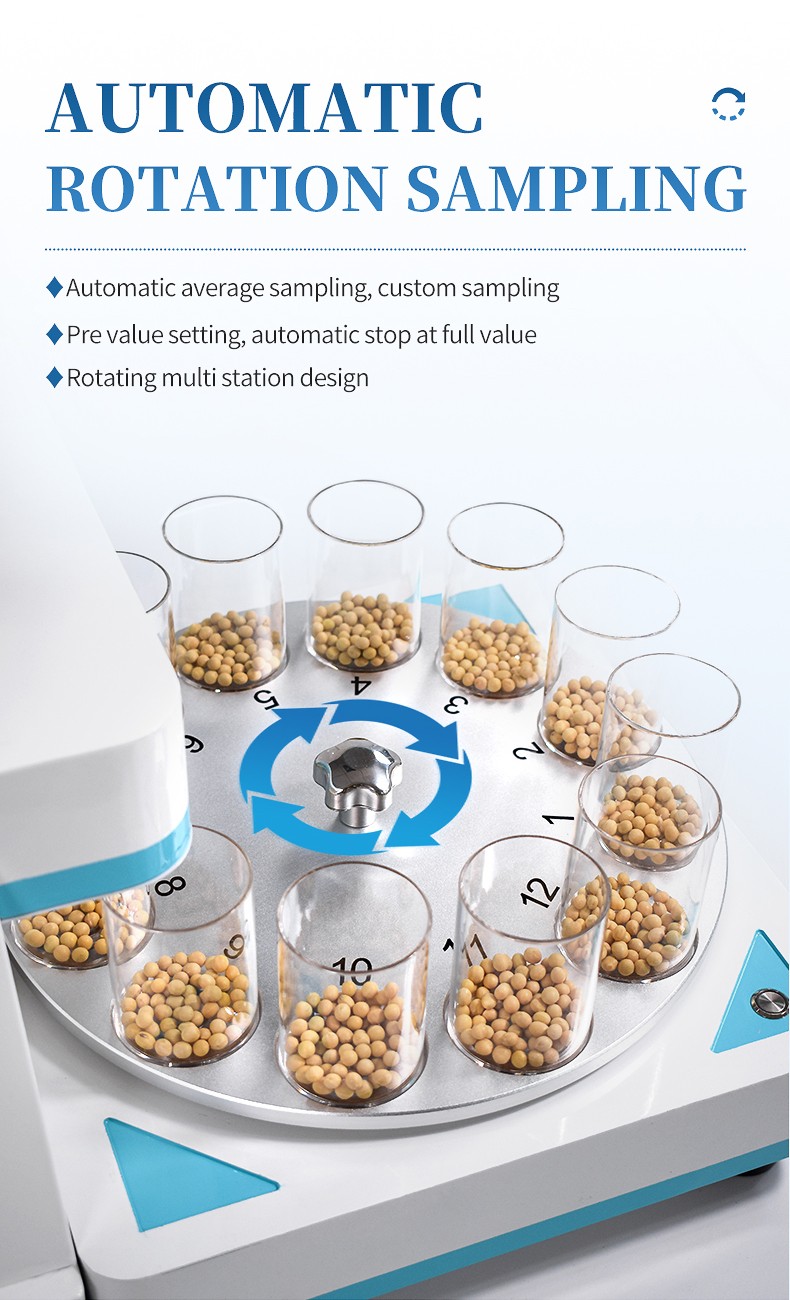

7、Automatic average sampling, customized sampling: you can set the number of cups and the number of grains, average sampling for each cup, customized sampling.
8、Pre-value setting, full-value self-stop: when the number of grains reaches the set number of cups and grains, the turntable will stop working automatically.
9, rotary multi-station design: the current material cup counting is completed, it will automatically jump to the next material cup, can be placed in the bag during the uninterrupted drop, improve work efficiency.
10、Pause function: Allow to pause during the counting process and continue counting or restart after recovery.

11、Built-in deceleration program: in each material cup close to the set number of grains will automatically be decelerated after the number of fine counting, to prevent the material inertia overshooting the impact of precision.
12, the number of grains disk speed adjustable: sub-sample type automatic number of grains instrument with infinitely variable speed function, the number of grains speed adjustable.
13, beeping alarm prompts: each cup of grain counting completed drop a sound, all grain counting completed a long beep, when the failure of the drop 6 sound. Convenient for users to perceive the state of the instrument operation.
14, adjustable sensitivity: sensitivity can be adjusted to adapt to a variety of sizes and shapes of seeds, improve accuracy.
15, automatic weighing: the current material cup counting is completed automatically weighing and automatically calculate the weight of thousands of grains, without the need for external electronic balance.
16、Counting time: record and save the time used to reach the preset value for each cup.
17、Status display: display the current working status of the instrument: not started, grain counting, pause, grain counting completed.
18, data recording: the measured data can be automatically recorded and saved, including variety name, measurement of the number of grains and weight, thousand grain weight, counting time and test time.
19, data printing: embedded thermal self-adhesive printer, automatic printing data. The printed label data can be directly pasted onto the seed bag.
20、Historical data view: you can view the history locally, support page flip, page jump function.
21、Data Deletion: Support historical data one-key delete function.
22、Data export: support USB data export with one key.
23、Built-in Chinese and English bilingual display, one-key switch, seamless.

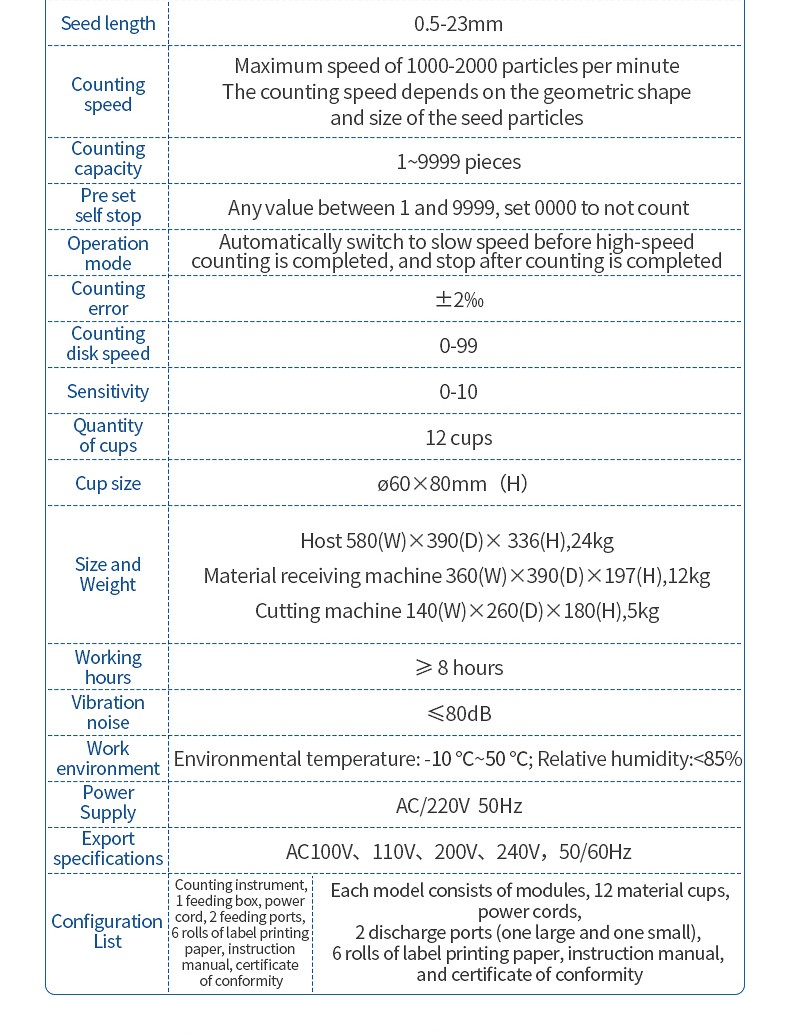

Technical Parameters：

Seed length: 0.5-23mm
Counting speed: Maximum speed 1000~2000 grains/minute (counting speed depends on the geometry and size of seed particles)
Counting capacity: 1~9999 grains
Preset self-stop: any value among 1~9999, set 0000 without counting.
Running Mode: High speed counting is completed before automatically turning to slow speed, stop after counting is completed.
Counting error: ±2‰
Counting disk speed: 0-99.
Sensitivity: 0-10
Number of material cups: 12 cups
Cup size: ø60×80mm(H)

Instrument size and weight:
Main machine 580(W)×390(D)×336(H),24kg
Splicer 360(W)×390(D)×197(H),12kg
Continuous working time: ≥8 hours
Vibration noise: ≤80dB
Working environment: ambient temperature: -10 ℃ ~ 50 ℃; relative humidity: <85
Power supply: AC/220V 50Hz
Export Specifications: AC100V, 110V, 200V, 240V, 50/60Hz

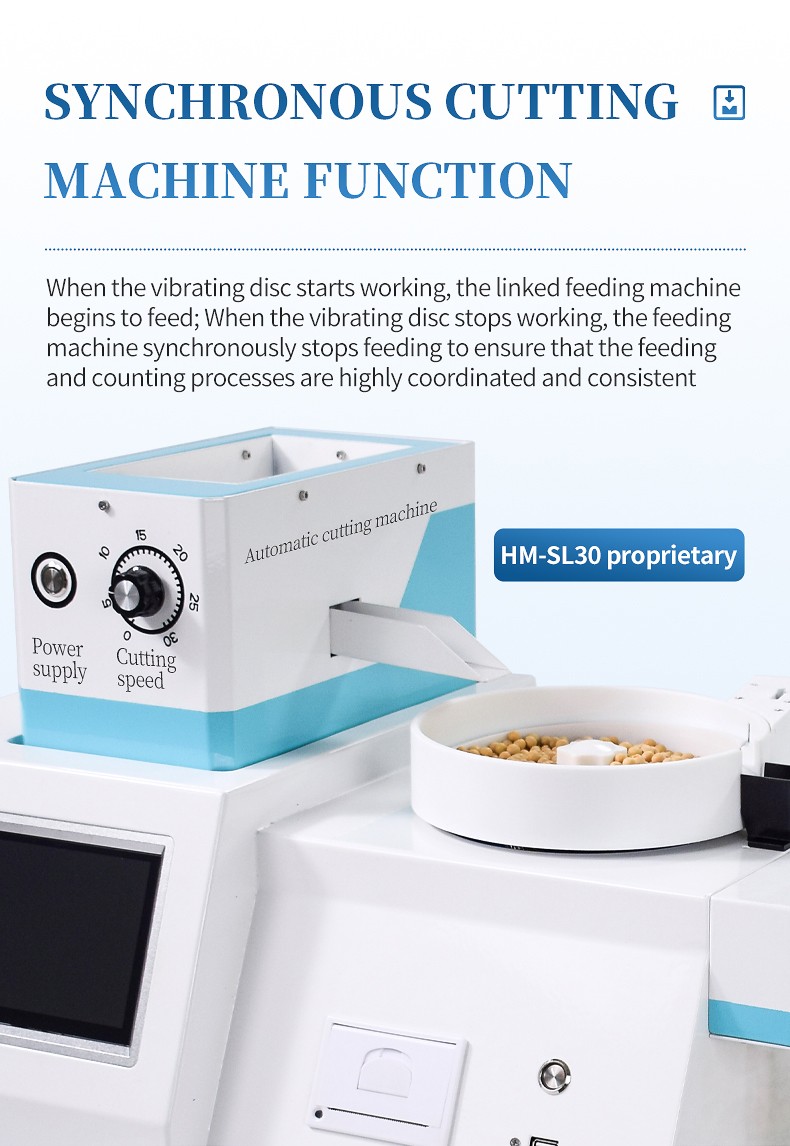

Configuration list: grain counting instrument, rotary sampling feeder (with weighing function), 12 material cups, power cord, 2 drop port (a small one), 6 rolls of label printing paper, manuals, certificates of conformity
