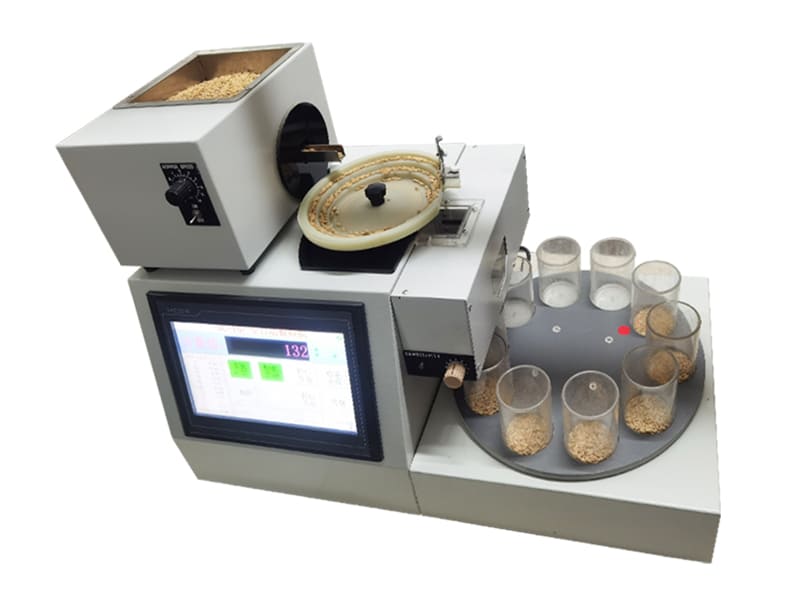

Intelligent Grain Counting Instrument

Functional features

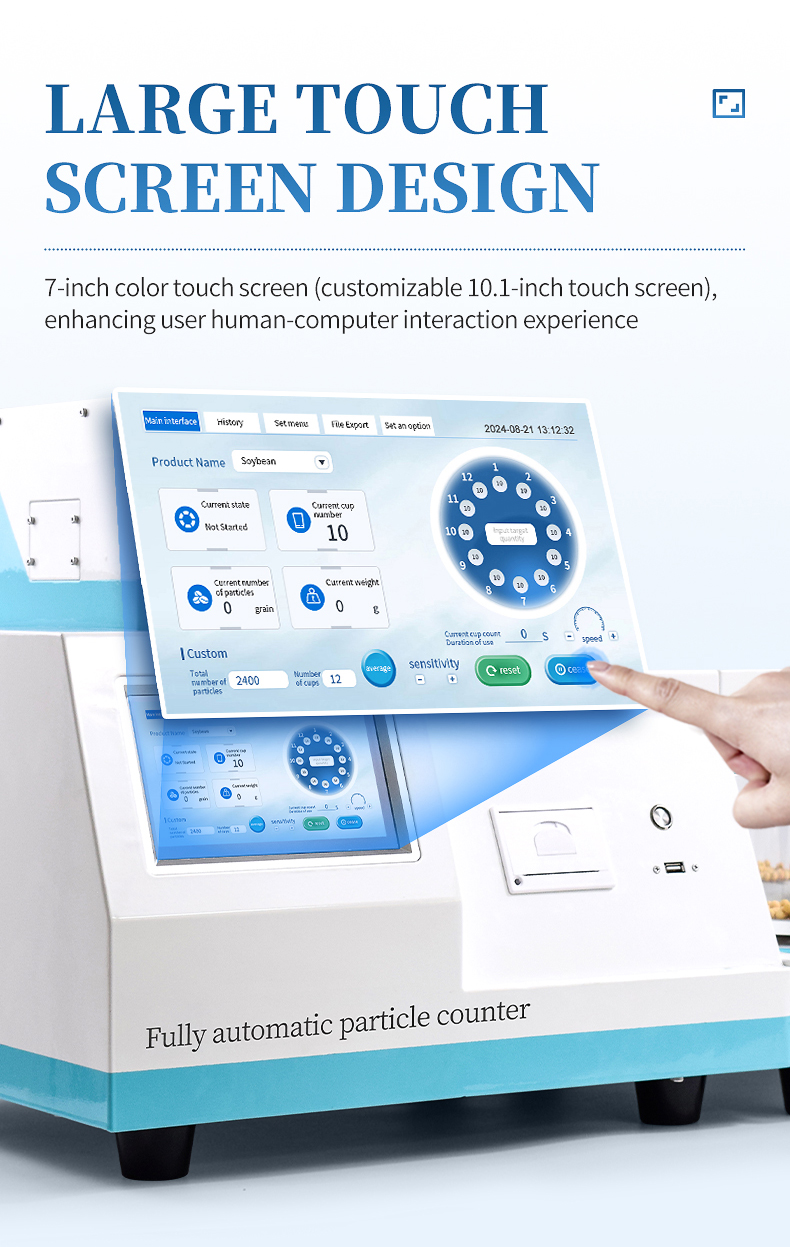

1、Display mode: 7-inch color touch screen, enhance the user's human-computer interaction experience.

2、Pre-value setting: you can pre-set the value of the number of grains, when the number of grains reaches the set value, it will stop working automatically; when there is no pre-set value, the number of grains instrument can work until the number of seeds in the vibration plate.

3, customized varieties: you can customize the name of the varieties to be counted in the setup page, vibration speed and so on.

4, data recording: the measured data can be automatically recorded and saved.

5, data printing: embedded thermal self-adhesive printer, automatic printing data. The printed label data can be directly pasted to the seed bag.

6、Historical data view: You can view the historical records locally, support page flip, page jump function.

7、Data Deletion: Support historical data one-key delete function.

8, data export: support USB data export with one key.

9、Built-in Chinese and English bilingual display, one-key switching, seamless docking.

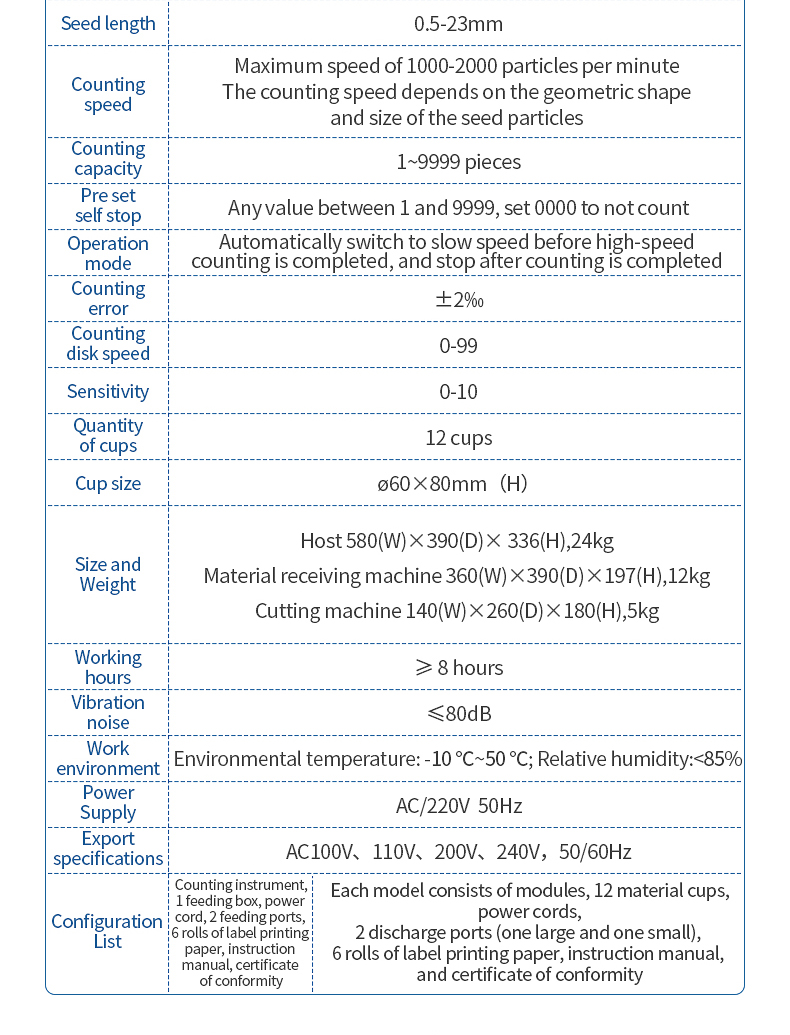

Technical Parameters

Seed length: 0.5-23mm

Counting speed: Maximum speed 1000~2000 grains/minute (depends on shape and size)

Counting capacity: 1~9999 grains

Counting error: ±2‰

Sensitivity: 0-10;

Instrument size and weight: 580(W)×390(D)×336(H),24kg

Vibration noise: ≤80dB

Working environment: Ambient temperature: -10℃~50℃; Relative humidity: <85%.

Power source: AC/220V, AC100V, 110V, 50/60Hz.

Configuration list: grain counting instrument, 1 receiving box, power cord, 2 feeding ports, 6 rolls of label printing paper, manuals, certificates of conformity
