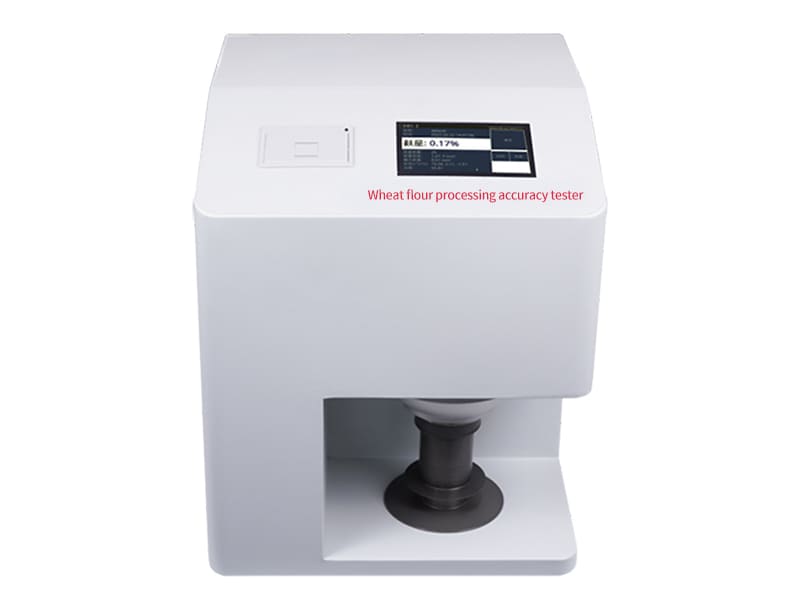

Wheat flour processing precision tester

Instrument Introduction:

The wheat flour processing accuracy tester measures the powder color, gluten content, number of gluten stars per unit area, * large gluten star area, and whiteness of wheat flour. The difference in gluten content between two measurements of the same sample is less than 10% of the arithmetic mean, and the repeatability of the chromaticity value is Δ E * ab ≤ 0.5

Compliant with standards:

Verified the applicability of standards by the Quality Center of the Grain Bureau;

Meet the industry standard sample measurement requirements for wheat flour processing accuracy of the Grain Bureau.

GB/T 27628-2011 Grain and Oil Inspection - Determination of Wheat Flour Pink and Bran Star.

Basic parameters:

1. Light source: Simulate D65 lighting body

2. Pink represents: color space value L a b * (L, a, b)

3. Gluten content represents the ratio of the surface area of the sample to the surface area of the sample (%)

4. Whiteness representation: Blue light whiteness Wb

5. Display: Large LCD touch screen

6. Indicating accuracy: whiteness ≤ 0.1

7. Repetitive test accuracy: The difference in gluten content between two measurements of the same sample is less than 10% of the arithmetic mean

8. Chromaticity value repeatability: △ E * ab ≤ 0.5

9. Preheating time: 30 minutes

10. Power supply: 220V ± 10% 50Hz

11. Working temperature: 0 ℃~40 ℃

12. Relative humidity: ≤ 85%

13. Equipped with embedded printer.
