Product Details
Product Introduction

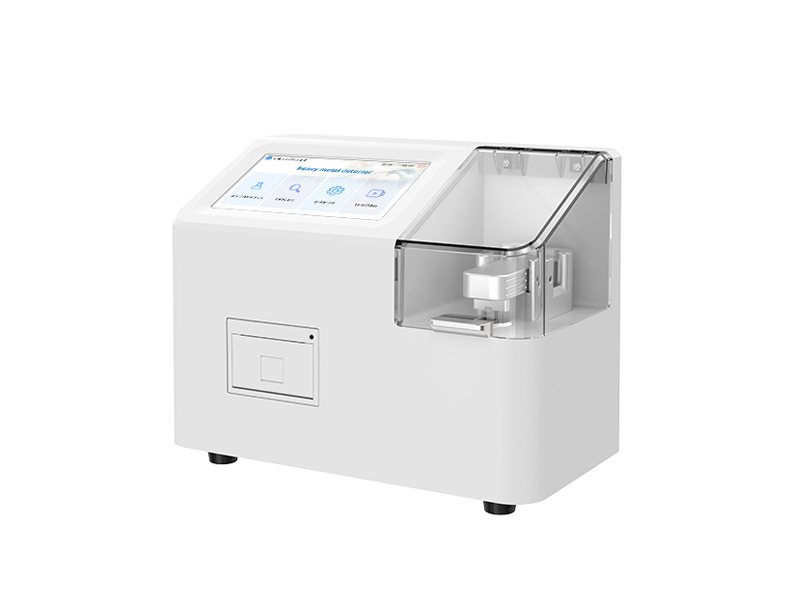

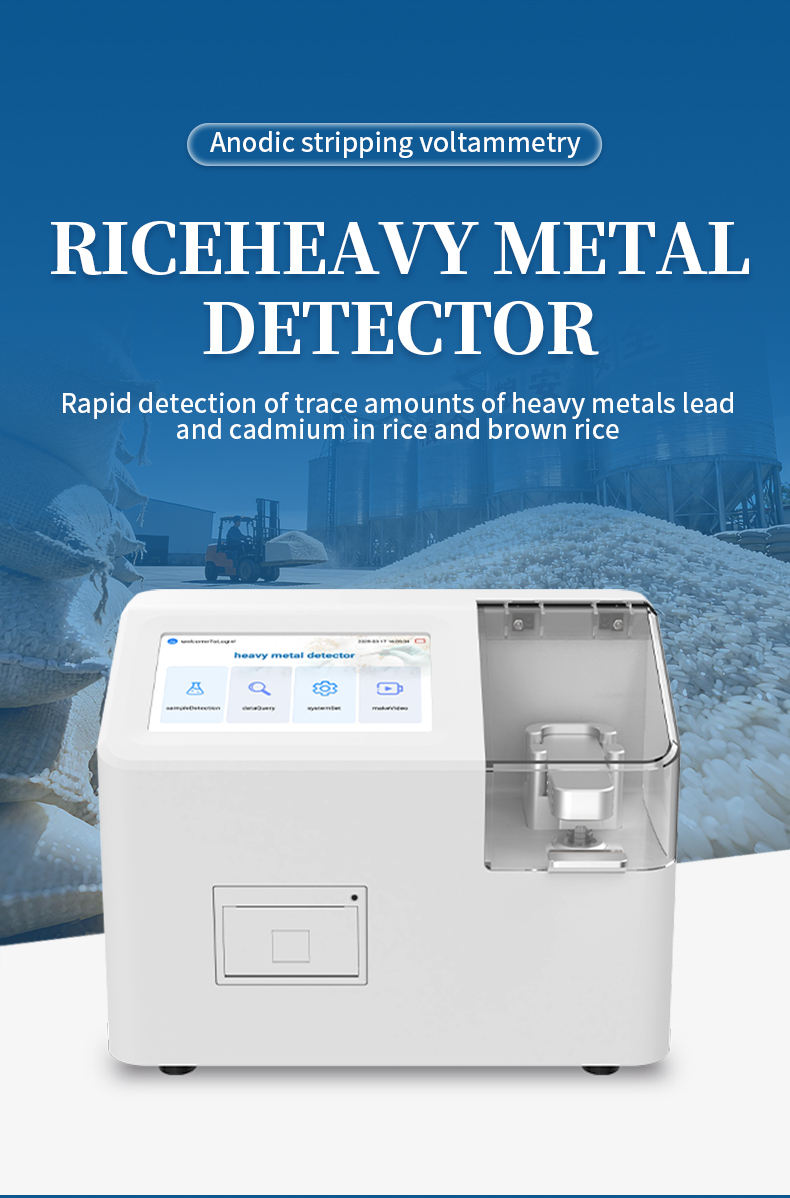

The HM-FZ1 is a portable electrochemical heavy metal analyzer designed for rapid cadmium (Cd) and lead (Pb) detection in rice, brown rice, wheat, corn, and water samples. Built on anodic stripping voltammetry (ASV) with single-use screen-printed three-electrode strips, the instrument delivers a detection limit of 0.01 mg/kg in grain — matching the sensitivity requirements of JJF 2037-2023 — without the electrode maintenance burden of conventional reusable systems. The 7-inch Android touchscreen, built-in thermal printer, and Wi-Fi data upload capability make the HM-FZ1 suitable for provincial grain inspection stations, food processing QC laboratories, and environmental monitoring field programs.
Applications
Routine cadmium and lead screening at grain collection stations and storage depots
Incoming raw material quality control at rice mills and cereal processors
Pre-shipment compliance testing for domestic and export grain shipments
Irrigation water and surface water cadmium and lead monitoring
On-site environmental assessment at cadmium-impacted agricultural sites
Laboratory QC backup and field verification for ICP-based reference methods
Key Features

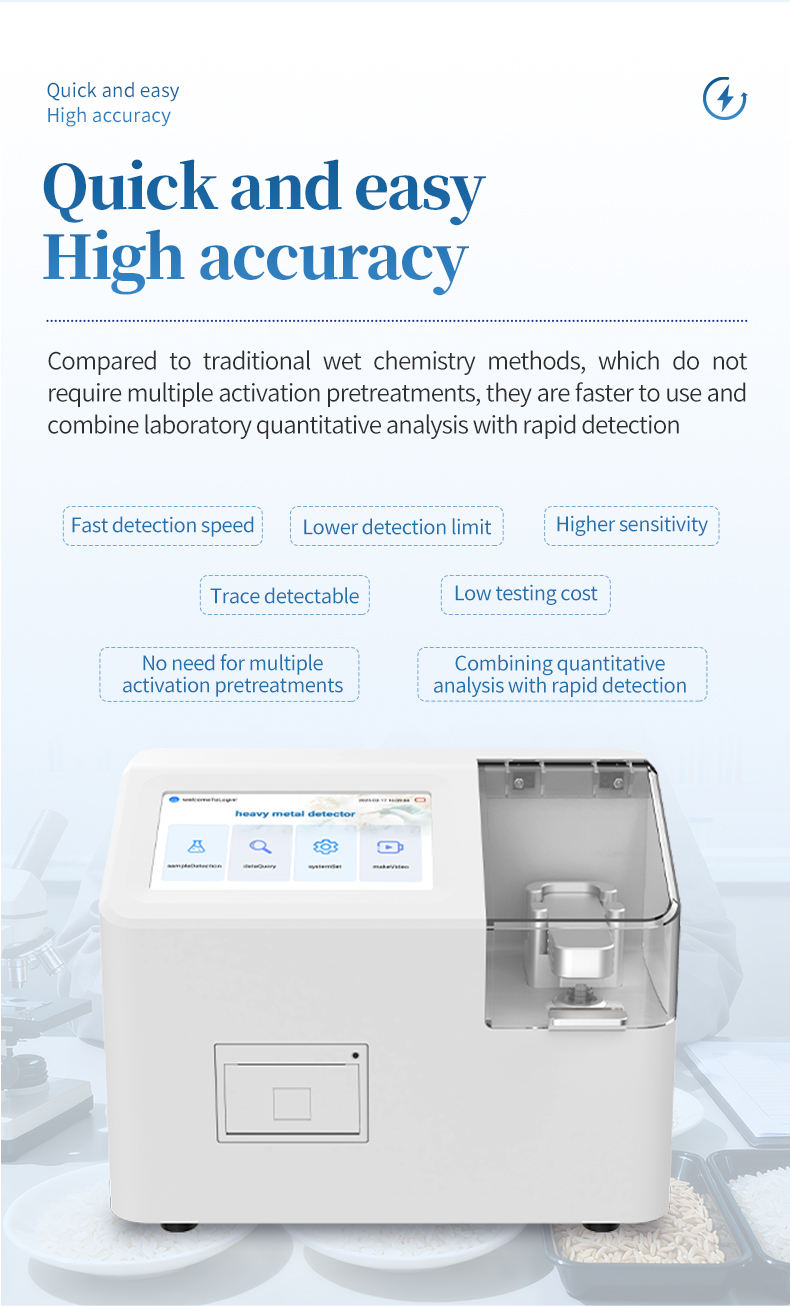

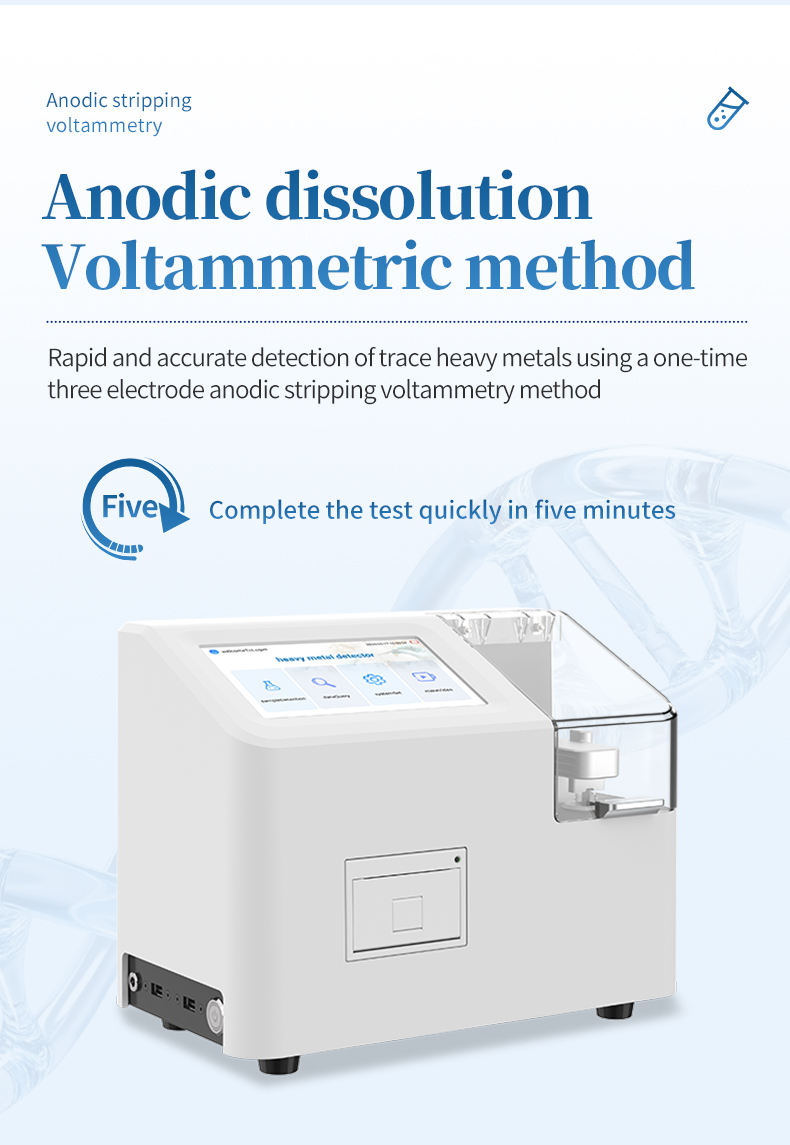

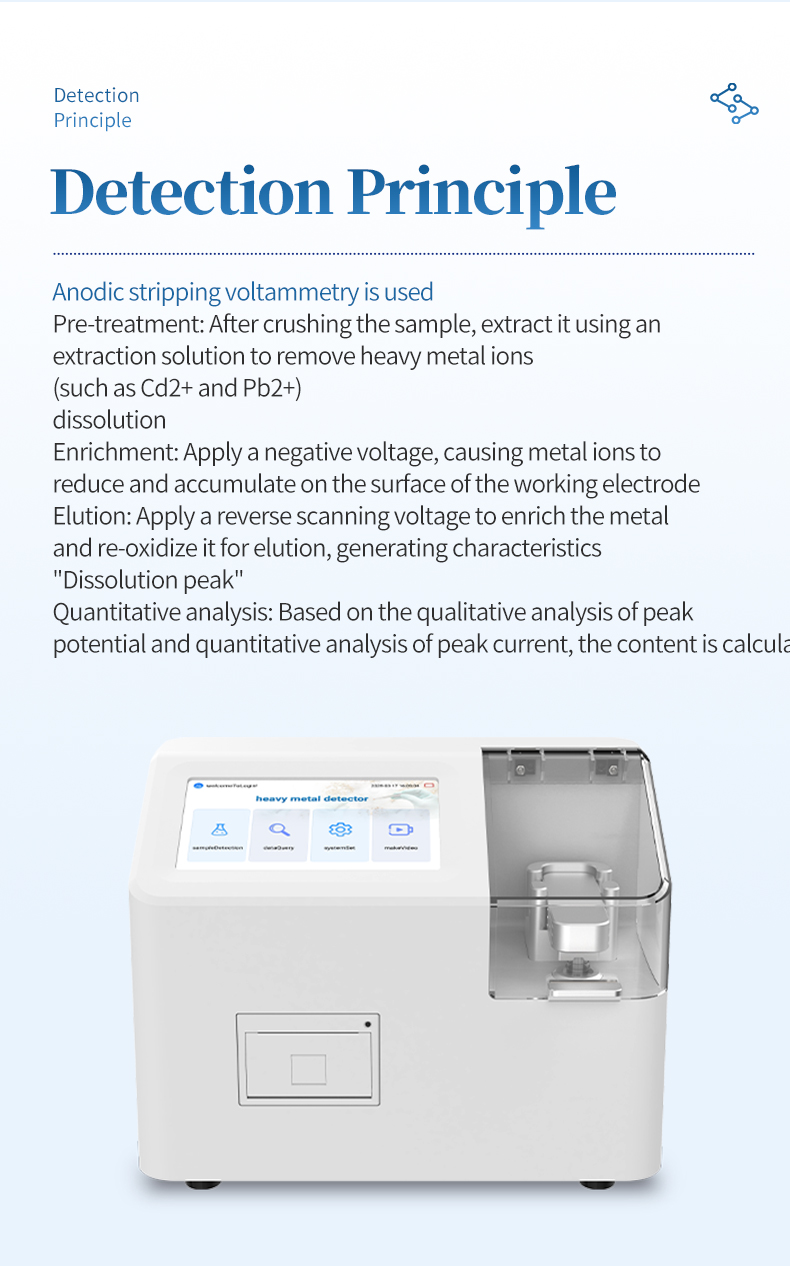

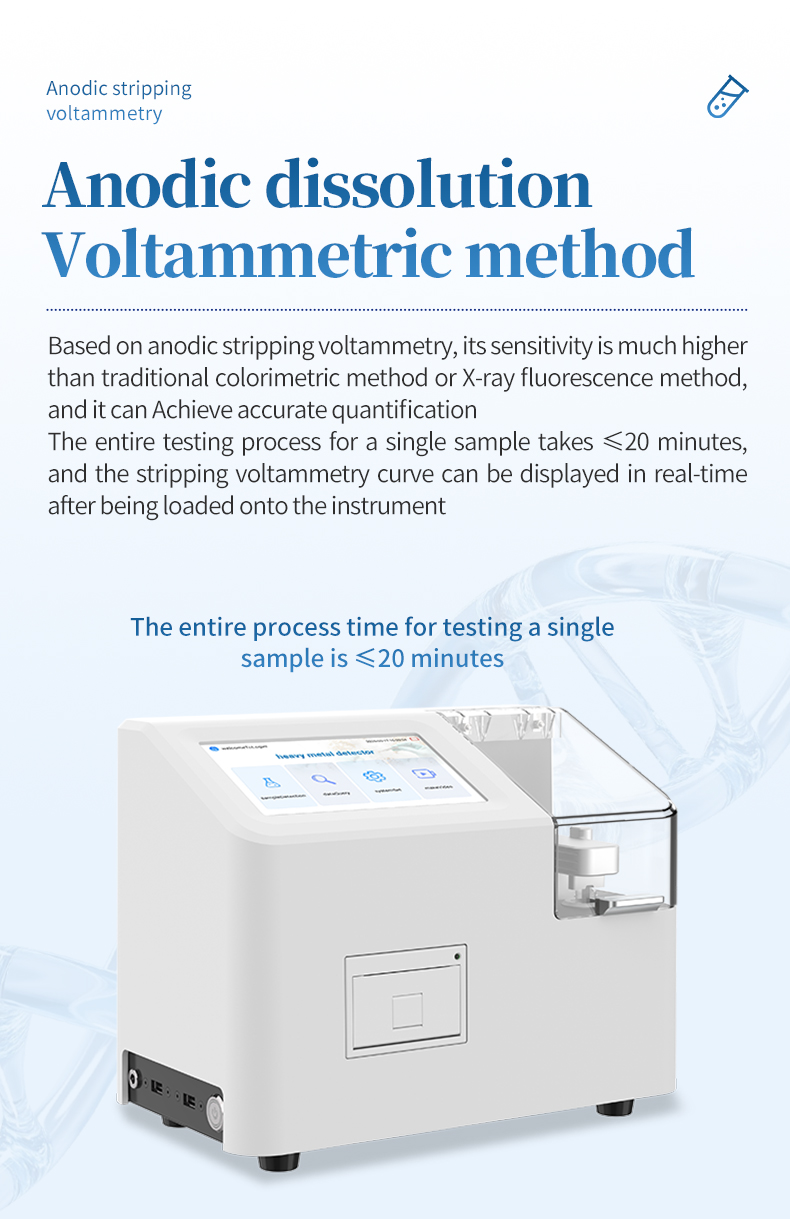

Anodic stripping voltammetry (ASV) detection — sensitivity superior to colorimetry and XRF methods
0.01 mg/kg grain detection limit for both Cd and Pb; 0.5 ppb water detection limit
Single-use screen-printed electrodes: no polishing, no carry-over, no cross-contamination

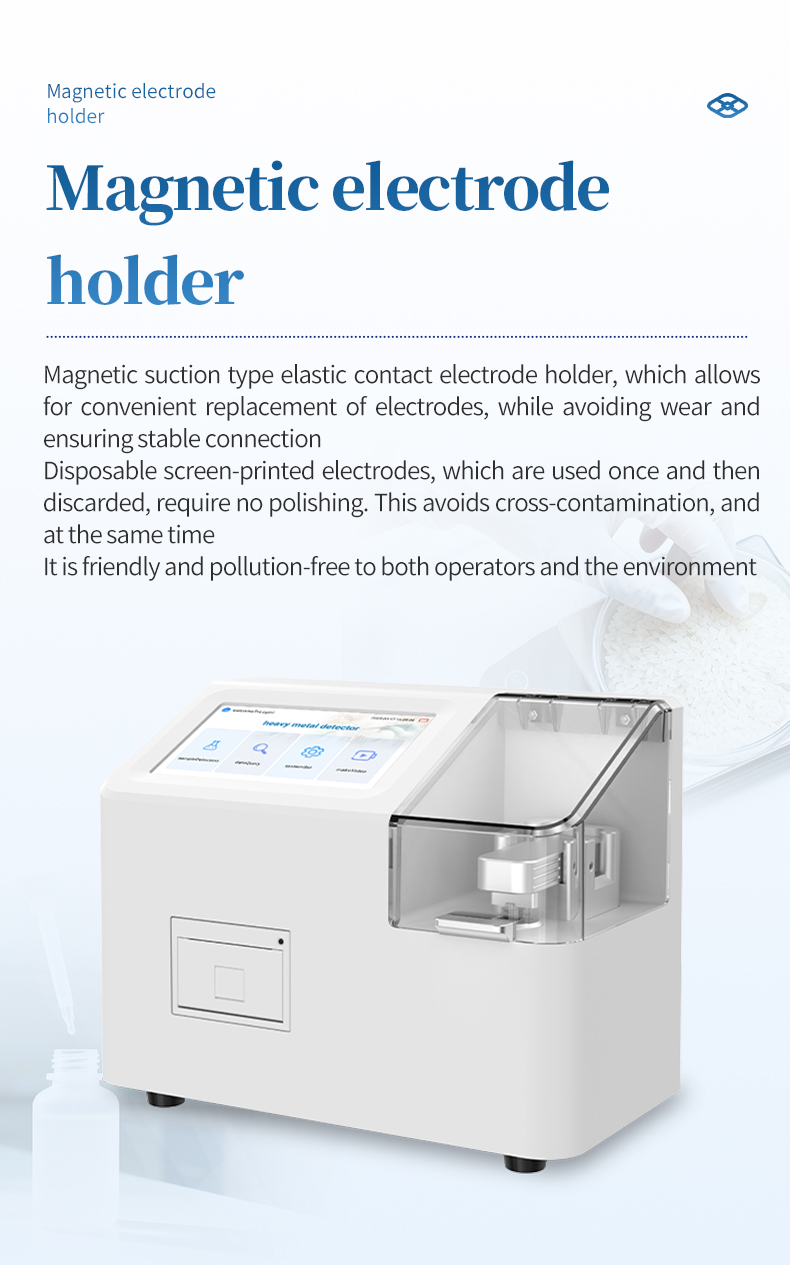

Magnetic snap-fit electrode holder for quick tool-free electrode replacement
Full analysis cycle ≤20 minutes, including sample preparation
280-second instrument analysis time per sample

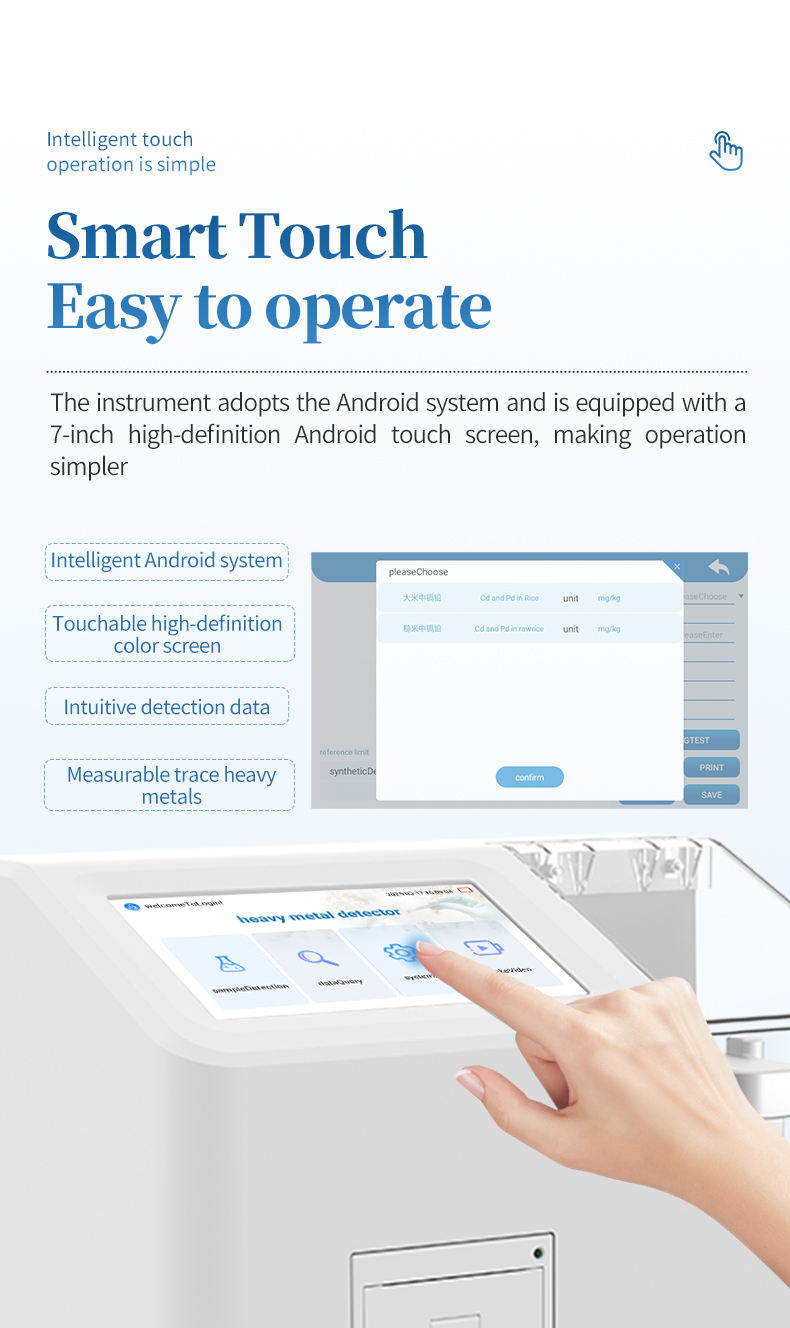

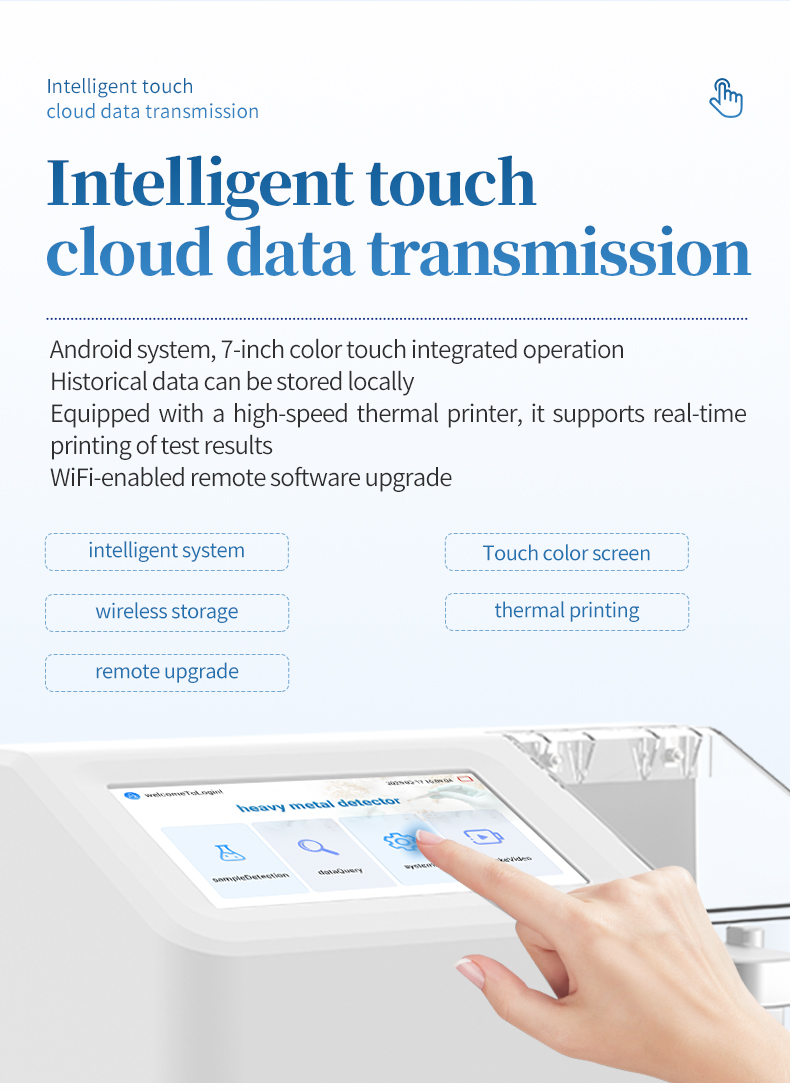

7-inch HD Android color touchscreen with real-time voltammetry curve display
Built-in thermal printer for on-site certificate printing
Wi-Fi data upload to central management platform; ≥50,000 record local storage

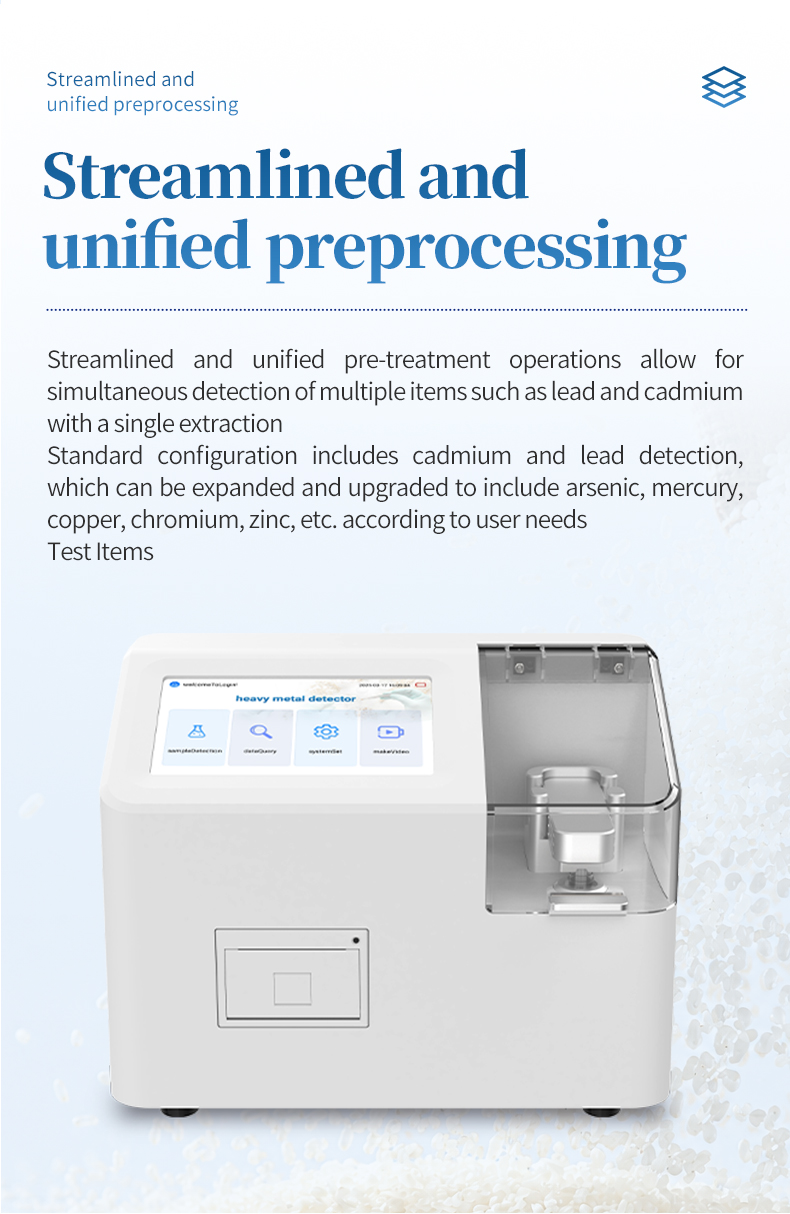

Standard configuration: Cd and Pb; expandable to As, Hg, Cu, Cr, Zn

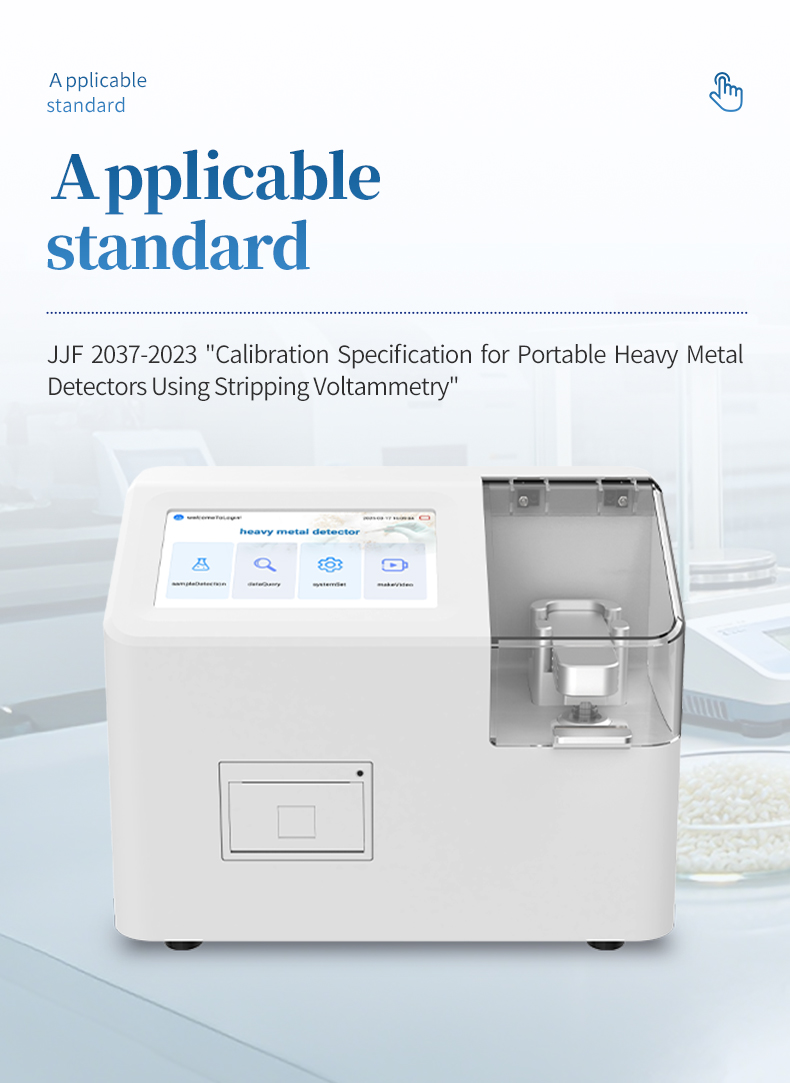

Complies with JJF 2037-2023 calibration standard
6,000 mAh battery; 4 kg; 320×190×250 mm
Main Parameters
| Parameter | Specification |
|---|---|
| Detection elements (standard) | Cadmium (Cd), Lead (Pb) |
| Grain detection range | 0.03–1.0 mg/kg |
| Grain detection limit | 0.01 mg/kg |
| Water detection range | 1–100 ppb |
| Water detection limit | 0.5 ppb |
| Indication error | ≤±10% |
| Repeatability | RSD ≤5% |
| Resolution | 0.5 ppb |
| Analysis cycle | 280 seconds/sample |

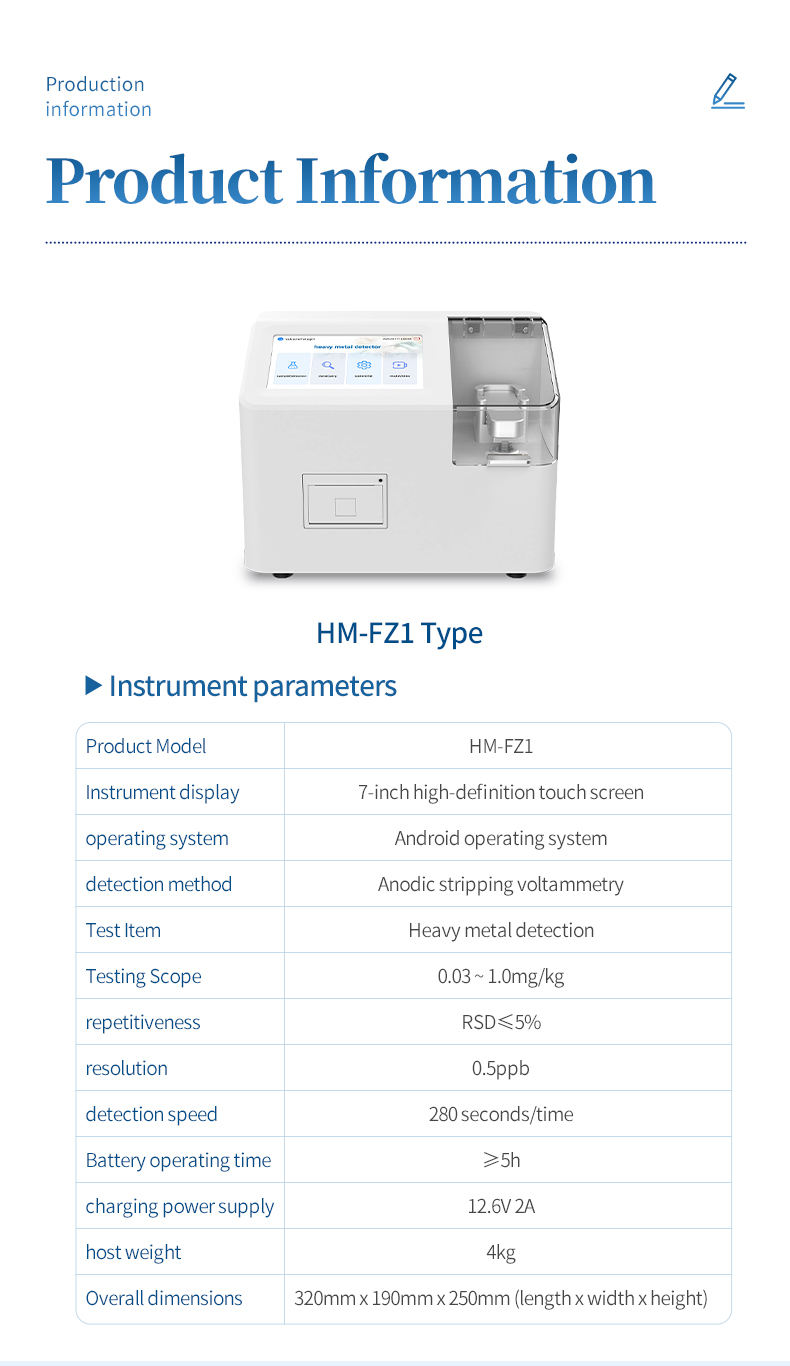

Technical Parameters
| Parameter | Specification |
|---|---|
| Detection method | Anodic stripping voltammetry (ASV) |
| Electrode system | Disposable screen-printed three-electrode strip |
| Display | 7-inch HD color touchscreen, Android OS |
| Communication | Wi-Fi, USB |
| Data storage | ≥50,000 records |
| Printing | Built-in thermal printer |
| Battery | 6,000 mAh |
| Power supply | 12.6 V 2 A |
| Operating temperature | 5–40°C |
| Operating humidity | ≤80% RH |
| Dimensions | 320 mm × 190 mm × 250 mm |
| Weight | 4 kg |
| Regulatory standard | JJF 2037-2023 |
| Expandable elements | As, Hg, Cu, Cr, Zn |
