Infrared CO2 analyzer

Product Overview

The infrared CO2 analyzer is a high-precision instrument used by our factory to detect toxic and harmful substances in the air of public places. The instrument adopts the non diffusive infrared principle to measure the concentration of carbon dioxide in the air, which has the advantages of high measurement accuracy, long service life, and small cross interference. It is an essential instrument in the field of environmental monitoring and occupational health monitoring.

Applicable scope

This instrument is widely used in environmental protection, environmental monitoring, health supervision, occupational health, disease control, and research institutes.

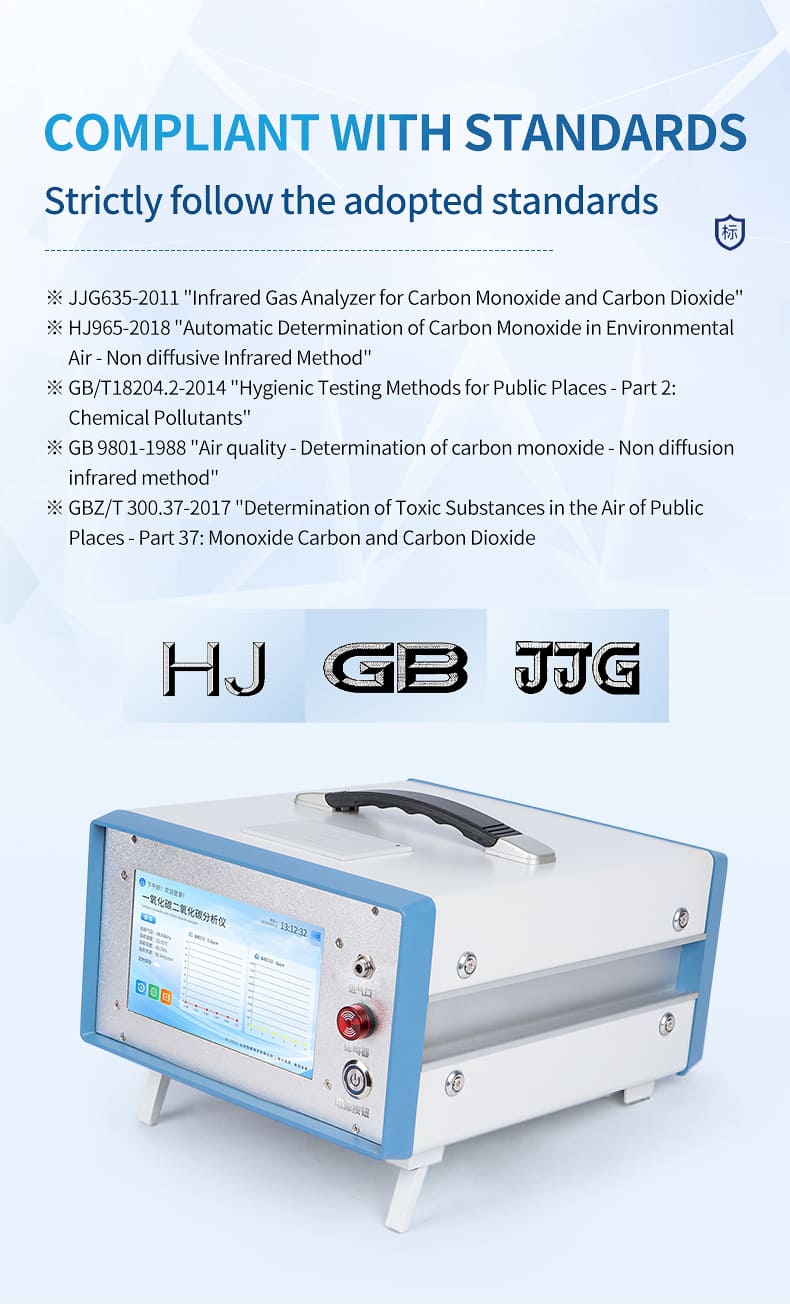

Adopting standards

JJG635-2011 Infrared Gas Analyzer for Carbon Monoxide and Carbon Dioxide

GB/T18204.2-2014 "Health Inspection Methods for Public Places Part 2: Chemical Pollutants"

GBZ/T 300.37-2017 "Determination of toxic substances in the air of public places - Part 37: Carbon monoxide and carbon dioxide"

Technical characteristics

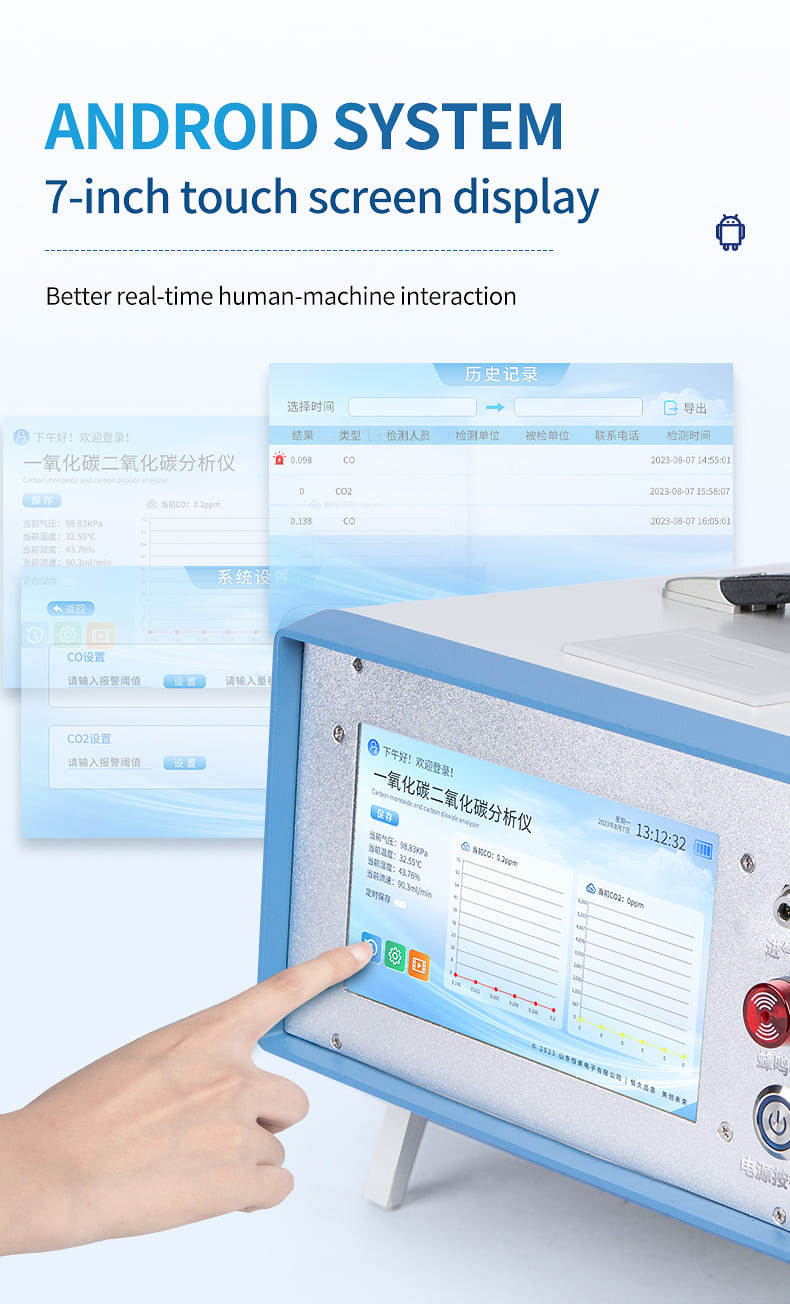

1. Adopting an Android system and a 7-inch touch screen display, real-time human-machine interaction is better.

2. Large storage space, capable of storing over 100000 pieces of data.

3. Equipped with a thermal printer, the current data can be printed after detection is completed

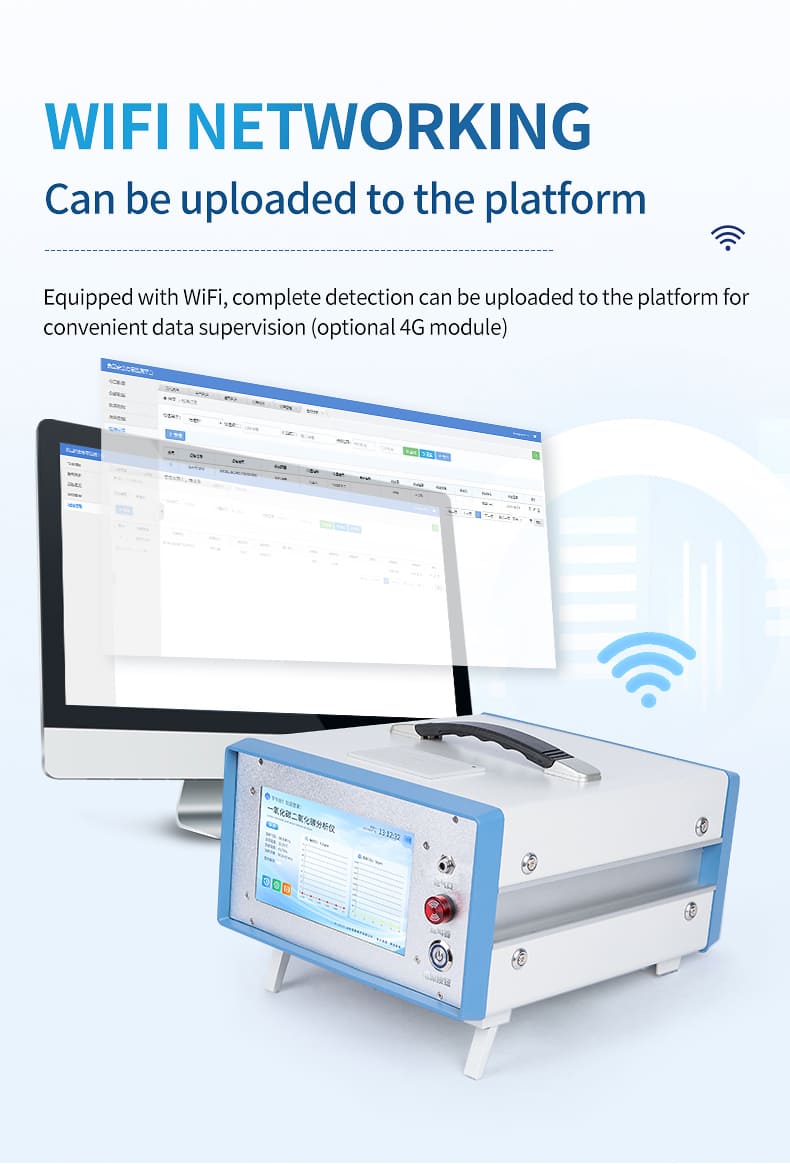

4. Equipped with WiFi, completed detection, can be uploaded to the platform for convenient data supervision (optional 4G module)

5. Equipped with a USB data interface, data can be imported into a USB drive.

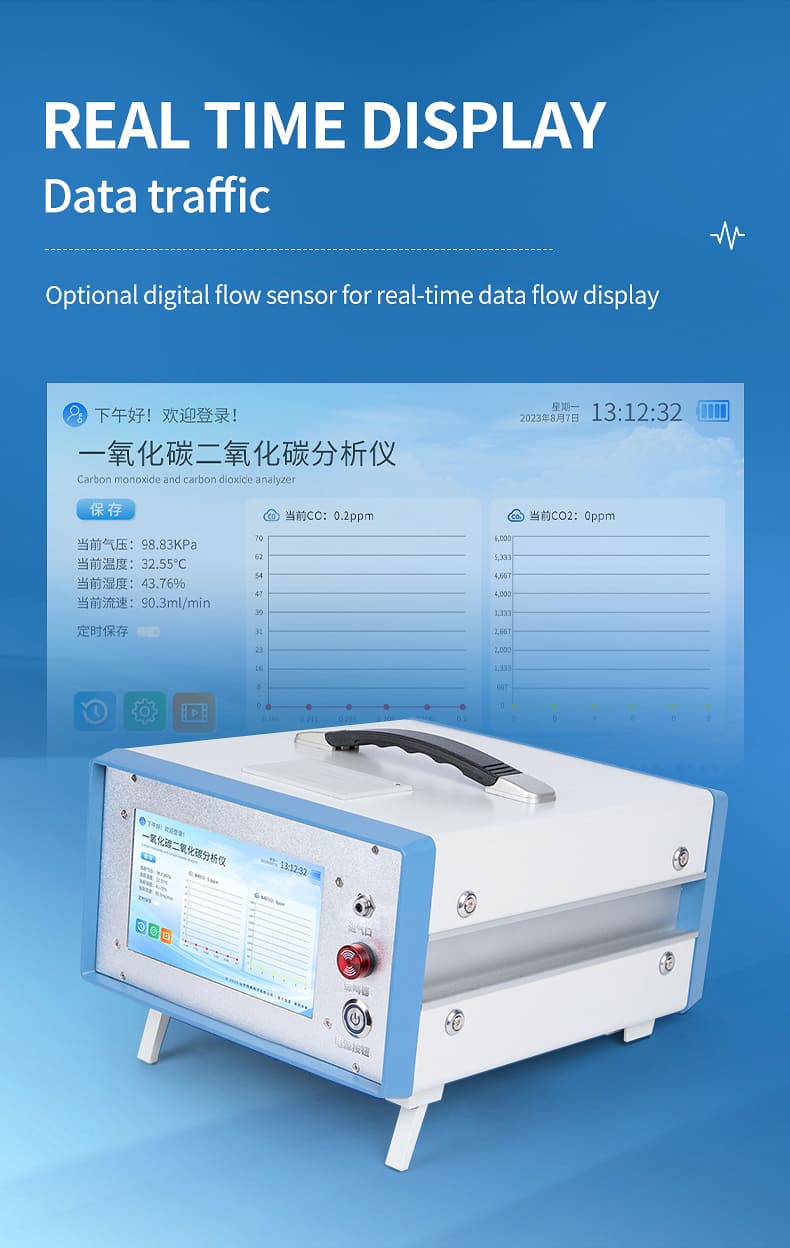

6. Optional digital flow sensor for real-time data flow display

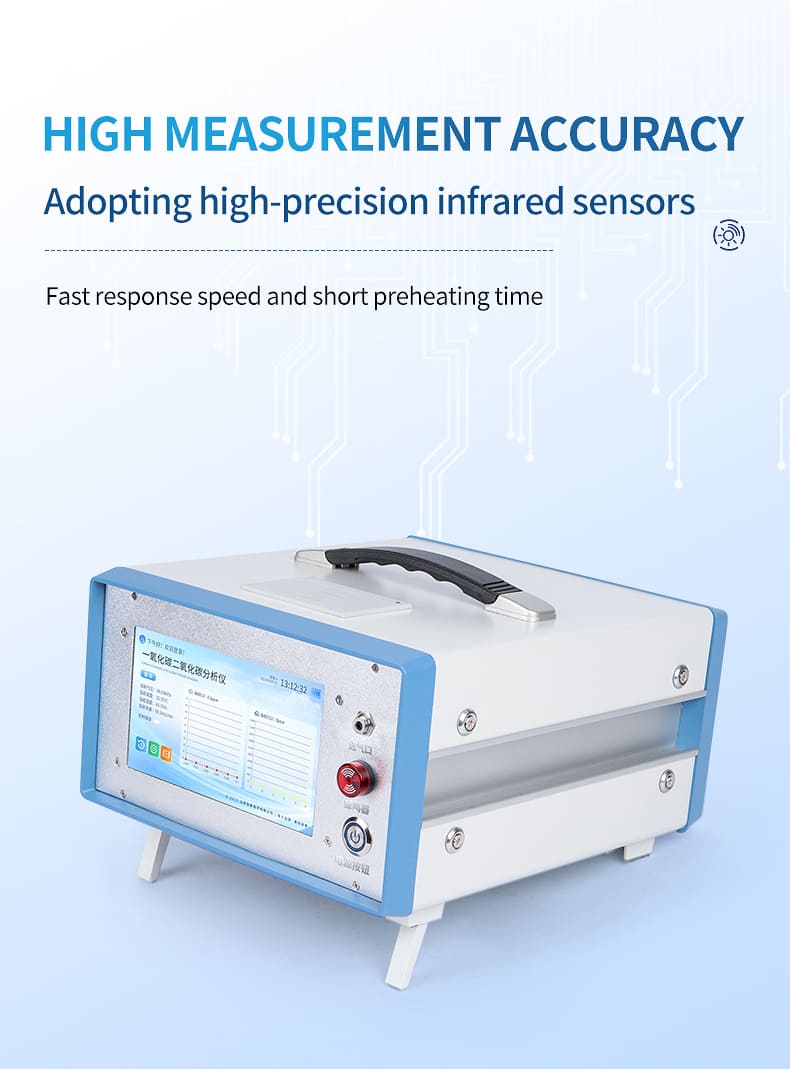

7. Adopting high-precision infrared sensors, with high measurement accuracy, fast response speed, and short preheating time.

8. Supports two methods of zero calibration: nitrogen calibration and catalytic calibration.

9. It has the function of constant temperature heating inside the machine, suitable for outdoor low-temperature environment operation.

10. Equipped with a built-in path switching solenoid valve, capable of zero adjustment and automatic measurement switching.

11. Equipped with temperature and humidity measurement function, built-in temperature and humidity compensation correction algorithm, eliminating the impact of temperature changes on measurement data.

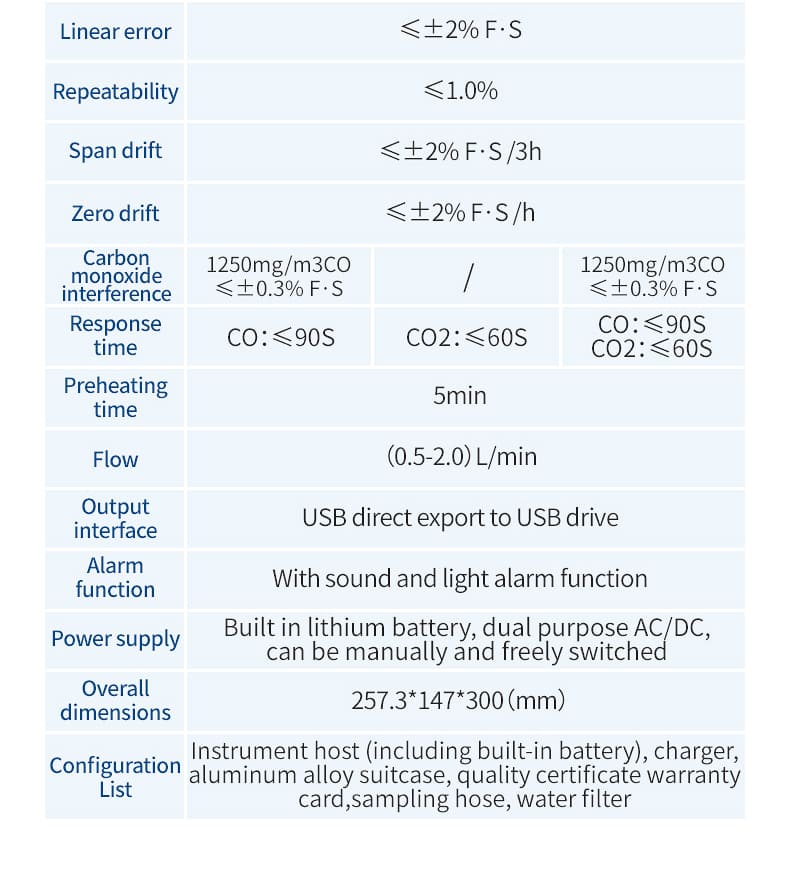

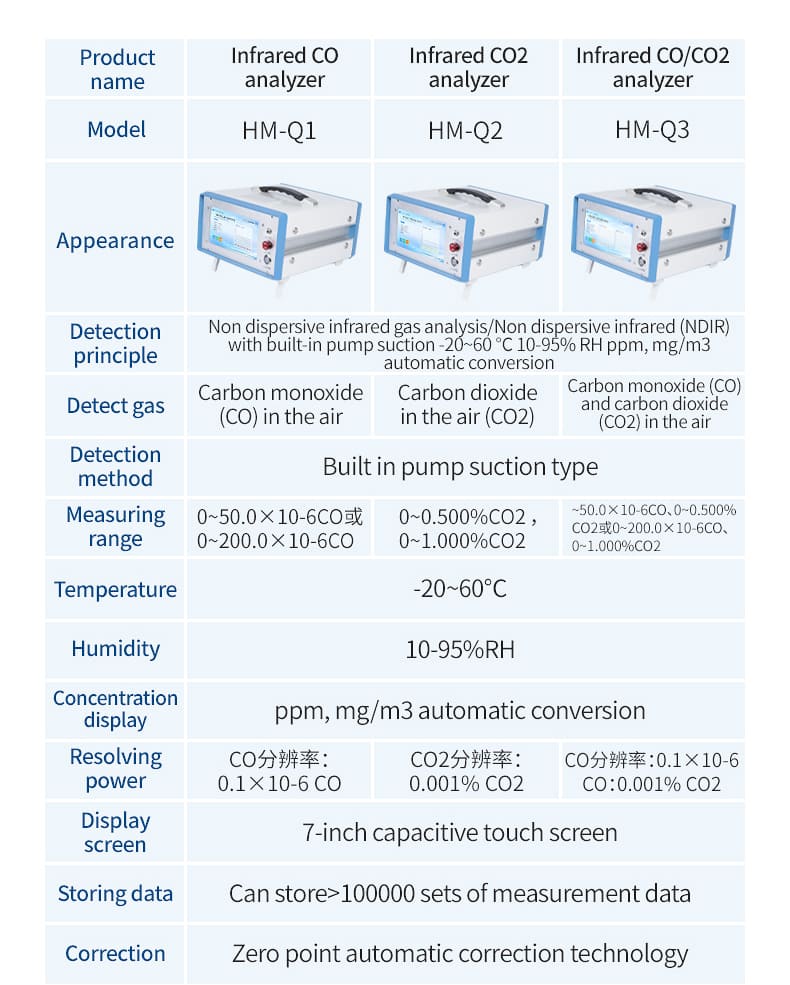

Technical parameters:

1. Detection principle: Non dispersive infrared gas analysis method/Non dispersive infrared method (NDIR)

2. Detection gas: Carbon dioxide (CO2) in the air

3. Detection method: built-in pump suction type

4. Measurement range: 0~0.500% CO2, 0~1.00% CO2

5. Temperature: -20 to 60 ℃

6. Humidity: 10-95% RH

7. Concentration display ppm, mg/m3 automatic conversion

8. CO2 resolution:; 0.001% CO2

9. Display screen: 7-inch capacitive touch screen

10. Can store>100000 sets of measurement data

11. Zero point automatic correction technology

12. Linear error: ≤ ± 2% F · S

13. Repeatability: ≤ 1.0%

14. Span drift: ≤ ± 2% F · S/3h

15. Zero drift: ≤ ± 2% F · S/h

16. Response time: CO2: ≤ 60S

17. Preheating time: 5 minutes

18. Flow rate: (0.5-2.0) L/min

19. Output interface: USB direct export to USB drive

20. Equipped with sound and light alarm functions

21. Power supply: Equipped with a built-in lithium battery, it can be used for both AC and DC, and can be manually and freely switched

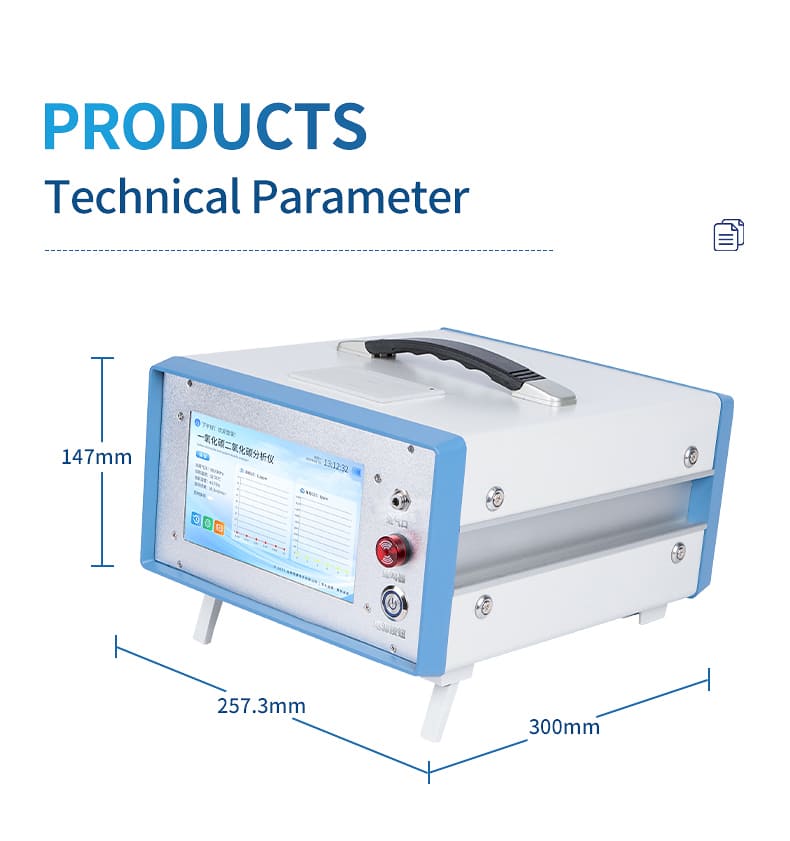

22. External dimensions: 257.3 * 147 * 300 (mm)

Configuration list:

Number Name Quantity

1 instrument host (including built-in battery) 1 unit

2 chargers, 1 unit

3 aluminum alloy suitcases, 1 piece

4 certificates and warranty cards

5 sampling hoses, 1 piece

6 water filter with 1 filters
