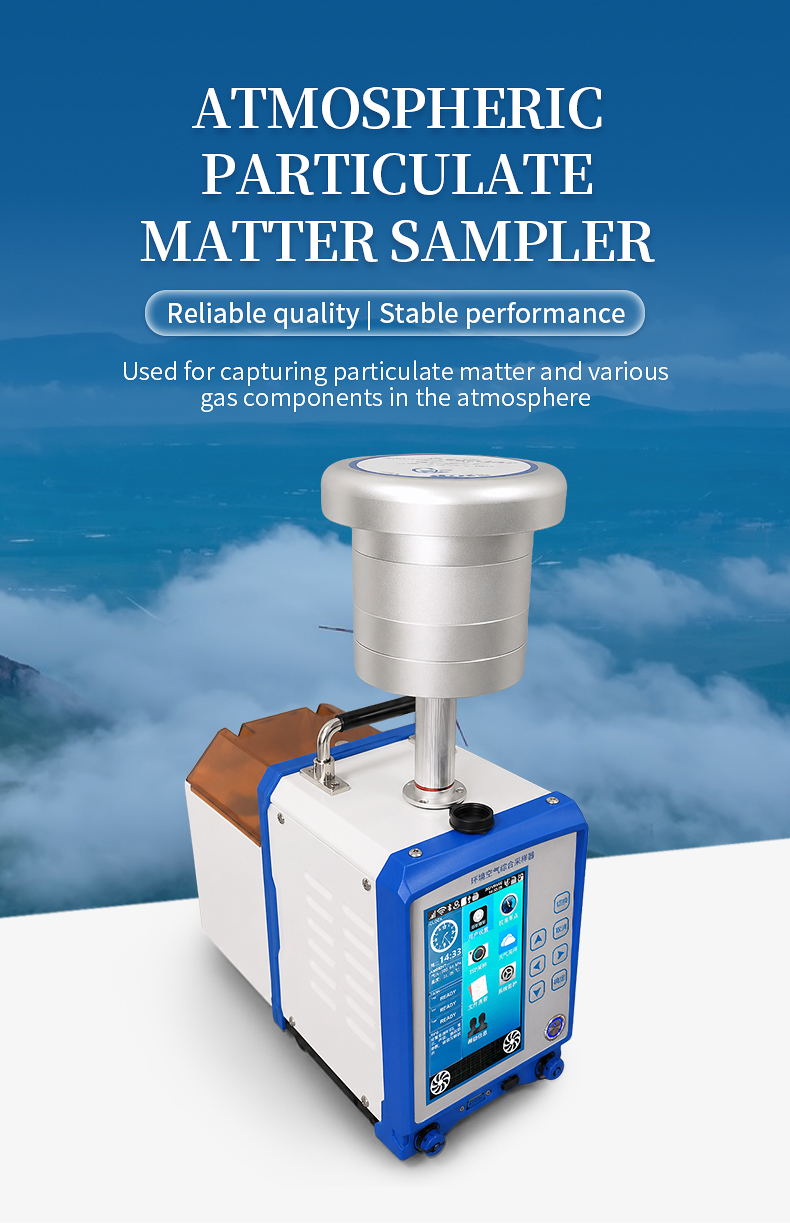

HM-H1 Air Particulate Sampler

Product Introduction

The HM-H1 is a dual-channel heating air particulate sampler manufactured by HM Instruments, designed for simultaneous collection of particulate matter (PM2.5/PM10) and gaseous pollutants in ambient air. The instrument integrates a high-flow particulate sampling channel rated at 10 to 130 L/min with two independent heated gas sampling channels, each operating from 0.100 to 1.000 L/min. Particulate flow accuracy is better than ±2.0% with 0.01 L/min resolution, while gas channel accuracy reaches ±2.5% at 0.001 L/min resolution. The PM2.5 cutter features Da50 = (2.5 ± 0.2) μm with σg = (1.2 ± 0.1) μm, and the PM10 cutter provides Da50 = (10 ± 0.5) μm with σg = (1.5 ± 0.1) μm. Housed in a compact enclosure measuring 165 × 330 × 275 mm and weighing approximately 4.0 kg, the HM-H1 supports AC220V and optional DC29.4V battery power, with noise below 60 dB(A) and power consumption under 100 W, making it suitable for both fixed-site and semi-portable monitoring applications.

Applications / Testing Items

• Ambient air PM2.5 and PM10 particulate matter sampling — environmental air quality monitoring

• Heated gas channel sampling for SO₂, NOₓ, and other gaseous pollutants

• Industrial emission area boundary monitoring — perimeter air quality assessment

• Workplace occupational health air sampling — inhalable and respirable dust collection

• Environmental impact assessment — baseline and compliance air quality surveys

• Meteorological and atmospheric research — particulate concentration profiling

• Urban air quality network monitoring — fixed and semi-portable station deployment

• Indoor air quality investigation — particulate and gaseous contaminant sampling

Functional Performance / Features

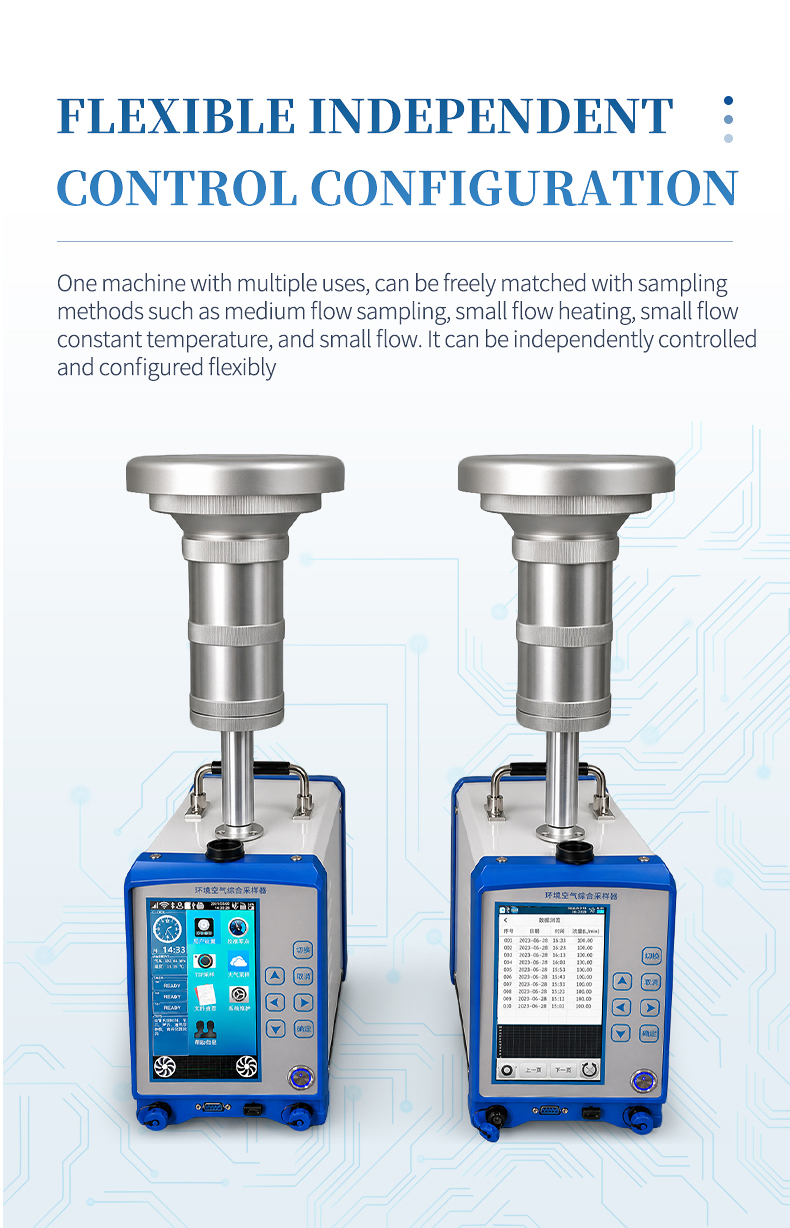

1. Dual-channel heated gas sampling with independent A and B channel flow control at 0.100–1.000 L/min.

2. High-flow particulate sampling channel rated 10–130 L/min with ±2.0% accuracy and 0.01 L/min resolution.

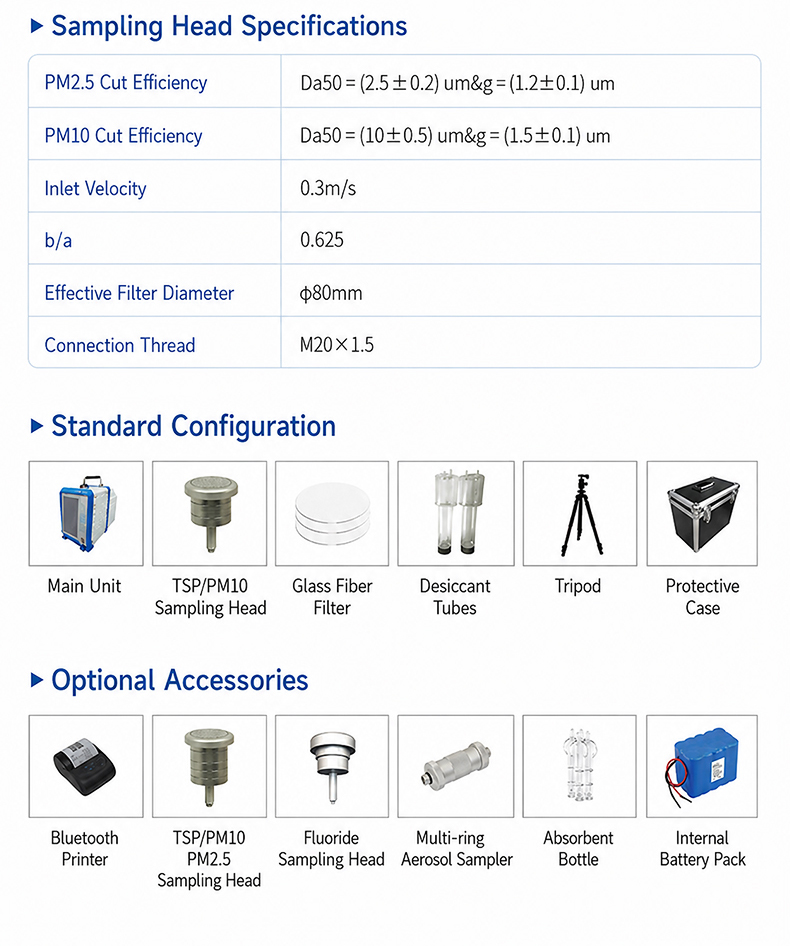

3. PM2.5 cutter Da50 = (2.5 ± 0.2) μm, σg = (1.2 ± 0.1) μm; PM10 cutter Da50 = (10 ± 0.5) μm, σg = (1.5 ± 0.1) μm.

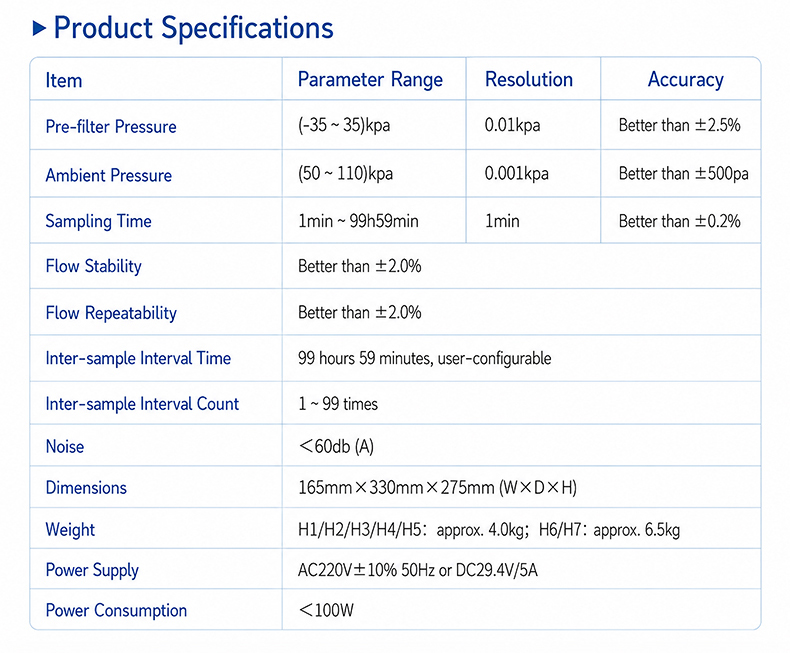

4. Pre-meter pressure measurement from -35 to 35 kPa with ±2.5% accuracy and 0.01 kPa resolution.

5. Atmospheric pressure monitoring from 50 to 110 kPa with ±500 Pa accuracy and 0.001 kPa resolution.

6. Flow stability better than ±2.0% and flow repeatability better than ±2.0% for consistent sampling results.

7. Programmable sampling time from 1 min to 99 h 59 min with ±0.2% accuracy and 1 min resolution.

8. Equal-interval sampling with configurable time (within 99 h 59 min) and repeat count (1–99 times).

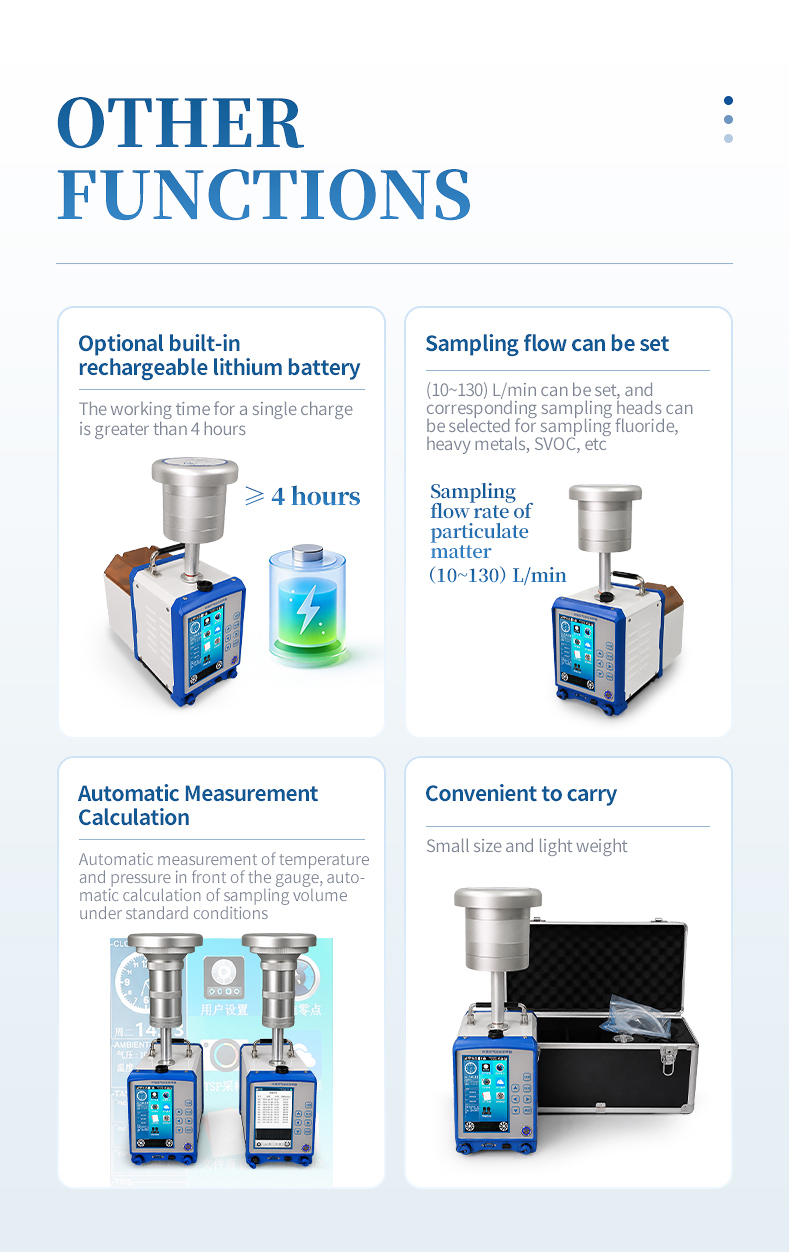

9. Optional built-in 29.4 V / 10.4 AH battery for field deployment without mains power.

10. Low noise operation below 60 dB(A) with power consumption under 100 W.

11. Effective filter membrane diameter φ80 mm with inlet velocity 0.3 m/s for standardized collection.

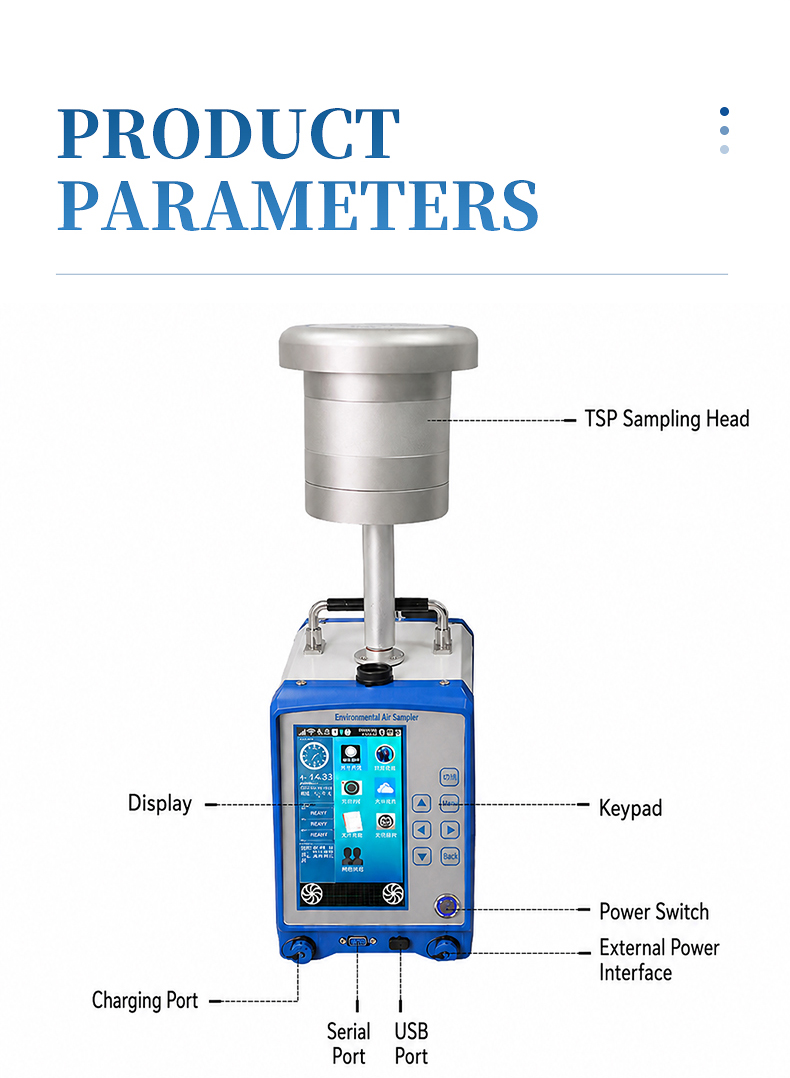

12. Dual power supply: AC220V ±10% 50 Hz or DC29.4 V / 5 A for versatile deployment scenarios.

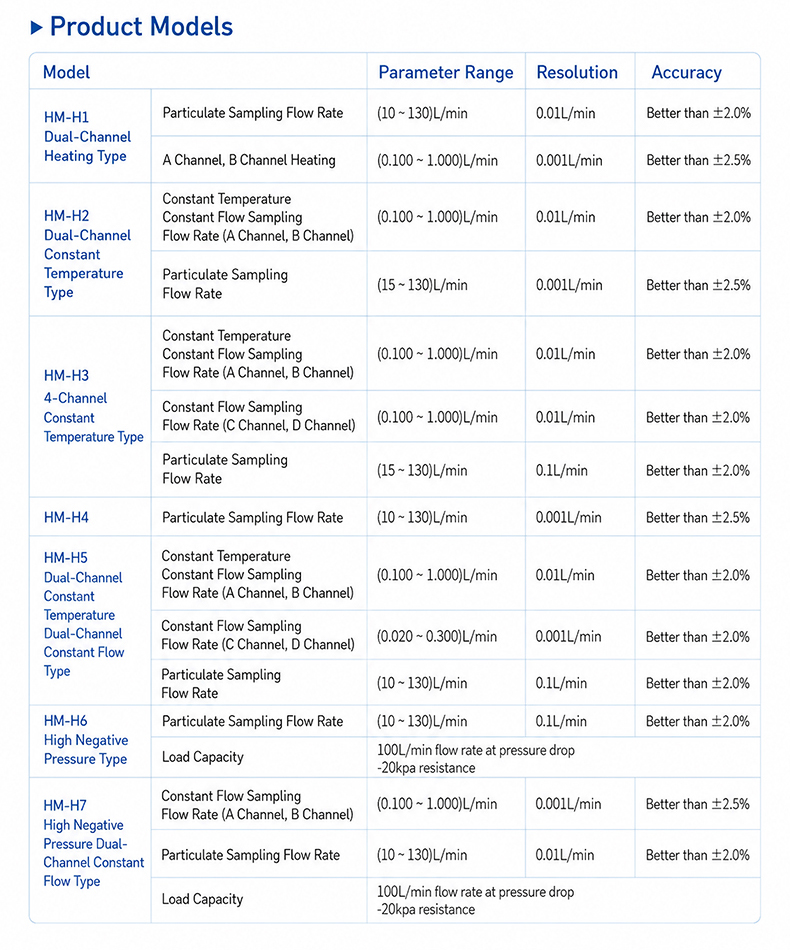

Main Parameters

Technical Parameters
