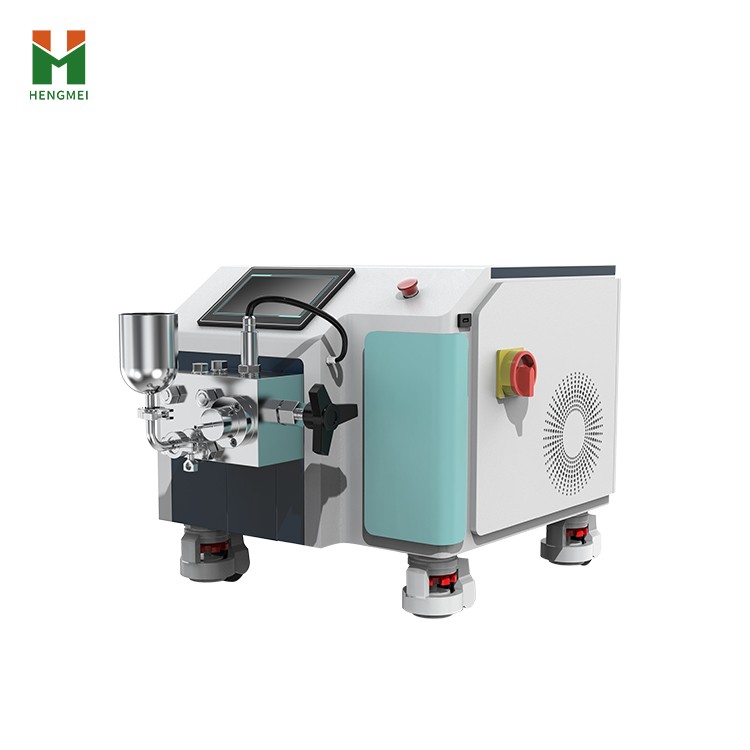

HM-HP20 High Pressure Homogenizer

Product Introduction

HM-HP20 is a touchscreen laboratory high pressure homogenizer for researchers who need clear process indication while treating small sample volumes. The high-pressure reciprocating pump delivers material to the working valve, where high-pressure shear, impact and cavitation reduce liquid-borne particles to an ultrafine state. The unit provides a 5–8 L/H design flow and a ≤15 mL minimum processing volume, making it suitable for formulation development, sample preparation and laboratory-scale dispersion work. A ≥7-inch touchscreen and sanitary digital pressure sensor display the pressure curve for direct process observation. The temperature-controlled homogenization valve can be configured for first- or second-stage operation. Online exhaust is available as an option without pressure reduction. Tri-Clamp quick connection with self-priming feed helps limit transfer equipment and contamination risk. The solid ceramic plunger, independent removable homogenization module, zero residual sample path and SIP/CIP cleaning capability support routine laboratory maintenance. To compare the family configuration, see HM-HP20 from HM Instruments.

Applications / Testing Items

• Pharmaceutical formulation screening and process development
• Cosmetic emulsion preparation and stability-related laboratory work
• Fine-chemical dispersion and materials research
• Food formulation and ingredient processing studies
• Bioengineering sample preparation and cell-disruption work

Functional Performance / Features

1. ≥7-inch touchscreen provides a clear interface for laboratory operation.
2. Sanitary digital pressure sensor displays the pressure curve with high sensitivity.
3. Design maximum pressure is 200 MPa, with adjustable operation from 0 to 180 MPa.
4. 5–8 L/H design flow matches controlled laboratory batch processing.
5. ≤15 mL minimum processing volume helps conserve small samples.
6. Online exhaust can be selected without requiring pressure reduction.
7. Temperature-controlled first- or second-stage homogenization valve is selectable.
8. Output temperature can be controlled from -5°C to 100°C according to material requirements.
9. Tri-Clamp self-priming feed avoids an additional feed pump.
10. Solid ceramic plunger offers a smooth and wear-resistant working surface.
11. Independent homogenization module is convenient to remove and sterilize independently.
12. Nano-homogenization can reach ≤100 nm; cell-disruption breakage rate is ≥95%.
13. Zero residual sample and real-time flow adjustment support flexible experiments.
14. SIP and CIP modes support cleaning operations.

Main Parameters

Parameter	HM-HP20 specification
Alternate model	GSL-5
Design maximum pressure (MPa/bar/Pis)	200/2000/29000
Actual operating pressure	0–26100 Psi (180 MPa), adjustable; maximum stable pressure 26100 Psi (180 MPa)
Design flow	5–8 L/H
Minimum processing volume	≤15 mL
Pressure display	≥7-inch touchscreen and sanitary digital pressure sensor displaying pressure curve
Homogenization valve	Temperature-controlled first- or second-stage homogenization valve, selectable
Maximum feed particle size	≤100 μm
Material temperature	≤90°C
Power supply	220 V/50 Hz

Technical Parameters

Item	Specification
Processing principle	High-pressure shear, impact and cavitation in the working valve
Valve exhaust	Optional online exhaust without pressure reduction
Sample residual	Zero residual sample
Flow control	Real-time adjustment according to experimental requirements
Plunger	1 solid ceramic plunger
Temperature control	Online control through homogenization-valve temperature-control jacket and medium connections; output -5°C to 100°C according to material requirements
Incoming material viscosity	≤2000 cp
Feed mode	Tri-Clamp quick connection with self-priming feed; no additional feed pump required
High-pressure seal	Imported sealing materials with high fatigue strength and wear resistance
Homogenization valve materials	Zirconia, tungsten carbide, diamond or Stellite may be used
Homogenization effect	Nano-homogenization ≤100 nm; cell disruption breakage rate ≥95%
Motor drive	ABB motor pump drive
Cleaning	SIP and CIP operations
Equipment dimensions	Length 510 mm; width 800 mm; height 470 mm
Packaging dimensions	850*600*510
Main unit weight	140 kg
Chiller specification	440 mm:300 mm:510 mm; 32 kg
Basic configuration	Main unit, one chiller, one set of disassembly tools and one user manual
Delivery	Within 20 days after contract signing
Warranty	One year for the complete machine after acceptance
