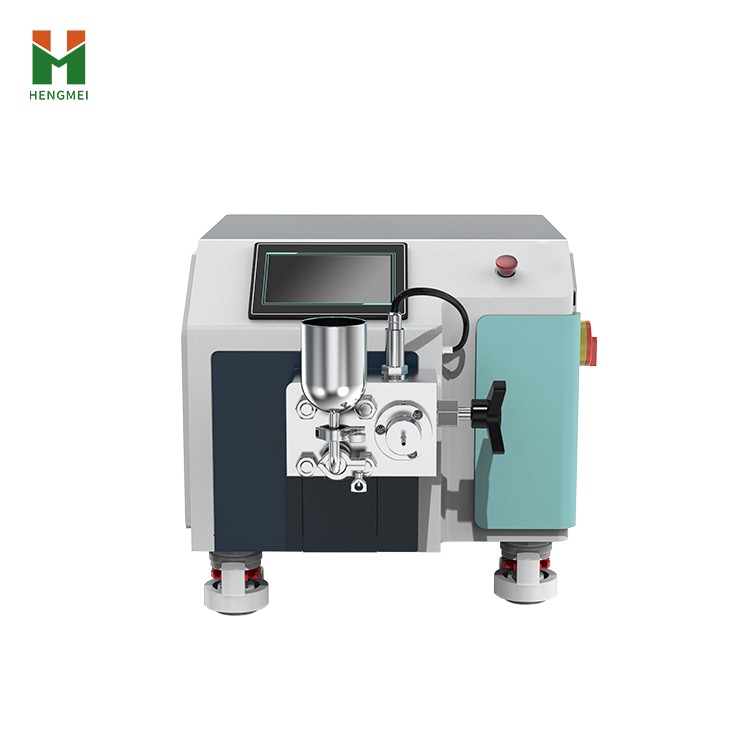

HM-HP30 High Pressure Homogenizer

Product Introduction

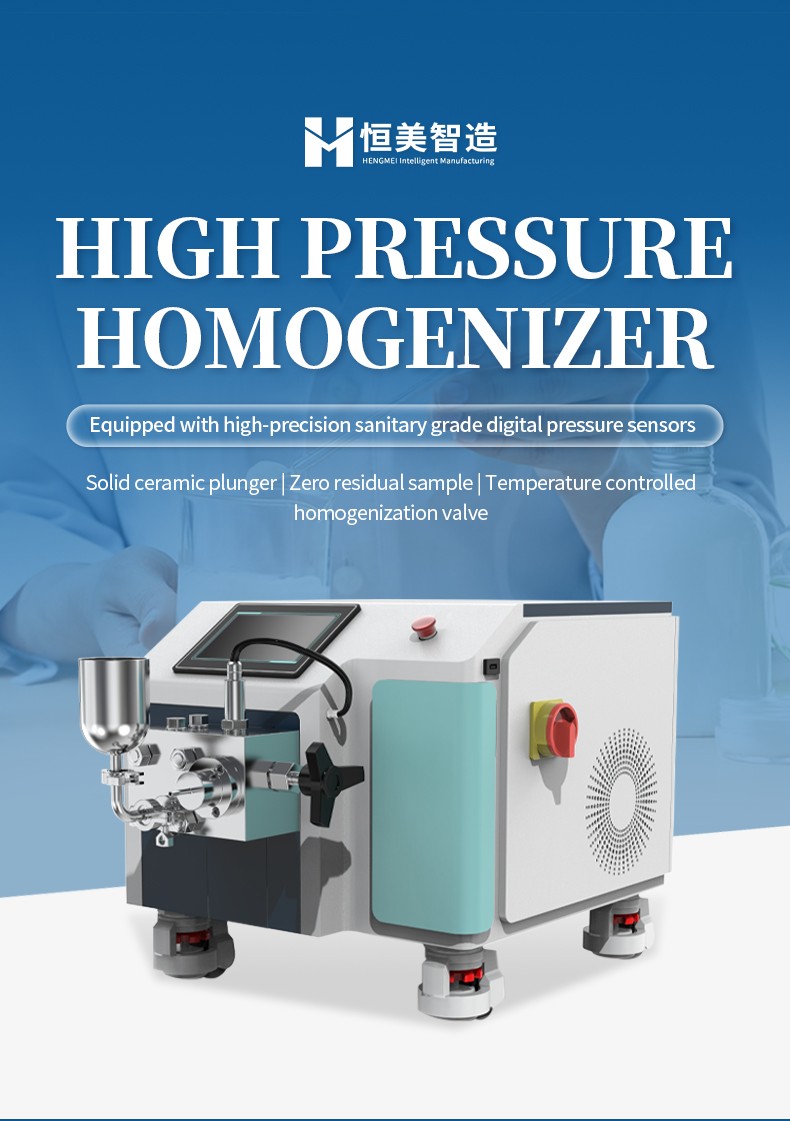

HM-HP30 is a laboratory high pressure homogenizer for teams that need a 12–15 L/H design flow together with a ≤15 mL minimum processing volume. It uses a high-pressure reciprocating pump to convey material to a working valve. Shear, impact and cavitation inside the valve provide the stated high-pressure route to ultrafine processing of liquids or solid particles carried by liquids. The model combines a 200 MPa design maximum with adjustable actual operating pressure from 0 to 180 MPa. A ≥7-inch touchscreen and sanitary digital pressure sensor display the pressure curve, helping operators observe pressure during a run. The temperature-controlled homogenization valve can be selected in first- or second-stage configuration. Ceramic plungers, imported high-pressure sealing materials and an independent removable valve module are specified for demanding routine use. Tri-Clamp self-priming feed, real-time flow adjustment and zero residual sample handling simplify sample transfer. Nano-homogenization can reach ≤100 nm, while the stated cell-disruption breakage rate is ≥95%. For model-specific information, see HM-HP30 in the HM Instruments range.

Applications / Testing Items

• Pharmaceutical and bioengineering sample processing
• Food and cosmetic formulation development
• Fine-chemical dispersion and process studies
• Materials science work with liquid-carried particles
• Cell-disruption and nano-homogenization experiments

Functional Performance / Features

1. 12–15 L/H design flow supports larger laboratory processing batches.
2. ≤15 mL minimum processing volume keeps the platform useful for limited samples.
3. 200 MPa design maximum and 0–180 MPa adjustable actual operating pressure.

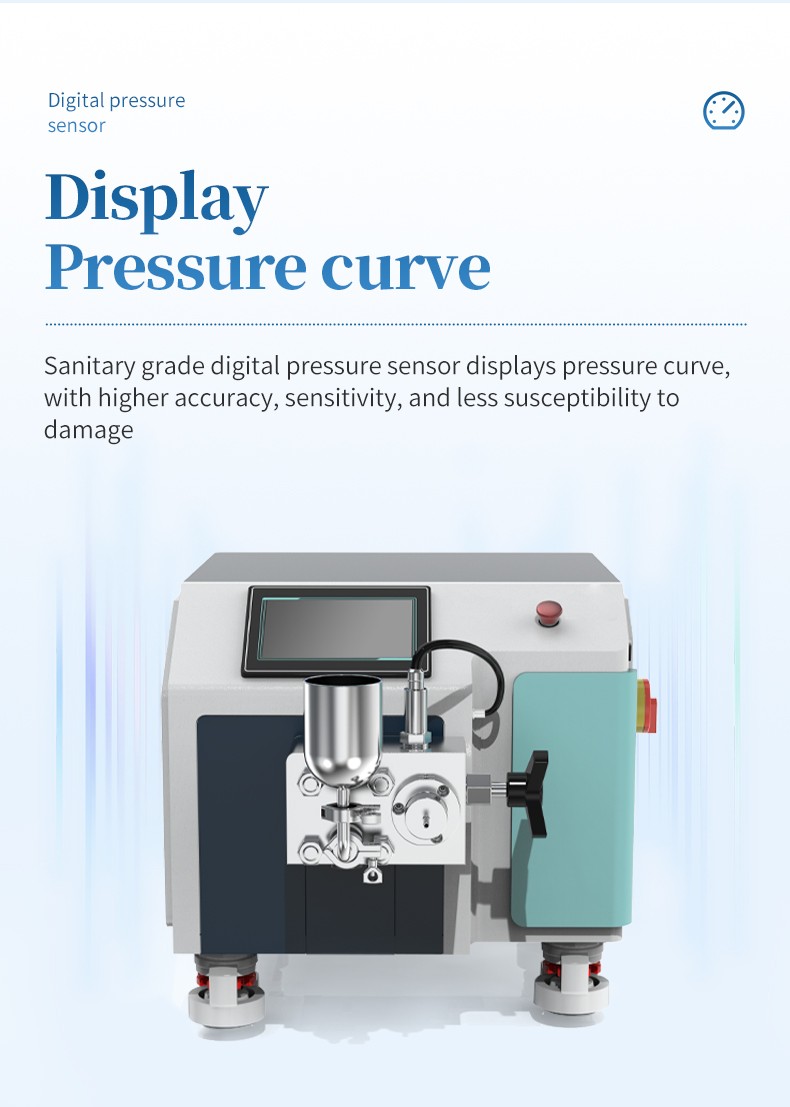

4. ≥7-inch touchscreen provides pressure-curve visibility during operation.
5. Sanitary digital pressure sensor is specified for accurate, sensitive pressure indication.
6. First- or second-stage temperature-controlled homogenization valve can be selected.
7. Online material temperature control uses a valve jacket, medium connections and piping.
8. Output temperature can be controlled from -5°C to 100°C according to material requirements.

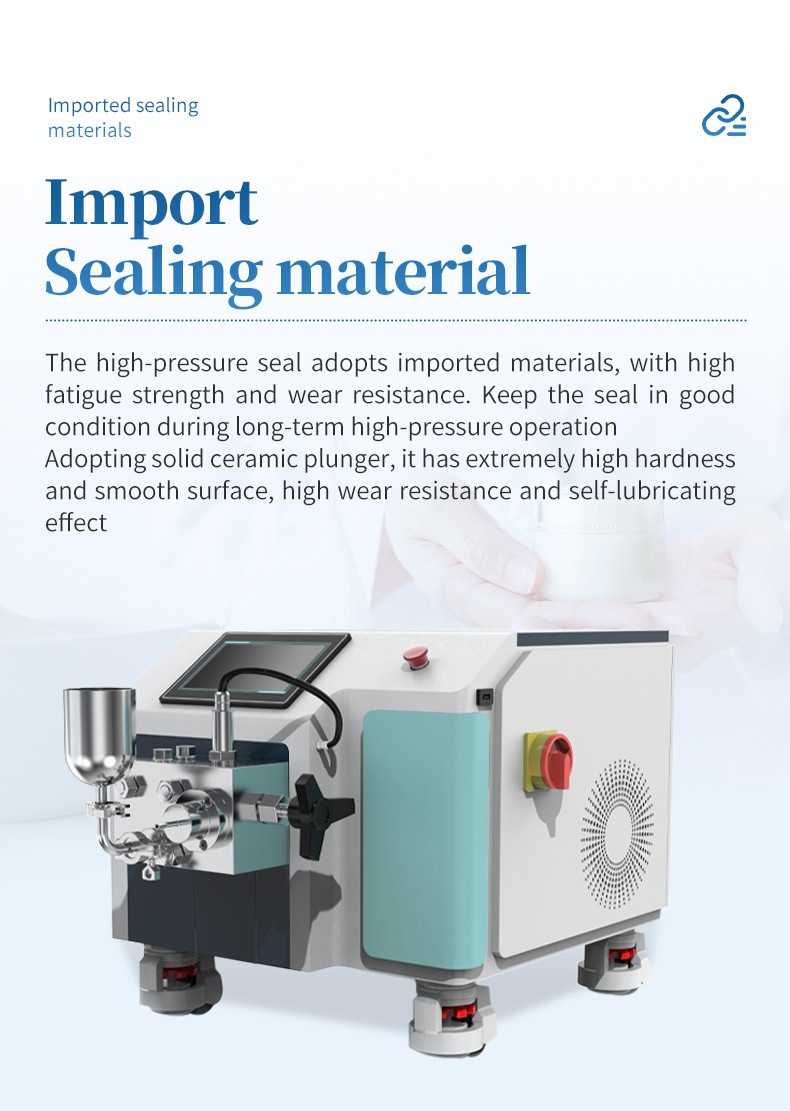

9. Imported high-pressure sealing materials provide fatigue strength and wear resistance.
10. Solid ceramic plunger has a smooth, hard and self-lubricating surface.
11. Independent homogenization module simplifies removal, maintenance and independent sterilization.
12. Tri-Clamp self-priming feed avoids an additional pump and hopper combination.

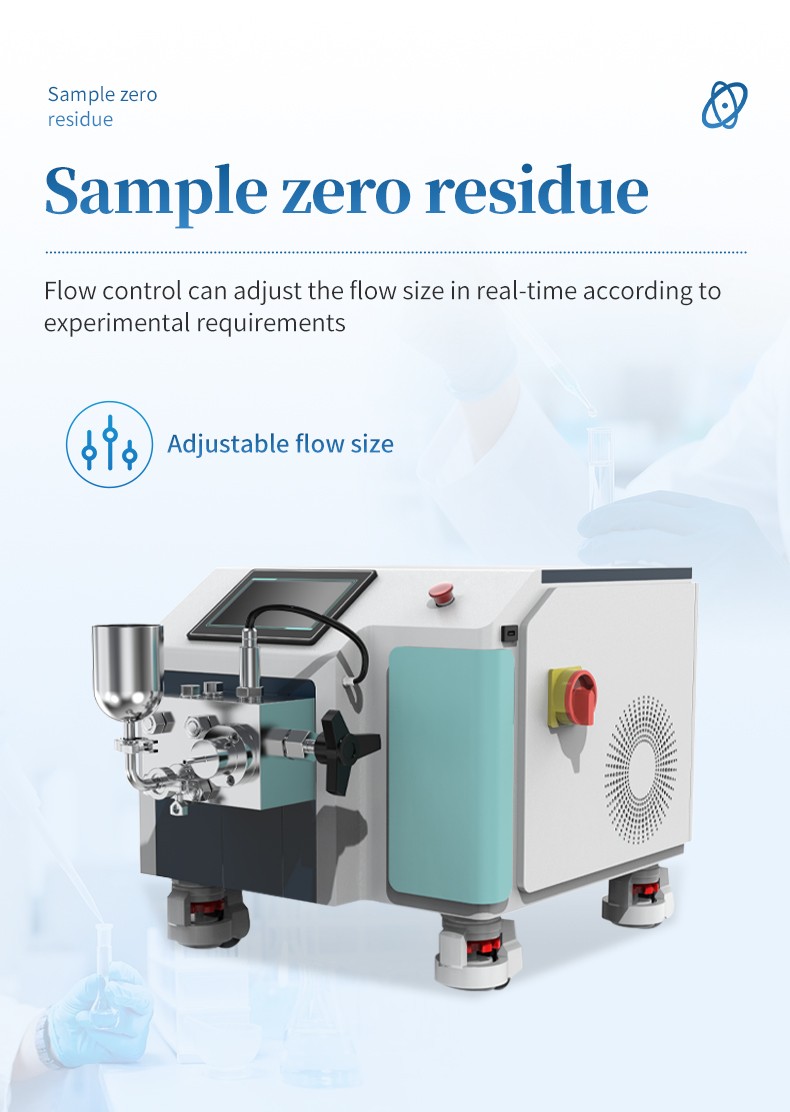

13. Real-time flow adjustment and zero residual sample handling support flexible experiments.
14. Nano-homogenization is specified at ≤100 nm; cell-disruption breakage rate is ≥95%.

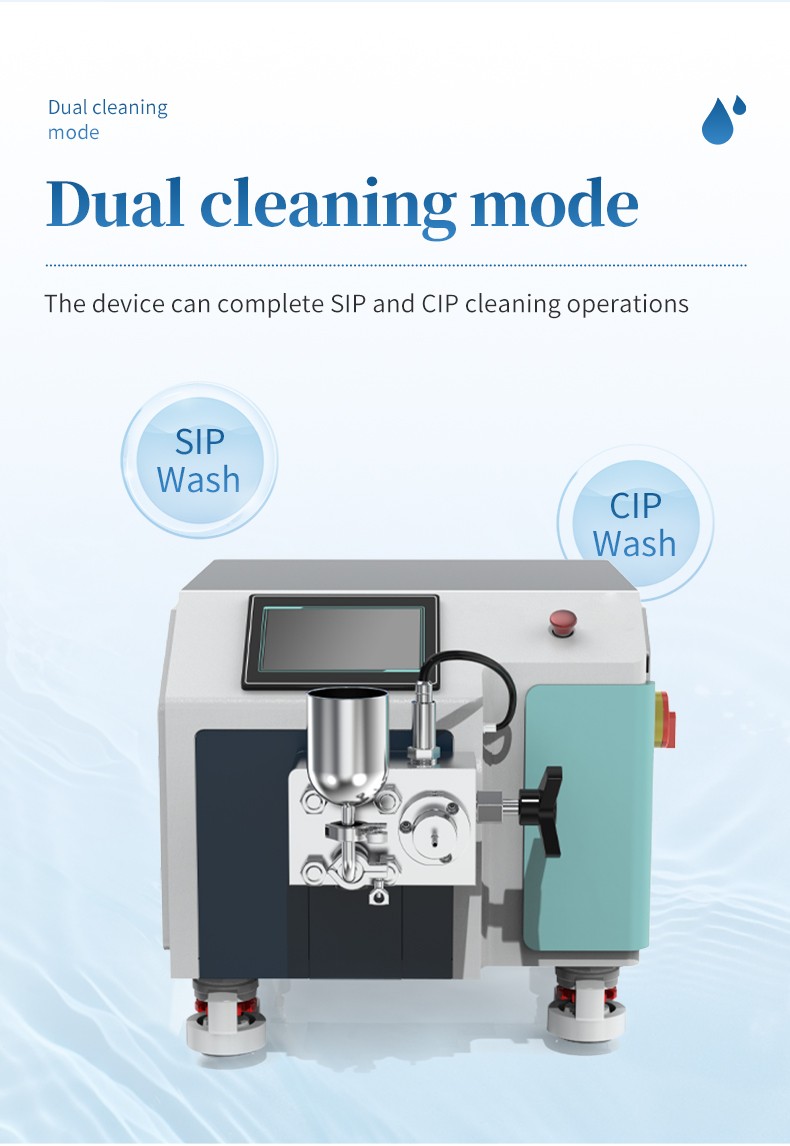

15. SIP and CIP cleaning operations are available.

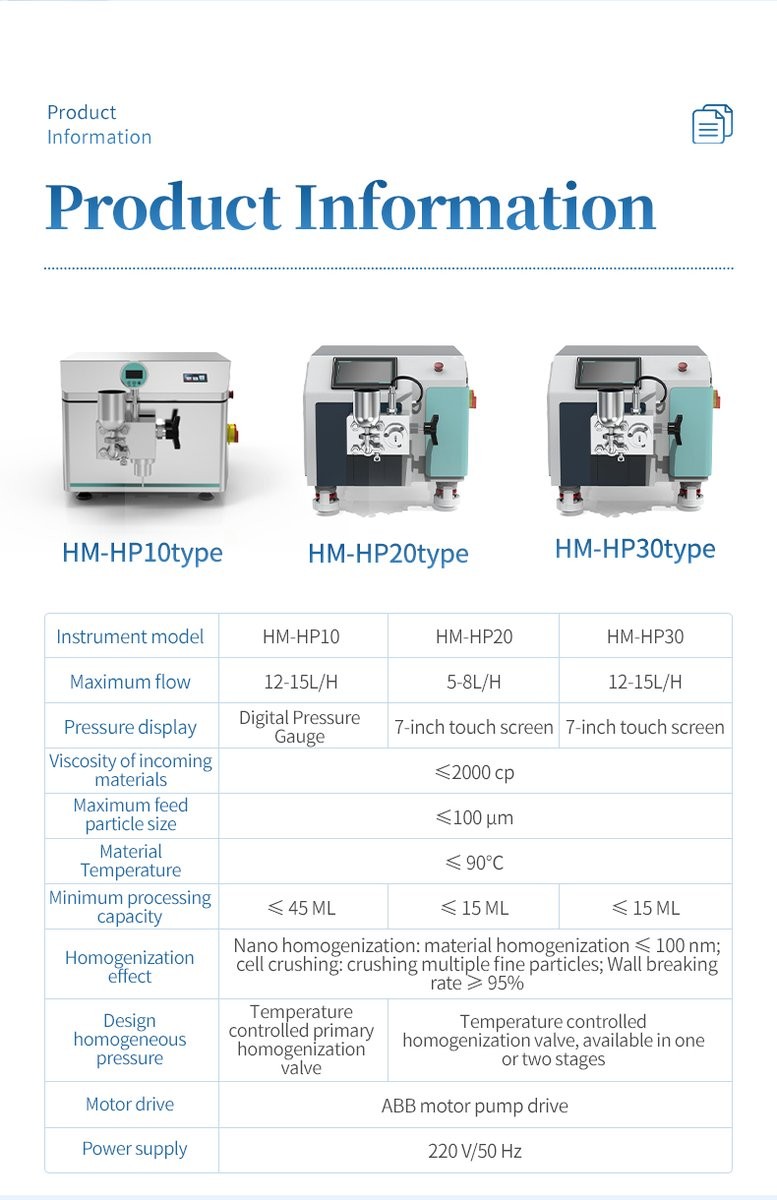

Main Parameters

Parameter	HM-HP30 specification
Alternate model	GSL-15
Design maximum pressure (MPa/bar/Pis)	200/2000/29000
Actual operating pressure	0–26100 Psi (180 MPa), adjustable; maximum stable pressure 26100 Psi (180 MPa)
Design flow	12–15 L/H
Minimum processing volume	≤15 mL
Pressure display	≥7-inch touchscreen and sanitary digital pressure sensor displaying pressure curve
Homogenization valve	Temperature-controlled first- or second-stage homogenization valve, selectable
Maximum feed particle size	≤100 μm
Material temperature	≤90°C
Power supply	220 V/50 Hz

Technical Parameters

Item	Specification
Processing principle	High-pressure shear, impact and cavitation in the working valve
Valve exhaust	Optional online exhaust without pressure reduction
Sample residual	Zero residual sample
Flow control	Real-time adjustment according to experimental requirements
Plunger	1 solid ceramic plunger
Temperature control	Online control through homogenization-valve temperature-control jacket and medium connections; output -5°C to 100°C according to material requirements
Incoming material viscosity	≤2000 cp
Feed mode	Tri-Clamp quick connection with self-priming feed; no additional feed pump required
High-pressure seal	Imported sealing materials with high fatigue strength and wear resistance
Homogenization valve materials	Zirconia, tungsten carbide, diamond or Stellite may be used
Homogenization effect	Nano-homogenization ≤100 nm; cell disruption breakage rate ≥95%
Motor drive	ABB motor pump drive
Cleaning	SIP and CIP operations
Equipment dimensions	Length 510 mm; width 800 mm; height 470 mm
Packaging dimensions	850*600*510
Main unit weight	140 kg
Chiller specification	440 mm:300 mm:510 mm; 32 kg
Basic configuration	Main unit, one chiller, one set of disassembly tools and one user manual
Delivery	Within 20 days after contract signing
Warranty	One year for the complete machine after acceptance
