Product Introduction

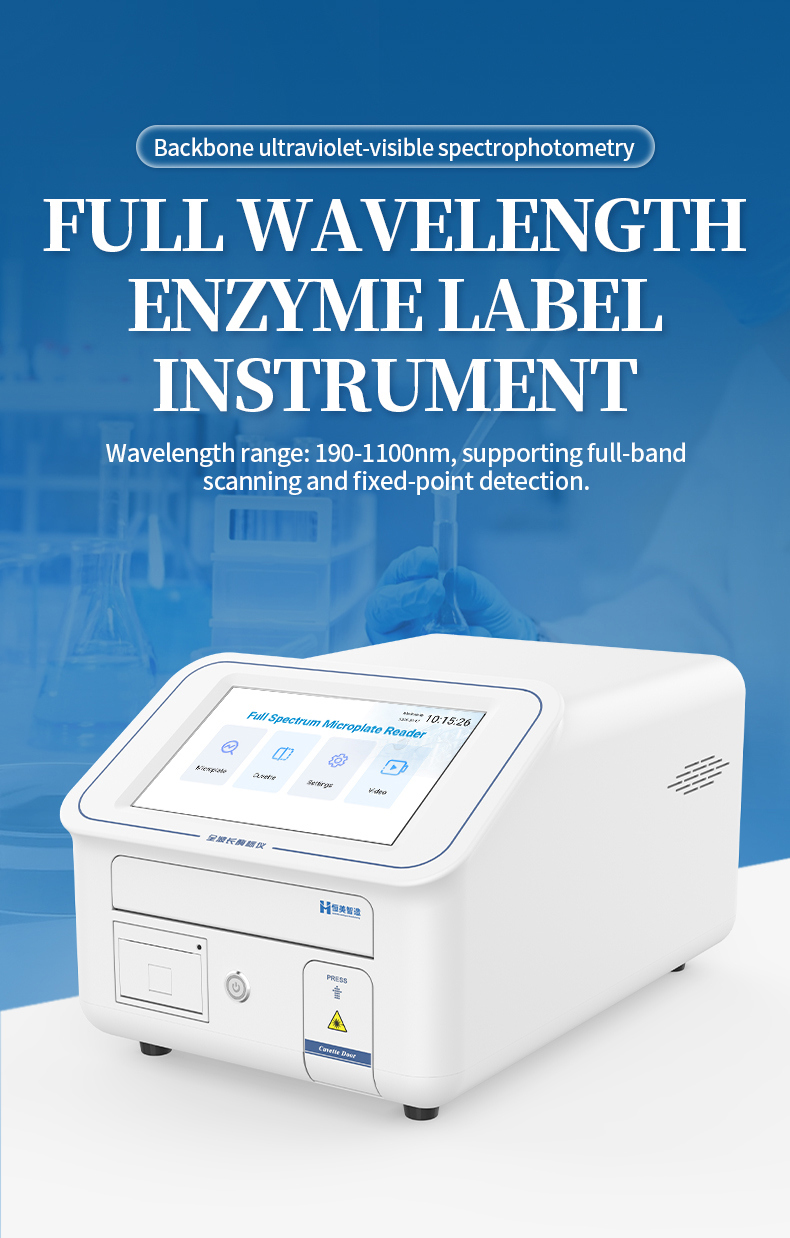

The HM-96Q full spectrum microplate reader is a high-throughput analytical instrument based on UV-Vis spectrophotometry. Designed for modern laboratories in molecular biology, immunology, and pharmaceutical research, it enables automated full-band scanning, multi-point absorbance measurement, and kinetic detection across a wide wavelength range. The system supports both 96-well microplates and single-channel cuvettes, offering exceptional flexibility for diverse experimental workflows.
Built on the Android 10 operating system with a 10-inch color touchscreen, the HM-96Q delivers an integrated and intuitive user experience. The pulsed xenon flash lamp provides stable illumination with minimal maintenance requirements, while the dual-beam reference optical path continuously compensates for environmental variations. With built-in GLP/GMP-compliant user management, audit trails, and multiple data export formats, the HM-96Q meets the rigorous demands of regulated laboratory environments.
Applications
Pharmaceutical research: high-throughput drug screening, pharmacological and toxicological assessment, biologics quality control
Molecular biology: protein quantification, nucleic acid concentration measurement, enzyme kinetics studies
Cell biology: cell viability and cytotoxicity assays
Immunology: ELISA and other immunoassay protocols
Agriculture and food safety: crop disease detection, allergen screening, toxin and pesticide residue analysis
Environmental monitoring: pollutant analysis in water and soil samples
Functional Performance / Features

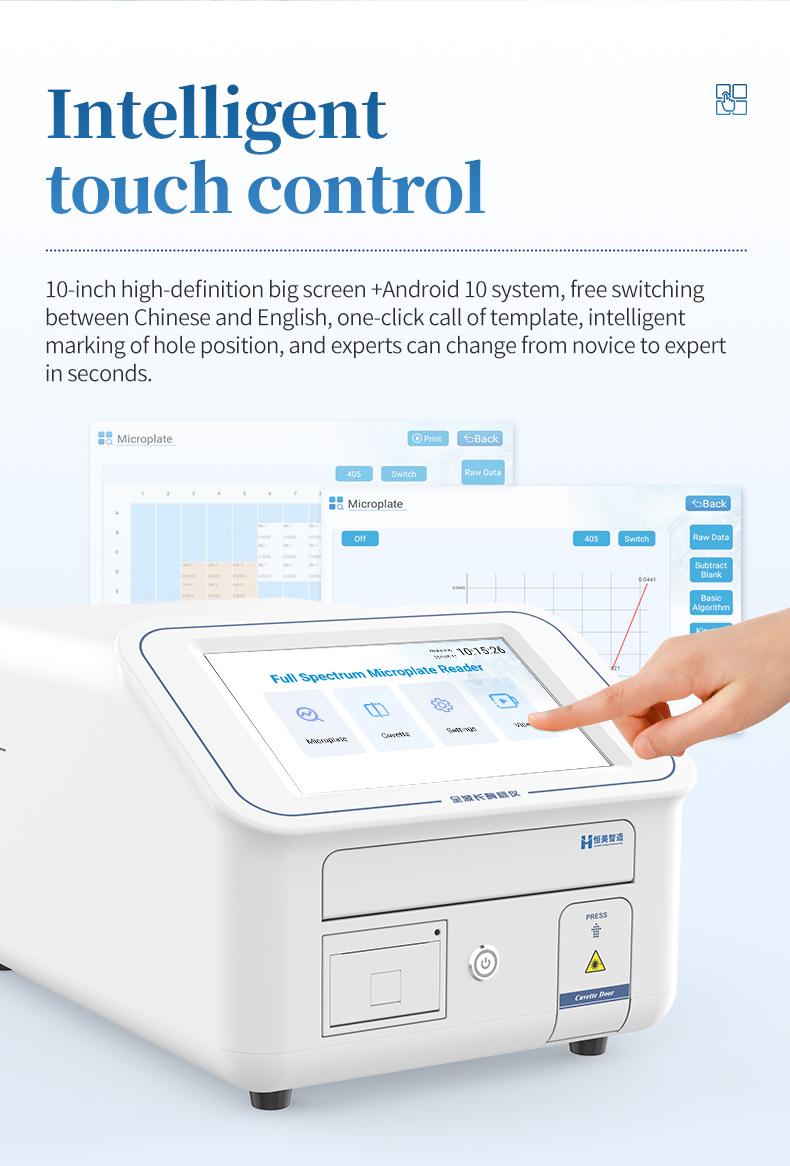

Android 10 operating system with 10-inch color touchscreen for integrated operation
Long-life pulsed xenon flash lamp with low maintenance cost
Dual-beam reference optical path design for real-time environmental interference compensation

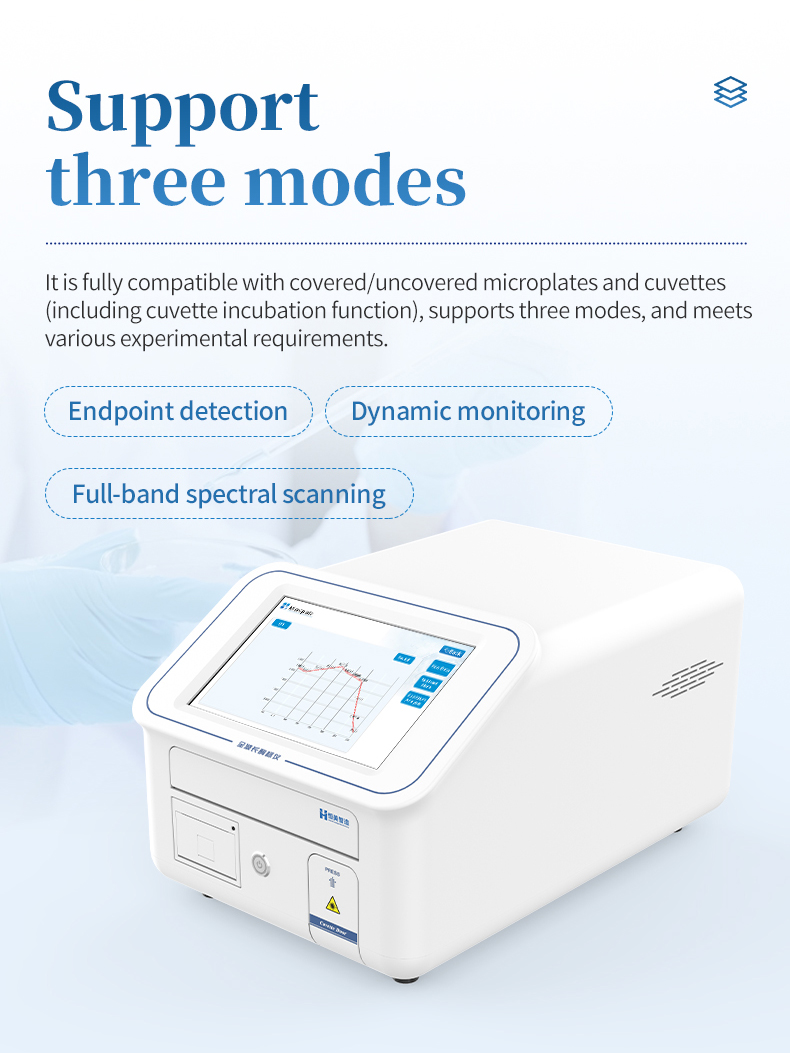

Endpoint, kinetic, and spectral scanning modes compatible with lidded and lidless microplates and cuvettes
Microplate and cuvette incubation with linear shaking at three adjustable speeds and durations
One-click preset experimental templates with customizable workflows, gradient controls, and data fitting analysis
Built-in self-diagnostic program for automatic optical path calibration and mechanical precision verification

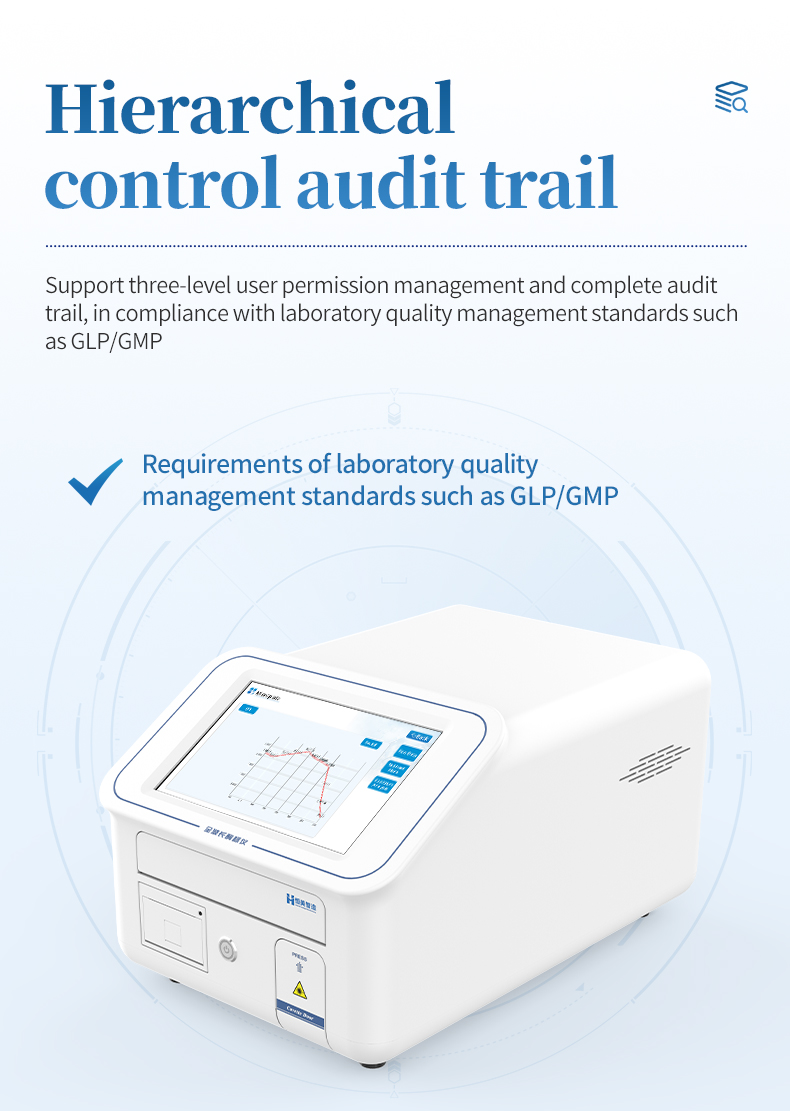

Three-level user permission management with complete audit trail, compliant with GLP/GMP laboratory quality standards
Built-in thermal printer for immediate result output; USB supports Excel and PDF dual-format data export
Wi-Fi connectivity for cloud-based remote software upgrades
Chinese and English language switching capability
Main Parameters
| Parameter | Specification |
|---|---|
| Light Source | Xenon flash lamp |
| Wavelength Range | 190 ~ 1100 nm |
| Bandwidth | < 2.5 nm |
| Absorbance Range | 0 ~ 4.0 Abs |

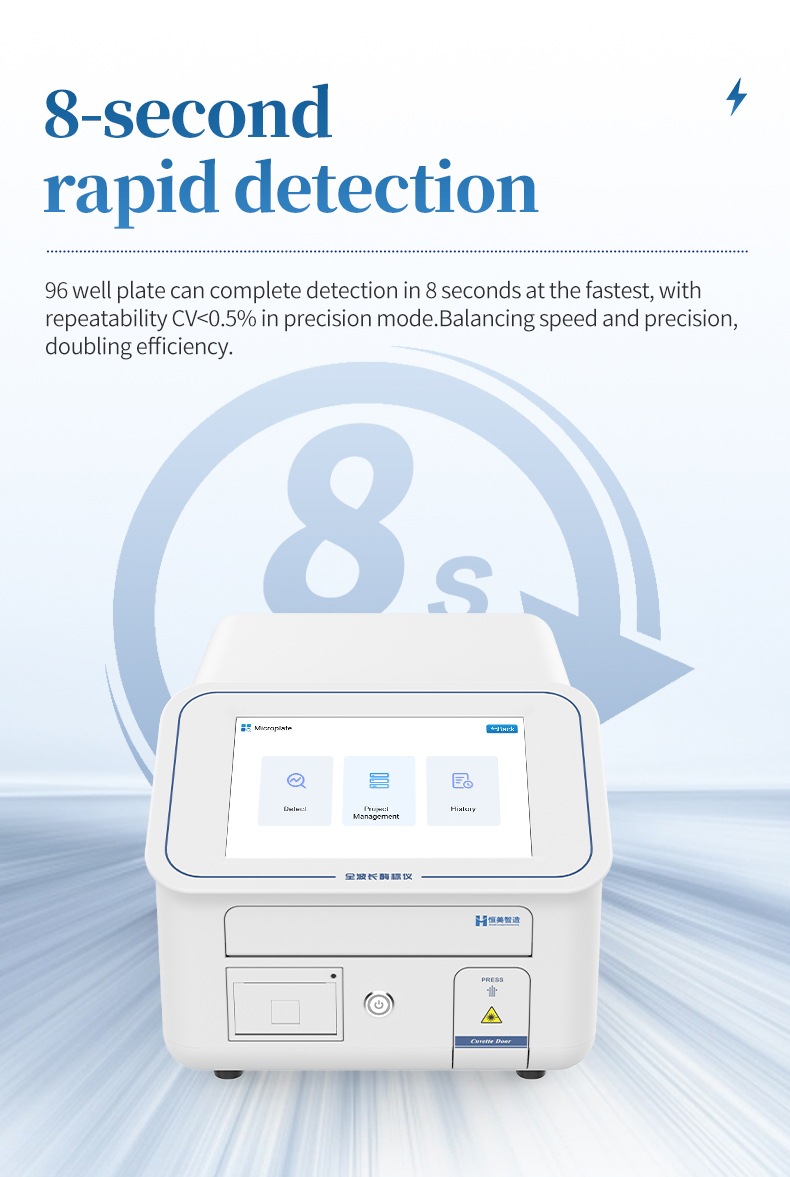

| Measurement Speed | Fast mode < 8 s; Precision mode < 28 s |
| Incubation Range | RT + 4 ~ 45 ℃ |
| Dimensions | 333 × 500 × 274 mm |
| Weight | 12.1 kg |

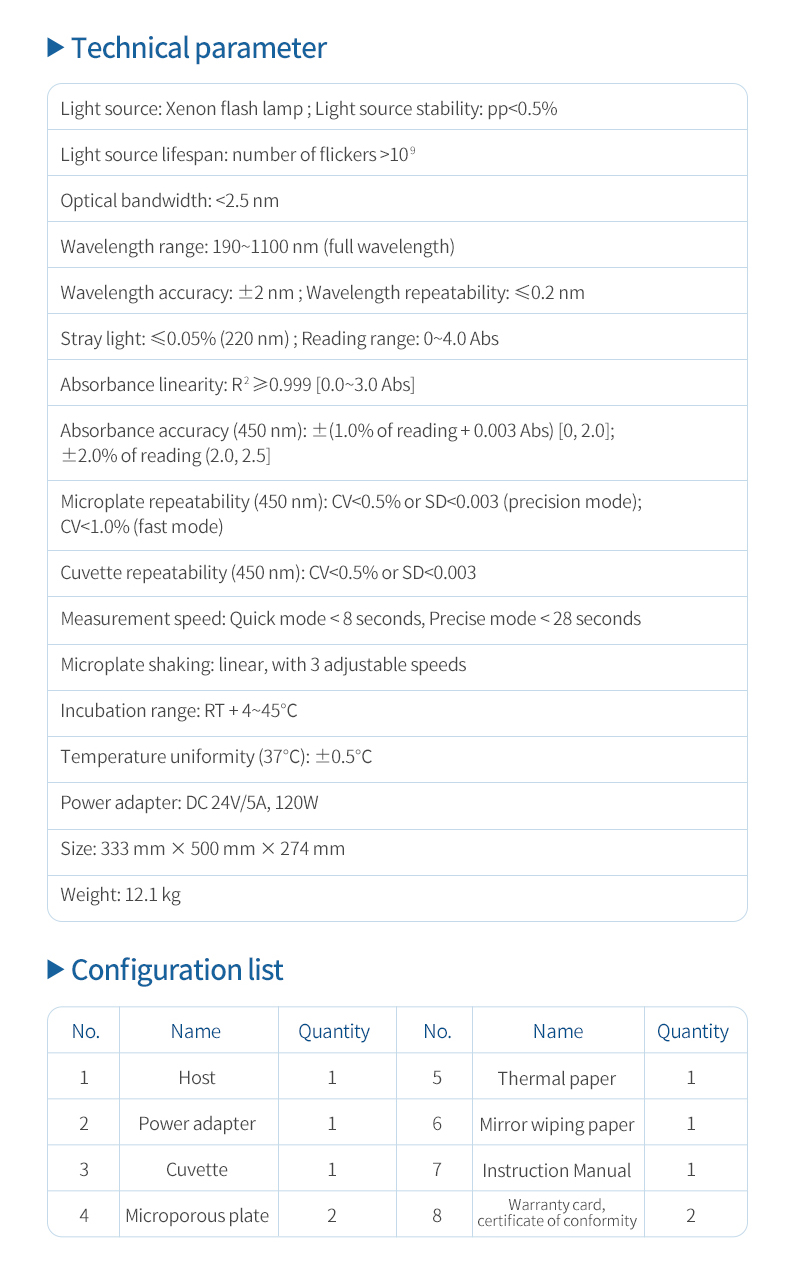

Technical Parameters
| Parameter | Specification |
|---|---|
| Light Source | Xenon flash lamp |
| Source Stability | pp < 0.5% |
| Source Lifetime | Flash count > 10⁹ |
| Spectral Bandwidth | < 2.5 nm |
| Wavelength Range | 190 ~ 1100 nm (full spectrum) |
| Wavelength Accuracy | ± 2 nm |
| Wavelength Repeatability | ≤ 0.2 nm |
| Stray Light | ≤ 0.05% (at 220 nm) |
| Reading Range | 0 ~ 4.0 Abs |
| Absorbance Linearity | R² ≥ 0.999 [0.0 ~ 3.0 Abs] |
| Absorbance Accuracy (450 nm) | ±(1.0% of reading + 0.003 Abs) [0, 2.0]; ±2.0% of reading (2.0, 2.5] |
| Microplate Repeatability (450 nm) | CV < 0.5% or SD < 0.003 (precision mode); CV < 1.0% (fast mode) |
| Cuvette Repeatability (450 nm) | CV < 0.5% or SD < 0.003 |
| Measurement Speed | Fast mode < 8 s; Precision mode < 28 s |
| Microplate Shaking | Linear, 3 speeds adjustable |

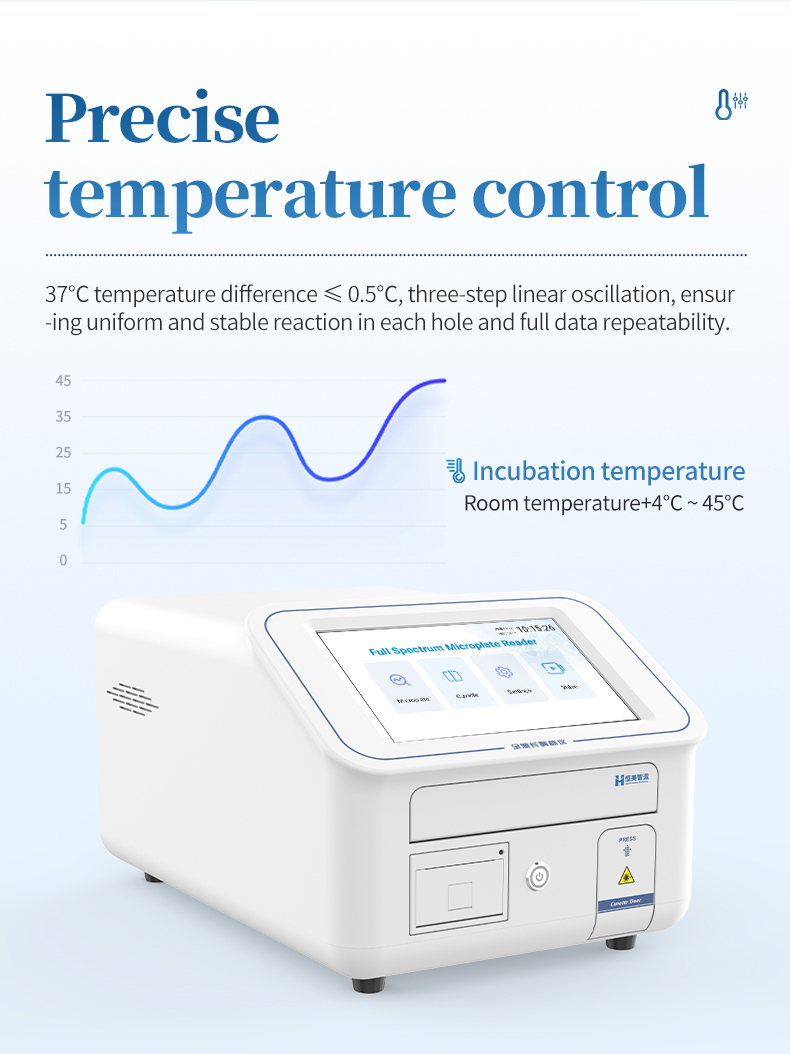

| Incubation Range | RT + 4 ~ 45 ℃ |
| Temperature Uniformity (37 ℃) | ± 0.5 ℃ |
| Power Adapter | DC 24V / 5A, 120W |
| Dimensions | 333 mm × 500 mm × 274 mm |
| Weight | 12.1 kg |
