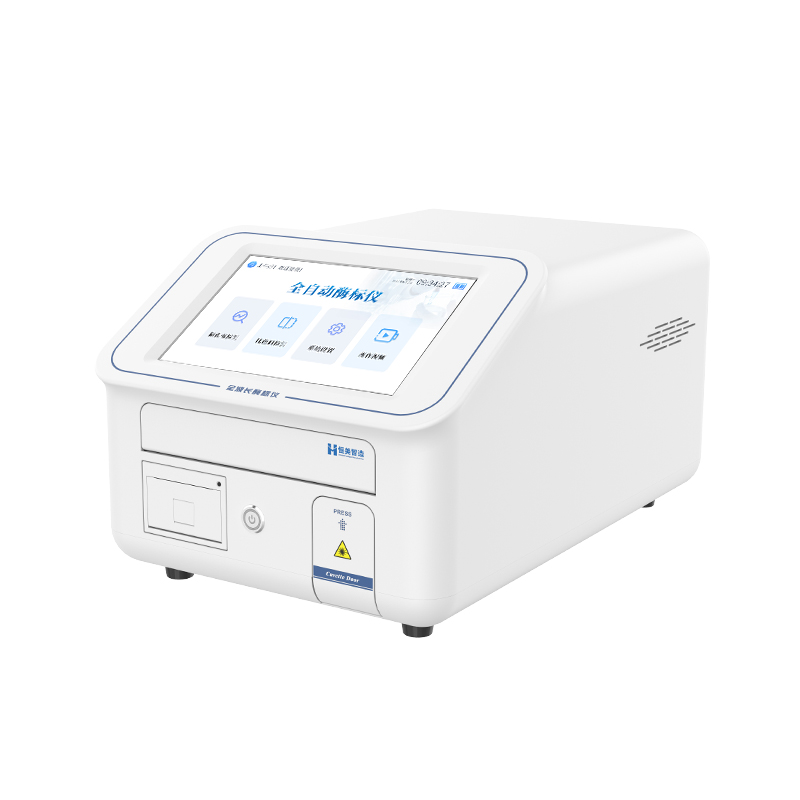

HM-384Q Full Spectrum Microplate Reader

Product Introduction

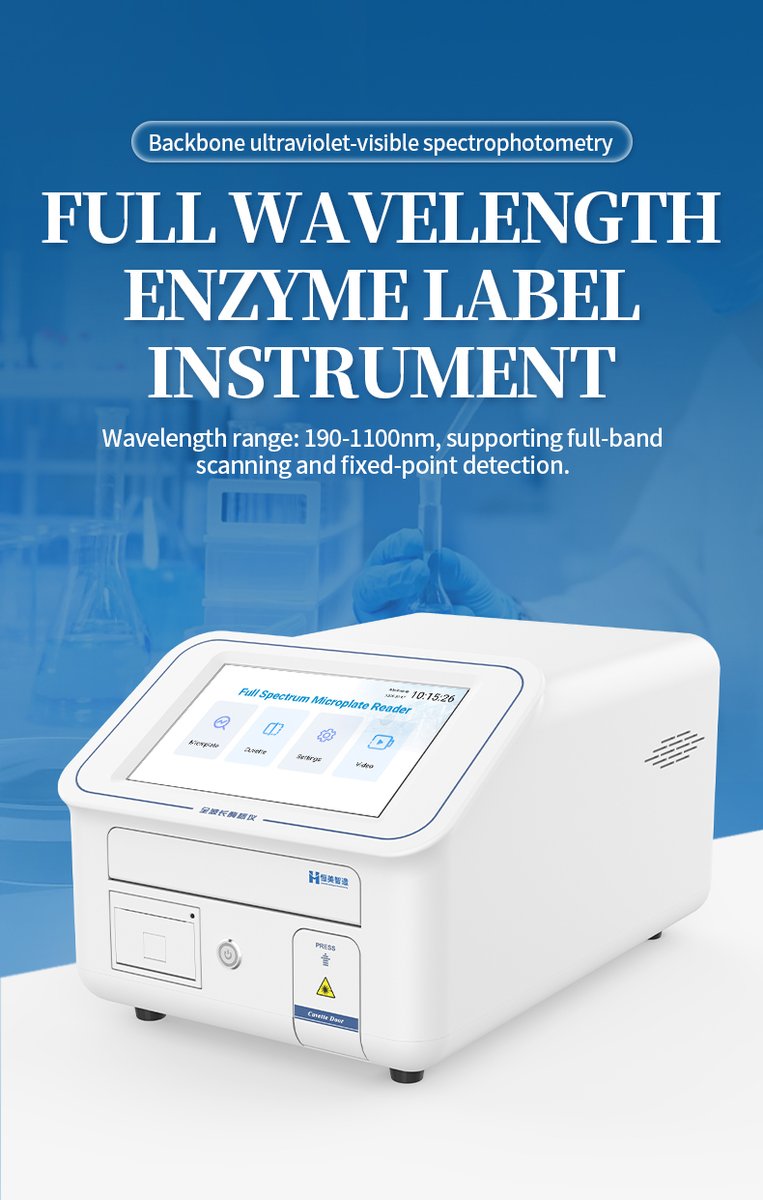

The HM-384Q full spectrum microplate reader is a high-throughput analytical instrument engineered for laboratories that demand maximum plate density and spectral flexibility. Built on UV-Vis spectrophotometry principles, it covers a continuous wavelength range from 190 nm to 1100 nm and supports both 384-well and 96-well microplates as well as single-channel cuvettes. This dual-format capability allows research teams to scale from standard ELISA workflows to ultra-high-throughput drug screening without acquiring additional instruments.

At the optical core, a long-life pulsed xenon flash lamp delivers stable illumination exceeding 10⁹ flashes, while the dual-beam reference optical path continuously compensates for environmental variations. The Android 10 operating system and 10-inch color touchscreen provide an integrated platform for method development, template presetting, and real-time data visualization. Three detection modes — endpoint, kinetic, and spectral scanning — accommodate diverse assay chemistries from protein quantification to enzyme inhibition kinetics.

For laboratories operating under regulatory oversight, the HM-384Q integrates three-level user permission management and a complete audit trail compliant with GLP/GMP standards. Built-in thermal printing, USB data export in Excel and PDF formats, and Wi-Fi connectivity for cloud-based remote upgrades ensure seamless integration into modern laboratory workflows. For a deeper comparison of microplate reader selection criteria, see our technical FAQ guide.

Applications / Testing Items

• Pharmaceutical research: high-throughput drug screening using 384-well plates, pharmacological assessment, biologics quality control
• Molecular biology: protein quantification (A280), nucleic acid concentration measurement (A260), enzyme kinetics studies
• Cell biology: cell viability and cytotoxicity assays with temperature-controlled incubation
• Immunology: ELISA protocols with full spectral scanning for wavelength optimization
• Agriculture and food safety: allergen detection, toxin screening, pesticide residue analysis
• Environmental monitoring: water and soil pollutant quantification via colorimetric methods

Functional Performance / Features

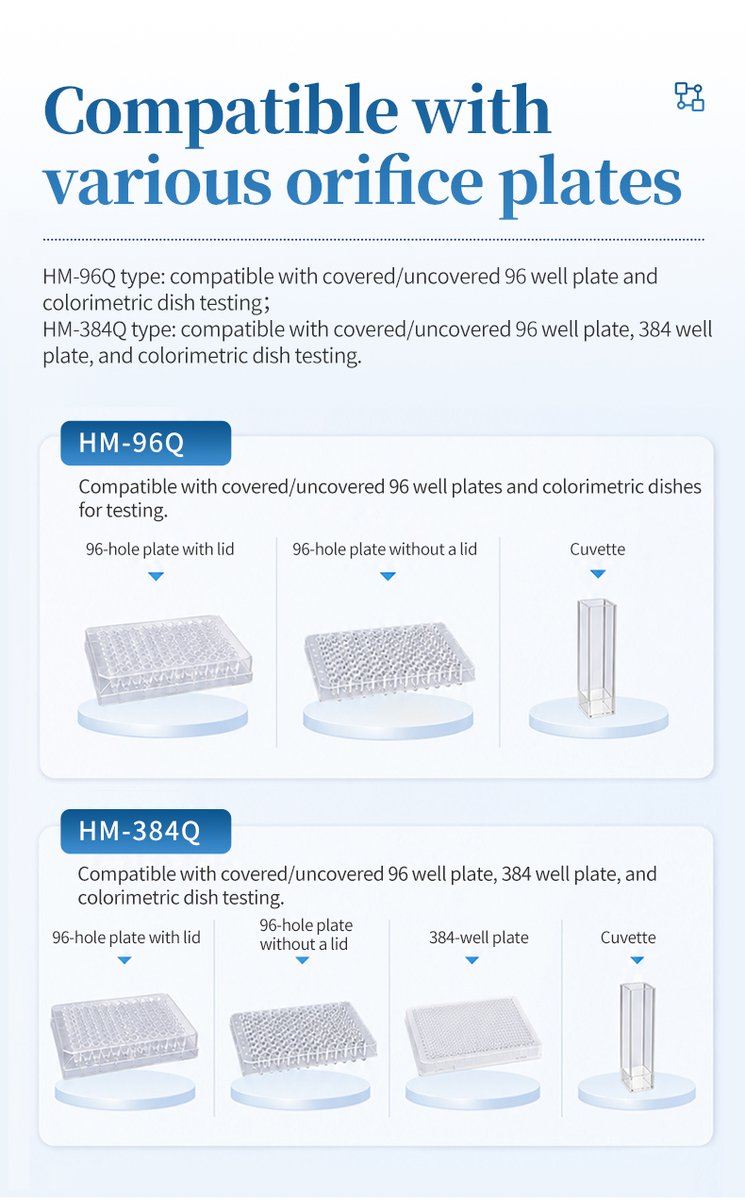

1. 384-well and 96-well dual-format microplate compatibility with cuvette support for flexible throughput scaling

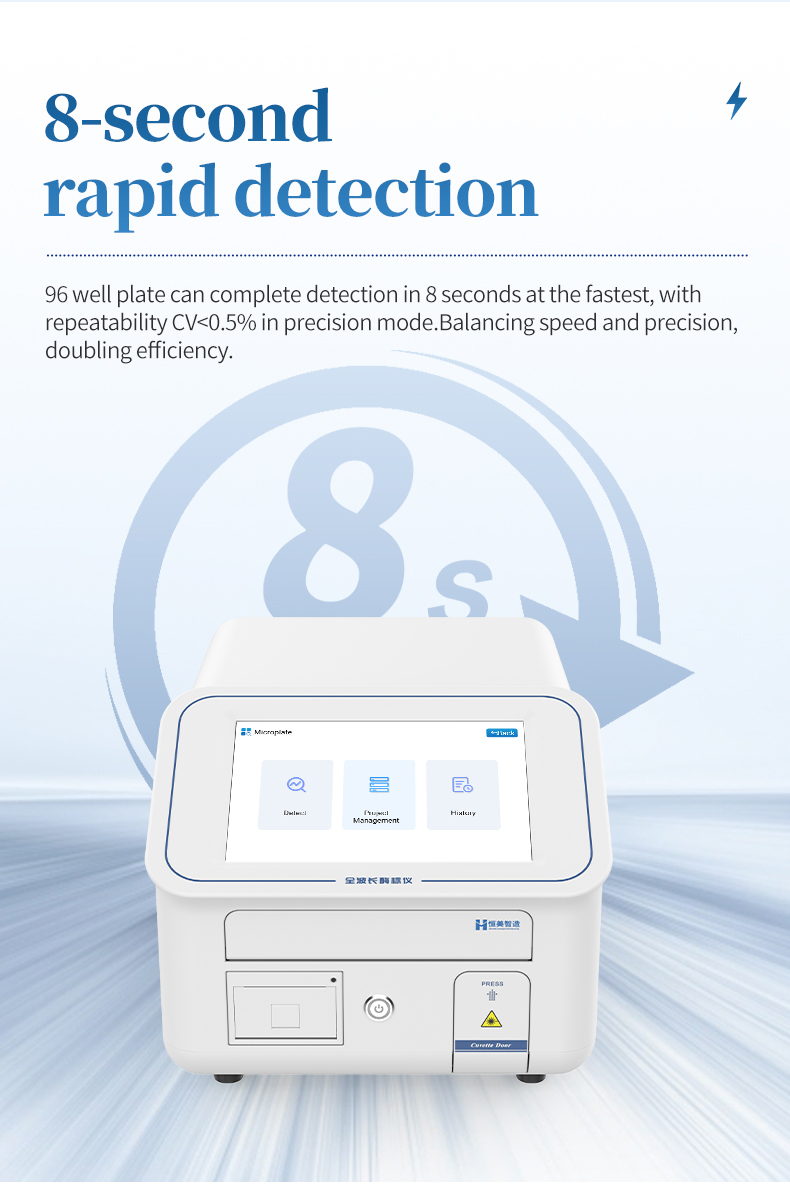

2. Precision-mode 384-well measurement completes in under 76 seconds for ultra-high-throughput screening
3. Long-life pulsed xenon flash lamp with over 10⁹ flashes, minimizing maintenance cost and downtime
4. Dual-beam reference optical path for real-time environmental interference compensation

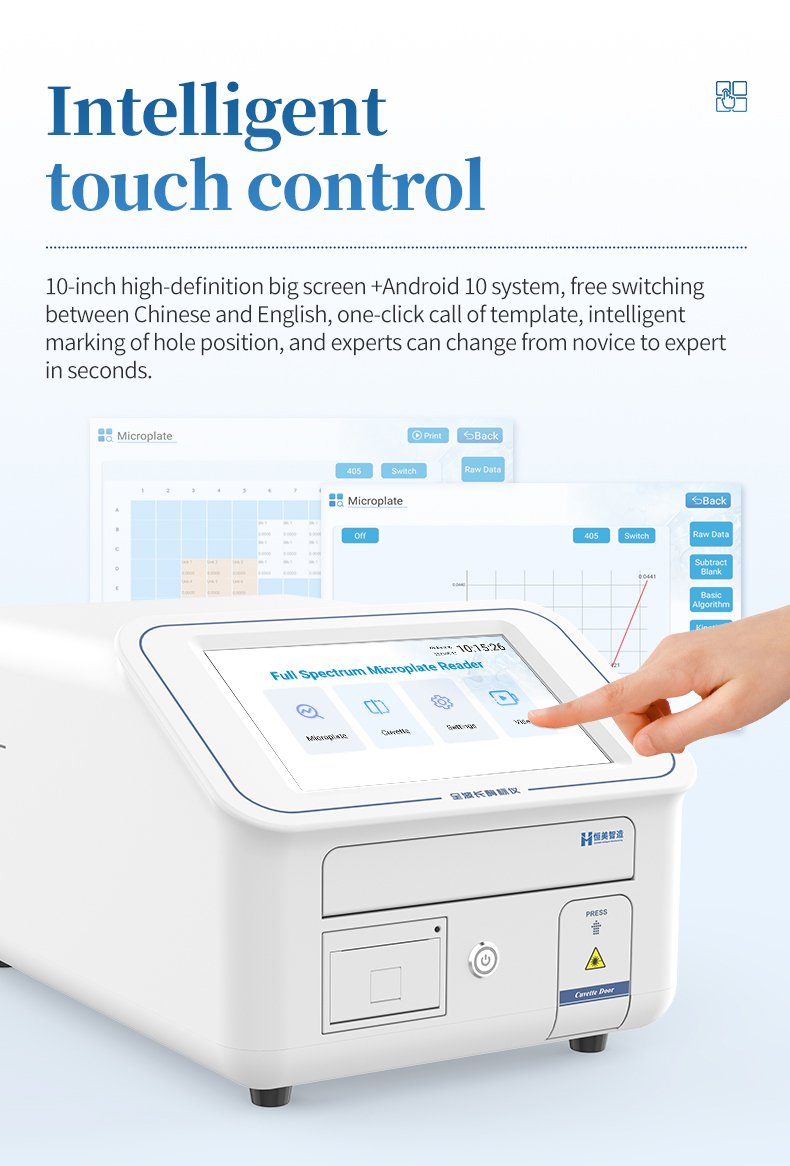

5. Android 10 operating system with 10-inch color touchscreen for integrated workflow management

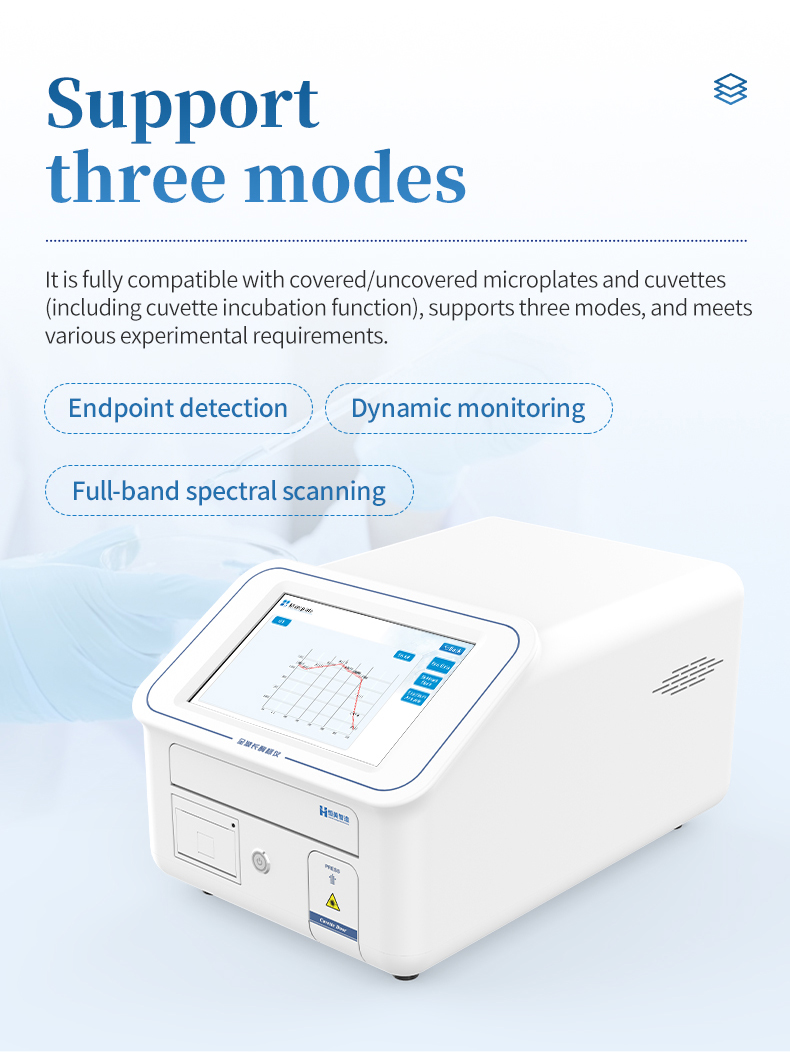

6. Three detection modes: endpoint, kinetic, and full-band spectral scanning

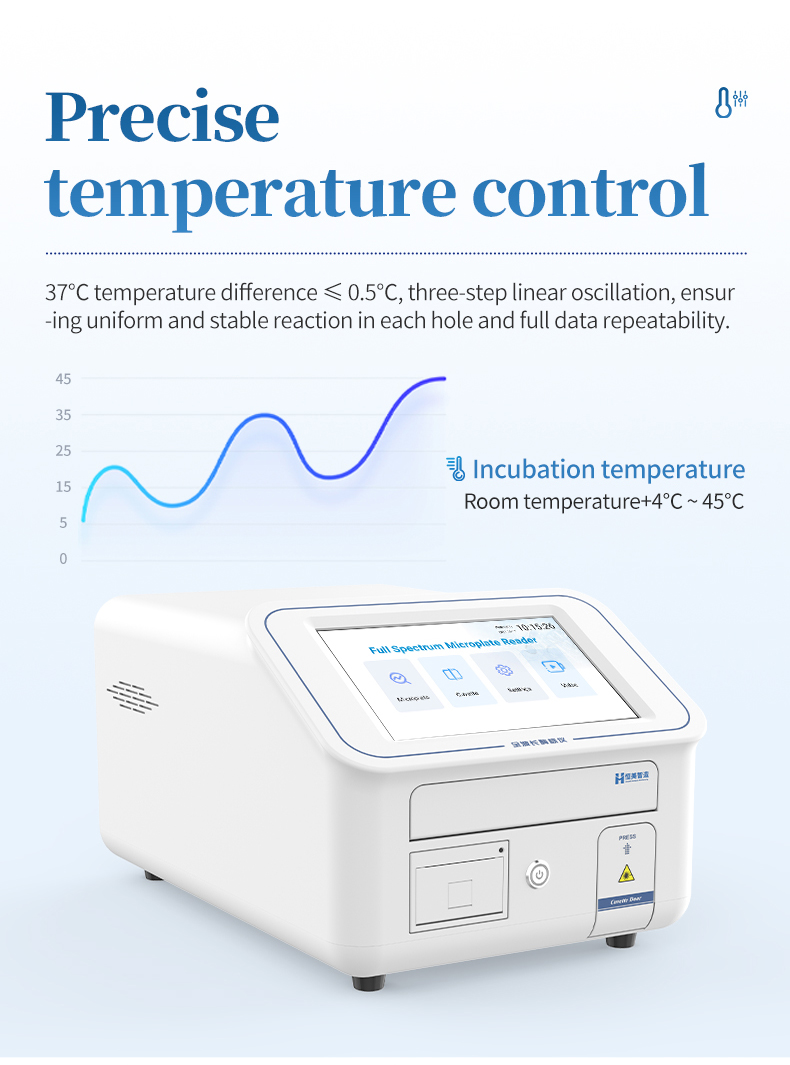

7. Temperature-controlled incubation (RT+4 to 45 ℃) with three-speed linear shaking for enzyme and cell-based assays
8. One-click experimental template presets with concentration gradient controls and data fitting analysis
9. Built-in self-diagnostic program for automatic optical path calibration and mechanical precision verification

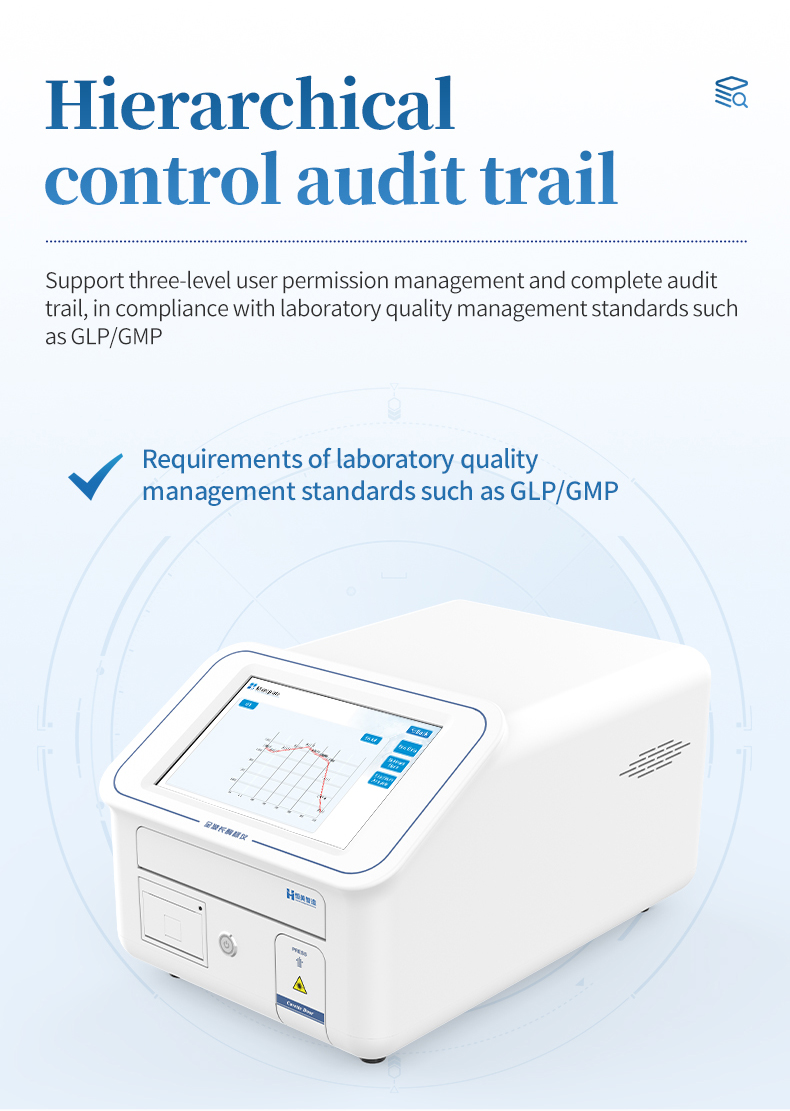

10. Three-level user permission management with complete audit trail, GLP/GMP compliant
11. Built-in thermal printer and USB Excel/PDF dual-format data export
12. Wi-Fi connectivity for cloud-based remote software upgrades and wireless data upload

Main Parameters

Parameter	Specification
Light Source	Xenon flash lamp
Wavelength Range	190 ~ 1100 nm (full spectrum)
Microplate Format	384-well and 96-well
Measurement Speed	Fast mode (96) < 8 s; Precision mode (96) < 28 s; Precision mode (384) < 76 s
Absorbance Range	0 ~ 4.0 Abs
Incubation Range	RT + 4 ~ 45 ℃
Dimensions	333 × 500 × 274 mm
Weight	12.1 kg

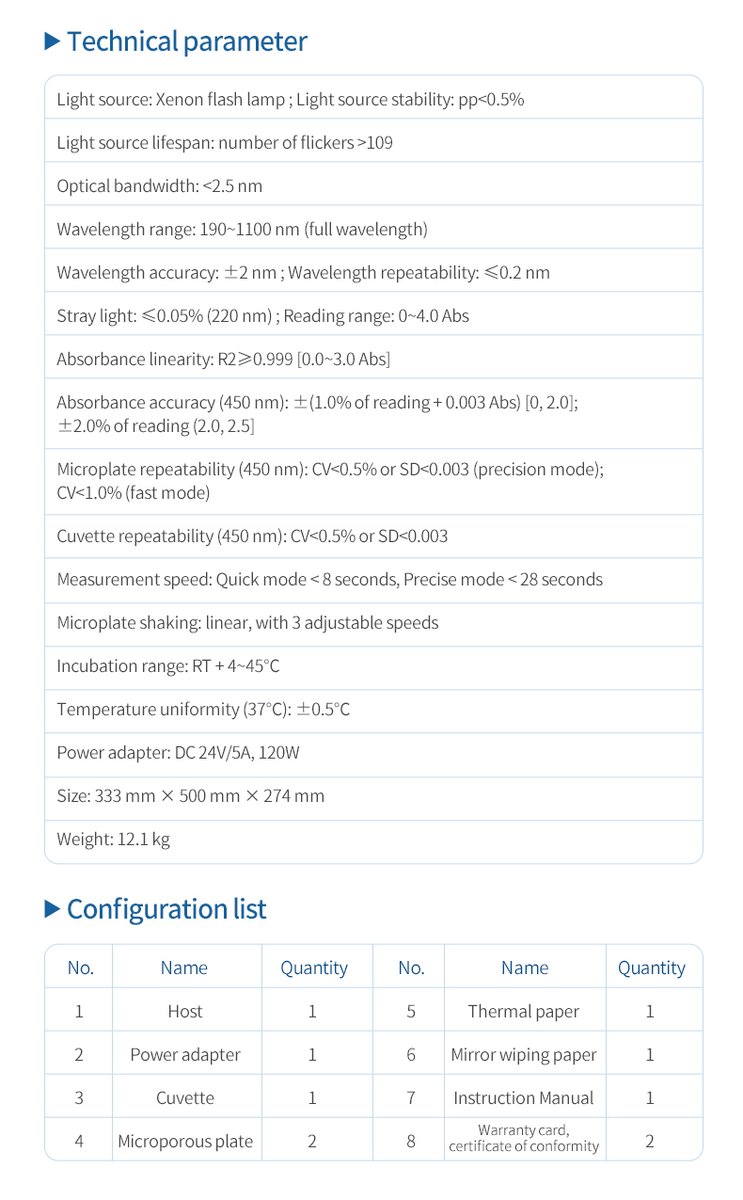

Technical Parameters

Parameter	Specification
Light Source	Xenon flash lamp
Source Stability	pp < 0.5%
Source Lifetime	Flash count > 10⁹
Spectral Bandwidth	< 2.5 nm
Wavelength Range	190 ~ 1100 nm (full spectrum)
Wavelength Accuracy	± 2 nm
Wavelength Repeatability	≤ 0.2 nm
Stray Light	≤ 0.05% (at 220 nm)
Reading Range	0 ~ 4.0 Abs
Absorbance Linearity	R² ≥ 0.999 [0.0 ~ 3.0 Abs]
Absorbance Accuracy (450 nm)	±(1.0% of reading + 0.003 Abs) [0, 2.0]; ±2.0% of reading (2.0, 2.5]
Microplate Repeatability (450 nm)	CV < 0.5% or SD < 0.003 (precision mode); CV < 1.0% (fast mode)
Cuvette Repeatability (450 nm)	CV < 0.5% or SD < 0.003
Microplate Plate Type	384-well and 96-well
Measurement Speed	Fast mode (96) < 8 s; Precision mode (96) < 28 s; Precision mode (384) < 76 s
Microplate Shaking	Linear, 3 speeds adjustable
Incubation Range	RT + 4 ~ 45 ℃
Temperature Uniformity (37 ℃)	± 0.5 ℃
Power Adapter	DC 24V / 5A, 120W
Dimensions	333 mm × 500 mm × 274 mm
Weight	12.1 kg
