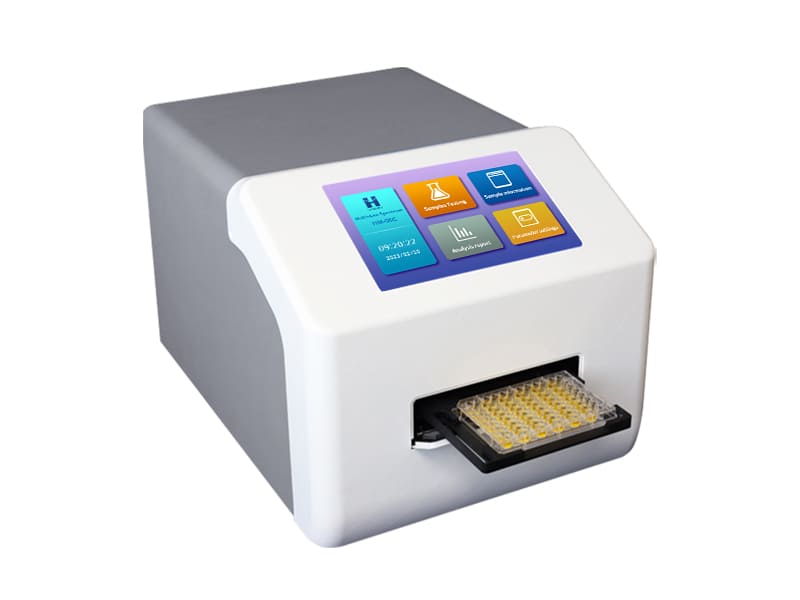

Multiskan Spectrum

Product features:

1. High quality grating monochromator, wavelength range 190-1100 nm, 0.1nm step, no filter required.

2.2 silicon photodetectors with measurement and reference functions

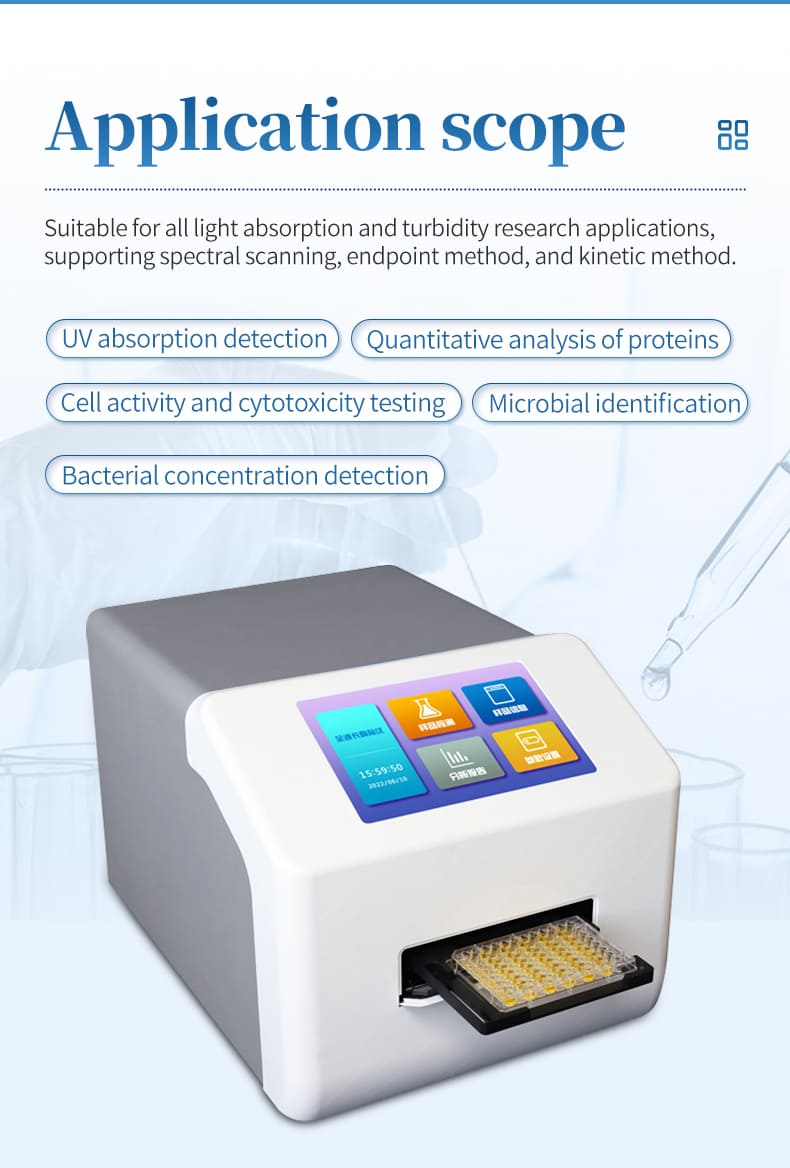

3. Suitable for all light absorption and turbidity research applications, supporting spectral scanning, endpoint method, and kinetic method.

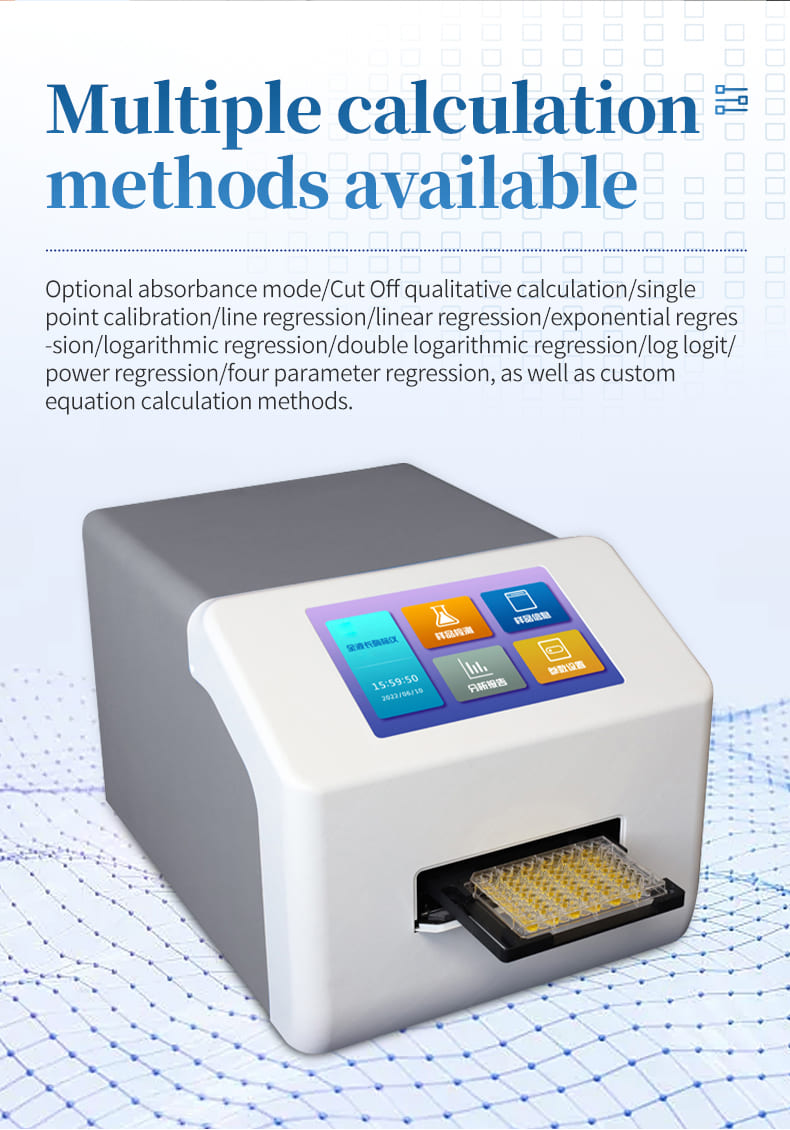

4. Optional absorbance mode/Cut Off qualitative calculation/single point calibration/line regression/linear regression/exponential regression/logarithmic regression/double logarithmic regression/log log log/power regression, four parameter regression, and custom equation calculation methods

5. Suitable for UV light absorption detection, protein quantitative analysis, cell activity and cytotoxicity testing, microbial identification, bacterial concentration detection, etc

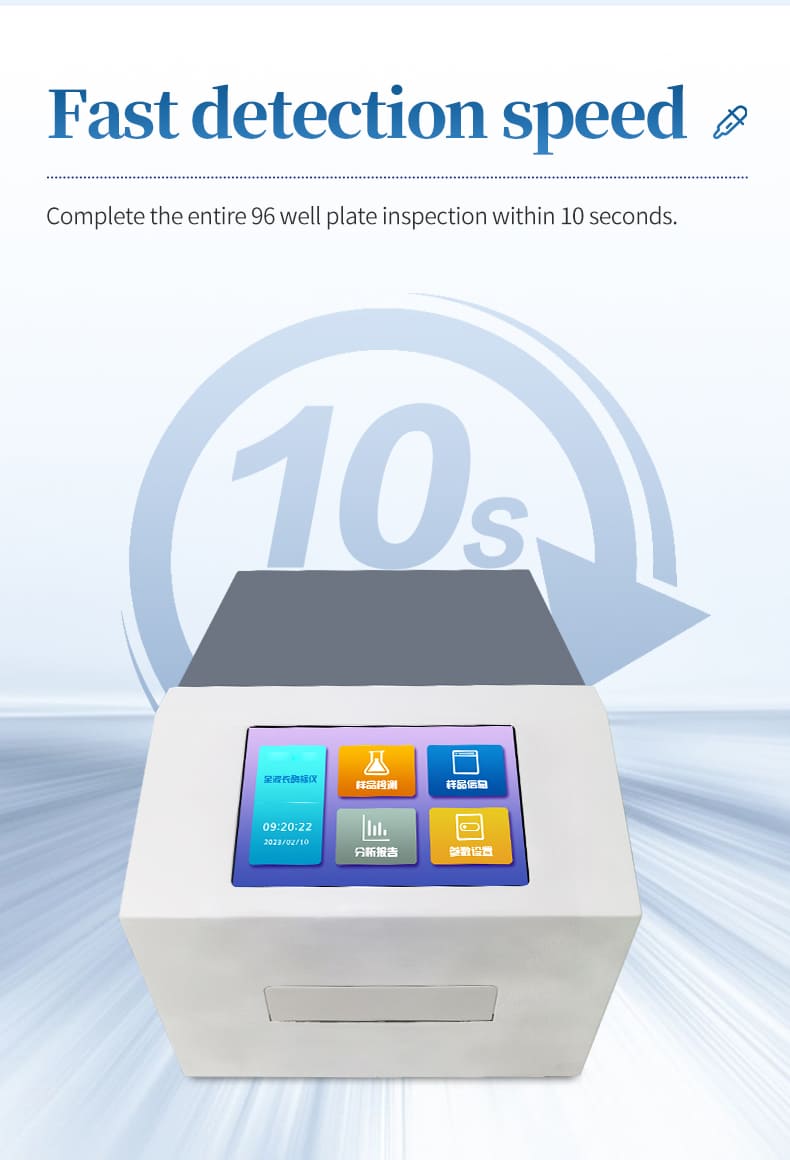

6. The detection speed is fast, and the entire 96 well plate detection can be completed within 10 seconds.

7. Microporous plate incubation can be carried out, with temperatures up to 45 ℃.

8. Equipped with linear oscillation function for microporous plates

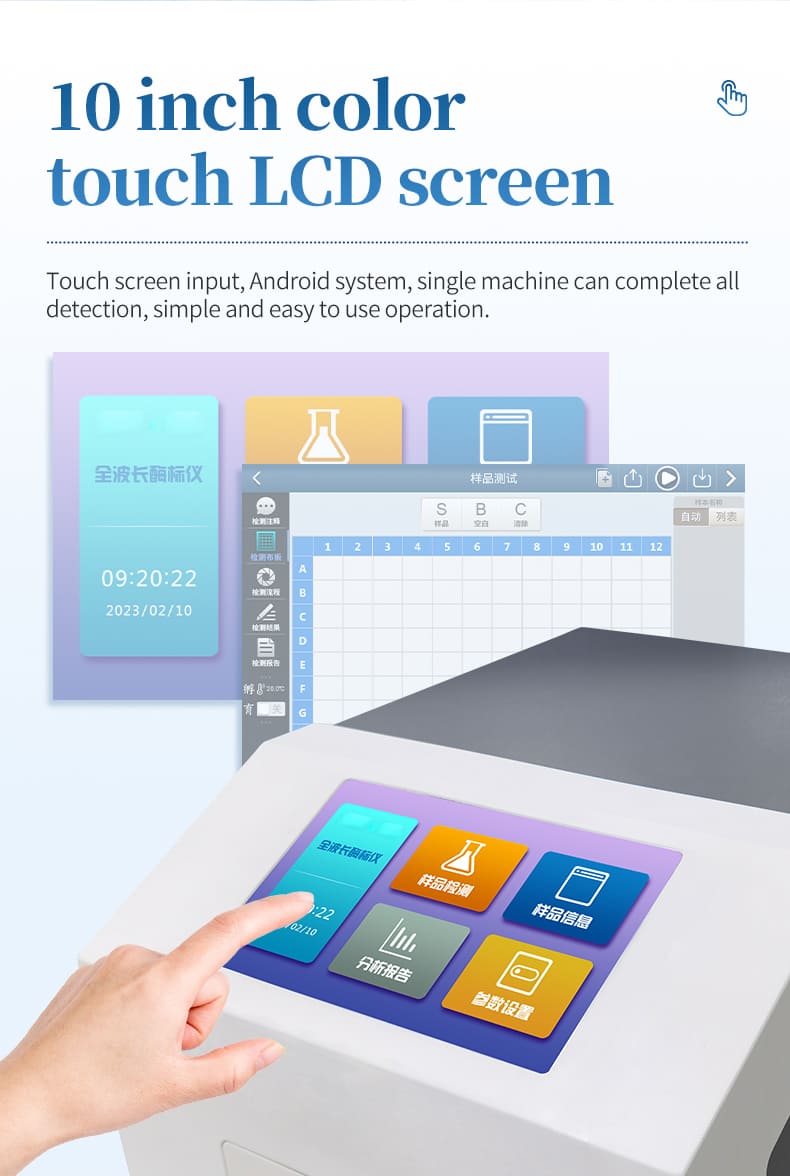

A 9.10 inch color touch LCD screen can complete all inspections on a single machine, with simple and easy-to-use operation.

10. A fully functional DRS-1000 microplate analysis software that can meet the vast majority of data processing requirements.

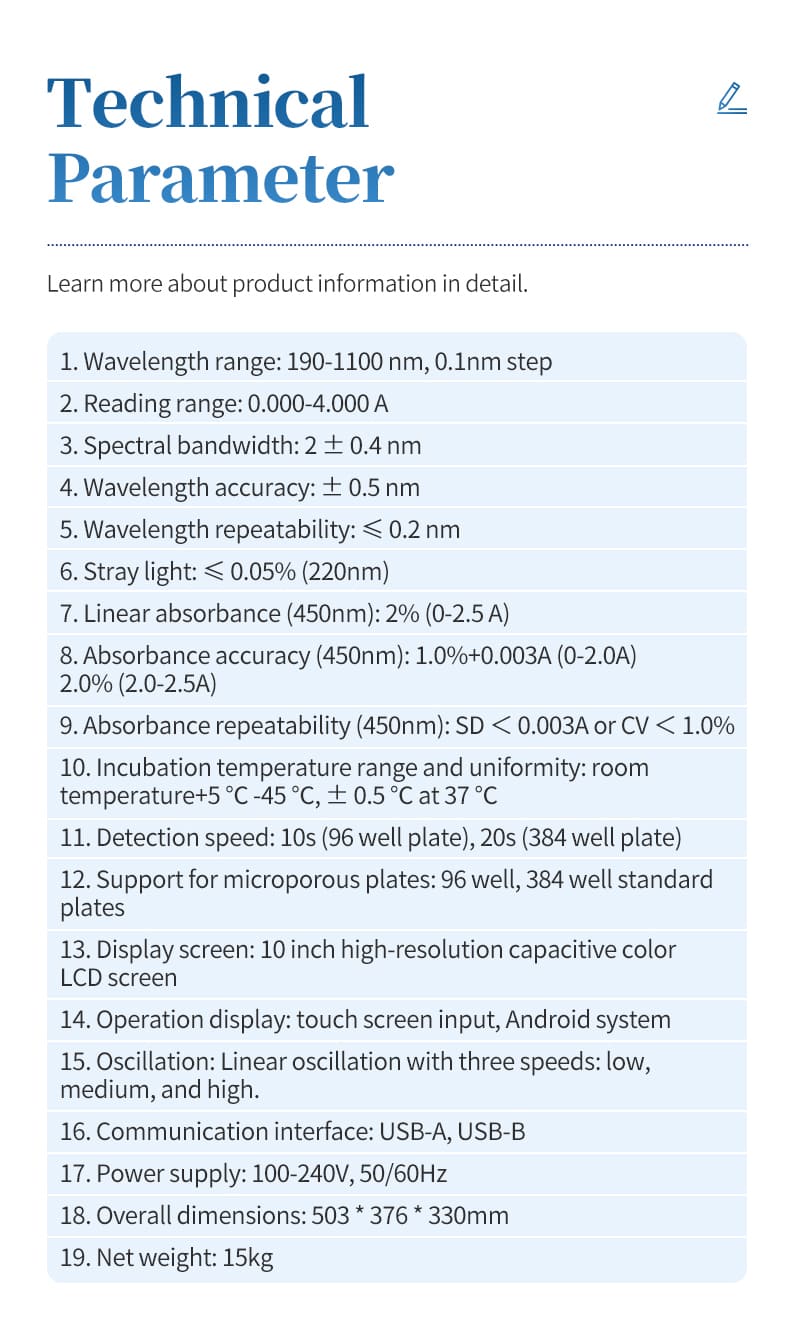

Main technical parameters:

1. Wavelength range: 190-1100 nm, 0.1nm step by step

2. Reading range: 0.000-4.000 A

3. Spectral bandwidth: 2 ± 0.4 nm

4. Wavelength accuracy: ± 0.5 nm

5. Wavelength repeatability: ≤ 0.2 nm

6. Stray light: ≤ 0.05% (220nm)

7. Linear absorbance (450nm): 2% (0-2.5 A)

8. absorbance accuracy (450nm): 1.0%+0.003A (0-2.0A) 2.0% (2.0-2.5A)

9. absorbance repeatability (450nm): SD ＜ 0.003A or CV ＜ 1.0%

10. Incubation temperature range and uniformity: room temperature+5 ℃ -45 ℃, ± 0.5 ℃ at 37 ℃

11. Detection speed: 10s (96 well plate), 20s (384 well plate)

12. Support for microporous plates: 96 well, 384 well standard plates

13. Display screen: 10 inch high-resolution capacitive color LCD screen

14. Operation display: touch screen input, Android system

15. Oscillation: Linear oscillation with three speeds: low, medium, and high.

16. Communication interface: USB-A, USB-B

17. Power supply: 100-240V, 50/60Hz

18. External dimensions: 503 * 376 * 330mm

19. Net weight: 15kg
