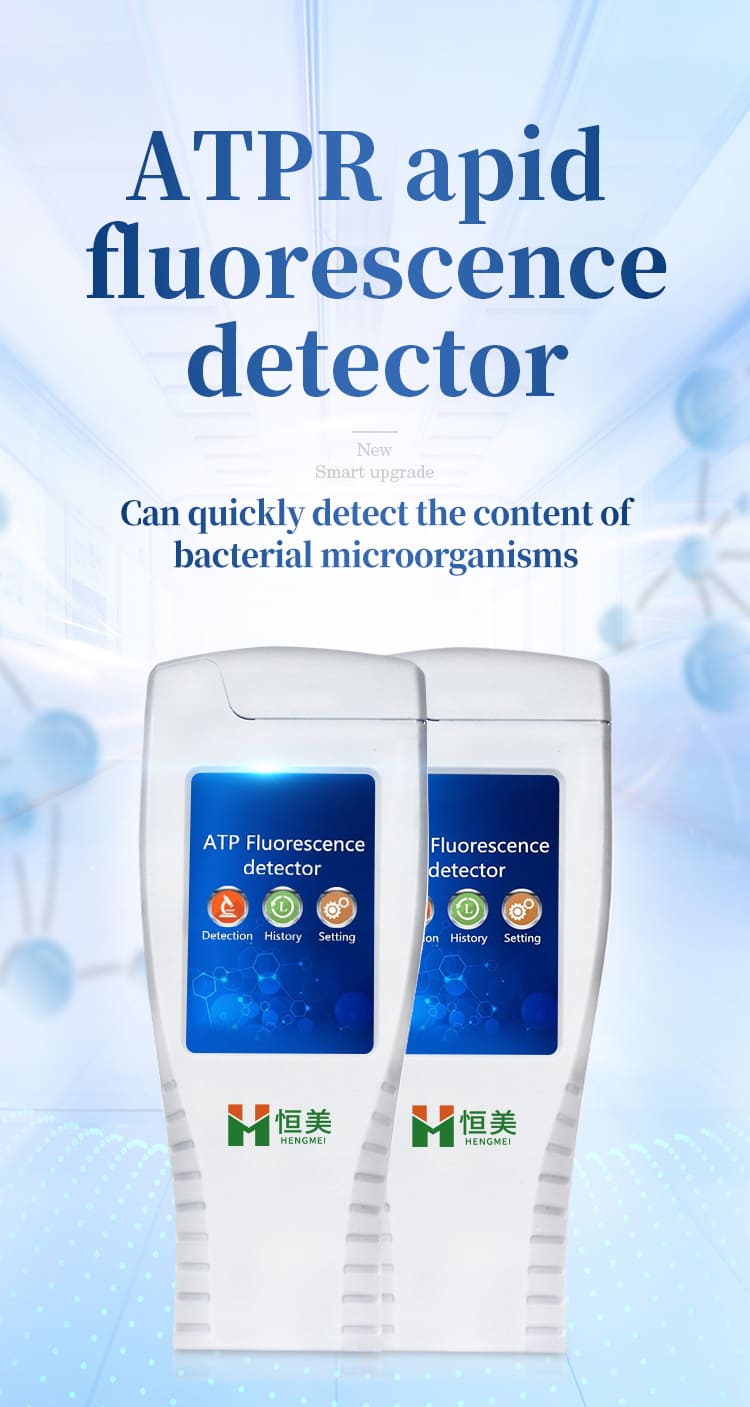

ATP detector

Product Introduction:

This device is a brand new upgraded product with a large touch screen display, replacing traditional buttons. The operation uses biochemical reaction methods to detect ATP content. The ATP detector is based on the principle of firefly luminescence and uses the "luciferase luciferin system" to quickly detect adenosine triphosphate (ATP). ATP swabs contain reagents that can lyse cell membranes, which can release intracellular ATP and react with specific enzymes in the reagents to produce light. The luminescence value is then measured using a fluorescence illuminometer, and the number of microorganisms is directly proportional to the luminescence value. Since all living cells contain a constant amount of ATP, the ATP content can clearly indicate the amount of microorganisms and other biological residues in the sample, used to determine hygiene conditions.

Application:

The Hengmei ATP detector is widely used in various industries such as bacterial and microbiological testing, pharmaceutical and health, food safety, market law enforcement, surface cleanliness testing, medical epidemic prevention, water quality and water management, production line hygiene, industrial water treatment, environmental testing, customs entry and exit quarantine, and other law enforcement departments.

Features:

Practicality - upper and lower limits can be set according to environmental testing needs, achieving rapid evaluation and warning of data, and rapid screening of surface cleanliness.

High sensitivity -10-15-18 mol

Fast speed - conventional cultivation methods take more than 18-24 hours, while ATP only takes a few seconds

Feasibility - There is a clear correlation between the number of microorganisms and the ATP content in microorganisms. By detecting the ATP content, the number of microorganisms in the reaction can be indirectly determined

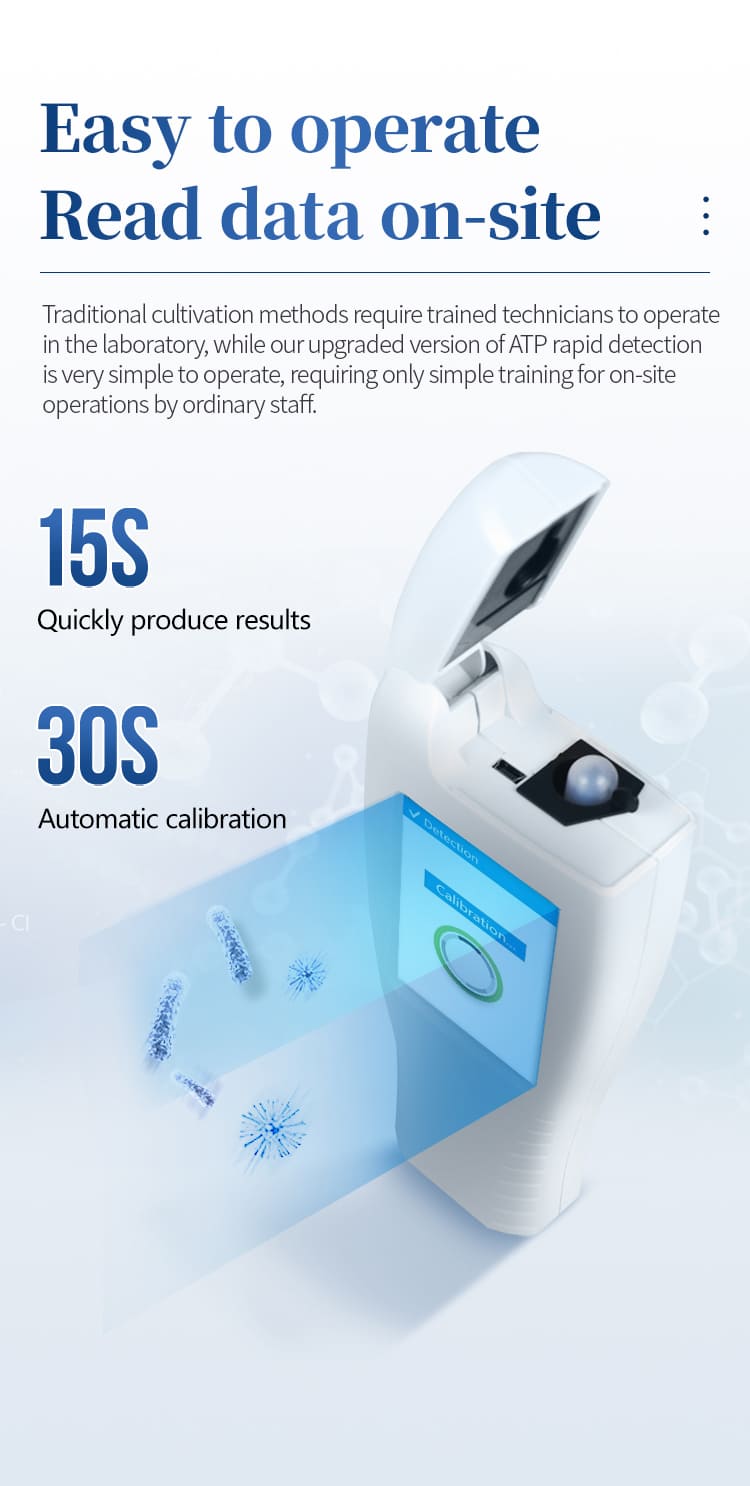

Operability - Traditional cultivation methods require trained technicians to operate in the laboratory; The ATP rapid cleanliness detection operation is very simple, and can be carried out on-site by ordinary staff with simple training.

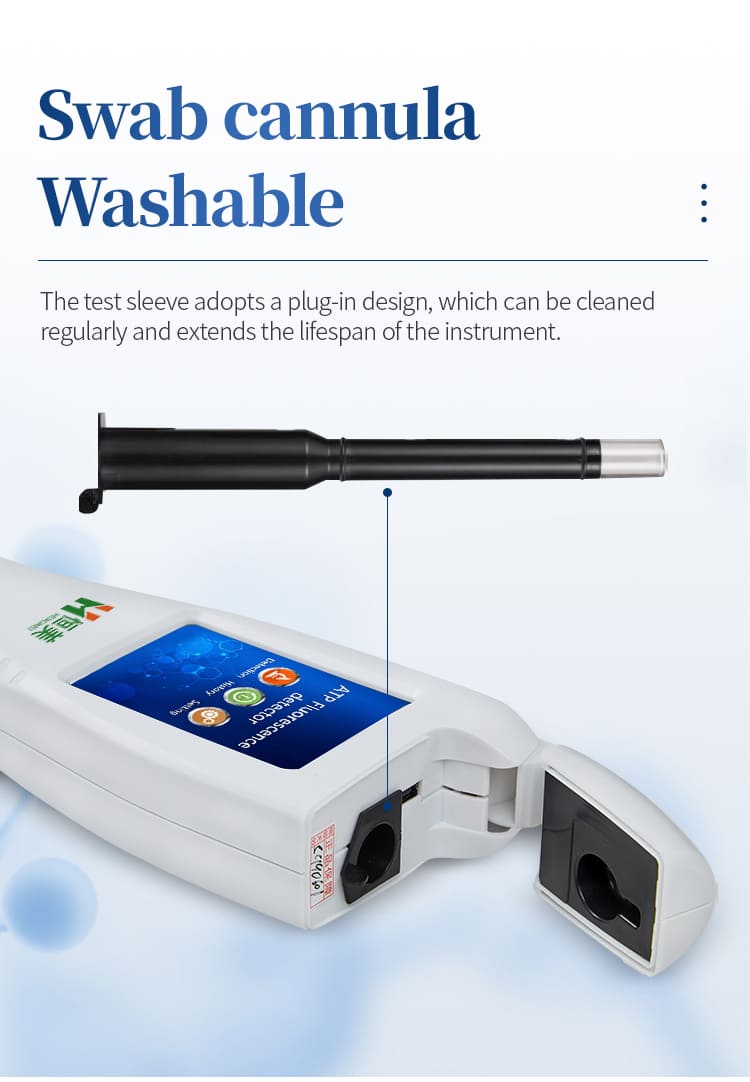

Better experience - the test tube adopts a flexible design of insertion and extraction, which can be regularly cleaned and used for a long time, extending the lifespan of the instrument.

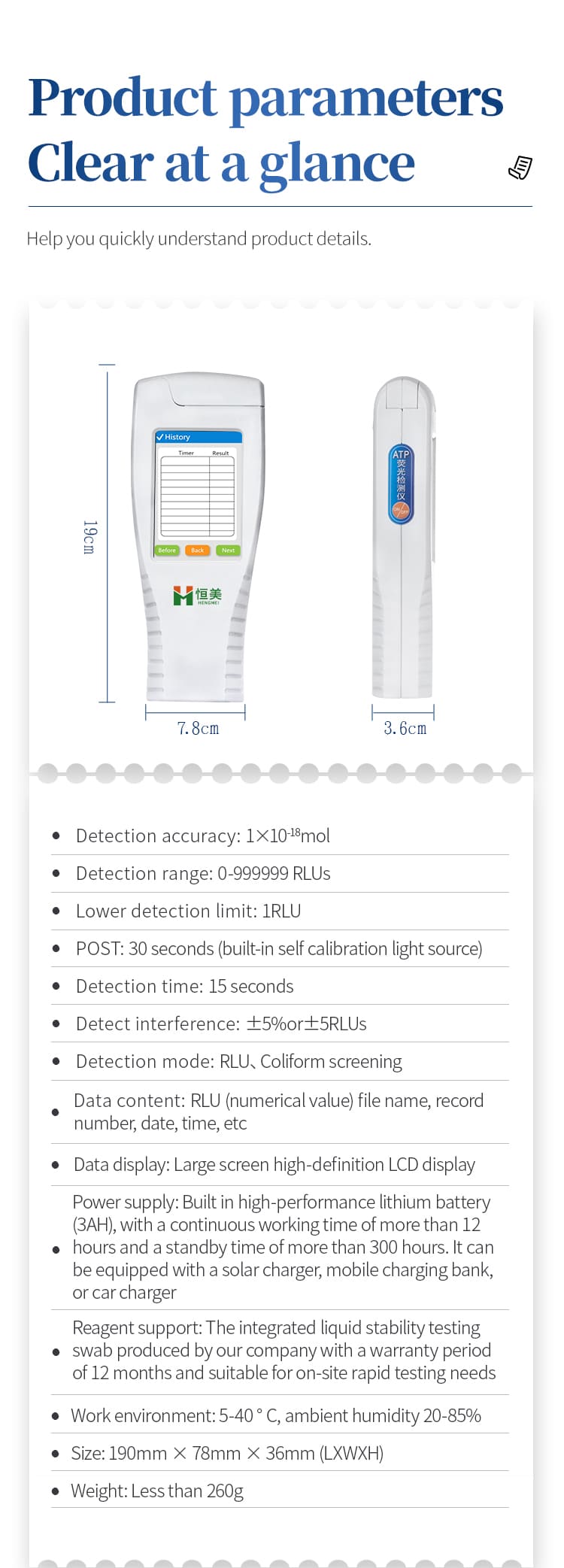

Main parameters:

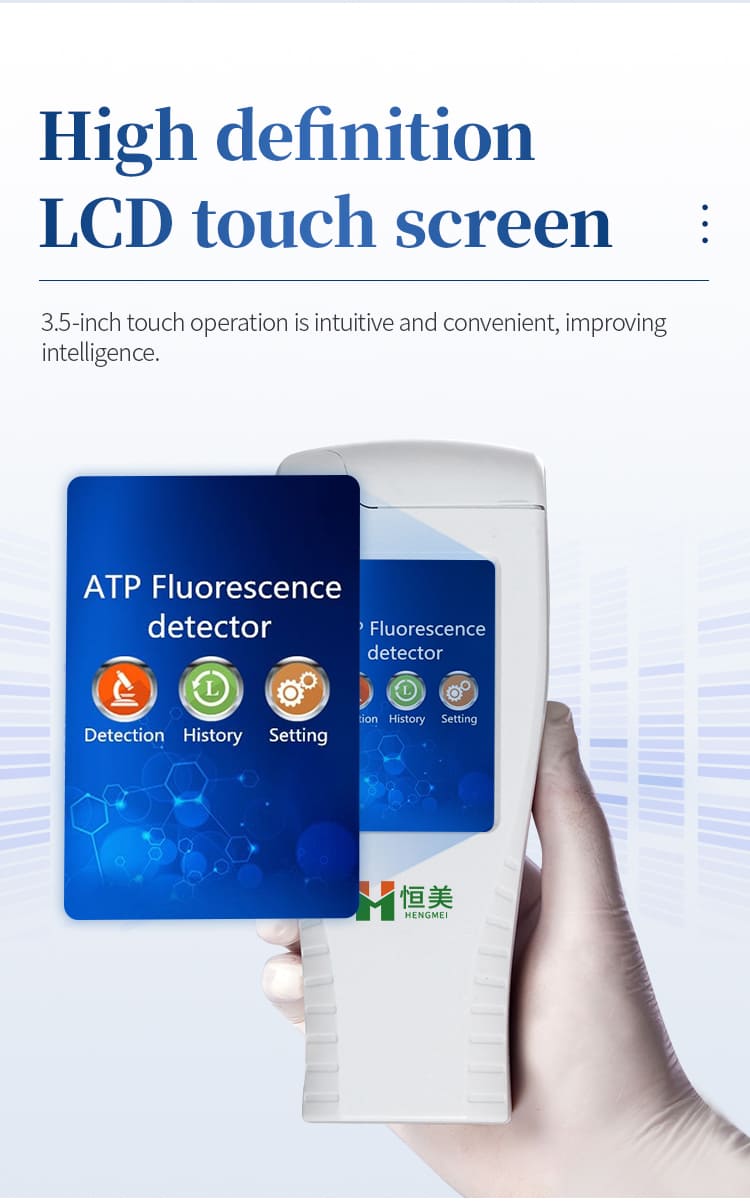

1. Display screen: 3.5-inch high-precision graphic touch screen

2. Processor: 32-bit high-speed data processing chip

3. Detection accuracy: 1 × 10-18mol

4. Detection range: 0 to 999999 RLUs

5. Detection time: 15 seconds

6. Detection interference: ± 5% or ± 5 RLUs

7. Operating temperature range: 5 ℃ to 40 ℃

8. Operating humidity range: 20-85%

9. ATP recovery rate: 90-110%

10. Detection mode: RLU

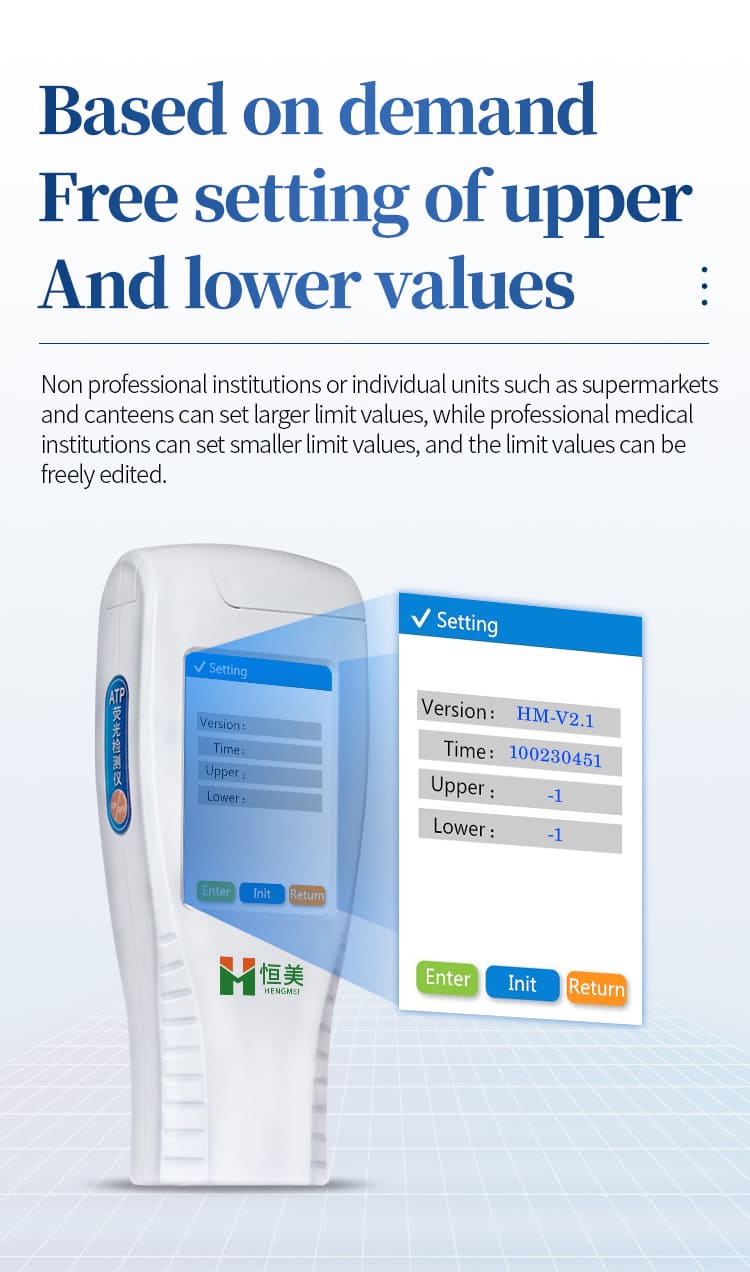

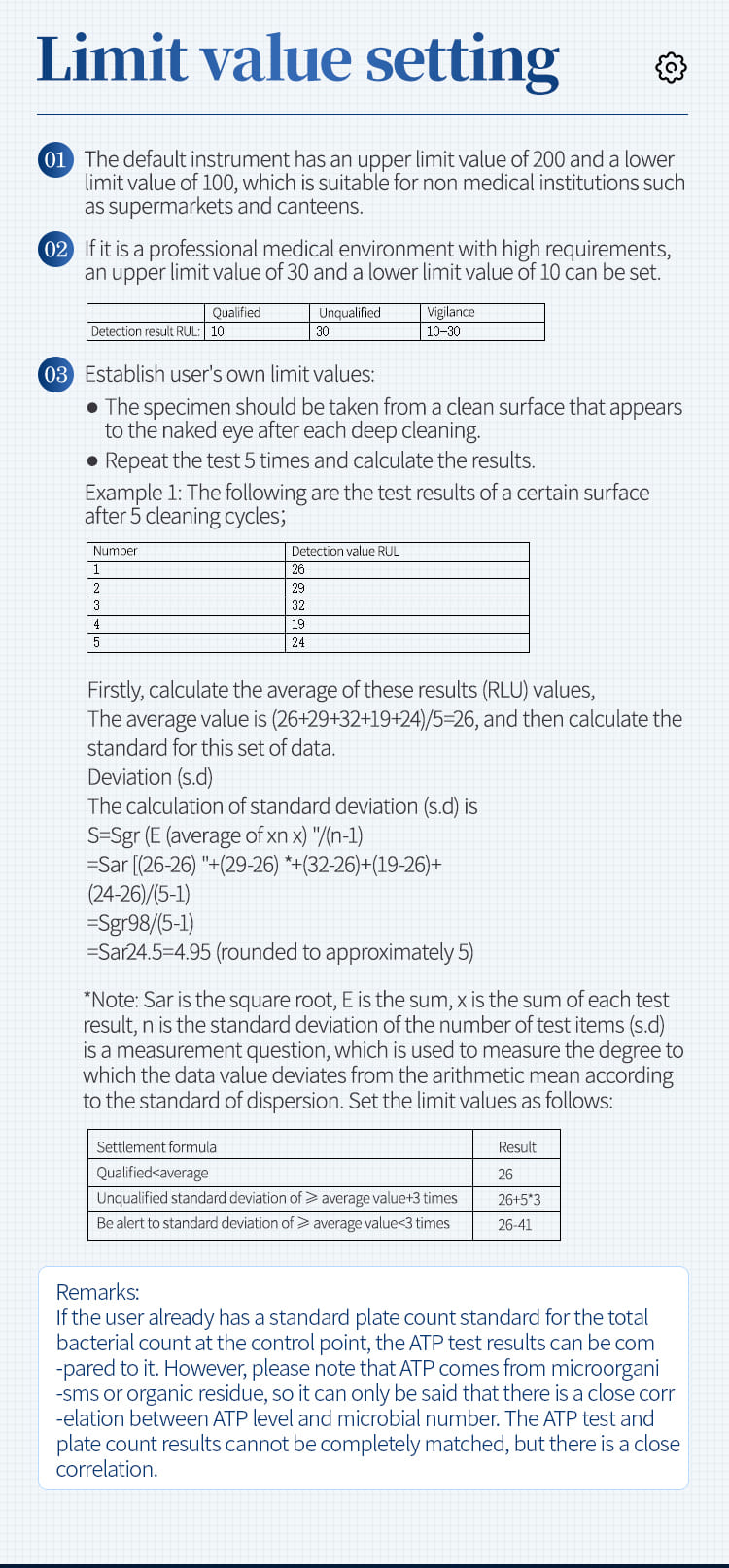

11. Can set upper and lower limit values arbitrarily

12. Automatically determine whether it is qualified or unqualified

13. Automatic statistics of pass rate

14. Built in self calibration light source

15. 30 second self check upon startup

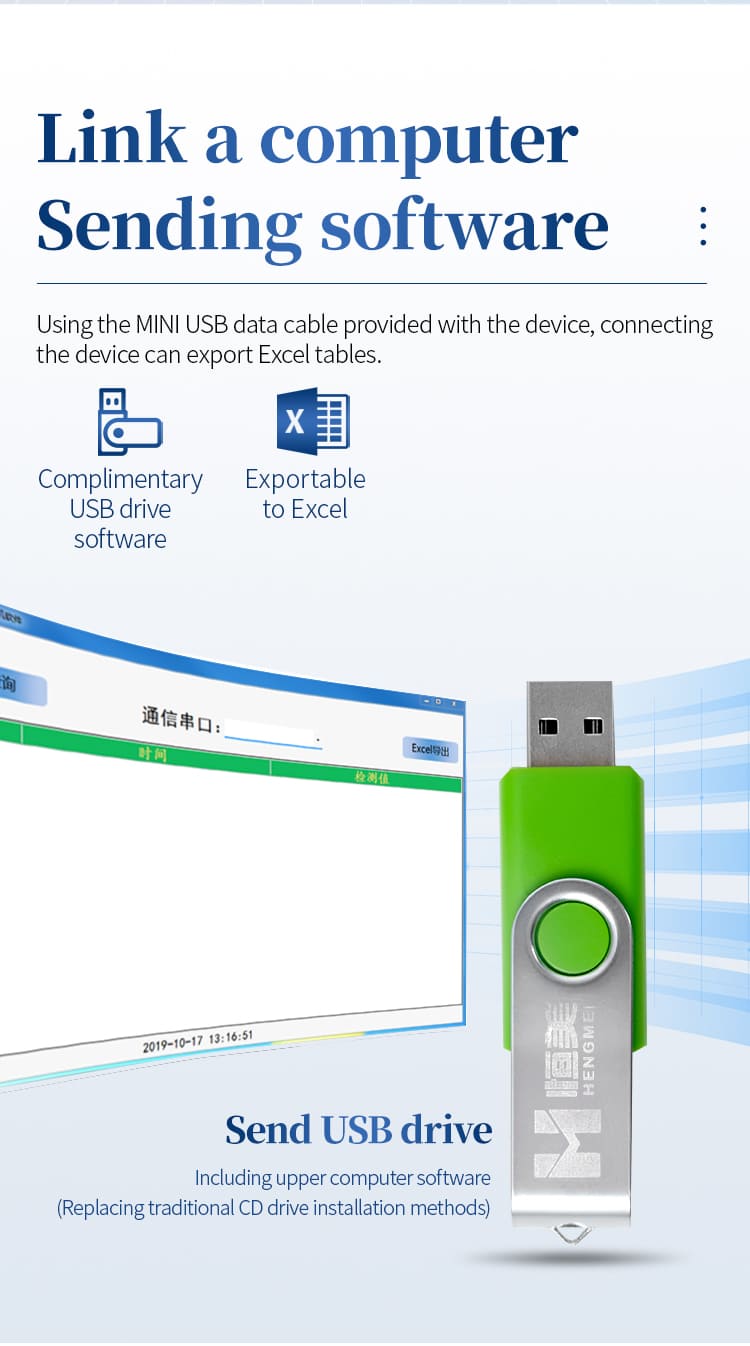

16. Equipped with a miniUSB interface, it can upload results to a PC

17. Equipped with dedicated software driver USB drives instead of traditional CDs

18. Instrument size (W x H x D): 188 mm x 77 mm x 37 mm

19. Using rechargeable lithium batteries without battery replacement

20. Backup state (20 ℃): 6 months

21. Chinese operation manual

22. Stable liquid luciferase

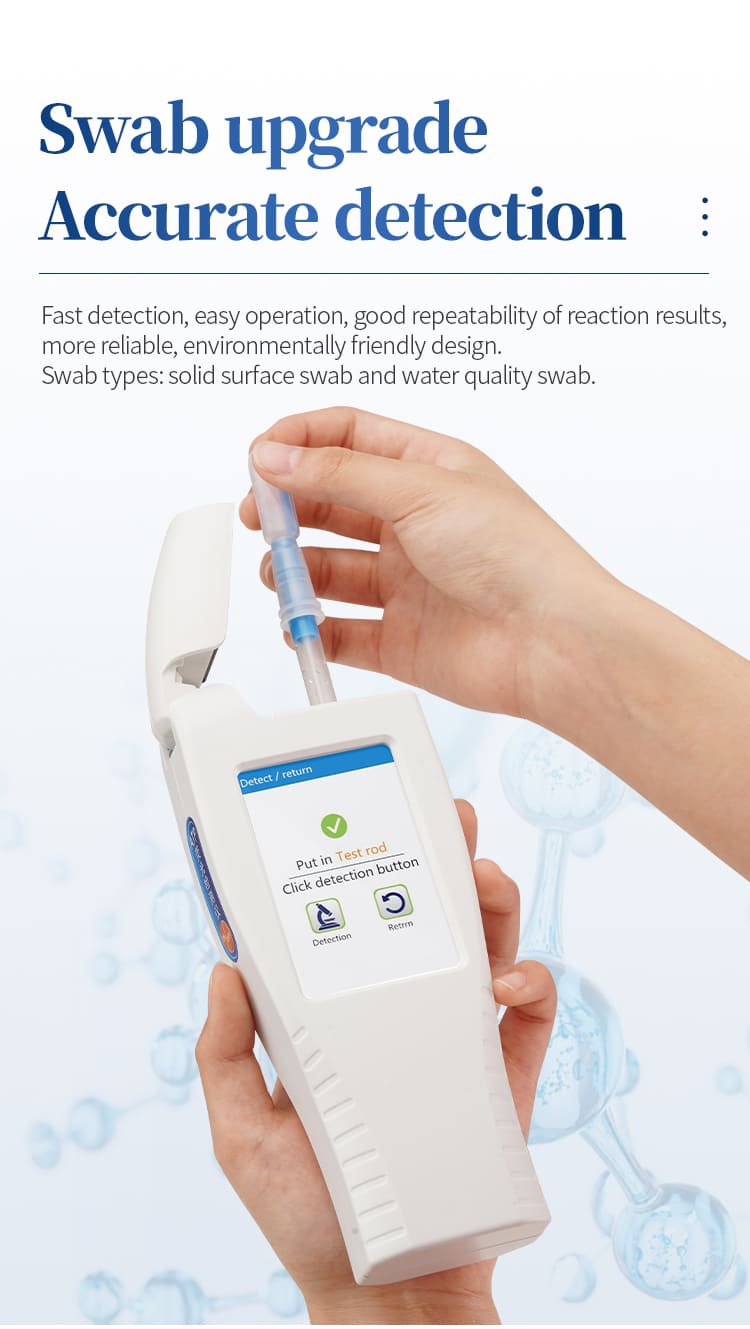

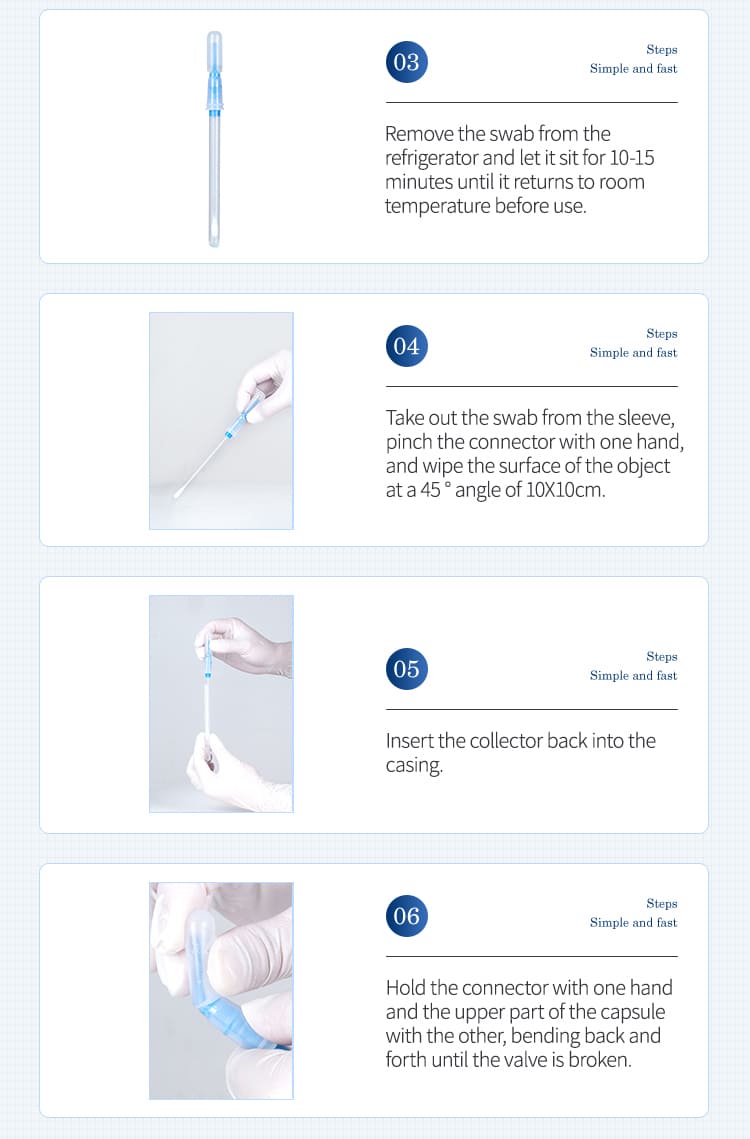

23. Integrated collection swab for wetting

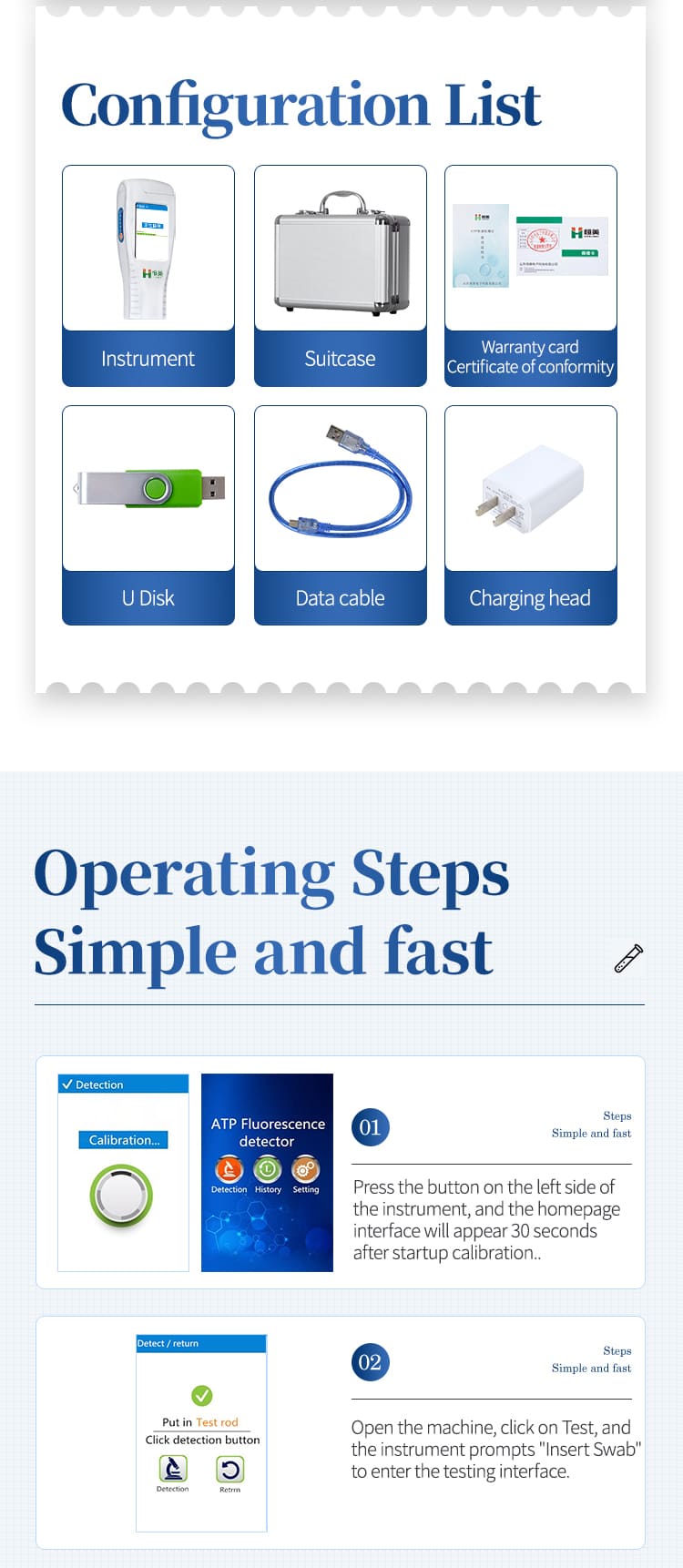

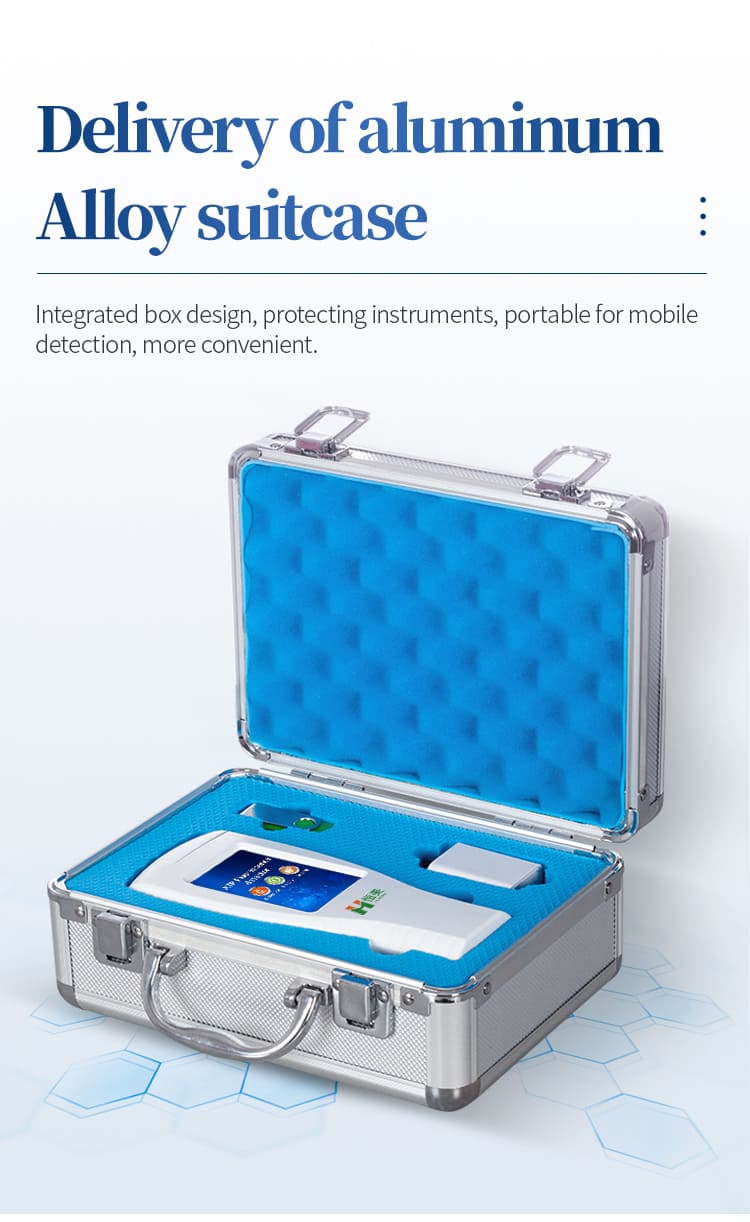

Random configuration: ATP detector (handheld) host, aluminum alloy suitcase, drive USB drive, PC data cable, data analysis software, Chinese operation manual
