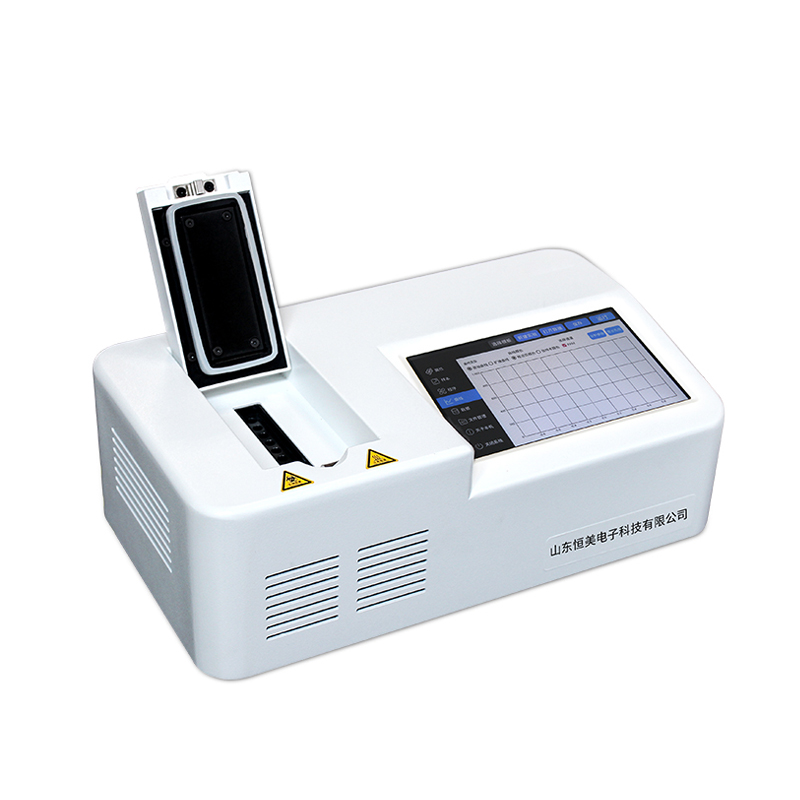

Meat authenticity rapid identifier

Brief introduction:

The real and fake meat detector is an efficient and convenient food testing equipment designed for identifying the authenticity of meat. It can detect various animal-derived ingredients such as pork, beef, mutton, horse meat, donkey meat, duck meat, chicken, etc. It can quickly and accurately detect the DNA components in meat and meat-derived samples to ensure that the consumed meat is authentic and reliable. Its high sensitivity and low error rate ensure the accuracy of the test results and provide professional testing services for various testing units.

Working principle:

The real and fake meat detector uses real-time fluorescence quantitative PCR technology to amplify and detect DNA in meat samples using specific primers and probes.

The following are its detailed working steps:

1. Sample preparation: homogenize the meat sample and extract DNA.

2. PCR reaction: add specific primers, probes and sample DNA to the reaction tube and place it in the detector for PCR amplification.

3. Real-time detection: During the PCR amplification process, the instrument monitors the DNA amplification in real time through fluorescent signals to generate an amplification curve.

4. Data analysis: According to the fluorescence signal intensity and amplification curve, determine whether the sample contains a specific DNA sequence, so as to determine the authenticity of the meat.

Instrument features：

1. Small size, light weight, easy to carry, compatible with 0.2PCR single tube, eight-tube, and simultaneous detection of 8 samples;

2. Adopting the American MARLOW customized Peltier module high-level semiconductor chip, the new generation of semiconductor heating and cooling technology, the fastest temperature change rate can reach 7 degrees per second, and the service life can reach one million cycles;

3. Adopting unique lighting detection and processing technology, automatically adjust the fluorescence background, improve the sensitivity and signal-to-noise ratio of the fluorescence signal, and obtain better results;

4. 13S single channel fast lighting, stable fluorescence collection signal , reducing delay errors;

5. Adopt maintenance-free long-life LED light source, no need to replace, independent fluorescence channel, smaller crosstalk between different channels;

6. Constant current control circuit, smooth power output, extend Peltier life, improve temperature control accuracy;

7. With overcurrent, overtemperature and other protection functions;

8. Powerful software analysis function, can perform quantitative analysis, melting curve analysis, genotyping, etc., analysis software lifetime free upgrade, support software customization for different industries;

9. Comes with 7-inch color touch screen control.

Technical parameters:

Number of fluorescence detection channels: single channel

Applicable probes or dyes:

(Standard) First channel: 470/520 FAM, SYBR Green

(Optional high configuration) Second channel: 530/570 HEX, JOE, VIC

Operation mode: one-button start, automatic detection

Detection time: 30-60 minutes

Detection sensitivity: 1 copy

Error rate: ≤0.1%

Sample capacity: 8*0.2mL

Test tube type: 0.2PCR single tube, eight-tube strip

Sample volume: 15-100uL

Heating/cooling method: semiconductor heating/refrigeration

Temperature range: 4℃-99℃

Temperature control accuracy: ≤±0.01℃

Temperature accuracy: ≤±0.1℃

Temperature uniformity: ≤±0.3℃

Light-emitting device: high-brightness LED

Lighting device: high-sensitivity, high signal-to-noise ratio photodiode

Linear detection range: 100~1010 copies

Linear correlation coefficient: ≥0.999

Data interface: USB 2.0*2

Dimensions: 290mm*308mm*130mm (width*depth*height)

Weight: about 3Kg
