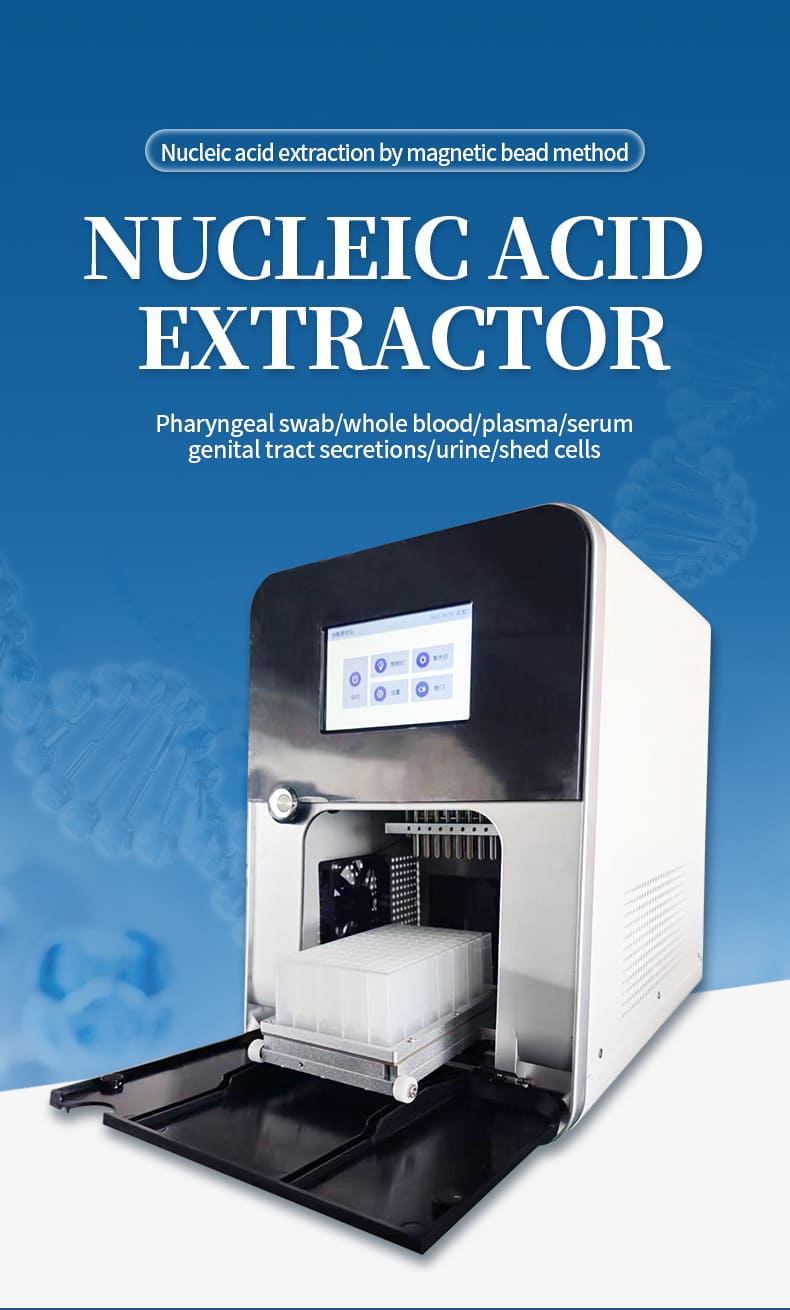

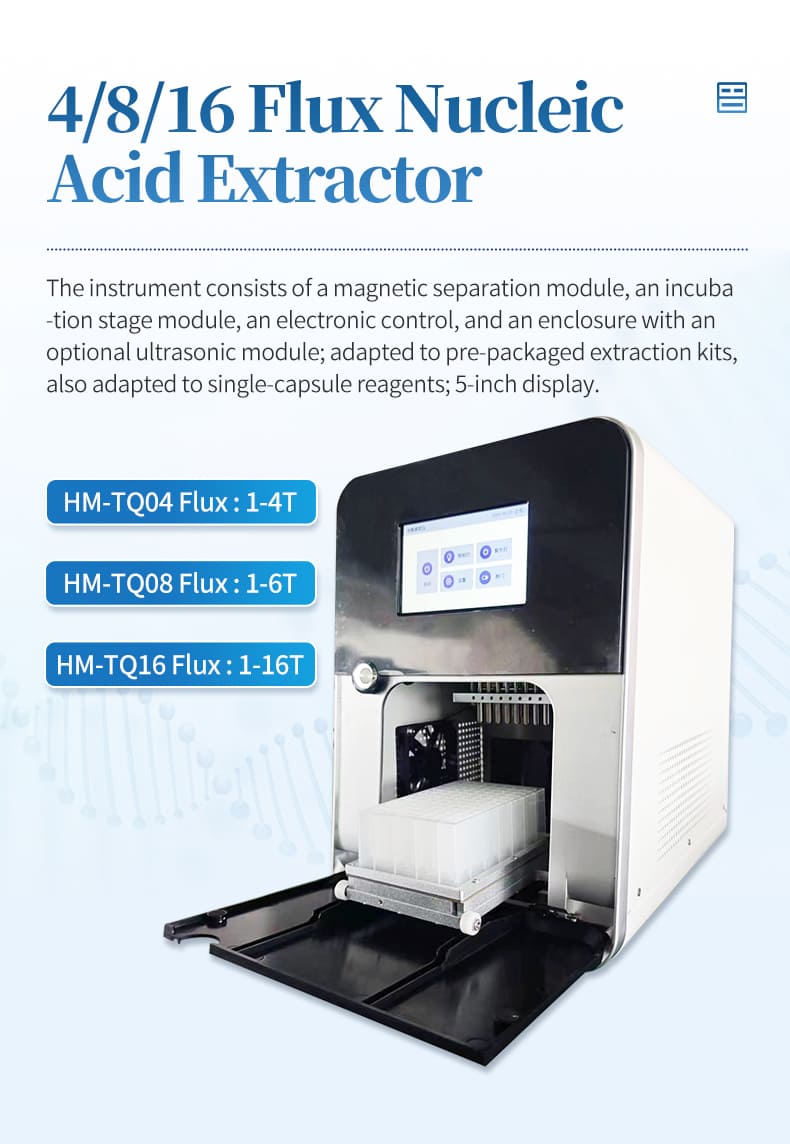

4-flux nucleic acid extractor

Product Overview:

The nucleic acid extractor extracts nucleic acid through magnetic bead method, and by selecting the corresponding reagent kit, high-purity nucleic acid can be automatically isolated and purified from various sample materials such as blood, tissue, and cells. It has the advantages of strong compatibility (compatible with pre packaged extraction kits, as well as single head reagents), fast extraction speed, high extraction recovery rate, and simple operation, making it a powerful "assistant" for molecular biology laboratory testing. It can be widely applied in scientific research, molecular diagnosis, animal and plant disease detection, and other fields.

Product features:

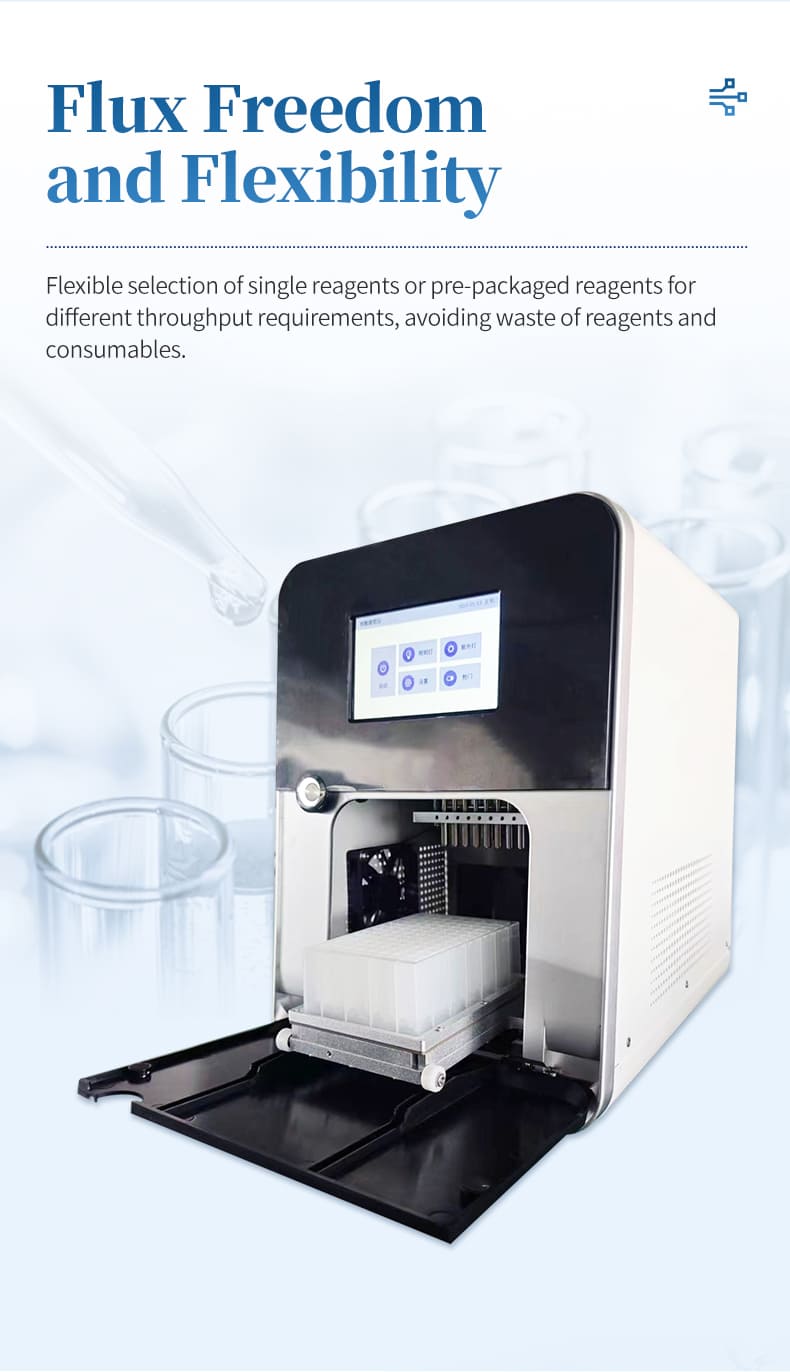

● Free and flexible flux

For extraction requirements with different fluxes, flexible selection of single reagents or pre packaged reagents can be made to avoid waste of reagent consumables.

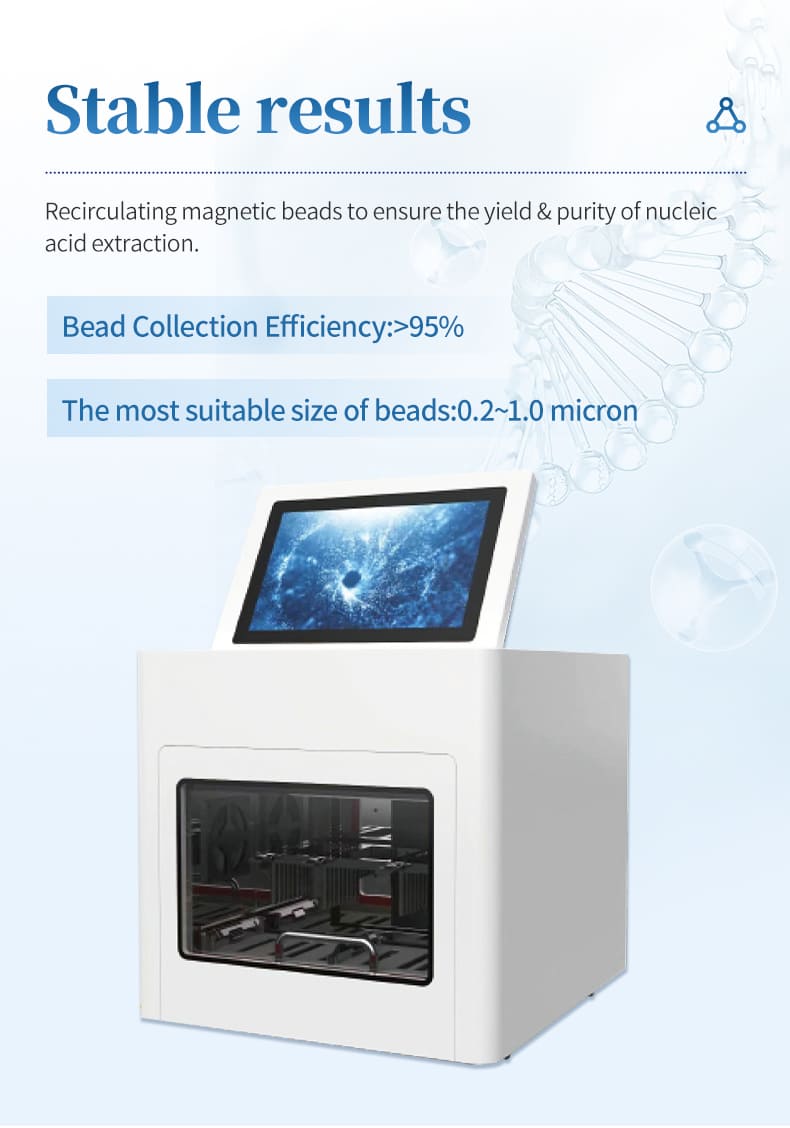

● Stable results

Circulating magnetic beads ensure the yield and purity of nucleic acid extraction.

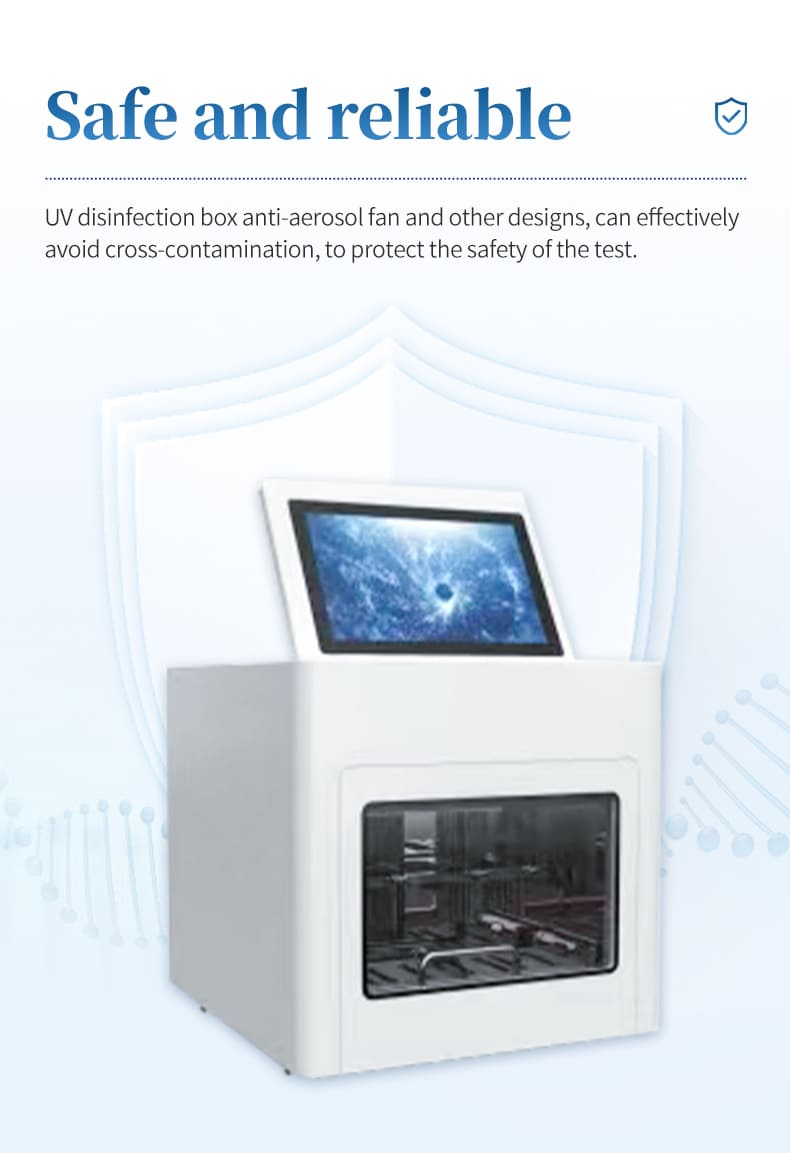

● Safe and reliable

The design of UV disinfection box and aerosol fan can effectively avoid cross contamination and ensure the safety of the experiment.

● Simple design, compact and portable

Compact in size, supporting battery power supply, suitable for automated extraction needs in various environments such as the field and laboratory.

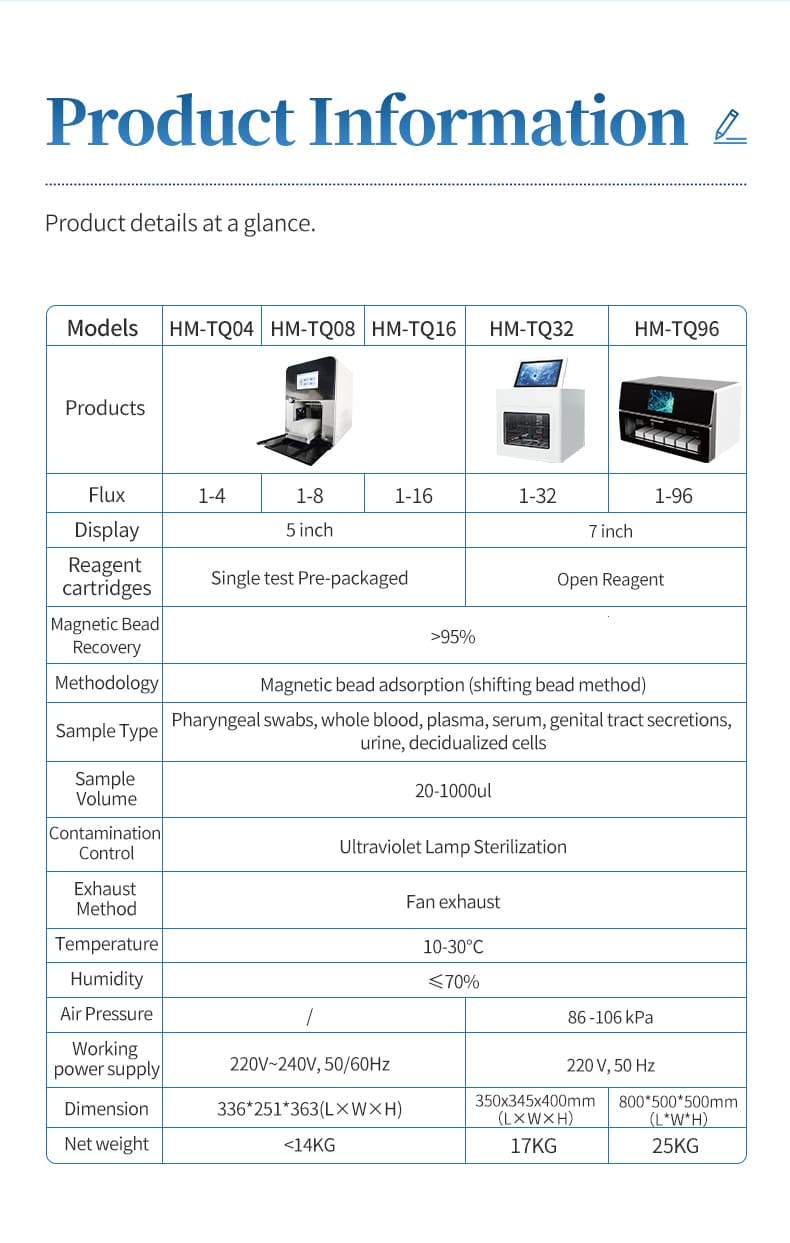

Technical performance:

Instrumental Methodology: Magnetic Bead Adsorption (Moving Magnetic Beads Method)

Sample types: throat swab, whole blood, plasma, serum, reproductive tract secretions, urine, exfoliated cells, etc

Sample volume: 20-1000ul

Magnetic bead recovery rate:>95%

Instrument structure: mainly composed of magnetic separation module, incubation platform module, electric control, and optional ultrasonic module with outer shell

Experimental program: User programmable

Kit: Single test pre packaged

Flux: 1-4T

Display: 5 inches

Anti pollution: UV lamp disinfection and fan exhaust system

Operating environment: Temperature: 10-30 ℃ Humidity: ≤ 70%

Working power supply: 220V~240V, 50/60Hz

Overall dimensions: 336 * 251 * 363 (length, width, height)

Net weight: less than 14KG
