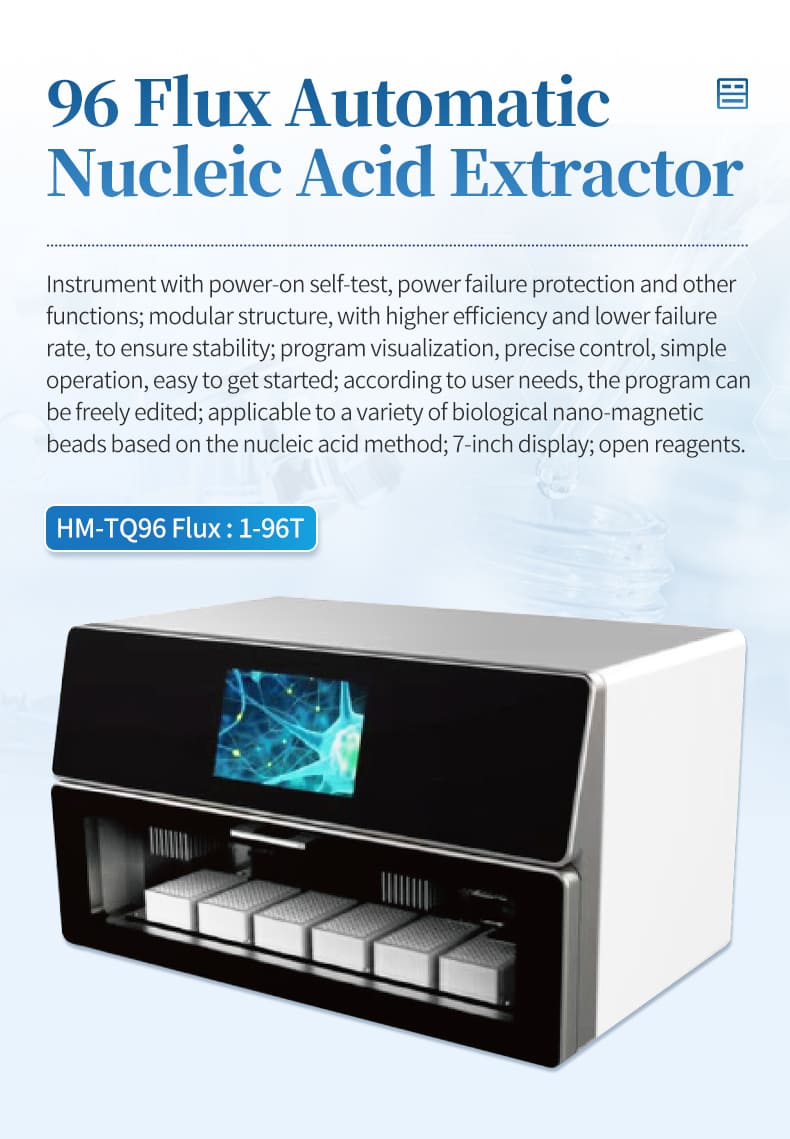

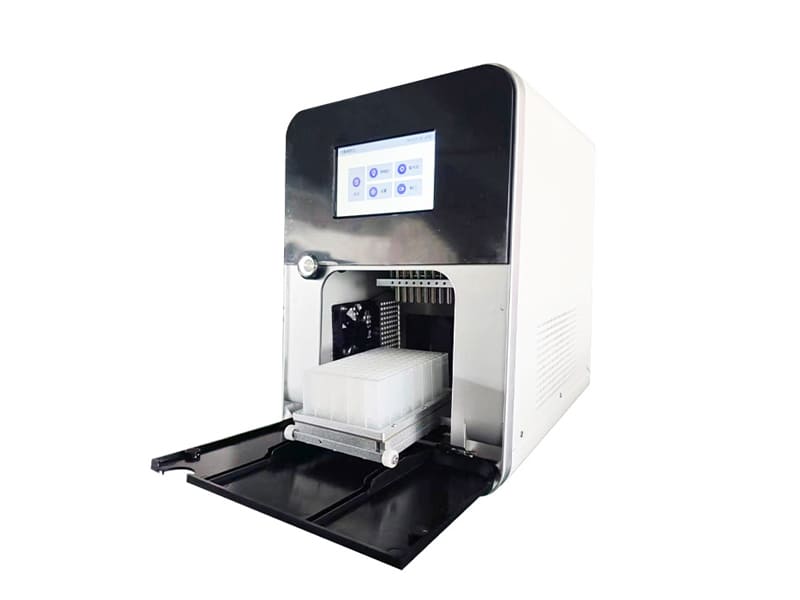

96 flux nucleic acid extractor

Product features:

Sample protection: The instrument has functions such as power on self-test and power-off protection to minimize the possibility of sample loss

Modular design: Adopting a modular structure, it has higher efficiency and lower failure rate, ensuring stability

Humanized interface: program visualization, precise control, simple operation, and easy to learn

Autonomous programming control: Based on user needs, programs can be freely edited

Open platform: suitable for various nucleic acid methods based on biological nano magnetic beads

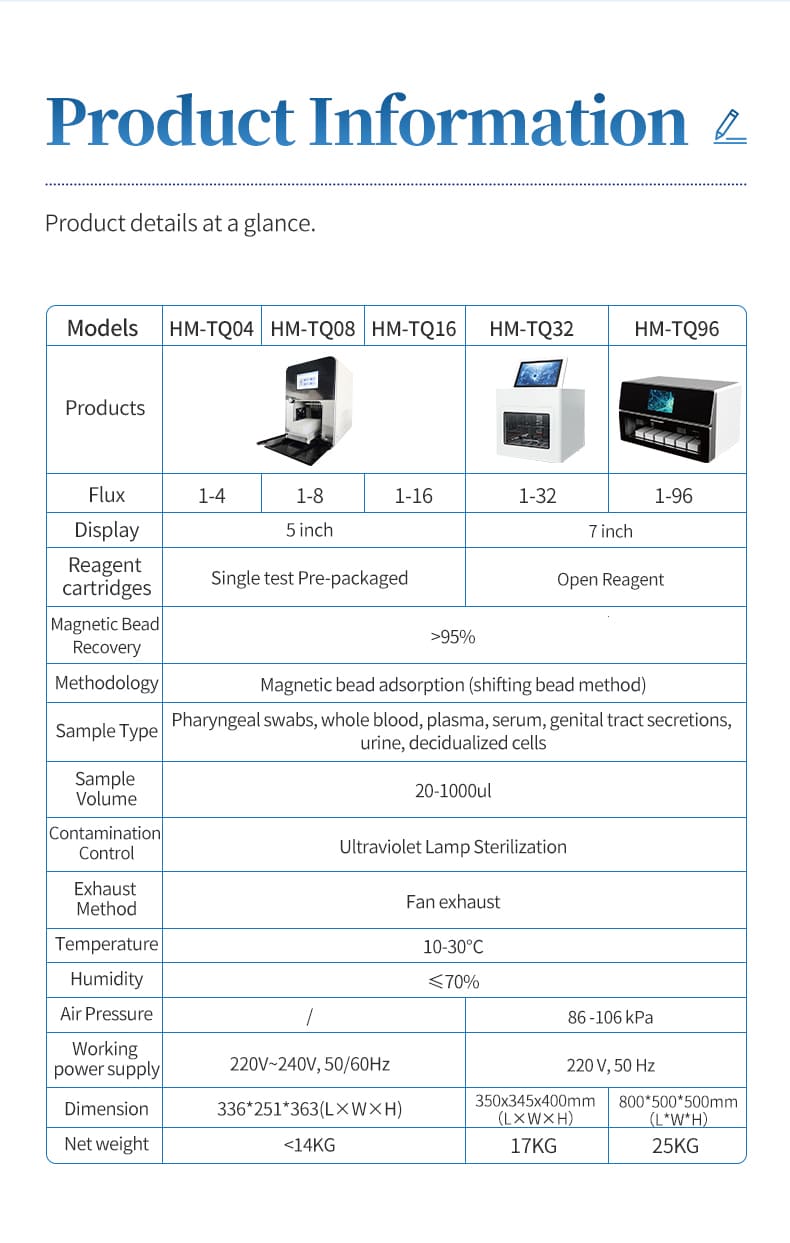

Performance parameters:

Instrumental Methodology: Magnetic Bead Adsorption (Moving Magnetic Beads Method)

Sample types: throat swab, whole blood, plasma, serum, reproductive tract secretions, urine, exfoliated cells, etc

Sample size: * 96 more/time

Magnetic rods: 96 independent magnetic rods

Sample range: 20~1000ul

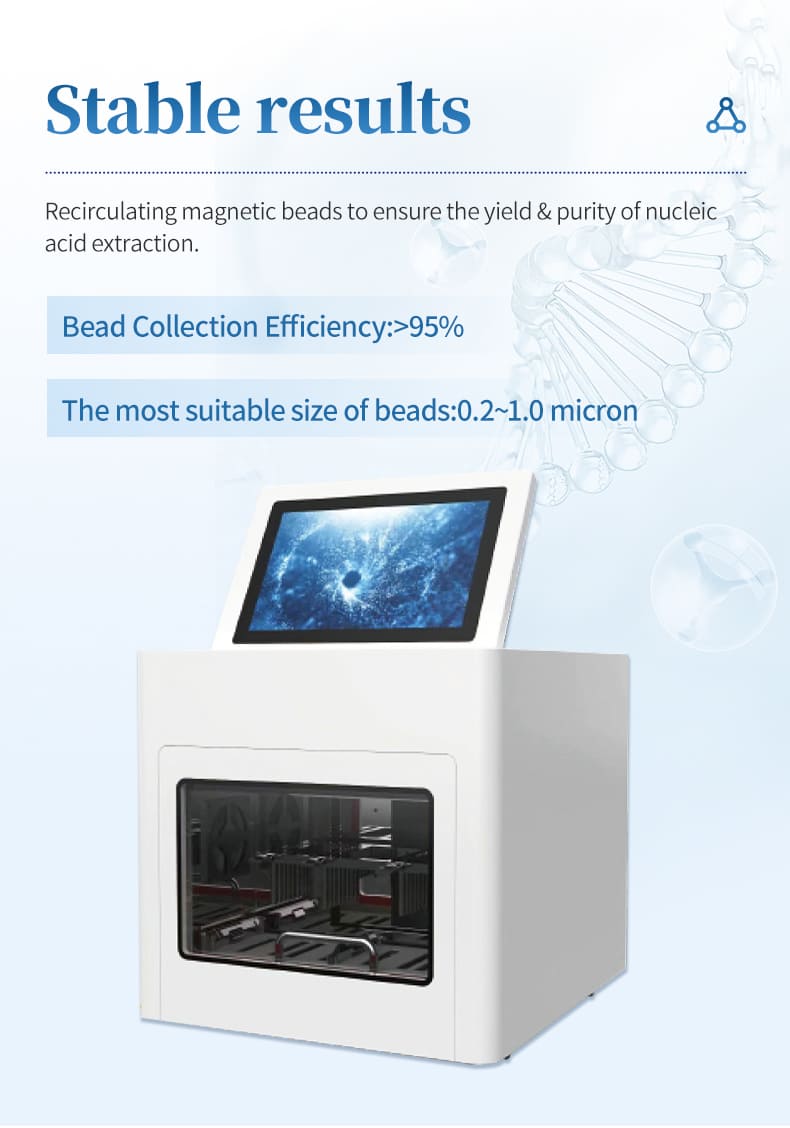

Magnetic bead collection efficiency:>95%

*Suitable size magnetic beads: 0.2~1.0 micrometers

Experimental program: User programmable

Reagent: Open ended reagent

Display: 7 inches

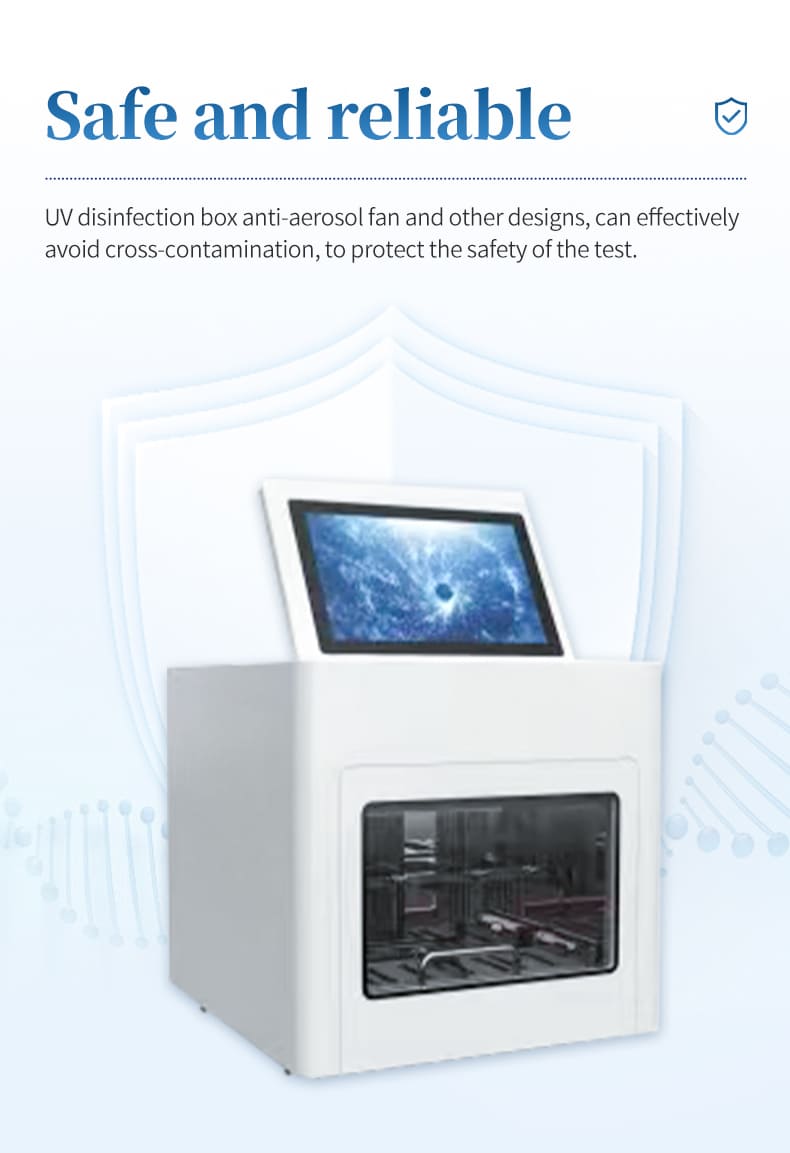

Pollution release: UV lamp disinfection and fan exhaust system

Operating environment temperature: 10 ℃~30 ℃

Operating environment humidity: ≤ 70%

Atmospheric pressure requirements; 86 kPa to 106 kPa

Power supply voltage: 220 V, 50 Hz

Machine size: 800 * 500 * 500mm (L * W * H)

Net weight: 25Kg

Validity period: 5 years
