Product Details
Product Introduction

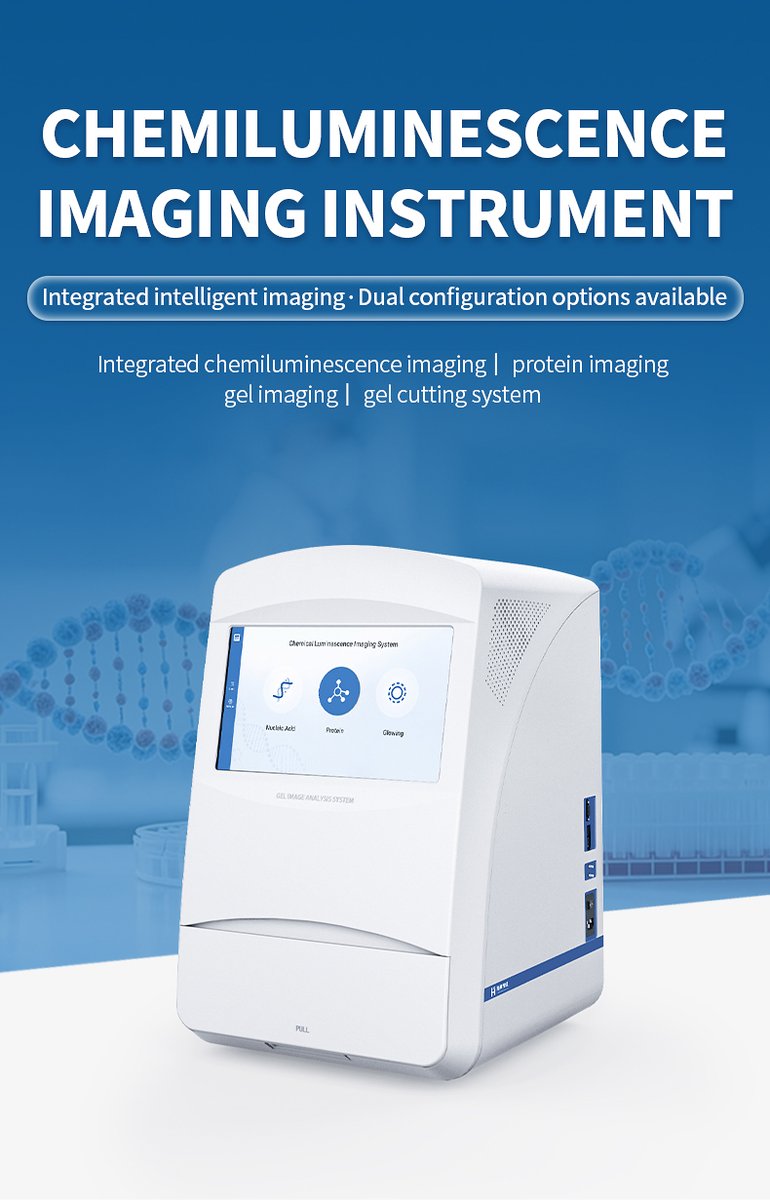

The HM-CL-2 is an all-in-one chemiluminescence imaging system designed for laboratories that need reliable, high-sensitivity detection of proteins and nucleic acids. The system eliminates the need for an external computer by integrating a 15.6-inch capacitive touchscreen directly into the instrument. This architecture reduces bench clutter, simplifies operation, and minimizes signal interference.

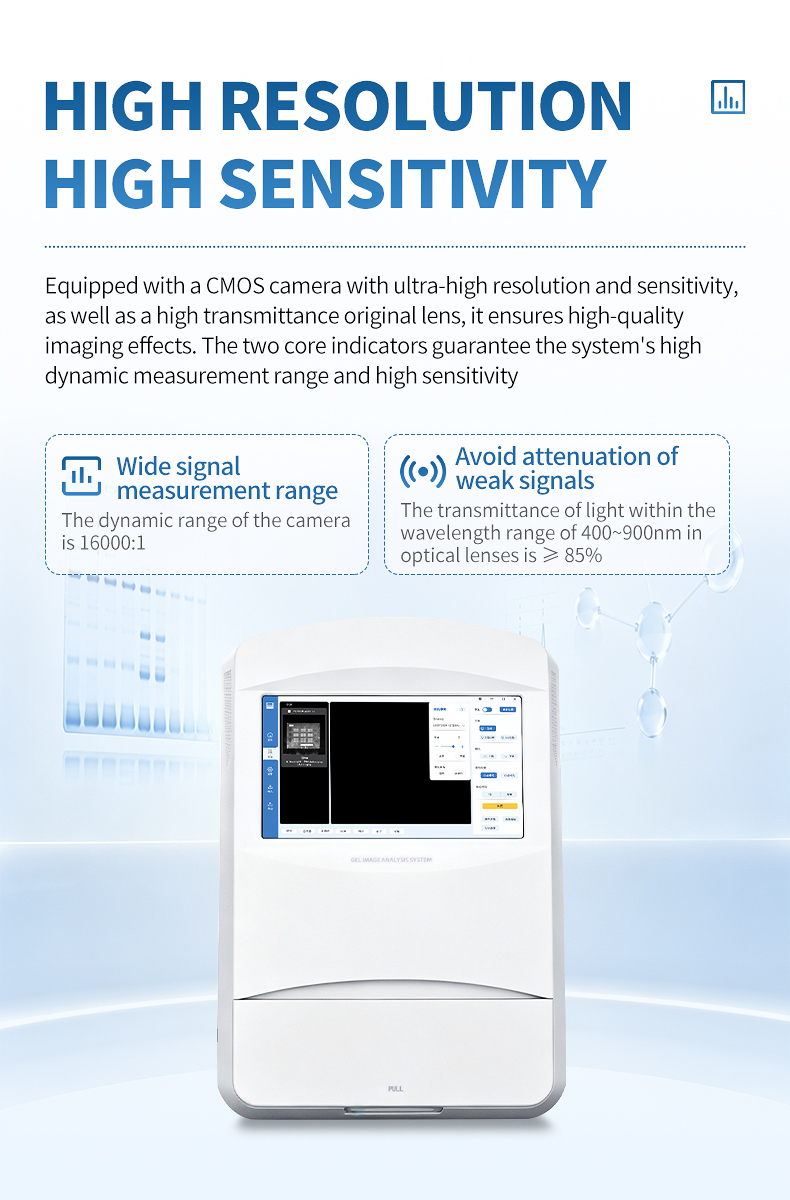

At the core of the system is a 9-megapixel cooled CMOS sensor with 16-bit gray-scale resolution. The sensor is cooled to -25 °C at 22 °C ambient, which suppresses dark current and enables long exposure capture of weak chemiluminescent signals. The optical path uses an F0.95 lens with ≥ 85% transmittance across the 400–900 nm range, preserving signal strength for quantitative Western Blot and blotting applications.
Built-in smart exposure software recommends optimal capture settings and flags saturated pixels, helping operators maintain linear quantification. For more context on manufacturer reliability and service support, see our chemiluminescence imager manufacturer guide.
Applications
- Western Blot protein detection and quantification
- Southern Blot and Northern Blot nucleic acid analysis
- Dot blot and slot blot screening
- Enzyme activity and reporter gene assays
- Antibody validation and epitope mapping
Functional Performance

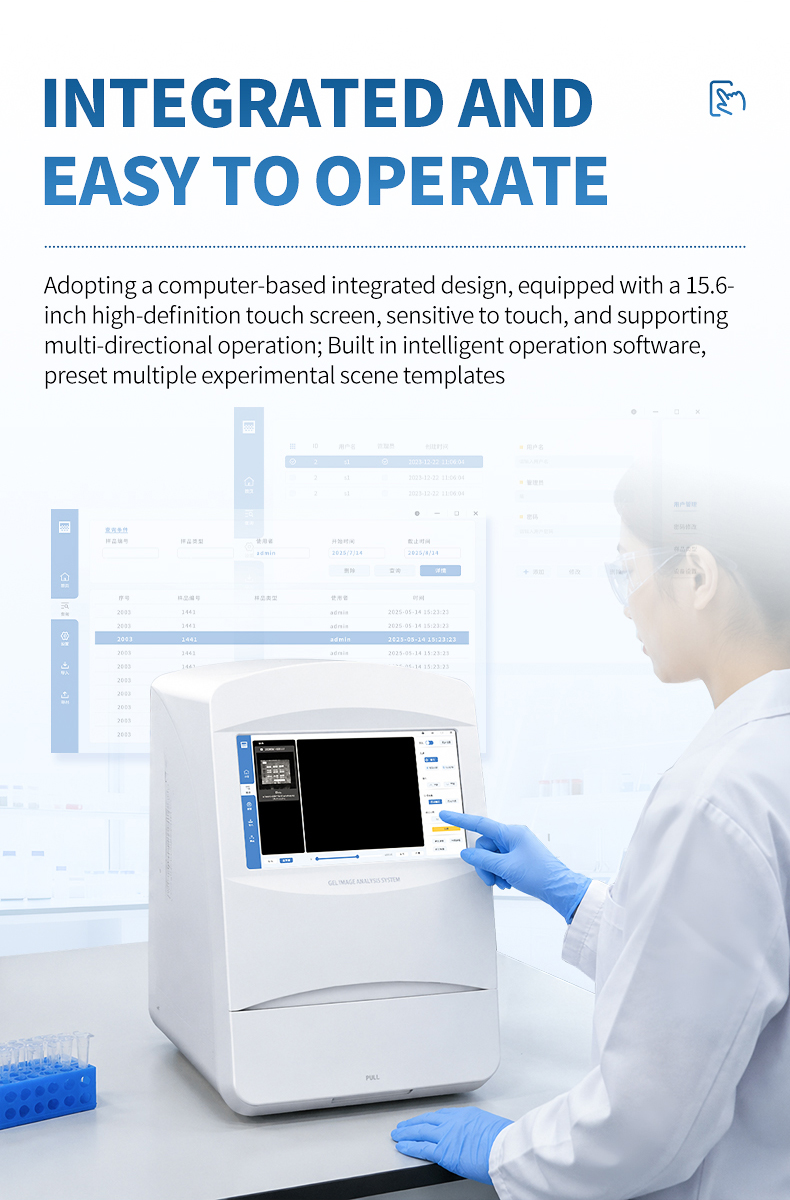

- Computer-free integration: 15.6-inch touchscreen controls image capture, processing, and export.
- Cooled CMOS sensor: 9 MP resolution with -25 °C cooling for low-noise imaging.
- 16-bit gray depth: 65,536 gray levels support quantitative analysis.
- High-transmittance optics: F0.95 lens with ≥ 85% transmission across 400–900 nm.

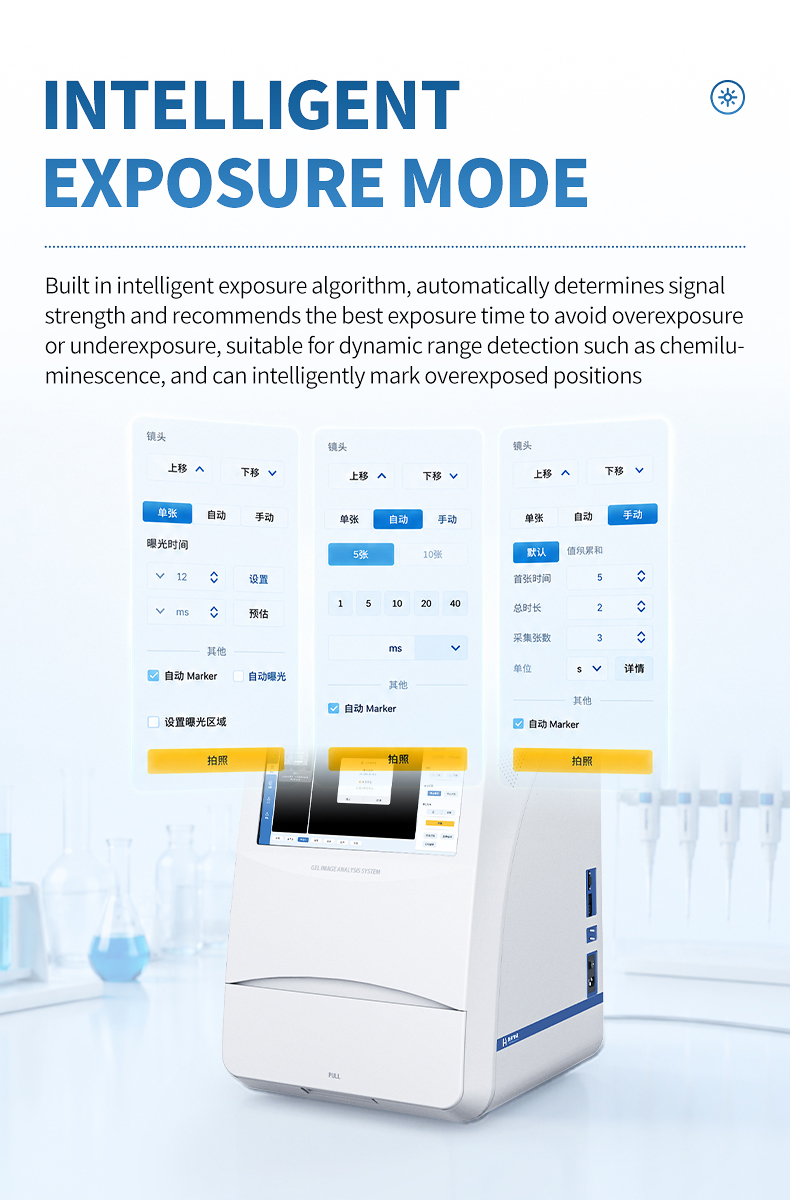

- Smart exposure algorithm: Automatically recommends exposure time and marks saturated regions.
- Flexible binning: 1×1, 2×2, 3×3, 4×4, 6×6, and 8×8 options.

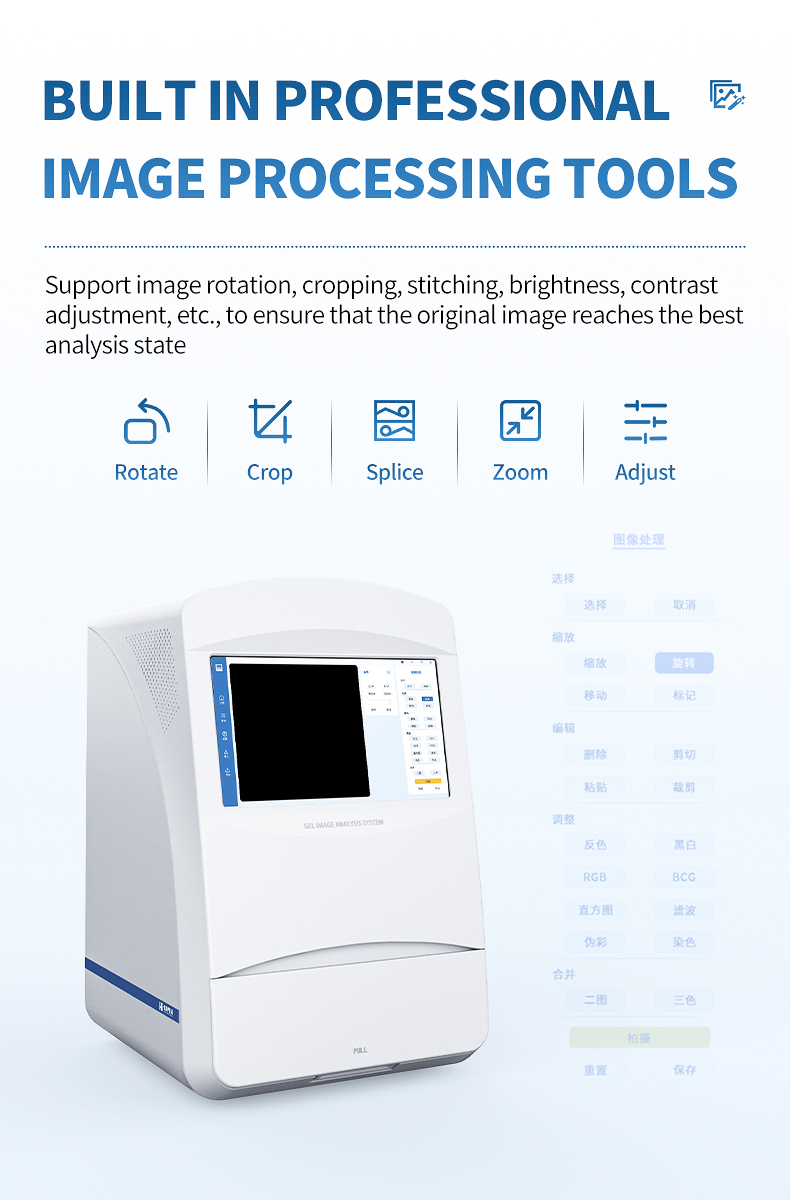

- Image processing toolkit: Rotation, cropping, stitching, brightness, and contrast adjustment.
- Multiple interfaces: USB 2.0 × 2, USB 3.0 × 2, and Ethernet for data export.
- Compact footprint: 460 × 470 × 715 mm benchtop design.
- Low power consumption: ≤ 90 W operating power.
Main Parameters
| Parameter | Value |
|---|---|
| Display | 15.6-inch capacitive touchscreen |
| Imaging area | 150 mm × 150 mm effective field of view |
| Camera | 9 MP cooled CMOS, 16-bit |
| Cooling | -25 °C at 22 °C ambient |
| Pixel size | 3.76 μm × 3.76 μm |
| Resolution | 3000 × 3000 |
| Dynamic range | 16,000:1 |
| Lens | F0.95, ≥ 85% transmittance at 400–900 nm |
| Power | ≤ 90 W |
| Dimensions | 460 × 470 × 715 mm |
| Weight | 36.1 kg |

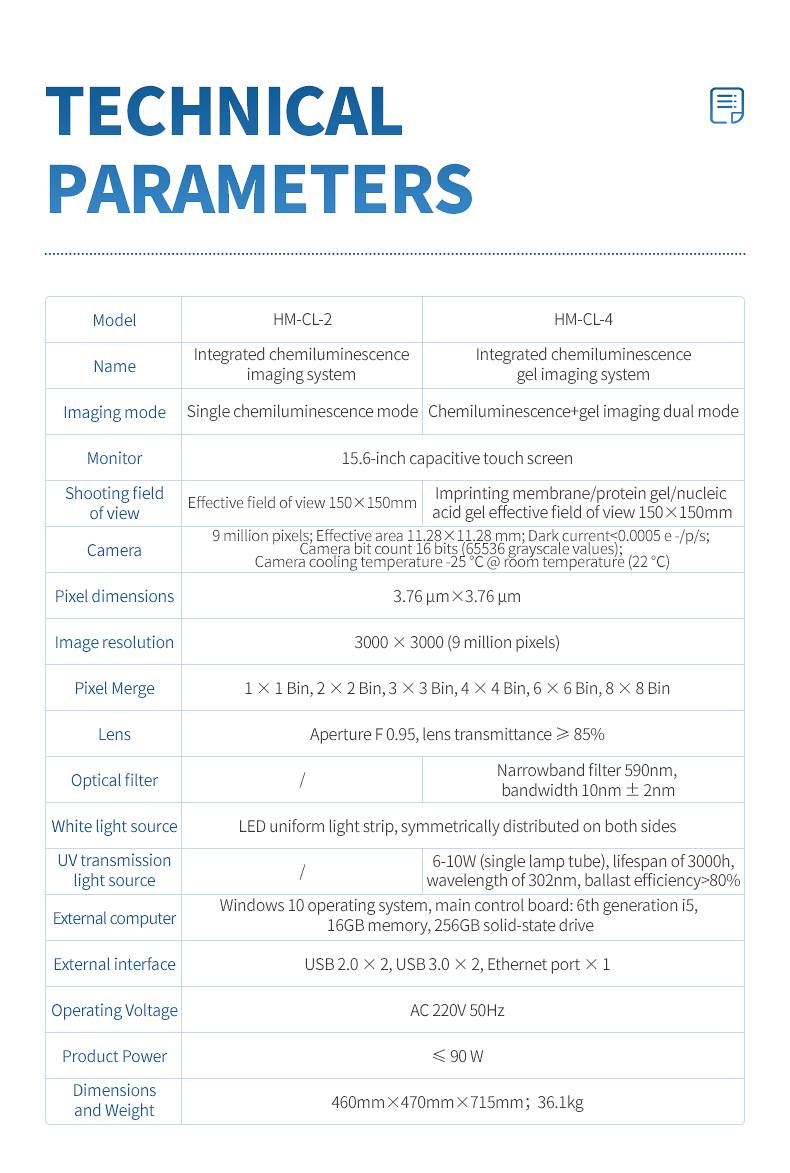

Technical Parameters
| Item | Specification |
|---|---|
| Monitor | 15.6-inch capacitive touchscreen |
| Shooting field of view | Effective field 150 mm × 150 mm |
| Camera | 9 MP; effective area 11.28 mm × 11.28 mm; dark current < 0.0005 e-/p/s; 16-bit (65,536 gray levels); cooling -25 °C at 22 °C ambient |
| Pixel size | 3.76 μm × 3.76 μm |
| Image resolution | 3000 × 3000 (9 MP) |
| Binning | 1×1, 2×2, 3×3, 4×4, 6×6, 8×8 |
| Lens | Aperture F0.95; transmittance ≥ 85% |
| White light source | LED uniform light strip, symmetrically distributed |
| External computer | Windows 10; 6th-gen i5 mainboard; 16 GB RAM; 256 GB SSD |
| External interfaces | USB 2.0 × 2, USB 3.0 × 2, Ethernet × 1 |
| Operating voltage | AC 220V 50Hz |
| Power | ≤ 90 W |
| Dimensions | 460 mm × 470 mm × 715 mm |
| Weight | 36.1 kg |
